ARC Series Curved Timber Linear LED Pendant

by Luminaire Studio

Breakwater, Australia

Luminaire Studio logo
  • 42.2K profile views
  • 4 saves
Visit Website

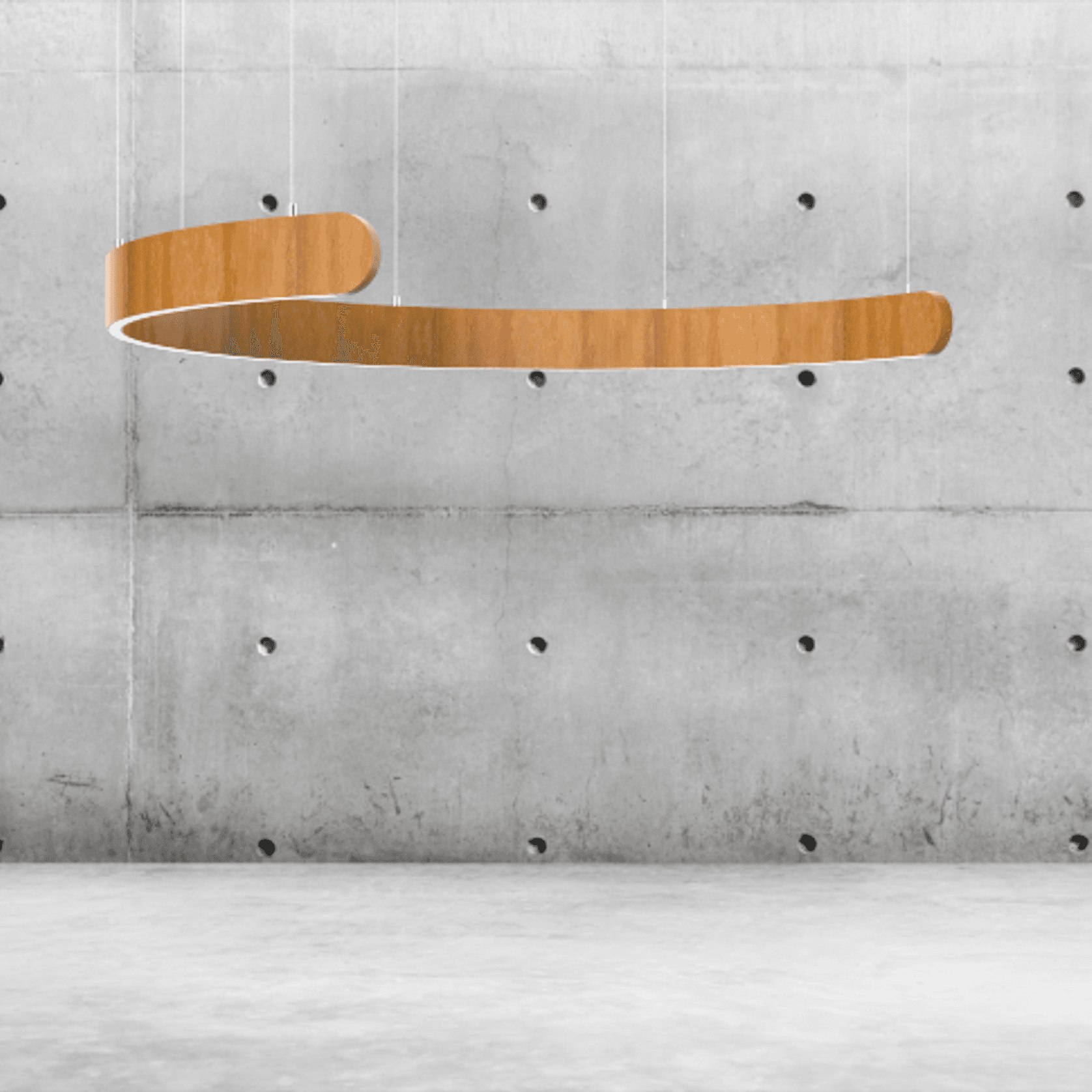

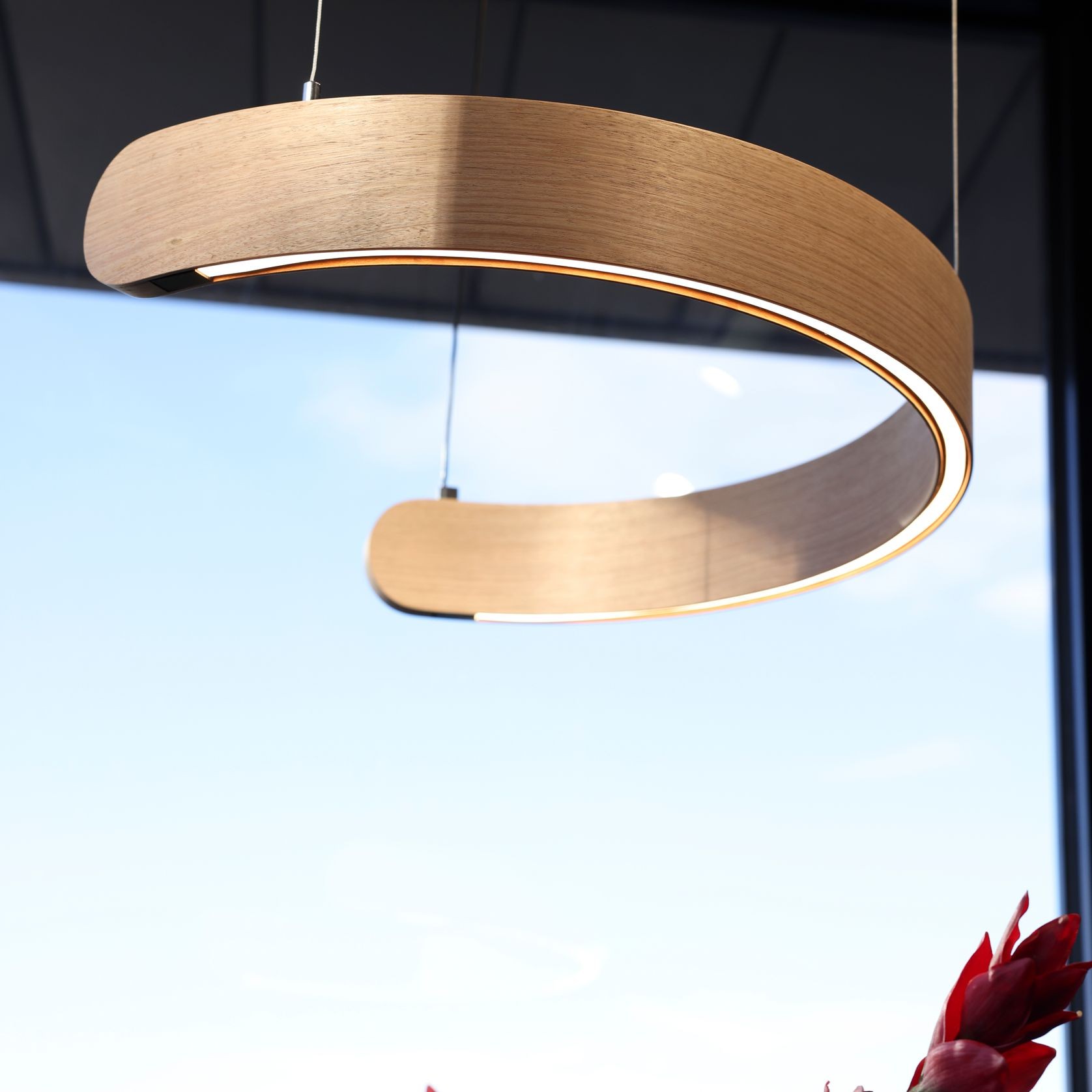

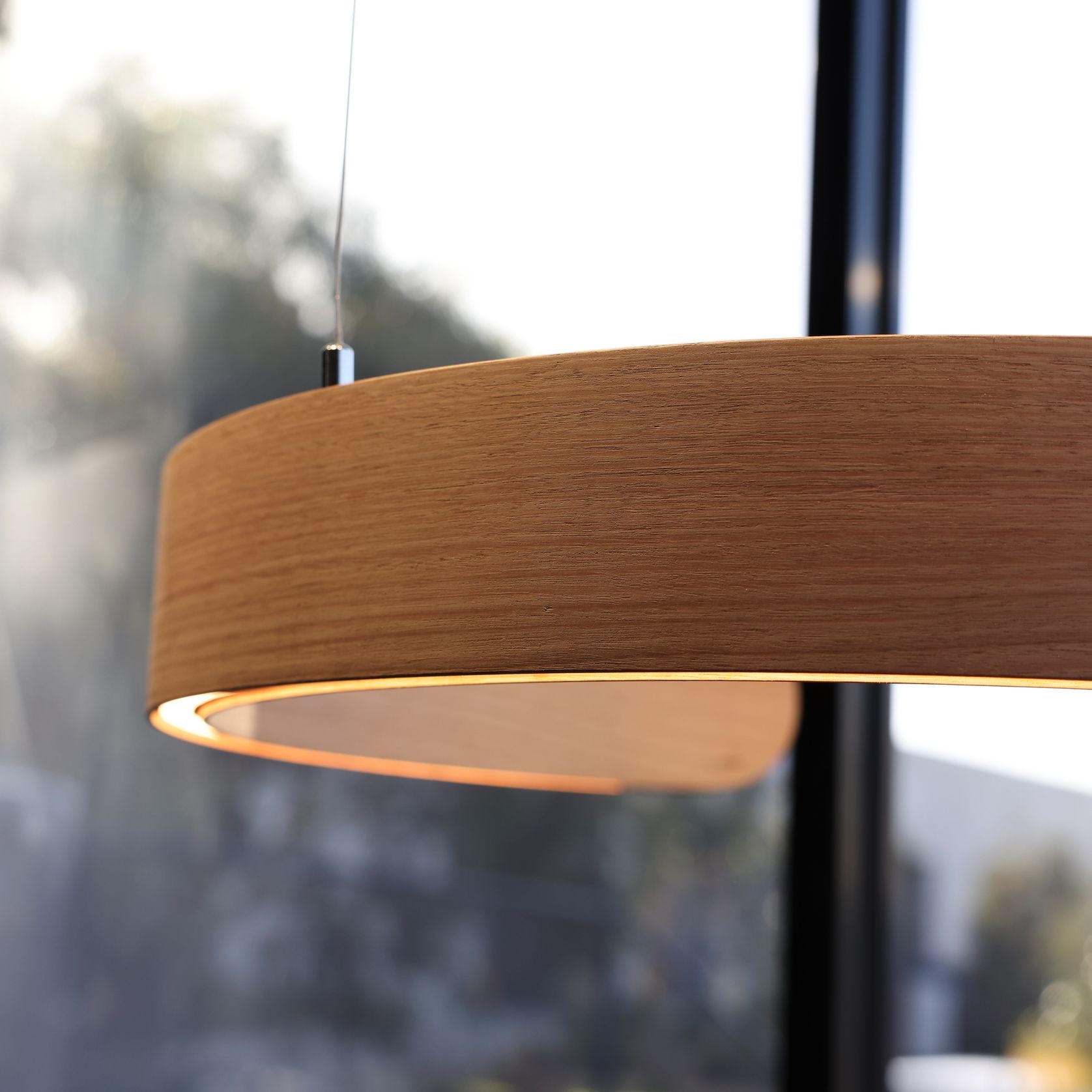

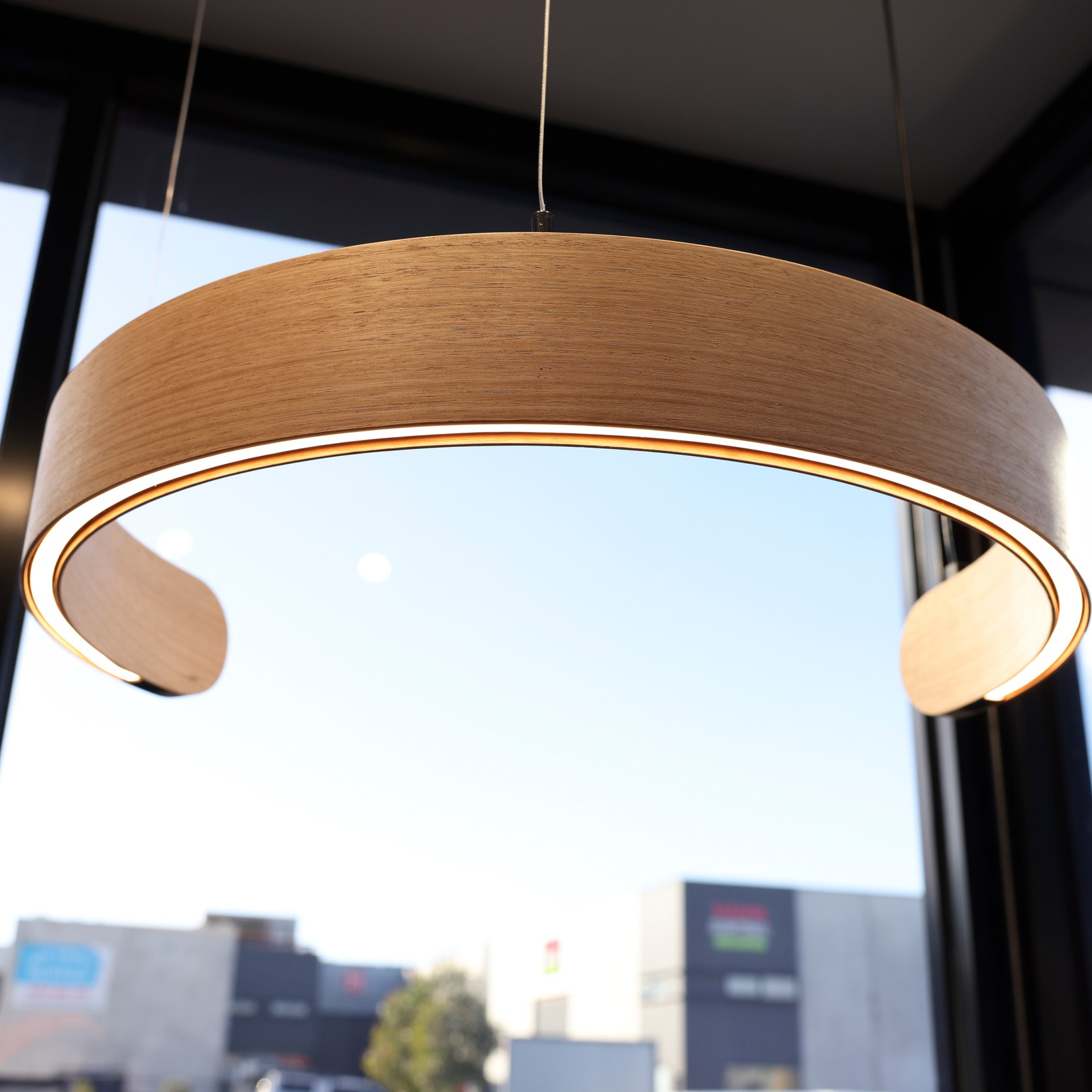

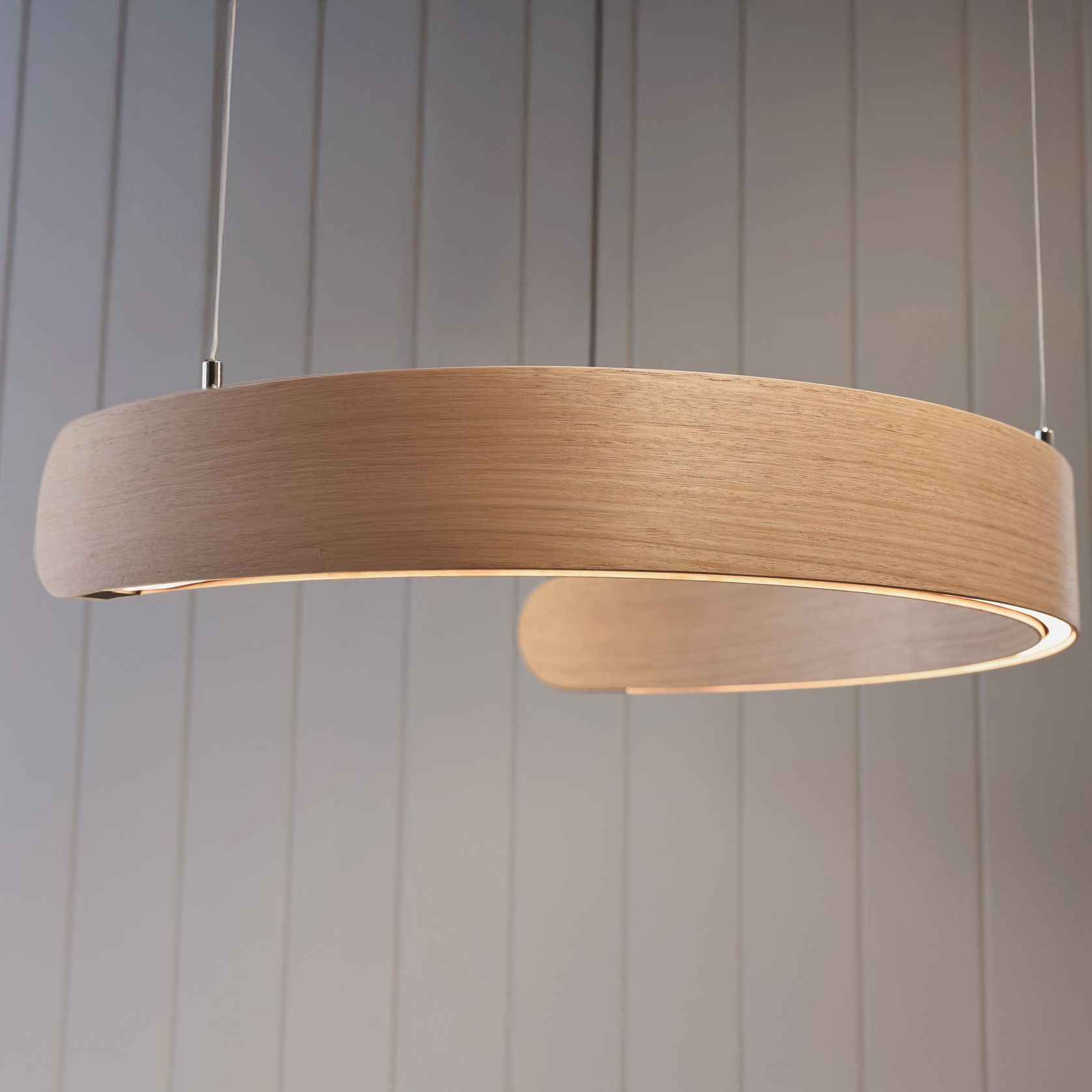

The ARC series is elegantly curved timber housing, crafted in Geelong from sustainable hardwood. With continuous linear LED rebated into the housing. offered in a range of sizes and optional finishes.

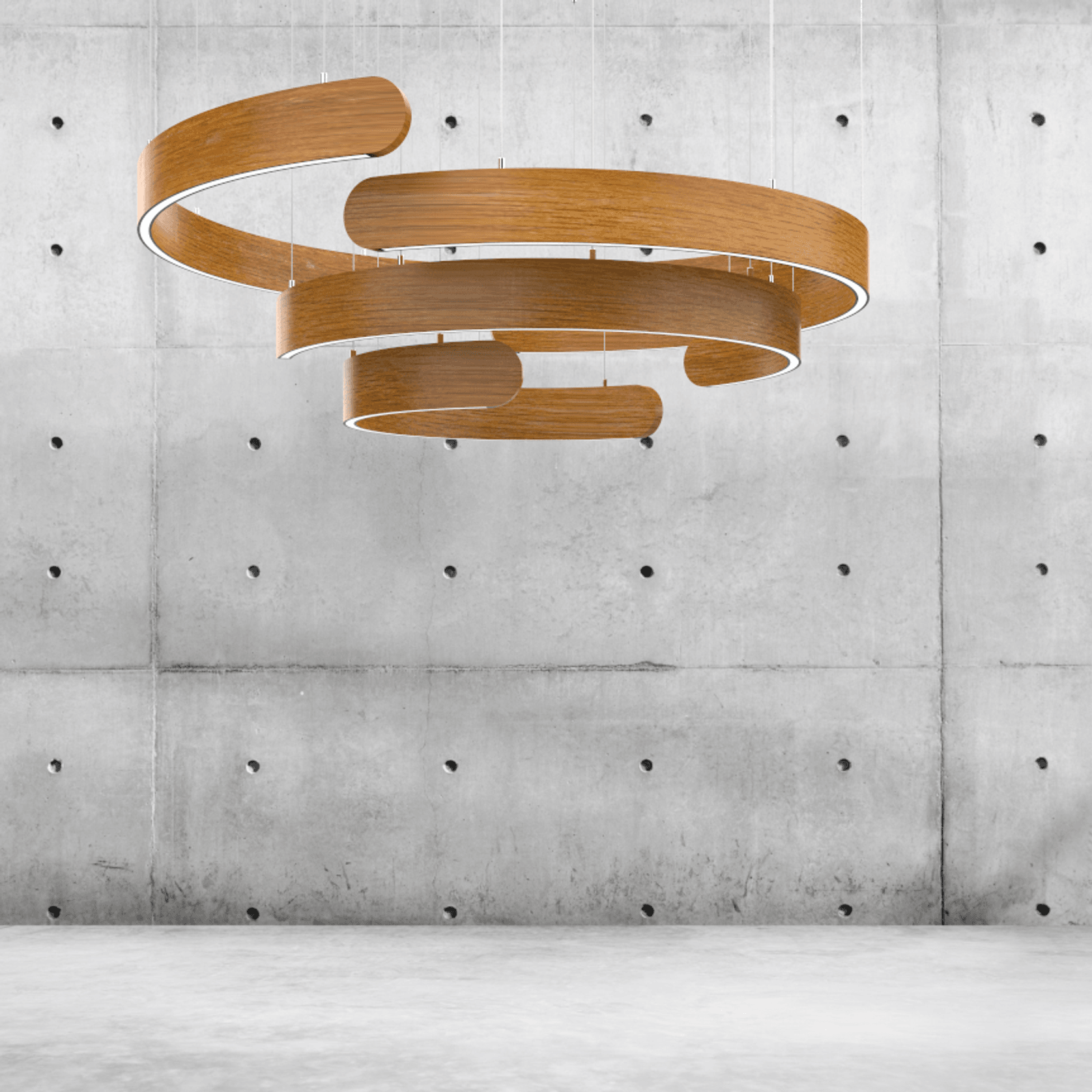

The Arc is flexible in design and can be combined singularly or in clusters to make a dramatic statement in a space.

The Arc is offered with standard remote drivers, Dali or Phase dimming with adjustable wire suspensions, optional ceiling canopy finishes (white or black – other finishes on request).

Product Details

Product
ARC Series Curved Timber Linear LED Pendant
Designer
Marcus Athanatos
Brand
Luminaire Studio
Year
2025
Orientation
Vertical
Lighting type
Direct light
Light bulb type
LED
Fitting type
Suspended
Room/Use
Office
Country of origin
Australia
Type of use
Commercial and Residential
Package type
Fragile - handle with care
Care and cleaning
Easy maintenance
Installation
Professional installation recommended
Assembly
Minor assembly required
Warranty
5 years

Product Variants

Material
Colours
Cluster Options
Drivers
Light Temp.
Size
ARC Series Curved Timber Linear LED Pendant
Visit site

The ARC series is elegantly curved timber housing, crafted in Geelong from sustainable hardwood.

With continuous linear LED rebated into the housing. offered in a range of sizes and optional finishes.

The Arc is flexible in design and can be combined singularly or in clusters to make a dramatic statement in a space.

The Arc is offered with standard remote drivers, Dali or Phase dimming with adjustable wire suspensions, optional ceiling canopy finishes (white or black – other finishes on request).

Specs

ARC-1 300

  • Code: ARC-1 300 XX(LED colour) XX (Driver).
  • Dimensions: 300 Radius, 1000mm x 90mm
  • Weight: 3.5kg
  • Material: Sustainable Tasmanian Oak.
  • Finishes: Clear, Stain on request.
  • Light Source: Continuous LED 3000K or 4000K
  • Input: 24V DC
  • Power: 8W
  • Driver: Remote Tridonic/Osram std driver, Dali dimmable or Phase dimmable.

ARC-1 400

  • Code: ARC-1 400 XX(LED colour) XX (Driver).
  • Dimensions: 400 Radius, 1400mm x 90mm
  • Weight: 4.0kg
  • Material: Sustainable Tasmanian Oak.
  • Finishes: Clear, Stain on request.
  • Light Source: Continuous LED 3000K or 4000K
  • Input:  24V DC
  • Power: 11.2W
  • Driver: Remote Tridonic/Osram std driver, Dali dimmable or Phase dimmable.

ARC-1 500

  • Code: ARC-1 500 XX(LED colour) XX (Driver).
  • Dimensions: 500 Radius, 1800mm x 90mm
  • Weight: 4.5kg
  • Material: Sustainable Tasmanian Oak.
  • Finishes: Clear, Stain on request.
  • Light Source: Continuous LED 3000K or 4000K
  • Input: 24V DC
  • Power: 14.4W
  • Driver: Remote Tridonic/Osram std driver, Dali dimmable or Phase dimmable.

ARC-1 600

  • Code: ARC-1 600 XX(LED colour) XX (Driver).
  • Dimensions: 600 Radius, 2200mm x 90mm
  • Weight: 5kg
  • Material: Sustainable Tasmanian Oak.
  • Finishes: Clear, Stain on request.
  • Light Source: Continuous LED 3000K or 4000K
  • Input: 24V DC
  • Power: 17W
  • Driver: Remote Tridonic/Osram std driver, Dali dimmable or Phase dimmable.
Size Options
  • 600 Radius – 2200mm
  • 500 Radius – 1800mm
  • 400 Radius – 1400 mm
  • 300 Radius – 1000 mm
Cluster Options
  • ARC 1 – single pendant
  • ARC 2 – double cluster
  • ARC 3 – triple cluster
  • ARC 4 – quadruple cluster

Contact Bluelab for larger cluster combinations
