Briton Panic Bar Pack DBL Door Selector Lever LPED008

Briton Panic Bolt w/ Door Selector, Lever & Cylinder Lock Pack The 377E panic bolt is suitable for double door applications.

Specs

• Door Type: Timber or Metal
• Stile Width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
• Door Width: 665mm to 1300mm per leaf
• Door Height: 2500mm standard. Extra long top shoot available for door heights up to 3350mm
• Material: Zinc diecast chassis. Steel rods and crossbars
• Finishes: Silver Enamel
• Supplied as Trade pack with all fixing hardware

Scope of use

Panic Bolt allows for both doors to be locked closed and permits emergency exit from both doors (e.g. where emergency or panic situation could occur).

Includes

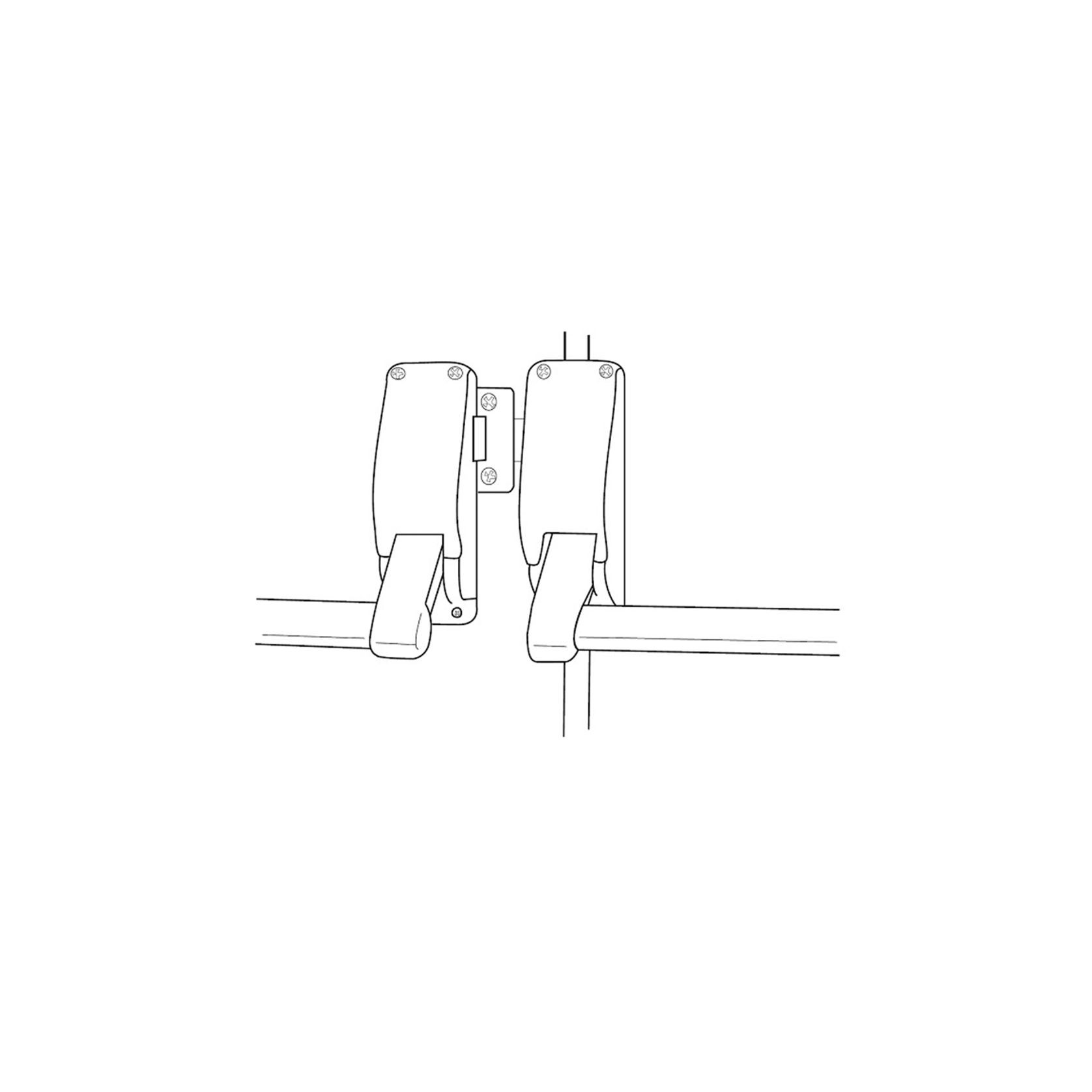

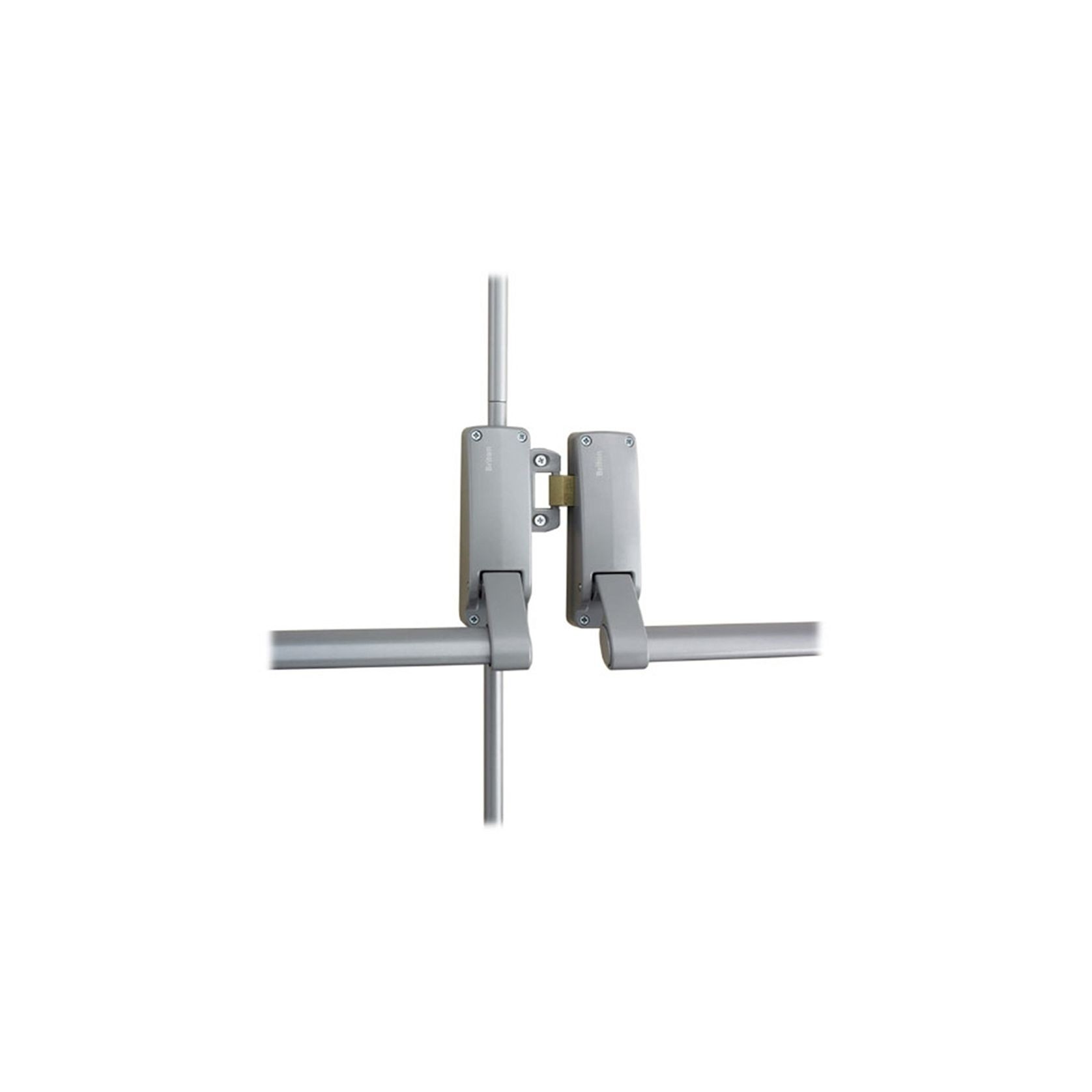

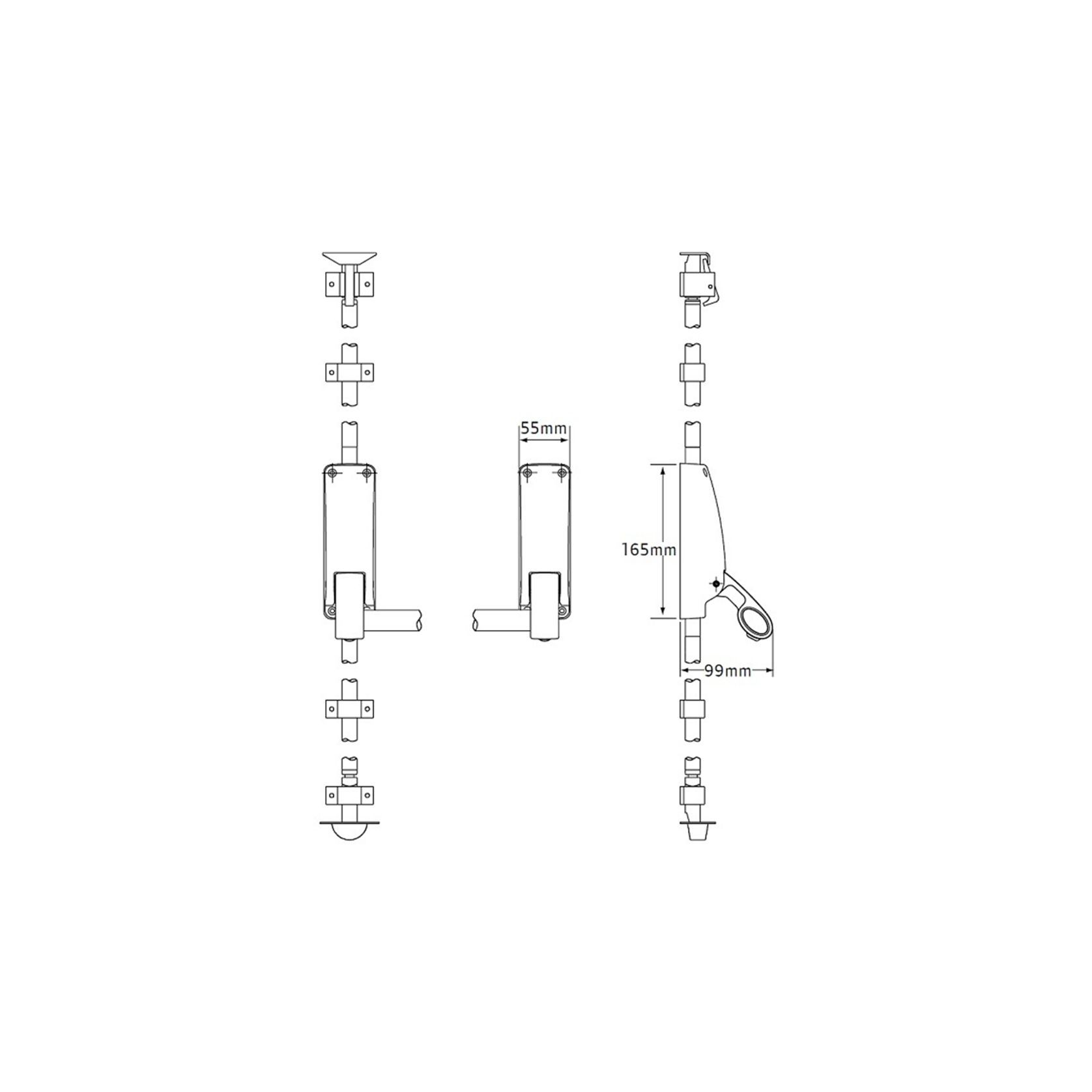

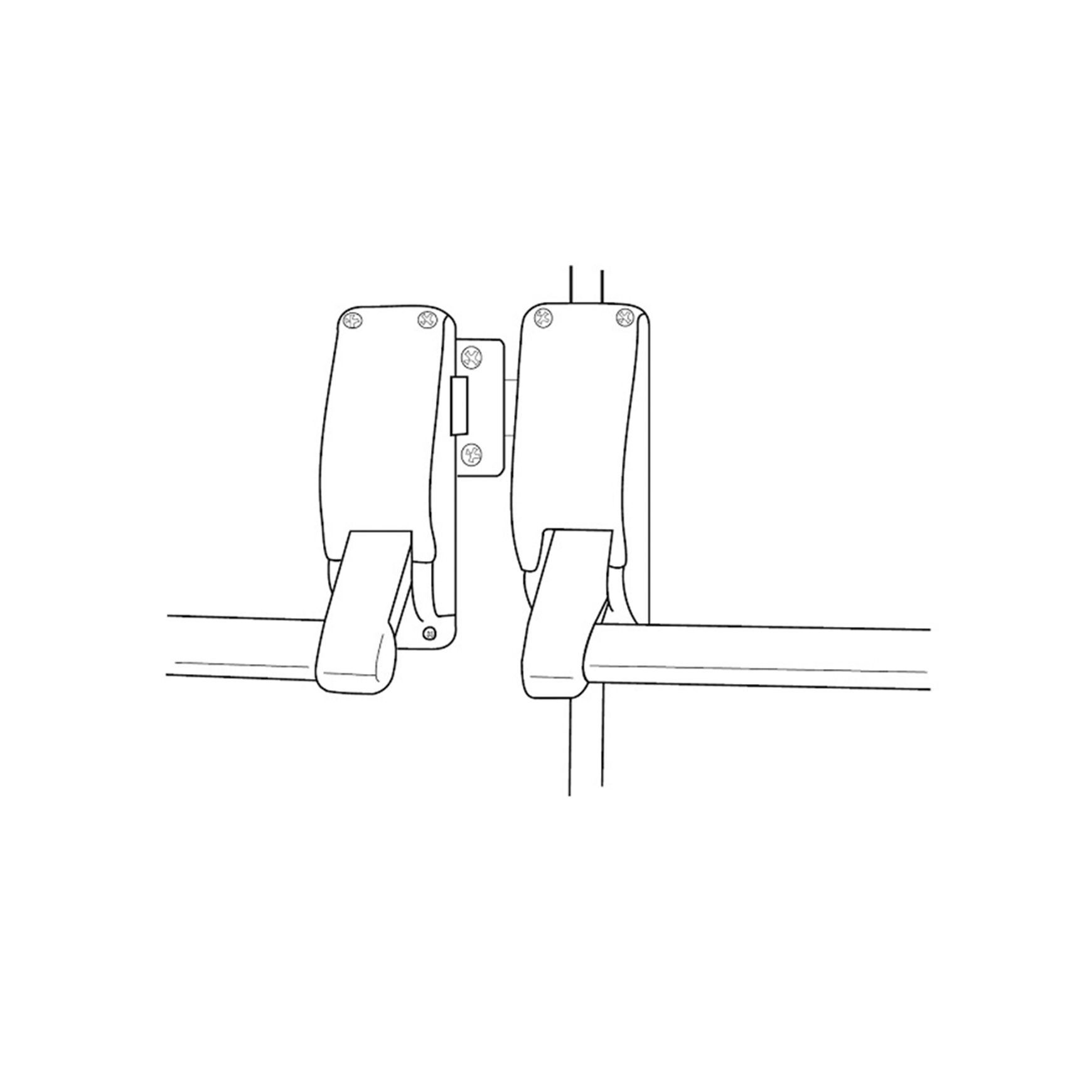

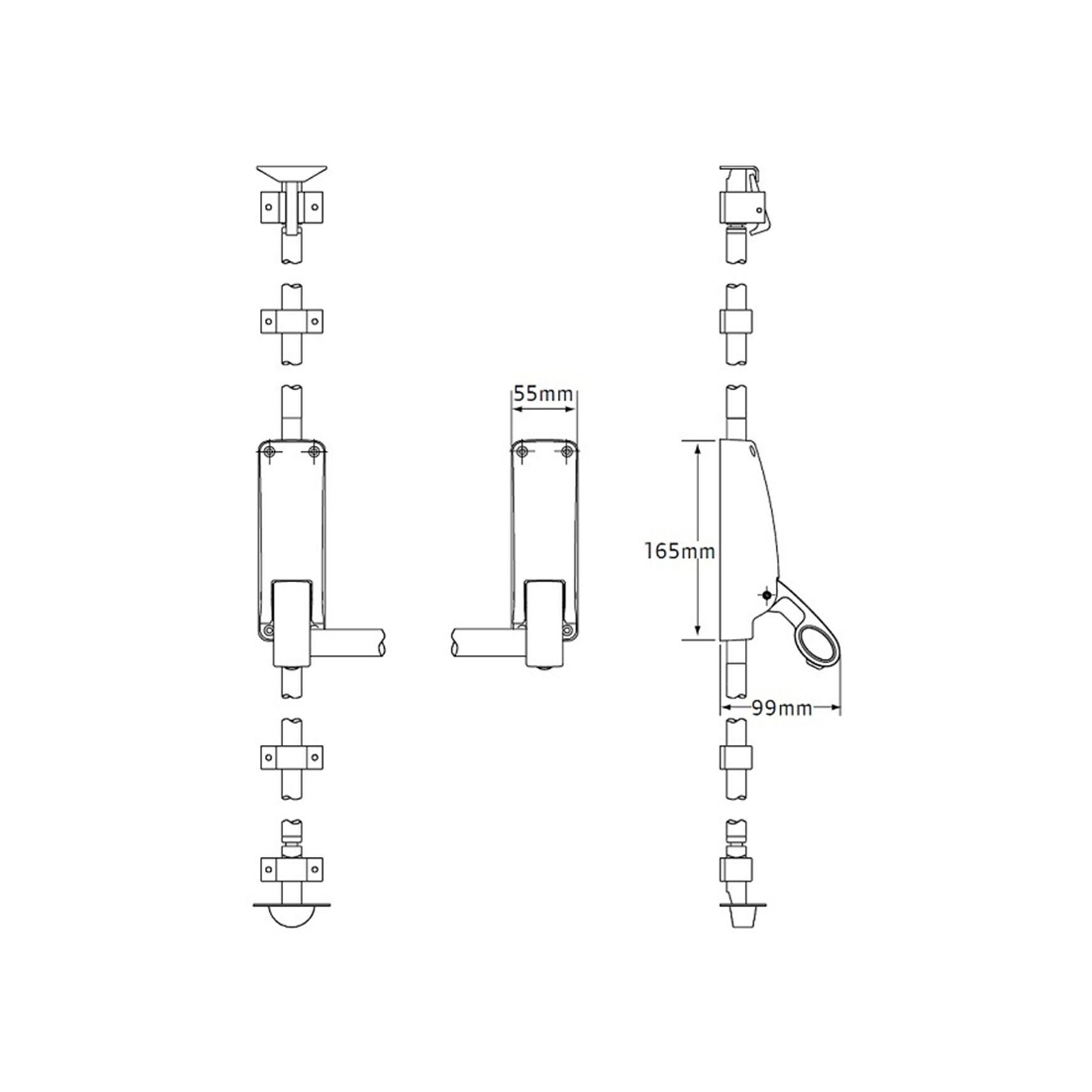

• 1 x Briton Double Door Vertical Panic Bolt (B377E/SE)
• 1 x Briton Outside Trim Lever (1413/LE)

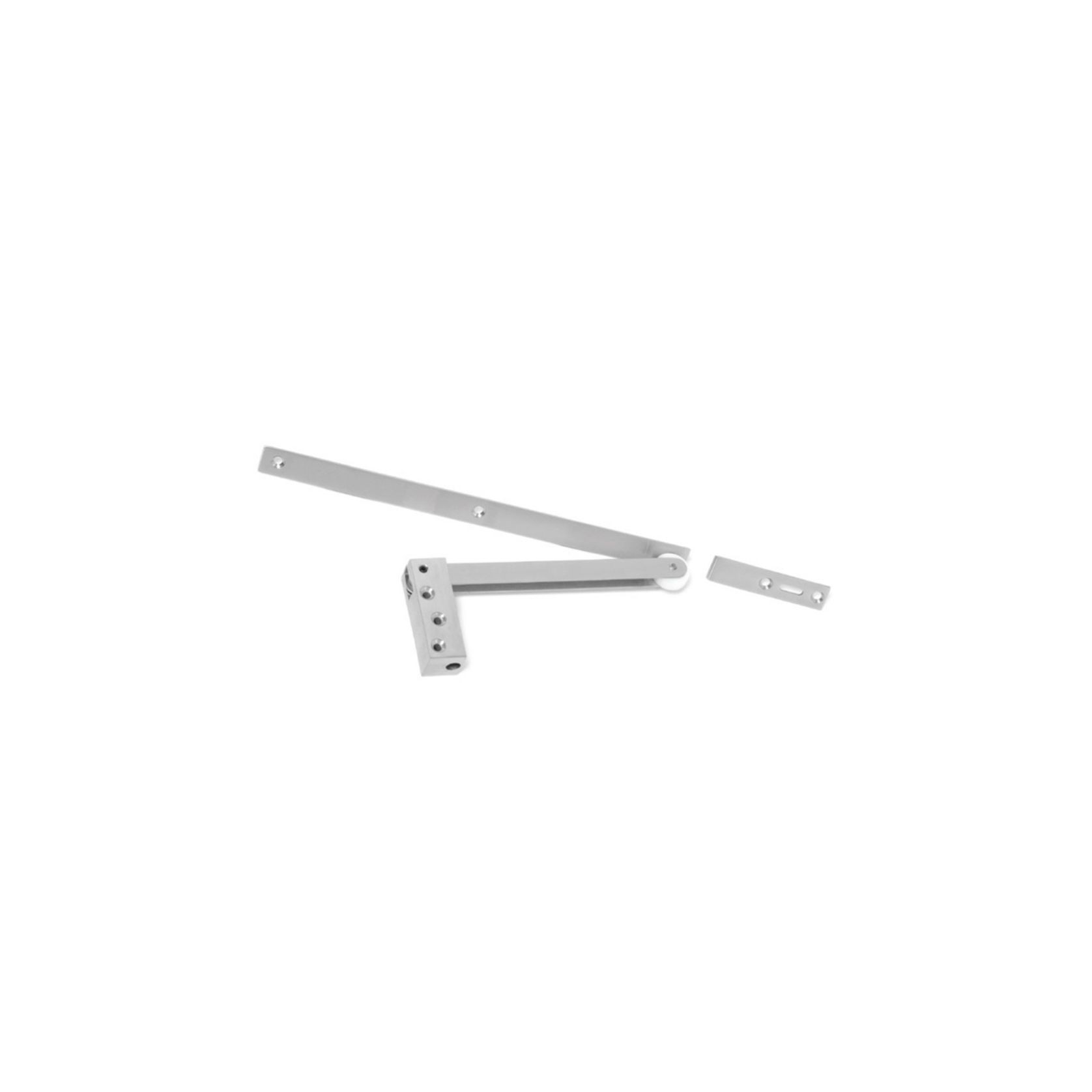

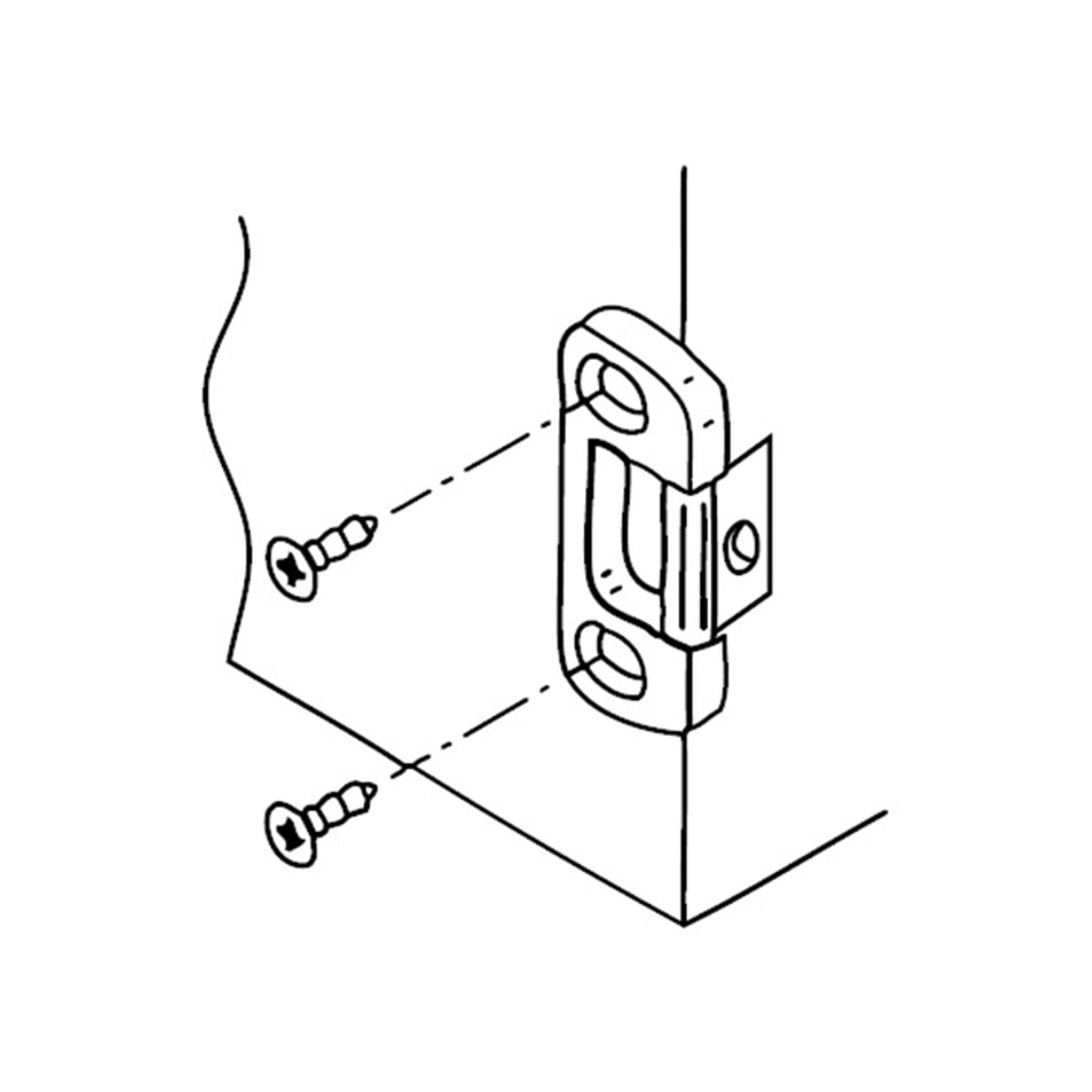

• 1 x Briton Scope Sequence Selector (DCSS305SS)

Performance

• Ergonomic design providing improved grip in wet conditions when locked, knob rotates freely.
  Non-handed.

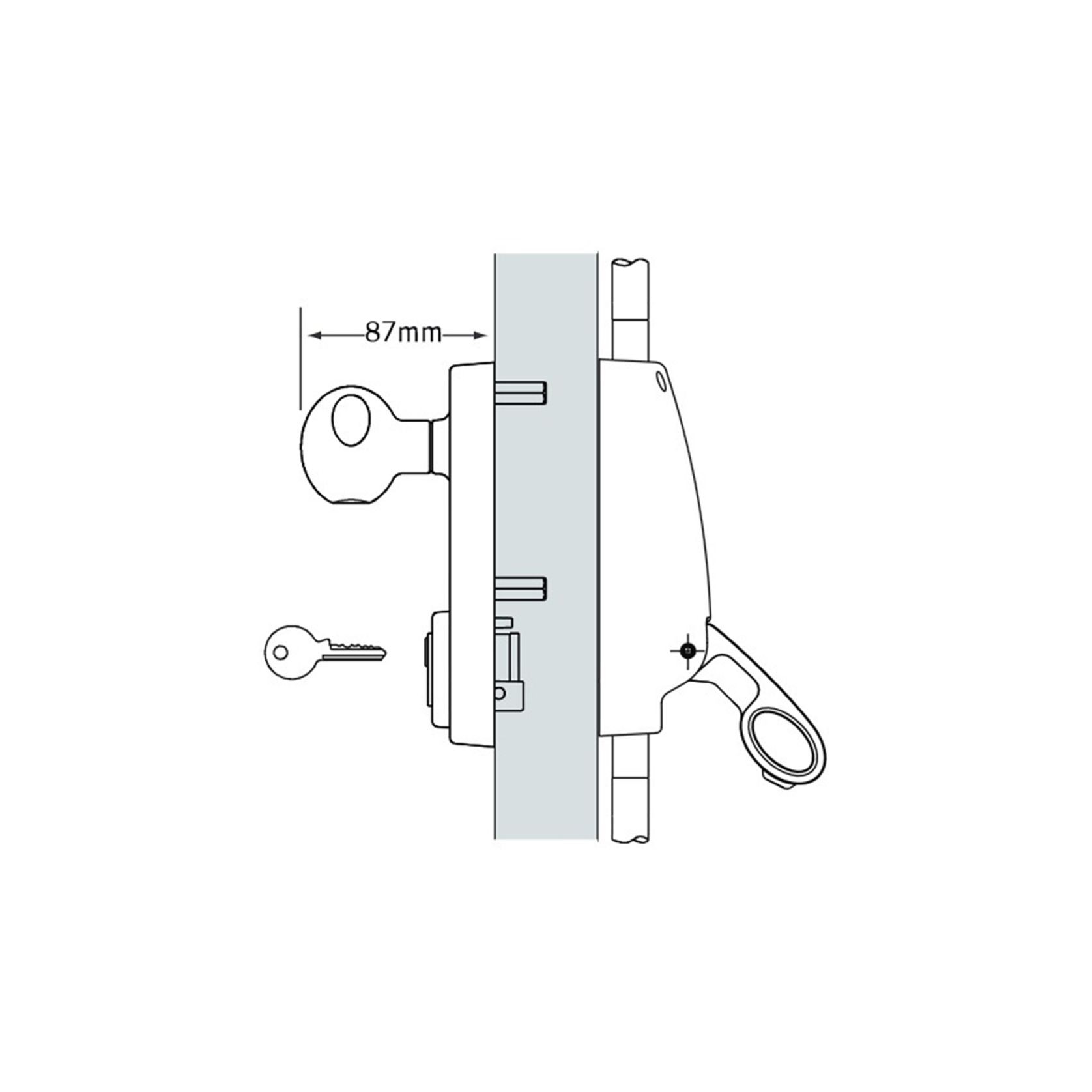

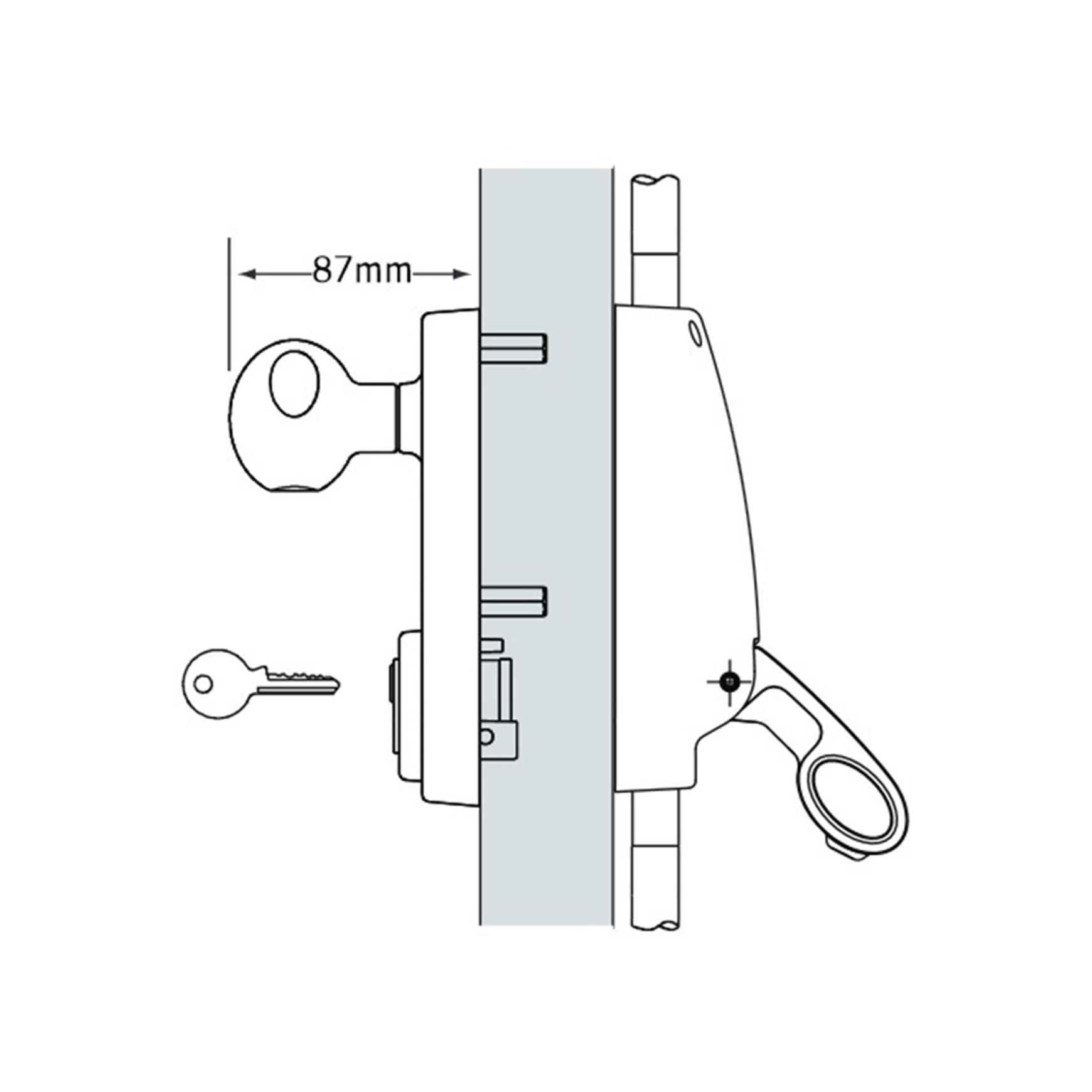

• Using a Briton 1413E outside locking device will provide access when the door is locked. When unlocked the door can also be operated from the outside by using the knob or lever.
• The 1413E has been designed to suit all exit devices within the Briton 376E series.
• The 1413E has been designed to accept 1/2 Euro cylinders for key access.
• The 1413E is suitable for doors between 35mm and 70mm thick.

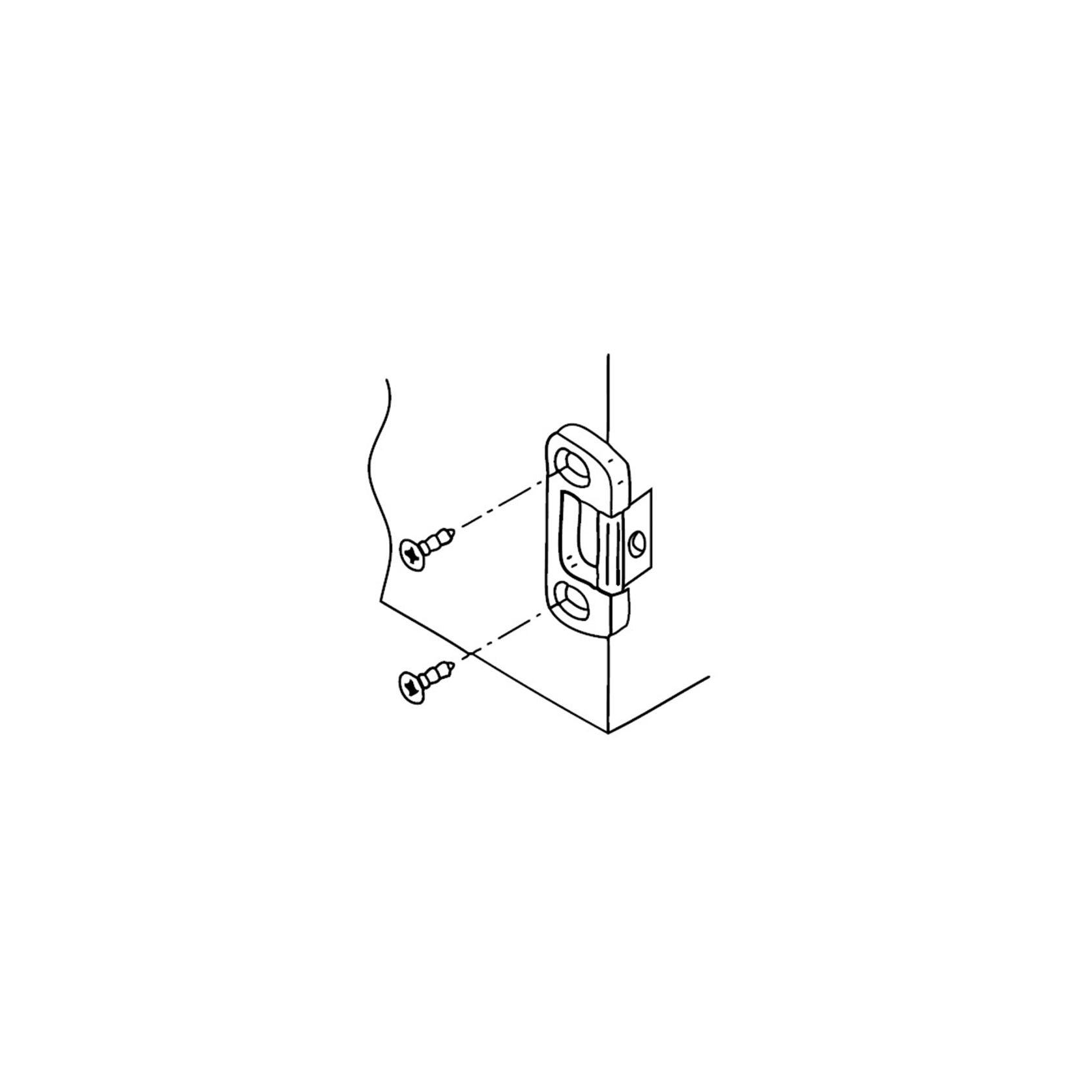

• Fixings supplied are suitable for both timber and metal doorsets.
• Please note: Not recommended for high use areas.
