Briton Panic Bar Pack DBL Door Outside Lever LPED006

Briton Panic Bolt w/ Lever & Cylinder Lock Pack The 377E panic bolt is suitable for double door applications.

Specs

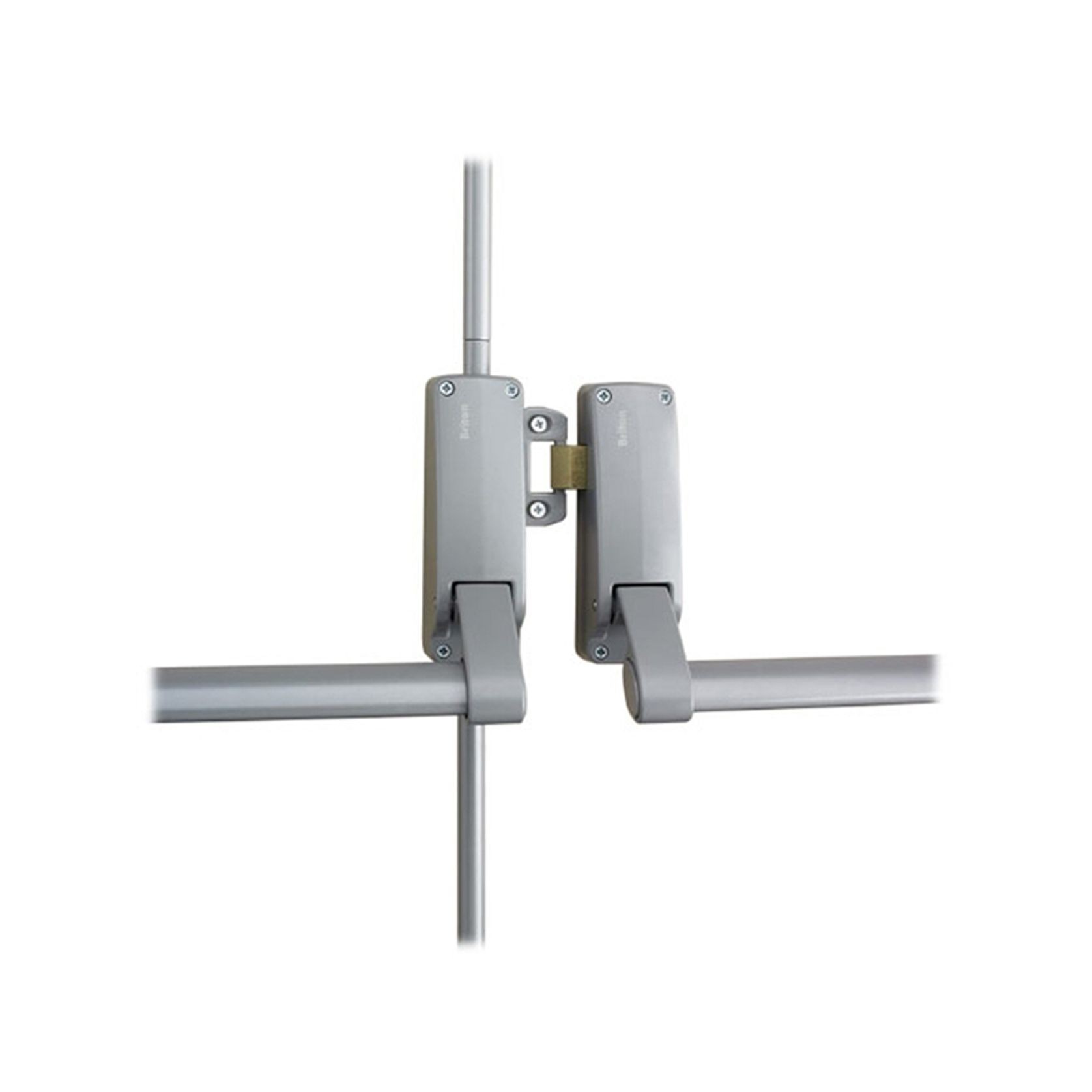

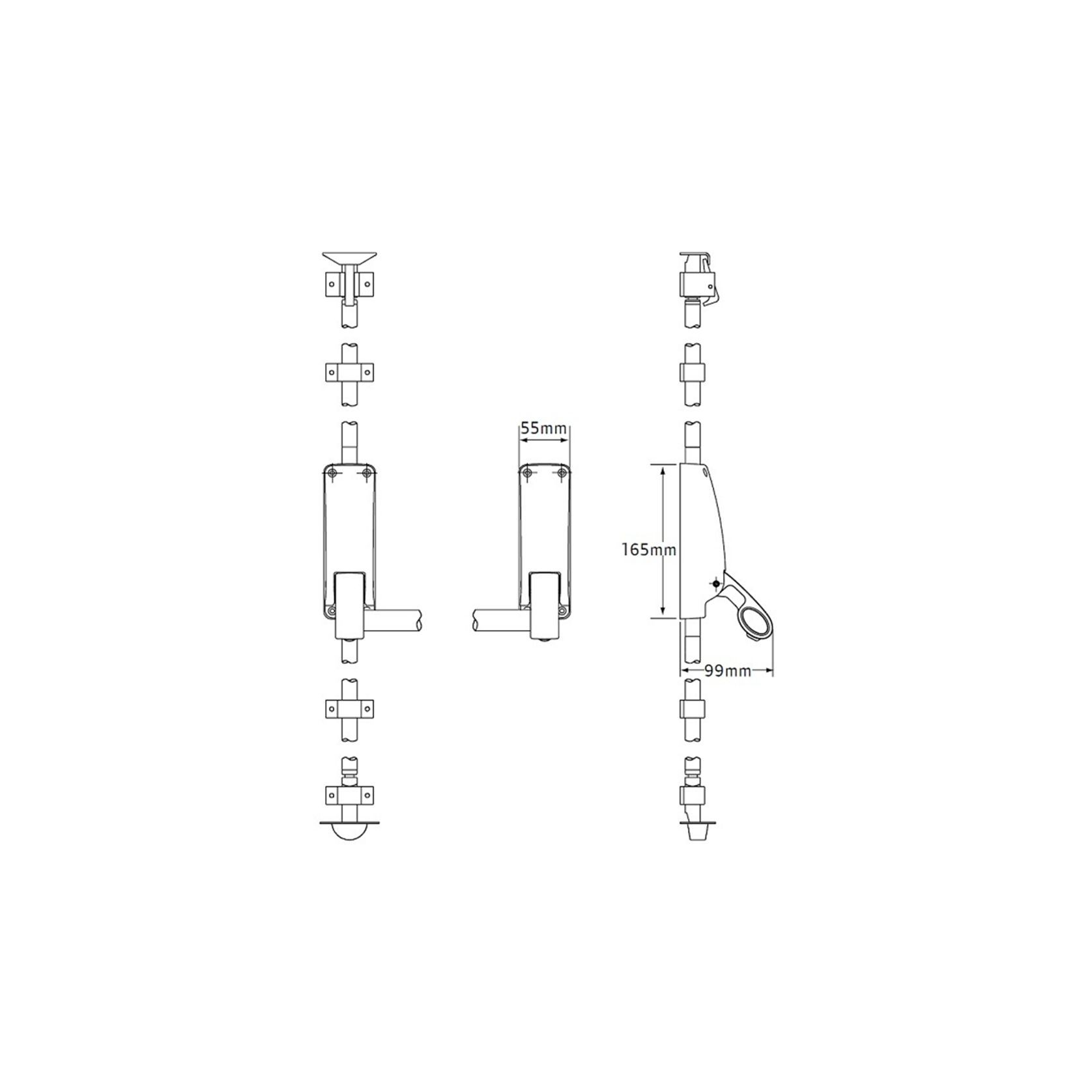

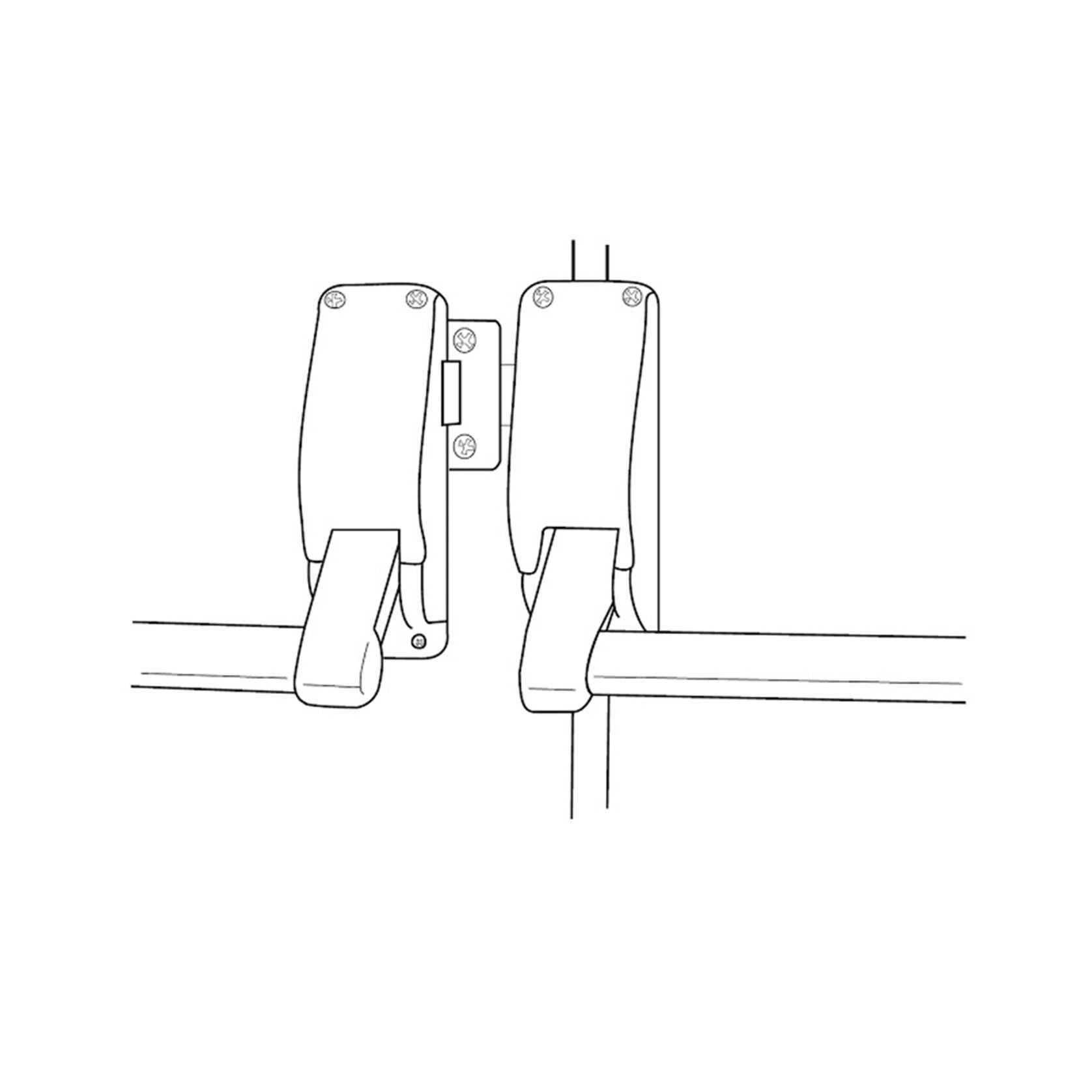

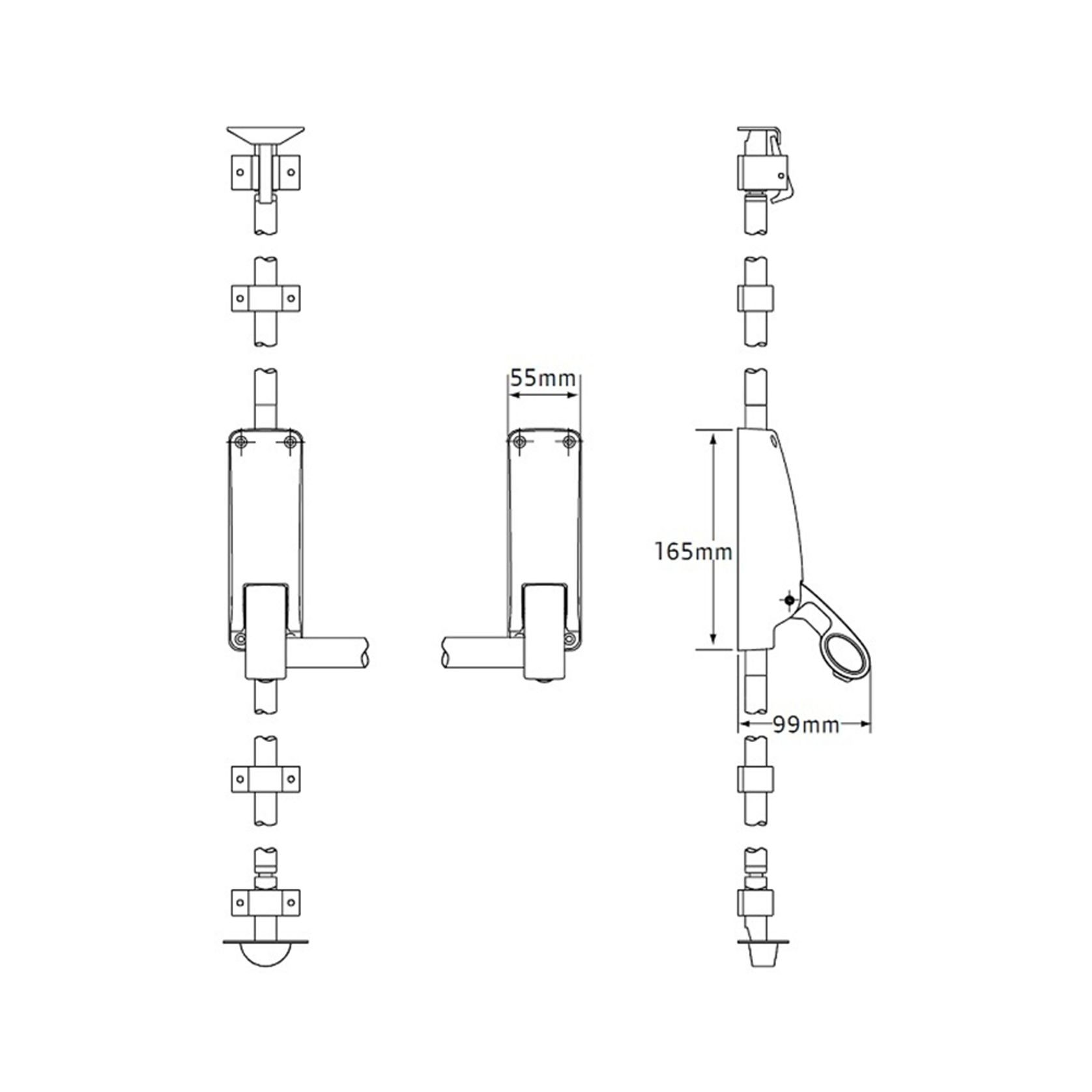

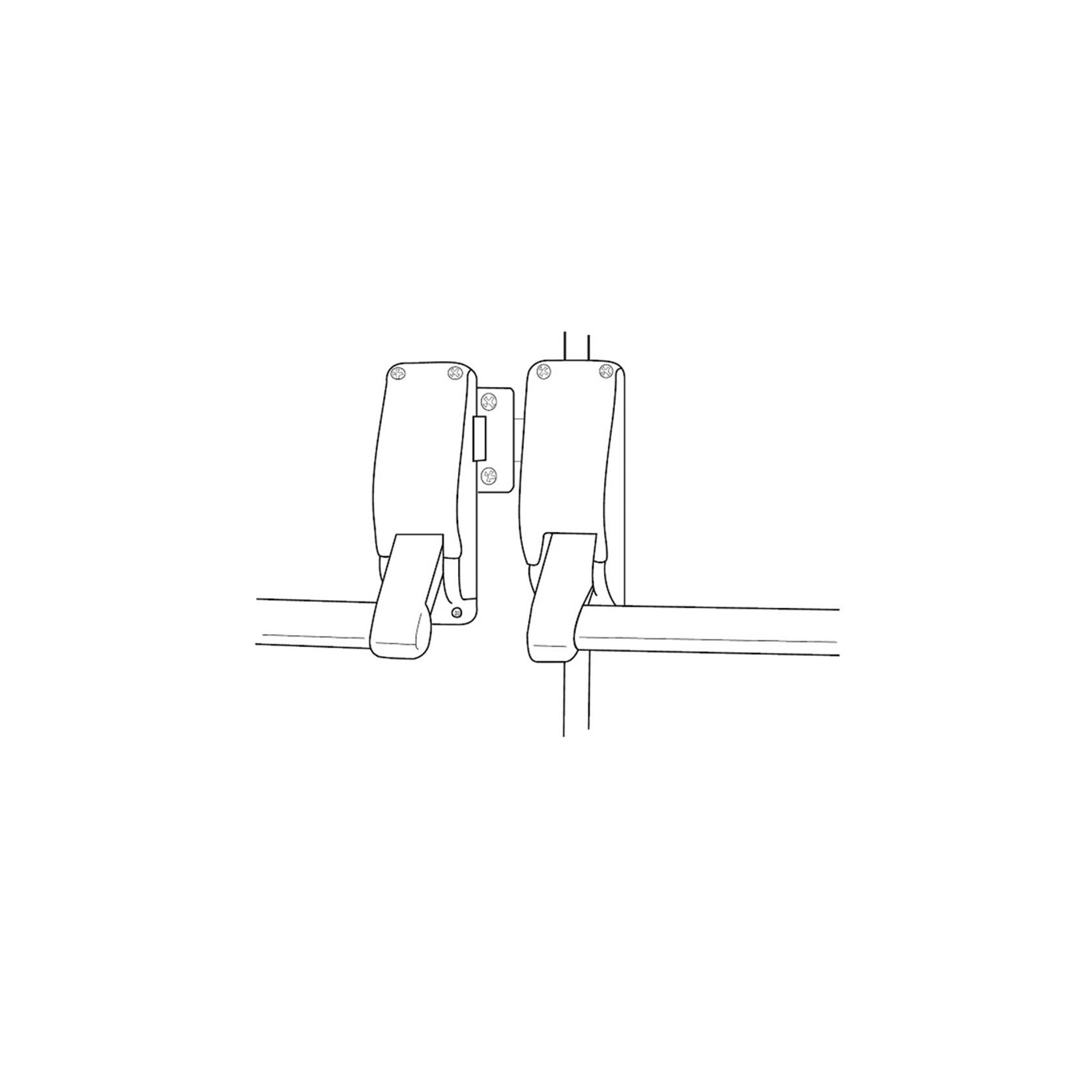

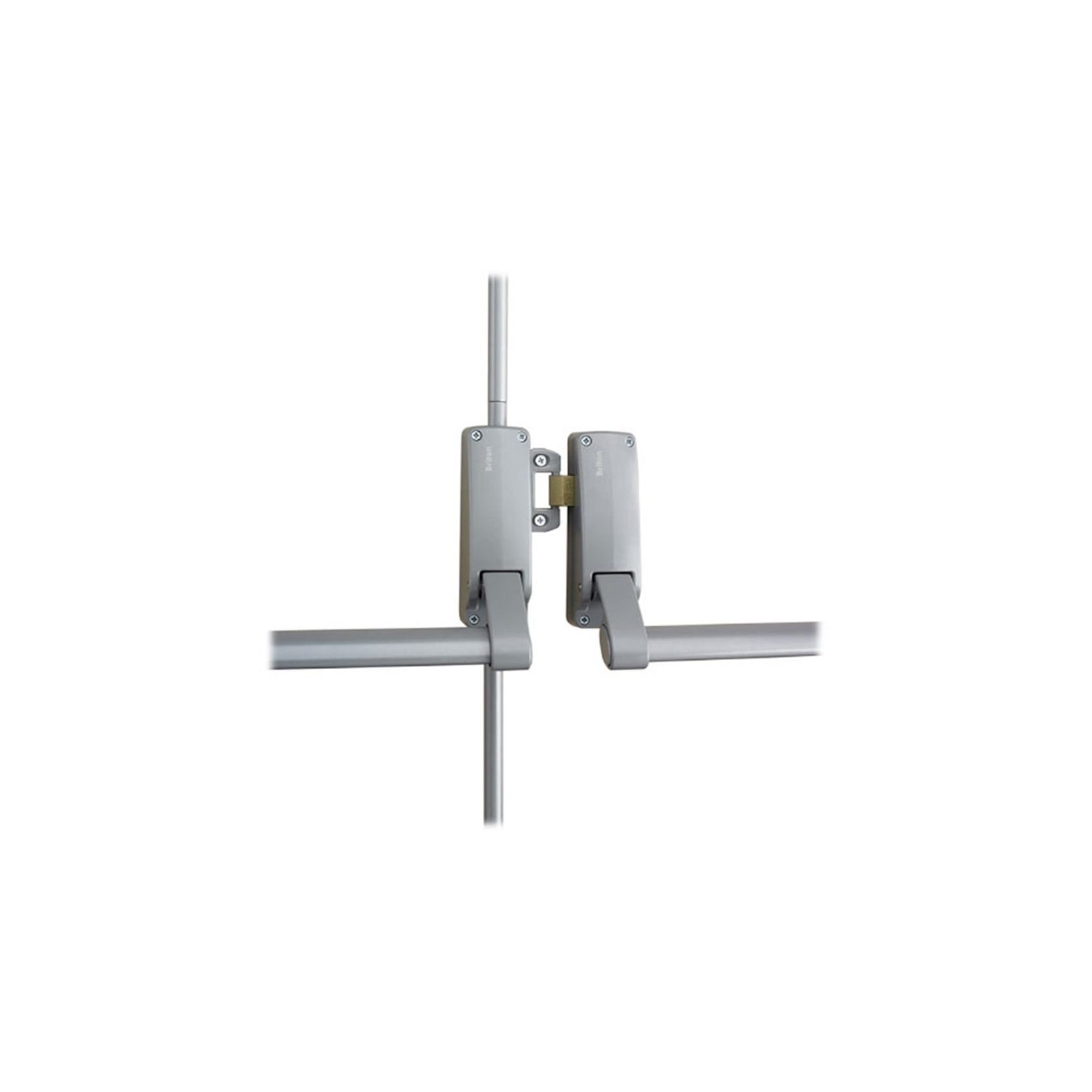

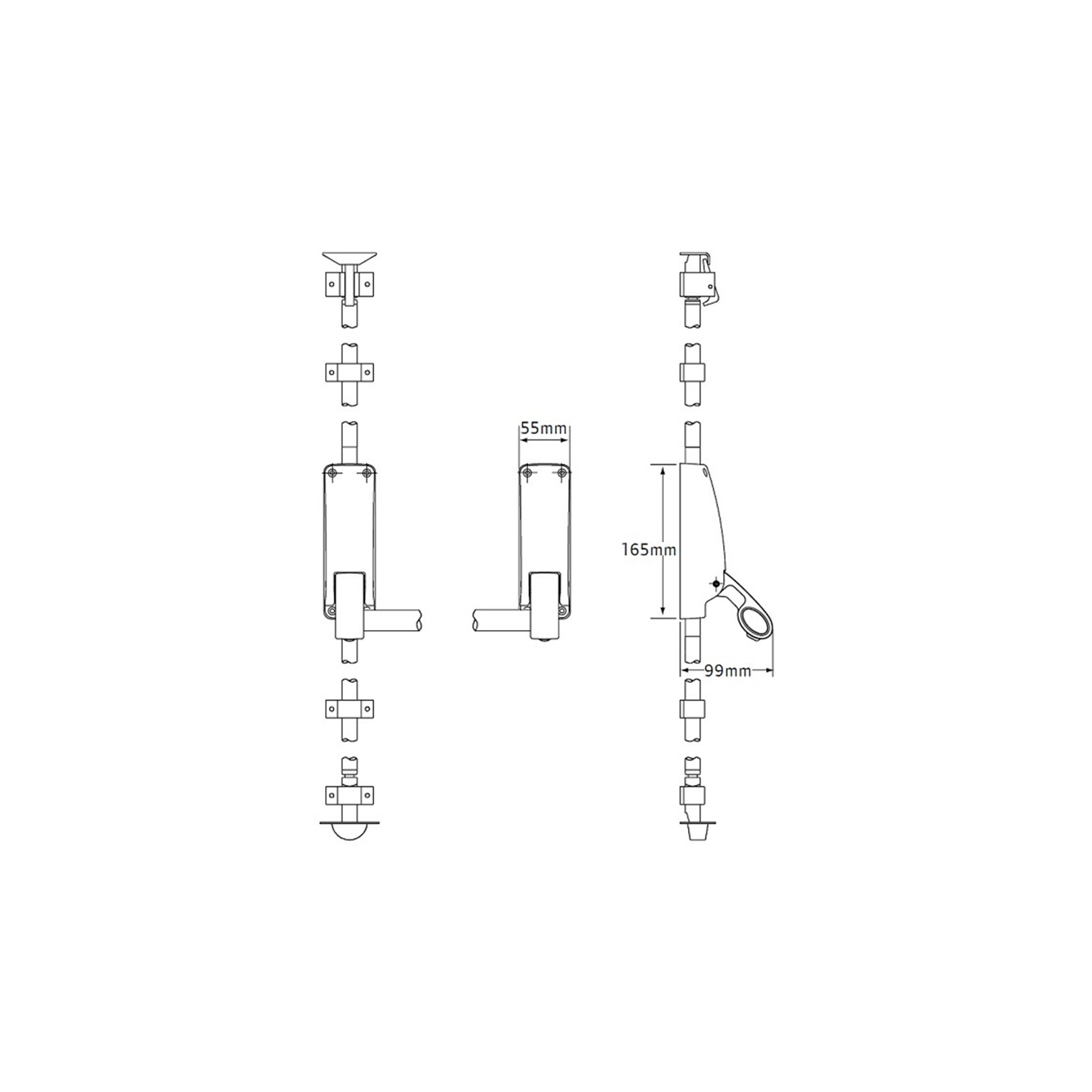

Briton Double Door Vertical Panic Bolt
B377E/SE

• Door Type: Timber or Metal
• Stile Width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
• Door Width: 665mm to 1300mm per leaf
• Door Height: 2500mm standard. Extra long top shoot available for door heights up to 3350mm
• Material: Zinc diecast chassis. Steel rods and crossbars
• Finish: Silver Enamel
• Supplied as Trade pack with all fixing hardware

Briton Outside Trim Lever w/ Cylinder
1413/LE

• Door Type: Timber or Metal
• Door Thickness: 40mm-100mm
• Material: Zinc diecast chassis and lever
• Finish: Silver Enamel
• Supplied as Trade pack with all fixing hardware

Scope of use

Briton Double Door Vertical Panic Bolt
B377E/SE

Panic Bolt allows for both doors to be locked closed and permits emergency exit from both doors (e.g. where emergency or panic situation could occur).

Briton Outside Trim Lever w/ Cylinder
1413/LE

Door Lever Function - Comes with a pre-cut hole for inserting a key and with the appropriate mechanism to lock or unlock the door.

Includes

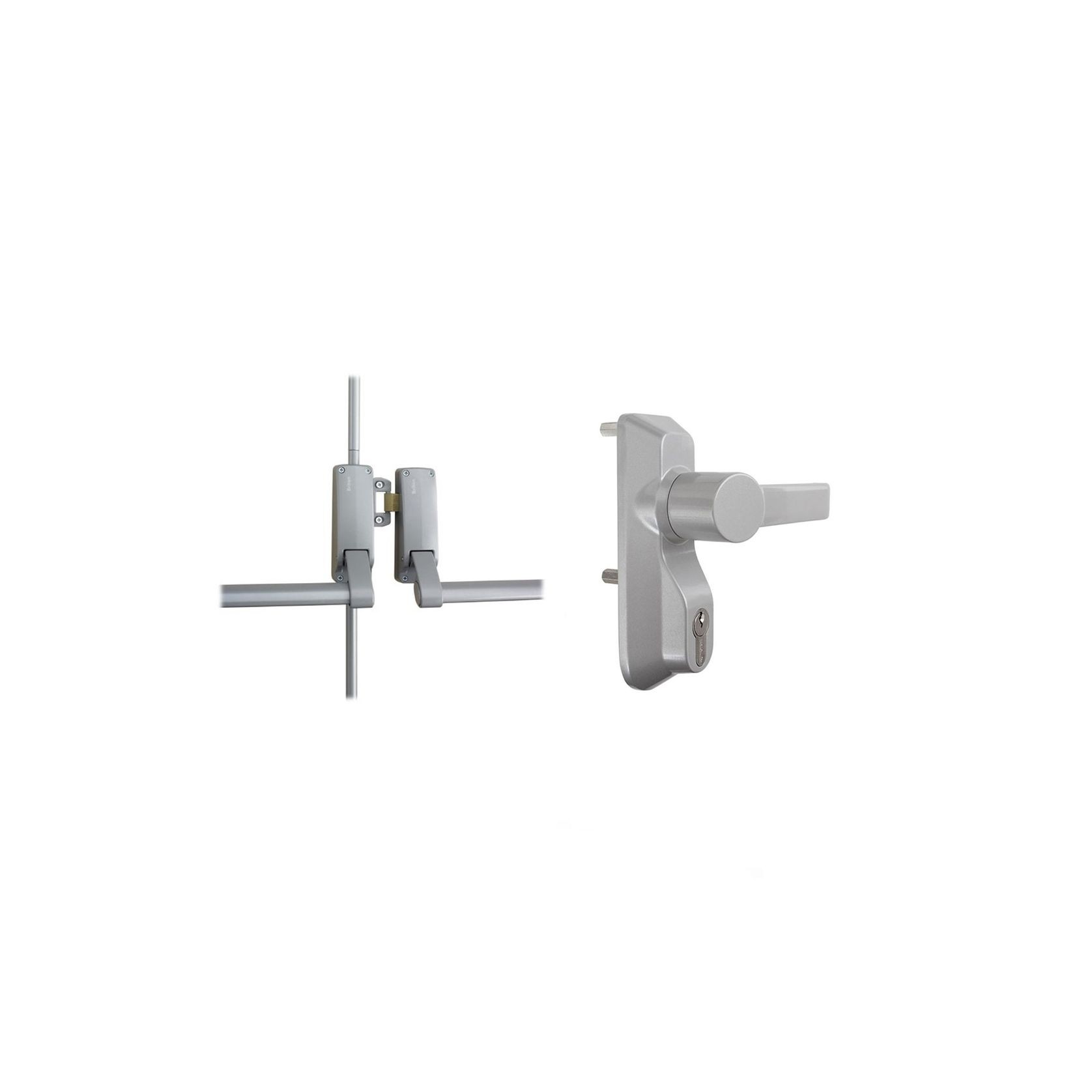

• 1 x Briton Double Door Vertical Panic Bolt (B377E/SE)
• 1 x Briton Outside Trim Lever w/ Cylinder (1413/LE)

Performance

• Ergonomic design providing improved grip in wet conditions when locked, knob rotates freely.
  Non-handed.

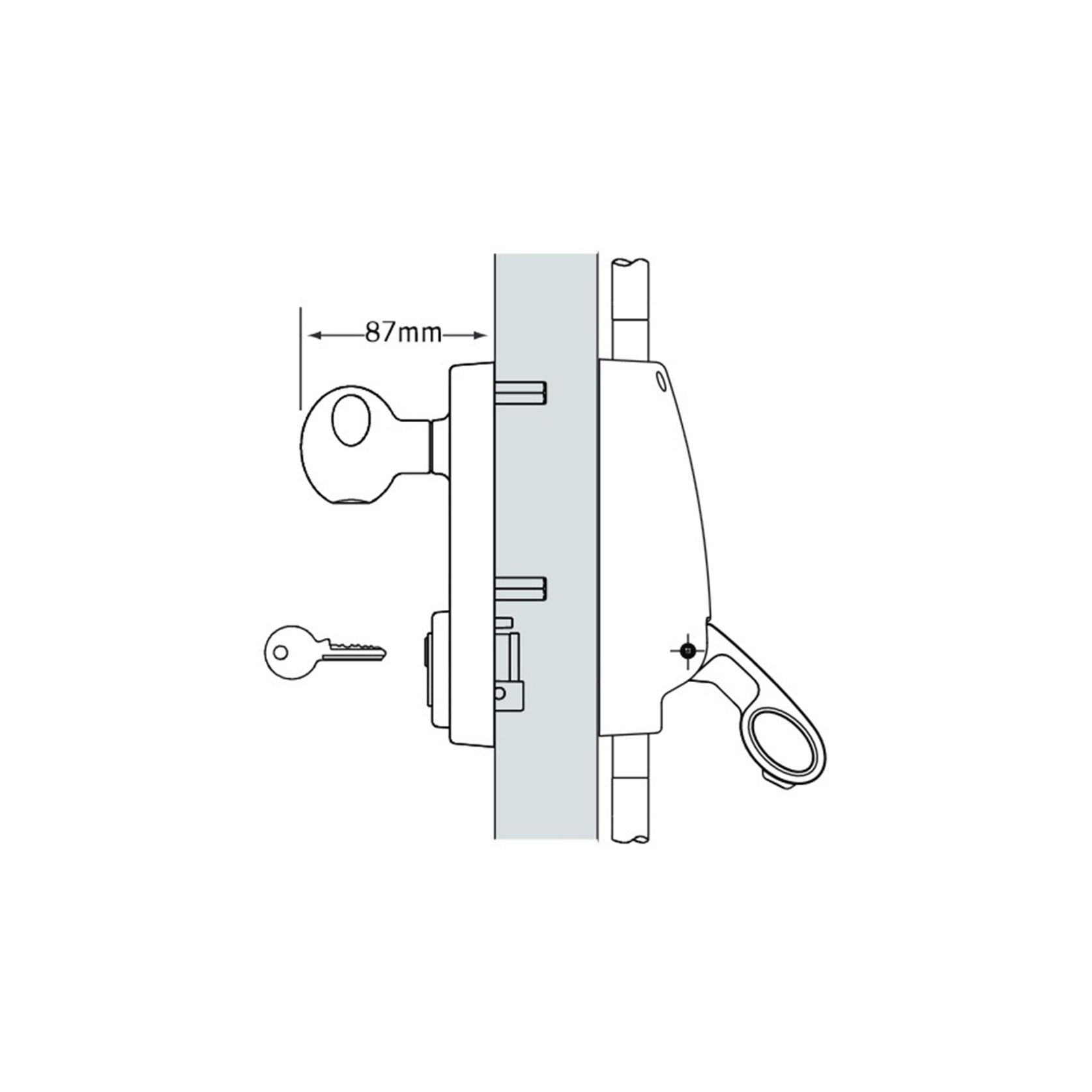

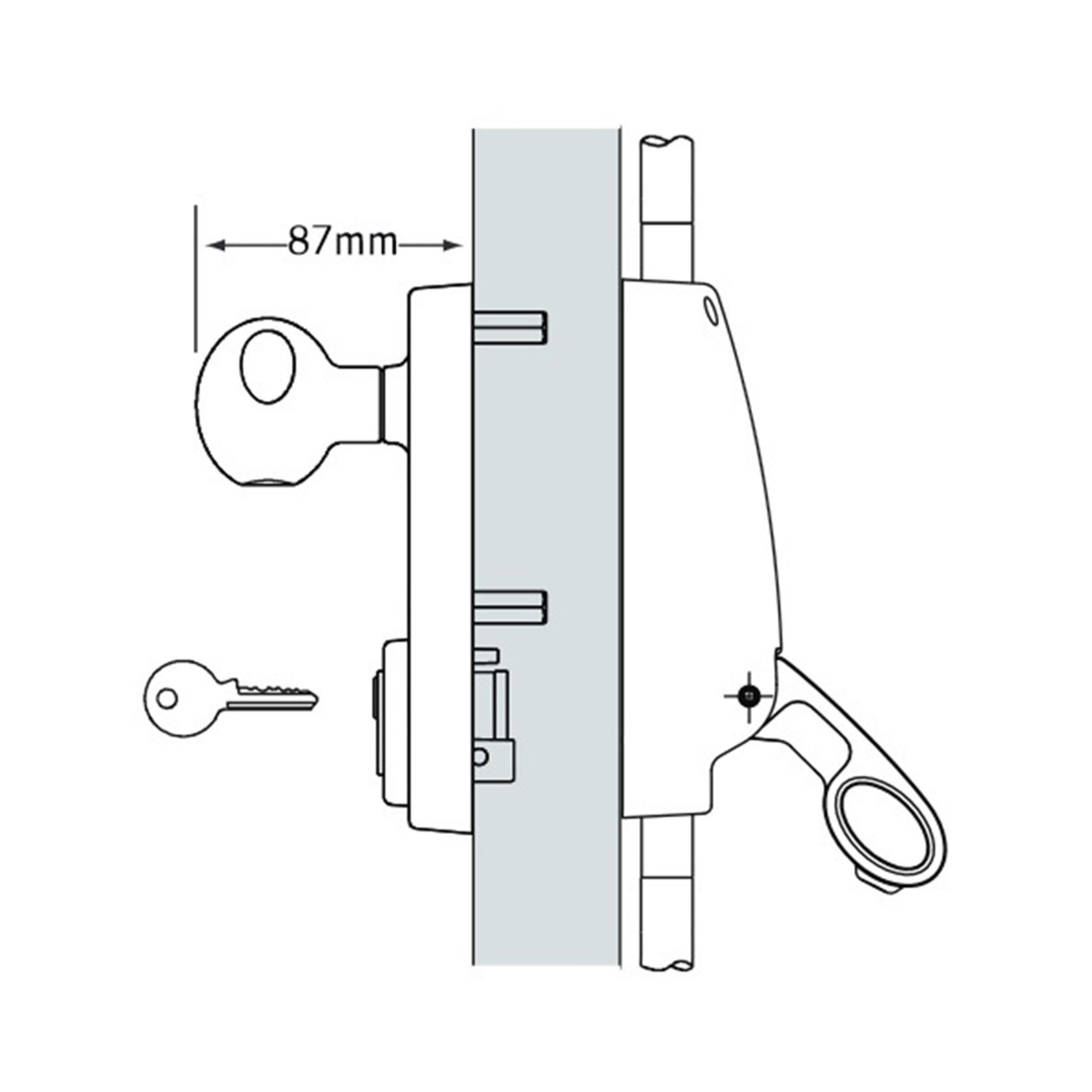

• Using a Briton 1413E outside locking device will provide access when the door is locked. When unlocked the door can also be operated from the outside by using the knob or lever.
• The 1413E has been designed to suit all exit devices within the Briton 376E series.
• The 1413E has been designed to accept 1/2 Euro cylinders for key access.
• The 1413E is suitable for doors between 35mm and 70mm thick.
• Fixings supplied are suitable for both timber and metal doorsets.
• Please note: Not recommended for high use areas.
