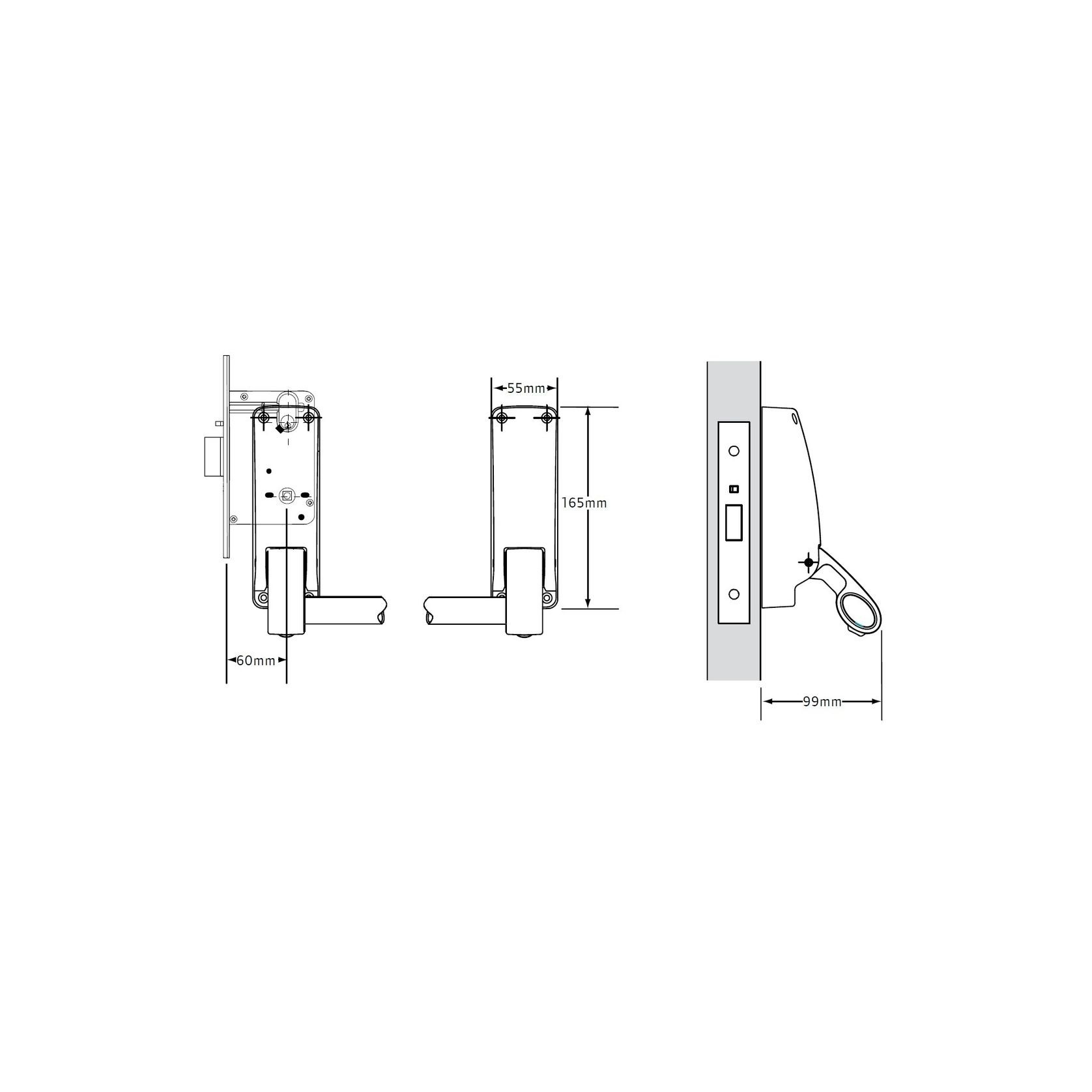

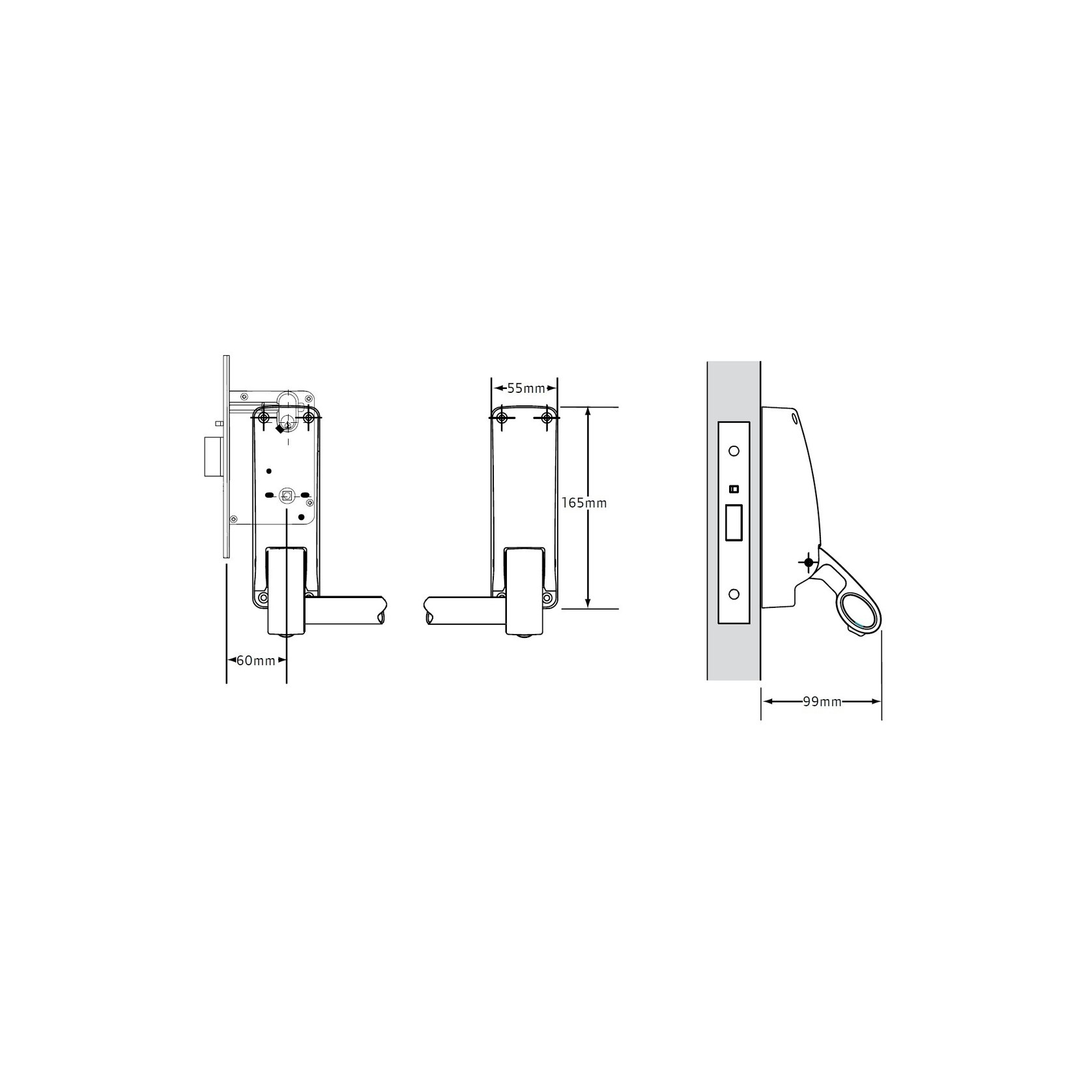

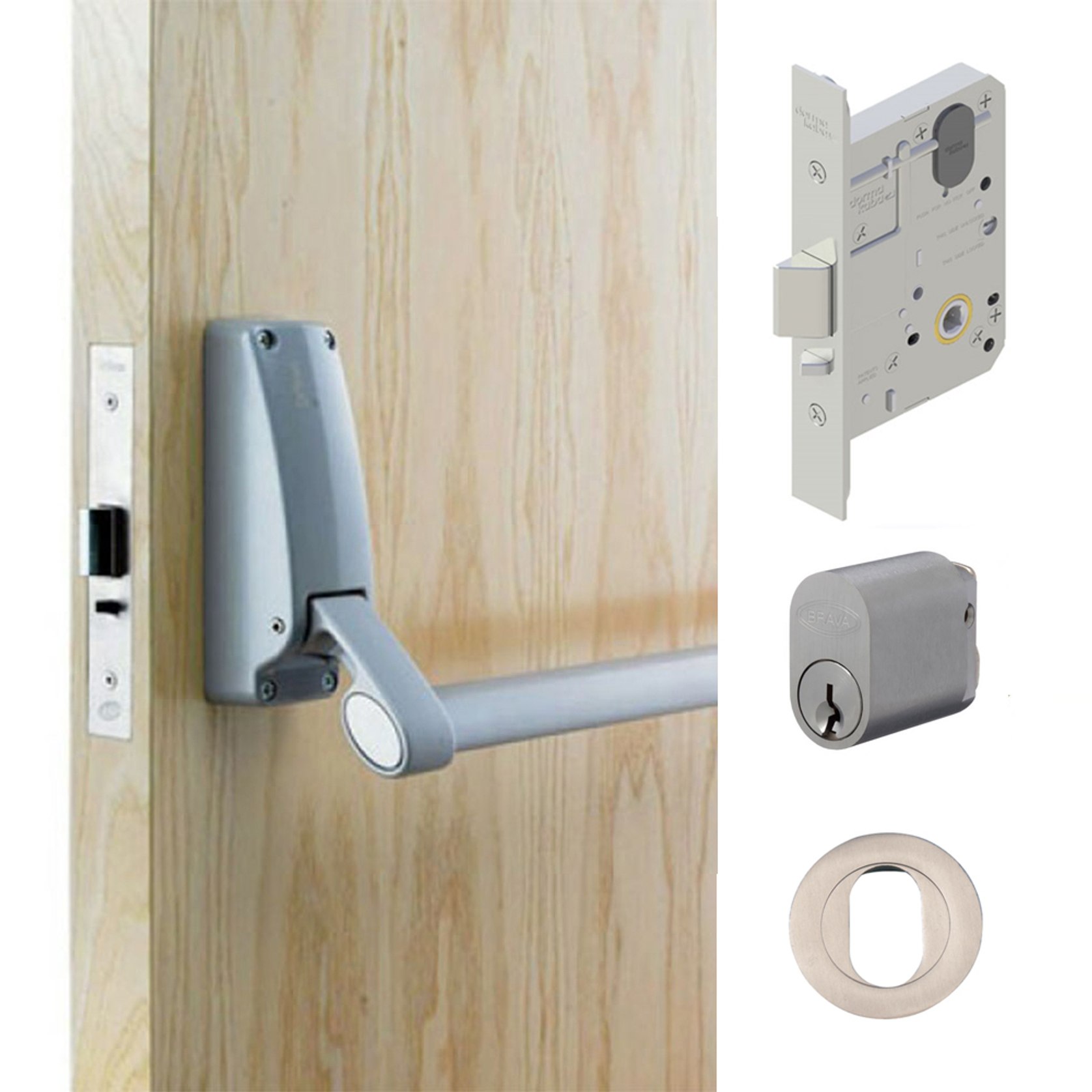

Briton Panic Bar Pack w/ Mortice Lock & Cylinder

Briton Mortice Panic Night Latch
B379E/SE

Panic Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Features:

• The 379E reversible mortice panic latch operator has been designed to be used in conjunction with a Legge 990MF mortice lock (ordered separately).
• The 379E is suitable for all types of single doors.
• The 379E is supplied right handed, but can be handed on site.
• Suitable for use on the first opening leaf in double door application.
• Optional model available with manual dogging (hold open)
• 13mm rebate kits are available for double rebated door applications.

Dormakaba Oval Cylinder Escutcheon
4306SSS

Features:

• Manufactured using 316 grade stainless steel
• High Durability with Concealed Fixings

Brava 570 Oval Cylinder
5070USCKD

Oval Cylinder Ideal for circumstances such as storage rooms or IT server rooms, or when one side of the door must be locked and unlocked while the other is controlled by an access control system or device.

Oval Cylinder Function - enable the door to be locked with only one key from one side.

Features:

• Brava type 570 cylinder
• Includes X, W, Z & Rabbit Cams
• 6 Pin Cylinder
• Keyed to differ
• 2 keys supplied
• Finish: Satin Chrome

Please note if buying more than 1 lock: This listing is for 'keyed to differ' (KD) locks, for example:

• if you buy 5 locks, all 5 locks will use a different key
• If you need 'keyed alike' (KA) locks, please search for our other listing with 'KA' or 'keyed alike' in the title.

Kaba MS2 Heavy Duty Mortice Lock
MS2SSS

Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.

Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.

Features:

• Heavy duty construction with Stainless Steel case, face plate, strike and latchbolt
• Deadlatching and kick-off is standard on all functions
• Most functions are non-handed or field changeable/reversible
• Supplied complete with all fixings suit door thickness from 32mm-50mm
• Fabricator kit available to suit aluminium doors
• Universal strike plate as standard with extended strikes also available
• Accepts standard Australian oval cylinders
• Can be supplied with high security Kaba master keying systems Kaba experT or pExtra
• Rebate kit available to suit standard 13mm rebate-part #MA840
• Compatible with most electric strikes

Specifications:

• Backset: 60mm
• Door Height: 120mm
• Door Width: 87mm
• Door Thickness: 20mm
• Spindle Size: 7.6mm - 8mm
• Fixing Centres: 38mm - 41mm
• Finish: Satin Chrome

Approvals:

• SCEC approval for Intruder Resistance
• Exceeds Australian Lock Standards S3 for Security and D3 for Durability
• Fire rated as per Australian Standard AS1905 Part 1 -1997, Fire Resistant Doorsets - 2 hour
