Dorma BTS80 EN-4 Door Closer Floor Spring Adjustable Hold Open 80110000

By Keeler Hardware
Visit Website

Dorma BTS80 EN-4 Door Closer Floor Spring
80110000

Floor Spring are mostly used in glass doors (e.g. inner doors of business parks, shopping malls, and hospital buildings).

Floor Spring Function - A mechanical door closing device that can effectively resist when the door with heavy traffic is opened too quickly or with too much force.

  • Universal non-handed floor spring for single and double action door
  • Used on both fire and smoke check doors and with its concealed application is ideal for situations, where aesthetic quality is not comprised by safety assurance.
  • Designed to meet the requirements for all door types and can satisfy every application required, due to its versatility.
  • Once installed below floor level, the mechanism is almost completely concealed from view.
Details
  • Category
    Door Closers
  • Range
    Dorma
Specifications

Features:

  • With adjustable closing speed and closing action from approx. 175 degrees, with hydraulically controlled closing cycle and mechanical backcheck
  • Allows for temperature-independent hold-open between 75 degrees and 175 degrees (removable)
  • Hold-open start point and delayed action is easily adjustable by valve
  • Concealed assembly
  • Can be used on fire and smoke check doors
  • Easy to install

Specifications:

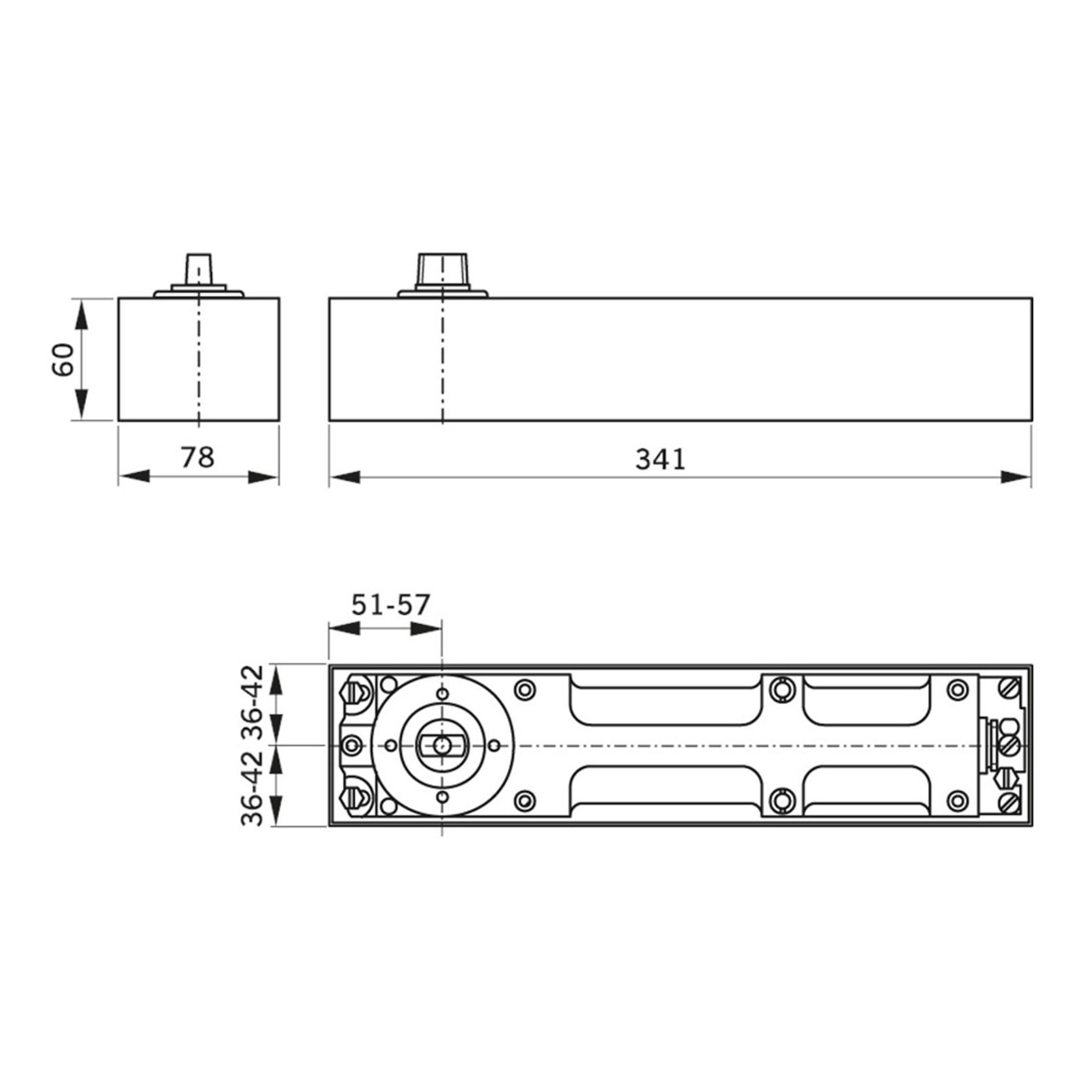

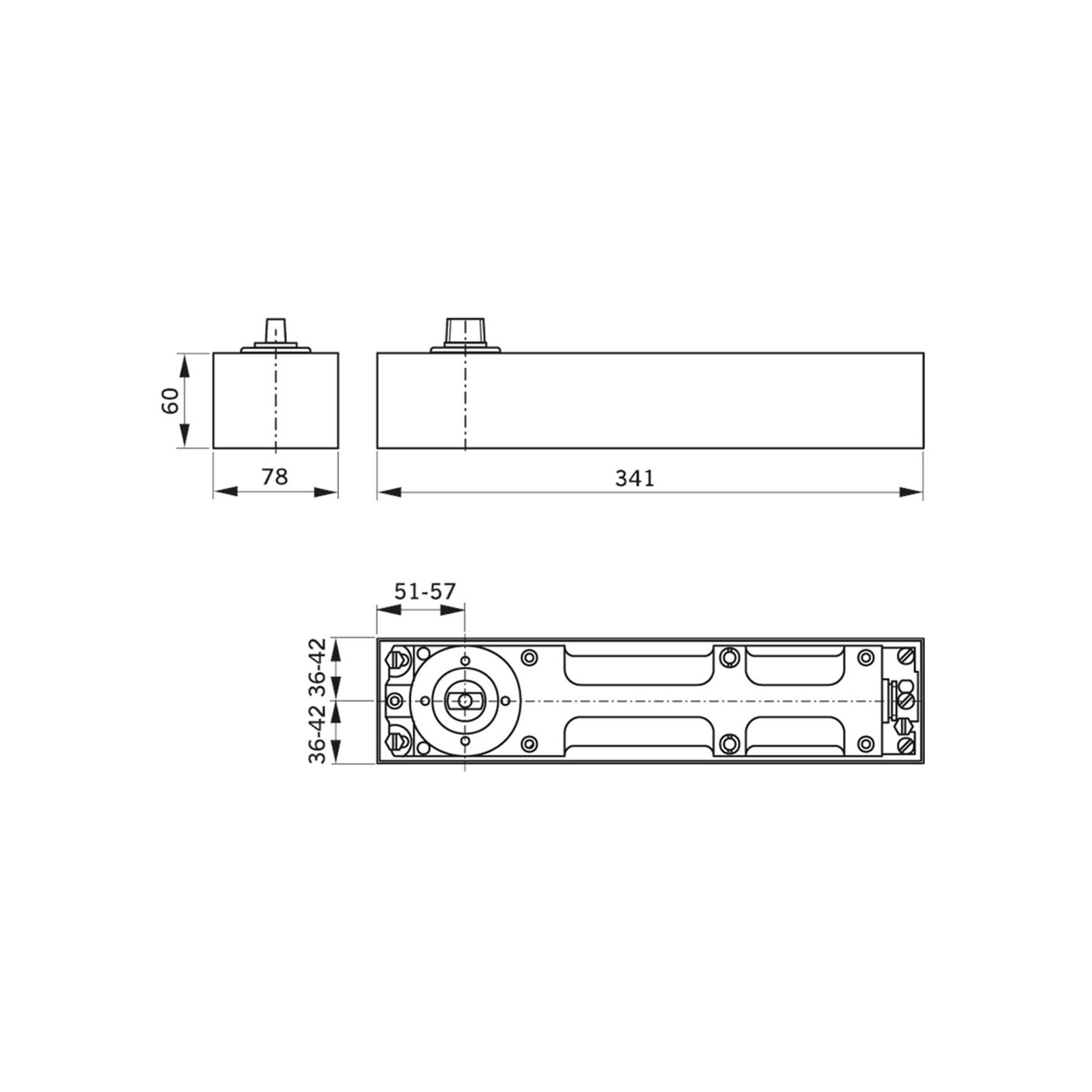

  • Length: 341mm
  • Width: 78mm
  • Height: 60mm
  • Weight: 7.1kg
  • Spring strength: EN4
  • Standard and External Doors: Up to 1100mm
  • Max. Leaf Weight: 300kg
  • Hold Open: Adjustable

Protection:

  • Successfully third party tested to BS EN1154
  • CERTIFIRE Approved CF127
