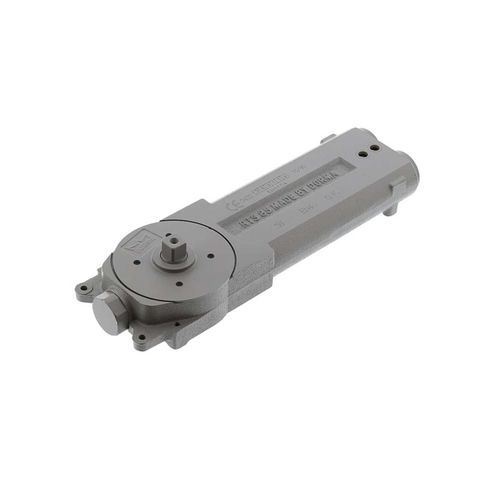

Dorma BTS84 Floor Spring
81200002
Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in the Interior doors of a Business parks, Malls, and Hospital buildings.
Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position activates the closer and it also commences the closing action of the door.
- Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
- Has many of the features of the other Dorma BTS closers with the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door, manufacturer.
Product Details
- Product
- Dorma BTS84 EN4 Floor Spring Body with Hold Open 90 Degrees 81200002
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dorma
Keeler Hardware is specified by
J Mammone ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ian Moore ArchitectsArchitects
Hive ArchitectureArchitects
Ha ArchitectureArchitects
Scale ArchitectureArchitects
De Moyer ArchitectureArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
Anderson ArchitectureArchitects
Dieppe DesignArchitects
Ironbark ArchitectureArchitects
David Baillie ArchitectArchitects
JOST ArchitectsArchitects
Bones StudioArchitects
Habitat Studio ArchitectsArchitects
Invilla ArchitectureArchitects
mcmahon and nerlichArchitects
R ARCHITECTUREArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
STUDIO GAXAInterior Designers
Kate NixonInterior Designers
New SpacesBuilders
Dasch AssociatesInterior Designers
APC BuildBuilders
X + OInterior Designers
TrueBuild HomesDesign & Build
Susie Miles DesignInterior Designers
Schemes & SpacesInterior Designers
Ilm InteriorsJoiners
Jumble & StackInterior Designers
Rise Architectural BuildersBuilders
Dorma BTS84 Floor Spring 81200002 Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting.
Mostly used where both pull and push movement is required. Floor springs are used is in the Interior doors of a Business parks, Malls, and Hospital buildings.
Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position activates the closer and it also commences the closing action of the door.
- Double-action floor spring which has been specially developed for the aluminum and toughened glass door industries.
- Has many of the features of the other Dorma BTS closers with the addition of reduced depth and an array of accessories designed for the aluminum door fabricator and toughened glass door, manufacturer.
- Specs
Features:
- Special shallow design
- Interchangeable spindles
- Easy installation

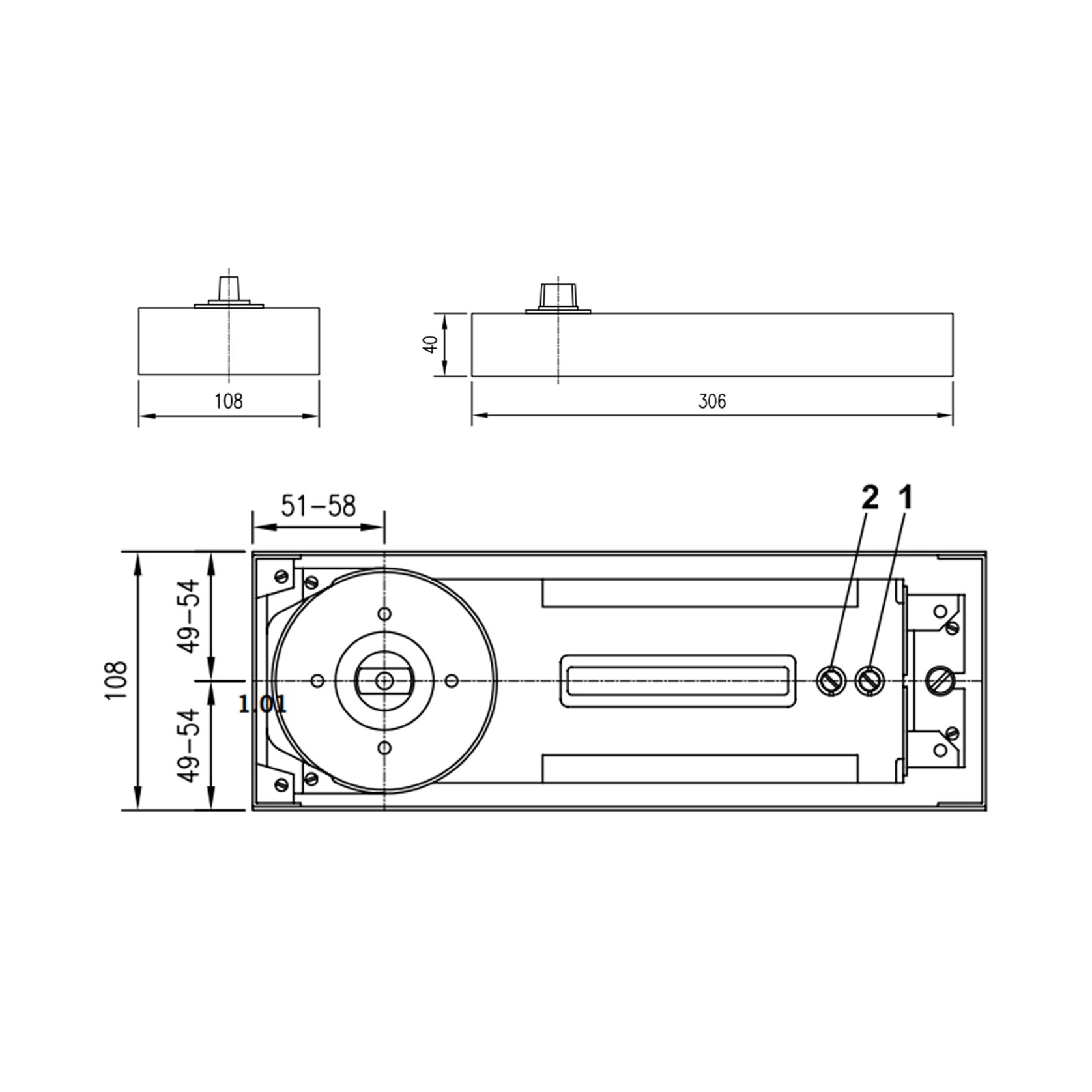

Specifications:
- Length: 306mm
- Width: 108mm
- Height: 40mm
- Spring Strength: EN4
- Max. Door Width: 1100mm
- Operating Voltage: 24V DC
- Closer Option: Hold-Open 90 Degrees
- Adjustable sweep speed: 130 degrees to 20 degrees
- Adjustable second sweep speed: 130 degrees to 0 degrees
Protection:
- Certified manufactur to ISO 9001.
- Certification CE marked.
- Successful independently tested to BS EN 1154.
