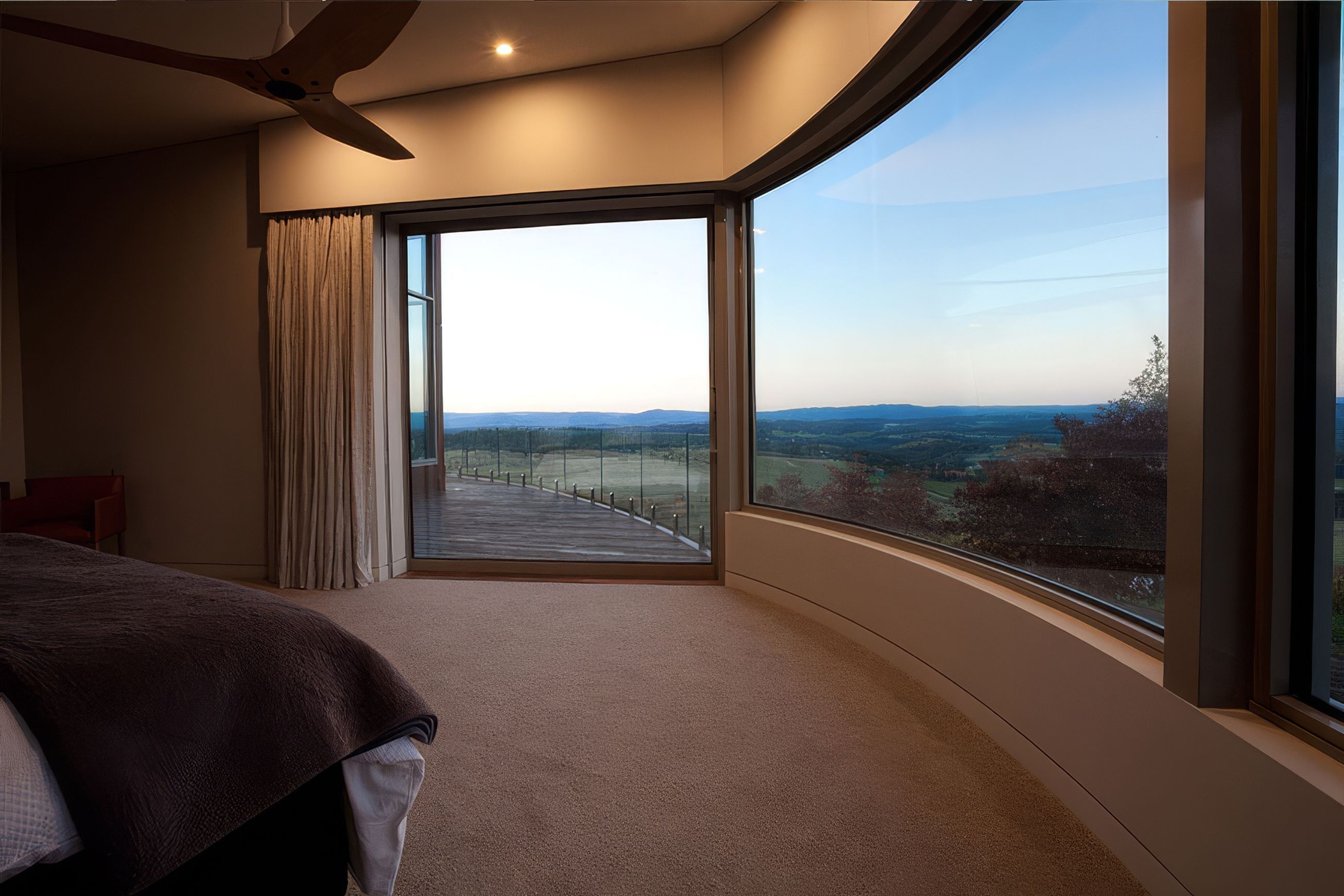

Double Glazed Centre GLAZE™

Architectural Window Systems
Visit Website

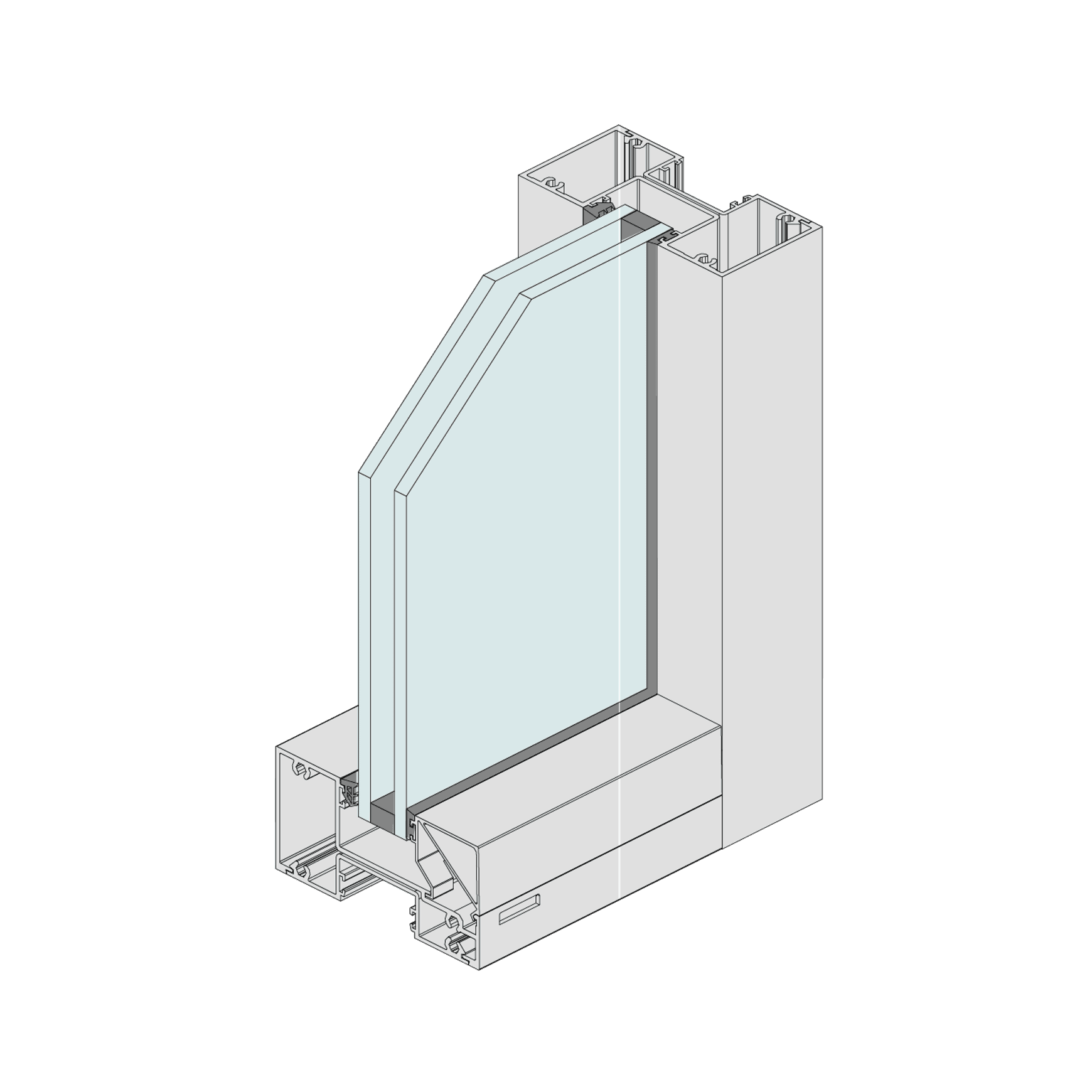

Series 424 CentreGLAZE™ shopfront framing measures 102mm x 50mm and is specifically designed to accept 24mm Insulating Glass Units (IGUs). Its versatile design provides a high-performing solution for a range of commercial and architectural applications, with compatibility across commercial doors, awning and casement sashes.

Details
Specifications
  • Framing Size: 102mm x 50mm
  • IGU Compatibility: 24mm Insulating Glass Units (IGUs)
  • Glazing Pocket Depth: 28mm
  • Glass Bite: 12mm
Features
  • 28mm deep glazing pocket designed to accommodate thick and heavy IGUs while allowing for glass manufacturing tolerances.
  • Provides a 12mm glass bite to meet IGU manufacturer requirements and support glass warranty compliance.
  • Reinforced tall glazing bead at the sill for improved performance in high wind loads.
  • True captive glazing wedge allows reglazing from the inside, making it ideal for elevated applications.
  • Captive wedge design provides increased security.
  • Recessed glazing wedges create a clean, streamlined aesthetic.
  • Wide range of sub-sills available to suit most installations, including options with an integrated nailing fin for residential applications.
  • Includes sub-head and two-piece sub-jamb options.
  • Numerous door threshold options, including weather-resistant thresholds for external and internal swing doors.
  • Designed for use with Series 50, 51 and 52 commercial doors.
  • Compatible with Commercial and Architectural Series systems.
  • Accepts awning and casement sashes.
Visit Website

Projects using this product: Double Glazed Centre GLAZE™

More from Architectural Window Systems

View more

About the
Seller

Architectural Window Systems (AWS) is one of Australia’s leading suppliers of aluminium window and door systems. Established in 1995, AWS prides itself on innovative systems, dedicated support and solutions focused design.

Our two main product brands are Vantage® Windows & Doors and Elevate™ Aluminium Systems. They are designed, tested and made for Australian conditions.

Vantage® Windows & Doors is the preferred choice for residential architects and building designers. Our products feature in renovations, custom homes and luxury high end homes. Selected for style, customisation, comfort and energy efficient performance.

Vantage® Windows & Doors includes five ranges:

  • ComfortEDGE™
  • Designer Series
  • Designer ThermalHEART™
  • Residential Series
  • Specialty

Elevate™ Aluminium Systems is the preferred choice for architects designing for residential and commercial projects. Our products feature in high end homes, aged care, educational, mid-rise and façade projects.

Elevate™ Aluminium Systems includes seven ranges:

  • UltraEDGE™
  • Architectural Series
  • Commercial Framing
  • Commercial Series
  • Curtain Wall Systems
  • Commercial ThermalHEART™
  • Designer ThermalHEART™

They are durable, customised and able to solve a wide range of design challenges.

Our products are manufactured and supplied by over 200 independent fabricators across Australia. These are craftsmen in the industry with attention to detail, who care about your project.
