Elevate | Series 476 | UltraEDGE™ Awning Window 102mm

Architectural Window Systems
Visit Website
Elevate | Series 476 | UltraEDGE™ Awning Window 102mm gallery detail image

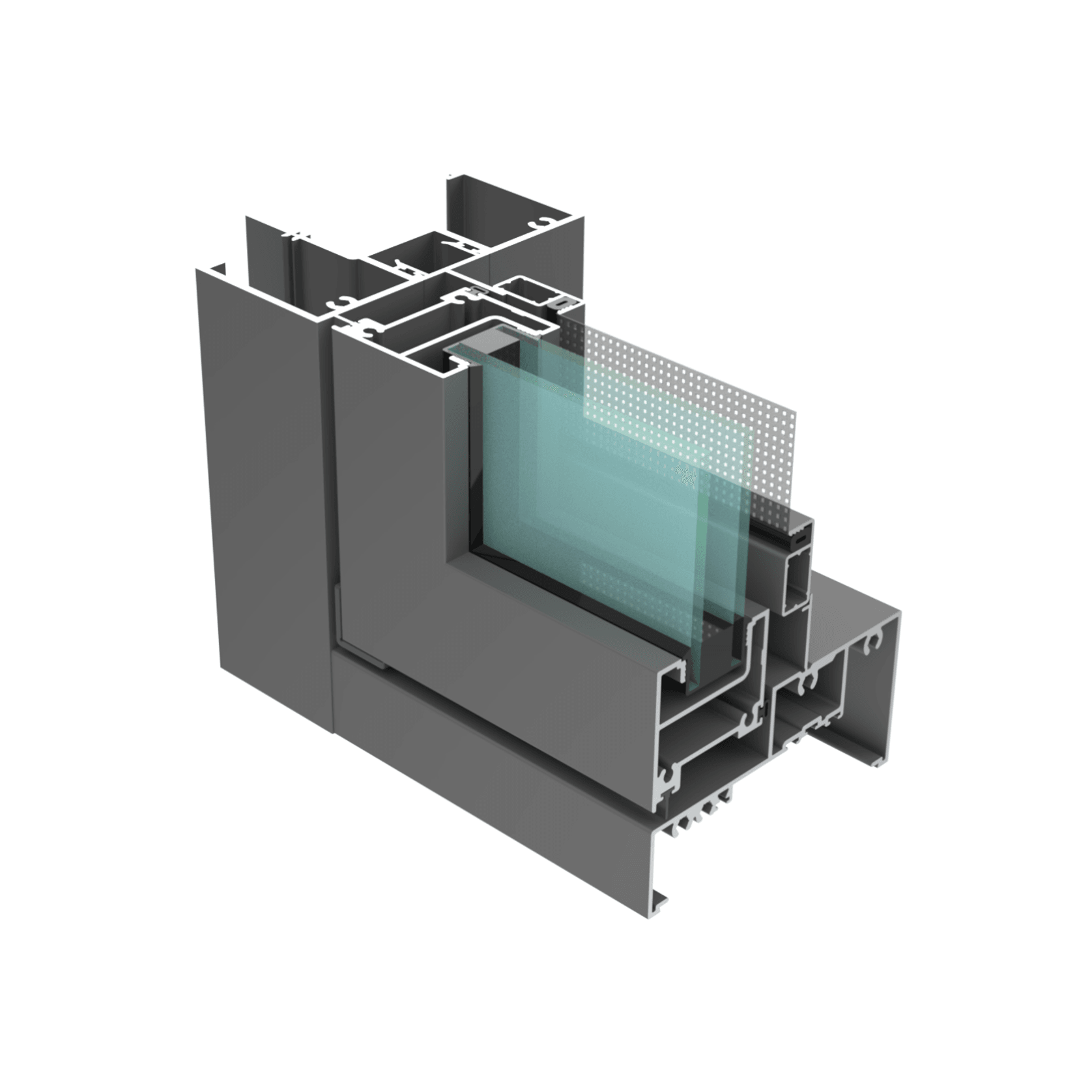

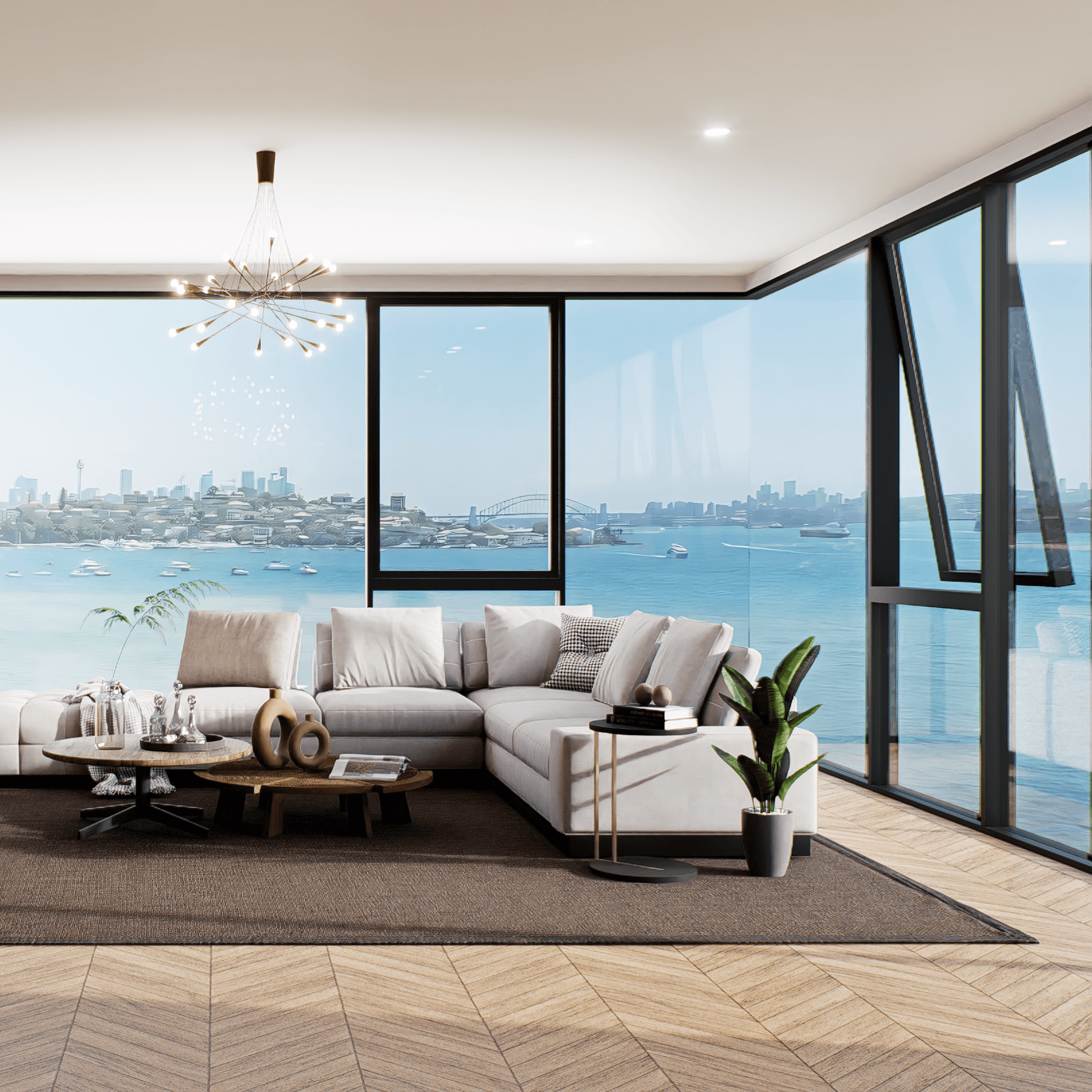

The UltraEDGE™ Awning Window (102 mm) delivers a clean, modern look with strong architectural performance built in. Its integrated hood hinge protects the sash from water while allowing easy removal when needed, and its versatile glazing options—ranging from single glazing to 20 mm IGUs—make it suitable for a wide range of thermal and acoustic requirements.

Engineered for strength, the system supports optional sash reinforcement and high-performance side latches for improved pressure resistance. With smooth manual or automated winder operation, seamless compatibility with AWS commercial framing, and safety features like sash retainers and corner guards, the 102 mm awning window offers a reliable, durable, and compliant solution for both residential and commercial applications.

Details
  • Category
    Awning Windows
  • Range
    Elevate | UltradeEDGE™
Specifications
  • Integrated Hinge Innovation – A fully integrated hood hinge is built into the 102 mm and 150 mm frames, protecting the sash from water ingress while allowing effortless removal and reinstallation.
  • Versatile Glazing Options – Wrap-around sashes accept 18–20 mm IGUs or single glazing from 4 mm to 10.38 mm, while optional beaded sashes (internal or external beading) accommodate glass thicknesses up to 25 mm IGUs, supporting a broad range of thermal and acoustic specifications.
  • Enhanced Strength & Performance – Optional sash reinforcements cover a wide range of design wind load areas, with AWS Performance Side Latches increasing negative pressure resistance by up to 100% compared to standard operation.
  • Optimised Hardware Systems – Heavy-duty manual chain winders are available in both single and dual configurations for precise control. Concealed electric winders may be specified for automated operation and integration into smart-building systems.
  • Flexible Framing Integration – Designed for seamless compatibility with multiple AWS commercial framing suites to ensure full façade continuity
  • Safety & User Assurance – A sash retainer block prevents disengagement from the head, while moulded nylon corner guards protect users from sharp lower sash edges when open—meeting Safe4Kids testing requirements in accordance with BCA restricted-opening standards.
  • Intelligent Sill Design – The integrated flyscreen support leg enables effortless screen installation without visible trims. Reinforced sill and sash sections support chain-winder hardware, ensuring durability and resistance to fatigue through extended use.
  • Certified Australian Compliance – Fully tested to AS 2047, the Series 476-676 achieves a water resistance rating of 600 Pa, enabling use in Australia’s most exposed coastal and high-wind environments.
Architectural Window Systems
View locations (5)
Visit Website

About the
Seller

Architectural Window Systems (AWS) is one of Australia’s leading suppliers of aluminium window and door systems. Established in 1995, AWS prides itself on innovative systems, dedicated support and solutions focused design.

Our two main product brands are Vantage® Windows & Doors and Elevate™ Aluminium Systems. They are designed, tested and made for Australian conditions.

Vantage® Windows & Doors is the preferred choice for residential architects and building designers. Our products feature in renovations, custom homes and luxury high end homes. Selected for style, customisation, comfort and energy efficient performance.

Vantage® Windows & Doors includes four ranges:

  • Residential Series
  • ComfortEDGE™ Series
  • Designer Series
  • Designer ThermalHEART™ Series

Elevate™ Aluminium Systems is the preferred choice for architects designing for residential and commercial projects. Our products feature in high end homes, aged care, educational, mid-rise and façade projects.

Elevate™ Aluminium Systems includes five ranges:

  • Commercial Framing Series
  • Commercial ThermalHEART™ Series
  • Commercial Series
  • Architectural Series
  • Curtain Wall Systems

They are durable, customised and able to solve a wide range of design challenges.

Our products are manufactured and supplied by over 200 independent fabricators across Australia. These are craftsmen in the industry with attention to detail, who care about your project.
