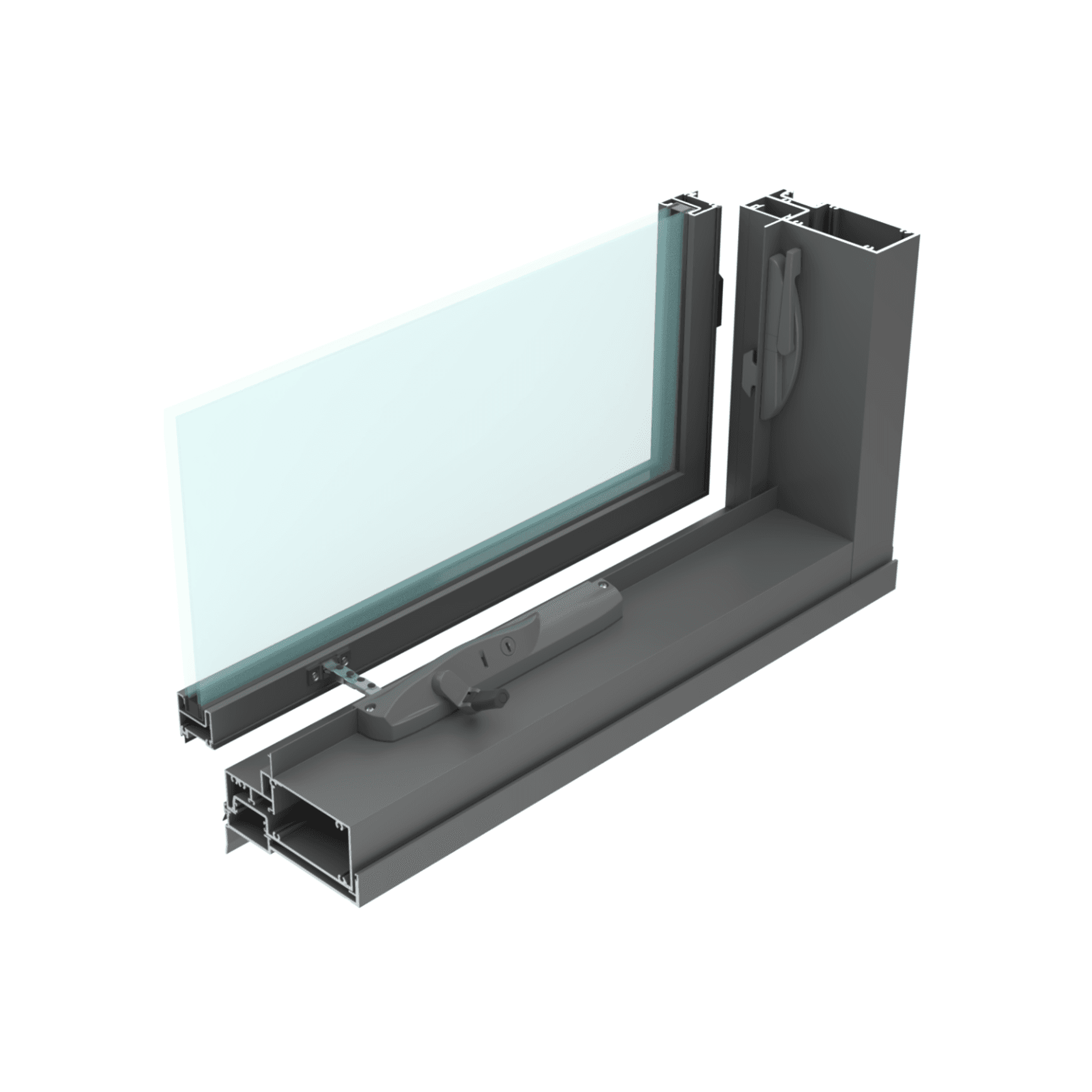

Elevate | Series 676 | UltraEDGE™ Awning Window 150mm

Architectural Window Systems
Visit Website

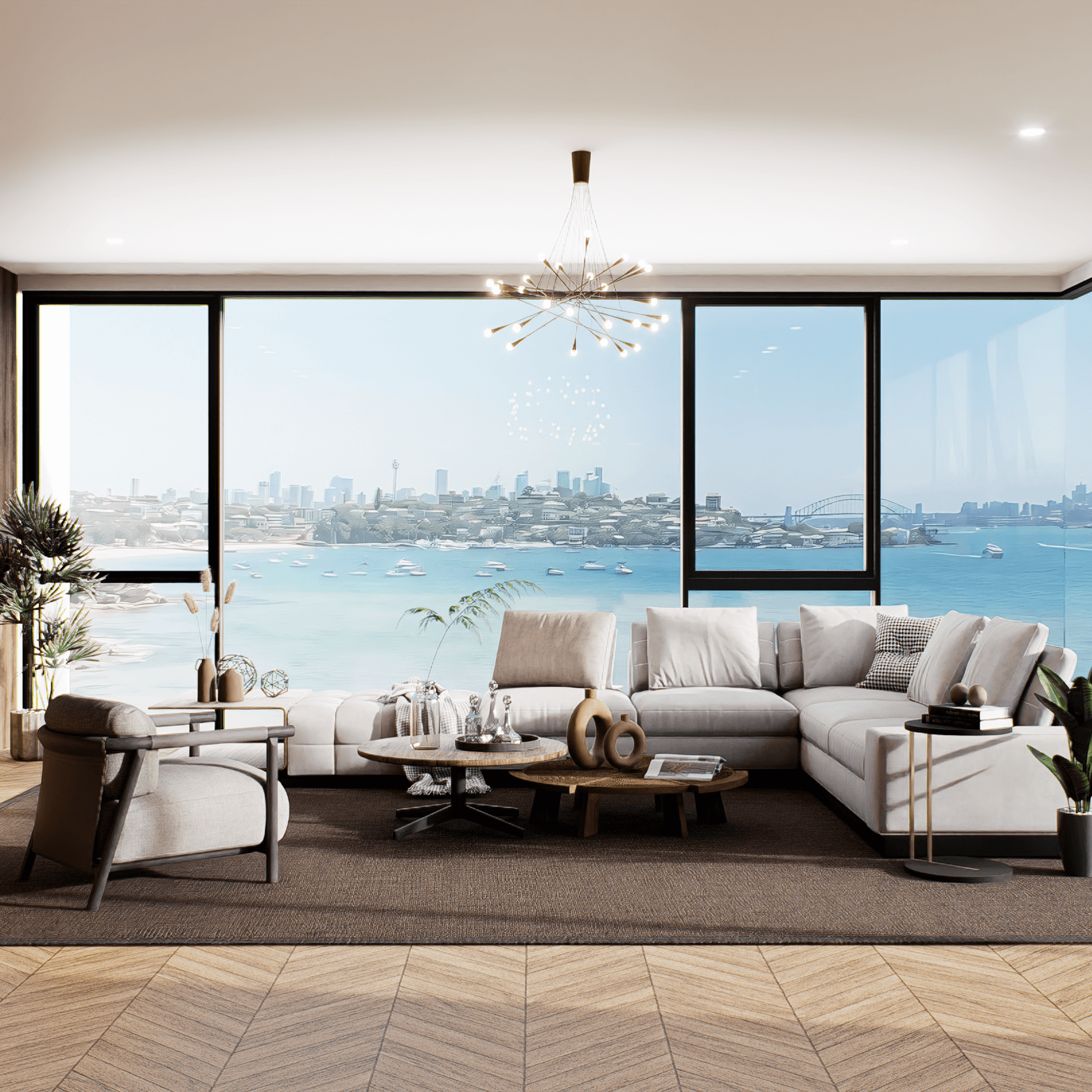

Elevate | Series 676 | UltraEDGE™ Awning Window 150mm gallery detail image

The UltraEDGE™ Series 676 (150 mm) Awning Window delivers a clean, minimalist aesthetic with strong, reliable performance. Its integrated hood hinge protects the sash from water while allowing easy removal, and its glazing flexibility accommodates everything from 18–20 mm IGUs to 25 mm beaded options for advanced thermal and acoustic performance.

Optional sash reinforcements and high-performance side latches boost structural strength, while manual or automated winders provide smooth, precise operation. Designed to integrate seamlessly with AWS commercial framing, the 676 also includes built-in safety features like sash retainers and corner guards, plus an intelligent sill design for easy, trim-free flyscreen installation.

Fully tested to AS 2047 and achieving a 600 Pa water rating, the Series 676 is built to perform in Australia’s harshest coastal and high-wind environments.

Details
  • Category
    Awning Windows
Specifications
  • Integrated Hinge Innovation – A fully integrated hood hinge is built into the 102 mm and 150 mm frames, protecting the sash from water ingress while allowing effortless removal and reinstallation.
  • Versatile Glazing Options – Wrap-around sashes accept 18–20 mm IGUs or single glazing from 4 mm to 10.38 mm, while optional beaded sashes (internal or external beading) accommodate glass thicknesses up to 25 mm IGUs, supporting a broad range of thermal and acoustic specifications.
  • Enhanced Strength & Performance – Optional sash reinforcements cover a wide range of design wind load areas, with AWS Performance Side Latches increasing negative pressure resistance by up to 100% compared to standard operation.
  • Optimised Hardware Systems – Heavy-duty manual chain winders are available in both single and dual configurations for precise control. Concealed electric winders may be specified for automated operation and integration into smart-building systems.
  • Flexible Framing Integration – Designed for seamless compatibility with multiple AWS commercial framing suites to ensure full façade continuity
  • Safety & User Assurance – A sash retainer block prevents disengagement from the head, while moulded nylon corner guards protect users from sharp lower sash edges when open—meeting Safe4Kids testing requirements in accordance with BCA restricted-opening standards.
  • Intelligent Sill Design – The integrated flyscreen support leg enables effortless screen installation without visible trims. Reinforced sill and sash sections support chain-winder hardware, ensuring durability and resistance to fatigue through extended use.
  • Certified Australian Compliance – Fully tested to AS 2047, the Series 476-676 achieves a water resistance rating of 600 Pa, enabling use in Australia’s most exposed coastal and high-wind environments.
