HB1490 Series Sliding Door Sets – 310mm

The HB 1490 Sliding Door Set Series has been developed for use on large sliding doors where function and scale are required.

Features

Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

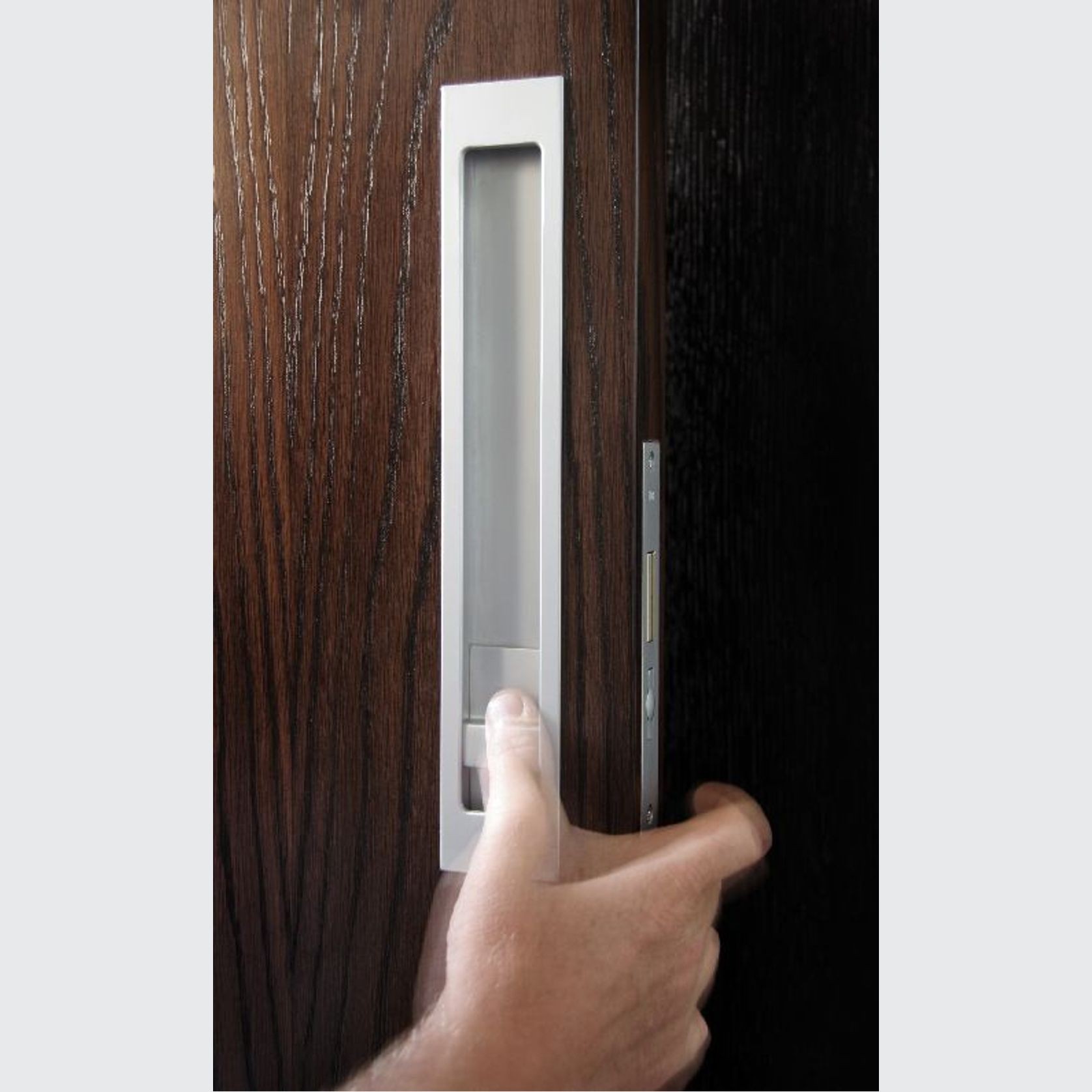

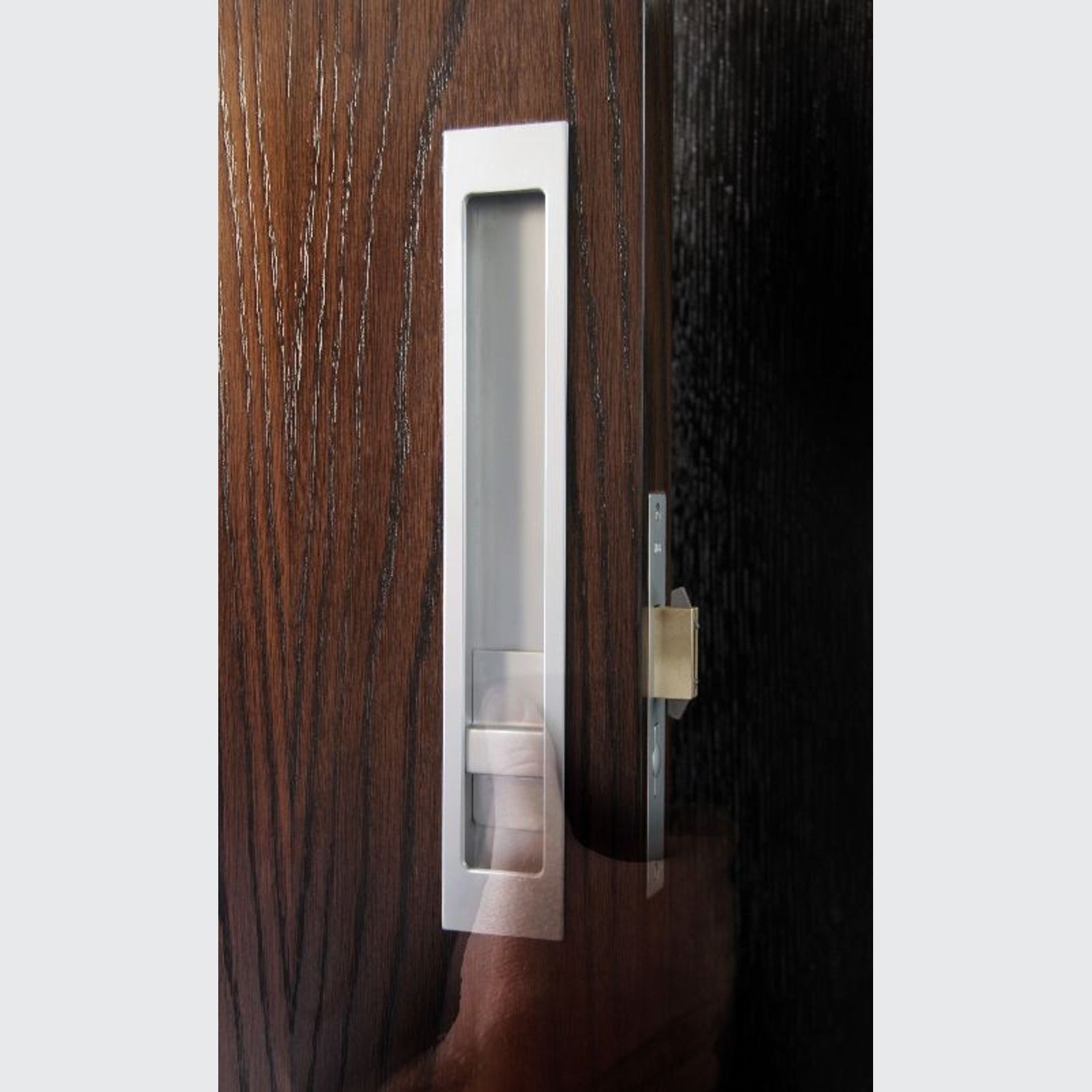

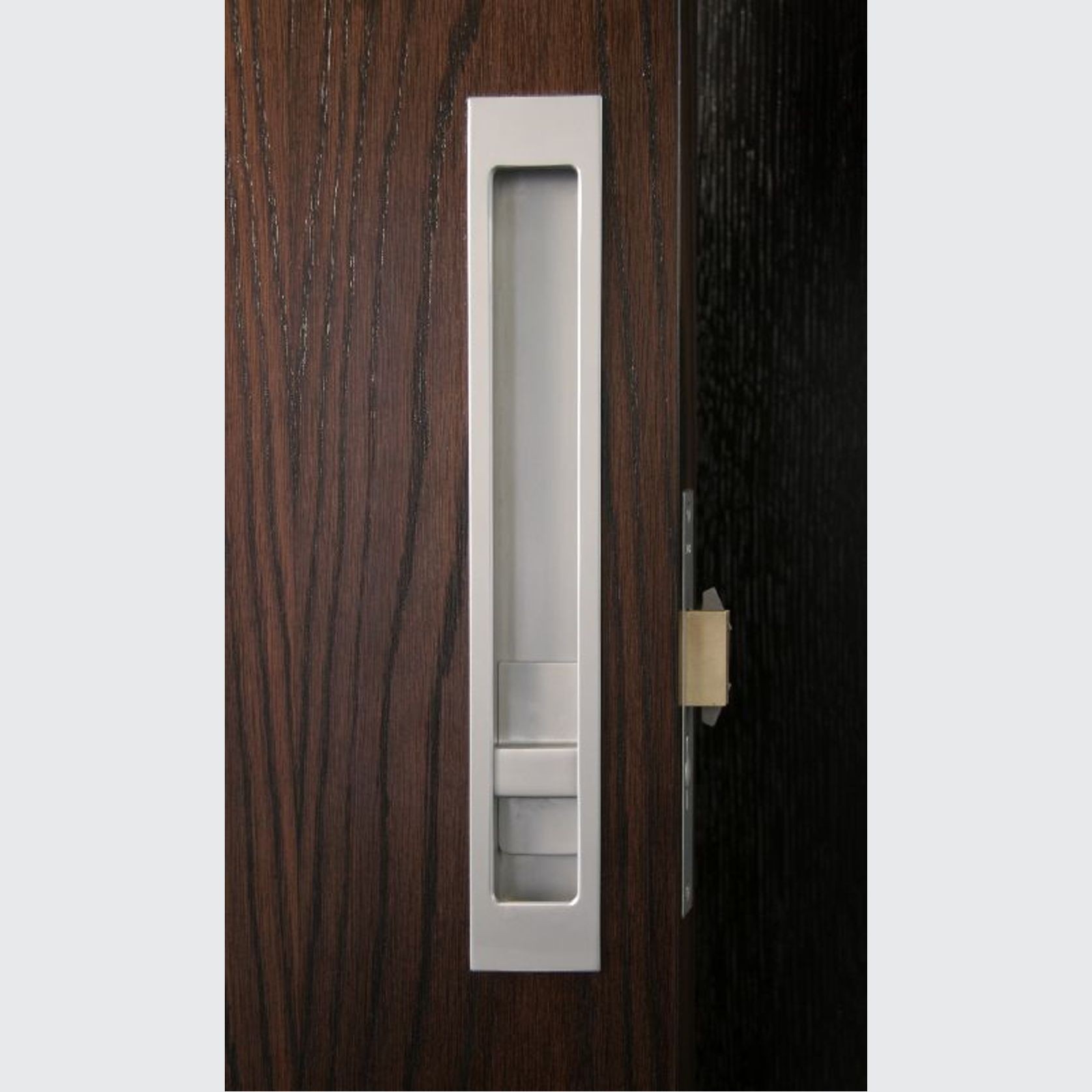

Flush pulls are designed to be mounted with the body within the thickness of the door, and the face plate on the door surface – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle bar to the back of the snib flush pull for example where sets have a flush pull to one side only.

Scope of use

• Designed for sliding and cavity sliding doors, especially large or heavy doors that require a substantial flush pull and integrated locking set.
  • Suitable for timber or aluminium doors with a minimum thickness of 45mm, allowing the lock body and long flush pulls to be fully recessed.
  • Ideal for high-end residential and commercial projects where a large-scale architectural pull and a premium sliding door lockset are required.
  • Suitable for privacy, passage, or blank-outside configurations depending on the selected HB1490 series variant.

Specs / Details

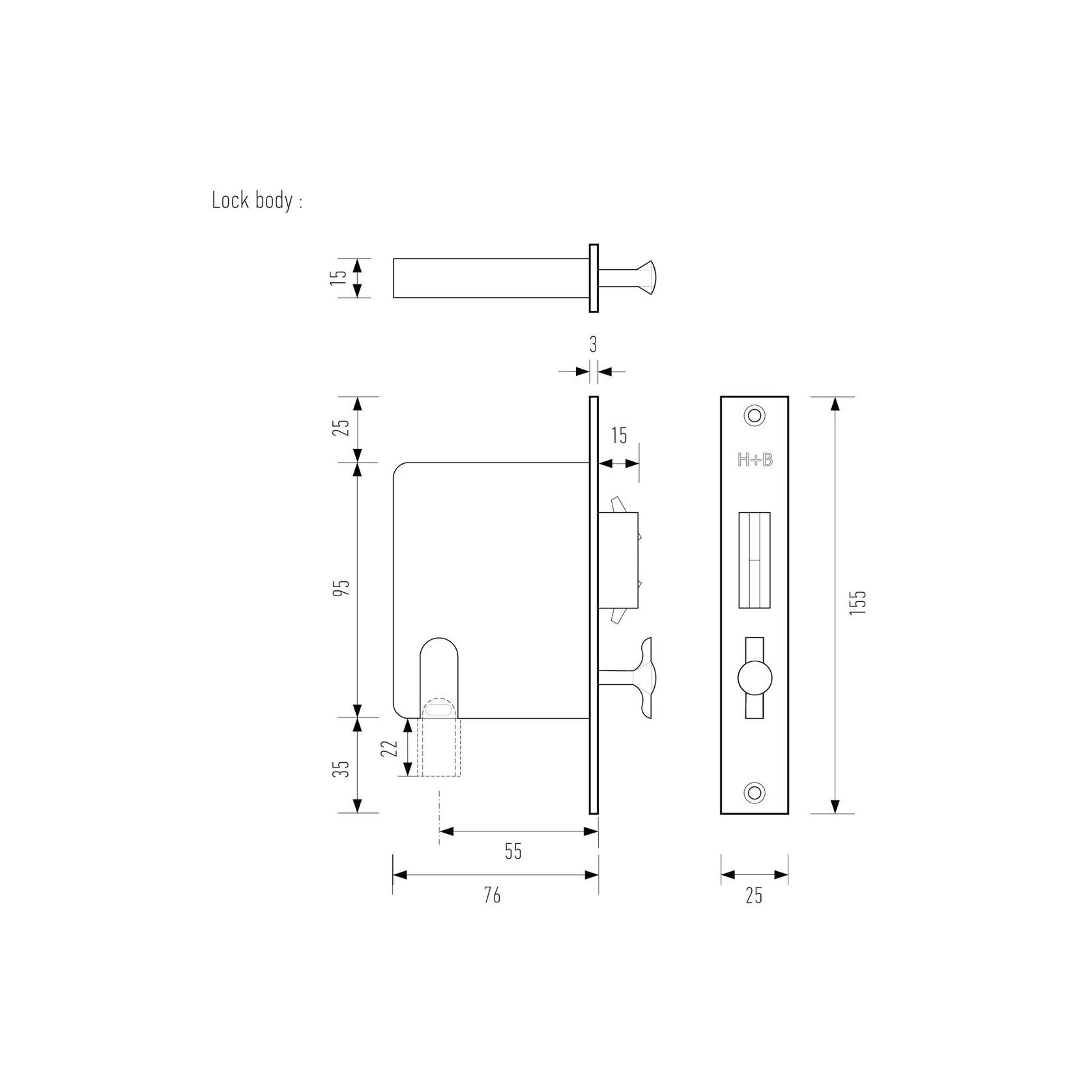

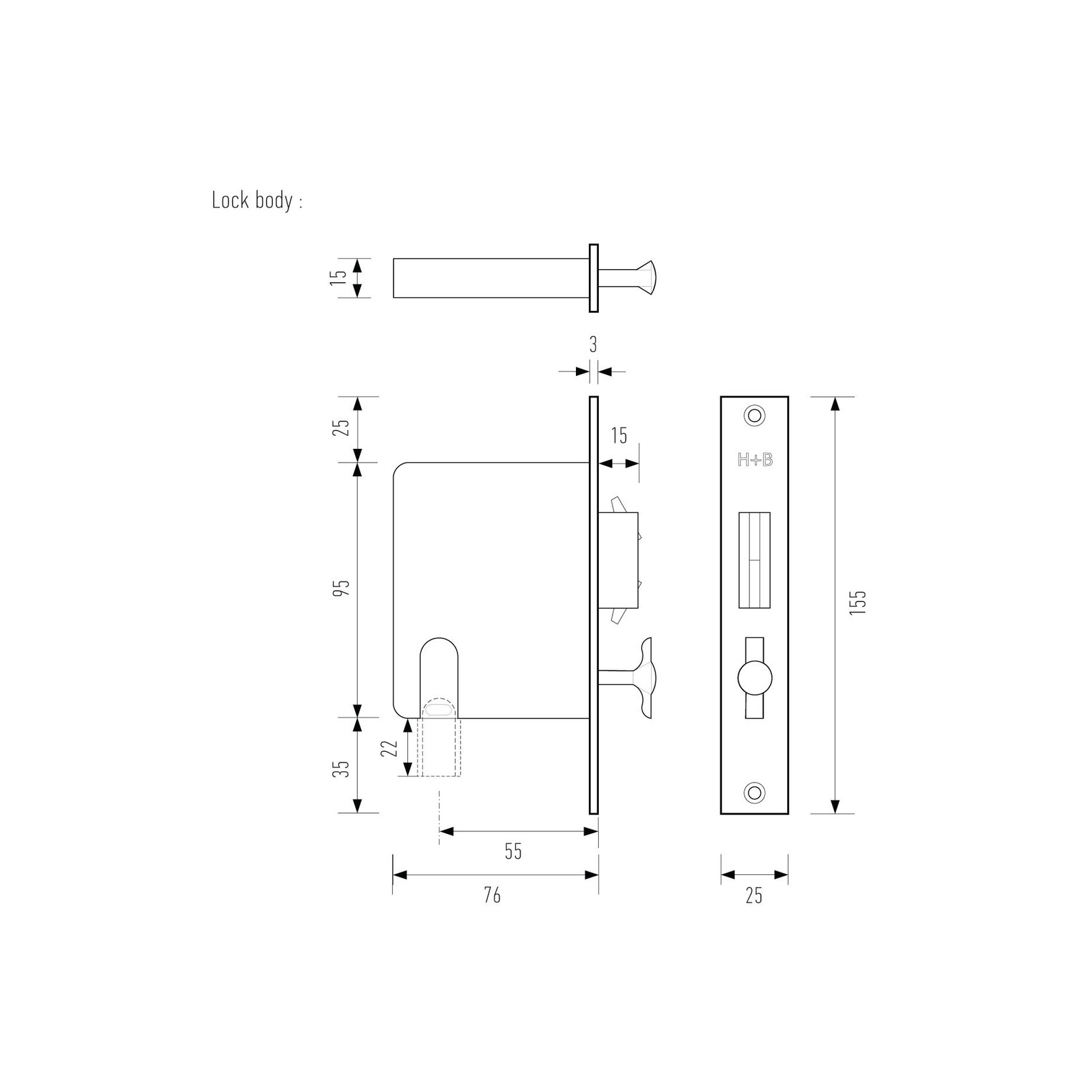

Material: Flush Pulls milled from solid brass, Lock Body Zinc diecast and brass

Backset : 55mm

Minimum door thickness : 45mm

Flush pulls : 310mm x 50mm x 15mm

Suitable for timber or aluminium doors

Available as a Privacy Set, and various snib only configurations.

For finish options please see our current Finishes Sheet.

Configurations:
HB 1490 – Privacy Set
HB 1492 – Snib In, Blank Out
HB 1493 – Snib In, No Pull Out
HB 1494 – Snib Both Sides
