HB620 Passage Set (170mm Flush Pull)

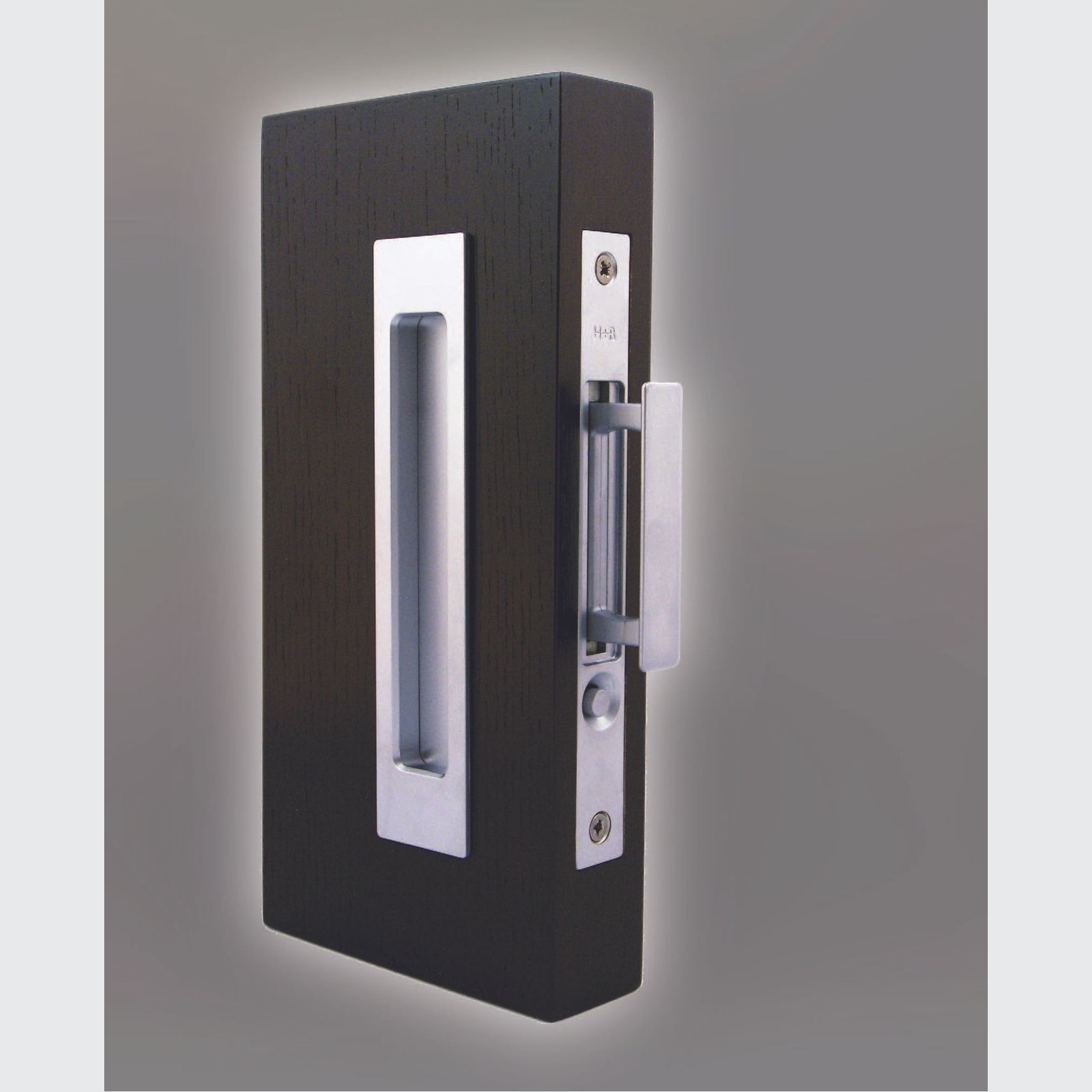

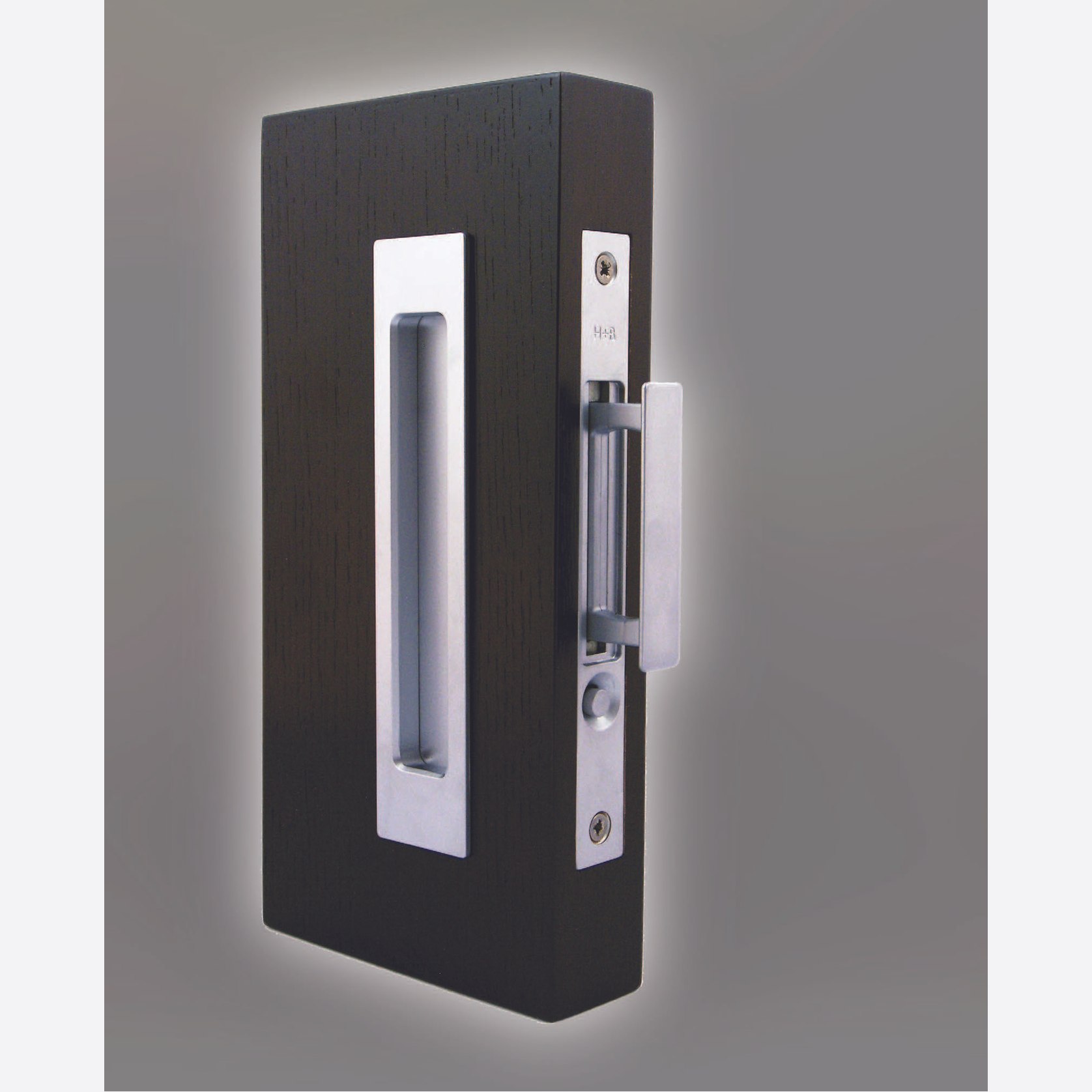

The new HB620 cavity slider passage set includes our popular HB660 170mm flush pulls with HB604 timber fixing kits and HB680 end pull.

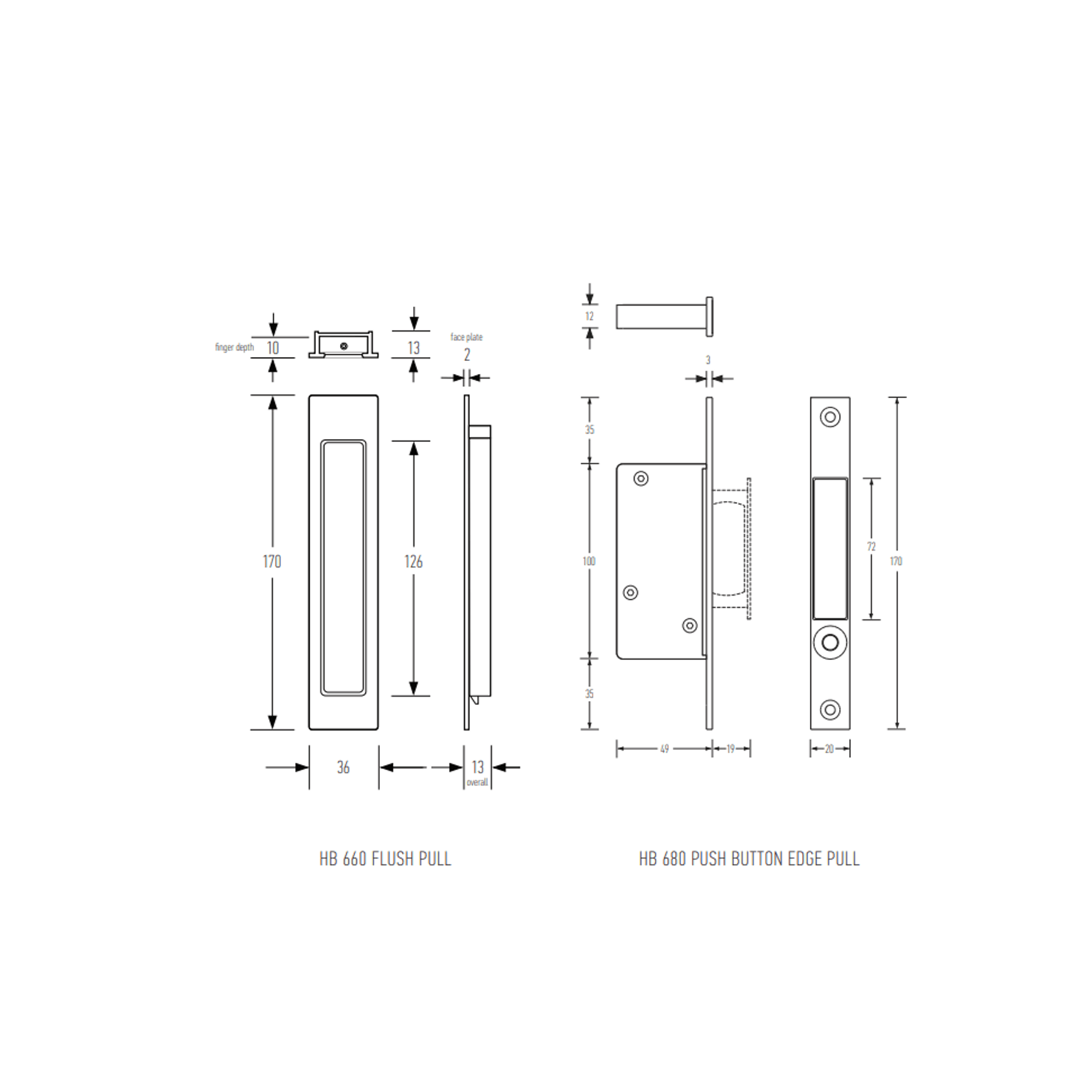

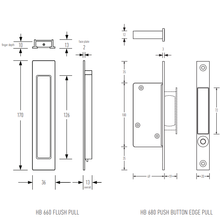

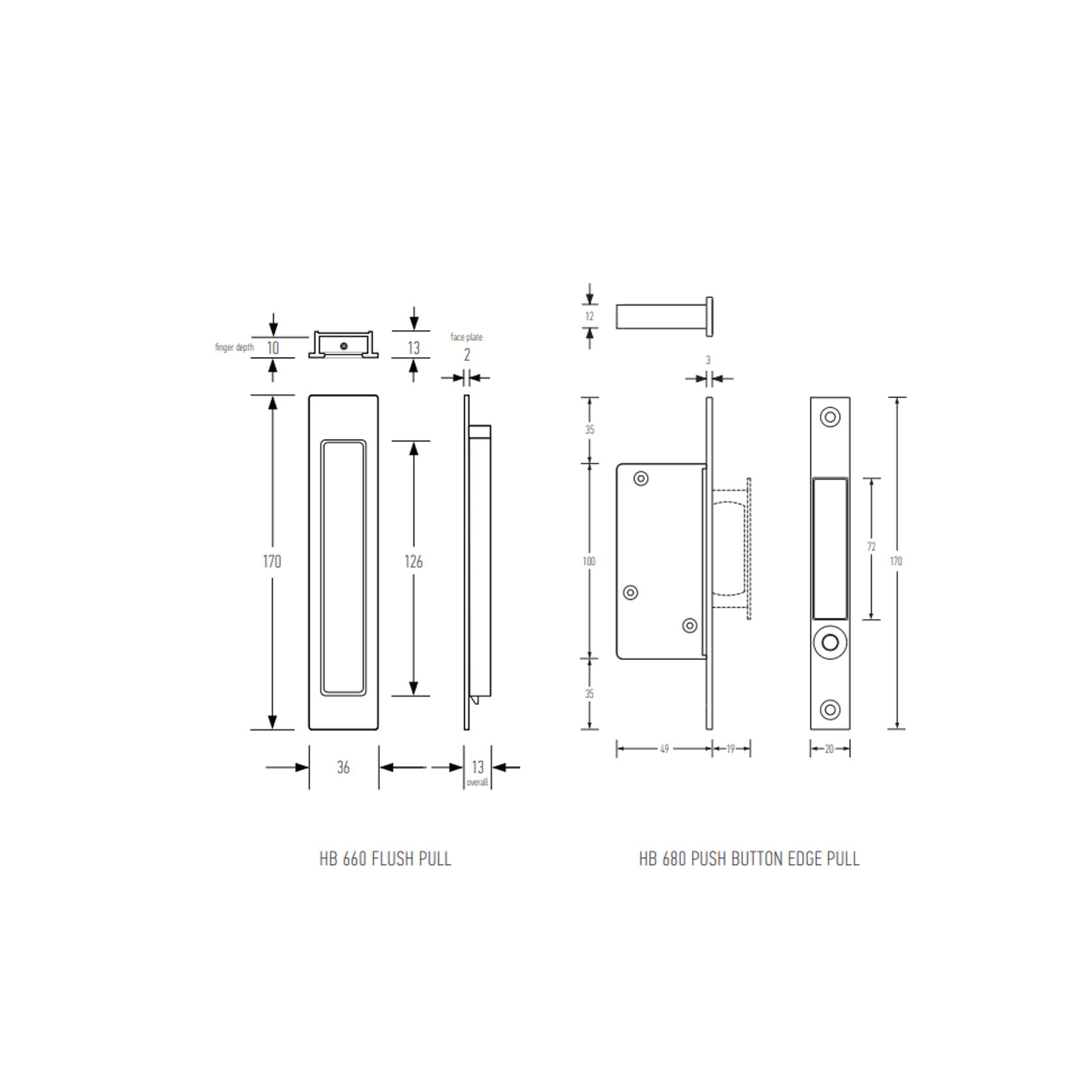

Specs

Flush Pull:
Material: Zinc diecast & brass
Dimensions: 170mm x 36mm x 13mm
Internal depth: 10mm

Edge Pull:
Material: Zinc diecast & brass
Dimensions (overall): 170mm x 20mm x 49mm
Dimensions (cased to be morticed): 100mm x 12mm x 49mm
Handle Projection: 19mm

Available in all Halliday + Baillie standard finishes. Please see finishes sheet for further details.

Features

Standard HB620 passage sets includes: 2 x HB660 flush pulls 2 x HB604 timber fixing kits 1 x HB680 edge pull

A minimum door thickness of 35mm is required for this set. Suitable for timber and aluminium doors.

Scope of use

• Designed for sliding/cavity-slider doors (timber or aluminium).
  • Suitable where a passage lock / non-locking flush-pull setup is required (i.e. doors that slide back and forth, but do not need keyed locking).
  • Best used on doors with a minimum thickness of 35 mm.
  • Intended for residential or commercial internal sliding doors where a flush, low-profile handle is preferred (e.g. wardrobes, cavity sliding doors, partition doors, minimal-hardware interiors) rather than protruding handles.
  • Suitable for door designs where you want to maintain a clean, flush aesthetic — especially where the door slides completely into a cavity or pocket (since flush-pulls don’t stick out).
