HB624 Passage Set (310mm Flush Pull)
Victoria
- 674.9K profile views
- 58 saves

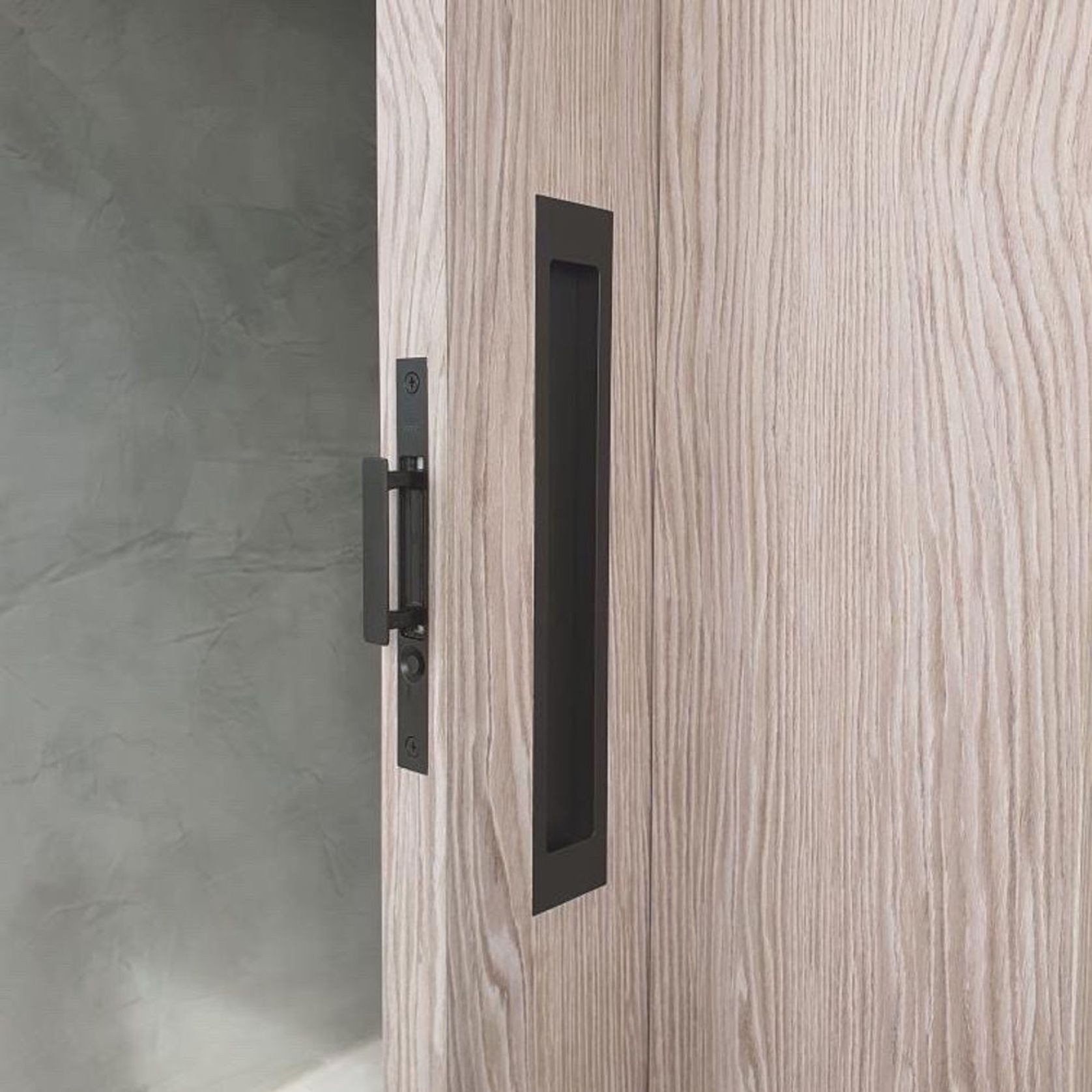

The new HB624 cavity slider passage set includes the large HB1470 310mm flush pulls with HB1410 timber fixing kits and HB680 end pull. This provides all components required for one passage cavity slider door in one convenient package, under one simple code.
Product Details
- Product
- HB624 Passage Set (310mm Flush Pull)
- Category
- Cavity Slider Doors
- Sold by
- Halliday + Baillie
- Designer
- Halliday + Baillie
- Brand
- Halliday + Baillie
- Country of origin
- New Zealand
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation required
- Assembly
- Professional assembly required
Halliday + Baillie is specified by
TKD ArchitectsArchitects
MHNDUArchitects
Studio IlkArchitects
Abe McCarthy ArchitectsArchitects
Smyth & SmythArchitects
Anderson ArchitectureArchitects
Woods BagotArchitects
Utz Sanby ArchitectsArchitects
Cadence & CoArchitects
Bryant Alsop ArchitectsArchitects
DX ArchitectsArchitects
Shade FactorManufacturers and Suppliers
The new HB624 cavity slider passage set includes the large HB1470 310mm flush pulls with HB1410 timber fixing kits and HB680 end pull.
This provides all components required for one passage cavity slider door in one convenient package, under one simple code.
- Specs

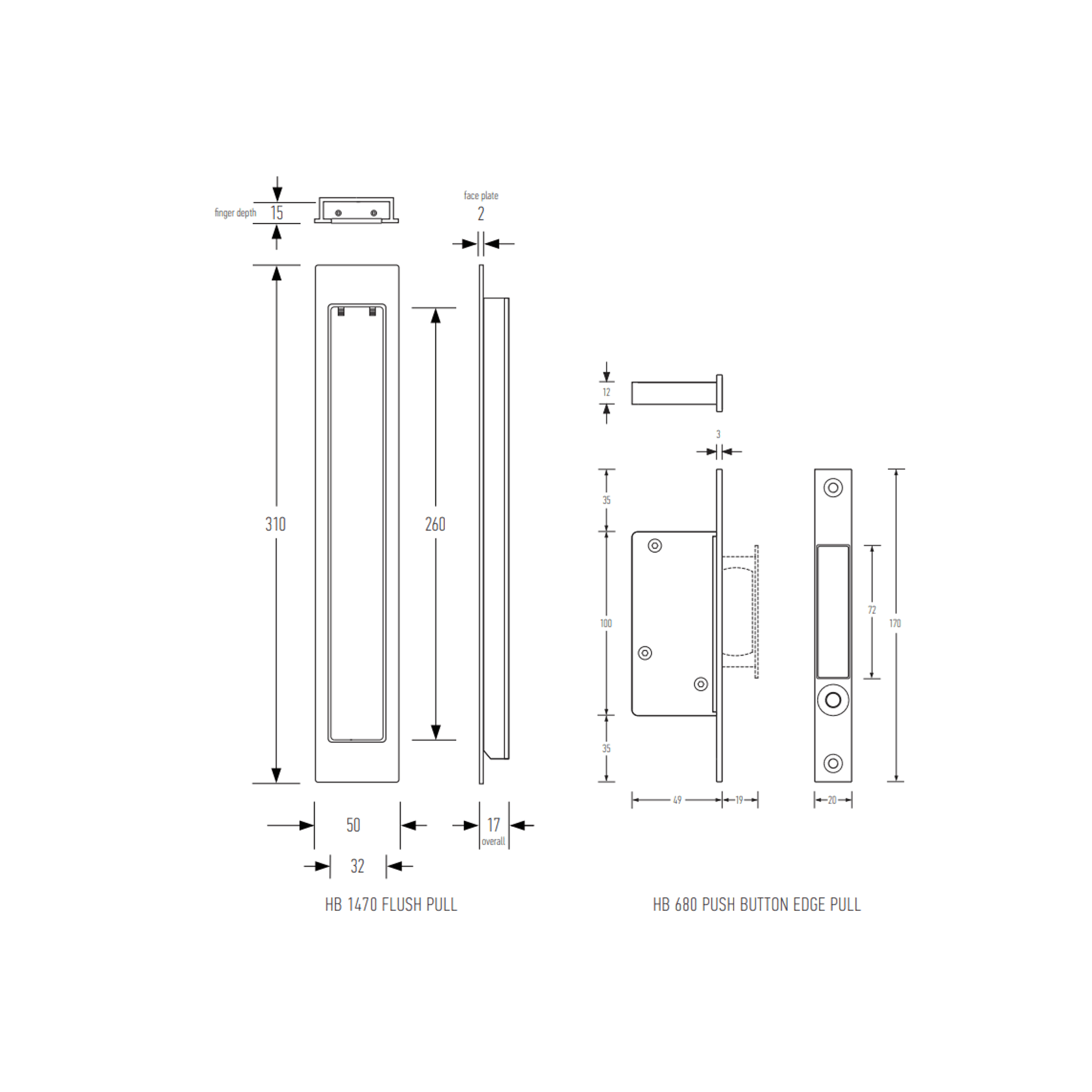

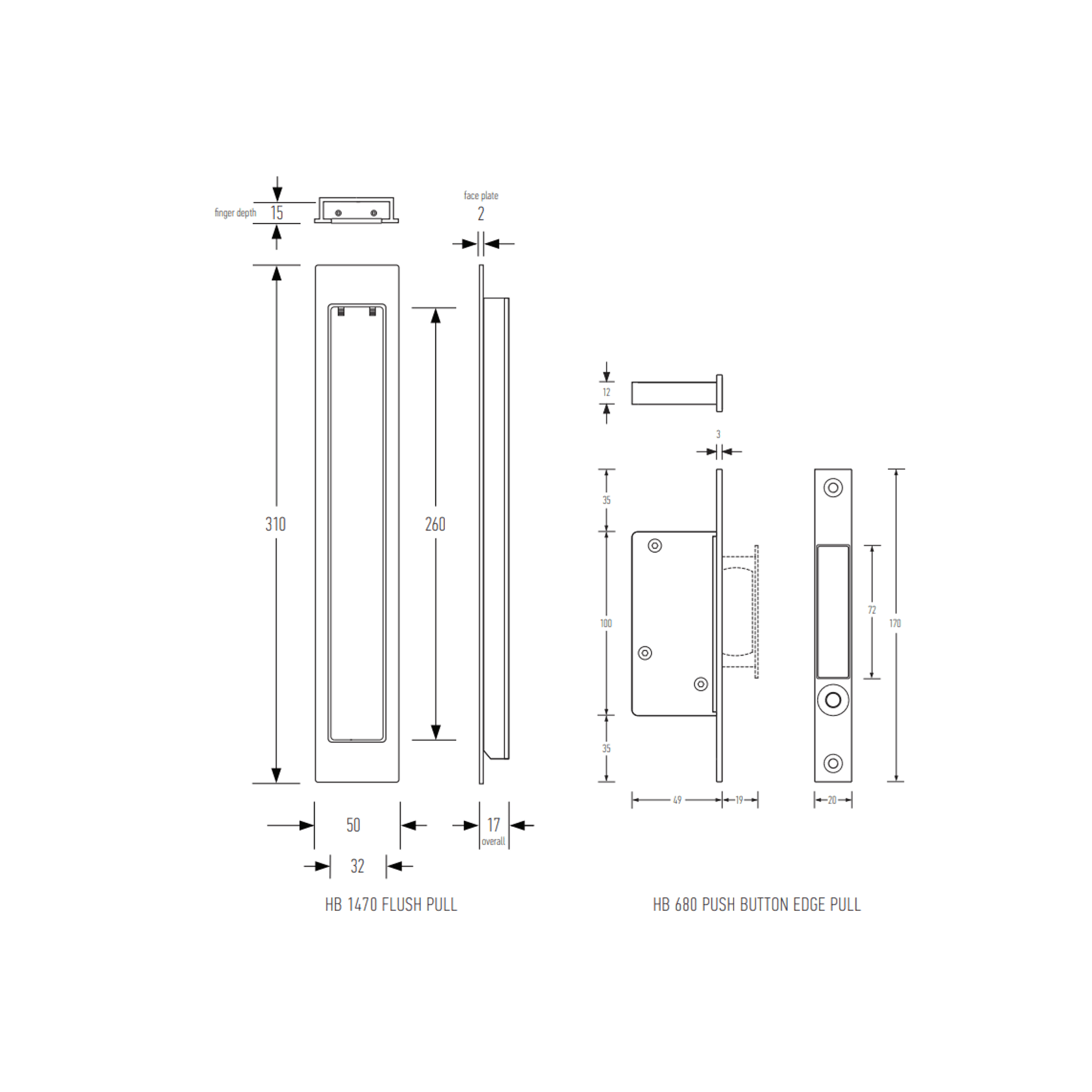

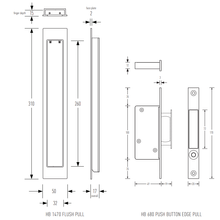

Flush Pull:
Material: Milled solid brass
Dimensions: 310mm x 50mm x 17mm
Internal depth: 15mmEdge Pull:
Material: Zinc diecast & brass
Dimensions (overall): 170mm x 20mm x 49mm
Dimensions (cased to be morticed): 100mm x 12mm x 49mm
Handle Projection: 19mmAvailable in all Halliday + Baillie standard finishes. Please see finishes sheet for further details.
- Features
Standard HB624 passage sets includes:
2 x HB1470 flush pulls
2 x HB1410 timber fixing kits
1 x HB680 edge pullA minimum door thickness of 45mm is required for this set.
Suitable for timber and aluminium doors.- Scope of use
- Designed for sliding/cavity-slider doors (timber or aluminium).
- Suitable where a passage lock / non-locking flush-pull setup is required (i.e. doors that slide back and forth, but do not need keyed locking).
- Best used on doors with a minimum thickness of 45 mm.
- Intended for residential or commercial internal sliding doors where a flush, low-profile handle is preferred (e.g. wardrobes, cavity sliding doors, partition doors, minimal-hardware interiors) rather than protruding handles.
- Suitable for door designs where you want to maintain a clean, flush aesthetic — especially where the door slides completely into a cavity or pocket (since flush-pulls don’t stick out).
- Designed for sliding/cavity-slider doors (timber or aluminium).
