HB1480 Series for Sliding Doors – 310mm – 55mm Backset

The HB 1480 Offset Pull Door series has been developed primarily for use on large doors where scale is required, or the doors are particularly heavy.

Features

Available as a Privacy Set, and various snib only configurations.

For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

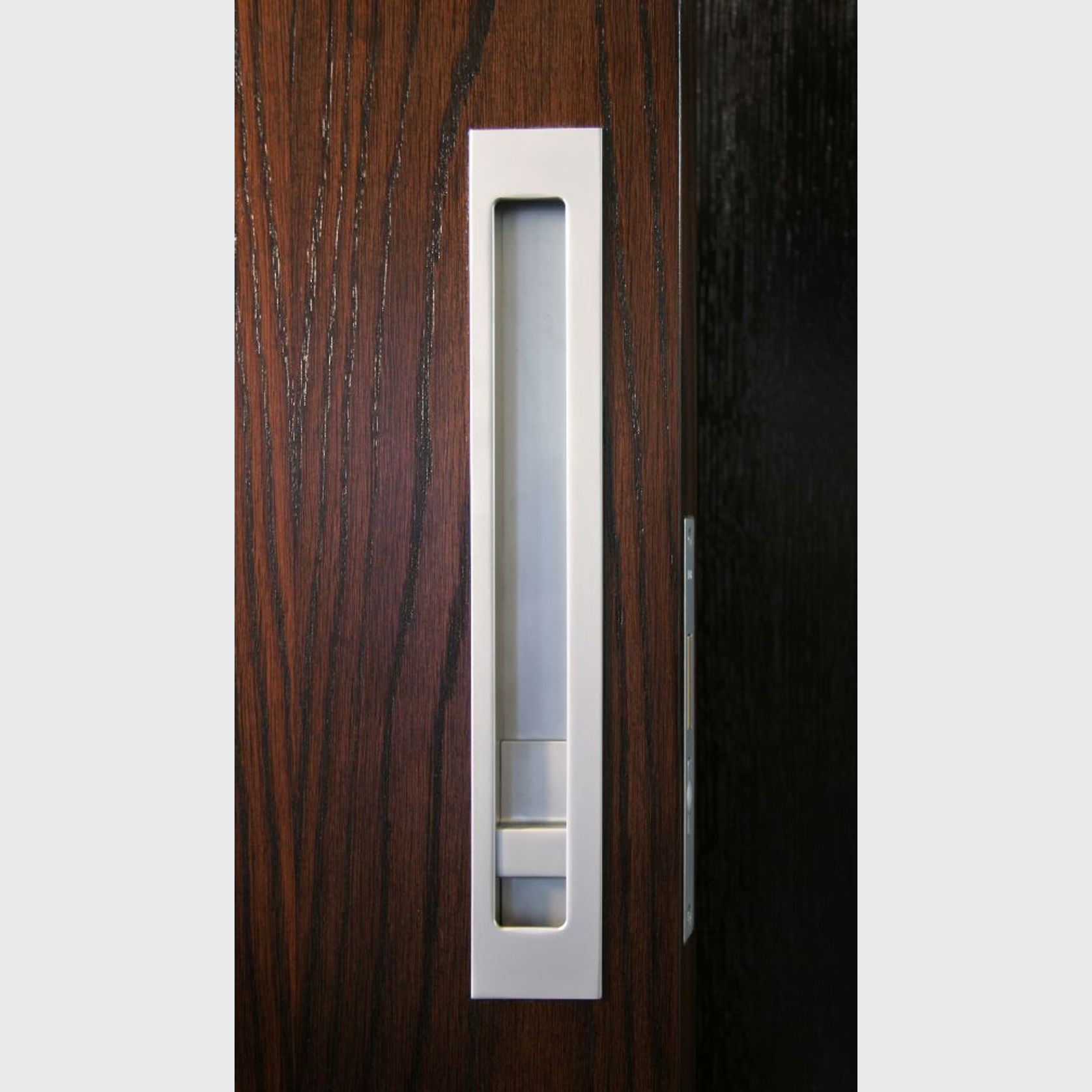

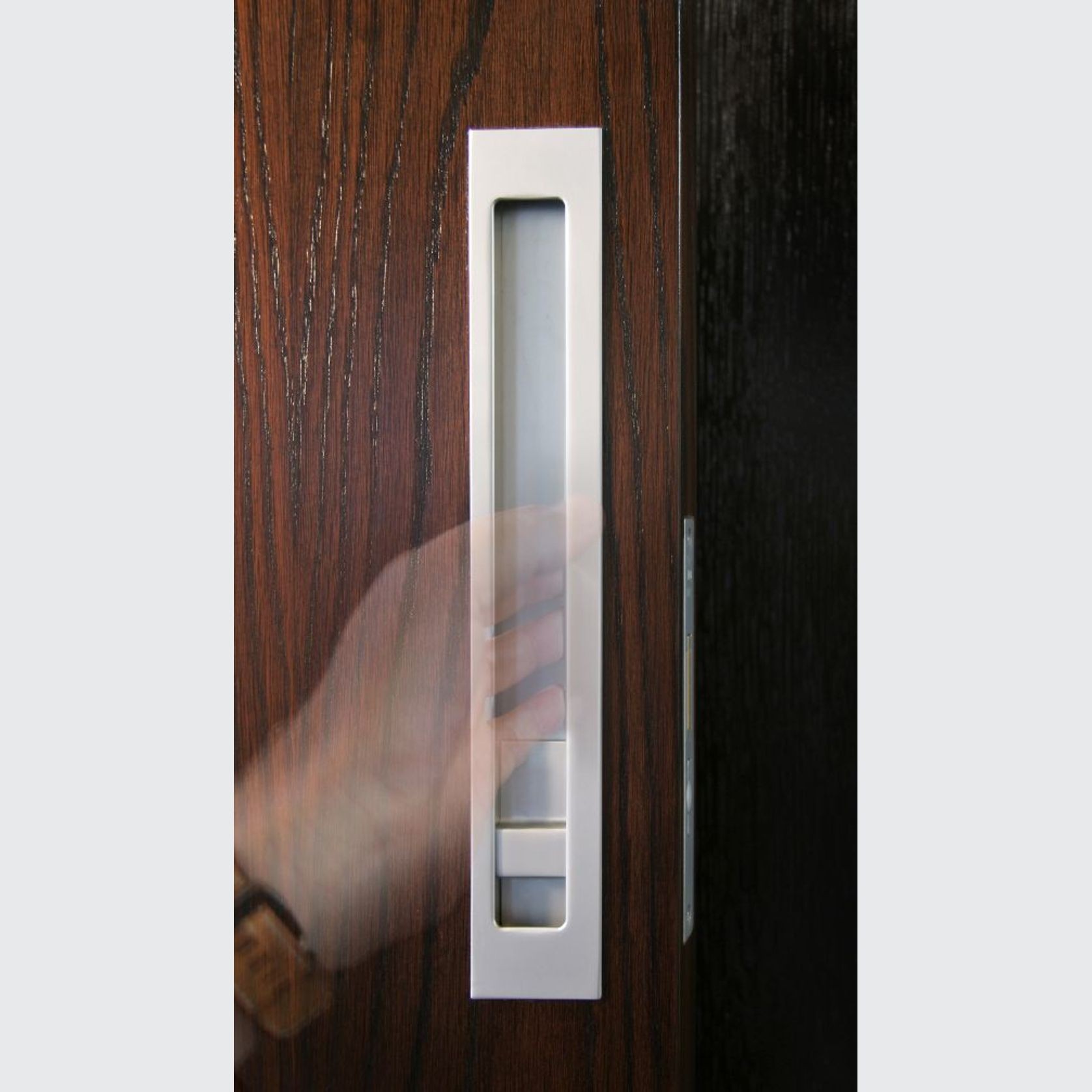

Flush pulls are designed to be mounted with the body within the thickness of the door, and the face surface mounted – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle bat to the back of the snib flush pull for example where sets have a flush pull to one side only.

Scope of use

• Designed for large sliding doors, including pocket or cavity sliders, where a significant flush pull grip is needed.
  • Suitable due to scale for oversized or heavy doors, or for pivot/bi-fold/swing doors when a large architectural pull is required.
  • Compatible with both timber and large-profile aluminium doors, provided the door thickness is a minimum 45 mm, and the hardware is correctly installed and recessed.
  • Provides a coordinated hardware solution (flush pulls + lock body/backset) for premium finish and design continuity in higher-end residential or commercial fit-out projects.

Specs / Details

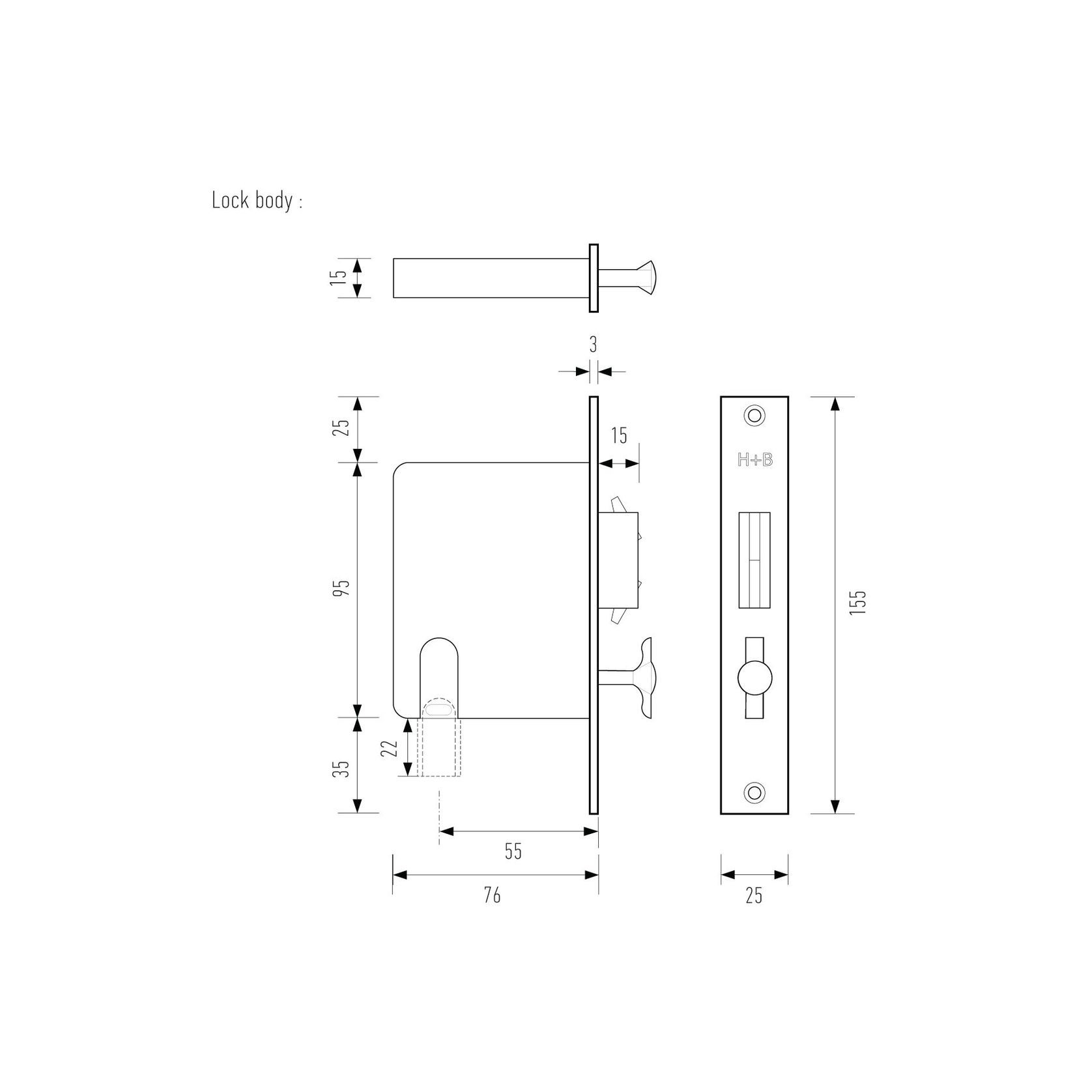

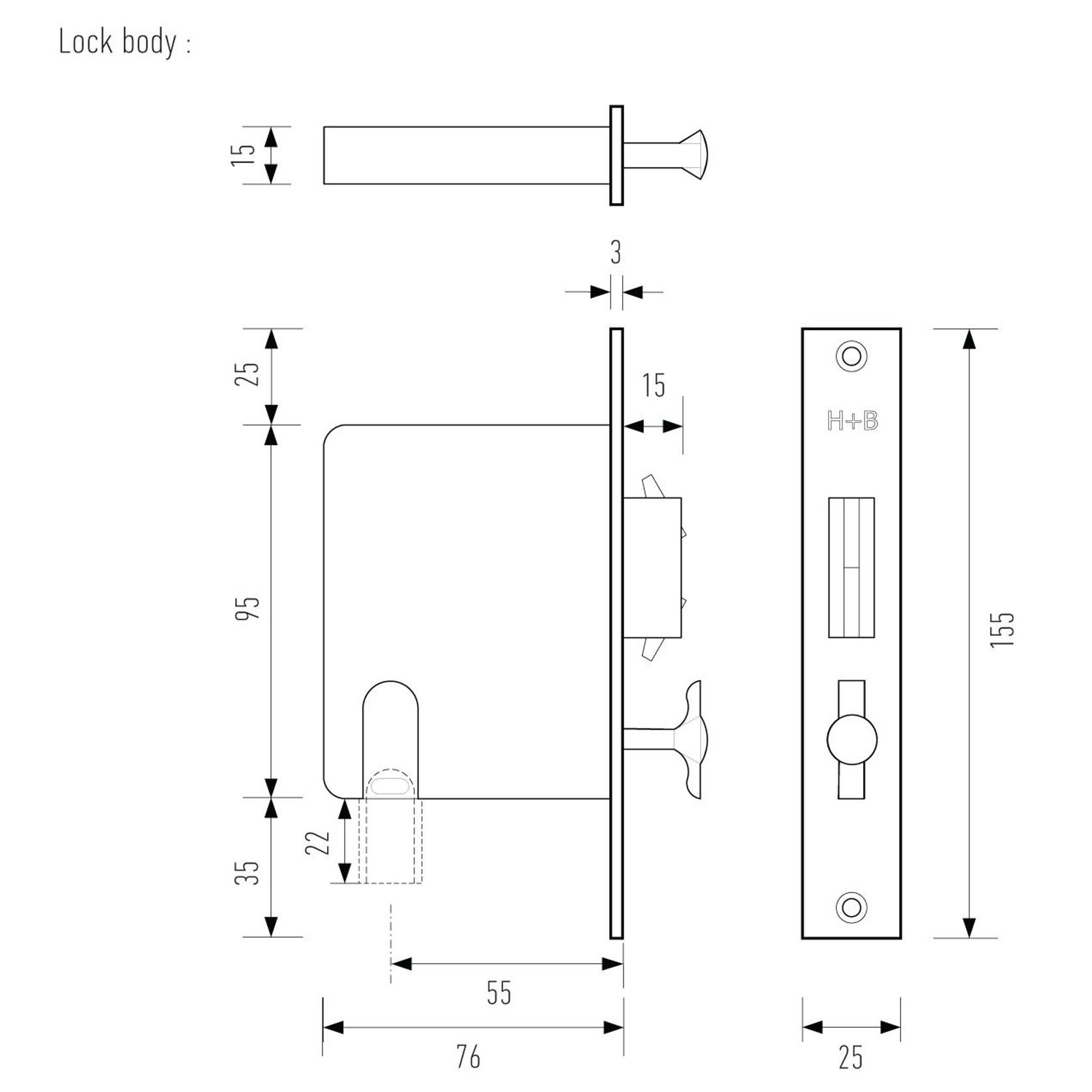

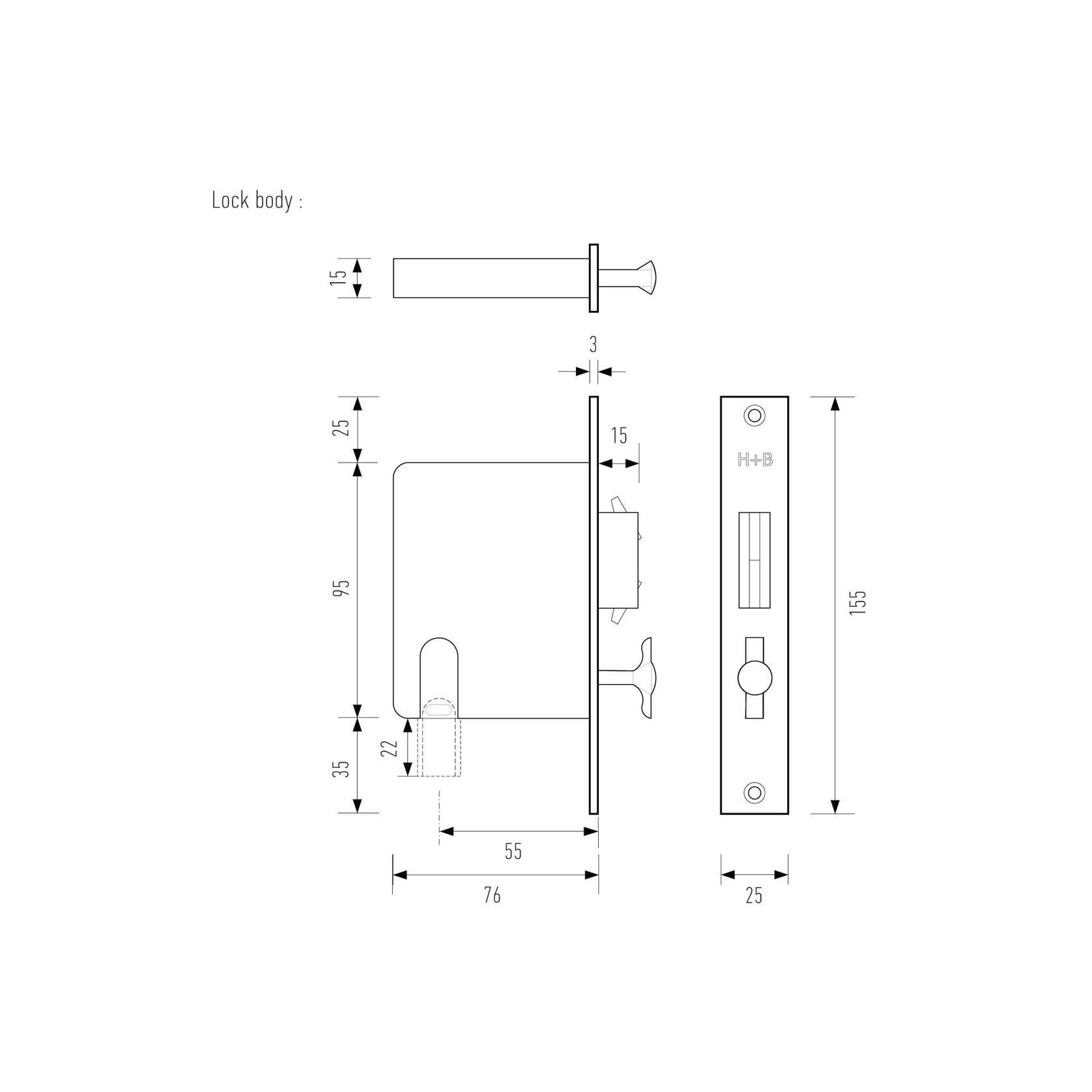

• Backset: 55 mm.
  • Minimum door thickness: 45 mm.
  • Flush pull dimensions: 310 mm (length) × 50 mm (width) × approx. 15-17 mm (depth).
  • Internal grip depth of flush pulls: ~15 mm.
  • Materials:
    Flush pulls: milled from solid brass.
    Lock body: die-cast zinc, brass, 316 stainless steel.
  • Suitable for substrates: Timber or large-profile aluminium doors.
  • Handing: Available as left-hand or right-hand versions depending on the offset grip configuration.
  • Configurations / functions:
    HB 1480 – Privacy Set (snib inside + emergency indicator outside)
    HB 1482 – Snib inside, plain flush pull outside
    HB 1483 – Snib inside, no pull outside
    HB 1484 – Snib both sides (passage set)
