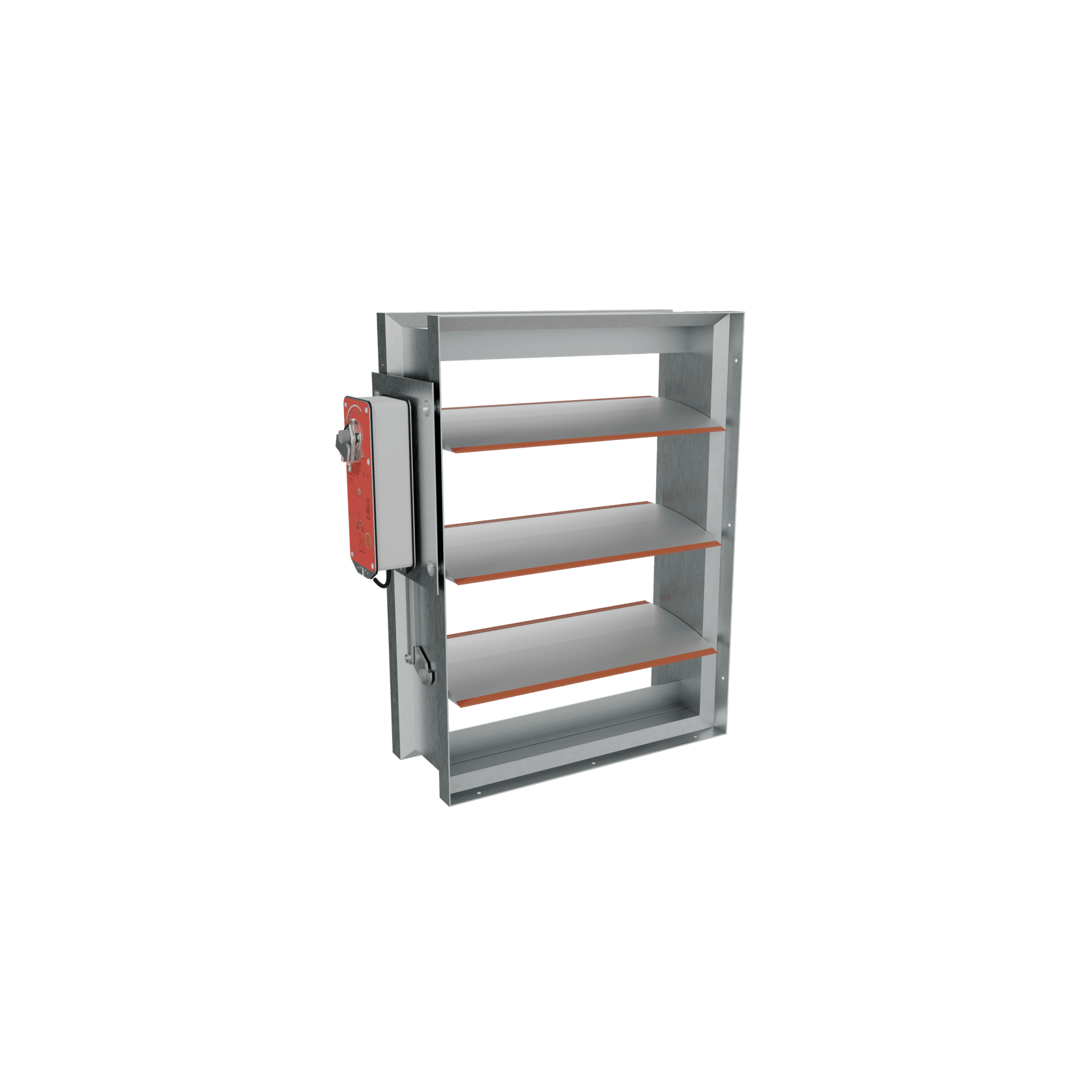

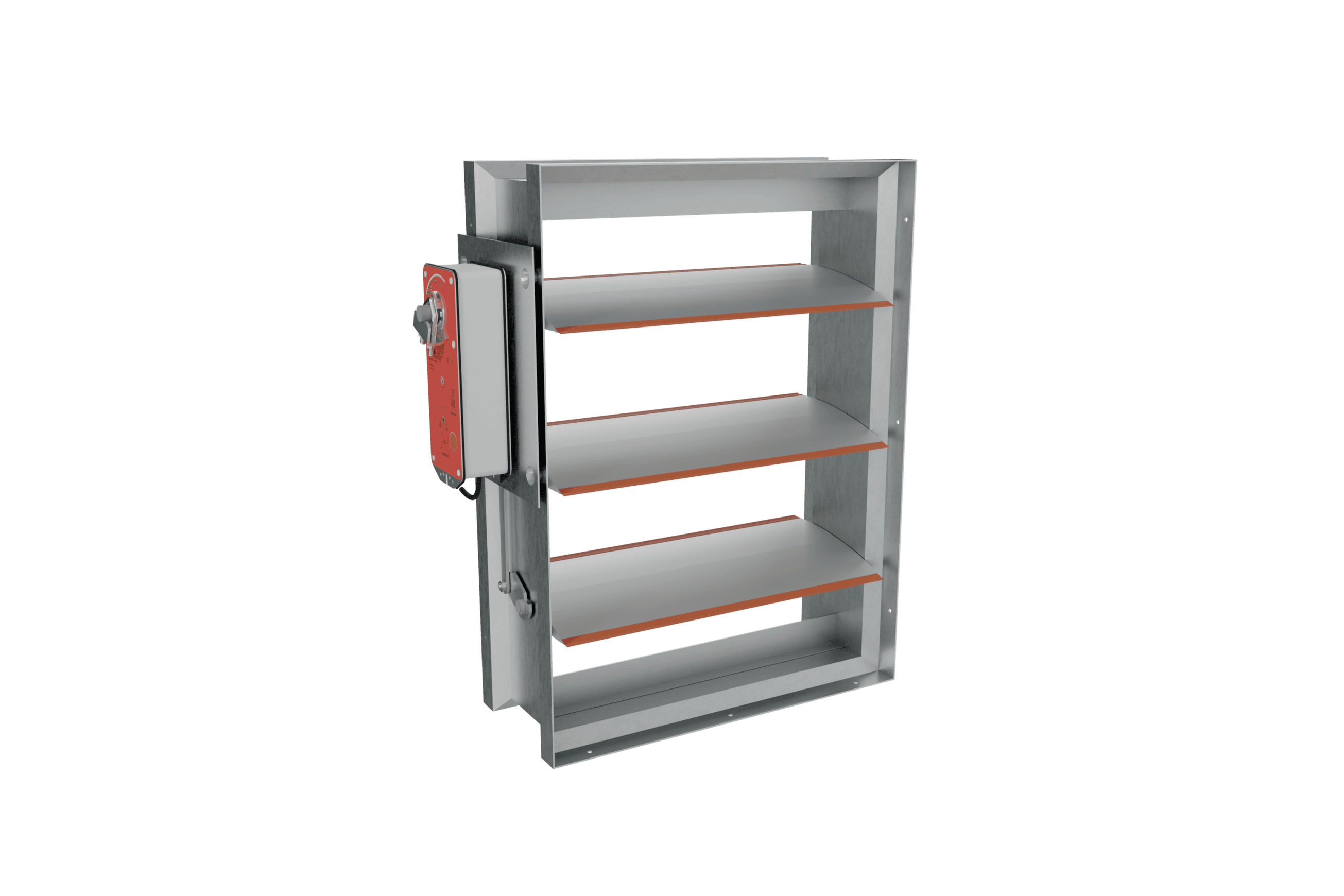

HCD-ET Motorised Smoke Damper

Auckland

432.3K profile views
27 saves

Holyoake HCD-ET Smoke Dampers are elevated temperature versions of the HCD-150 or HCD-75 volume control dampers and are ideally suited for tight sealing smoke damper installations.

smoke damper motorised smoke damper ventillation systems air conditioning ducts

Product Details

Product: HCD-ET Motorised Smoke Damper
Category: Mechanical Ventilation Systems
Sold by: Holyoake Air Management Solutions
Range: Smoke Control
Brand: Price Holyoake
Country of origin: New Zealand
Type of use: Commercial
Installation: Professional installation required
Assembly: No assembly required
Warranty: 12 months

Holyoake Air Management Solutions is specified by

Holyoake HCD-ET Smoke Dampers are elevated temperature versions of the HCD-150 or HCD-75 volume control dampers and are ideally suited for tight sealing smoke damper installations.

Features

Tested to AS 1530.7:2007 with performance requirements from AS 1682.1:2015 for smoke and air dampers.
Exceptionally low resistance when open.
Able to be installed up to 600mm from a smoke barrier.

Scope of use

HCD-ET Smoke damper is suited for tight sealing smoke damper installations where it is designed to withstand upto 200 degrees celicius and achieve an air leakage of under 360m3 /hr/m2 at 300 Pa.

The smoke damper may be installed in either vertical or horizontal applications, but in all cases the blade axles must be horizontal. Fast running actuators with a travel time less than 30s in either direction must be fitted.

Downloads

Downloads (3)3 Direct downloads • 9 Available on request
