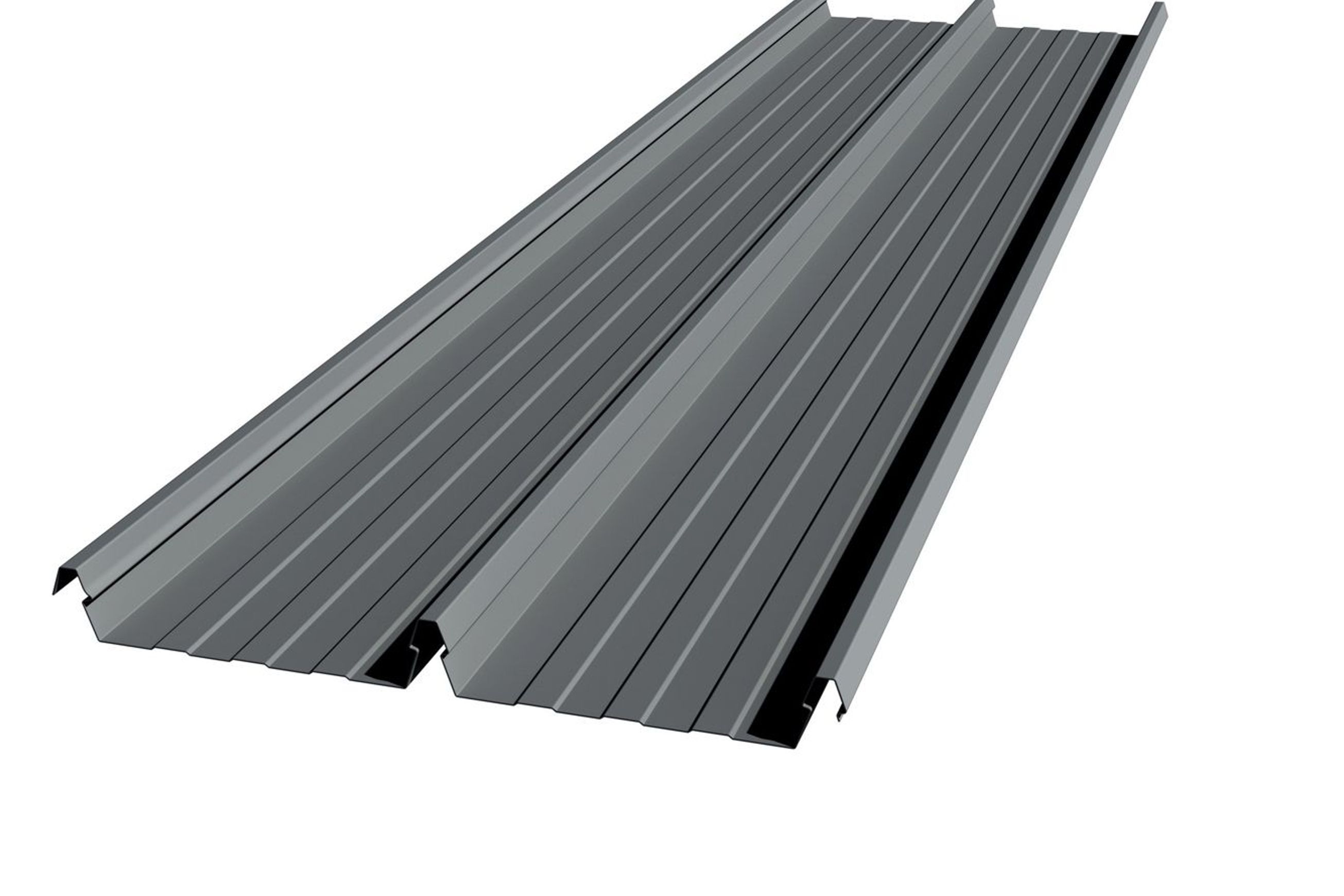

Hi Rib Roofing | Cladding is a high tensile wide cover clip fastened trough section or decking profile. Hi Rib is manufactured from high tensile material, enhancing its performance under both point load and distributed load. The slightly trapezoidal rib profile enhances resistance to foot traffic damage, and allows for end-lapping where required, while the greater cover gives material and installation labour advantages
KEY FEATURES
- Manufactured in Auckland
- Minimum pitch 3°

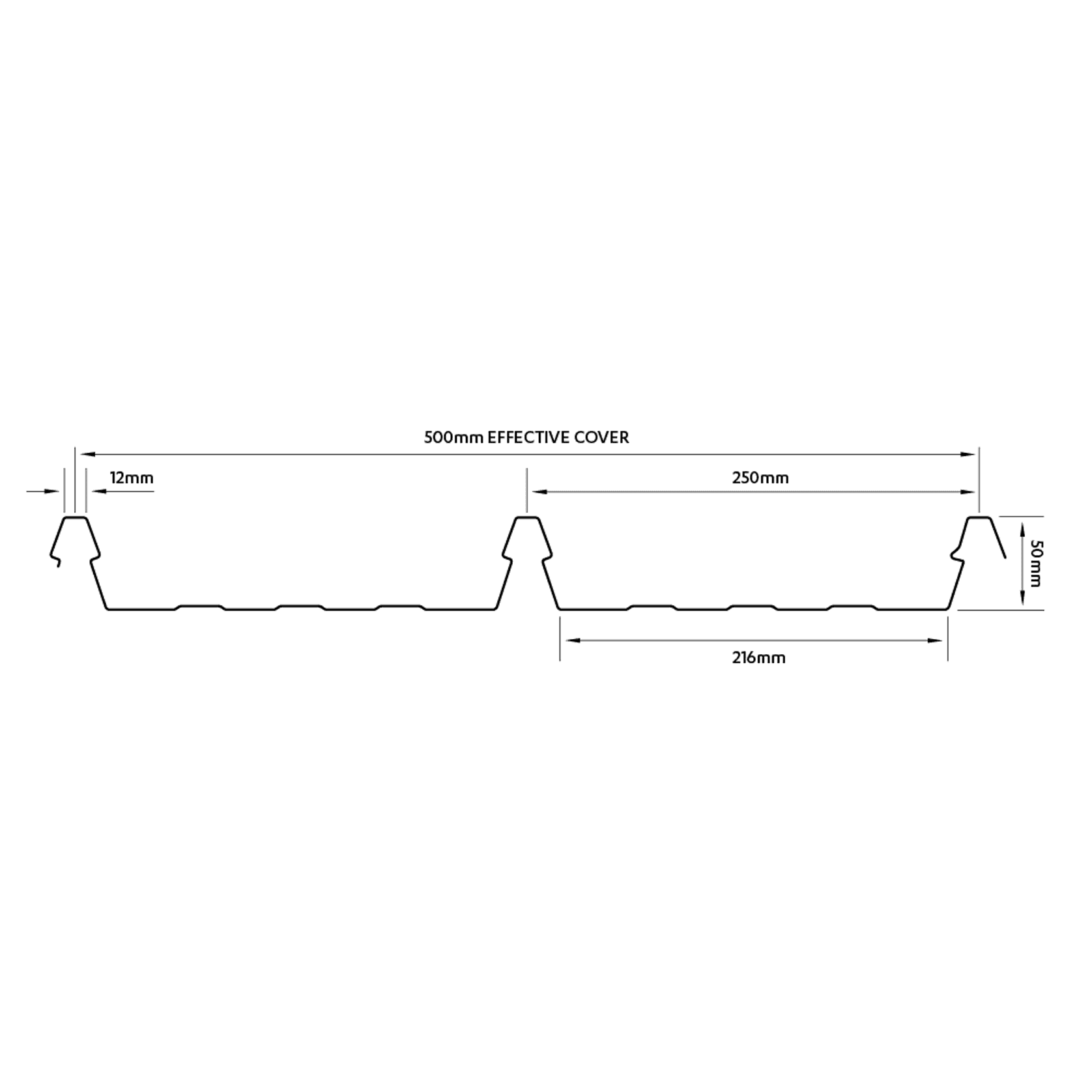

- 215mm wide swaged pan, 50 mm rib and 500mm effective cover
- Secret fixed trough section profile
- High tensile steel for greater strength
- Wider coverage for greater economy
- Trapezoidal rib for greater stability
- Can be end lapped
- Translucent sheeting available to match
- Available in a wide selection of materials
Product Details
- Product
- Hi Rib Roofing | Cladding
- Category
- Metal Cladding
- Sold by
- Steel & Tube
- Type of use
- Commercial and Residential
Product Variants
- Colours
Hi Rib Roofing | Cladding is a high tensile wide cover clip fastened trough section or decking profile.
Hi Rib is manufactured from high tensile material, enhancing its performance under both point load and distributed load. The slightly trapezoidal rib profile enhances resistance to foot traffic damage, and allows for end-lapping where required, while the greater cover gives material and installation labour advantages
KEY FEATURES
- Manufactured in Auckland
- Minimum pitch 3°

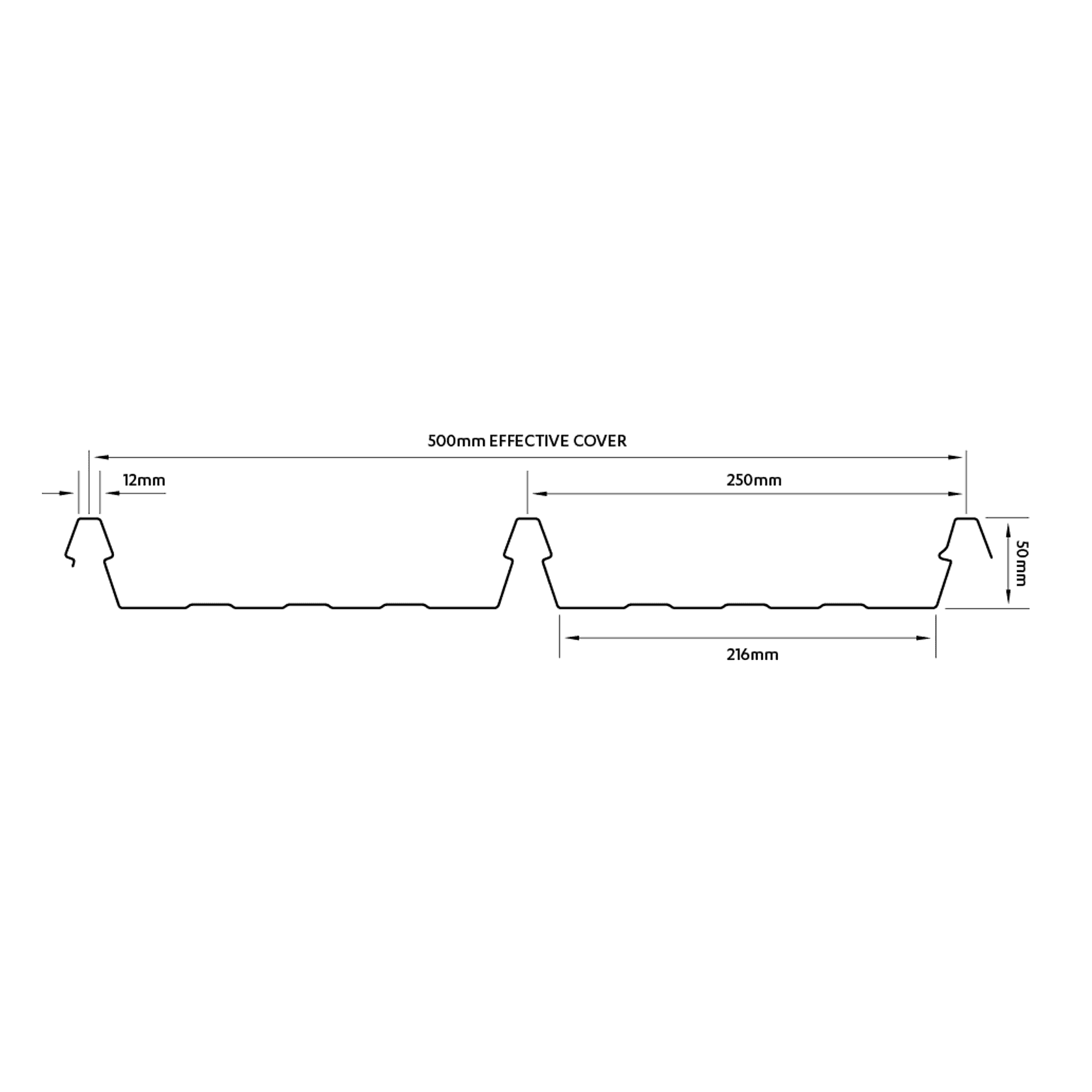

- 215mm wide swaged pan, 50 mm rib and 500mm effective cover
- Secret fixed trough section profile
- High tensile steel for greater strength
- Wider coverage for greater economy
- Trapezoidal rib for greater stability
- Can be end lapped
- Translucent sheeting available to match
- Available in a wide selection of materials
- Specs
Features
- Hi Rib is manufactured from high tensile material, enhancing its performance under both point load and distributed load. The slightly trapezoidal rib profile enhances resistance to foot traffic damage, and allows for end-lapping where required, while the greater cover gives material and installation labour advantages.
Options
- Clear sheeting is available in profiled G.R.P. (fibreglass) to match
Materials
- Available in metallic coated and pre-painted steel in 48mm and .55mm B.M.T. (base metal thickness), aluminium plain and prepainted in .70mm and .90mm, and other non-ferrous metals.
Durability
- All material selections must be compatible with prevailing environmental conditions and adjacent materials, see Roofing Solutions Product Guide or Specifiers Guide for details. Areas not exposed to rain washing will require programmed maintenance.
Minimum Pitch
- In accordance with Acceptable Solution E2, the minimum pitch for Hi Rib for roofing dwellings is 3˚. Roof runs in excess of 75 metres should be checked for water runoff capacity
Foot Traffic
- Foot traffic up the roof must take place in the pan of the profile, or over purlin lines. Traffic across the roof must take place along purlin lines
Specifications
Recommended specifications are available in the branded sections of Masterspec BASIC or Masterspec STANDARD, or from your local Steel & Tube branch or visit our website.
Downloads
Downloads (10)10 Direct downloads • 6 Available on request
Frequently asked questions about
Hi Rib Roofing | Cladding
The Hi Rib Roofing | Cladding is supplied by Steel & Tube. It is also on their website, and you can browse every product Steel & Tube lists on ArchiPro.
Steel & Tube does not publish a price for the Hi Rib Roofing | Cladding on ArchiPro. for pricing, or visit their website.
It comes in 19 colour options (Ebony, Flaxpod, Grey-Friars, Ironsand, Karaka, Lichen, Lignite, Mist-Green, New-Demin-Blue, Permant-Green, Pionner-Red, Scoria, Slate, Snowstone, Thunder-Grey, Tidal-Drift, Titaina, White, Windsor-Grey). Pick one in the row under the description to see it.

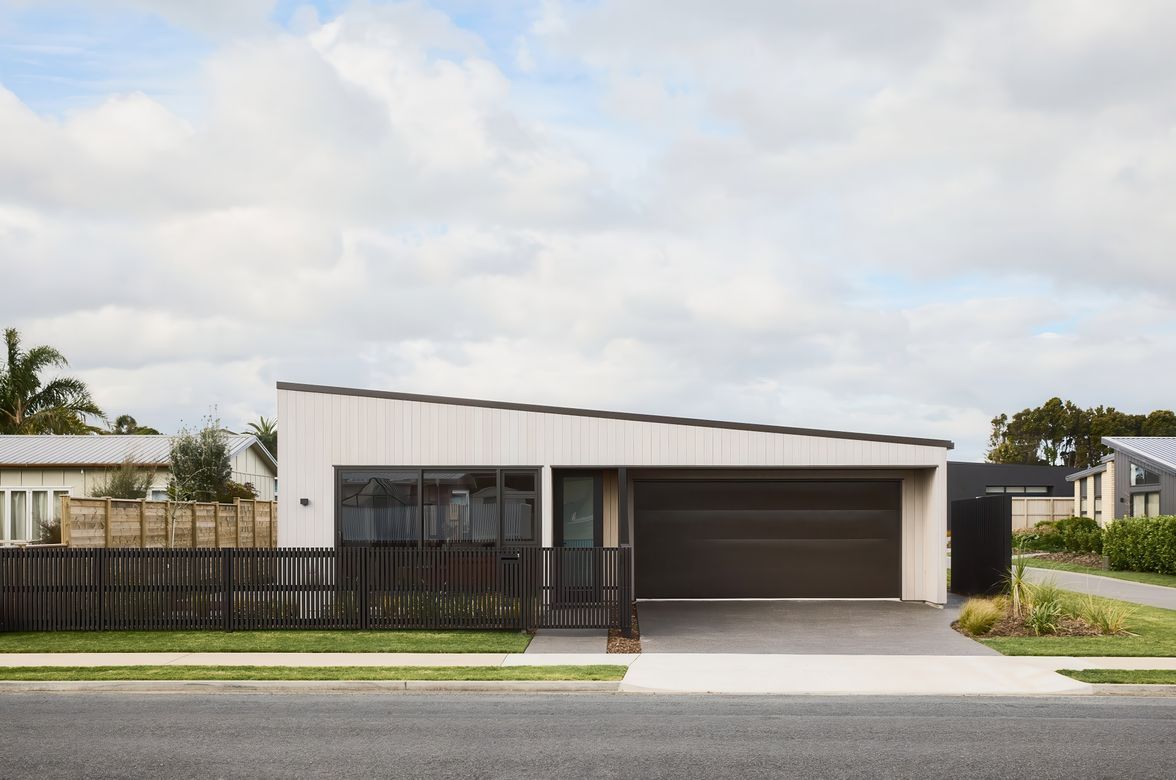

Yes. It has been specified in projects on ArchiPro, including Waihi Beach House by Studio Brick Architects, Black Rose by Hurley Architects and Bush - Ball by Cove Construction. See how it was used in a finished space.
