ST963 Roofing | Cladding
by Steel & Tube
Whangarei, New Zealand
- 273.8K profile views
- 38 saves

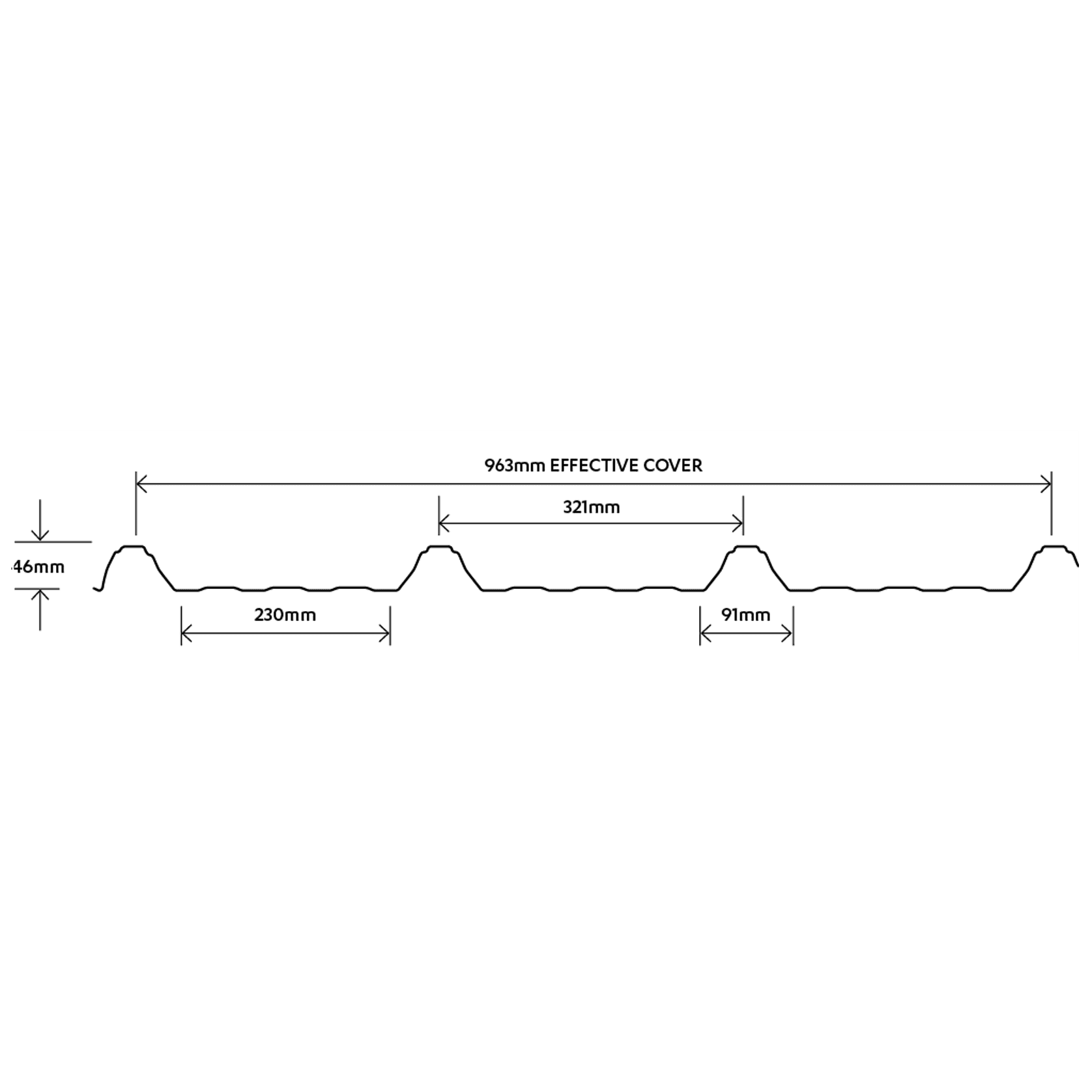

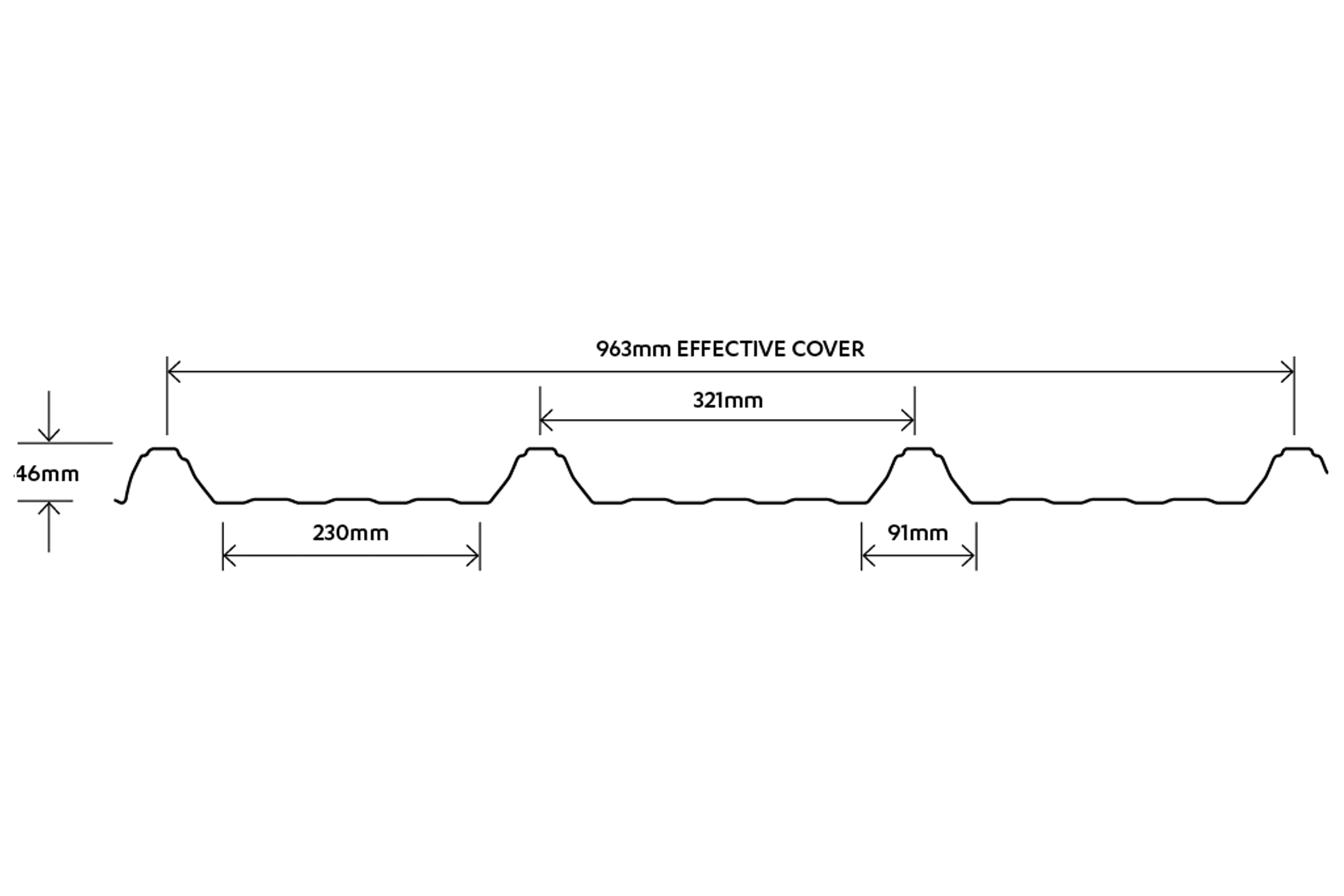

ST963 Roofing | Cladding is a profiled metal roofing and cladding profile manufactured by Steel & Tube, having 4 trapezoidal ribs of 46mm in height. Unique design enhancements stiffen the rib shape to provide industry-leading resistance to both wind uplift and point load distortion.
KEY FEATURES
- ST963 is manufactured in Auckland and Christchurch
- Minimum pitch 3°
- Superior rib strength resulting in less damage to roof during both construction and serviceable life.
- Groove at rib apex adds strength.
- 46mm rib height — reduced fixing costs due to shorter screws.
- 4 rib profile – potentially reducing fixings required.
- Extended leg on under lap rib prevents distortion of the male rib when fastened.
- Notching/rake cutting — less time cutting around ribs.
- 3 pans leads to a time saving in turn up/turn down.
- 230mm wide pan means it is easy to walk over the roof.
- Strong pan swages means reduced damage from foot traffic.
- Distinct capillary groove creates positive water tight lap.
- Lapping innovation eliminates creep during installation.
- Profile washer — unique design very strong for high wind loads.
- Purlin spacing is up to 4.5m in .55 and 3m .40 (subject to design loading).

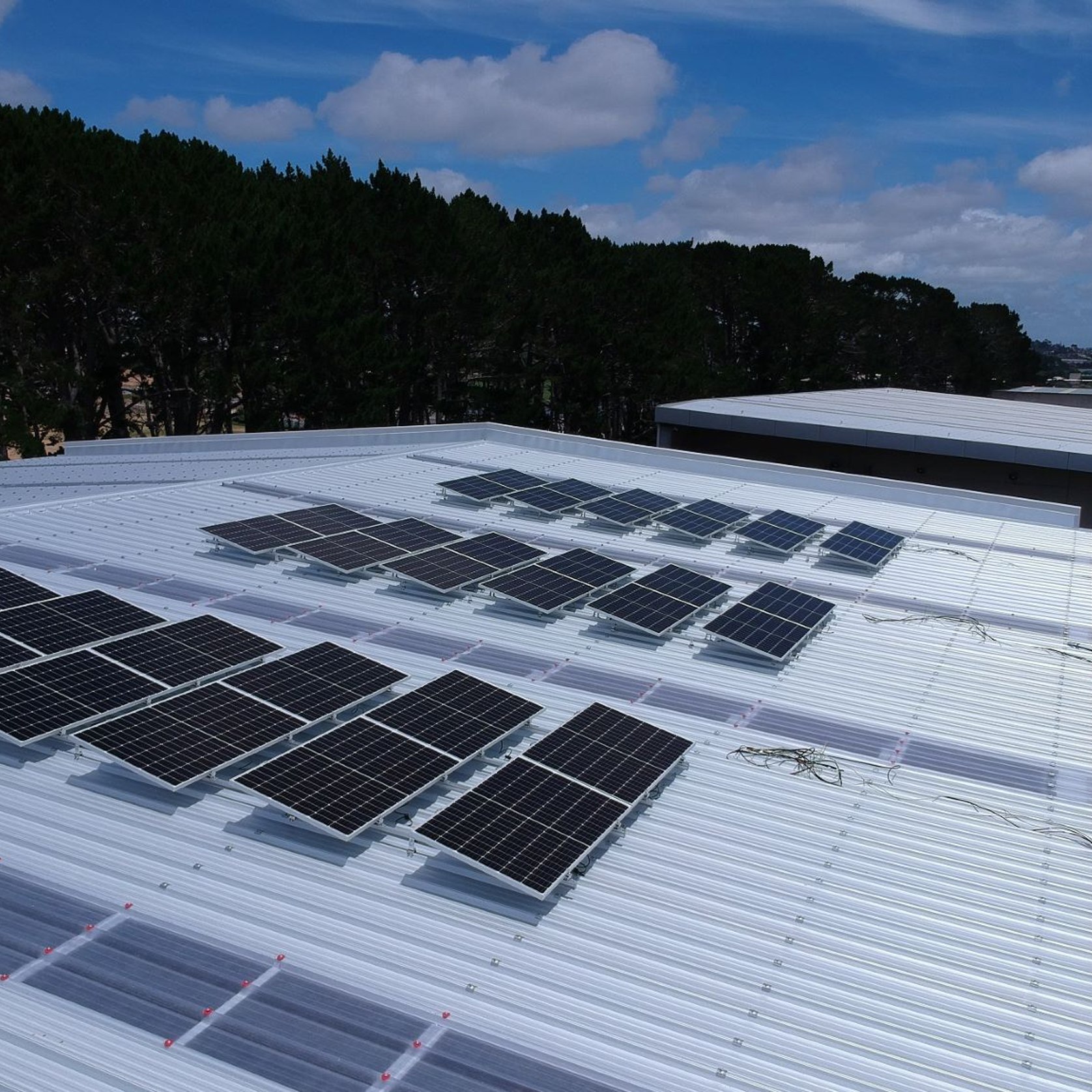

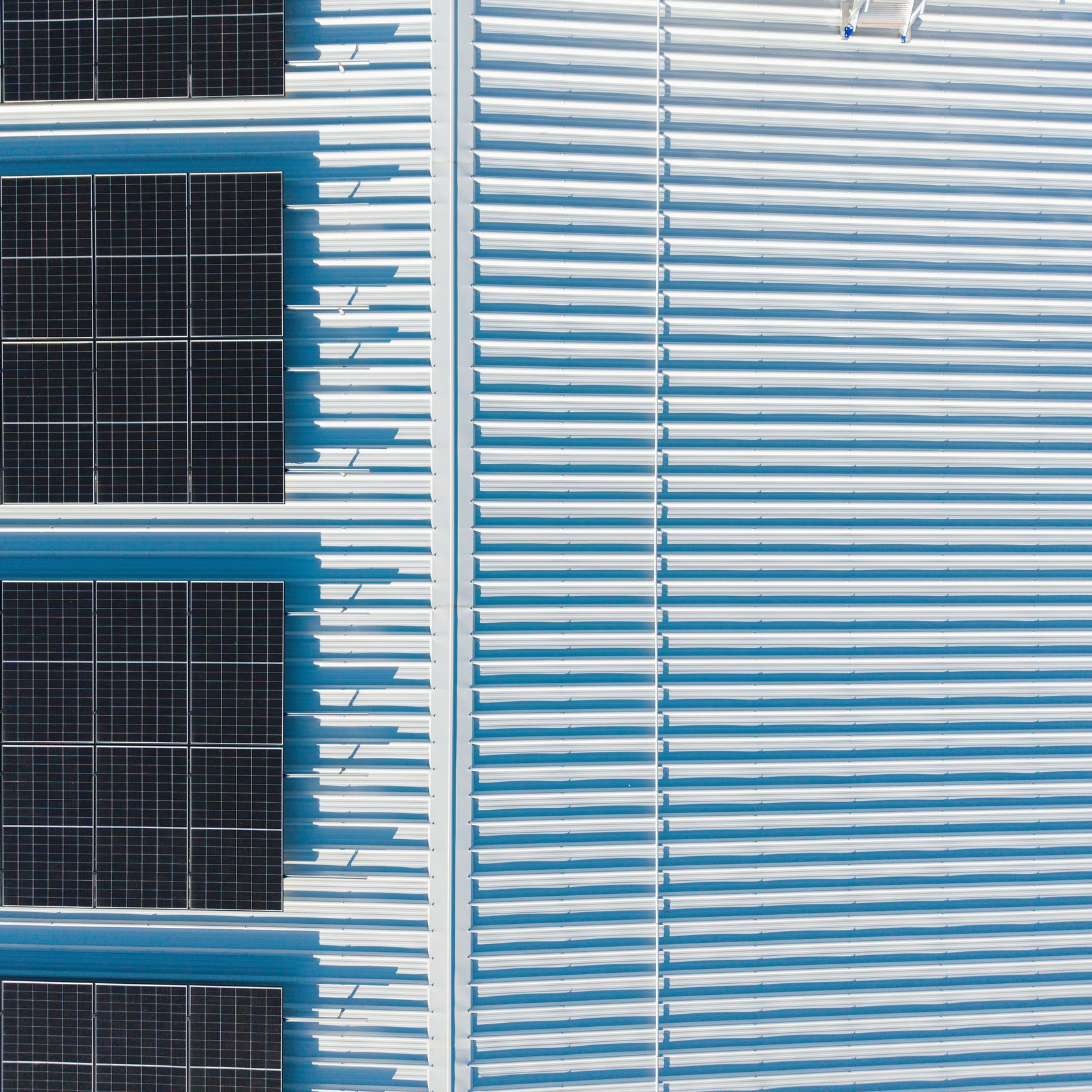

- Easy to attach solar installations for commercial and residential.
Product Details
- Product
- ST963 Roofing | Cladding
- Category
- Aluminium Roofing
- Sold by
- Steel & Tube
- Type of use
- Commercial and Residential
Product Variants
- Colours
ST963 Roofing | Cladding is a profiled metal roofing and cladding profile manufactured by Steel & Tube, having 4 trapezoidal ribs of 46mm in height.
Unique design enhancements stiffen the rib shape to provide industry-leading resistance to both wind uplift and point load distortion.
KEY FEATURES
- ST963 is manufactured in Auckland and Christchurch
- Minimum pitch 3°
- Superior rib strength resulting in less damage to roof during both construction and serviceable life.
- Groove at rib apex adds strength.
- 46mm rib height — reduced fixing costs due to shorter screws.
- 4 rib profile – potentially reducing fixings required.
- Extended leg on under lap rib prevents distortion of the male rib when fastened.
- Notching/rake cutting — less time cutting around ribs.
- 3 pans leads to a time saving in turn up/turn down.
- 230mm wide pan means it is easy to walk over the roof.
- Strong pan swages means reduced damage from foot traffic.
- Distinct capillary groove creates positive water tight lap.
- Lapping innovation eliminates creep during installation.
- Profile washer — unique design very strong for high wind loads.
- Purlin spacing is up to 4.5m in .55 and 3m .40 (subject to design loading).
- Easy to attach solar installations for commercial and residential.
- Specs
Scope of use
- ST963 is suitable for a wide range of end uses including roof and wall cladding, ceilings and linings.
- For structures requiring compliance with NZBC Clause E2, the minimum pitch is 3°.

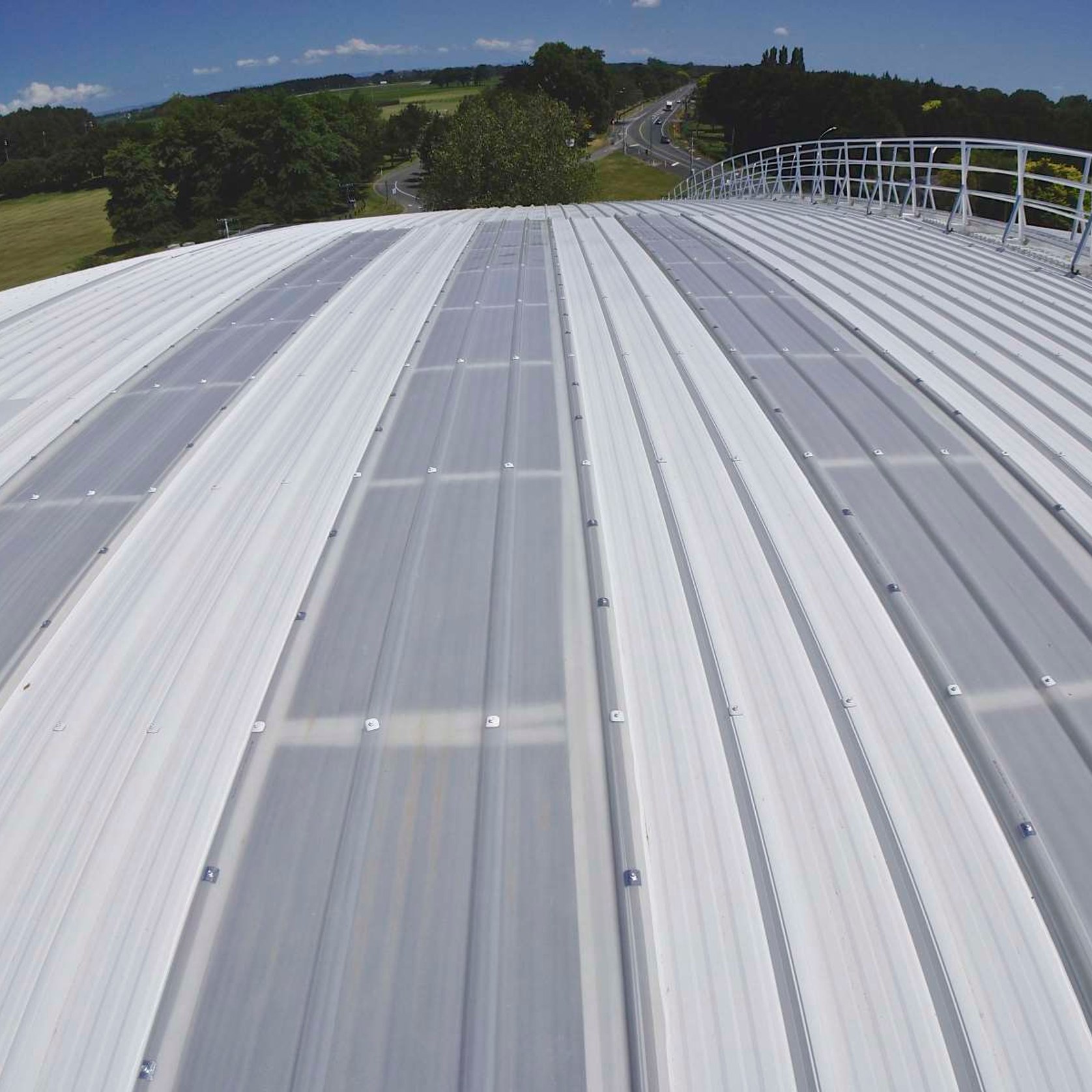

- ST963 can be spring curved in 0.55 mm BMT thickness G550 steel to a minimum radius of 60 metres.
- Roof runs in excess of 80 metres should be checked for water run-off capacity. Provision for thermal expansion should be considered for lengths in excess of 18 metres in steel and 12 metres for other materials.
Maintenance
- Maintenance of steel substrates must be carried out in accordance with New Zealand Steel Specifiers and Builders Guide.
- Generally, required maintenance of exposed well washed roof areas is rainfall only, with an annual inspection to check on the build-up of any contaminants. Sheltered roof areas, walls, and areas subject to the build up of contaminants will require programmed maintenance to provide design life expectations.
- Maintenance of other substrates should be in accordance with the manufacturer’s requirements for the specific environment and application.
Installers
- A list of local installers for your area and contract type is available from your local Steel & Tube branch or our website www.steelandtube.co.nz
