Trimklad Wall Cladding
by Steel & Tube
Whangarei, New Zealand
- 273.8K profile views
- 38 saves
Trimklad Wall Cladding has an unobtrusive rib and a wide swaged pan to give a neat appearance and greater economy for many internal and external cladding and lining situations. It's low rib makes installation details and washing down a breeze great for hygiene areas.
KEY FEATURES
- Trimklad is manufactured in Hamilton

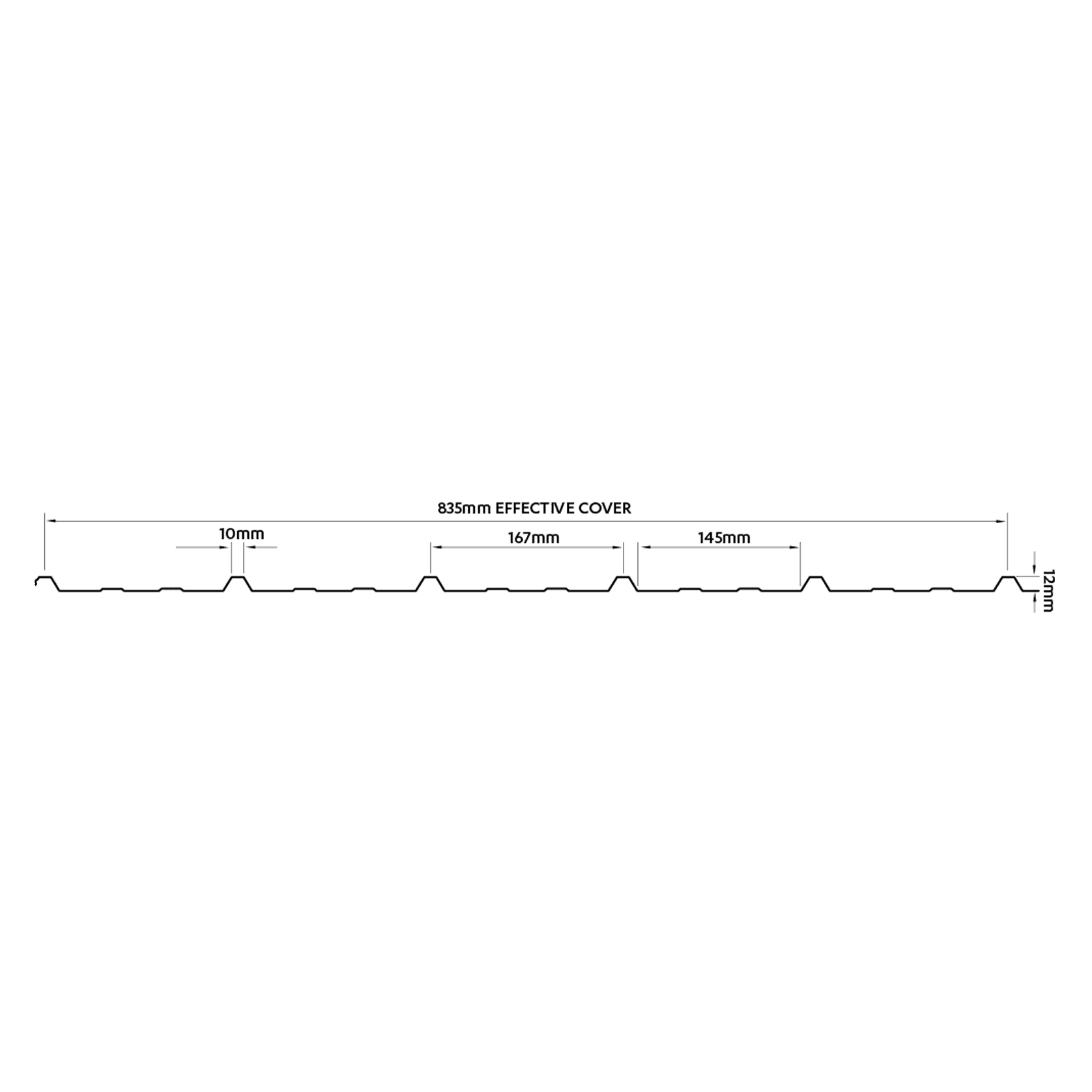

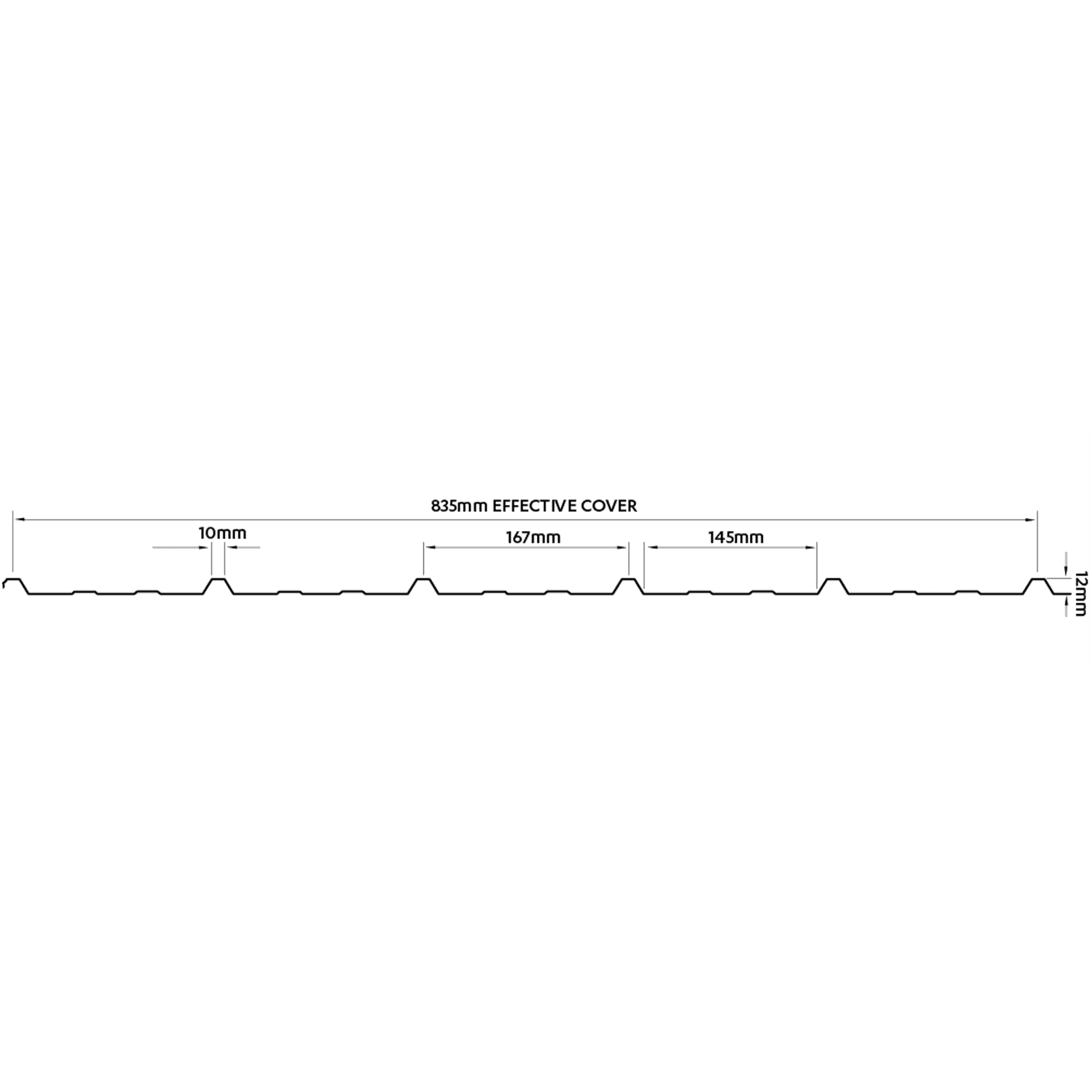

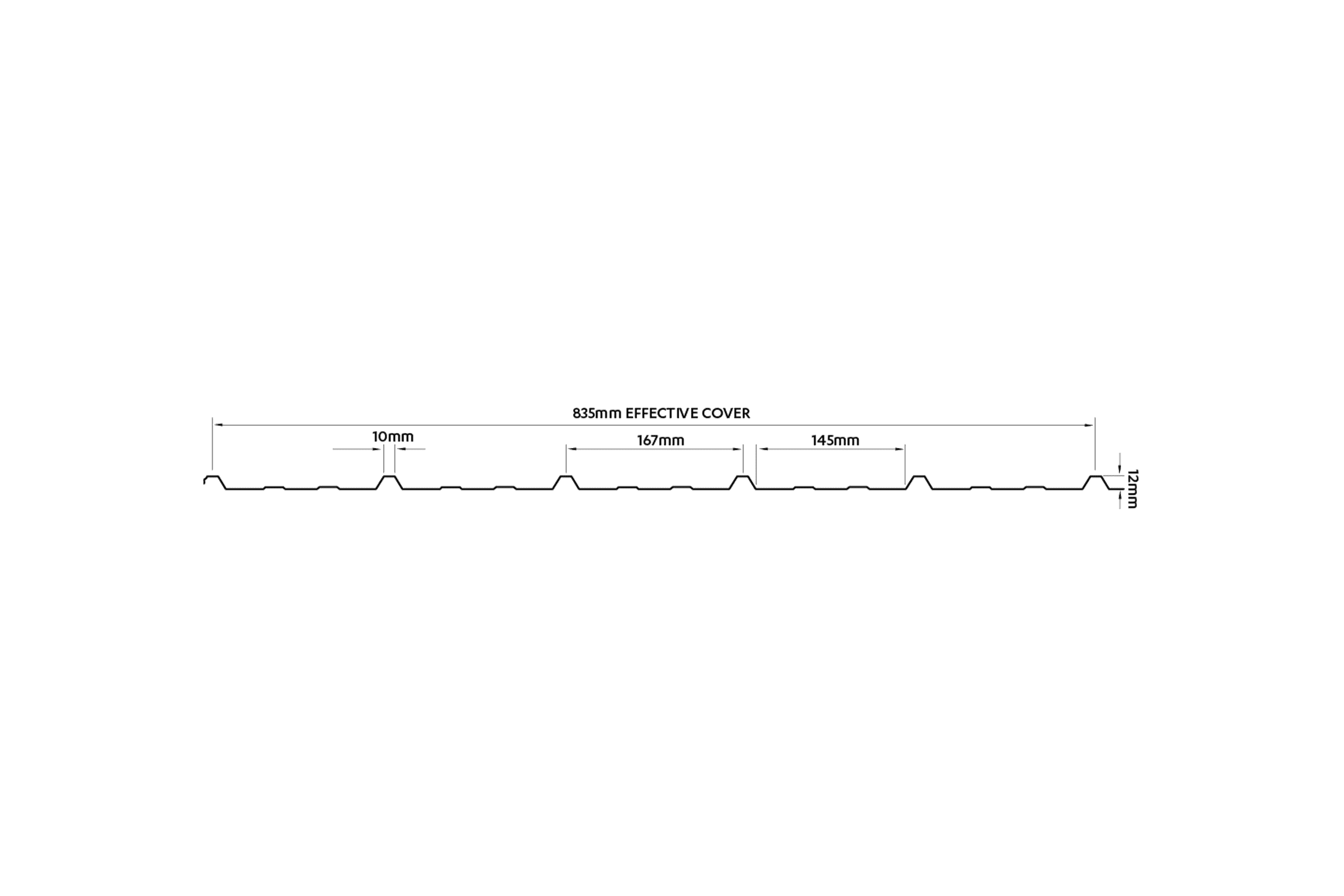

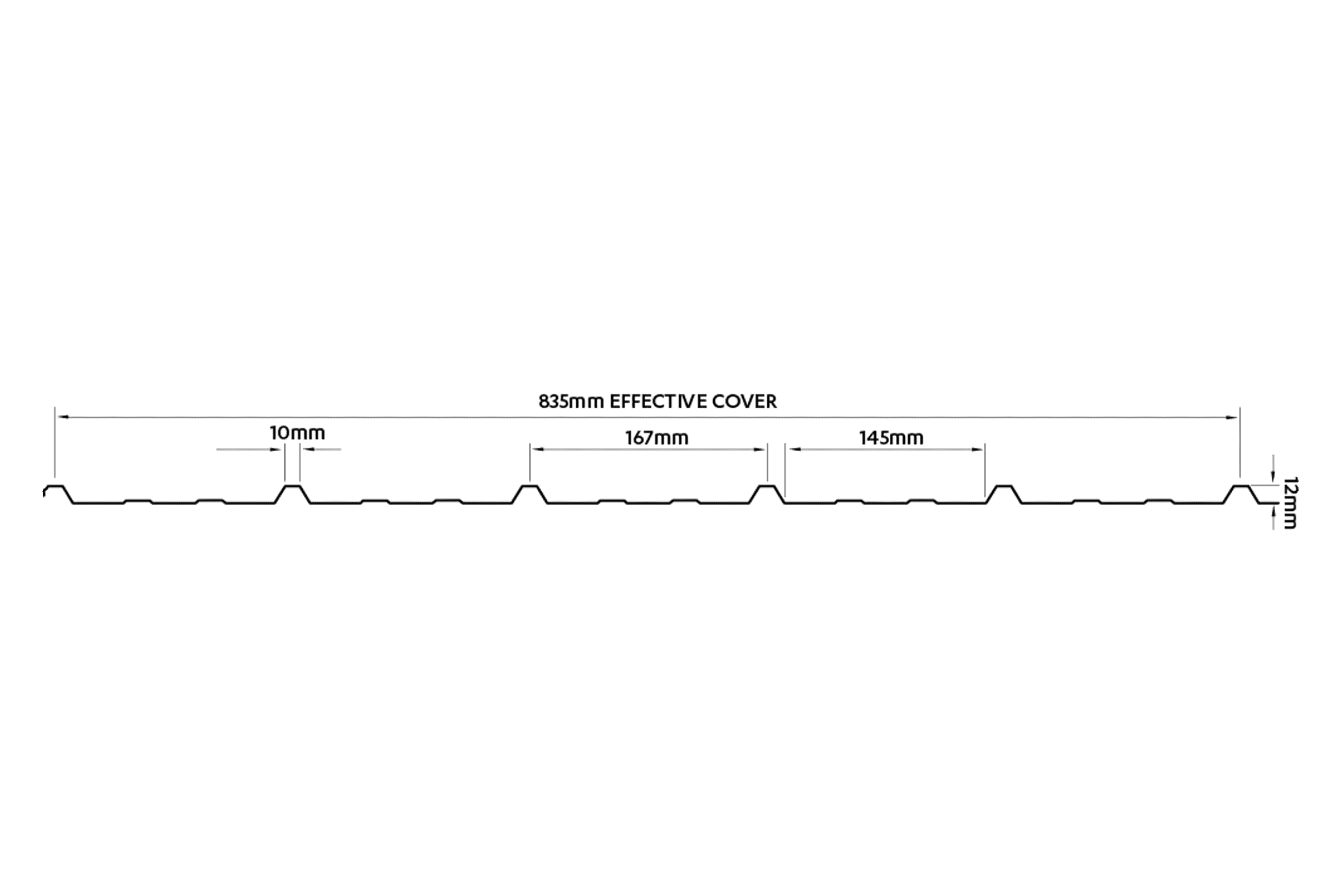

- Trimklad has 835mm effective cover, 145mm wide pan and a low 12 mm rib.
- Offers a bolder line and greater strength than low rib profiles.
- Popular commercial product due to its looks and performance
- Translucent sheeting available to match
Product Details
- Product
- Trimklad Wall Cladding
- Category
- Metal Cladding
- Sold by
- Steel & Tube
- Type of use
- Commercial and Residential
Product Variants
- Colours
Product specified by
Trimklad Wall Cladding has an unobtrusive rib and a wide swaged pan to give a neat appearance and greater economy for many internal and external cladding and lining situations.
It's low rib makes installation details and washing down a breeze great for hygiene areas.
KEY FEATURES
- Trimklad is manufactured in Hamilton
- Trimklad has 835mm effective cover, 145mm wide pan and a low 12 mm rib.
- Offers a bolder line and greater strength than low rib profiles.
- Popular commercial product due to its looks and performance
- Translucent sheeting available to match
- Performance
Materials
- Available in metallic coated and pre-painted steel in .40mm and .55mm B.M.T. (base metal thickness), aluminium plain and prepainted in .70mm, and other non-ferrous metals.
Fasteners
- Typically: 12g x 30mm Timberfix screws to timber structures or 12g x 20mm Steelfix screws to steel structures. Class 4 minimum of material compatible with that being fastened and durability no less than the sheet material. Category 5 or non-ferrous fasteners are recommended for severe or very severe marine environments.
Durability
All material selections must be compatible with prevailing environmental conditions and adjacent materials, see Roofing Solutions Product Guide or Specifiers Guide for details. Areas not exposed to rain washing will require programmed maintenance.
Downloads
Downloads (10)10 Direct downloads • 6 Available on request
Frequently asked questions about
Trimklad Wall Cladding
The Trimklad Wall Cladding is supplied by Steel & Tube. It is also on their website, and you can browse every product Steel & Tube lists on ArchiPro.
Steel & Tube does not publish a price for the Trimklad Wall Cladding on ArchiPro. for pricing, or visit their website.
It comes in 19 colour options (Ebony, Flaxpod, Grey Friars, Ironsand, Karaka, Lichen, Lignite, Mist Green, New Demin Blue, Permant Green, Pionner Red, Scoria, Slate, Snowstone, Thunder Grey, Tidal Drift, Titaina, White, Windsor Grey). Pick one in the row under the description to see it.

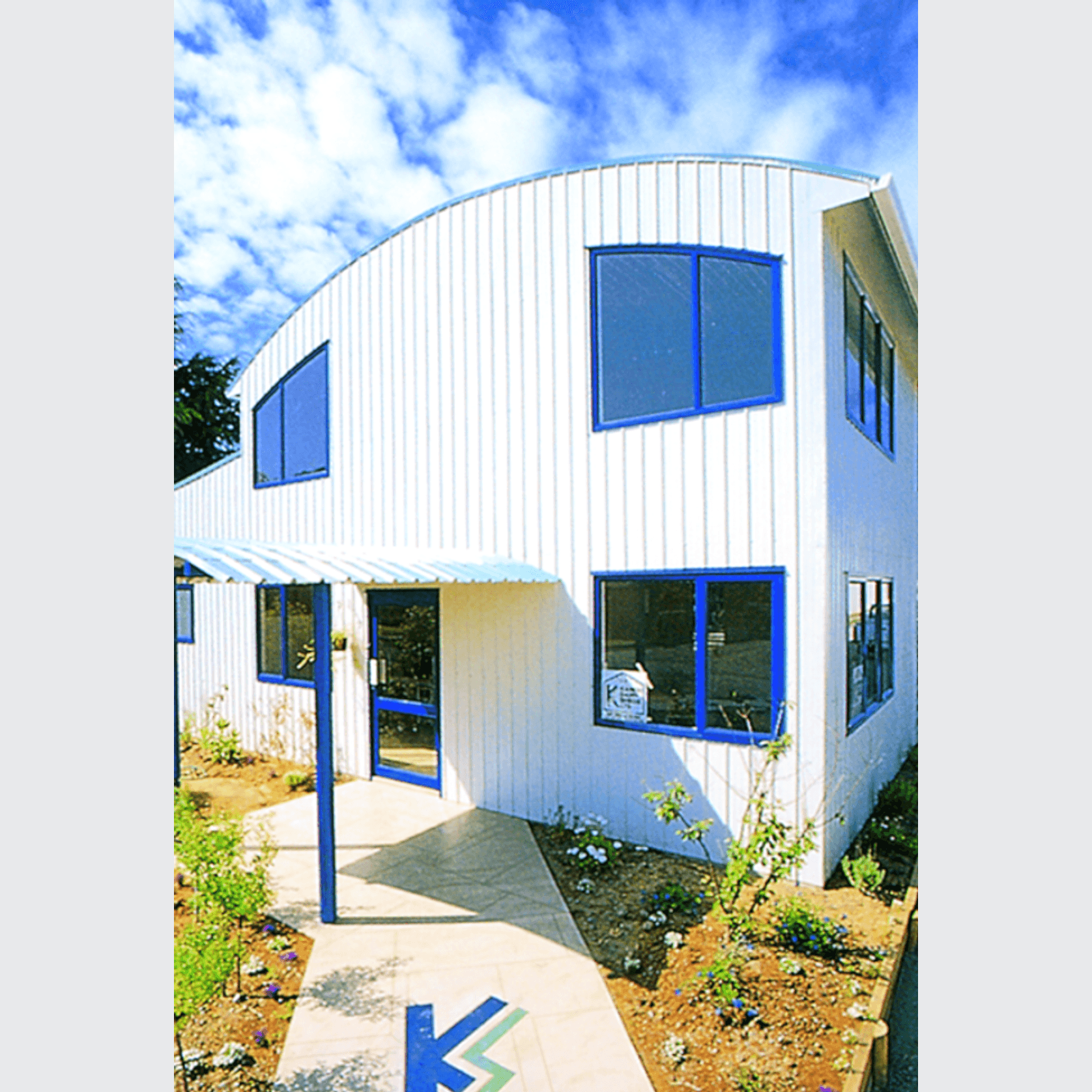

Yes. It has been specified in projects on ArchiPro, including Hampton Hills by Hurley Architects. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The Steel & Tube profile on ArchiPro has the rest of their products.
