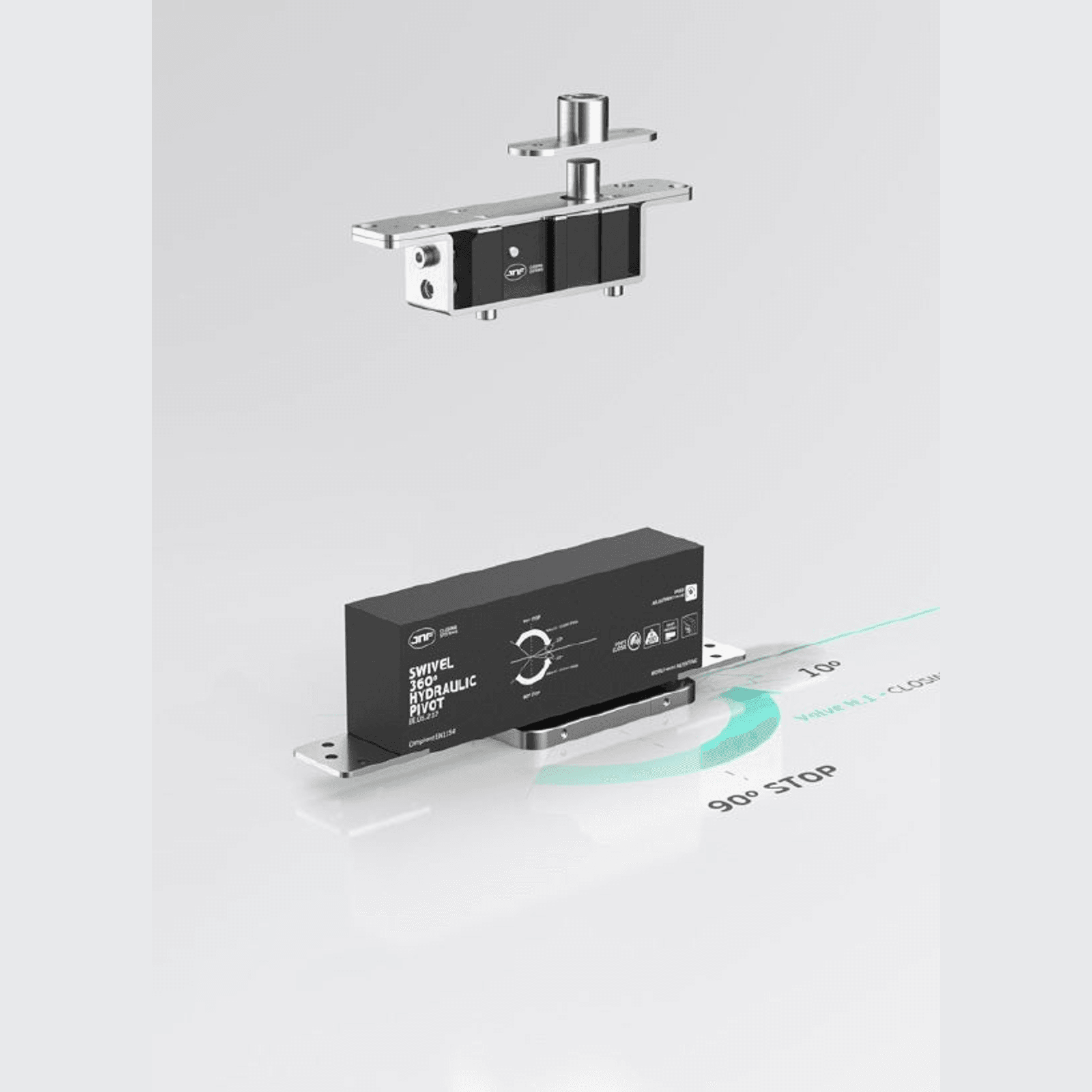

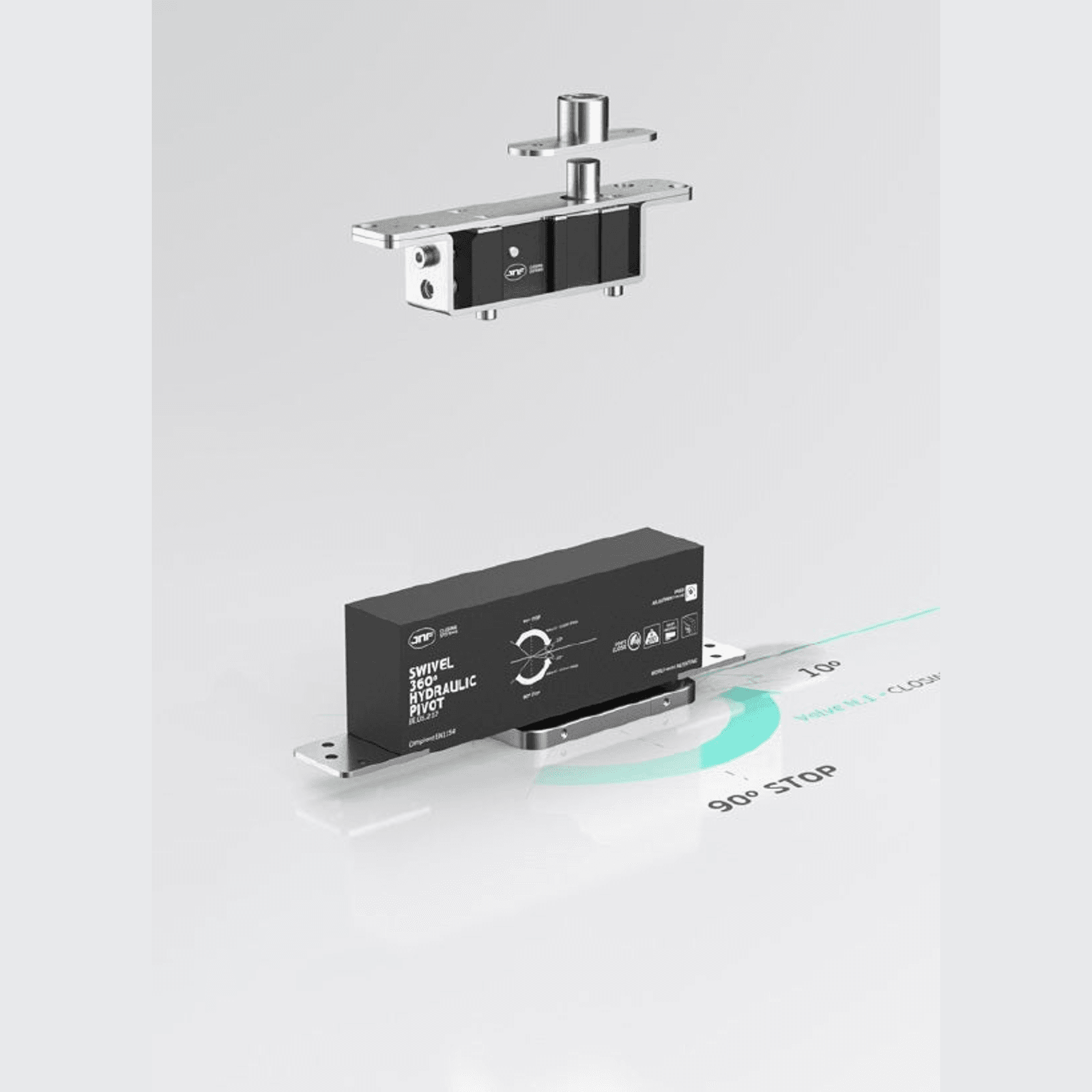

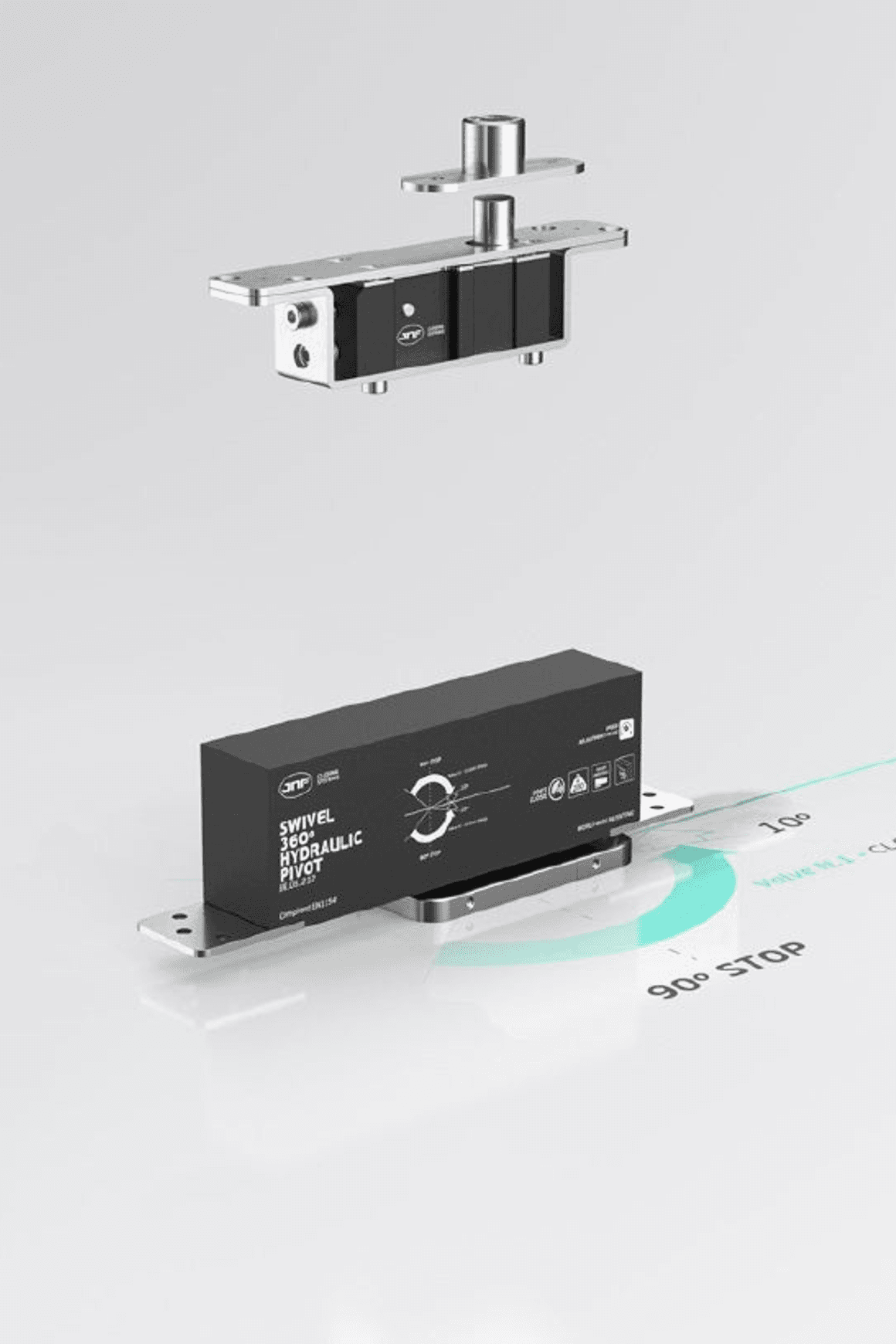

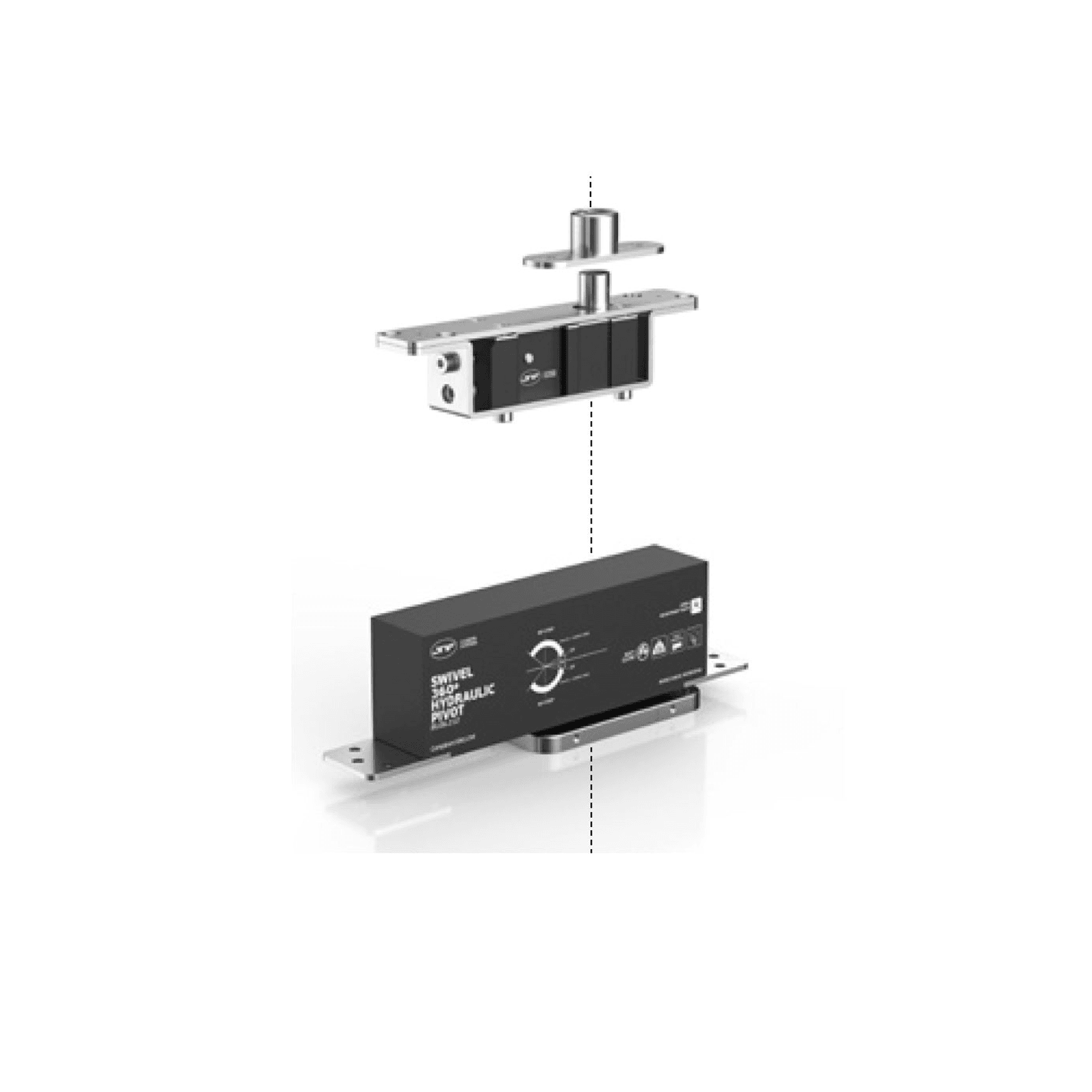

IN.05.212 HO Swivel Hydraulic Pivot set 360 Heavy Duty

IN.05.212.HO Hydraulic Pivot for wooden doors up to 200 kg (Hold open option)

The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors, while opening them with little effort. The doors can be single or double action, with minimum thickness 50mm.
The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing. The closing control is carried out by one valve In order to cover doors with weights from 40 to 200kg, lengths up to 2000mm. One of the characteristics of this system is that the rotation point of the door can be from 40mm to the center of the door, with the installation being made from the top of the door, which allows the doors to go up to the ceiling.

• Suitable for door thickness 50mm and up
• Maximum weight: 200 Kg
• Maximum door width 3000 mm
• Maximum door height 4000 mm
• Fixed power, no power adjustment
