Slab Electric Underfloor Heating

By Comfort Heat
Website

Slab electric floor heating is a very practical option for warming large areas. It is used in homes and commercial buildings because it offers an excellent cost and energy-efficient solution for large spaces.

Details
  • Category
    Underfloor Heating
  • Range
    Electric Heating
  • Warranty
    10 years
General
  • Type of use
    Commercial and Residential
  • Installation
    Professional installation recommended
  • Assembly
    No assembly required
Specifications

TECHNICAL DATA

  • Cable Type: Single conductor heating cable with earth screen
  • Construction: Multi-stranded heating wire with double insulation, earth screen, and sheath
  • Insulation: 4000 V
  • Rated Voltage: 230 Volt AC; Rated output 30W/m
  • Cold Tail Length: 3.5 meter with splice connection
  • Cable Diameter: 5mm
  • Cable Standard: IEC800 Class II
  • Warranty: 10 years

APPLICATIONS

The slab heating cable is suitable where the slab is used as heat storage [thermal mass]. It has a slow response time and can take 10-24 hours to heat up, depending on slab thickness and insulation, but retains heat for a long time after the power has terminated. Off-peak power is typically utilised for slab heating.

CABLE TECHNOLOGY

The cable is a flexible, double-insulated single cable system. A multi-strand heating cable provides superior strength to prevent cable failure due to slab movement.

HEAT OUTPUT

The in-slab cable has a heat output of 160W /m² at 200mm spacing. It is available in factory terminated lengths ranging from 30m up to 170m. Comfort Heat staff will help select the correct cable length for your heated area with a 200mm clearance from walls and fixtures.

INSTALLATION

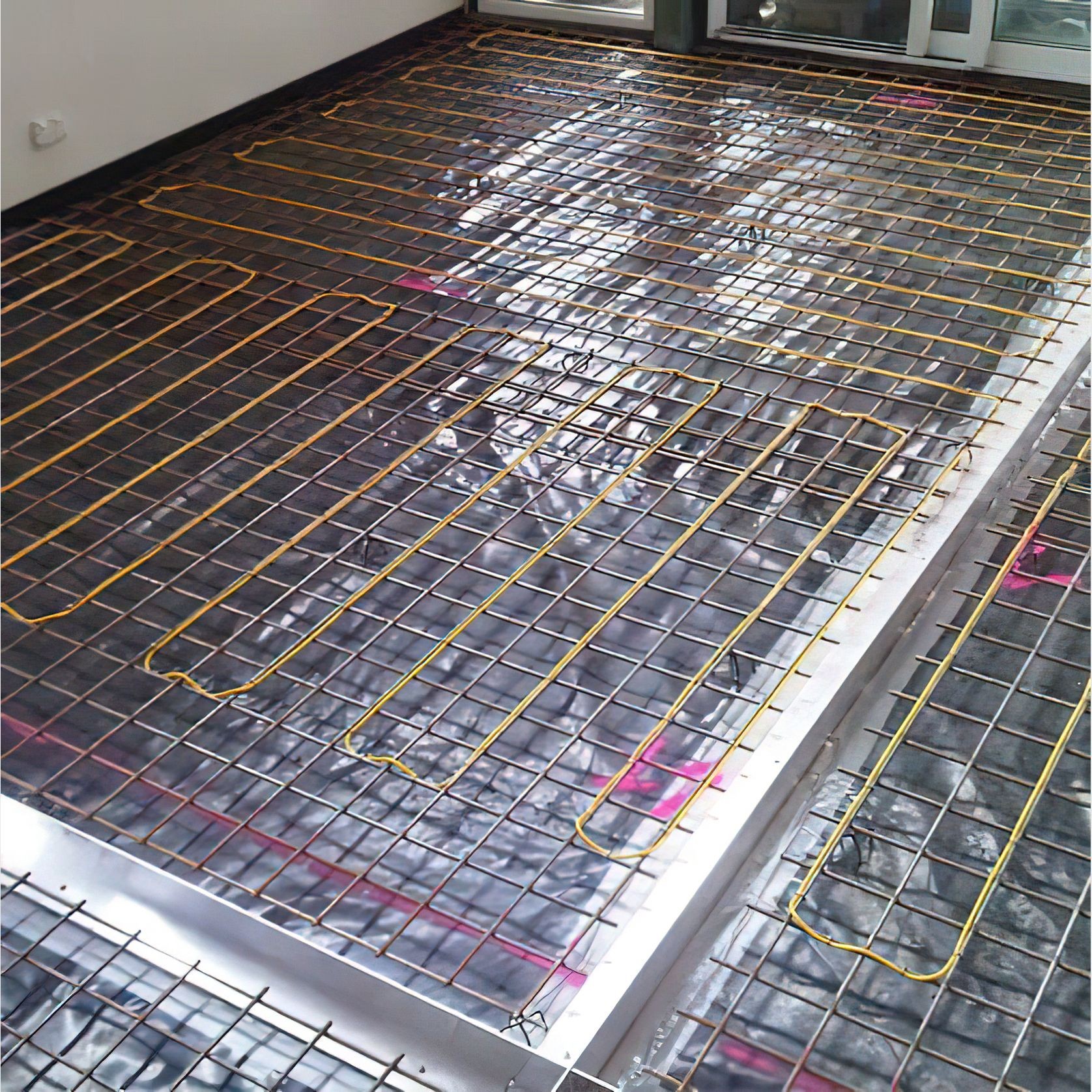

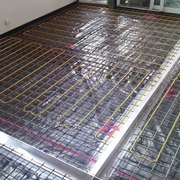

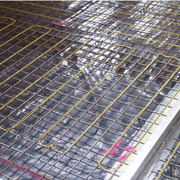

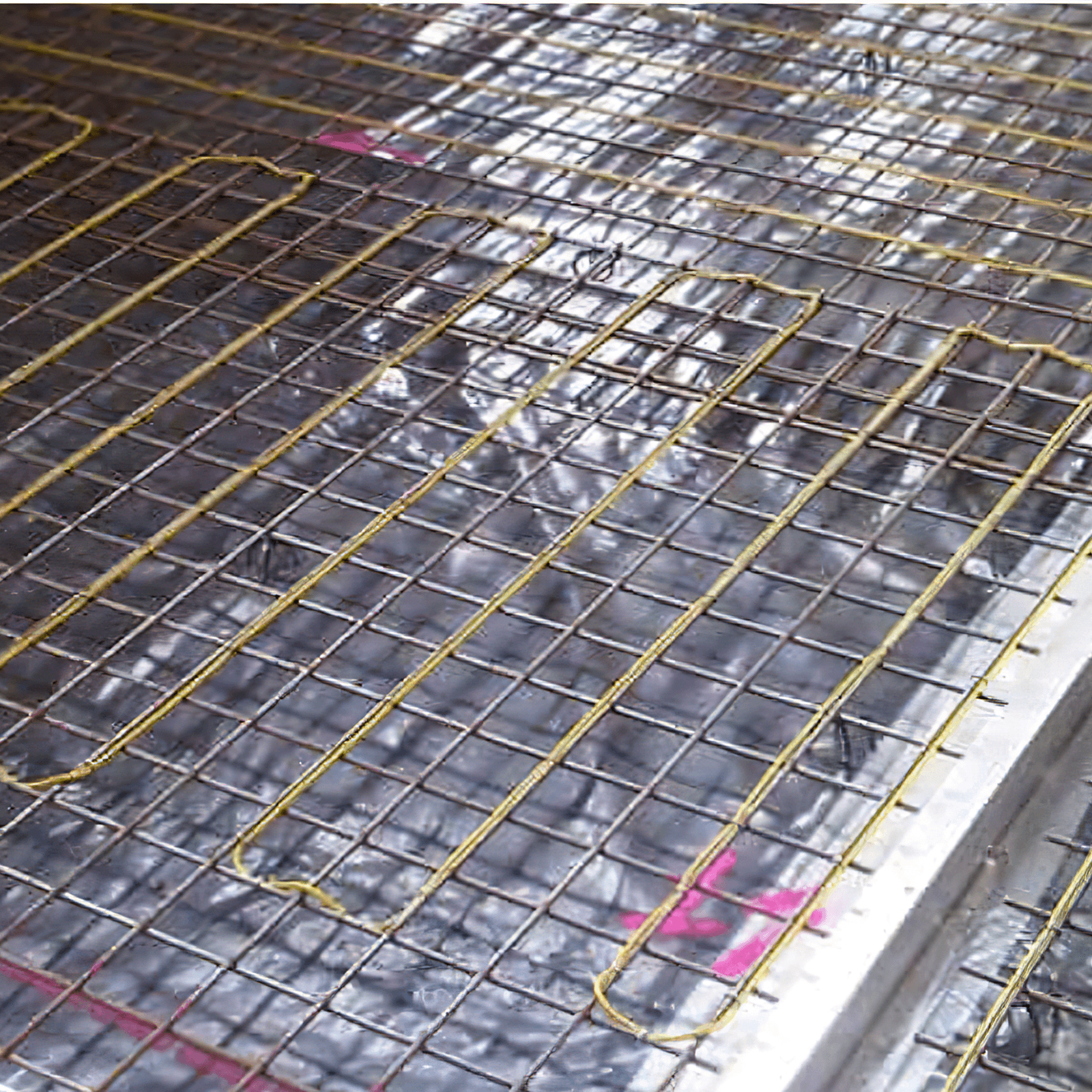

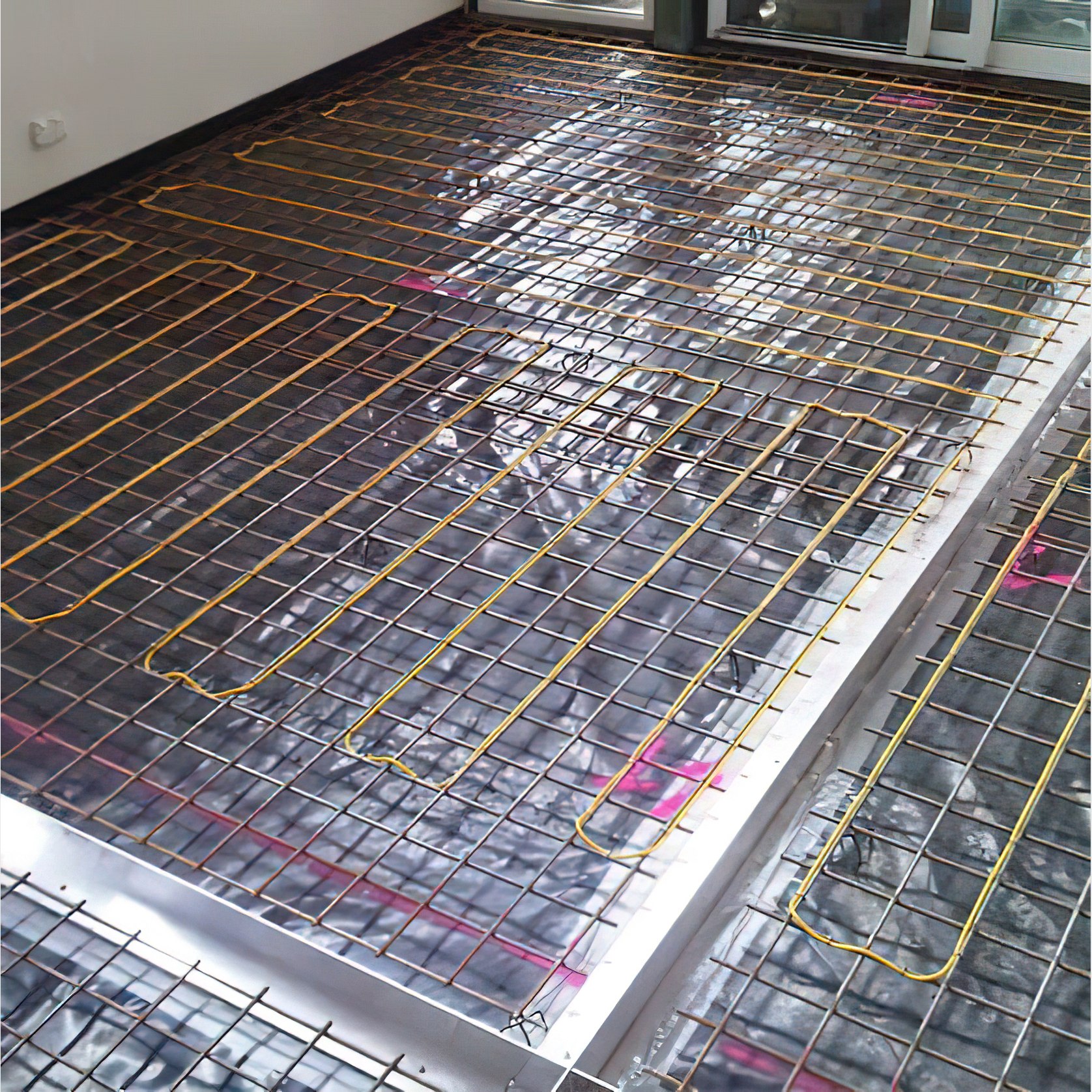

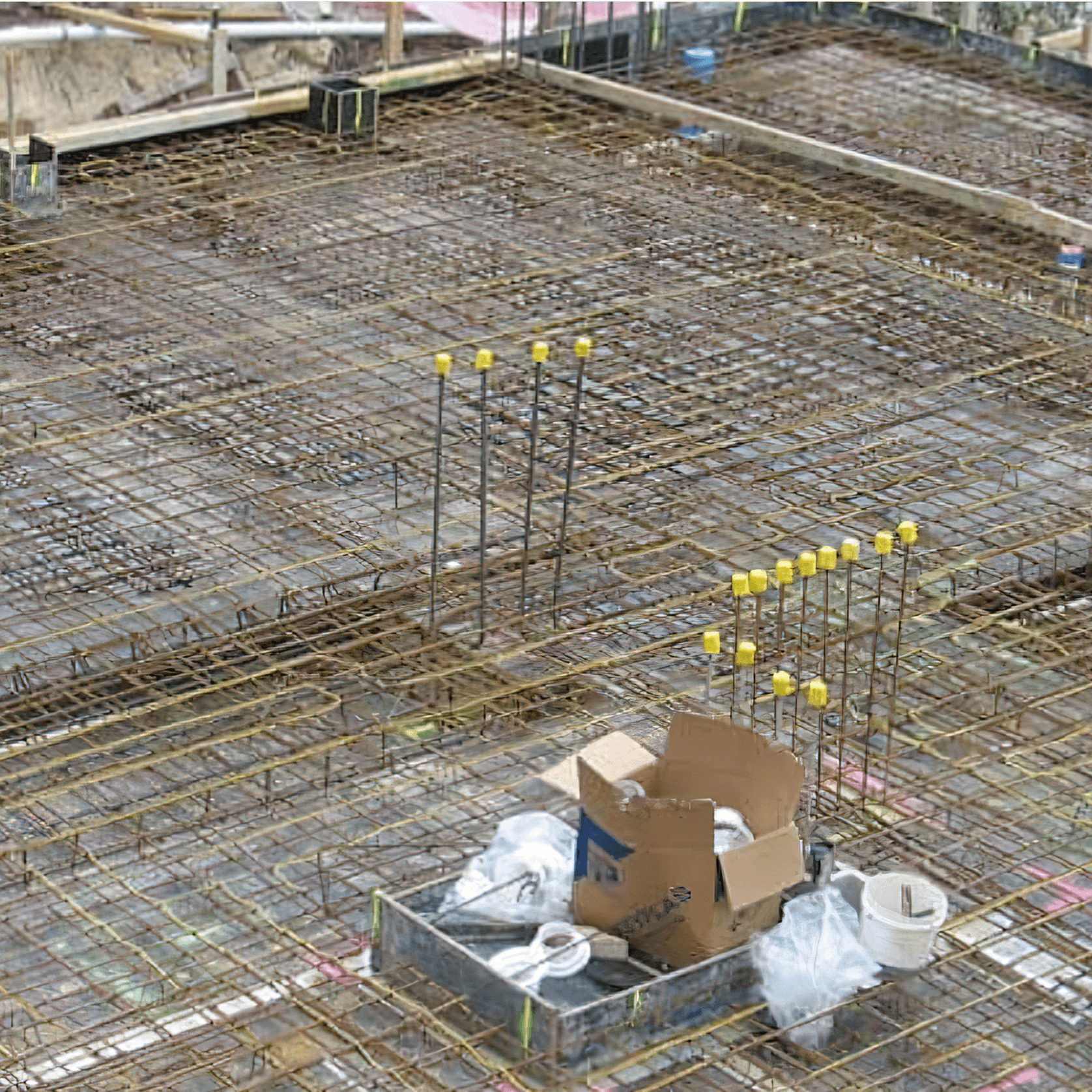

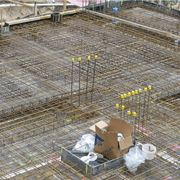

The cable is installed before the slab is poured attached to either the mesh (i.e. F72) or the reinforcing rods installed at 200mm centers (one direction only).

SPECIAL REQUIREMENTS

The cable cannot be installed across expansion joints. Comfort Heat must be informed of any expansion joints in the slab. For large areas, multiple cables will be installed.

Talk to Us about In Slab Electric Underfloor Heating

For more information about the latest modern floor heating, download our brochures. To discuss your options for in-slab underfloor heating, call us or contact us online. We’ll be happy to provide any information, technical guidance, or services you require.

Please note: Slab underfloor heating requires site information and metrics. We’ll require information about your slab construction and measurements to provide you with technical support and a quote.
