Under Timber Electric Underfloor Heating

Under timber heating mats have been specifically developed to provide invisible heating under floating timber floors. The 500mm wide foil mats are ideal for large or small areas and are taped onto the underlay. Heating very close to the floor surface has a fast response time and the floor will begin to feel warm in the first hour.

Details
  • Category
    Underfloor Heating, Electric Heaters
  • Range
    Electric Heating
  • Warranty
    5 years
Specifications

Cable Type: Twin conductor heating cable with earth screen.

Construction: Multi-stranded heating wire with double insulation, earth screen, and sheath.

Insulation: 4000 V

Rated Voltage: 230 Volt AC; Rated output 140W/m²

Cold Tail Length: 3 meter with splice connection

Cable Diameter: 1.2mm

Cable Standard: IEC800 Class II

Warranty: 5 years

Scope of use

Suitable for indoor use.

Features

Cable Technology - The foil mat consists of a twin conducting heating element sandwiched between two layers of reinforced aluminum foil, providing an even distribution of heat.

Heat Output - The heating mat has a heat output of 140W /m² and is available in 500mm wide pre-fabricated mats in a variety of pre-determined lengths. Comfort Heat staff will help select the correct mat length for your heated area.

Special Requirements - Due to the height of the timber and underlay, it is difficult to install a sensor tube as with other floor heating installations. The electrician will still need to install conduits within the wall but only the sensor wire can be installed in the floor. To enable a spare sensor in case the original sensor fails over time, a second sensor can be installed under the timber to provide some redundancy. Both sensors are taped to the under timber foil mat between two heating wires but only one will be connected to the thermostat.

Installation

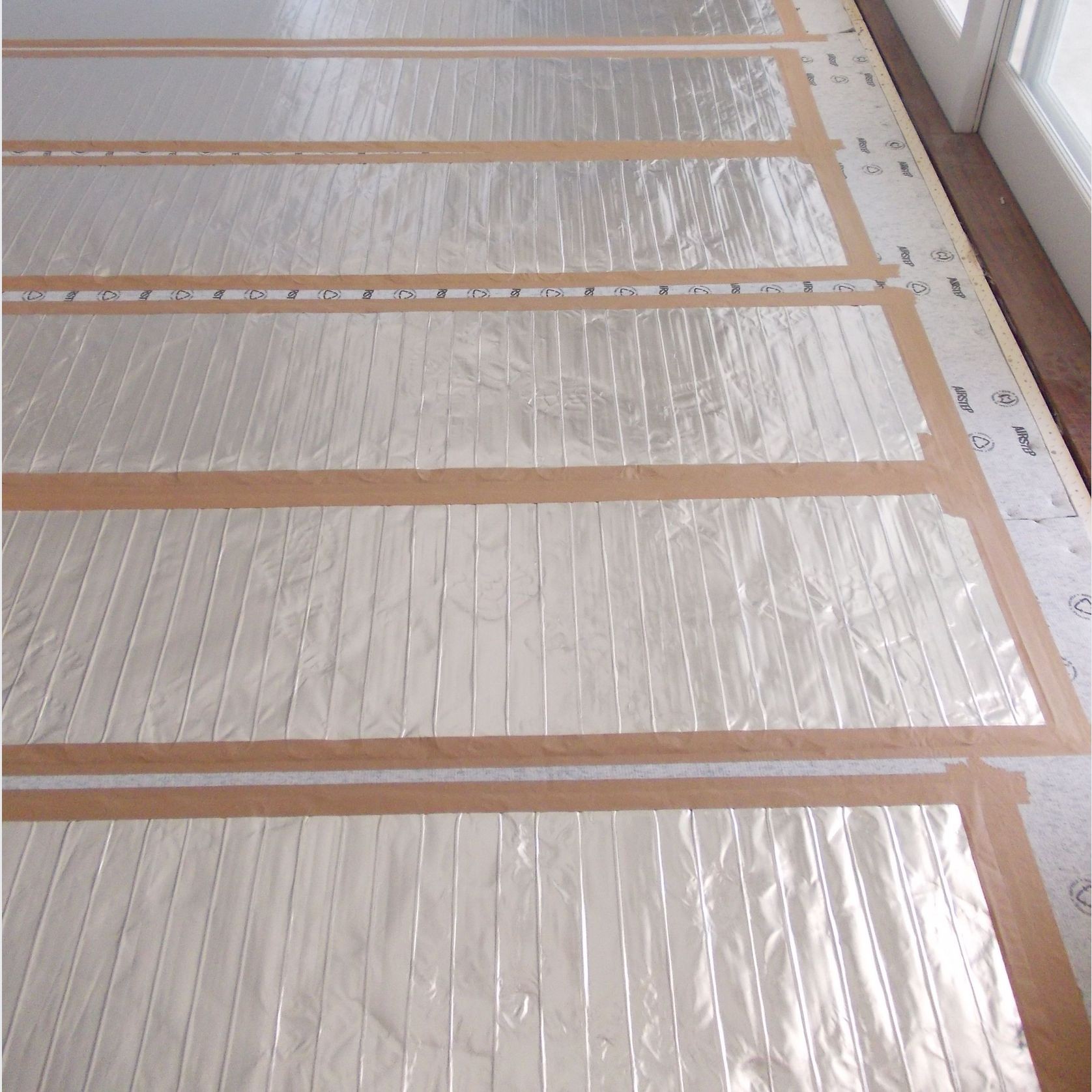

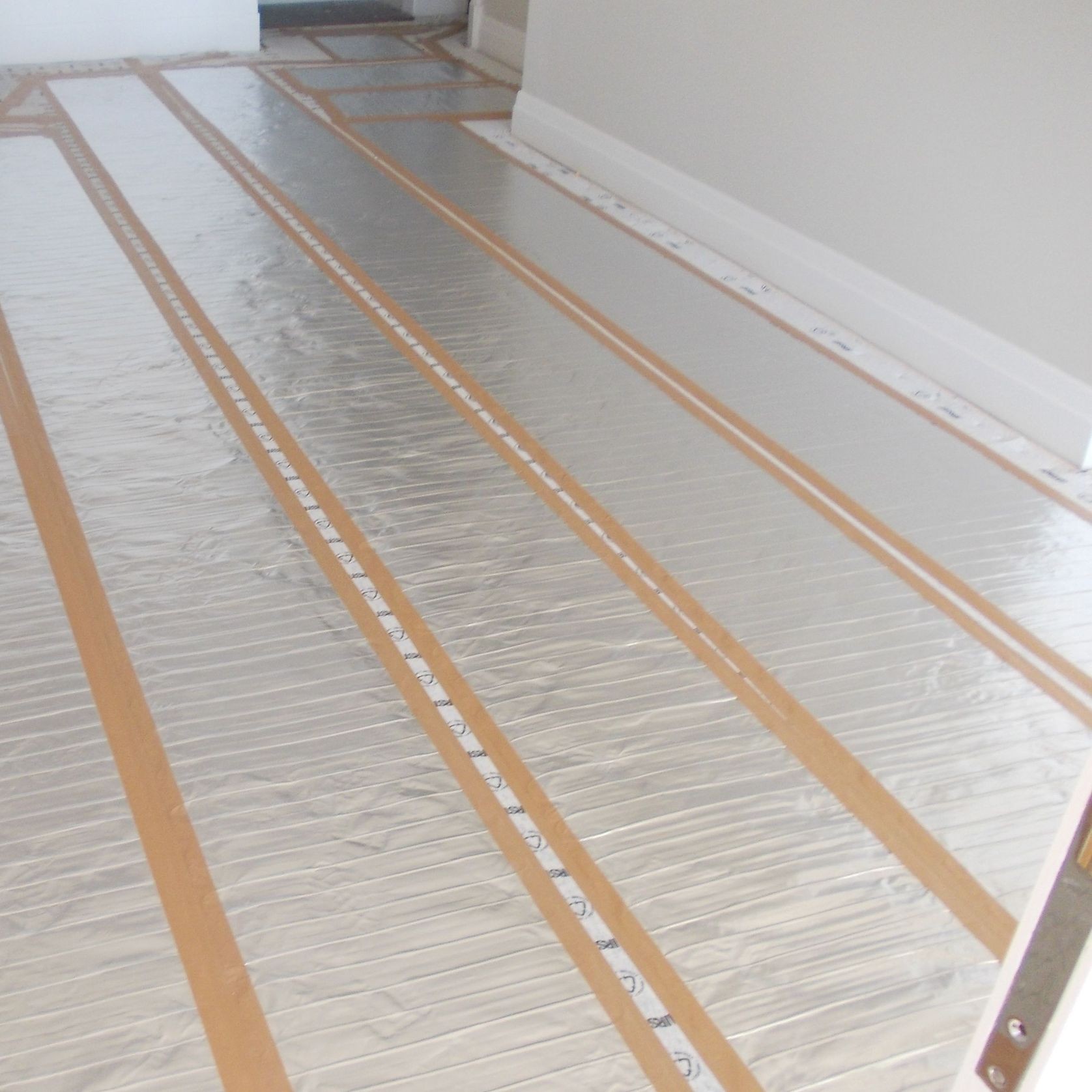

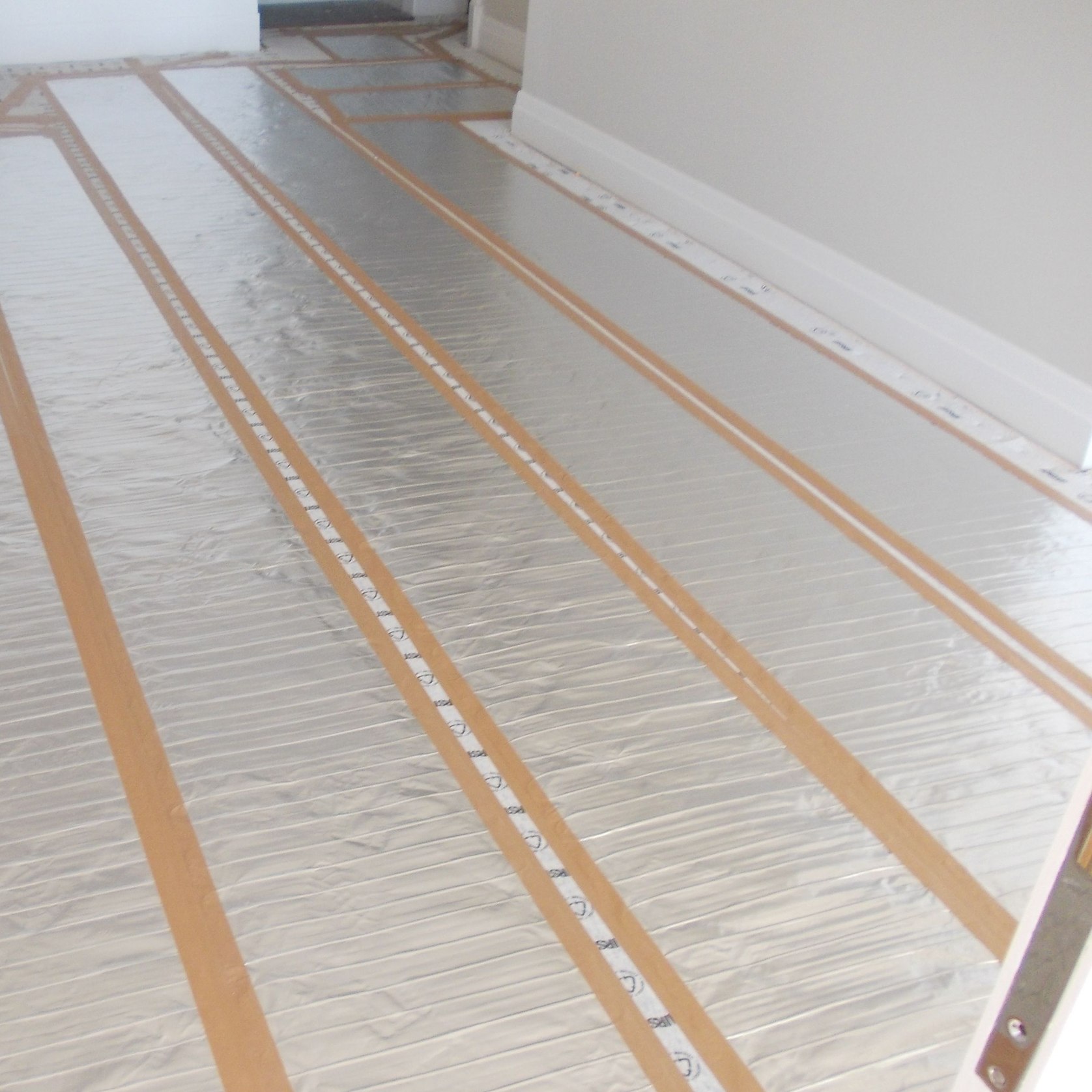

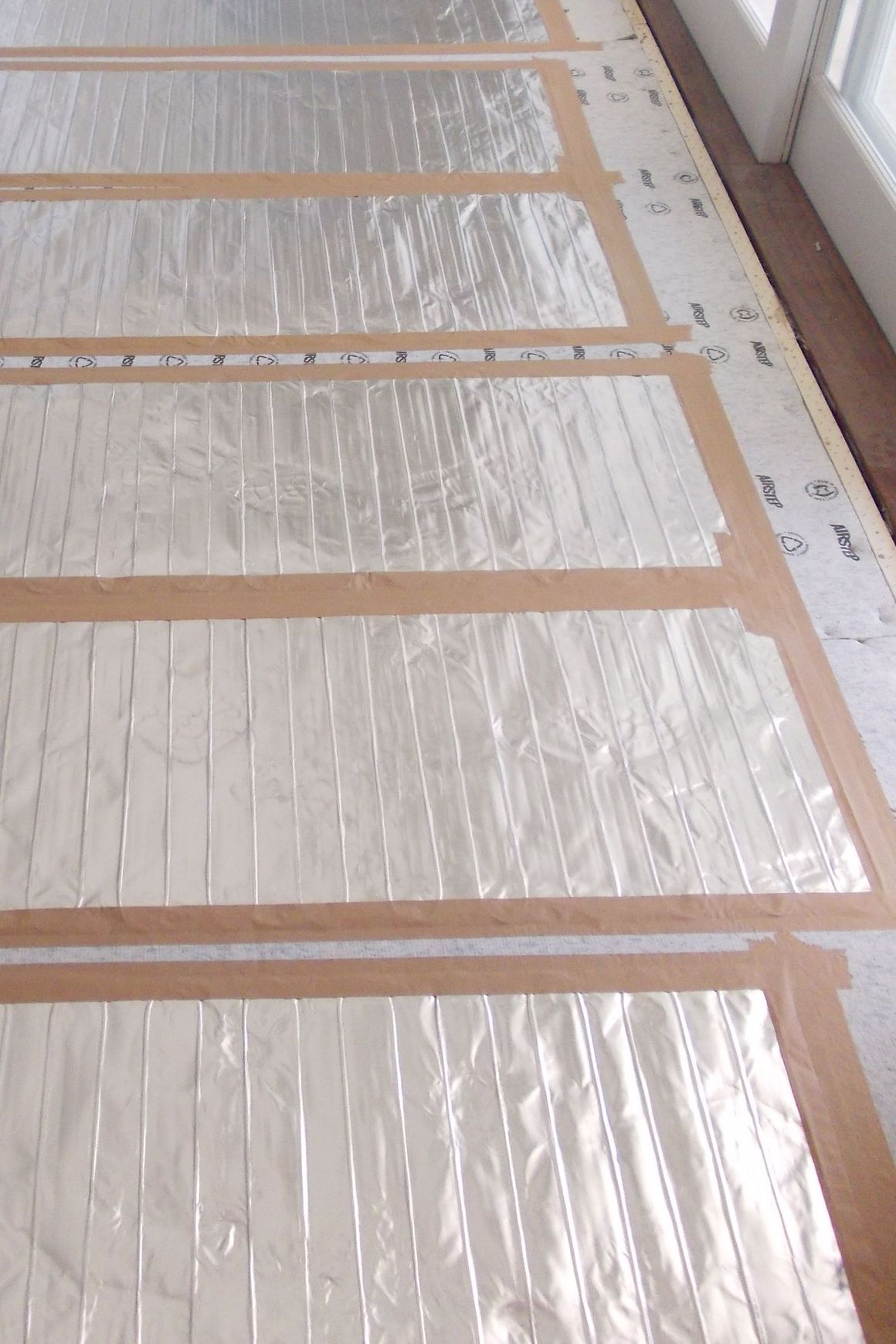

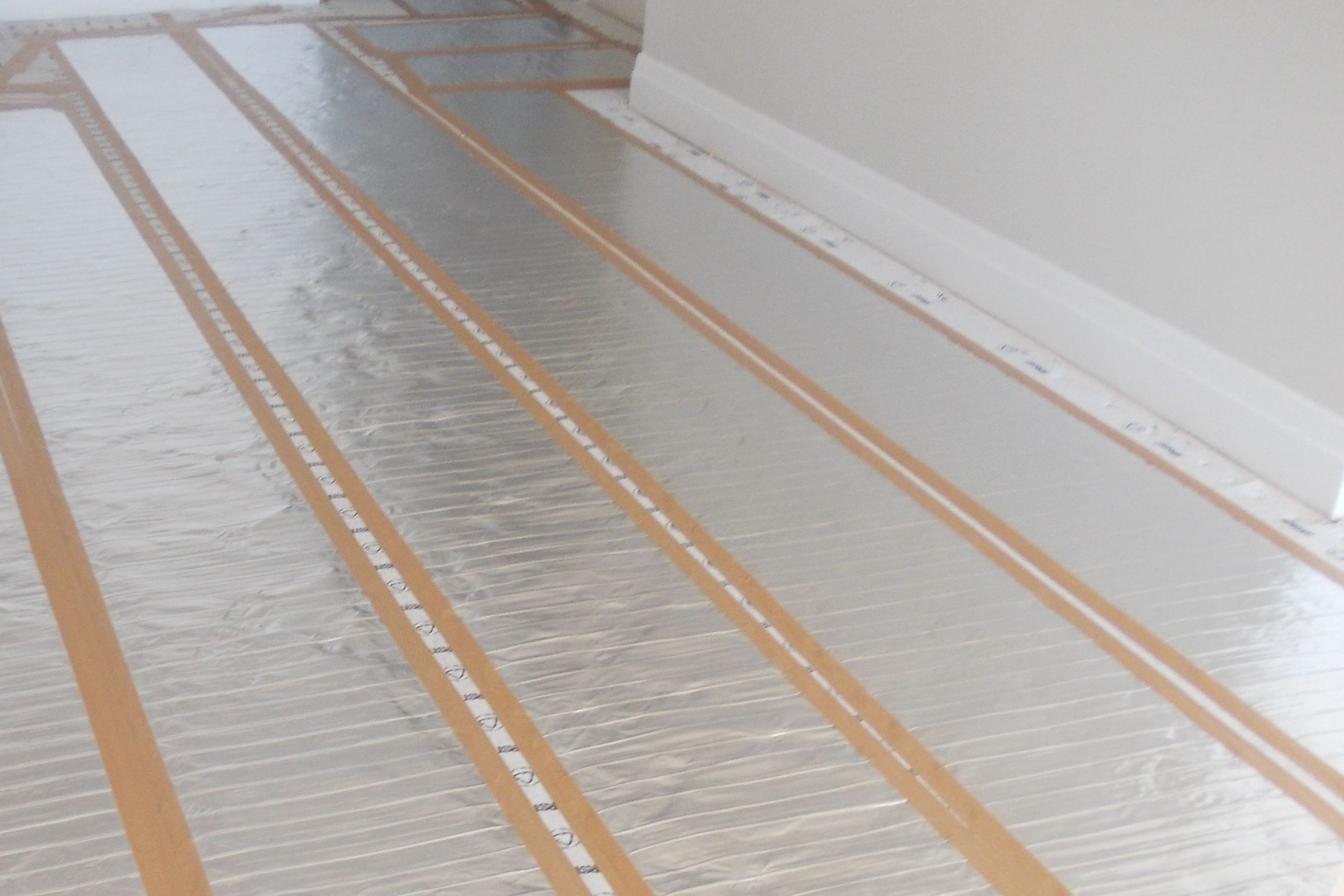

The under timber heating mats are taped down on top of the underlay before the timber is installed. Unlike under tile or in-slab heating cables, under timber mats can be installed up to 300mm off walls and fixtures within a floor area. Comfort Heat staff can design the best installation to achieve a comfortable operation.
