Thin Electric Underfloor Heating

The ultra-thin heating mat is ideal for under tile heating installations. The 300mm wide mat is typically recommended for bathrooms and the 500mm wide mat suits large areas. The ultra-thin mat is typically used when there is no sand and cement bed overlay and tiles can be glued directly to the floor. Because of this the floor has a very fast response time and will reach a set temperature in approximately 60 minutes.

Details
  • Category
    Underfloor Heating
  • Range
    Electric Heating
  • Warranty
    10 years
General
  • Type of use
    Commercial and Residential
  • Installation
    Minor installation required
  • Assembly
    Minor assembly required
Specifications

Cable Type: Twin conductor heating cable with earth screen

Construction: Multi-stranded heating wire with double insulation, earth screen and sheath

Insulation: 4000 V

Rated Voltage: 230 Volt AC

Rated output: 150W/m²

Cold Tail Length: 3 meters with splice connection

Cable Diameter: 3.5mm

Cable Standard: IEC800 Class II

Cable Warranty: 10 years

Scope of use

Suitable for indoor use and outdoor use with additional waterproofing.

Features

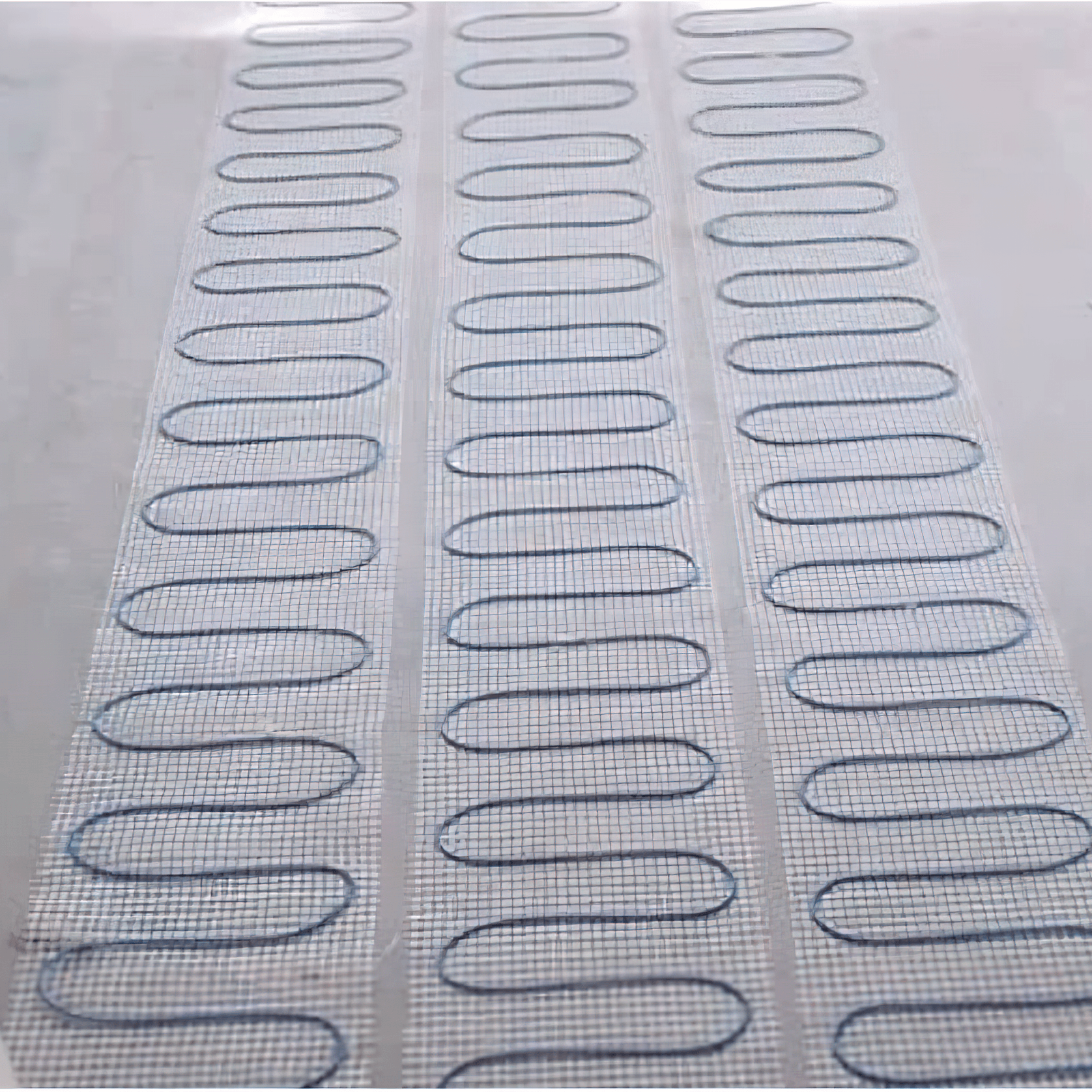

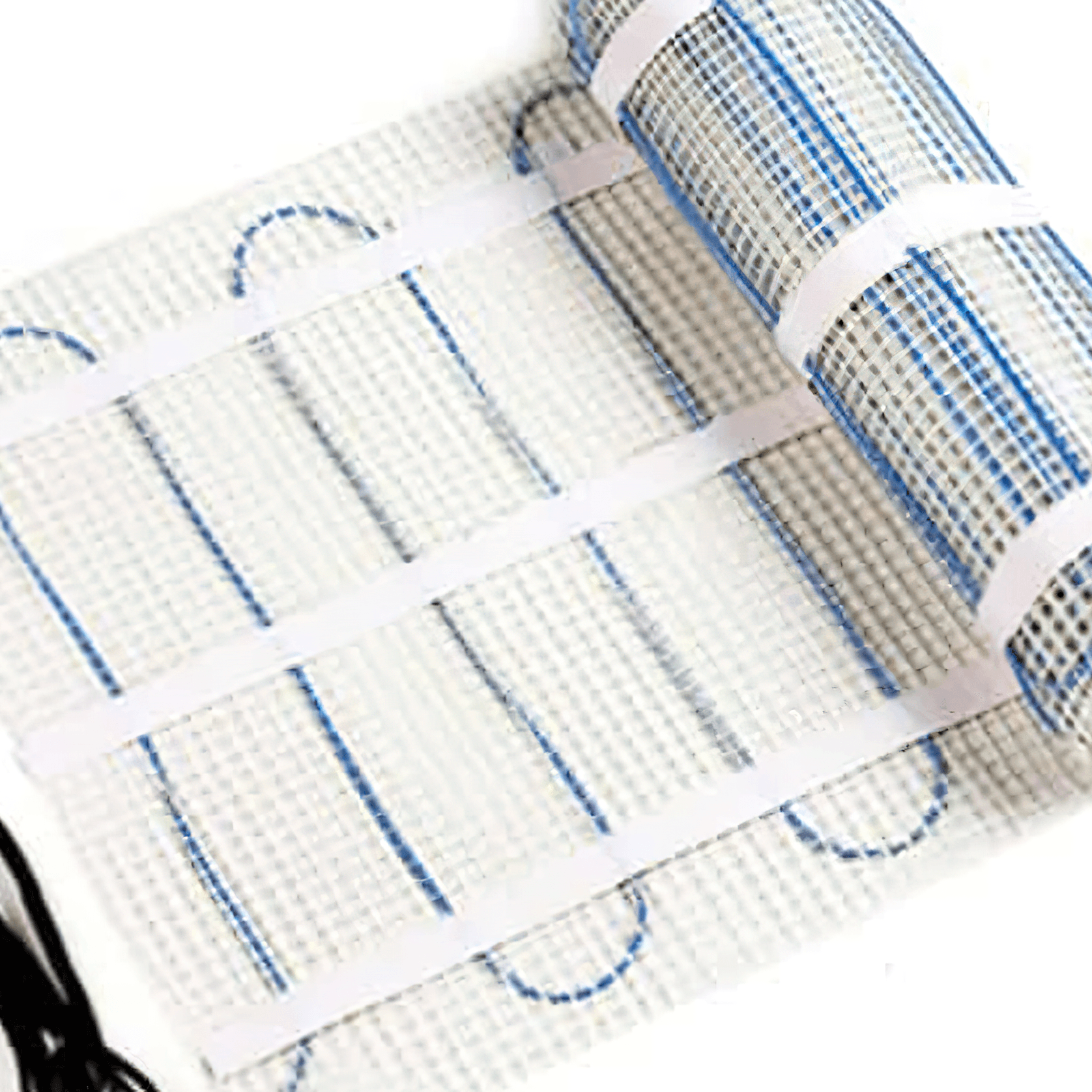

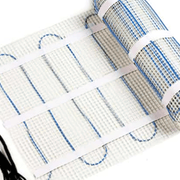

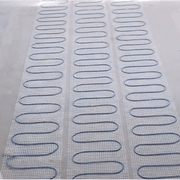

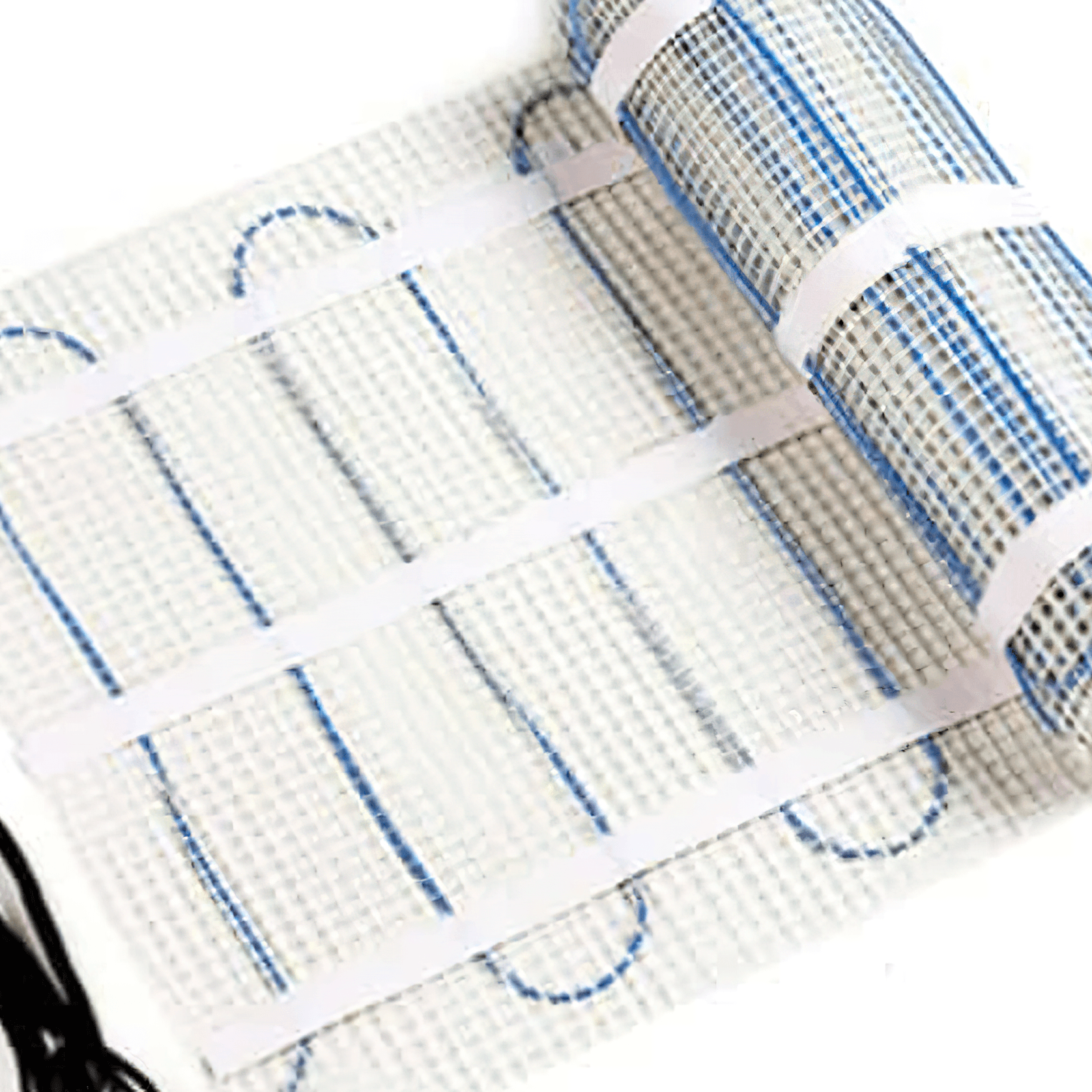

Cable Technology - The ultra-thin heating mat is a flexible double insulated twin cable system, woven into a textile mat. The multi-stranded heating cable gives superior strength.

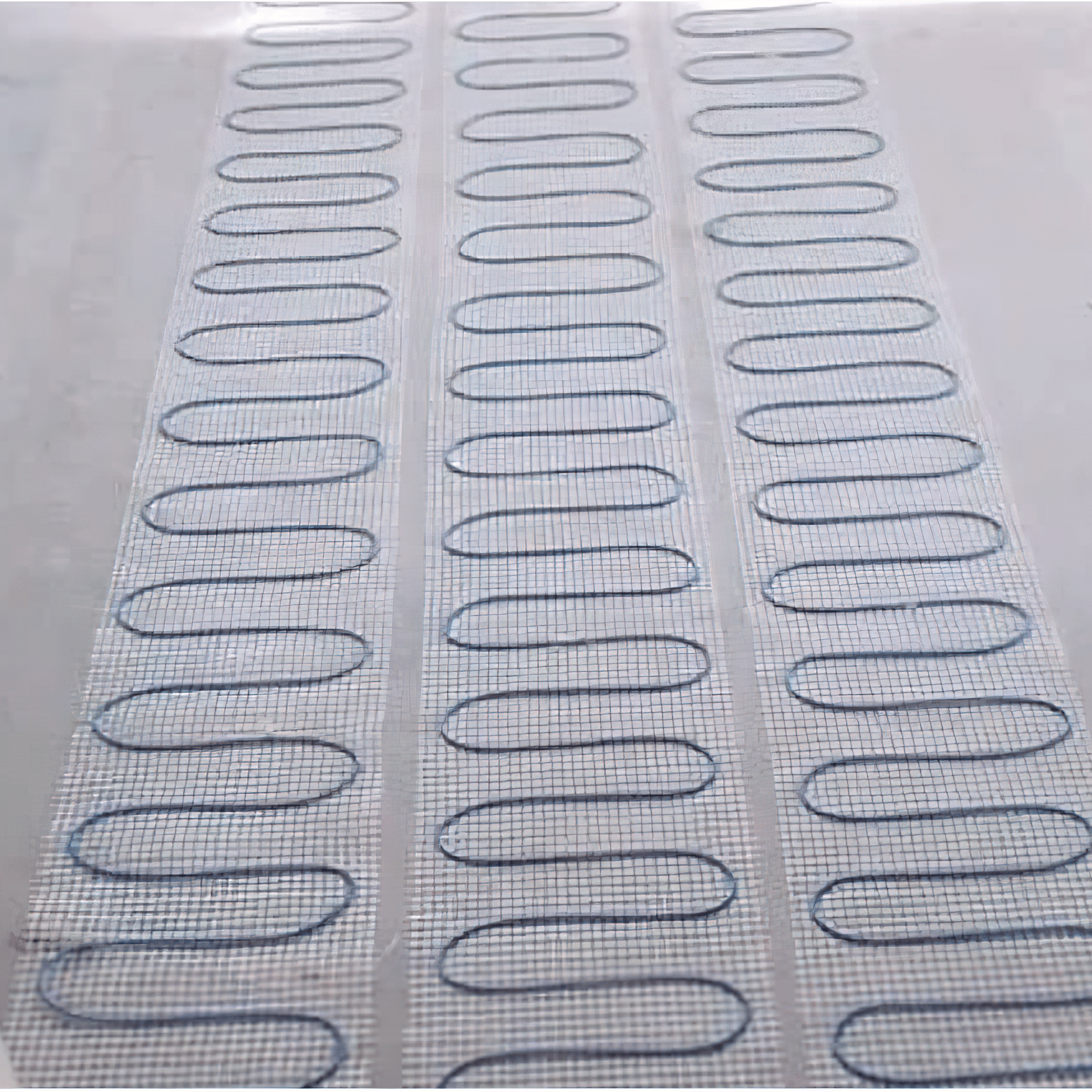

Heat Output - The ultra-thin mat has a heat output of 150W /m² and is available in 300mm and 500mm wide fabricated mats. Comfort Heat staff will help select the correct mat length for your heated area.

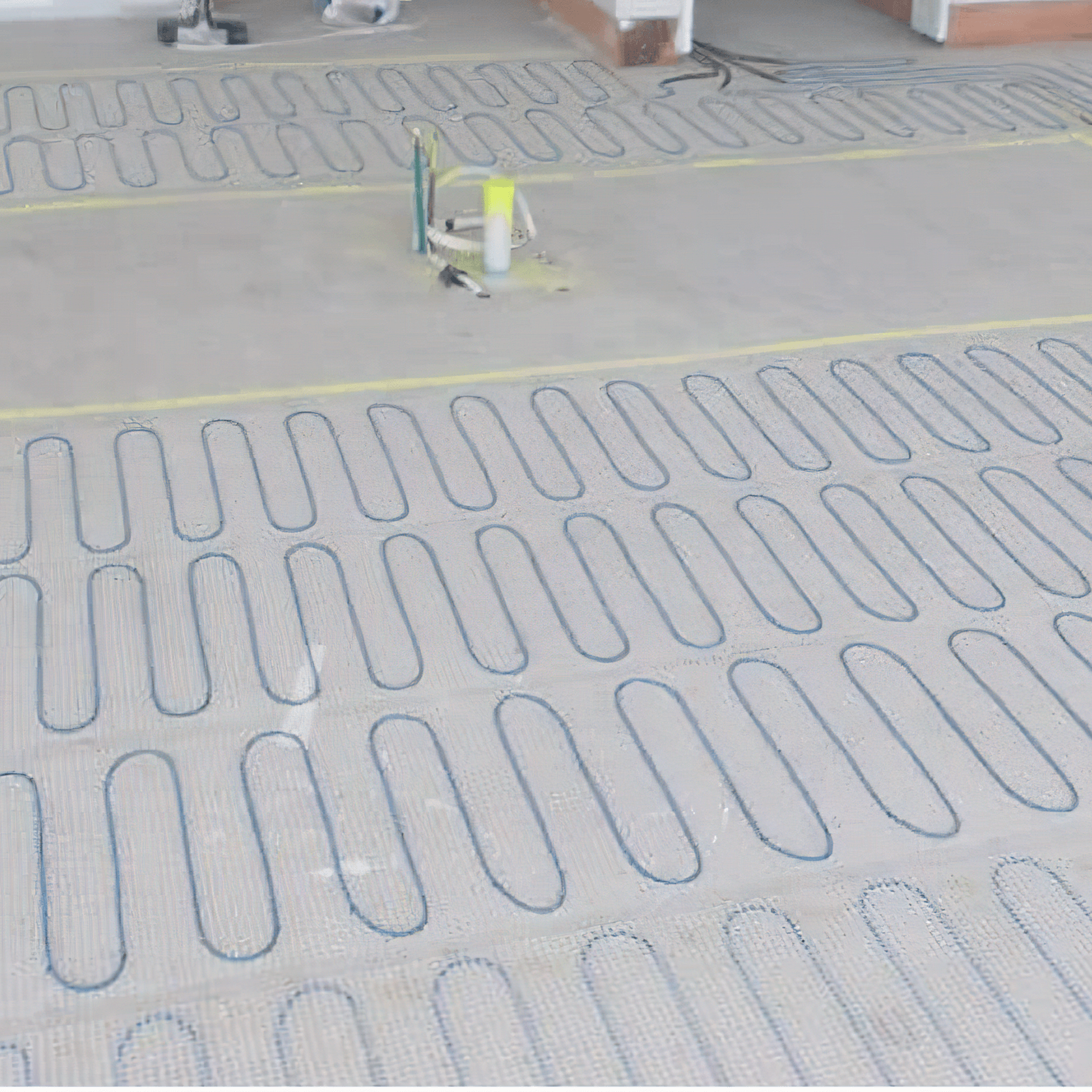

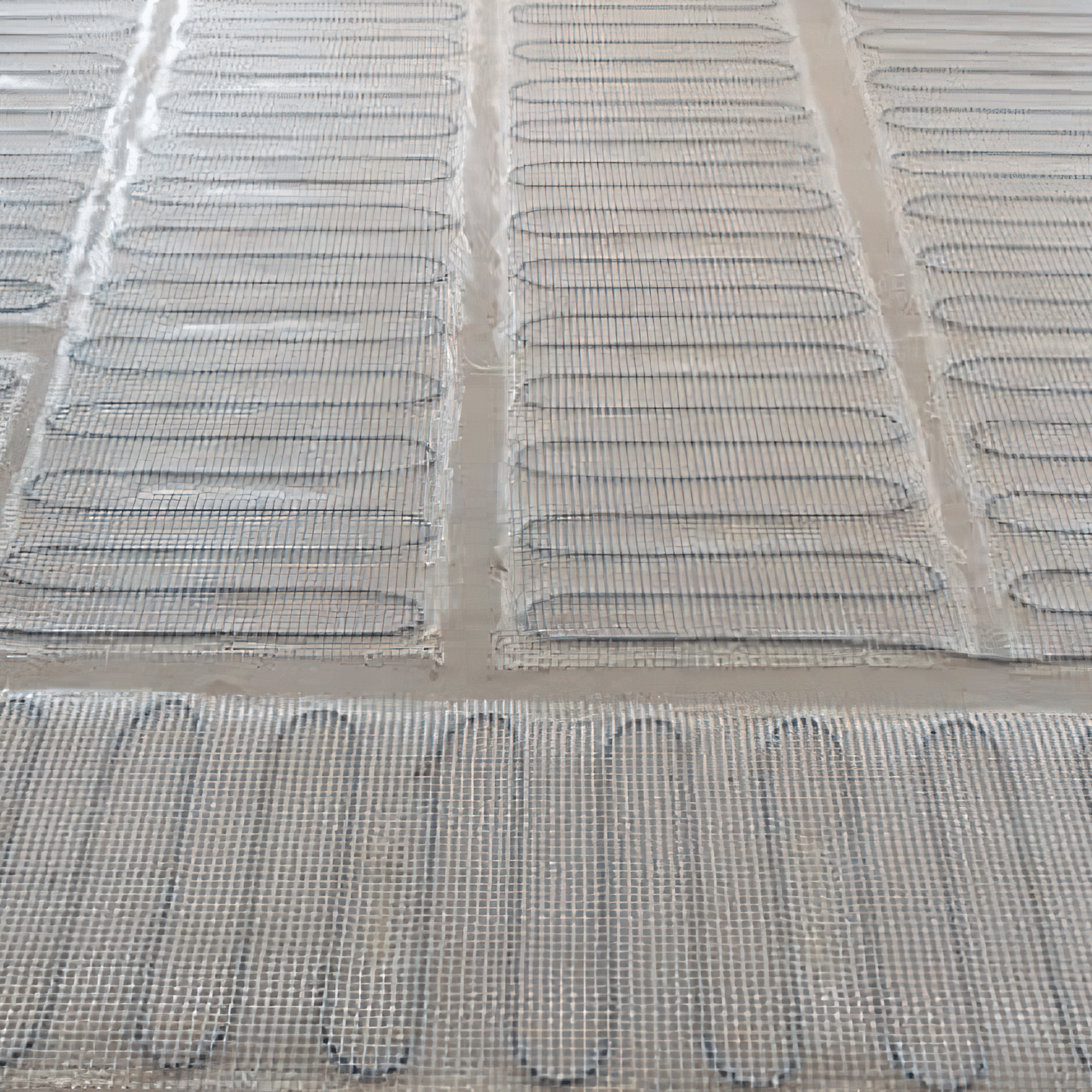

Special Requirements - Due to the thin cable technology, the Comfort Heat ‘Sensor Tube’ (Ref: Sensor Tube Page.) must be chased onto the floor. Comfort Heat must be informed of any expansion joints in the slab. The mat must not be installed over any expansion joints. For large areas, multiple mats will be installed.

Installation

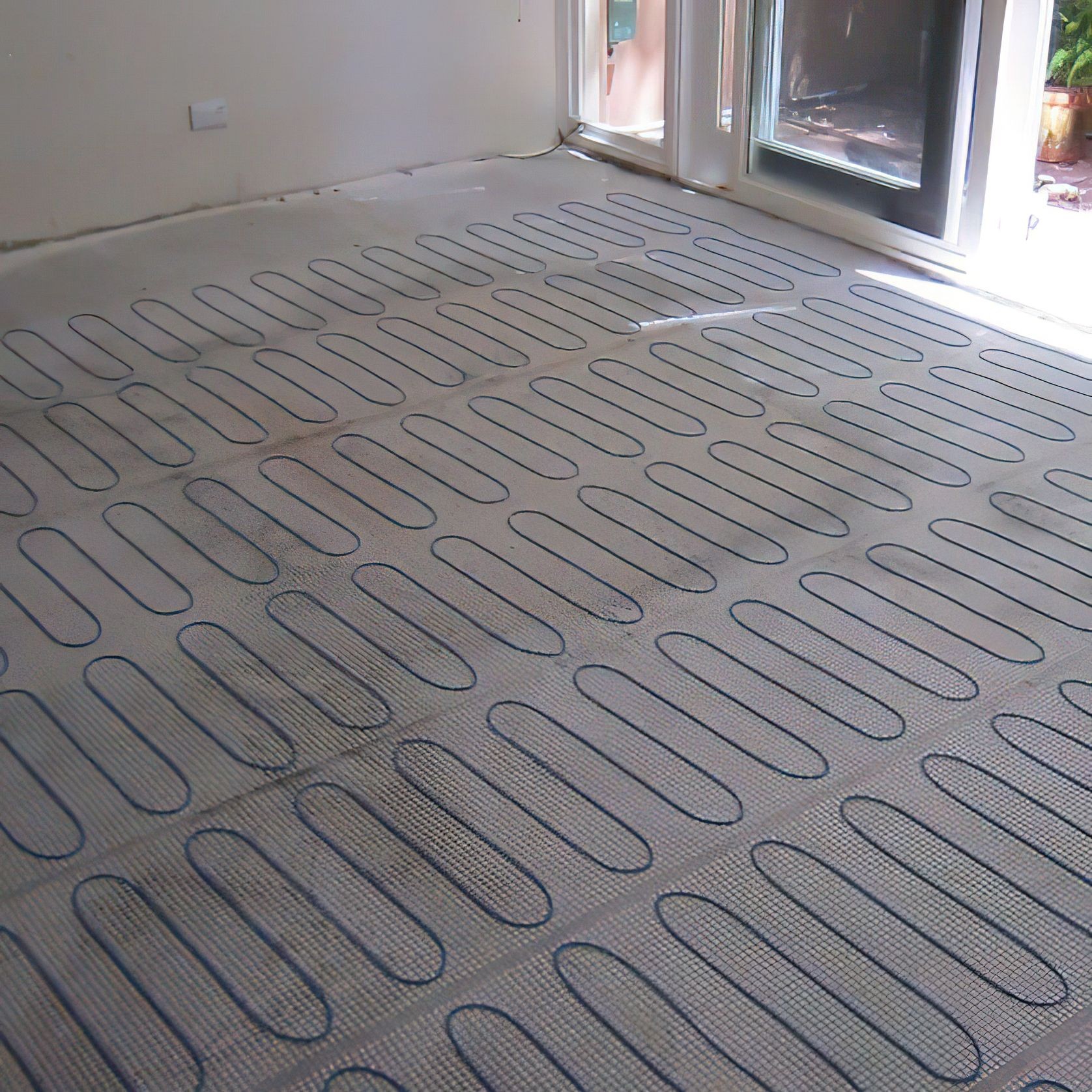

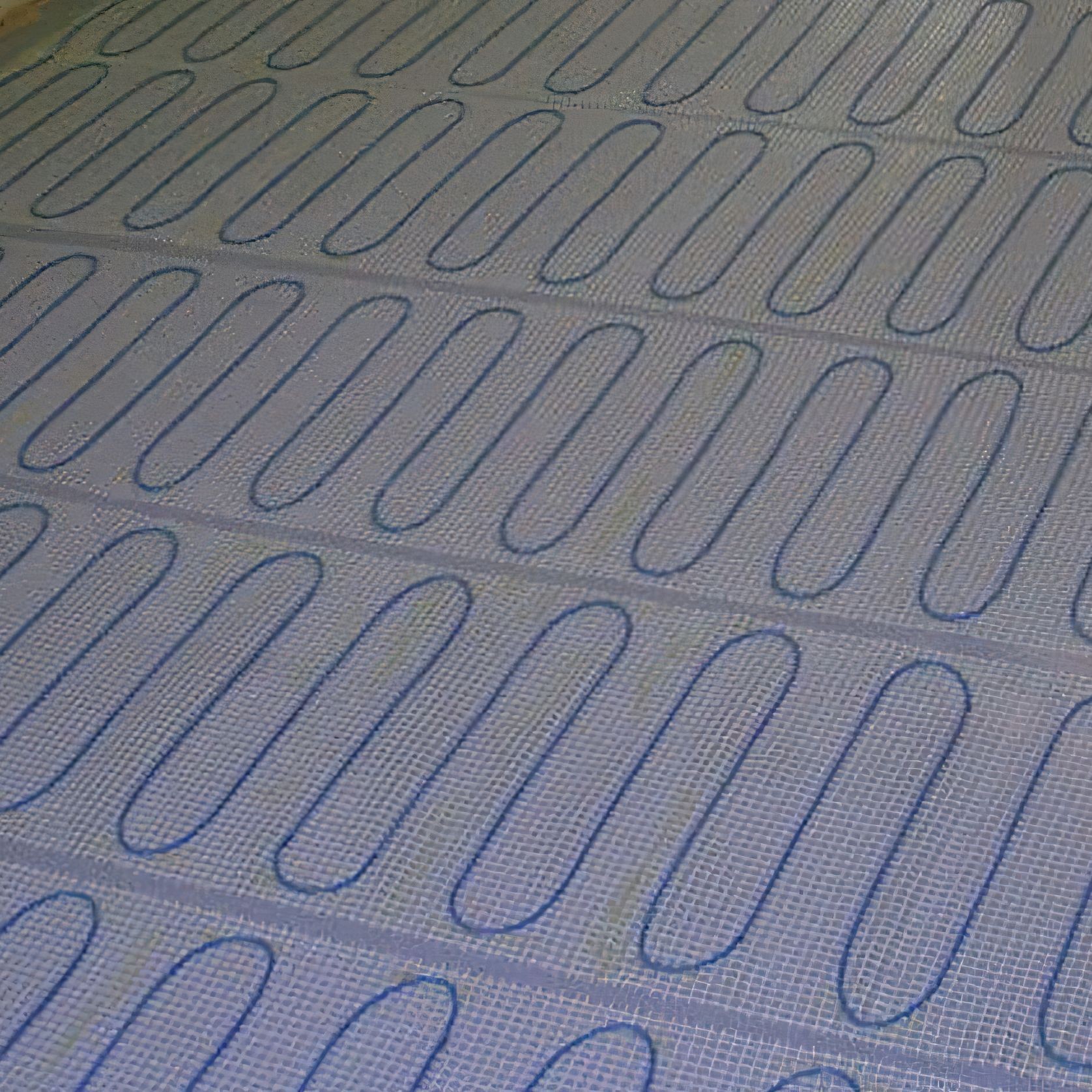

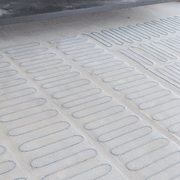

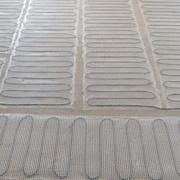

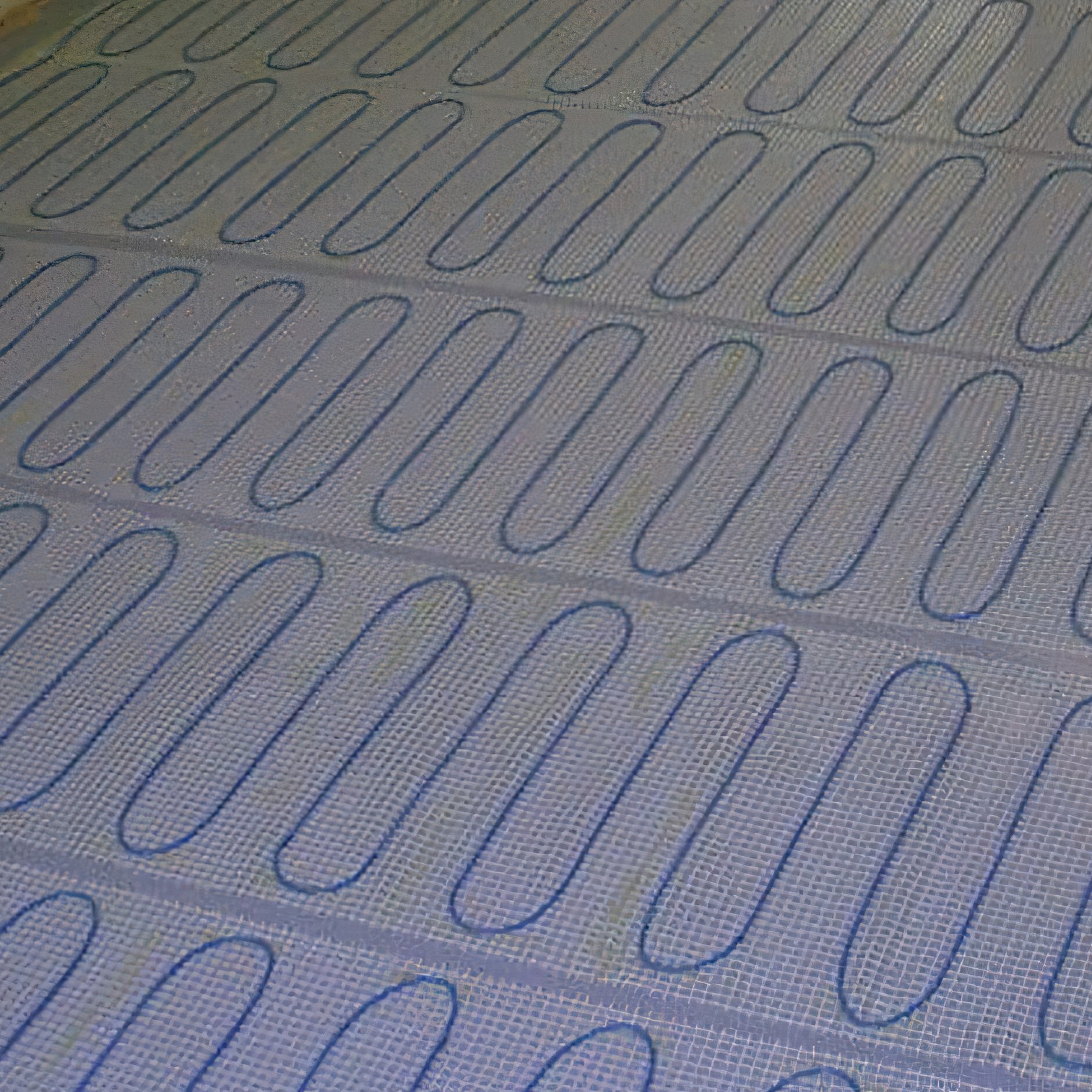

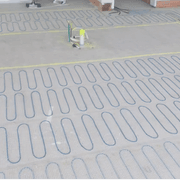

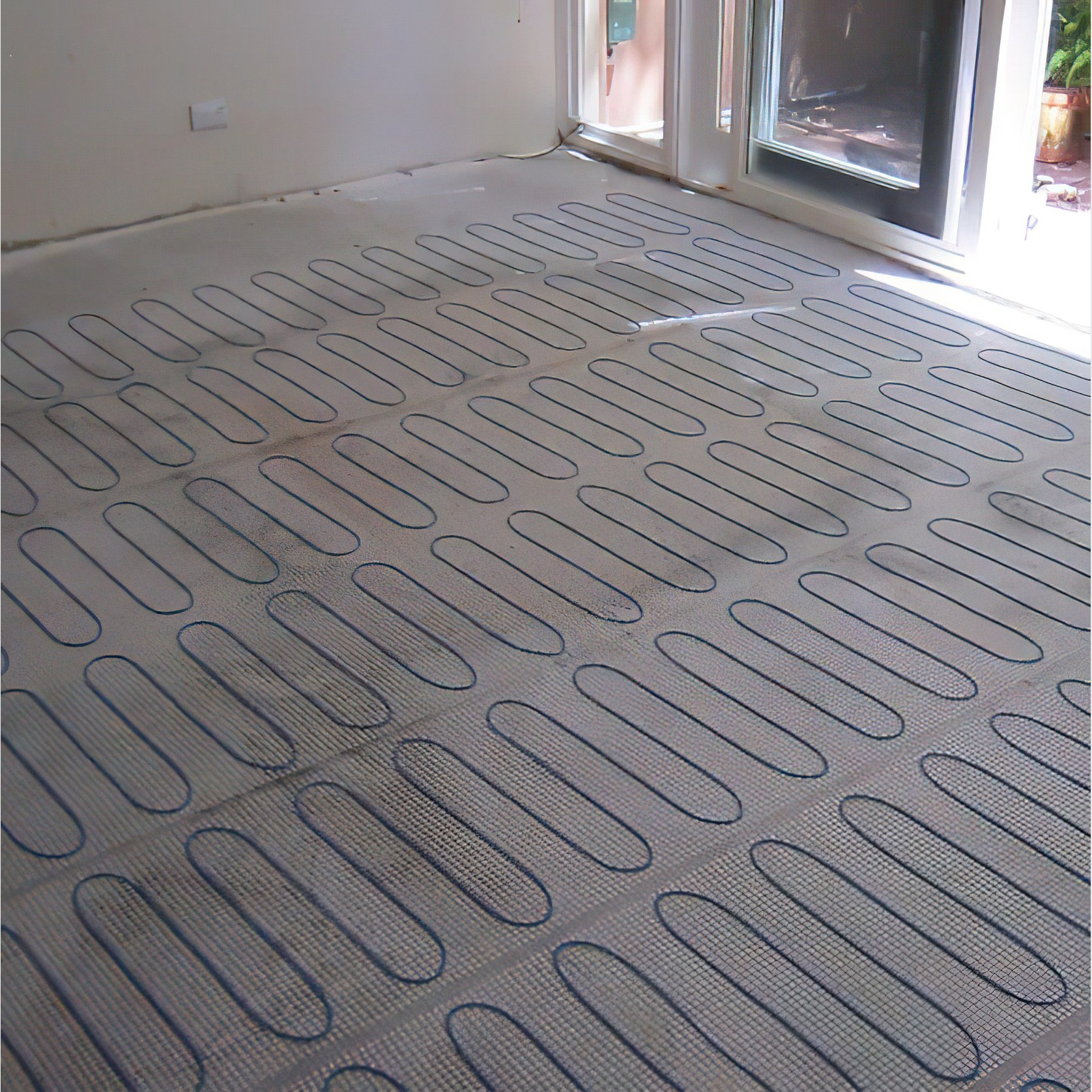

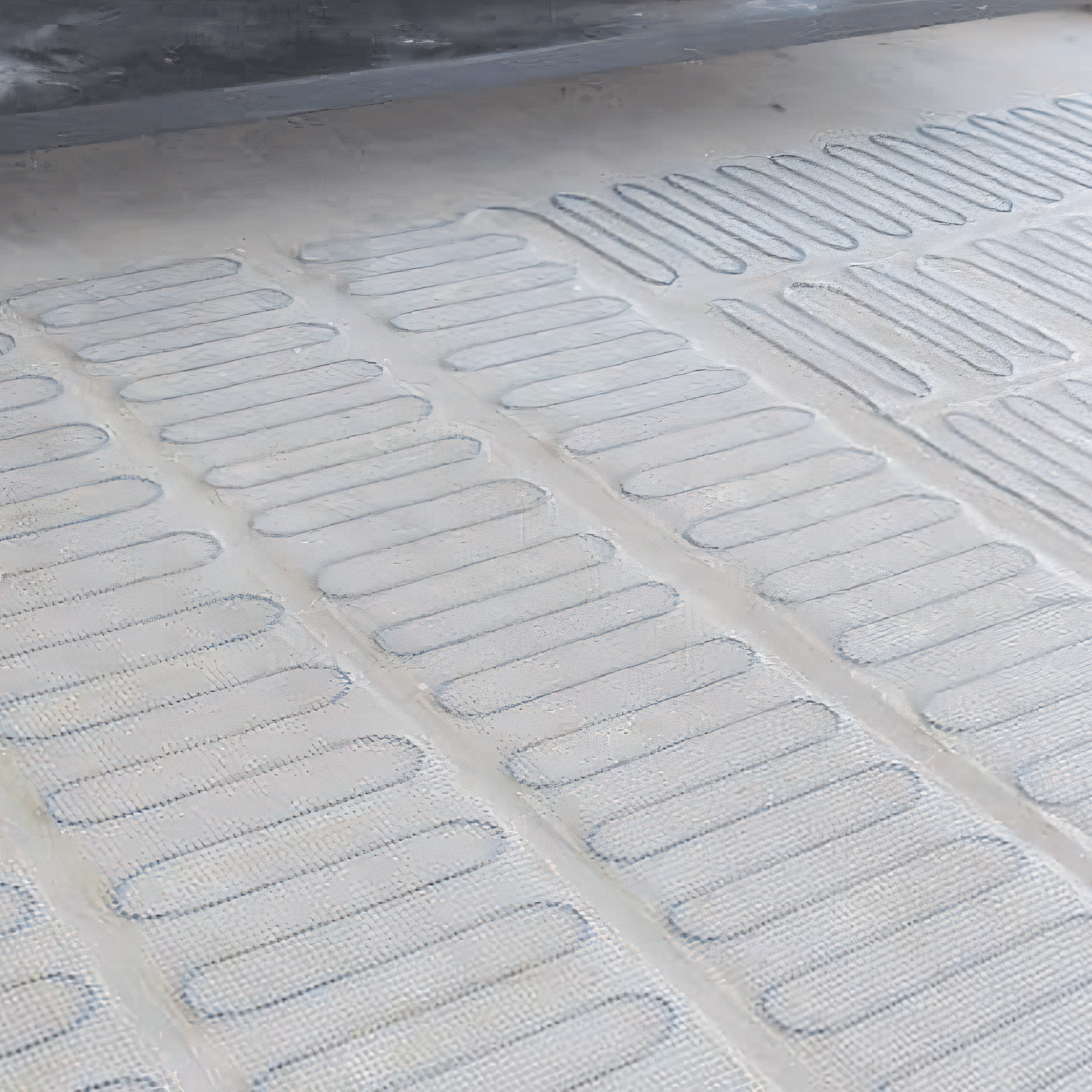

The thin mats are installed directly beneath the floor covering in the tile adhesive, adding no height to your floor levels. Mats are attached to the floor with either hot glue, nylon anchors, or tape. Tile adhesive can be laid directly on top or a thin Ardit can be laid over the mat, providing a flat, even surface to tile.

Visit Website

About the
Seller

Comfort Heat Australia is a leading supplier of hydronic and electric underfloor heating systems. An Australian owned business, Comfort Heat offers comprehensive DIY kits and/or professional installation in both hydronic and electric systems. As heat naturally rises, no heat is wasted with underfloor heating systems. Comfort Heat Australia systems are gentle and low temperature, with no air movement, dust, noise or dry air.'

Comfort Heat stocks the full range of world leading hydronic and electric underfloor heating products to suit all your heating needs, for all floor coverings, both electric and hydronic.

Large industrial projects to small bathroom renovations or even a simple DIY kit, Comfort Heat has the solution for your heating requirements.

With over 25 years expertise in both electric and hydronic floor heating systems, Comfort Heat can provide the most effective and efficient heating solution for your project. From the superior twin conducting cable of the electric floor heating systems to the quality components used in hydronic systems, Comfort Heat has the commitment to design superior installations which meet the needs of their customers.
