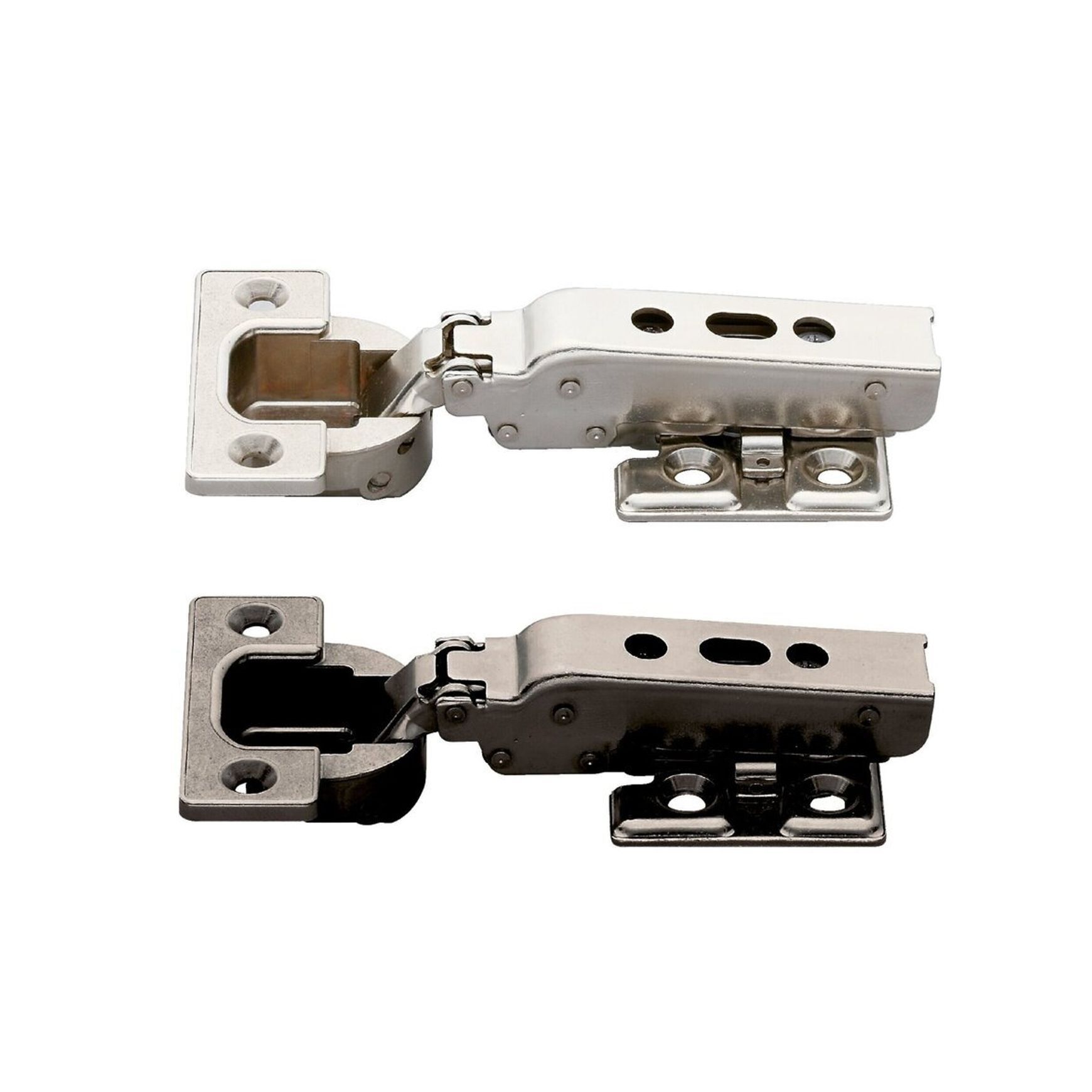

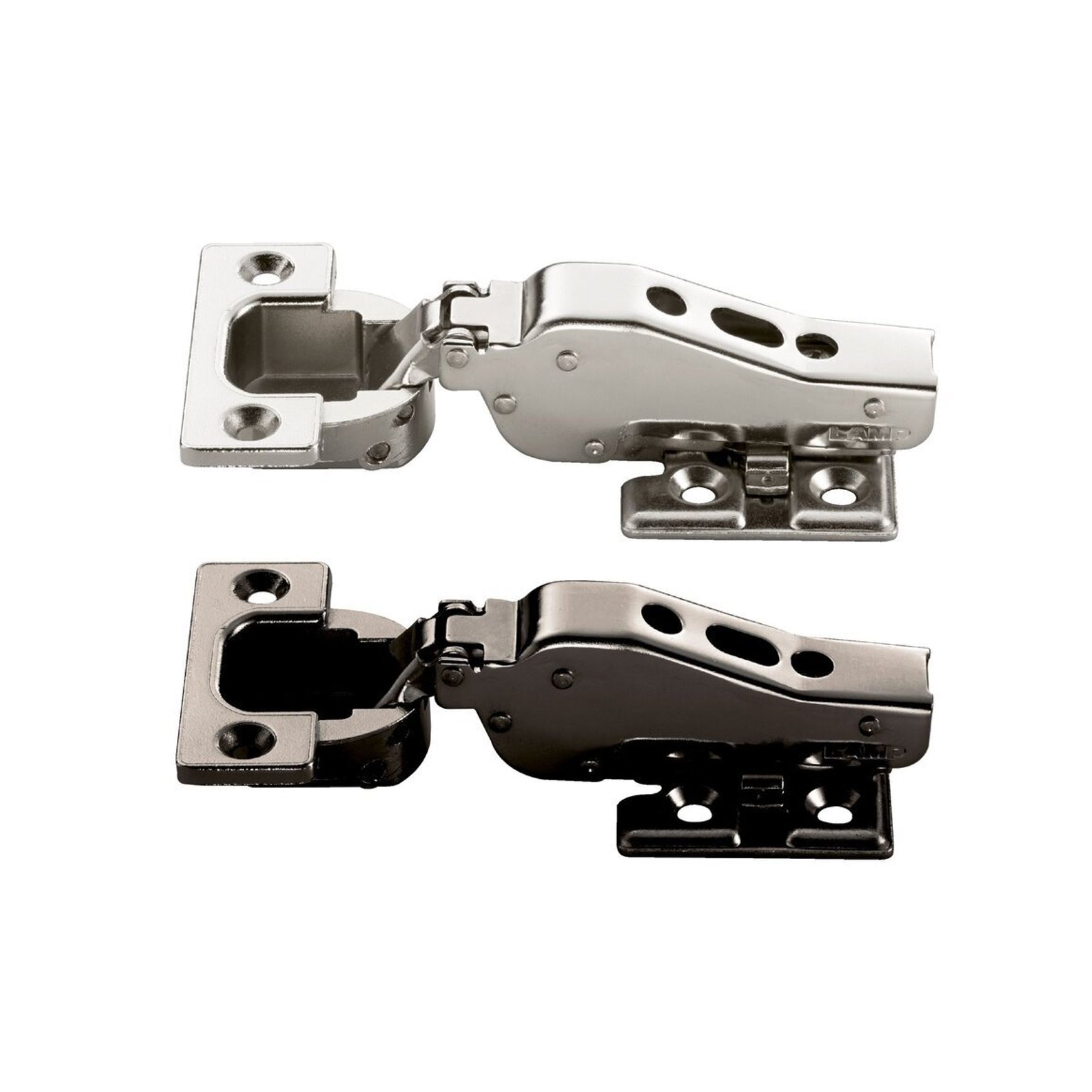

J95 Heavy-Duty Concealed Door Hinge

The J95 is a premium heavy-duty concealed cabinet hinge designed for larger cabinet, wardrobe and architectural joinery doors where strength, adjustability and a refined finish are essential.

Specs

The J95 Heavy-Duty Concealed Cabinet Hinge is available in multiple configurations to suit a wide range of architectural cabinetry and joinery applications.

• Door weight: Up to 25kg with 2 hinges / 40kg with 3 hinges
• Door thickness: 18–30mm
• Opening angle: 95°
• Adjustment: 3-way adjustment
• Configurations: 25mm overlay, 16mm overlay and inset
• Catch: Available with or without catch

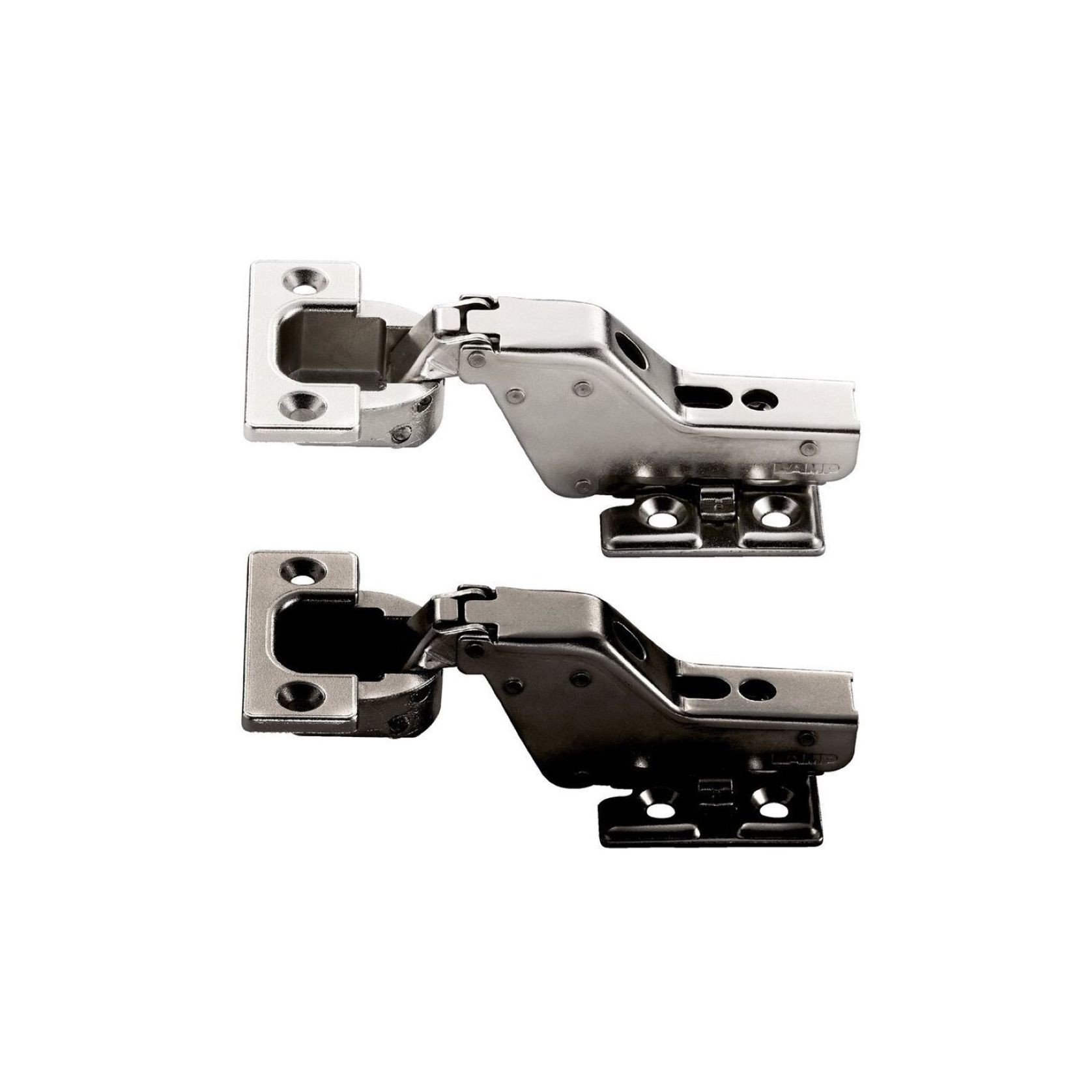

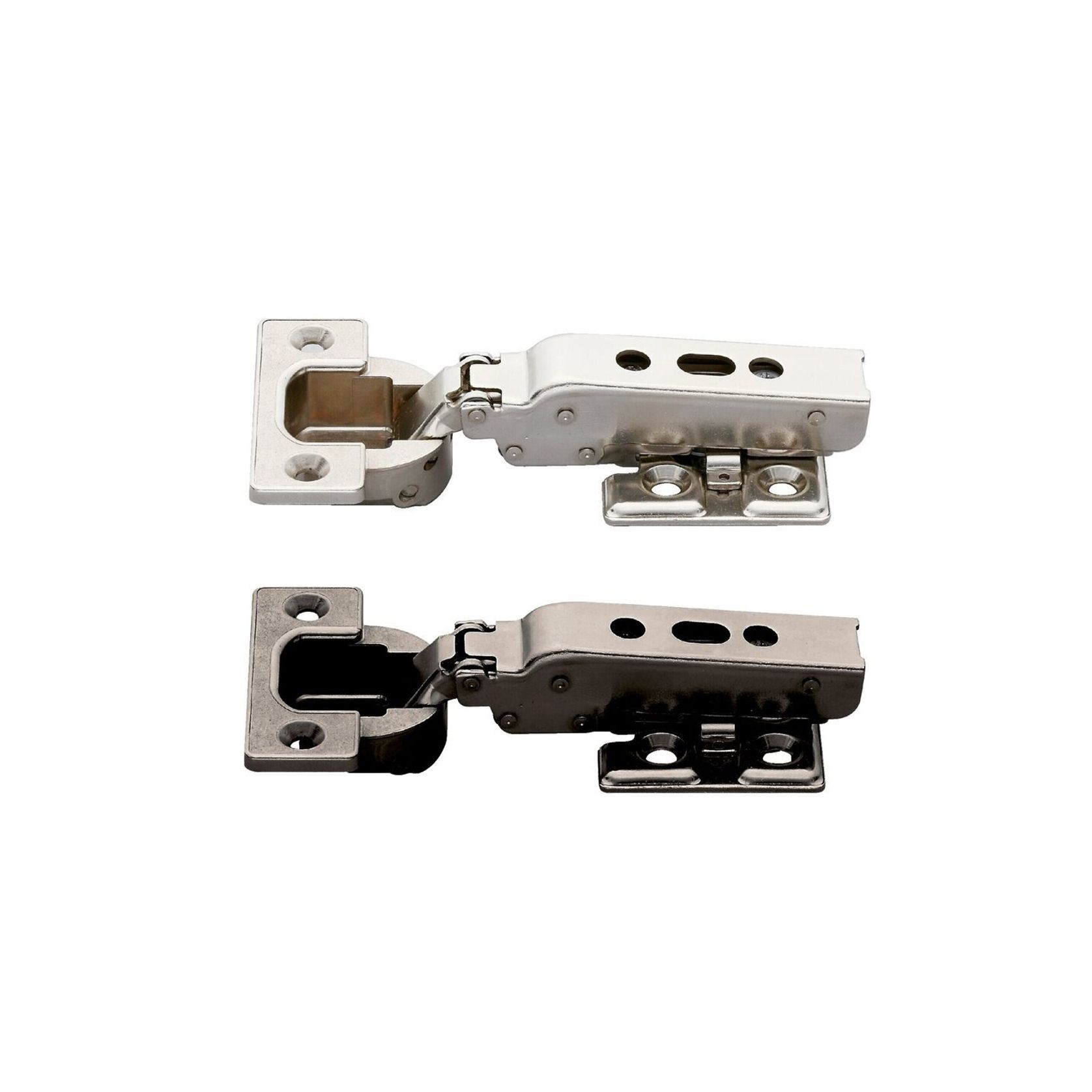

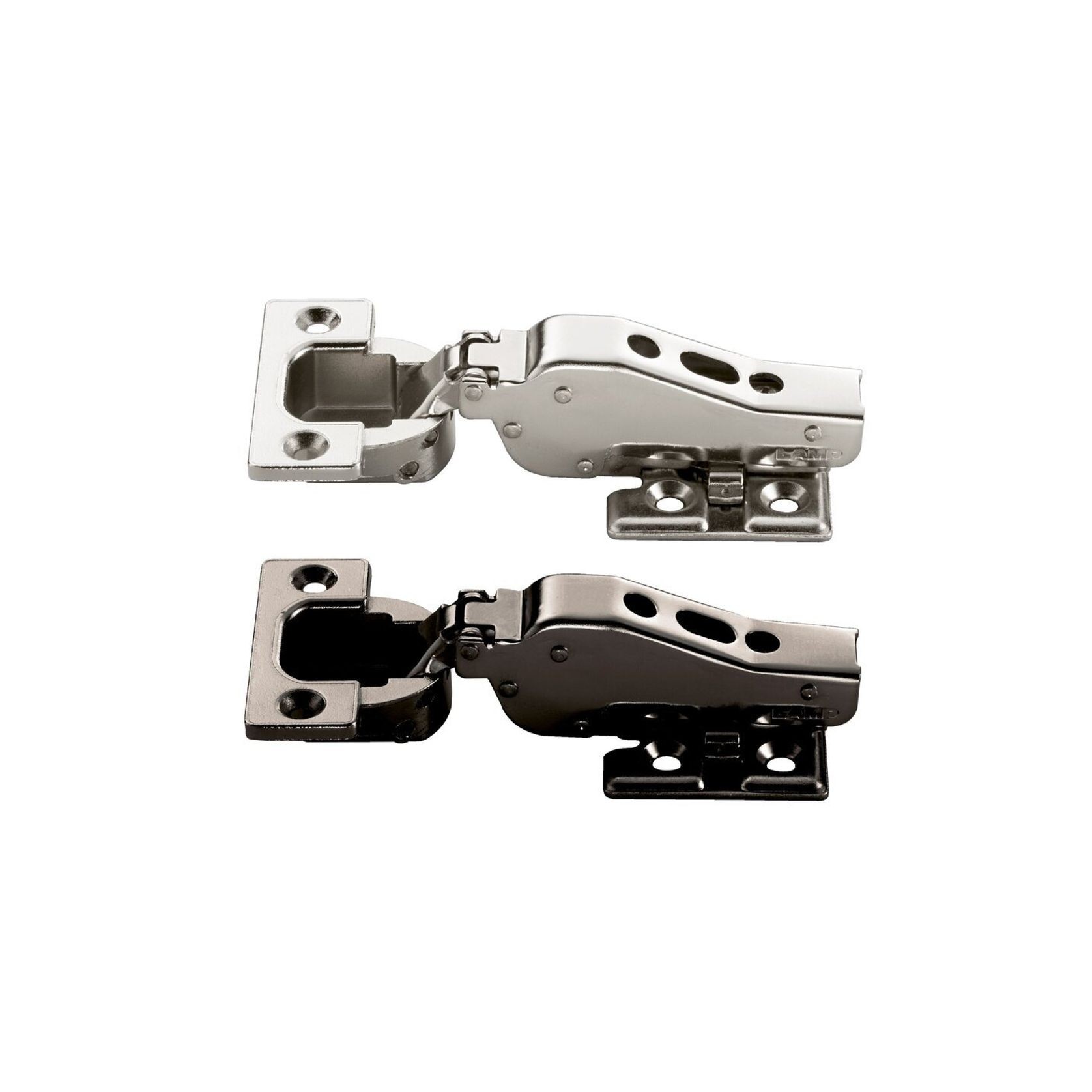

• Finish: Nickel / Black
• Cycle testing: 40,000 opening and closing cycles
• Installation: Concealed, one-touch mounting system
• Soft close: Compatible with DC-200 Damper Catch
• Applications: Large cabinetry, wardrobe doors, architectural joinery and concealed storage

Features

• Heavy-duty concealed hinge – Designed for larger cabinet, wardrobe and architectural joinery doors.
• High load capacity – Supports up to 25kg with two hinges or 40kg with three hinges.
• Three-way adjustment – Allows precise adjustment of the door in three directions for accurate alignment.
• Concealed installation – Keeps the hinge mechanism hidden for a clean, refined appearance.
• One-touch mounting – Simplifies installation and allows the door to be removed without tools.
• Multiple configurations – Available in 25mm overlay, 16mm overlay and inset versions.
• Catch options – Available with or without an integrated catch to suit different applications.
• Premium finishes – Available in nickel and black.
• Long-term performance – Tested to 40,000 opening and closing cycles.
• Soft-close compatible – Can be paired with the DC-200 Damper Catch for controlled closing.
• Award-winning design – J95 was recognised with the 2014 Good Design Award

Scope of use

The J95 is designed for larger cabinetry and architectural joinery applications where a concealed, high-capacity hinge is required.

Ideal for:

• Large wardrobe and walk-in wardrobe doors
• Architectural cabinetry
• Full-height cabinetry
• Concealed storage and hidden cupboards
• Media and entertainment cabinetry
• Home office and study cabinetry
• Feature cabinetry and premium joinery
• Large cupboard and utility doors
• Residential and commercial interiors

The range includes overlay and inset configurations, allowing the J95 to be specified across a variety of cabinet and joinery designs.

For larger or heavier doors, the J95 can be paired with the appropriate number of hinges to achieve the required load capacity. For applications requiring controlled soft-close operation, the J95 can also be paired with the DC-200 Damper Catch.

Configurations & Options

The J95 range provides flexibility to suit different door construction, installation and design requirements.

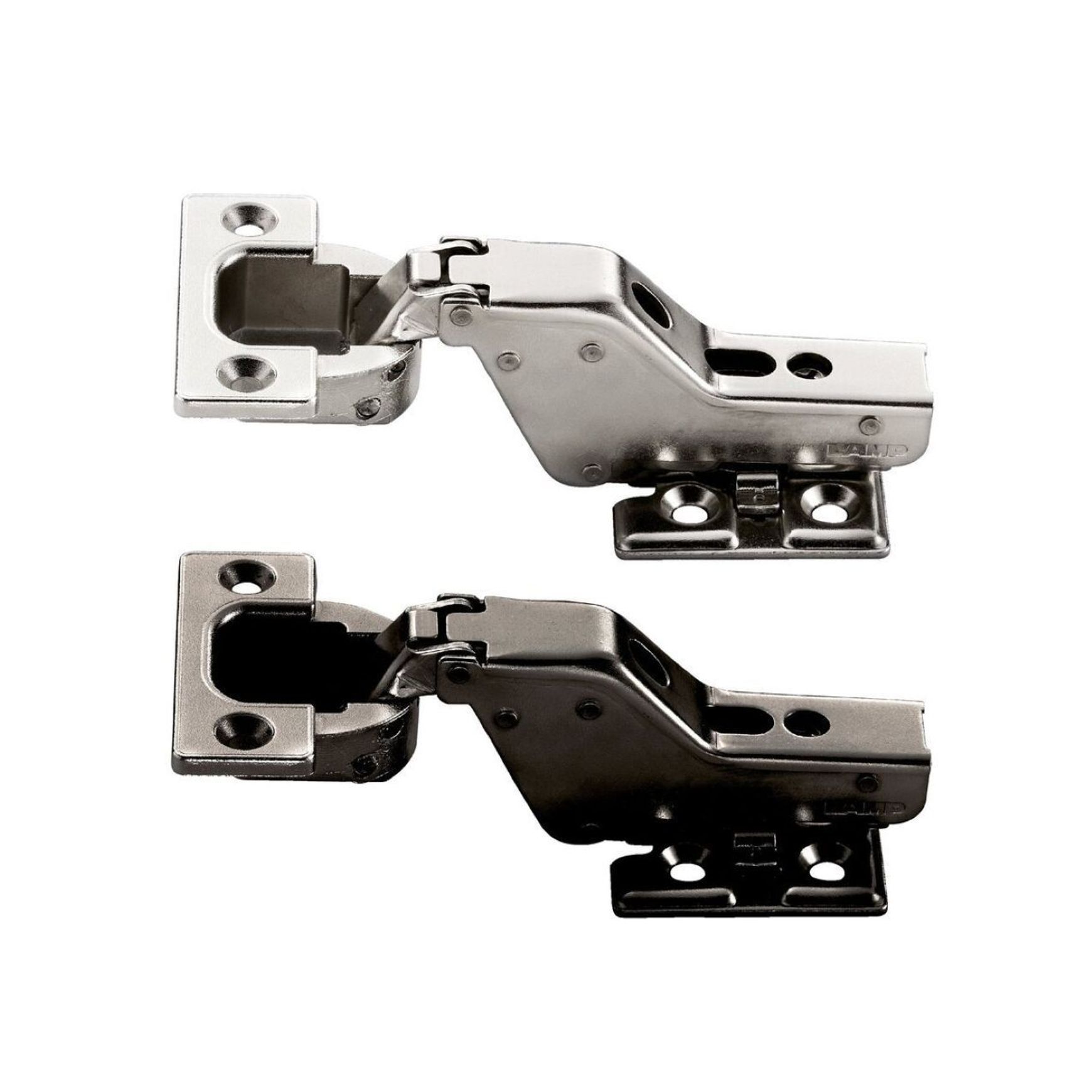

Overlay Options
Available in 25mm and 16mm overlay configurations, as well as an inset version, allowing the J95 to be integrated into a variety of cabinetry and architectural joinery designs.

Catch Options
The J95 is available with or without an integrated catch, depending on the required door configuration and closing method.

Finishes
Available in nickel and black finishes to complement a wide range of cabinetry, joinery and interior finishes.

Glass Door Applications
Dedicated glass door components and patch fittings are available for applications requiring the J95 system with glass panels, providing a clean and integrated hardware solution.

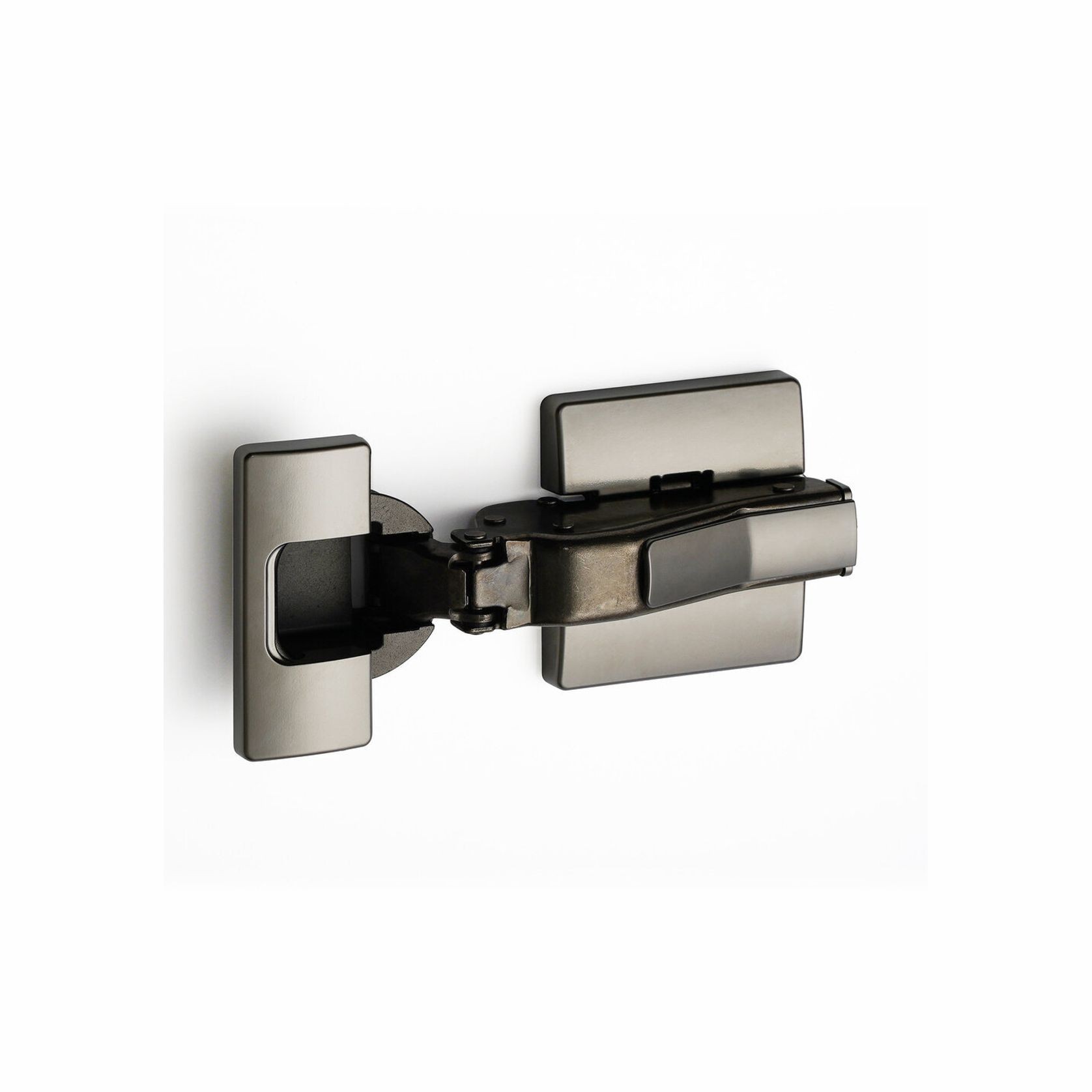

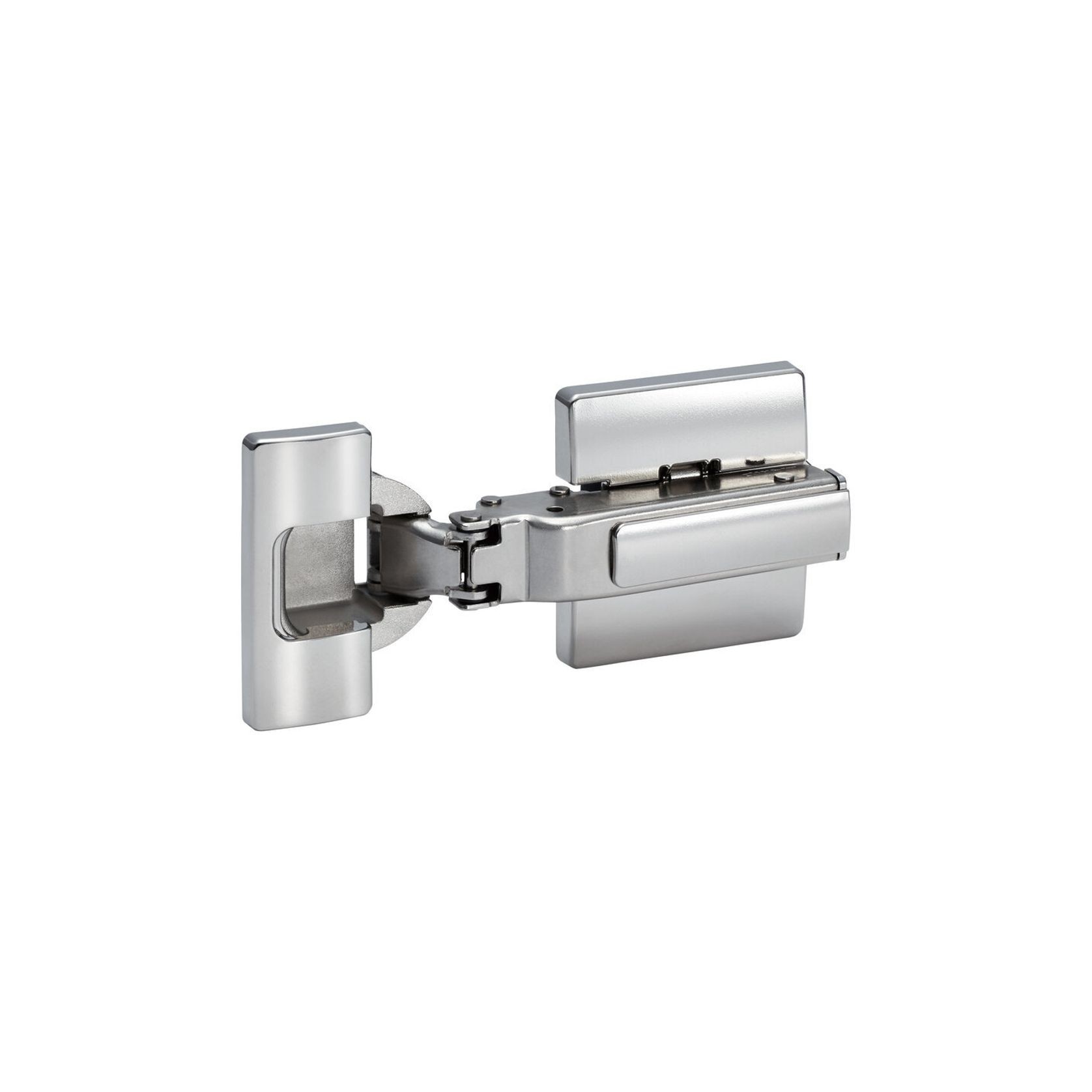

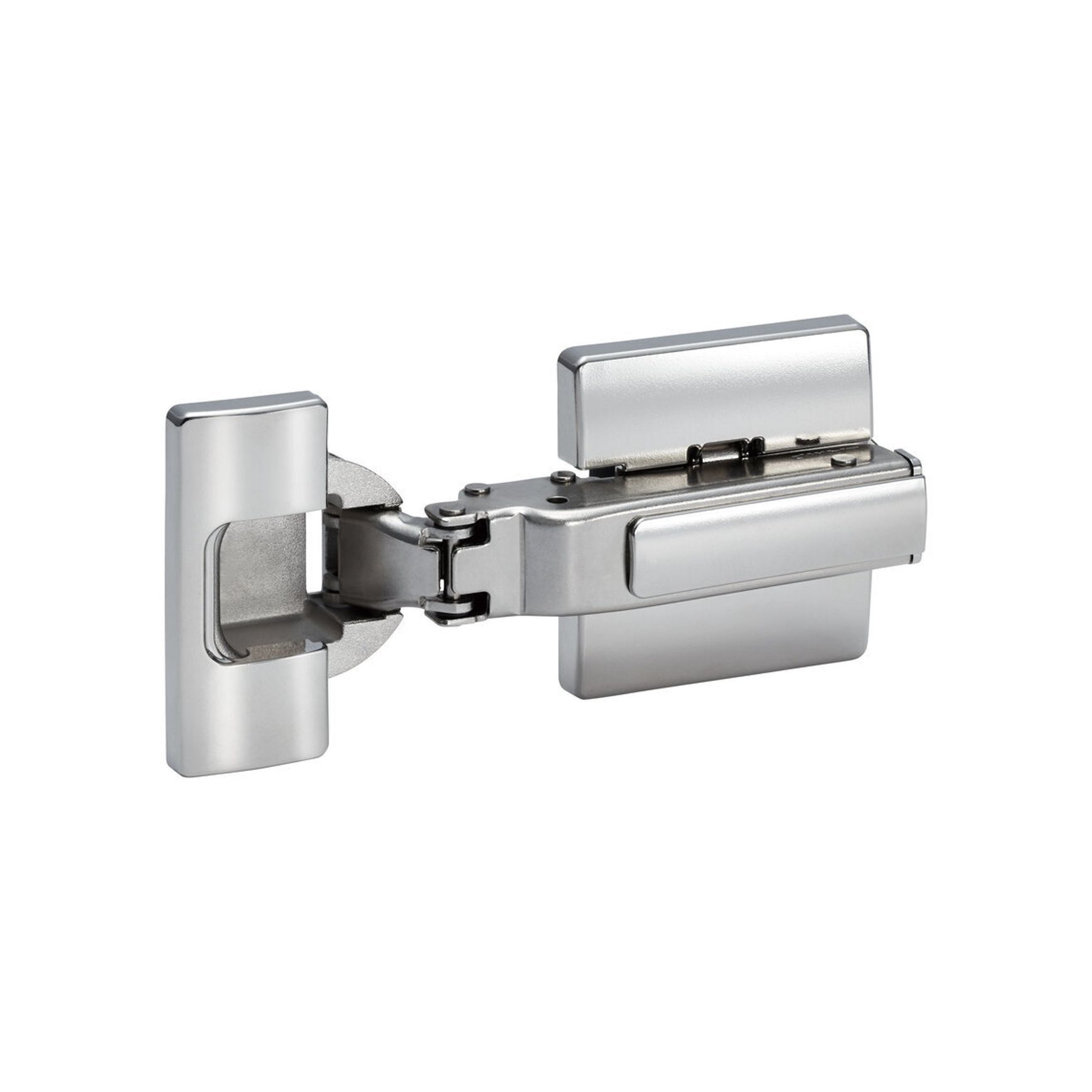

Hinge & Mounting Covers
Optional hinge and mounting plate covers are available to provide a more refined finished appearance where additional hardware concealment is desired.

DC-200 Damper Catch – Recommended Addition
For projects requiring a soft-close function, the J95 can be paired with the DC-200 Damper Catch. The DC-200 combines a damper and catch in one compact unit, allowing larger cabinet and wardrobe doors to close smoothly and quietly while holding the door securely in the closed position.

Available in 25kg and 40kg versions, the DC-200 accommodates doors up to 900mm wide and 2400mm high. The strike can be adjusted after installation by ±5mm horizontally and ±4mm vertically, allowing accurate final alignment.

The DC-200 has been tested to 50,000 opening and closing cycles and is available in black or white.

Recommended J95 Combination:
J95 Heavy-Duty Concealed Hinge + DC-200 Damper Catch for a complete concealed hinge and soft-close solution.
