MonoFlat LIN-X1000 Heavy-Duty Flush Door System
Auckland
- 171.1K profile views
- 69 saves
The MonoFlat LIN-X1000 is a heavy-duty lateral door hinge system designed for large, flush-fitting doors where space, access and clean architectural lines are important.
Unlike a conventional hinge, the LIN-X uses a unique lateral swinging movement, allowing the door to move outwards in a small radius before opening. The result is a door that sits flush when closed while providing clear access to the space behind it when fully open.
Designed for doors up to 90kg, 1100mm wide and 2980mm high, the LIN-X1000 is suited to large architectural doors, concealed rooms, full-height cabinetry and space-efficient interiors.
Built-in soft closing prevents the door from slamming, while free-stop functionality allows the door to hold at any position within its opening range. Four-way adjustment after installation makes it possible to fine-tune the door for a precise final fit.
Tags
Product Details
- Product
- MonoFlat LIN-X1000 Heavy-Duty Flush Door System
- Category
- Door and Window Hinges
- Sold by
- Unique Hardware Solutions
- Brand
- Sugatsune
Unique Hardware Solutions is specified by
Studio2 ArchitectsArchitects
McCoy + Heine ArchitectsArchitects
SGAArchitects
Bull O'Sullivan ArchitectureArchitects
Julian Guthrie ArchitectureArchitects
Christian Anderson ArchitectsArchitects
Studio Pacific ArchitectureArchitects
CV InteriorsInterior Designers
GS Cayless ConstructionBuilders
CWB ConstructionBuilders
Grandvue JoineryCarpenters & Cabinetmakers
Furze Architecture & DesignArchitectural Designers
Nasko FactoryJoiners
Crittall Steel Windows and DoorsManufacturers and Suppliers
The MonoFlat LIN-X1000 is a heavy-duty lateral door hinge system designed for large, flush-fitting doors where space, access and clean architectural lines are important.
Unlike a conventional hinge, the LIN-X uses a unique lateral swinging movement, allowing the door to move outwards in a small radius before opening. The result is a door that sits flush when closed while providing clear access to the space behind it when fully open.
Designed for doors up to 90kg, 1100mm wide and 2980mm high, the LIN-X1000 is suited to large architectural doors, concealed rooms, full-height cabinetry and space-efficient interiors.
Built-in soft closing prevents the door from slamming, while free-stop functionality allows the door to hold at any position within its opening range. Four-way adjustment after installation makes it possible to fine-tune the door for a precise final fit.
- Specs
- Door Material: Timber
Door Width: 750–1100 mm
Door Height: 2400–2980 mm*
Door Thickness: 24–40 mm
Maximum Door Weight: 90 kg per door
Opening: Lateral swing
Soft Close: Integrated
Free Stop: Yes
Adjustment: 4-way post-installation adjustment
Vertical Adjustment: ±7 mm
Horizontal Adjustment: ±7 mm
Depth Adjustment: ±5 mm
Parallel Adjustment: ±3°
Door Opening: Left or right hand
Installation: No floor rail or floor groove required
Finish Options: White / Black
Cycle Testing: 100,000 open/close cycles – private test
- Door Material: Timber
- Features
- Heavy-duty capacity up to 90kg per door
- Unique lateral swinging movement
- Small opening radius compared with conventional door hinges

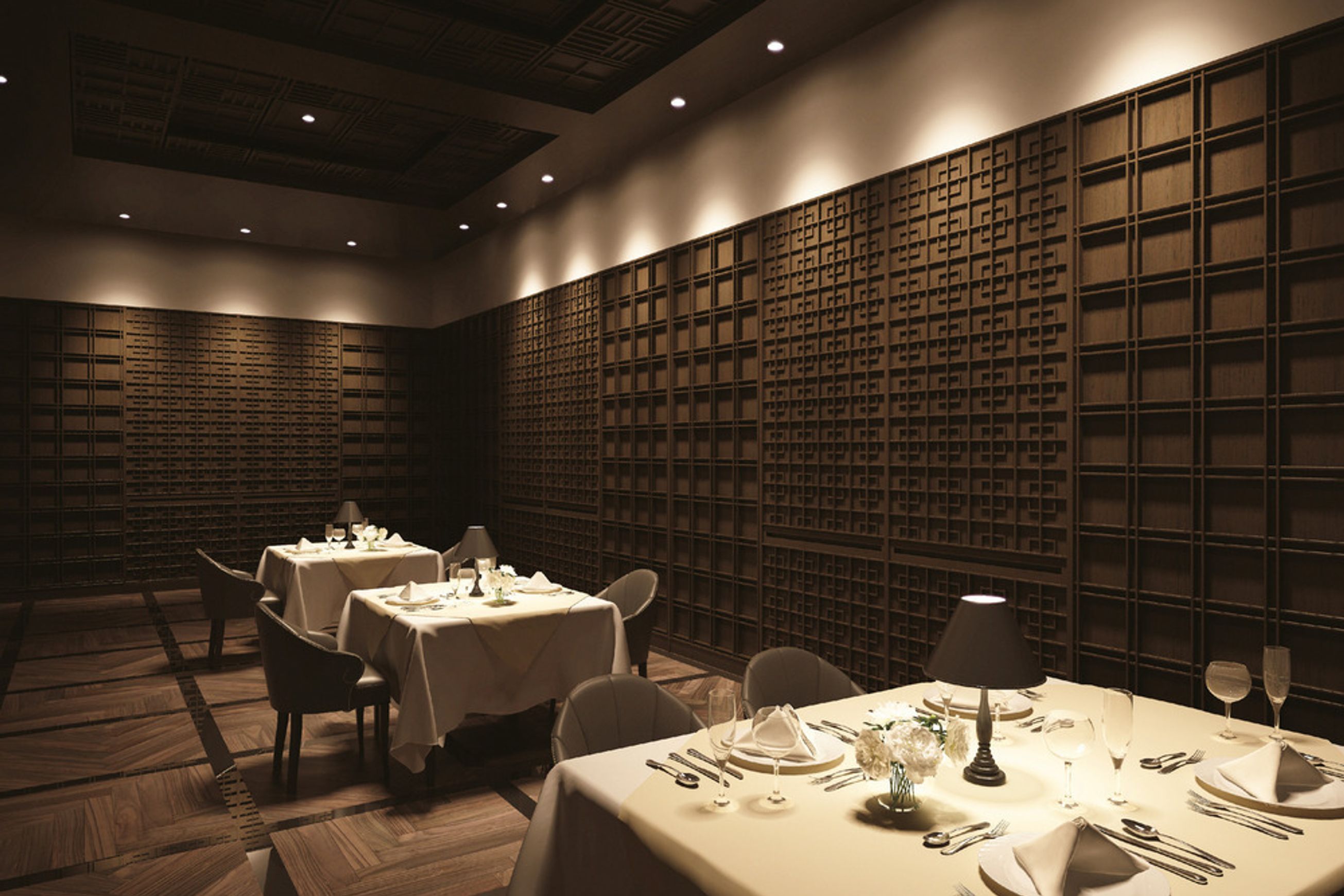

- Door sits flush with surrounding surfaces when closed

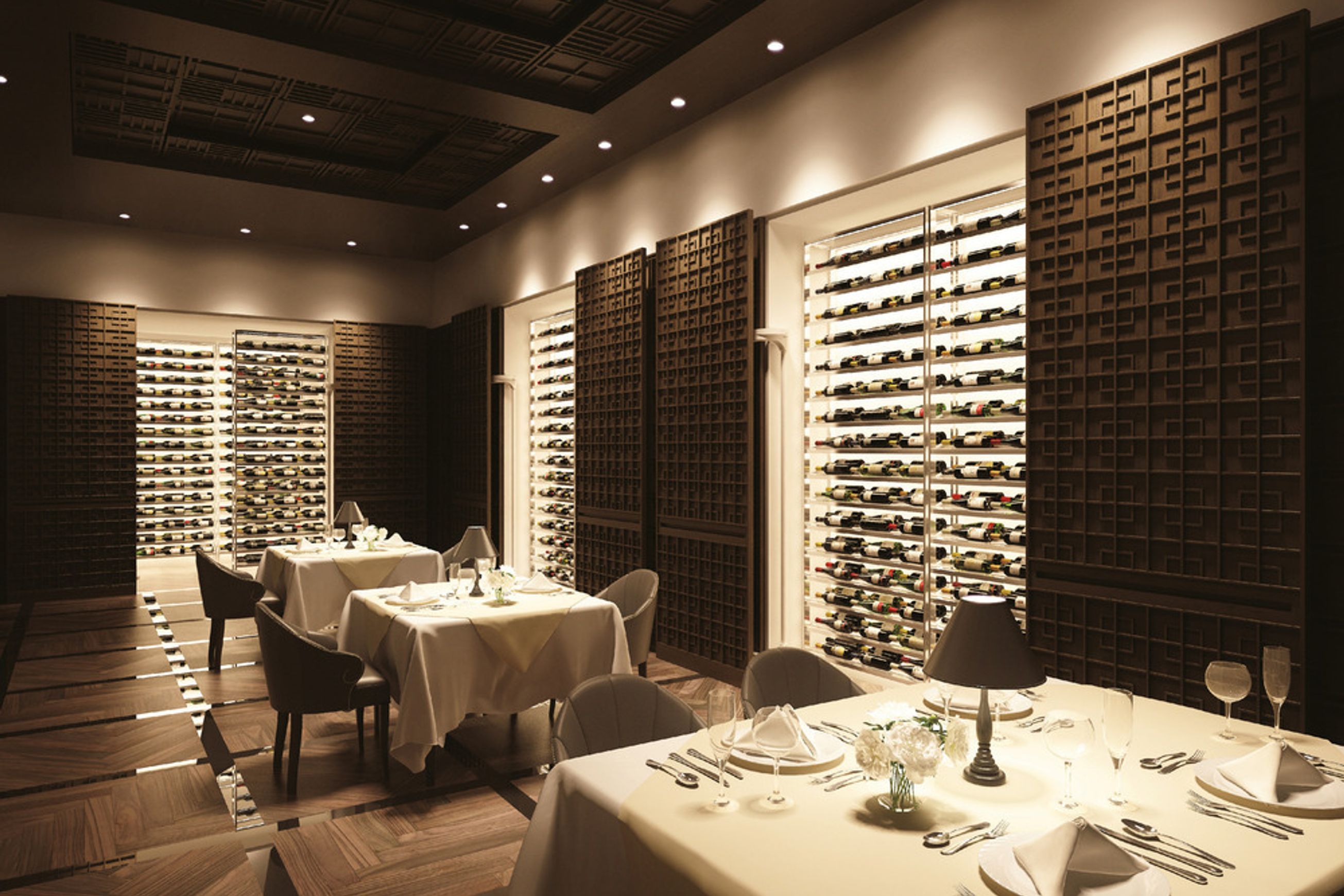

- Full access when the door is fully open
- Built-in soft-close function
- Free-stop positioning throughout the opening range
- Four-way post-installation adjustment
- Suitable for large doors up to 1100mm wide and 2980mm high
- Passed 100,000 open/close cycle private testing
- No floor rail required
- Suitable for timber doors
- BIM/Revit data available
- Scope of use
The MonoFlat LIN-X1000 is suited to:
- Large flush architectural doors
- Concealed and hidden doors
- Full-height interior doors
- Flush wall and cabinetry applications
- Walk-in wardrobes and dressing rooms
- Large storage and utility doors
- Space-efficient residential interiors
- Micro apartments and compact spaces
- High-end residential and architectural projects
- Commercial interiors where a clean, flush finish is required
- Configurations & Options

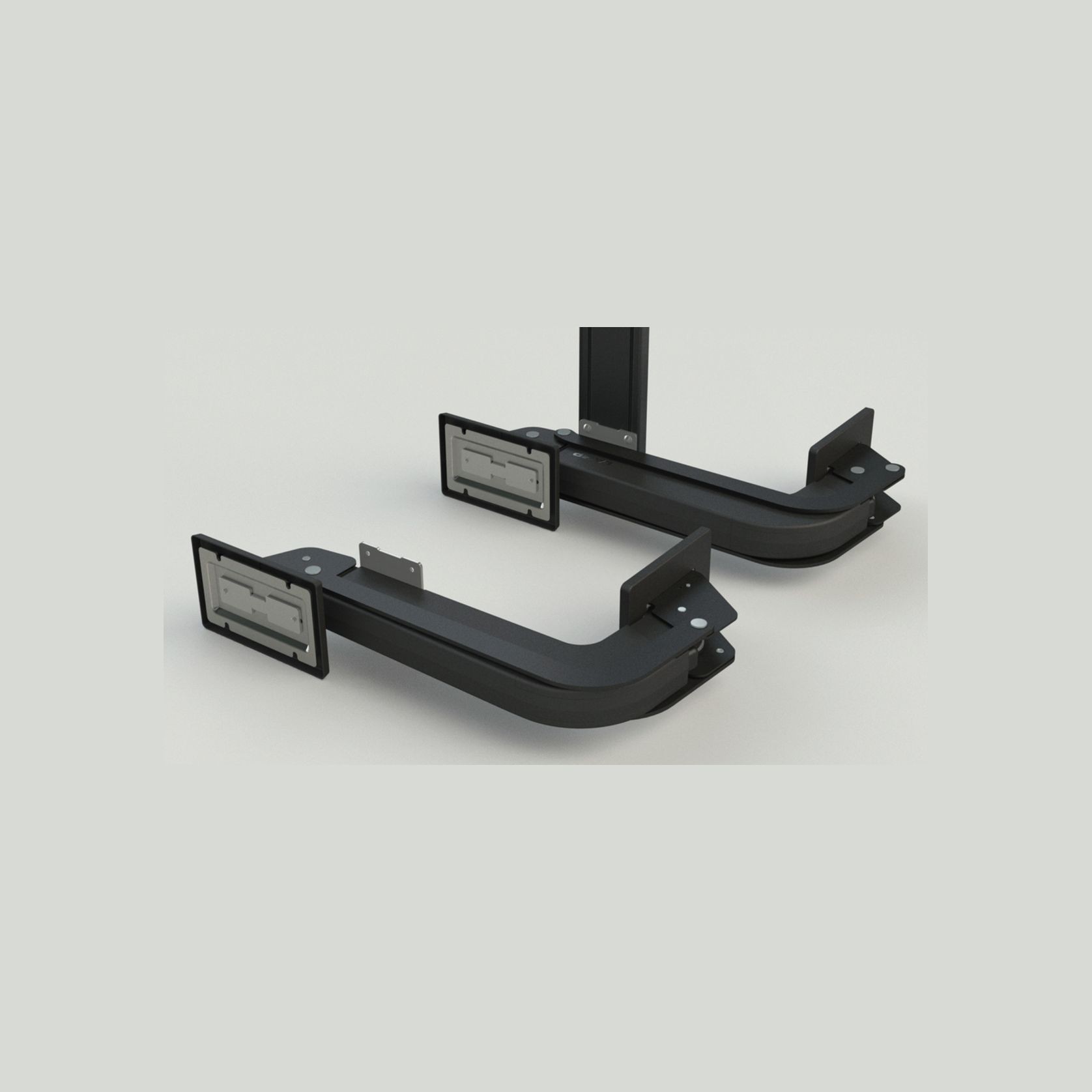

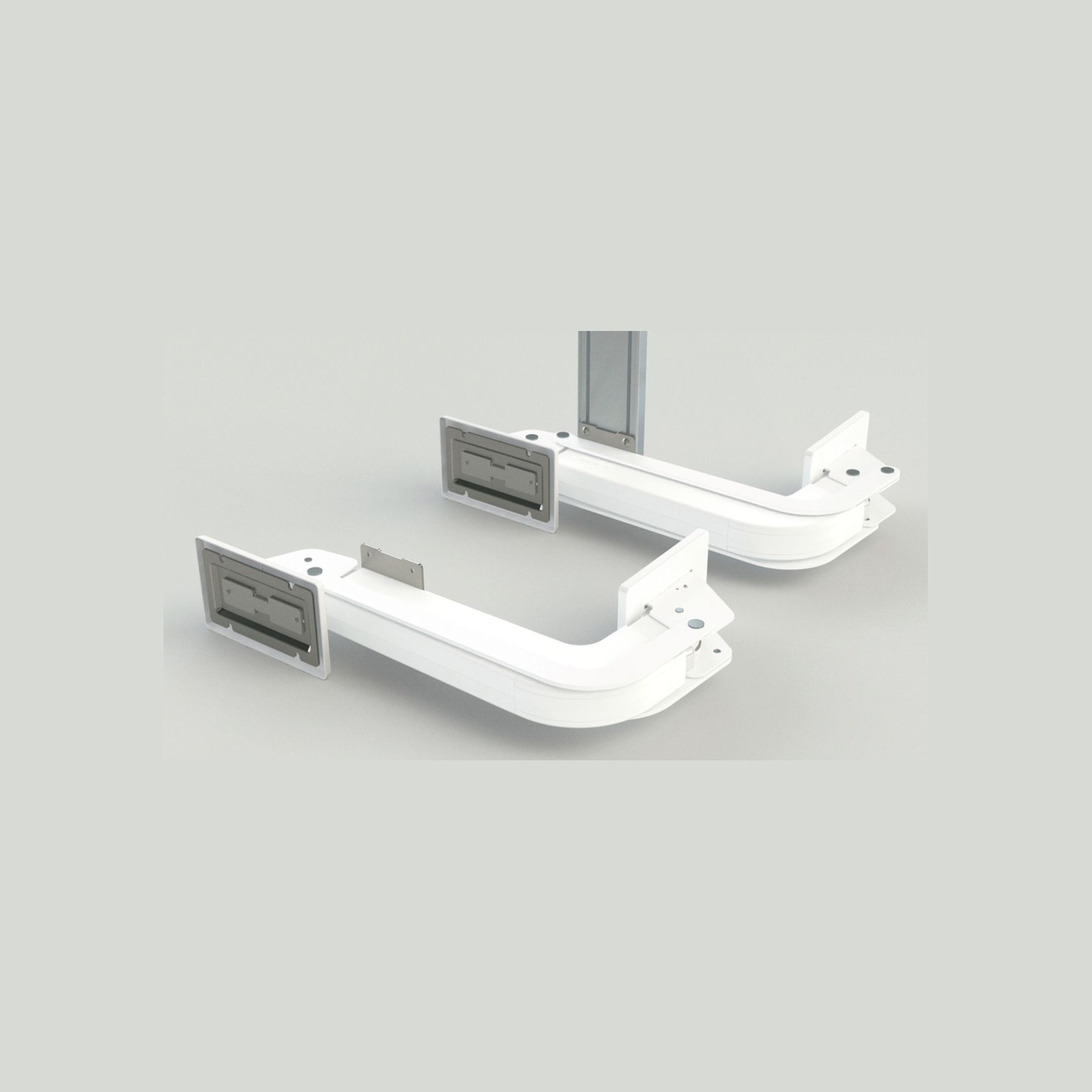

The LIN-X1000 is supplied as a complete lateral door hinge system and is available in:
- White
- Black anodised
The system is designed for timber doors between 24–40mm thick and can be configured for large single doors within the published size and weight limits.
Installation can be used for both cabinet and passage door applications, depending on the project requirements.
