Justor Spring Hinges

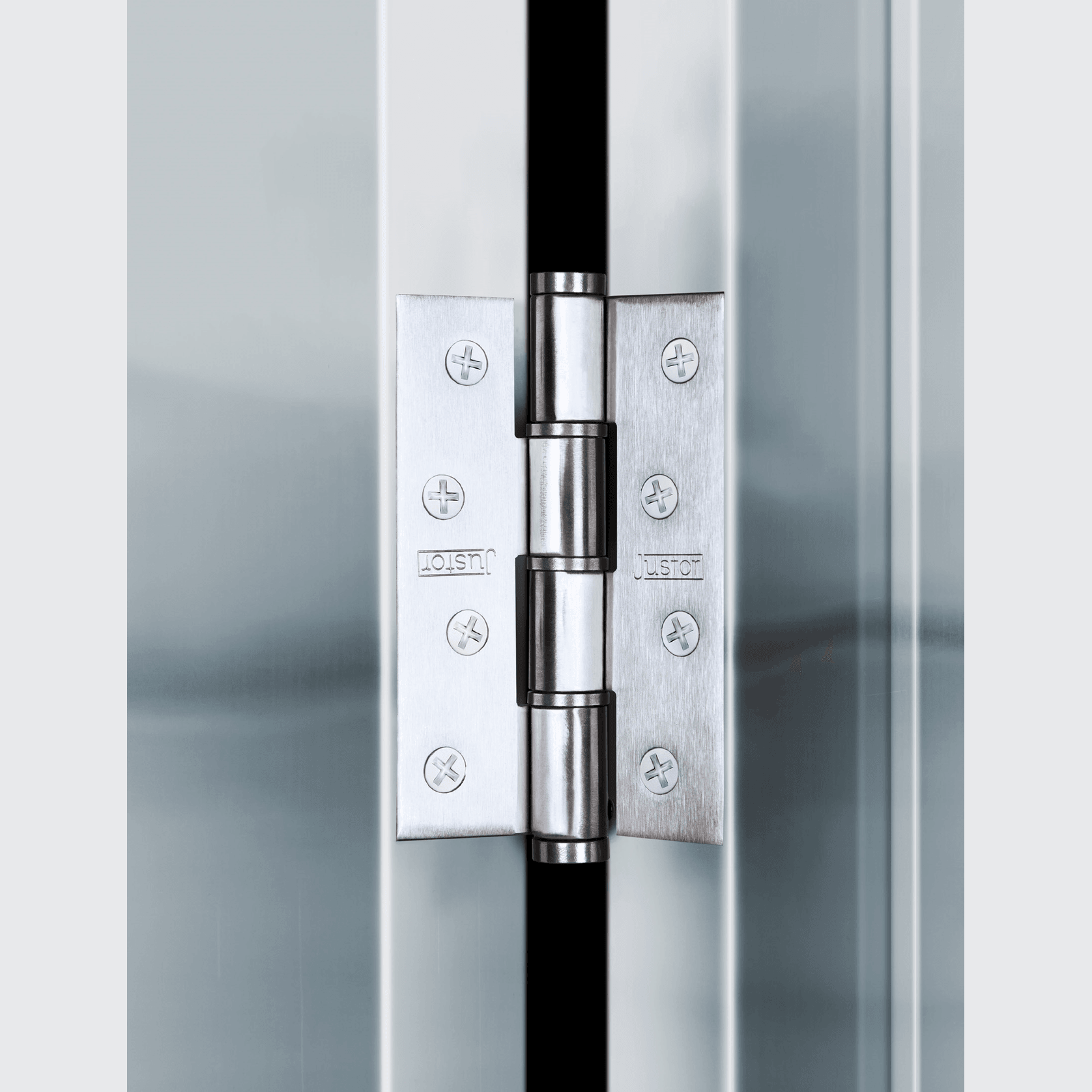

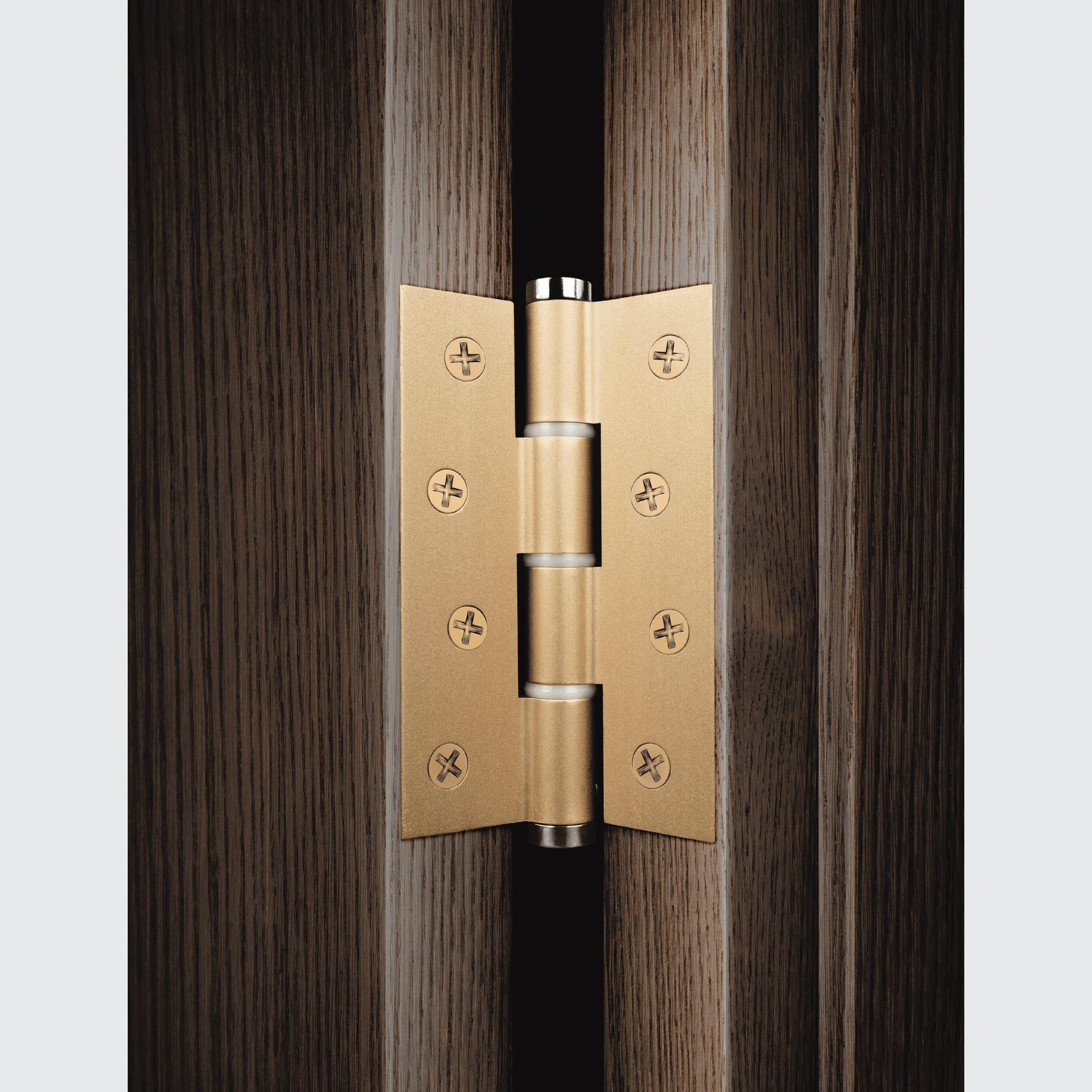

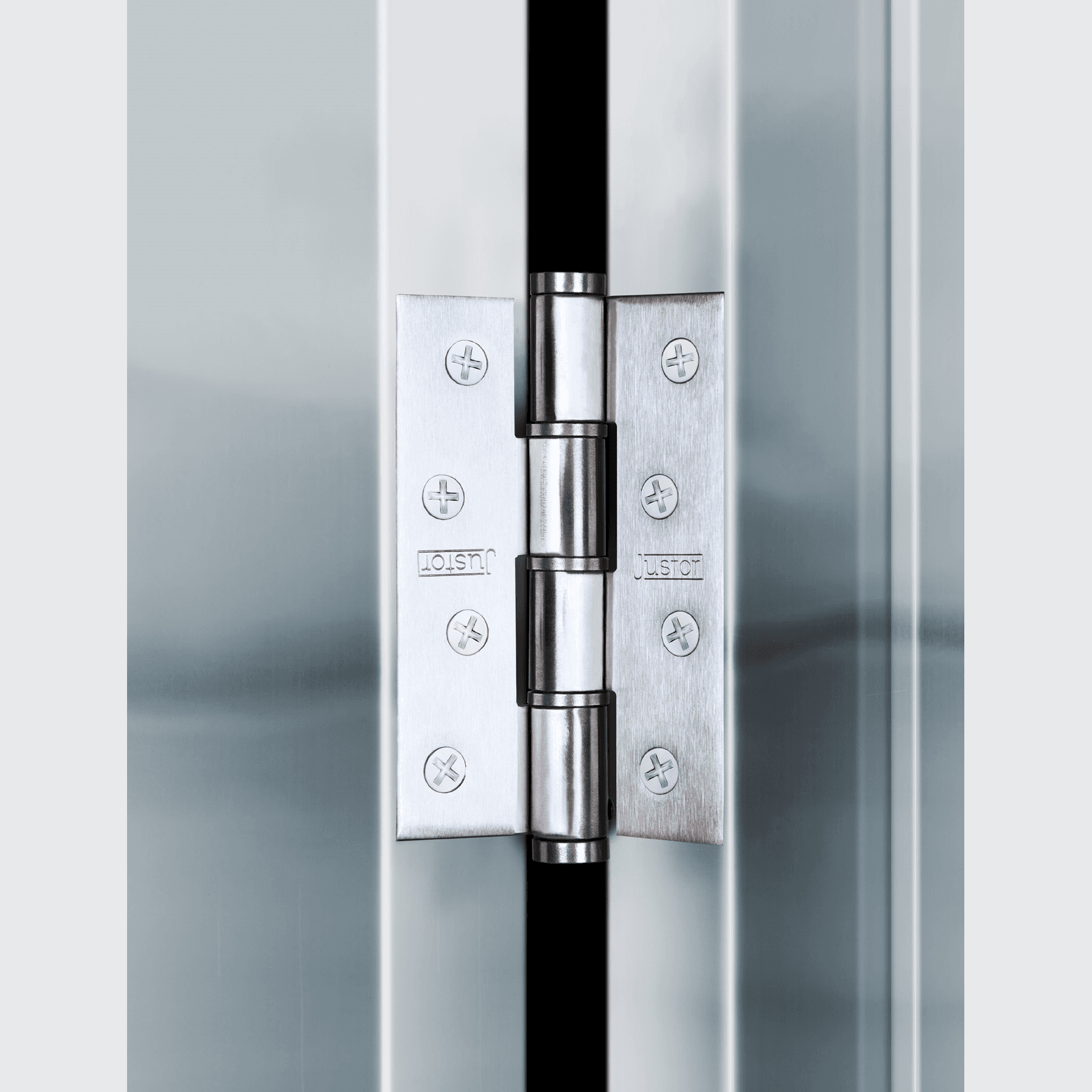

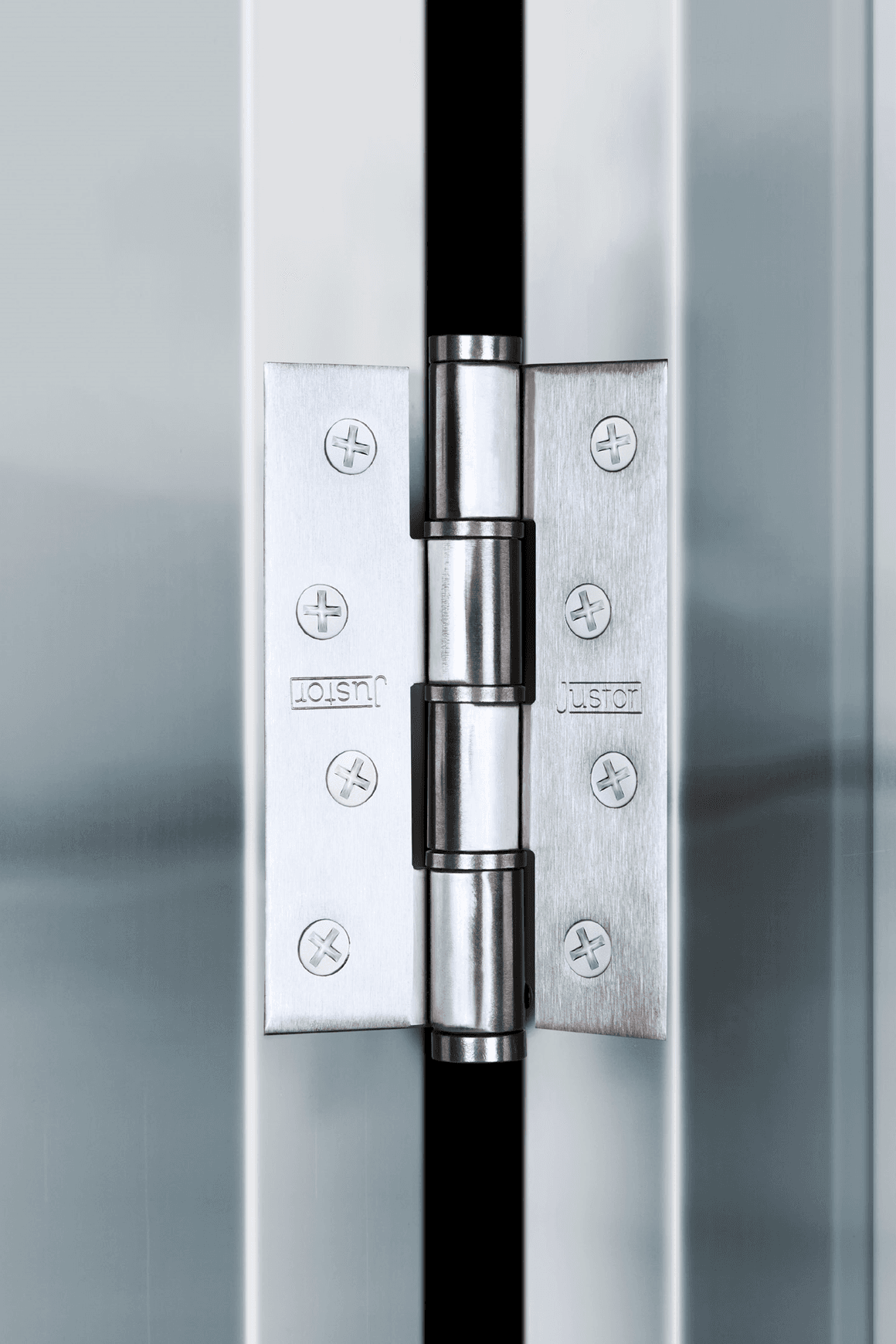

The Justor Single Action 120mm range of hinges has been designed to work on your smaller, lighter doors.  This hinge still boasts a maximum weight rating of handling a 60kg panel (based on 3 hinges and a door width of 600mm).  This versitile product makes it perfect for residential and light commercial applications.

Currently available ex stock in New Zealand in Silver Anodised and Stainless Steel (SS304 only), but have access to the other colours in the range via Australia and Spain.

Like the other hinges within the range, the SA120 has been tested to 500,000 cycles and can be used on both timber or aluminium panels.  It's installed in the same manner as a traditional hinge, so nothing that is going to surprise the installer.  The slim profile makes it the perfect solution when you need a self closing door.

SA120 Range Quick Facts:

• Spring Resistance 500,000 cycles
• Maximum resistance to bending
• Torsion Spring not a Coil Spring
• Variable Closing Strength (speed)
• 90° or 180° Working Aperture
• Solid and Stylish Design
• For Wood or Aluminium Doors
• Slim Profile vs. Bulky Door Closer • Quick & Simple Installation
• Detailed Instructions Included
• Manufactured in Spain with a 2 Year Manufacturer’s Guarantee.

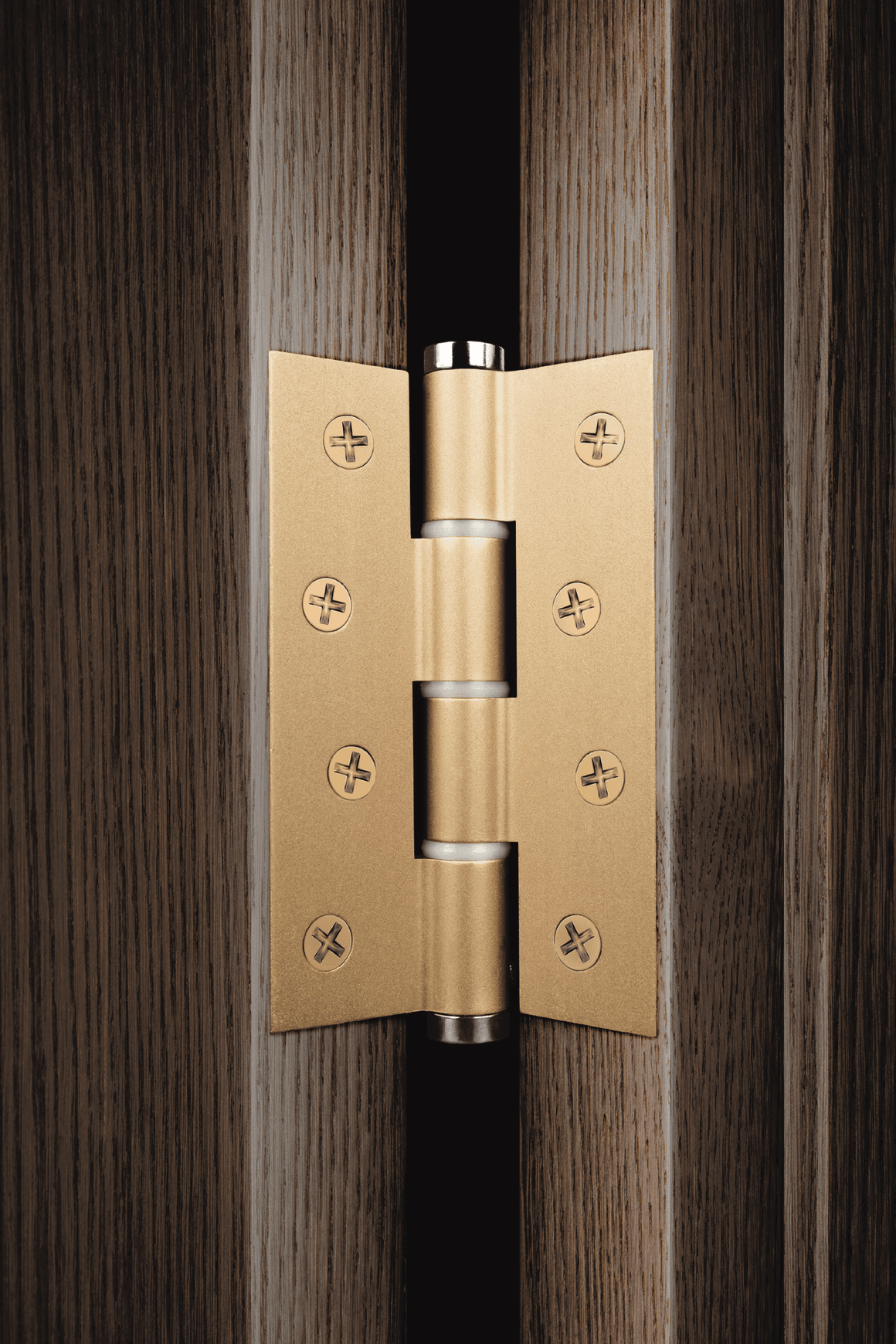

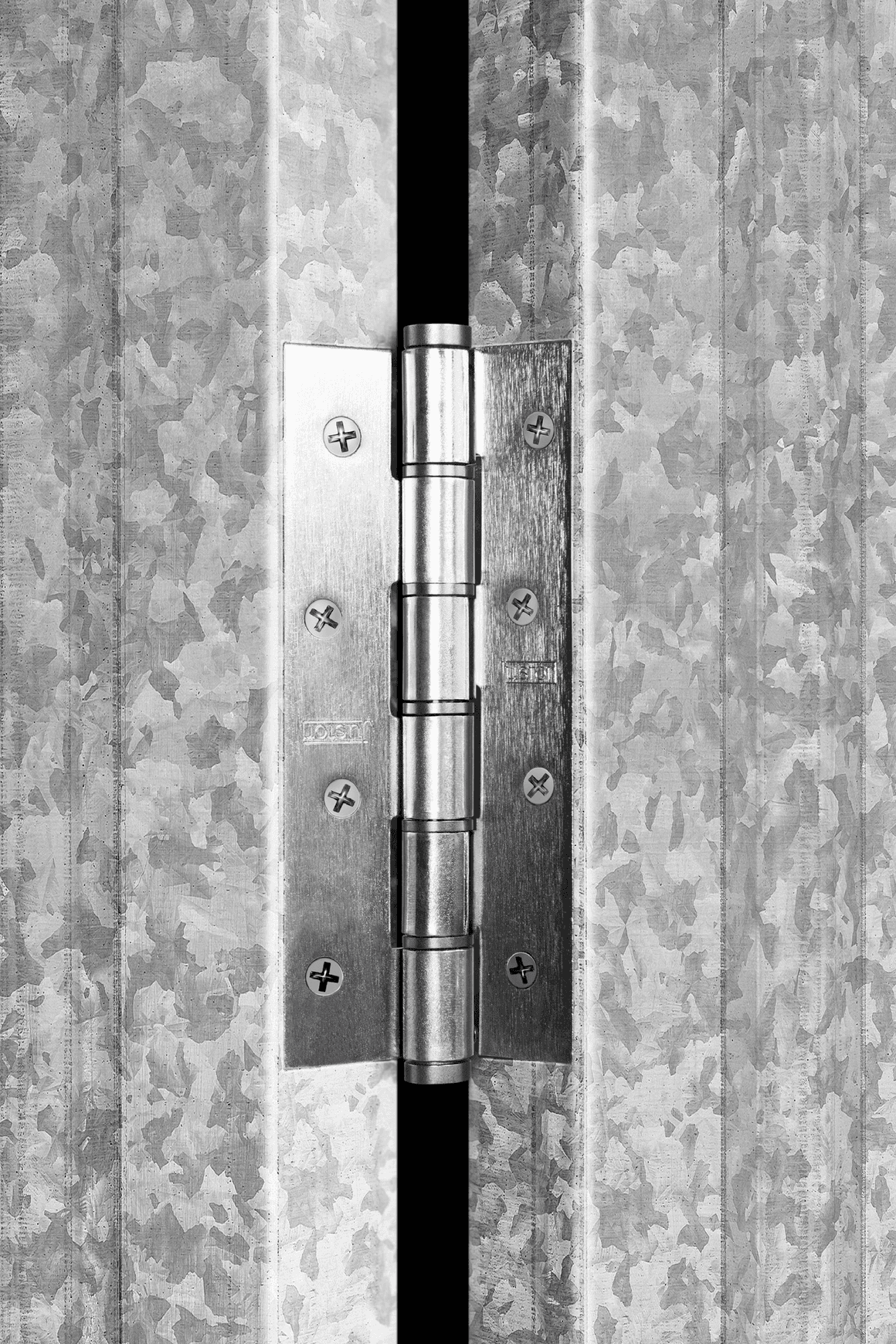

Much like it's smaller counterpart, the Justor Single Action 180mm hinge has been designed to perform at the highest level.  While the SA180 can handle larger panels of up to 92kg (based on 3 hinges on a 600mm wide panel), it keeps the sleak aesthetics of the SA120 meaning you have a consistent look across various sized doors on a project.  Naturally, a hinge that can cater to larger doors means the product can be used across a wider range of applications.  With this particular product you can accomondate projects within all areas of the commercial realm - hotels, restraurants, retail market etc.

While being larger in size, there is also a larger range of material and finish options.  The SA180 is available in marine grade stainless steel (SS316), opening up the use of this product in the marine industry.

SA180 Quick Facts:

• Spring Resistance + 500,000 cycles
• Aluminium or 304 & 316 Stainless Steel
• Resistant to extreme Climatic Conditions (Cold and Humidity)
• Maximum resistance to bending
• Up to 92Kg in Door Weight
• Torsion Spring not a Coil Spring
• Variable Closing Strength (speed)
• Highly Efficient 180° Working Aperture
• For Wood or Aluminium Doors
• Slim Profile vs Bulky Door Closer
• Quick & Simple Installation
• No Periodical Greasing Required
• Available Finish: Stainless Steel, Silver, Bronze or Gold (by request)
• Manufactured in Spain and comes with a 2 Year Manufacturer’s Guarantee.

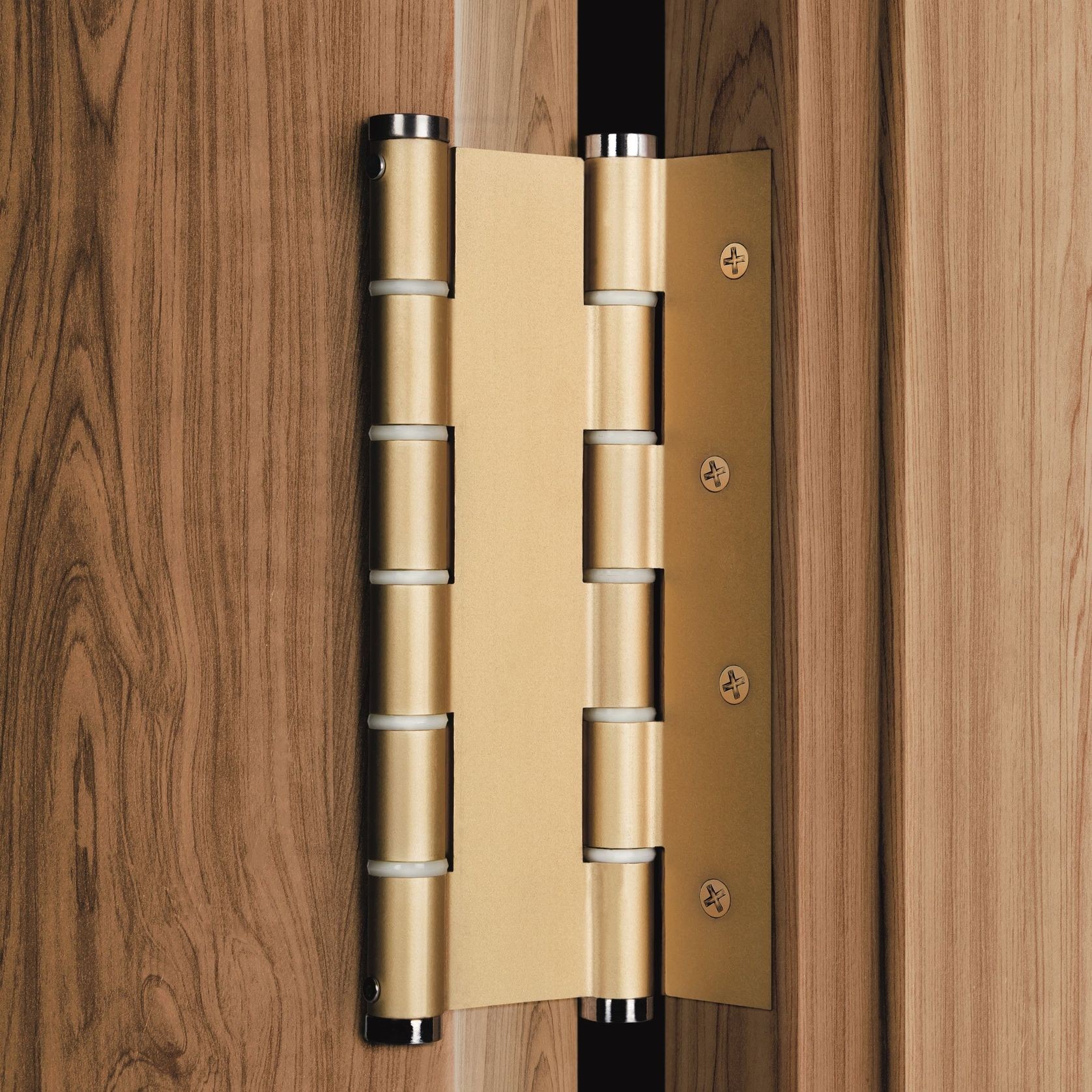

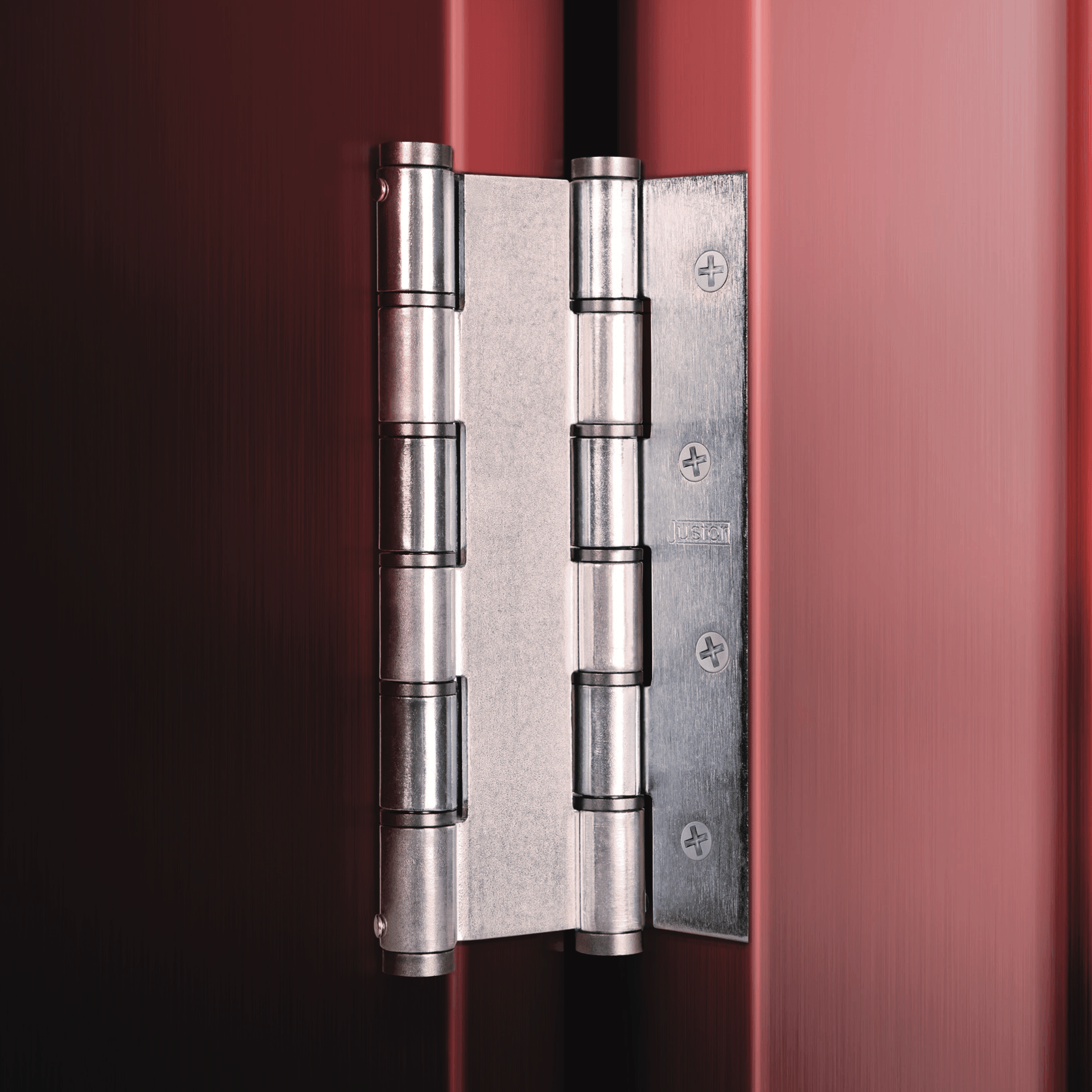

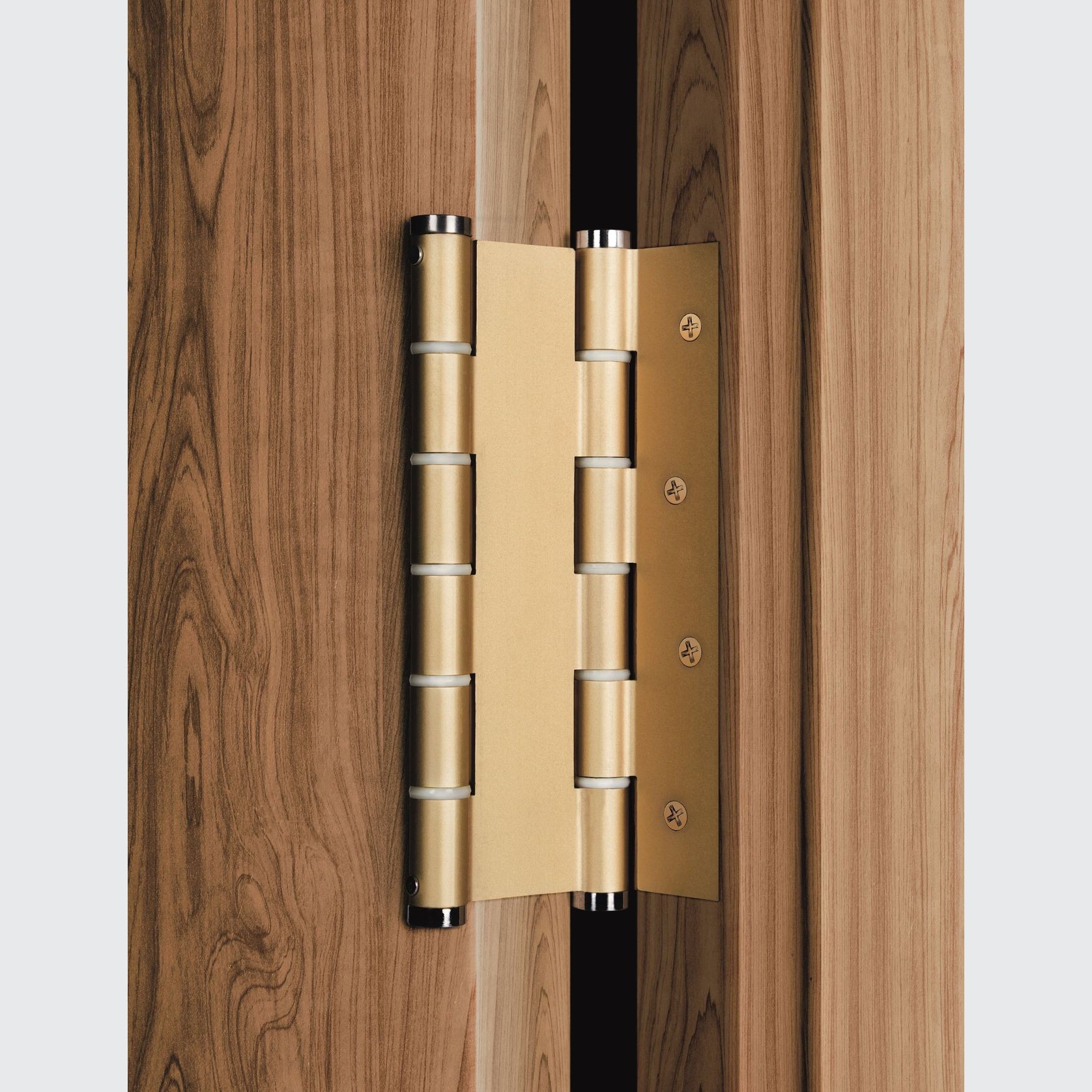

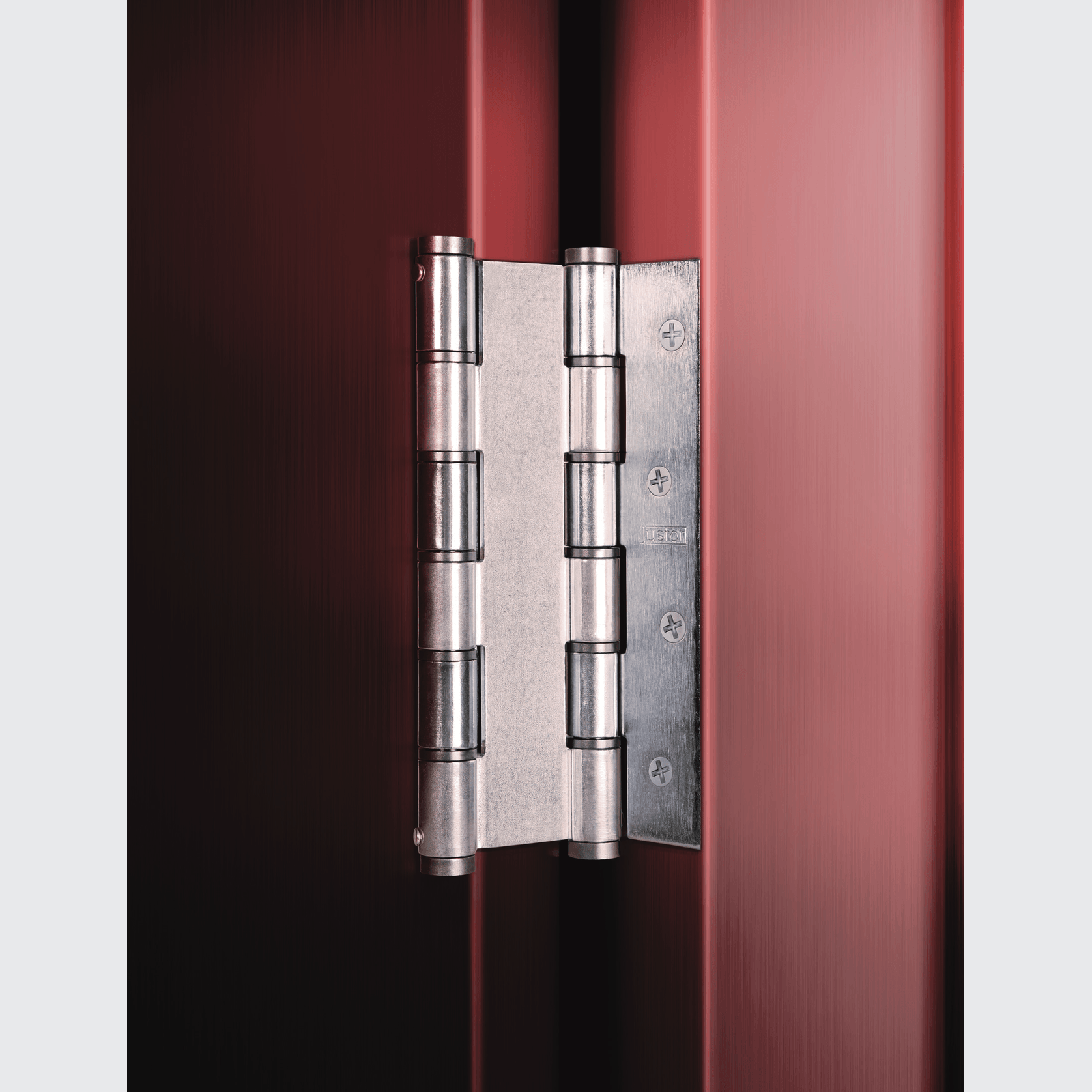

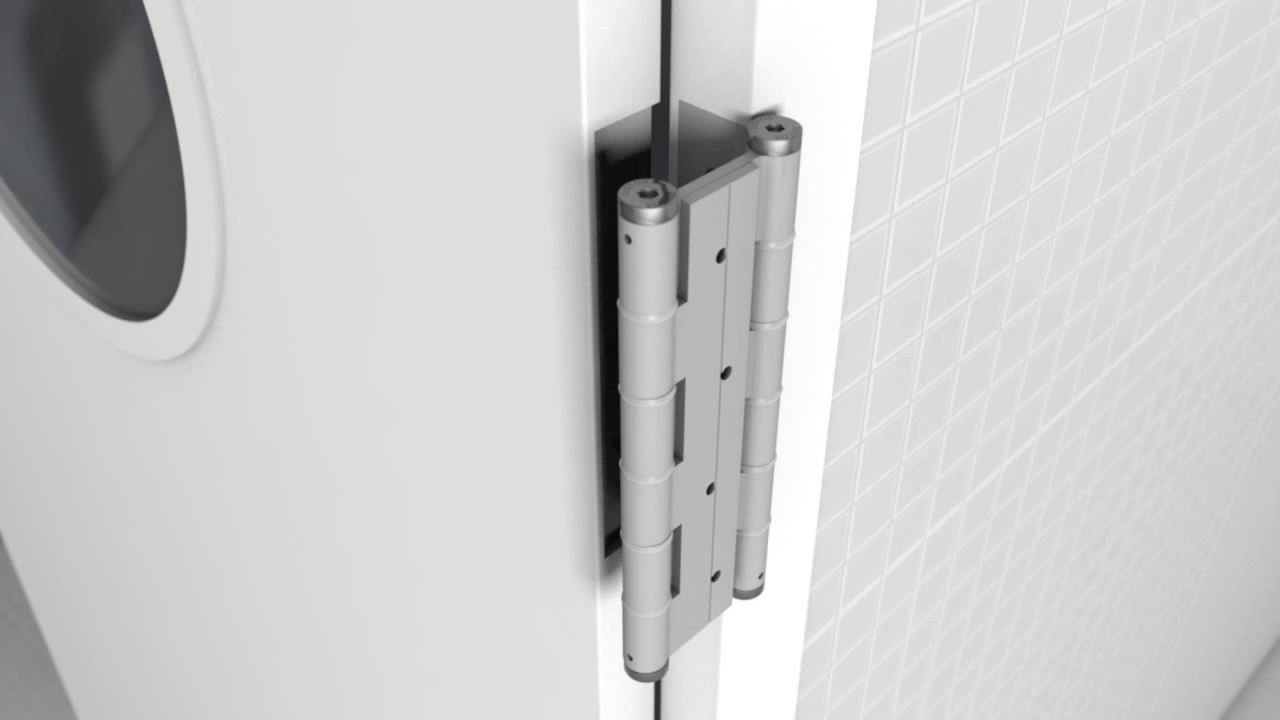

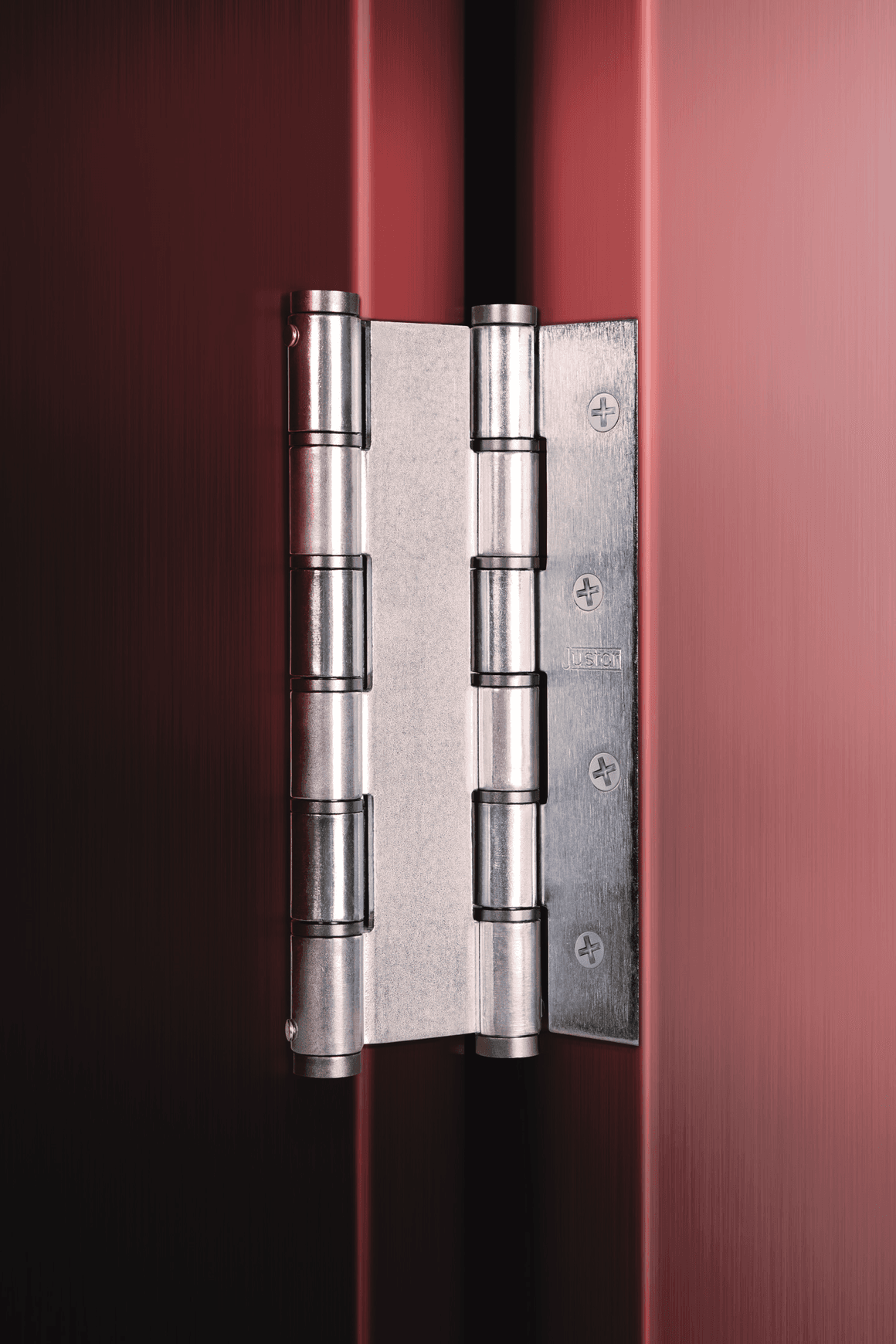

Double Action hinges are nothing new to the market place. Often referred to as bommer hinges, they are designed that your panel can open both ways, but also allows the door to self close.  The Justor Double Action 120mm takes something that has been tried and tested to the next level.

Traditionally double action hinges are very bulky and unsightly.  The barrels which hold the springs are very large which takes away from the door itself.  Additionally, the finishes available don't match the trends we see in the markert.  Like the Single Action hinges, Justor Double Action hinges use the torsion spring meaning the barrel of the hinges are much slimmer and discrete.  The wide range of finishes means you don't have to compromise on your project.

Justor DA120 hinges are suited for panels weighing up to 45kg (based on 3 hinges on a panel 600mm wide).  These capabilities our perform it's competitors in the market and also gives customers the ability to move from a pivot door to a spring hinge to help keep costs down.

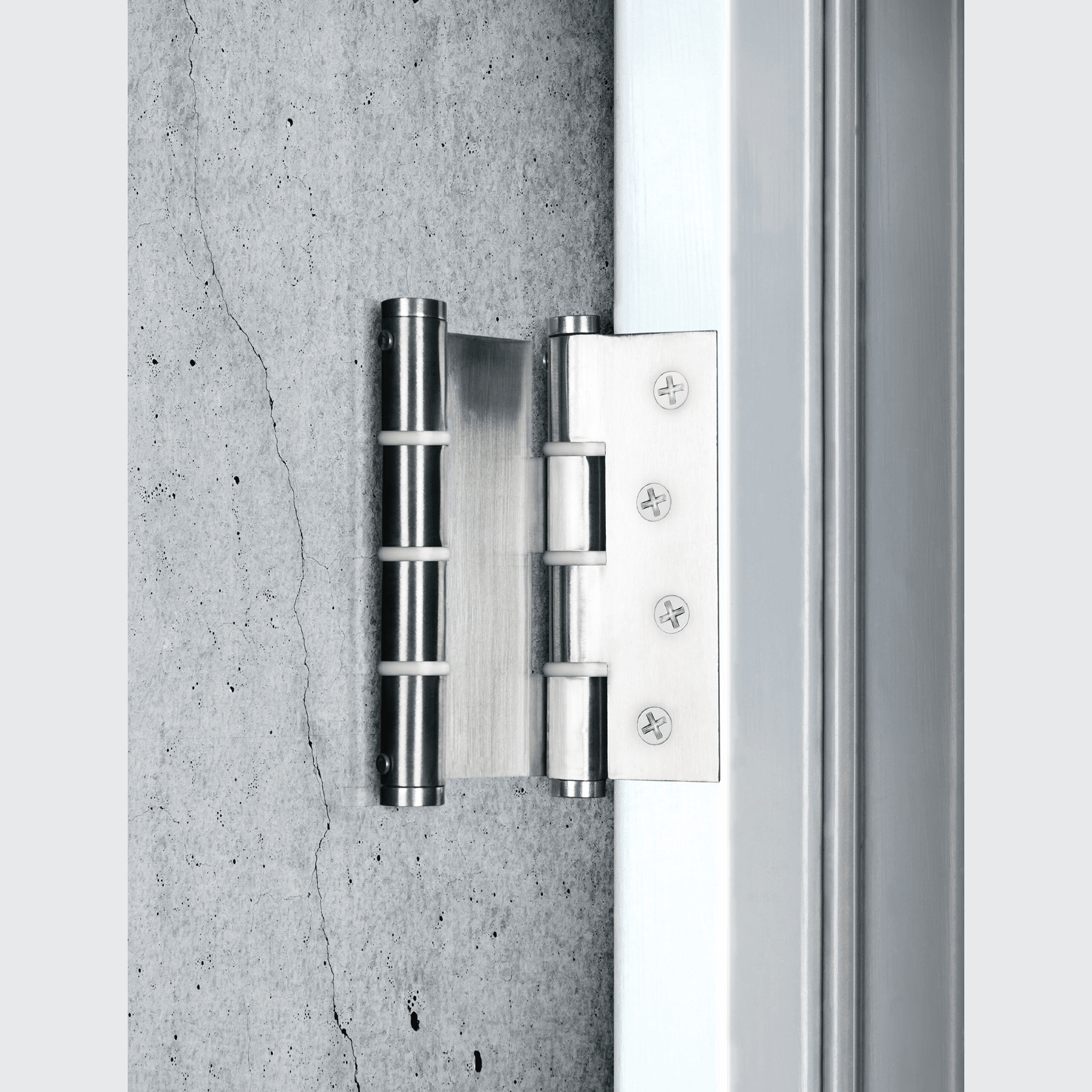

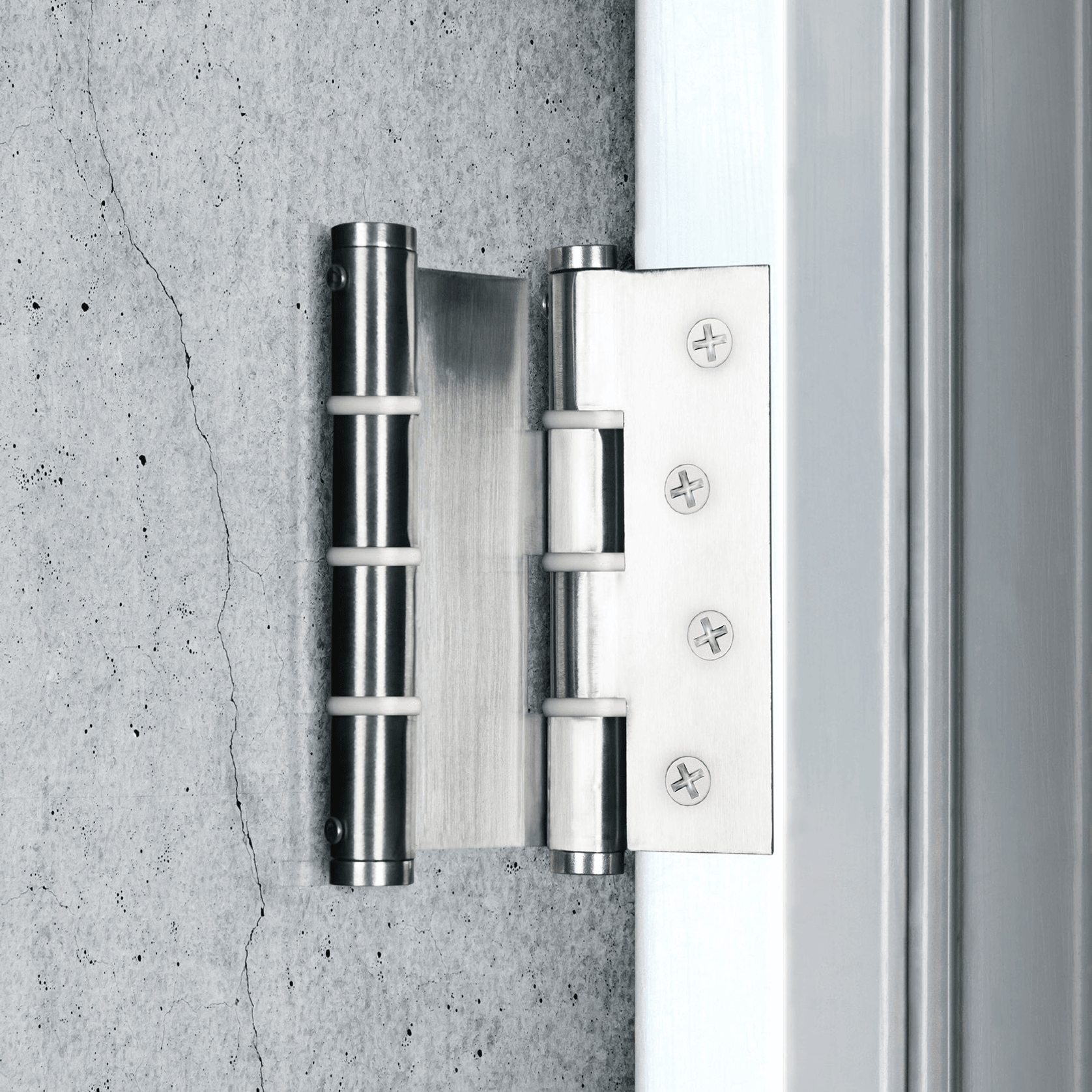

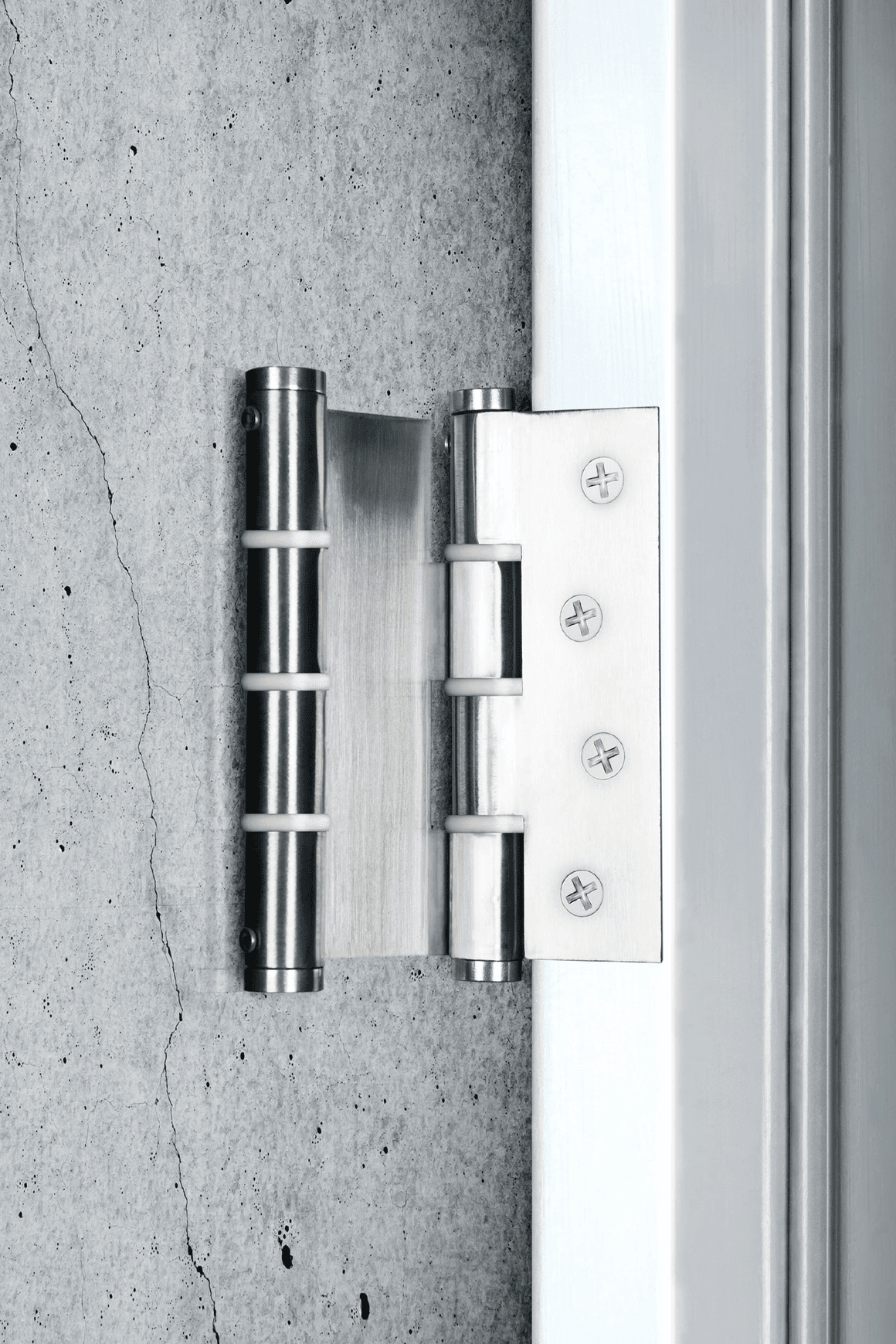

Within the DA120 range, there are a few different models including a flush wall mount and a heavy duty version.  Touch base with the team at Unique Hardware for further information on these.

DA120 Range Quick Facts:

• Spring Resistance + 500,000 cycles
• Resistant to extreme Climatic Conditions (Cold and Humidity)
• Maximum resistance to bending
• Torsion Spring not a Coil Spring
• Up to 55Kg in Door Weight Per Door
• Variable Door Movement Strength
• Highly Efficient 180° Working Aperture
• Solid and Stylish Design
• For Wood, Aluminium or metal Doors
• Ideal for Restaurants and Kitchens
• No Periodical Greasing Required
• 2 Year Manufacturer’s Guarantee

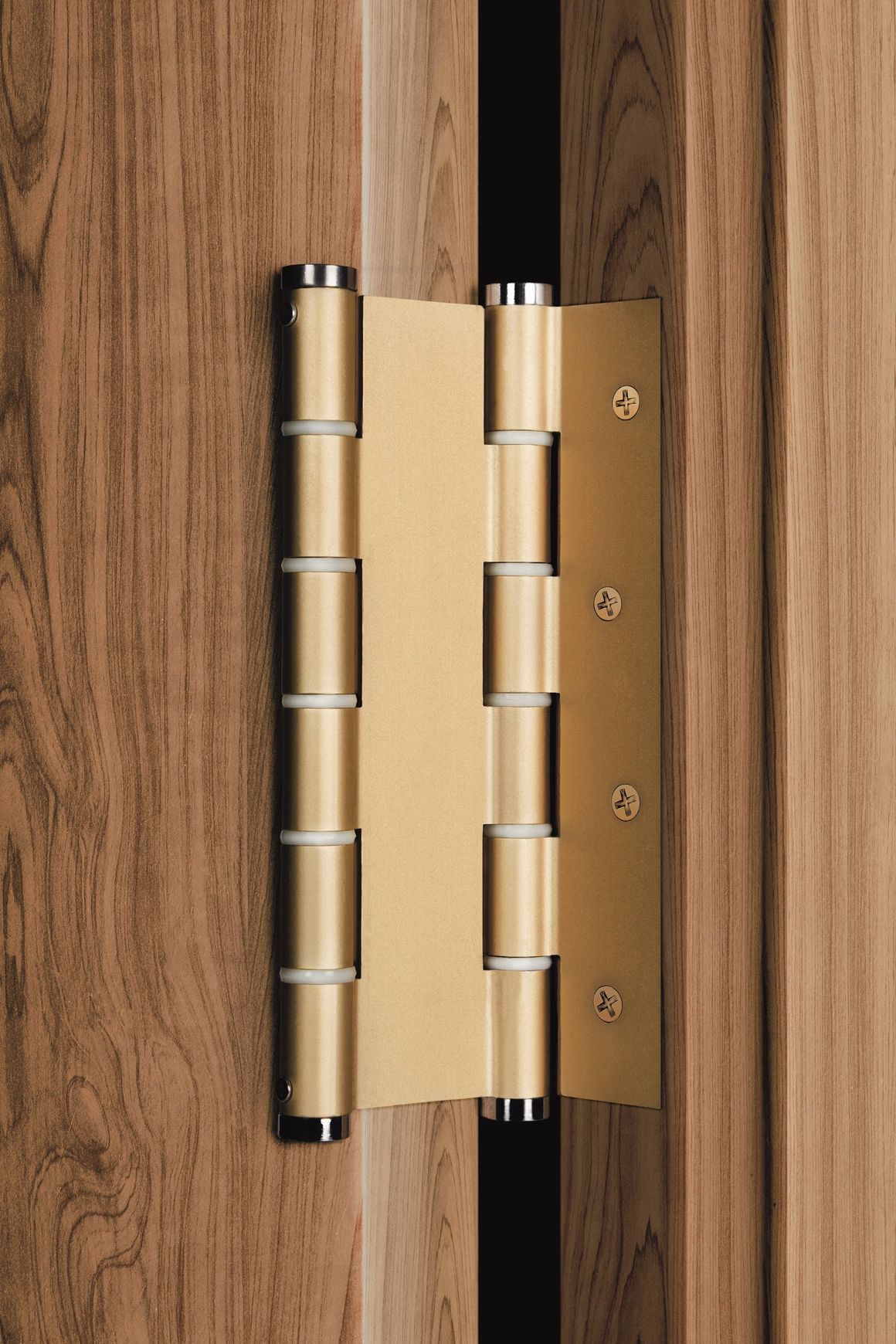

The Justor Double Action 180mm hinge is the perfect solution for heavier panels opening both ways.  Traditionally you were limited to only pivot systems which can be costly and also very time consuming for installation.  The standard DA180A can handle panels up to 80kg (based on 3 hinges with a panel 600mm wide).  Combine this more traditional hinge installation, you have a product that is really effective from all aspects.

Keeping in line with the other hinges within the range, the DA180 comes in a range of colours to compliment other hardware throughout your project.

DA180 Range Quick Facts:

• Spring Resistance + 500,000 cycles
• Resistant to extreme Climatic Conditions (Cold and Humidity)
• Maximum resistance to bending
• Torsion Spring not a Coil Spring
• Up to 95Kg in Door Weight Per Door (model depending)
• Variable Door Movement Strength
• Highly Efficient 180° Working Aperture
• Solid and Stylish Design
• For Wood, Aluminium or metal Doors
• Ideal for Restaurants and Kitchens
• No Periodical Greasing Required
• 2 Year Manufacturer’s Guarantee
