Kuppel-F200

By Colab Lighting
Website

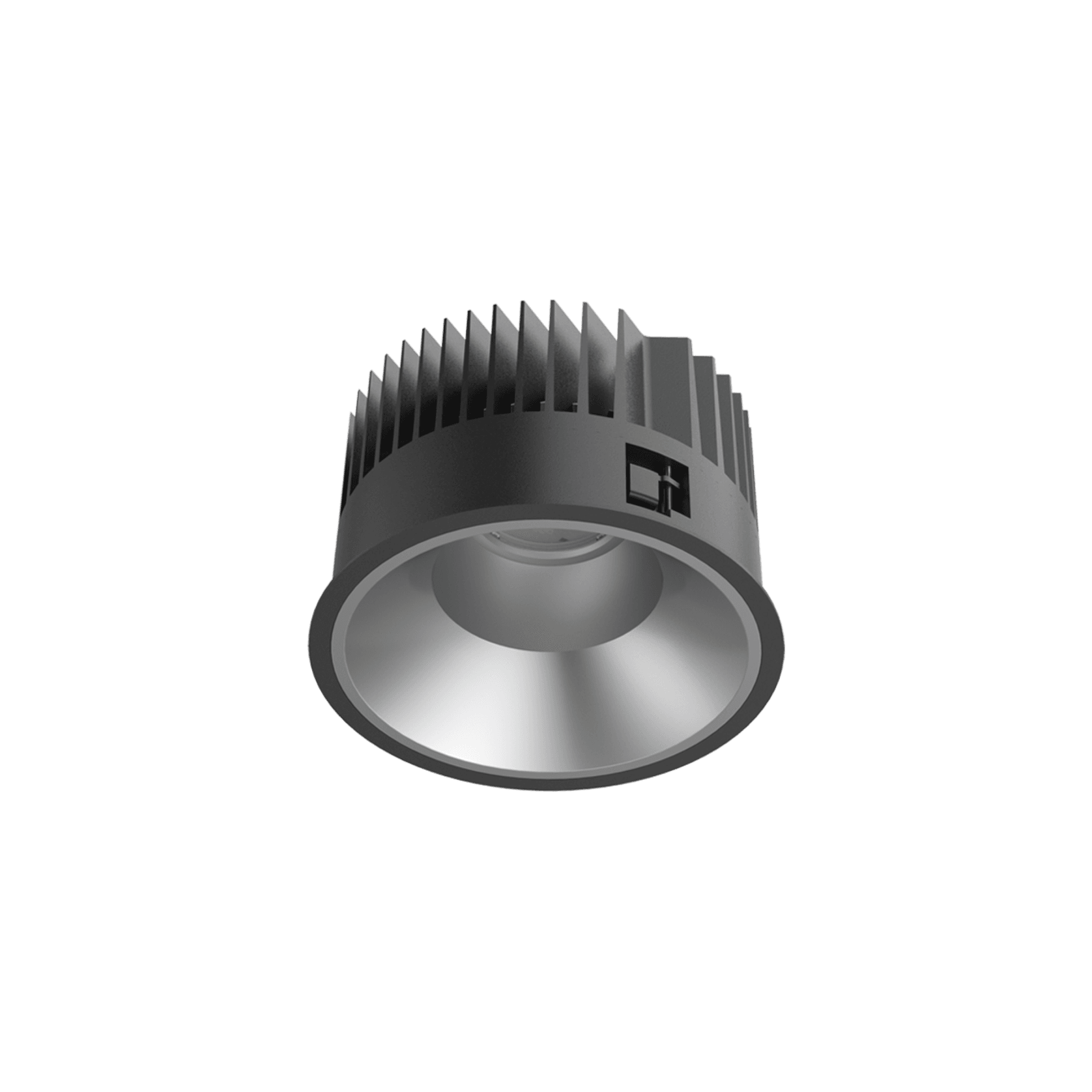

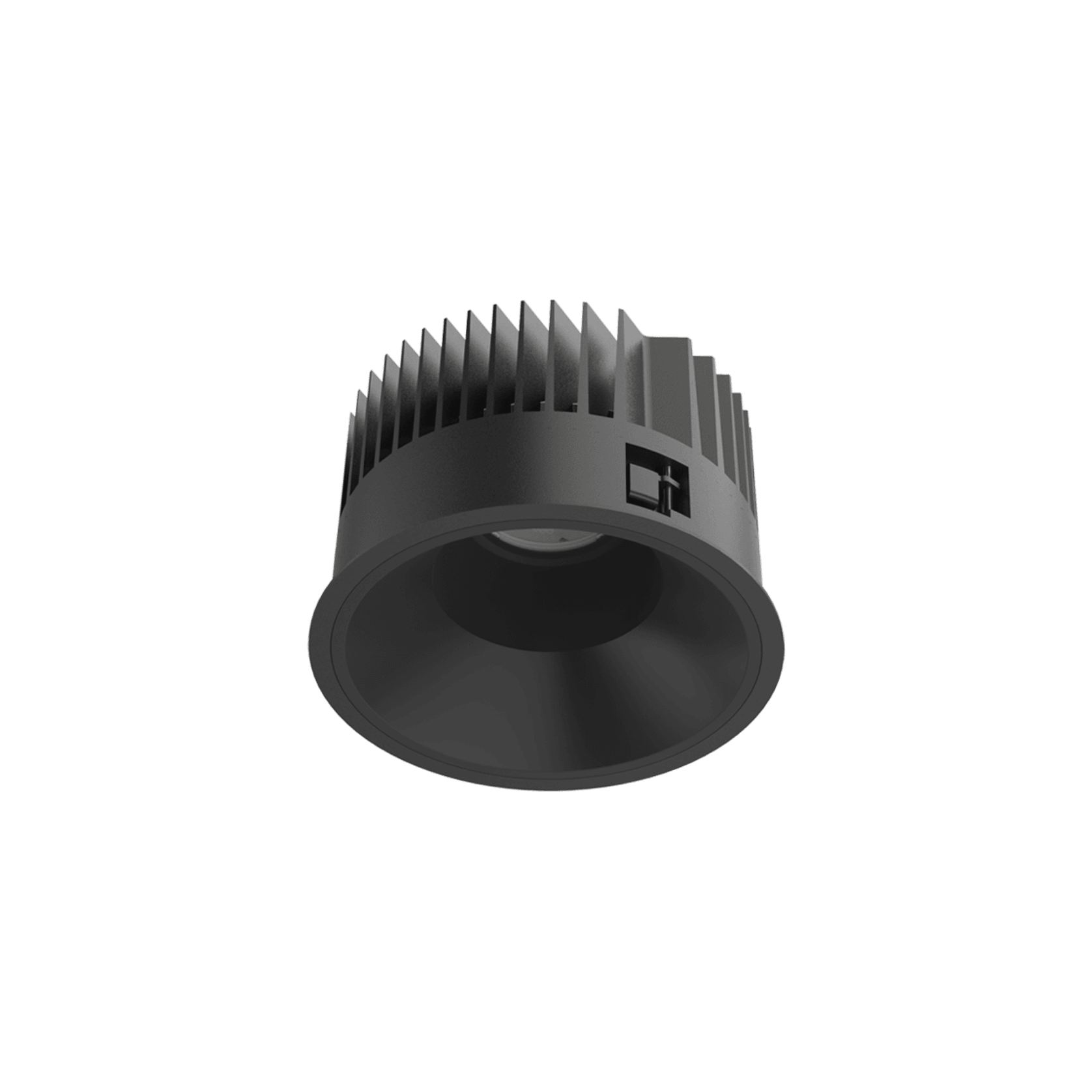

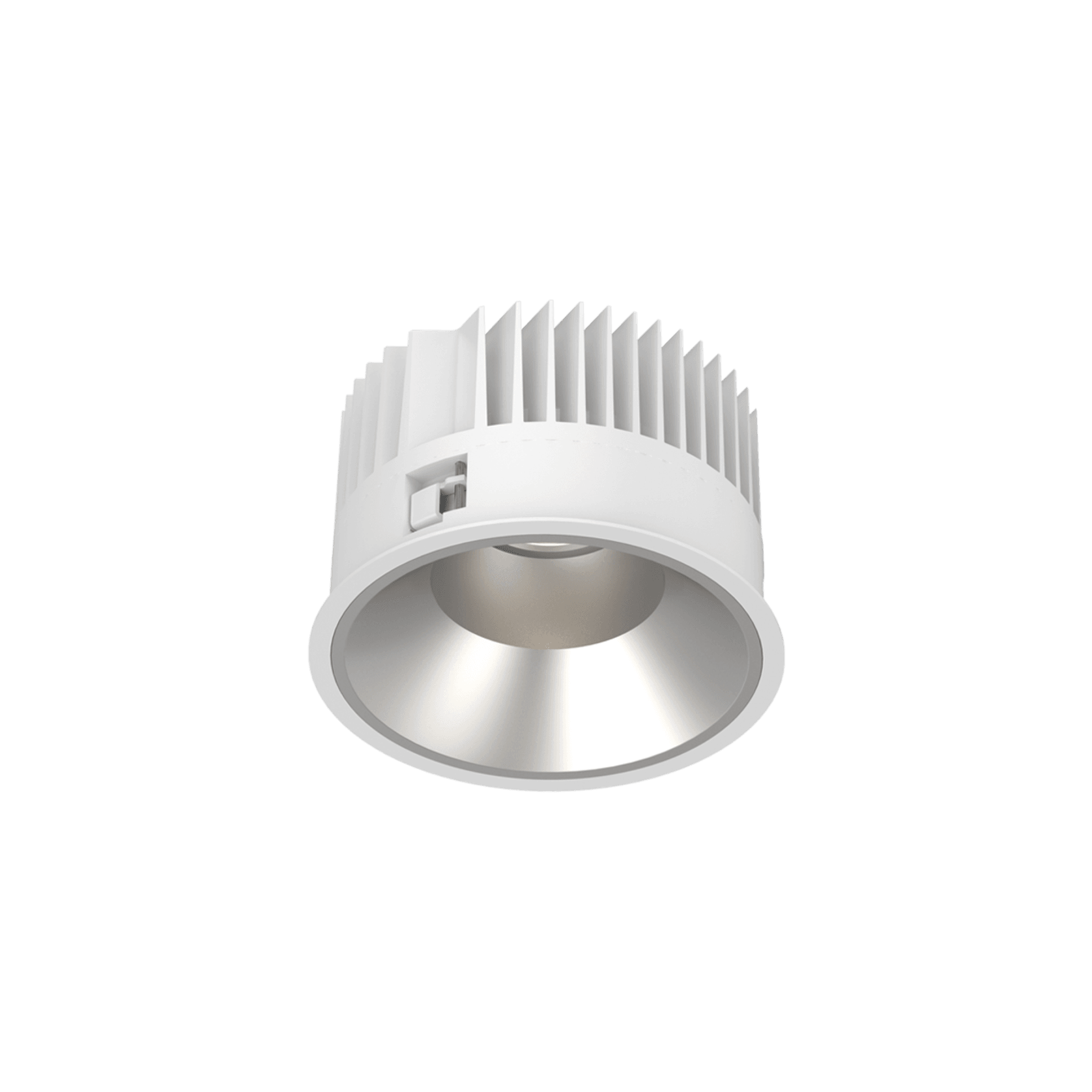

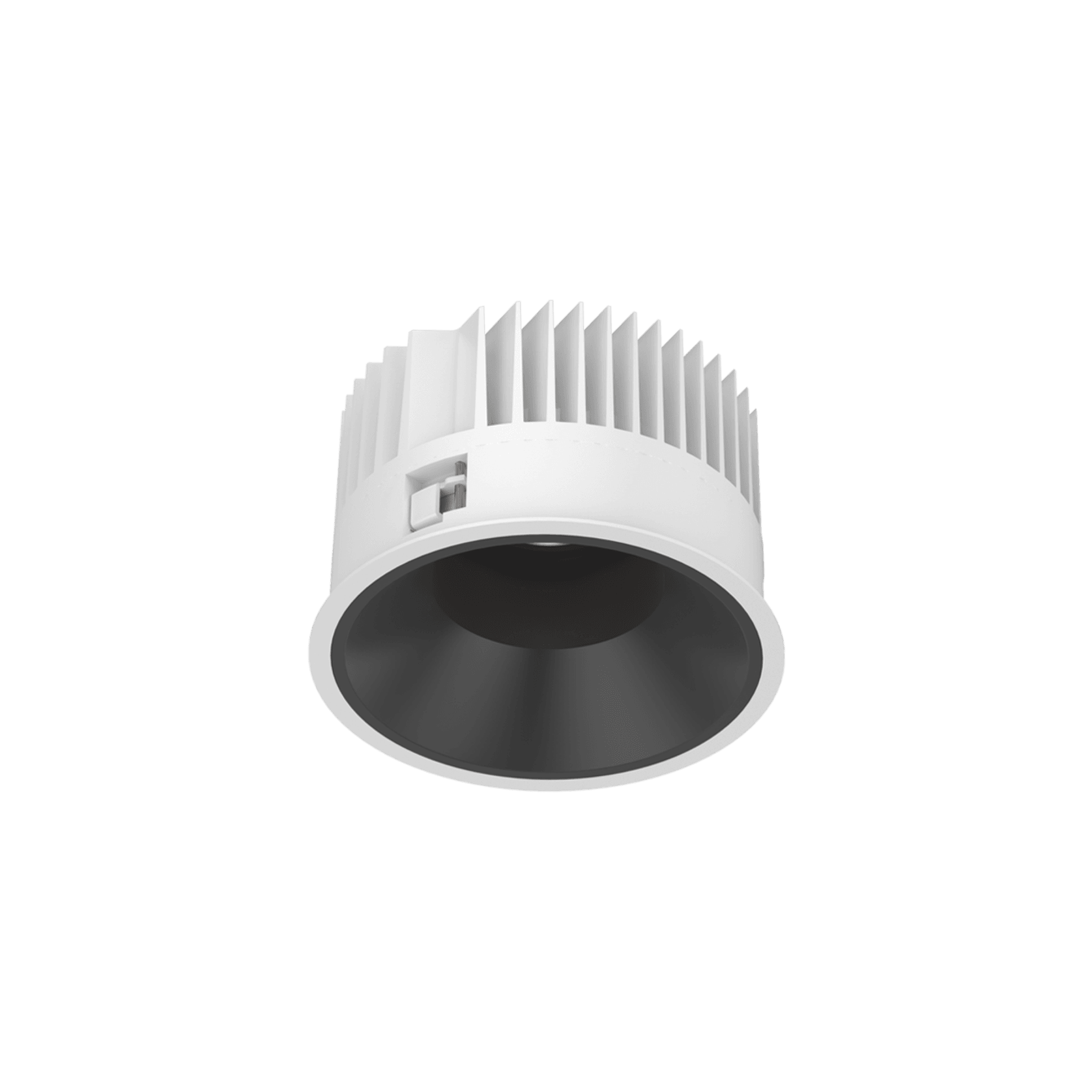

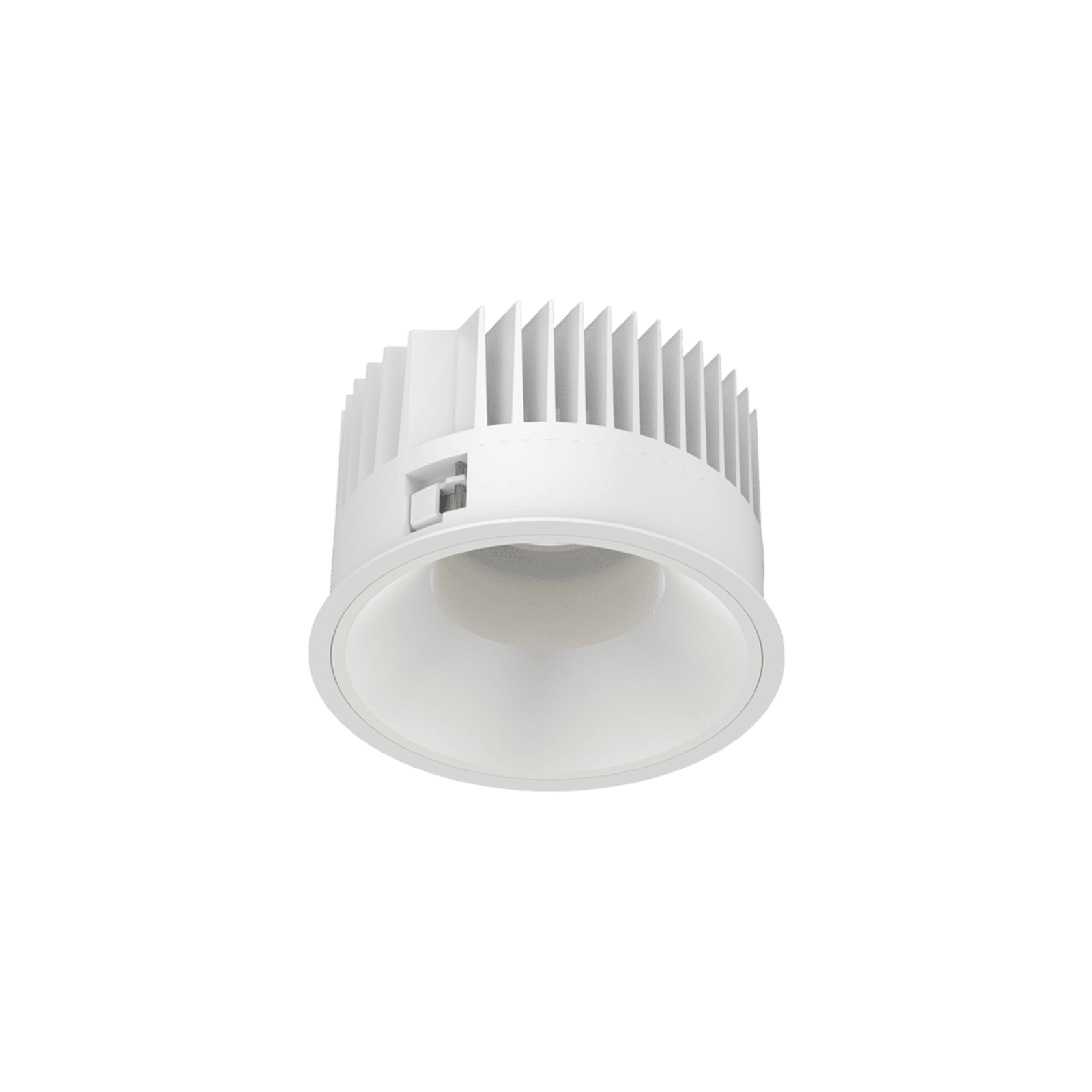

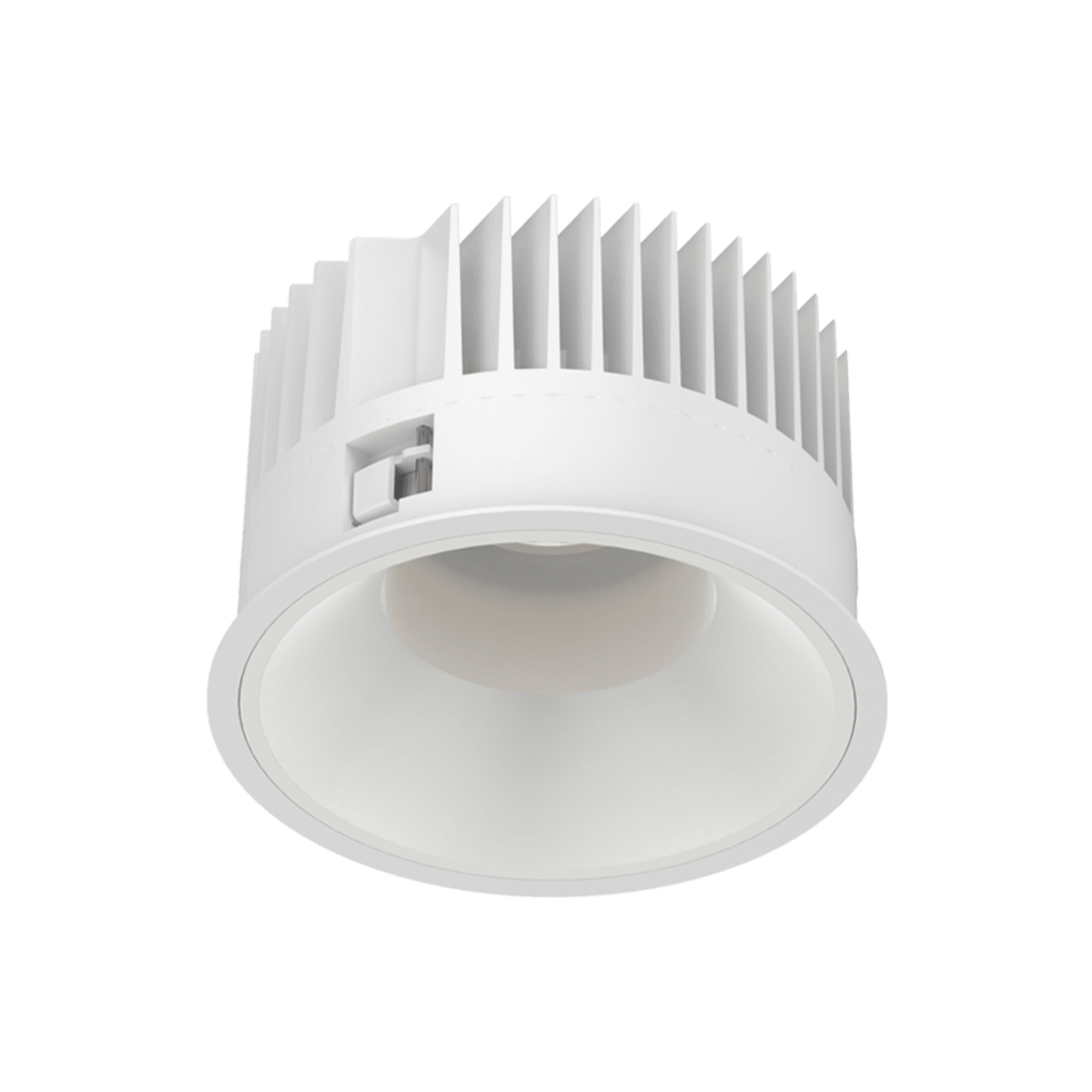

25W / 38W / 52W Fixed LED Recessed Downlight

Recessed LED architectural luminaire series providing optimised and efficient performance with an IP54 rating and deep-set lamp source for symmetrical low glare distribution. Available in a range of wattage/lumen packages, the Kuppel series also offers various dimming options with screw adjustable wing mounting for easy installation.

Made from a die-cast aluminium housing with an aluminium reflector, it is available in a variety of finishes. Integrating Zhaga compliant Citizen LED technology and coupled with Tridonic control gear, the Kuppel series offers a 5 year warranty.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage:

  • 25W (System 28W)
  • 38W (System 42W)
  • 52W (System 56W)

Luminous Flux:

  • 2800-3400 Lm
  • 3900-4600 Lm
  • 4800-5600 Lm

Luminaire Efficacy:

  • 128 Lm/W
  • 115.79 Lm/W
  • 103.85 Lm/W

CCT:

  • 3000K
  • 4000K

CRI: >90

Beam:

  • 18°
  • 30°
  • 60°

Colour Deviation: 3-SDCM

UGR: <19

Size: Ø218mm x Height 132mm

Cut out size: Ø200mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000 Hrs @ L80 B10

Finish Options:

  • White
  • Black

Baffle Colour:

  • Matt
  • White
  • Black

Warranty: 5 Years
