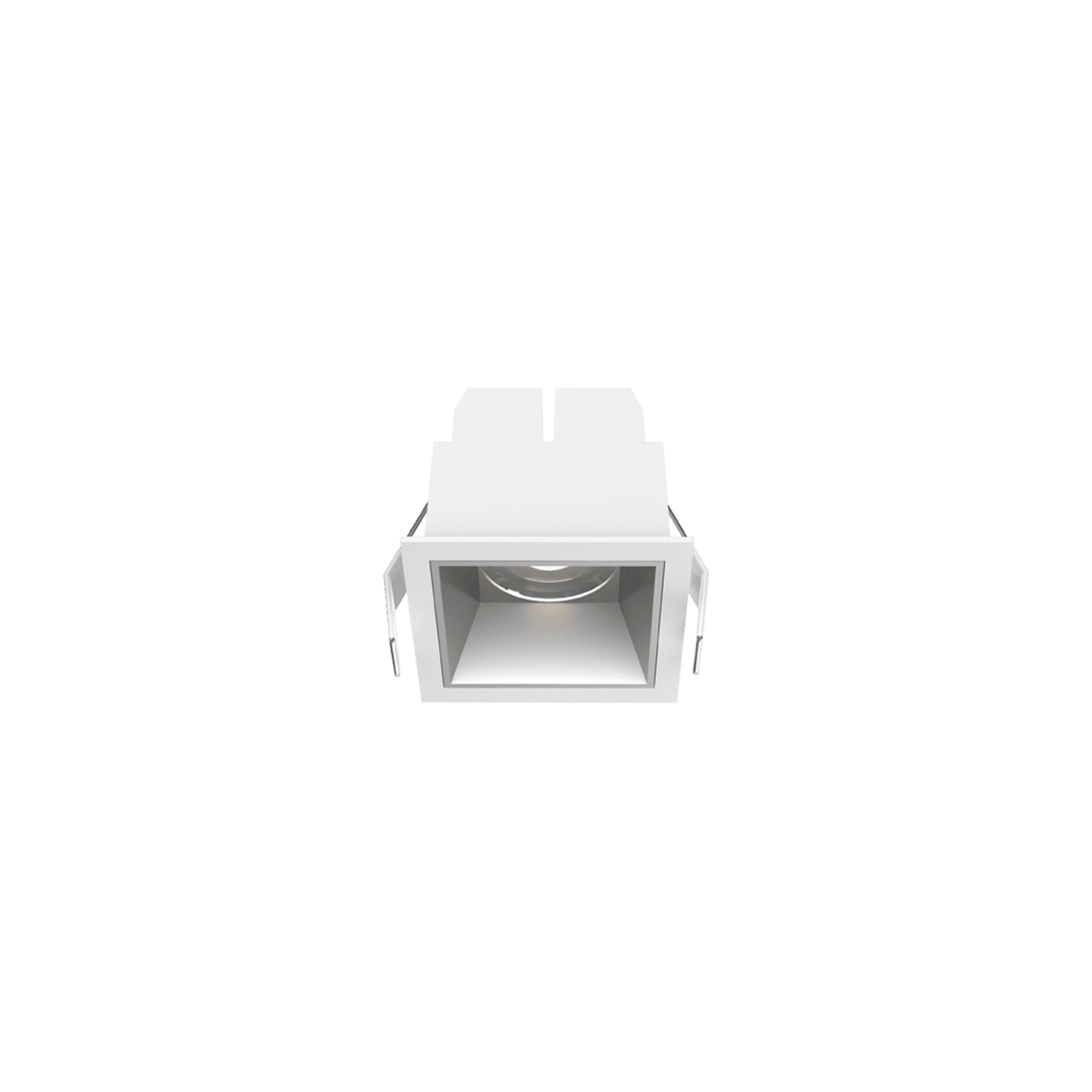

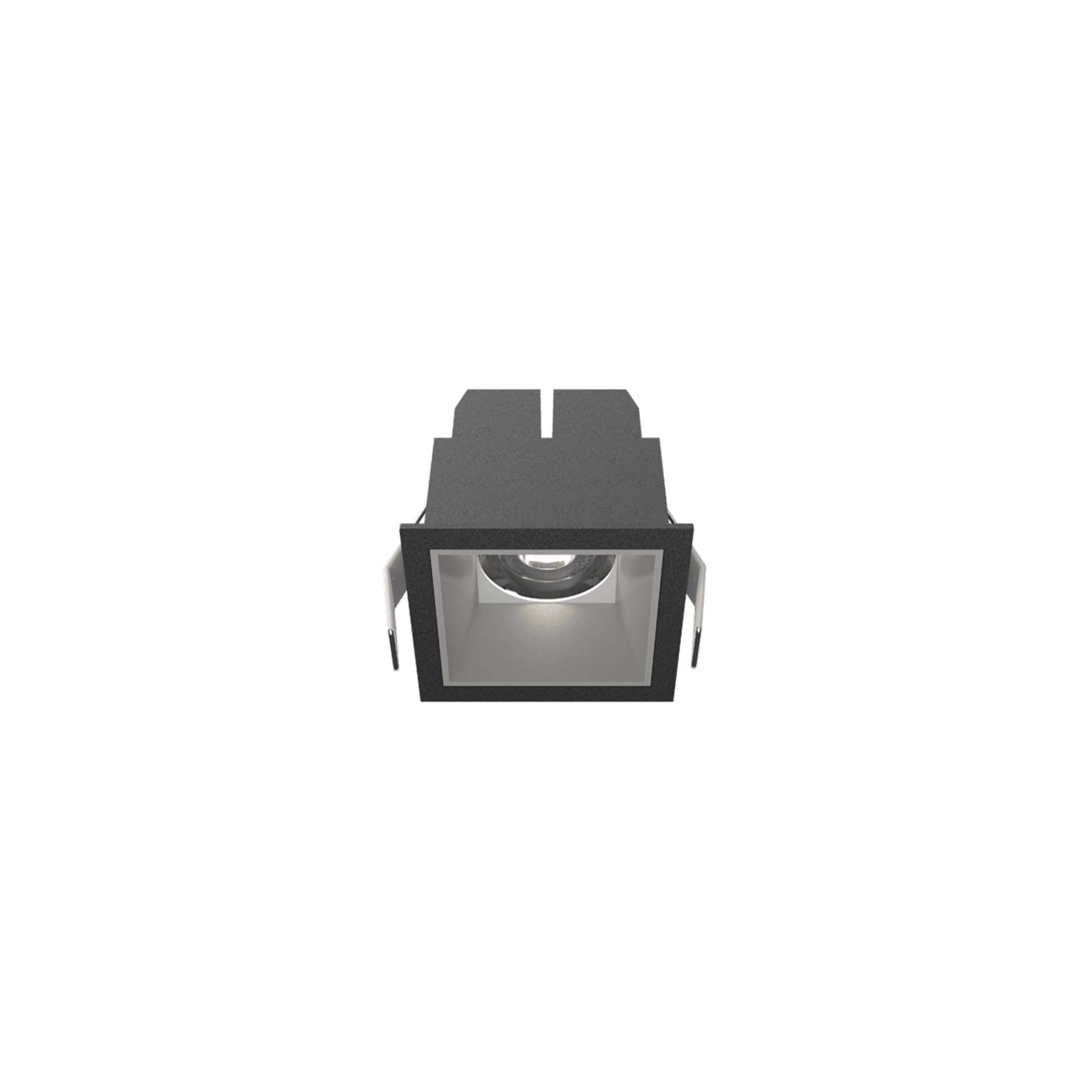

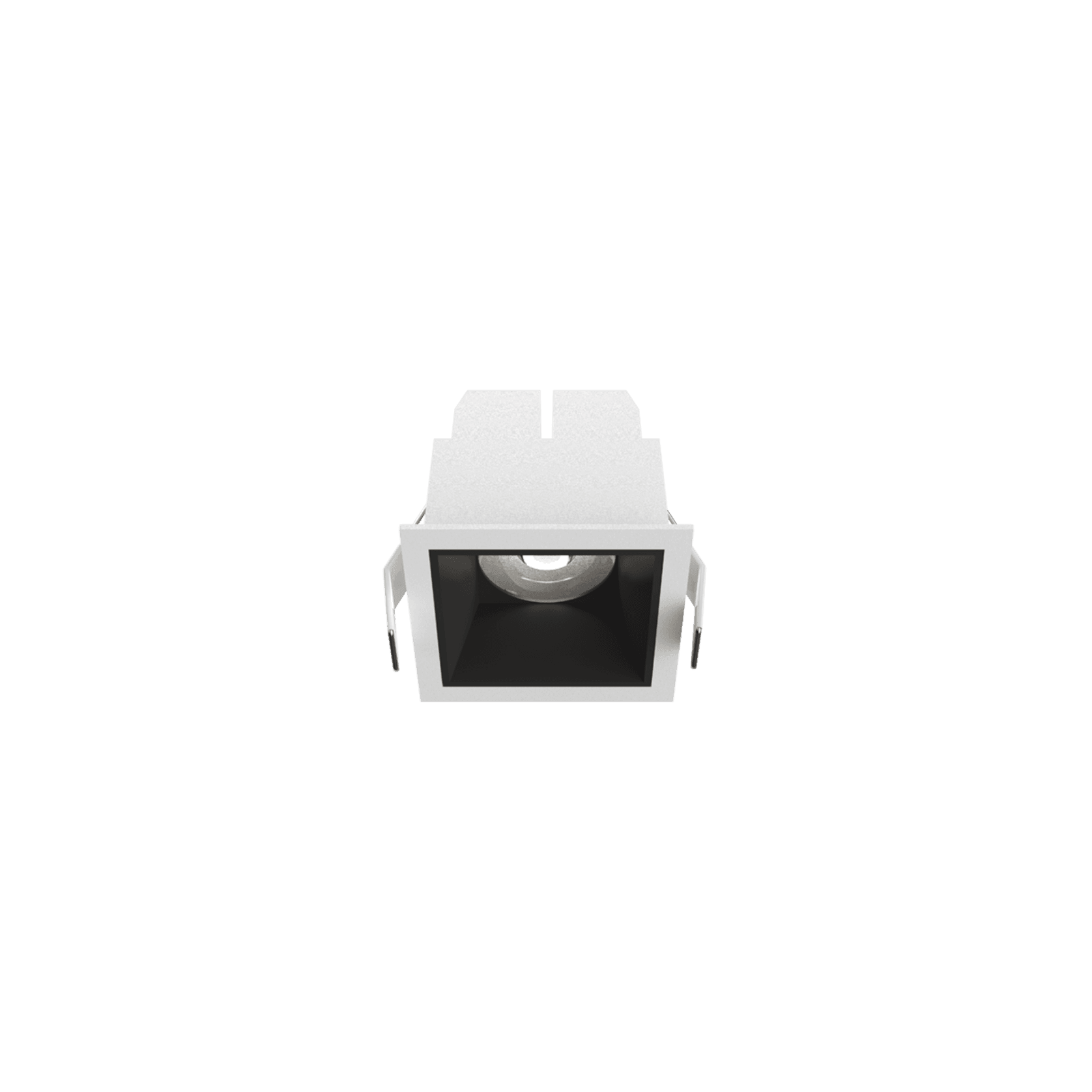

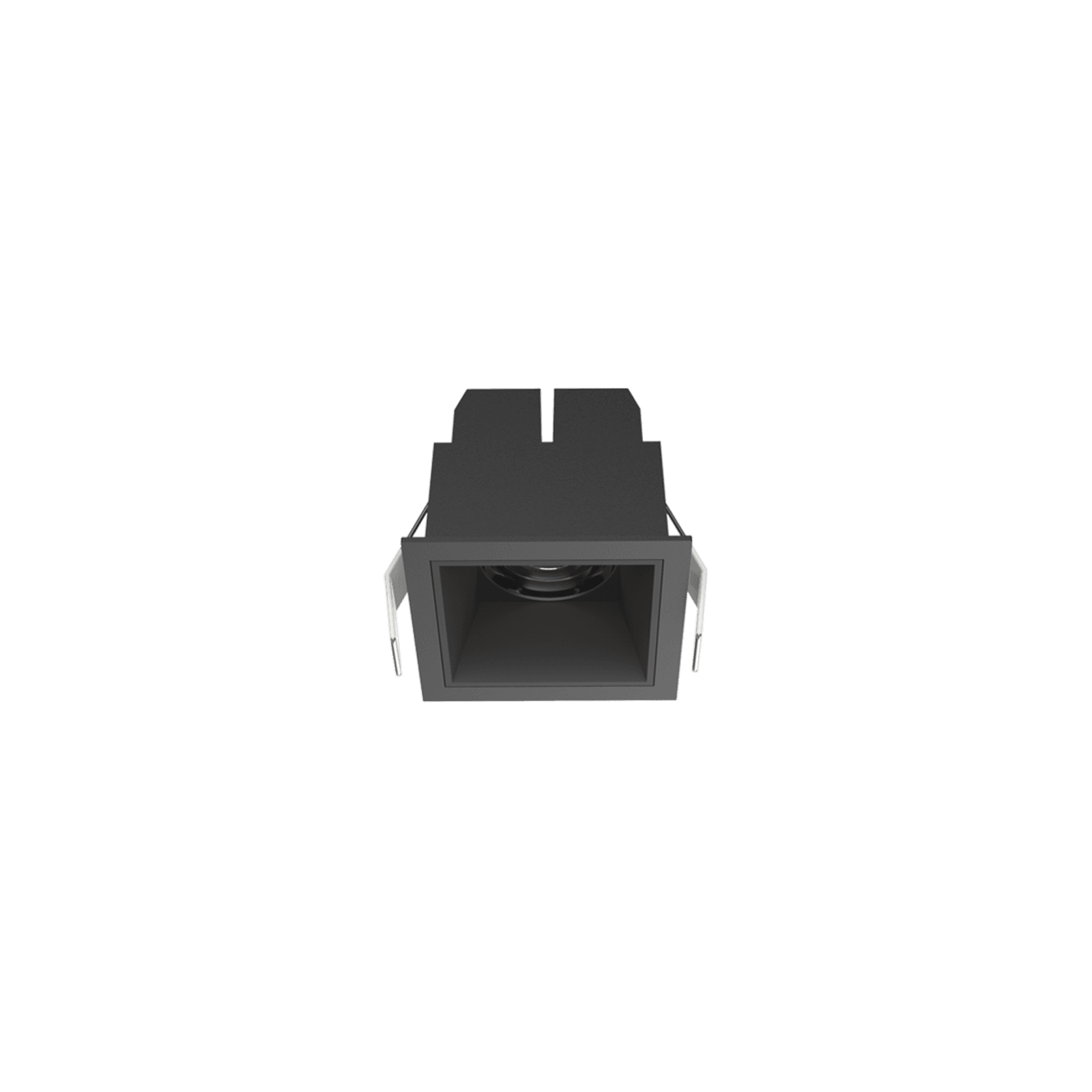

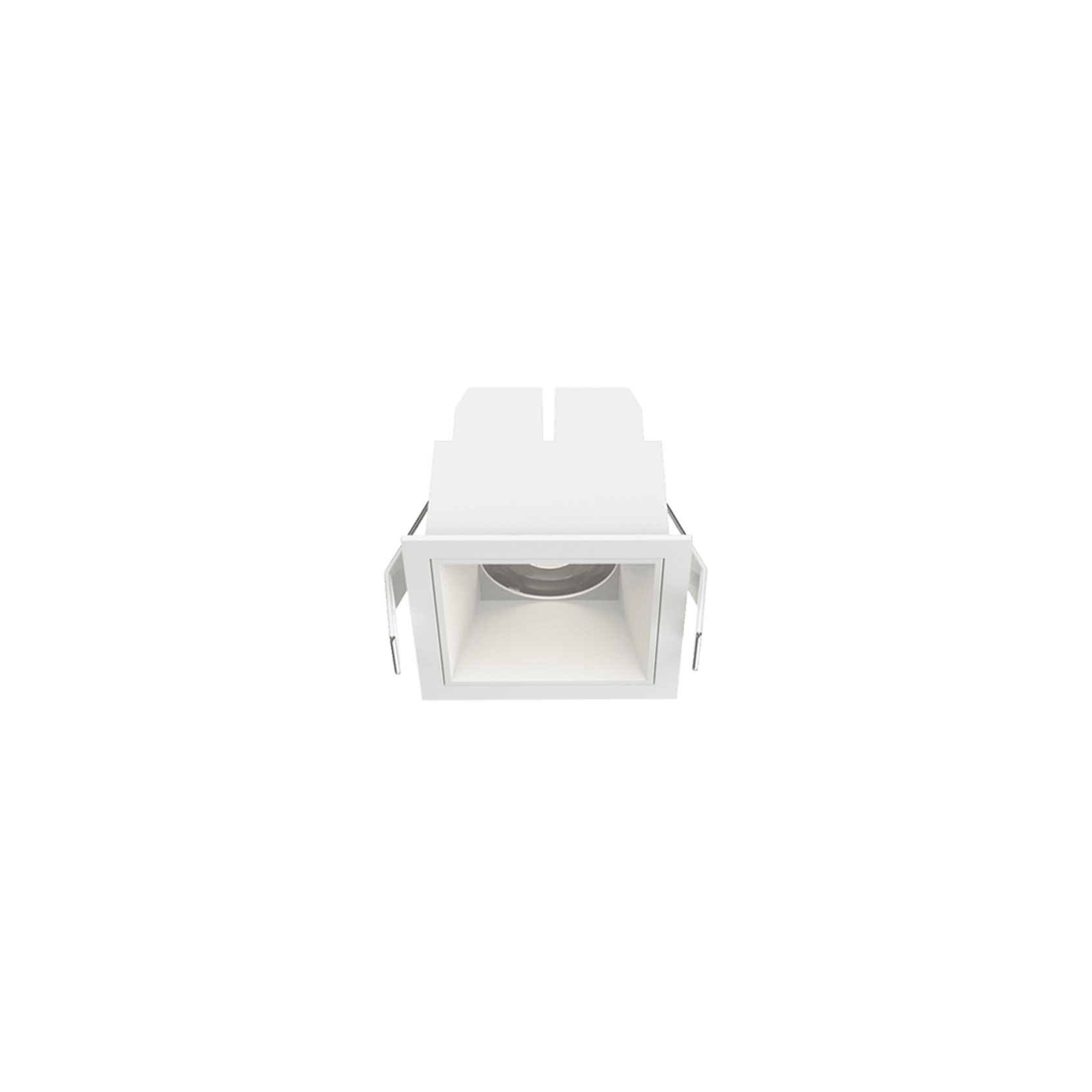

7.5W / 11W Fixed LED Recessed Downlight

Recessed LED architectural luminaire series providing optimised and efficient performance with an IP54 rating and deep-set lamp source for symmetrical low glare distribution. Available in a range of wattage / lumen packages, the Kuppel-F68S series also offers various dimming options with spring mounting for ease of installation.

Made from a die-cast aluminium housing with an aluminium reflector, it is available in a variety of finishes. Integrating Zhaga compliant Citizen LED technology and coupled with Tridonic control gear, the Kuppel series offers a 5 year warranty.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage:

  • 7.5W (System 9W)
  • 11W (System 13W)

Luminous Flux:

  • 700-750 Lm
  • 900-950 Lm

Luminaire Efficacy:

  • 77.77 Lm/W
  • 69.23 Lm/W

CCT:

  • 3000K
  • 4000K

CRI: >90

Beam:

  • 25°
  • 60°

Colour Deviation: 3-SDCM

UGR: <15

Size: Width 75mm x Length 75mm x Height 61mm

Cut out size: Width 68mm x Length 68mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000 Hrs @ L80 B10

Finish Options:

  • White
  • Black

Baffle Colour:

  • Matt
  • White
  • Black

Warranty: 5 Years
