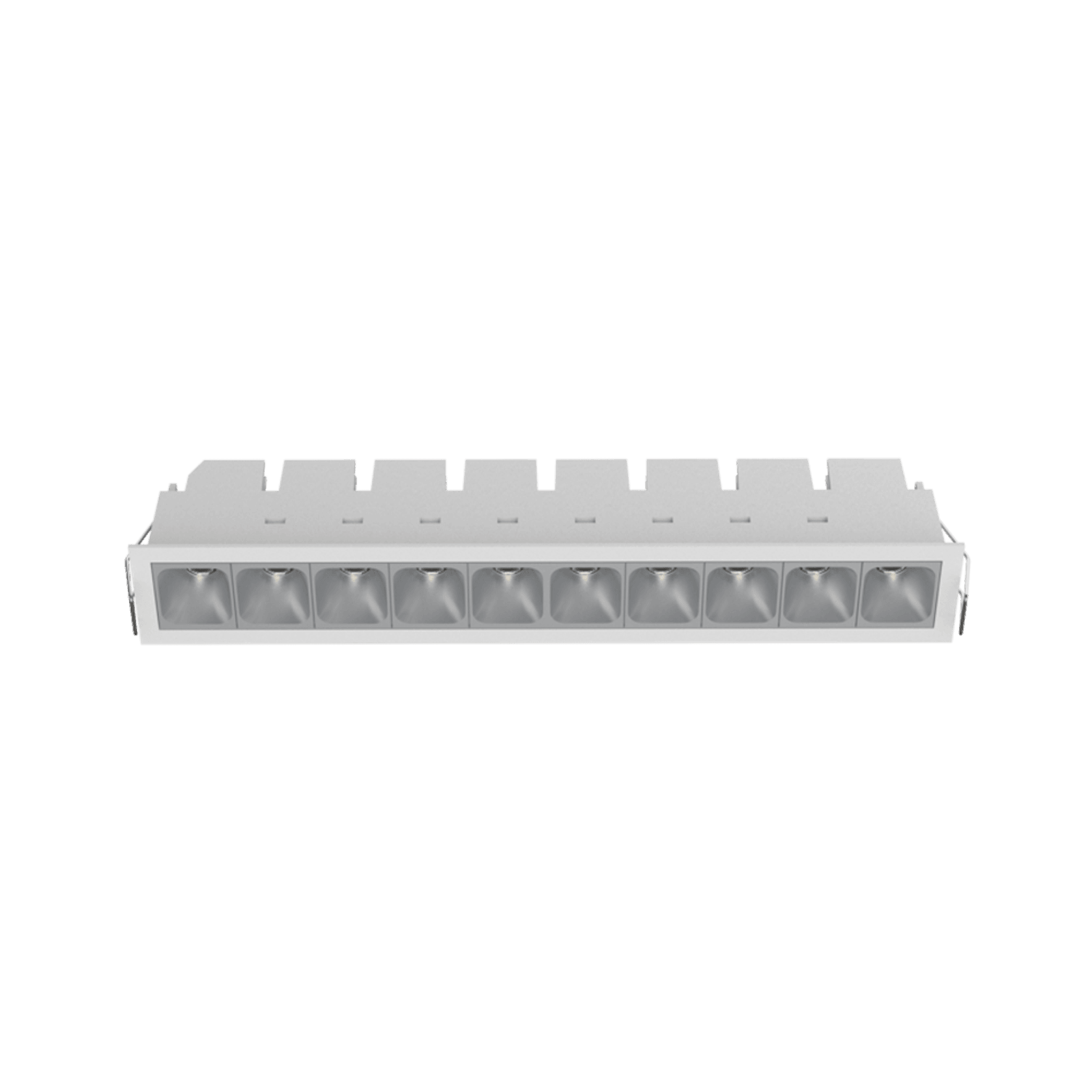

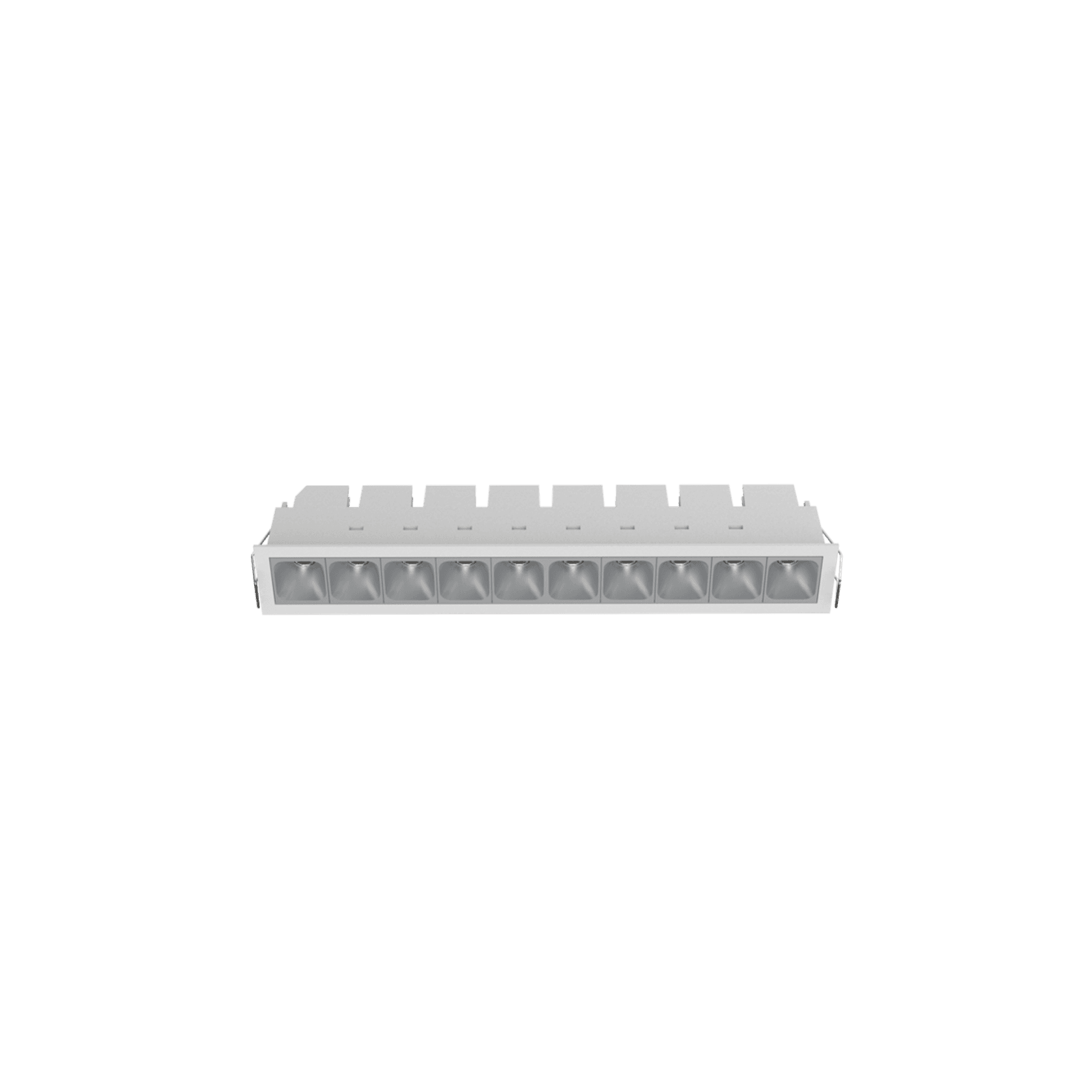

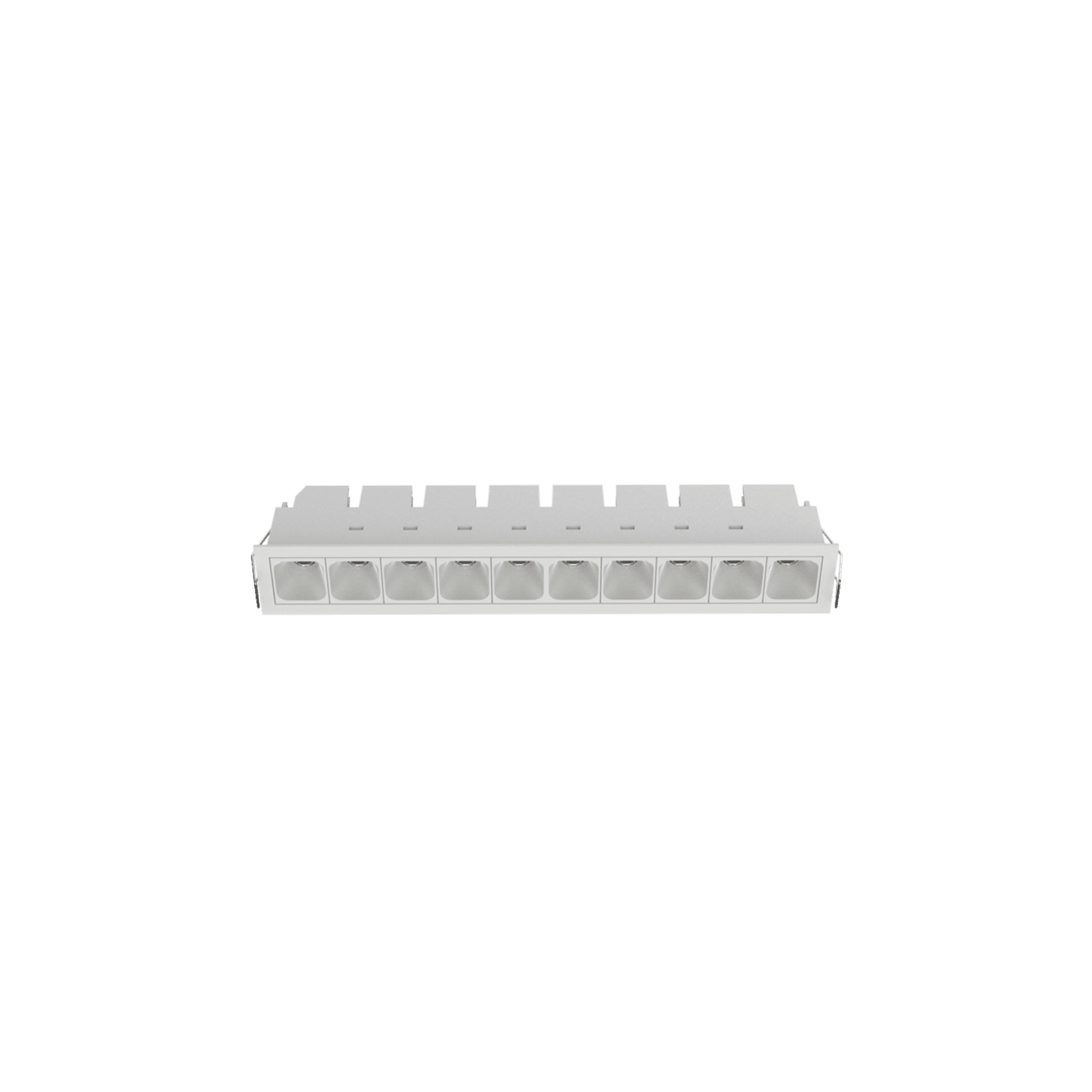

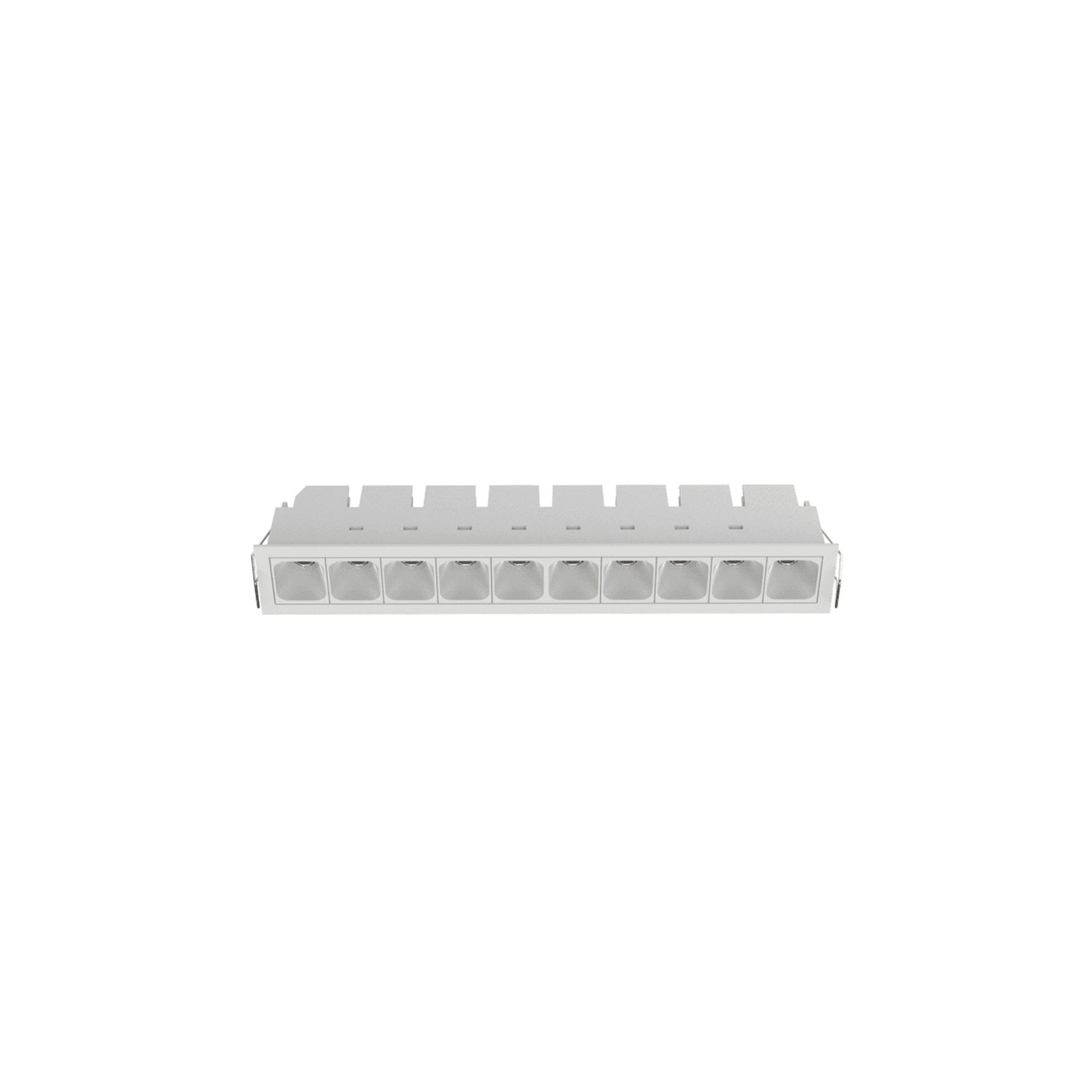

22W Fixed Linear Recessed Downlight

Fixed recessed LED architectural downlight series provides symmetrical, low-glare light distribution within a compact, linear housing. Available in multiple baffle finished to suit a wide variety of applications. Minimal trim for a seamless look.

Comes quality constructed using a die-cast aluminium structure with high grade polycarbonate secondary baffle optics. Integrating OSRAM LED technology with industry leading control gear, the Linie series comes with a 5 year warranty.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage: 22W (System 24W)

Luminous Flux: 1600-1700 Lm

Luminaire Efficacy: 66.66 Lm/W

CCT:

  • 3000K
  • 4000K

CRI: >90

Beam:

  • 24°
  • 40°

Colour Deviation: 3-SDCM

UGR: <19

Size: Width 45mm x Length 290mm x Height 60mm

Cut out size: Width 37mm x Length 282mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000Hrs L80 B10

Finish Options:

  • White
  • Black

Baffle Colour:

  • White
  • Black

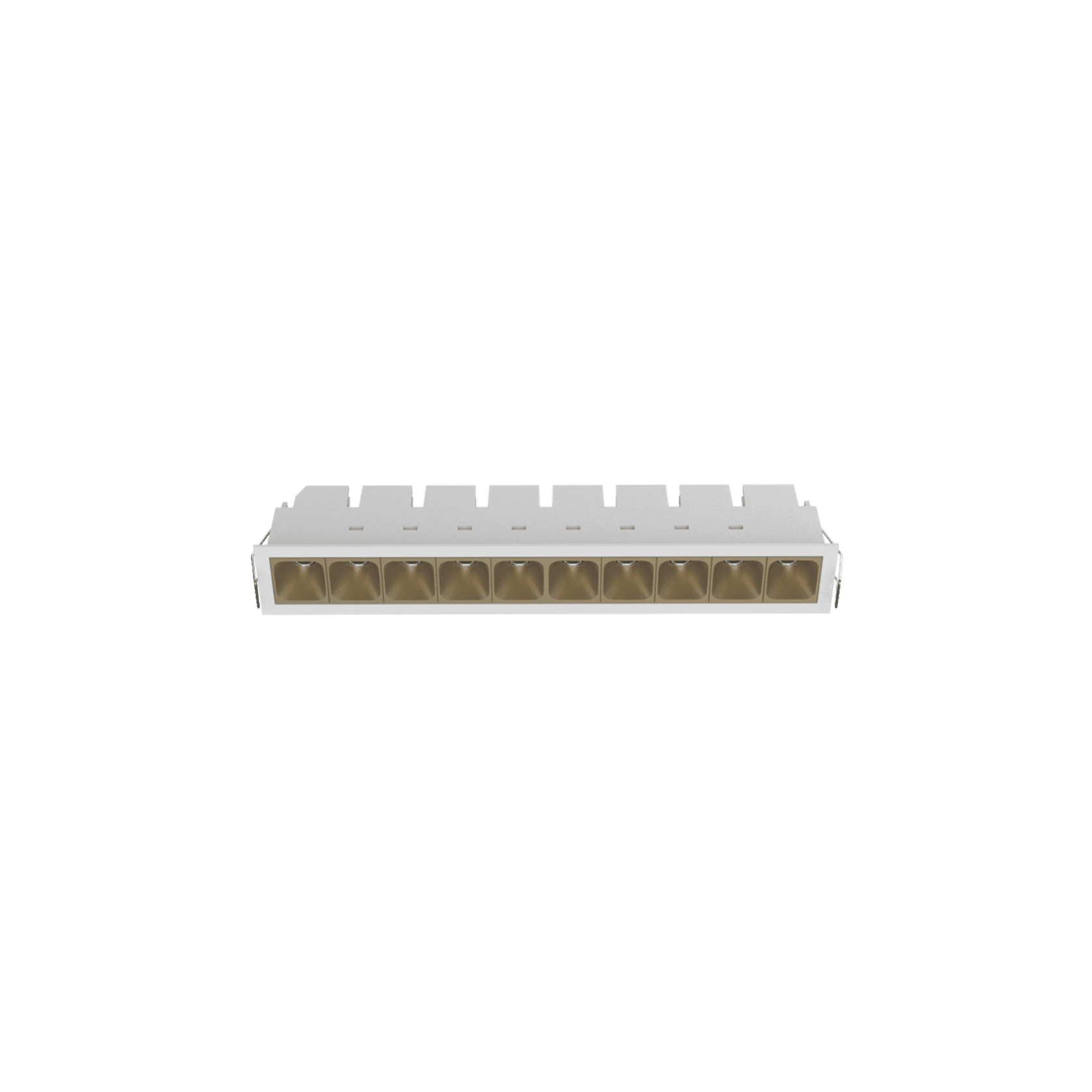

  • Gold
  • Silver

Warranty: 5 Years

Accessories / Options

Accessories / Options:
