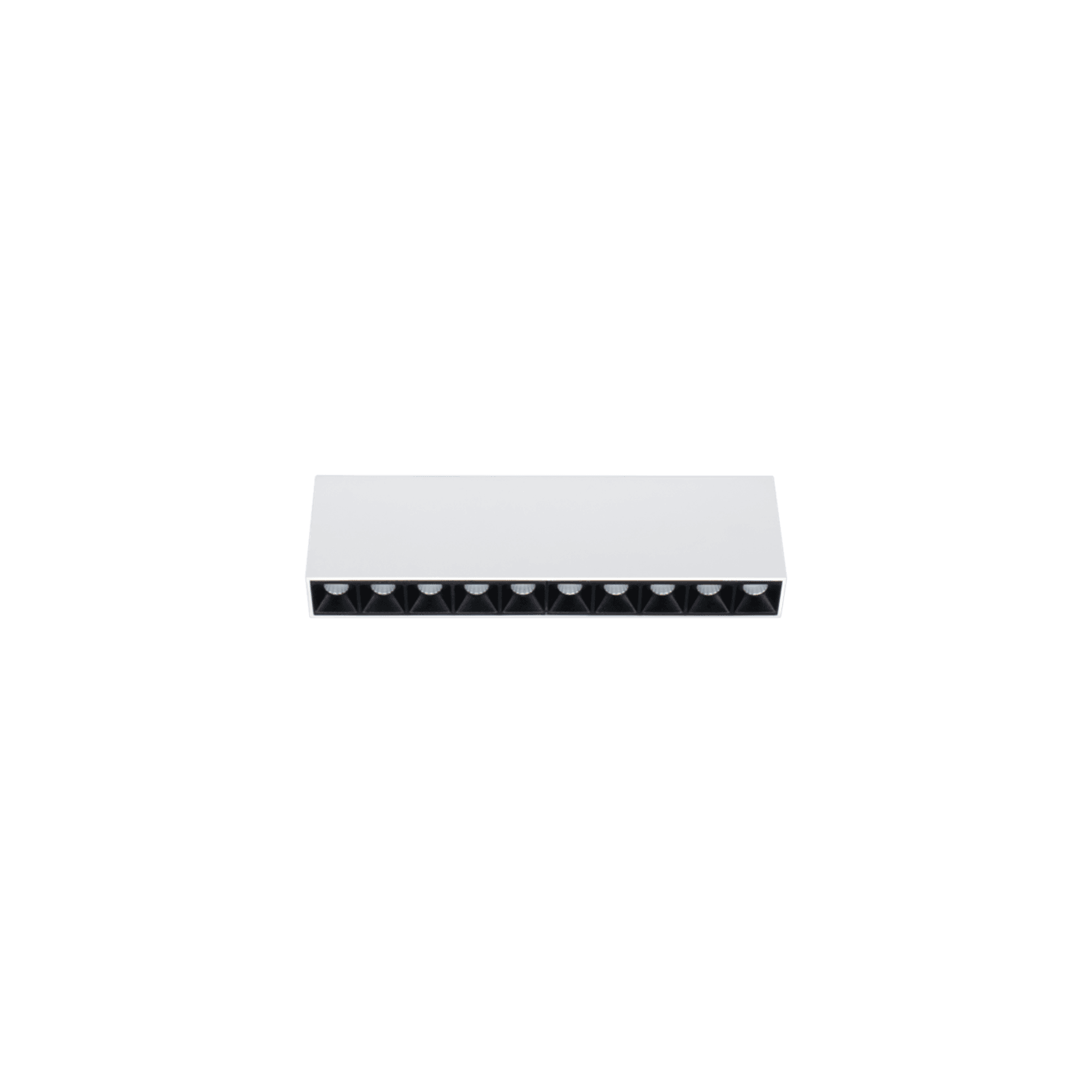

20W Fixed Surface Mount Linear Downlight

Fixed, surface mounted, LED architectural downlight series provides symmetrical, low-glare light distribution within a compact, linear housing. Available in a variety of baffle finishes to suit different applications and interior spaces.

Comes quality constructed using a die-cast aluminium structure with high grade polycarbonate secondary baffle optics. Integrating Bridgelux LED technology with a quality branded control gear, the Linie series comes with a 5 year warranty.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage: 20W (System 23W)

Luminous Flux: 1270-1682 Lm

Luminaire Efficacy: 66.95Lm/W

CCT:

  • 2700K
  • 3000K
  • 4000K

CRI: >90

Beam:

  • 15°
  • 30°
  • 45°

Colour Deviation: 3-SDCM

UGR: <19

Size: Width 34.5mm x Length 270mm x Height 81mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000 Hrs L80 B10

Finish Options:

  • Black
  • White

Baffle Colour:

  • Black
  • White
  • Specular
  • Gold
  • Rose Gold

Warranty: 5 Years

Accessories / Options

Accessories / Options:
