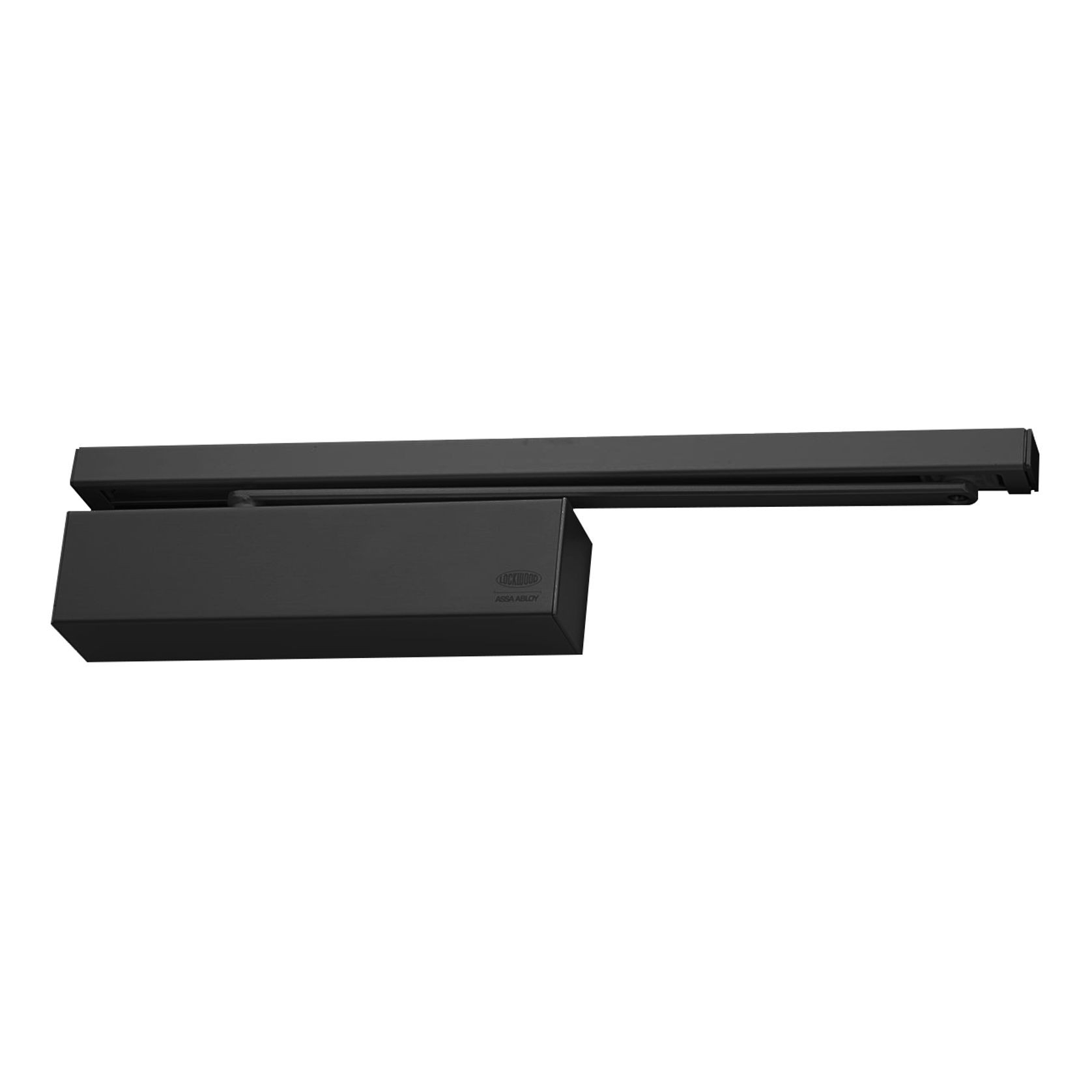

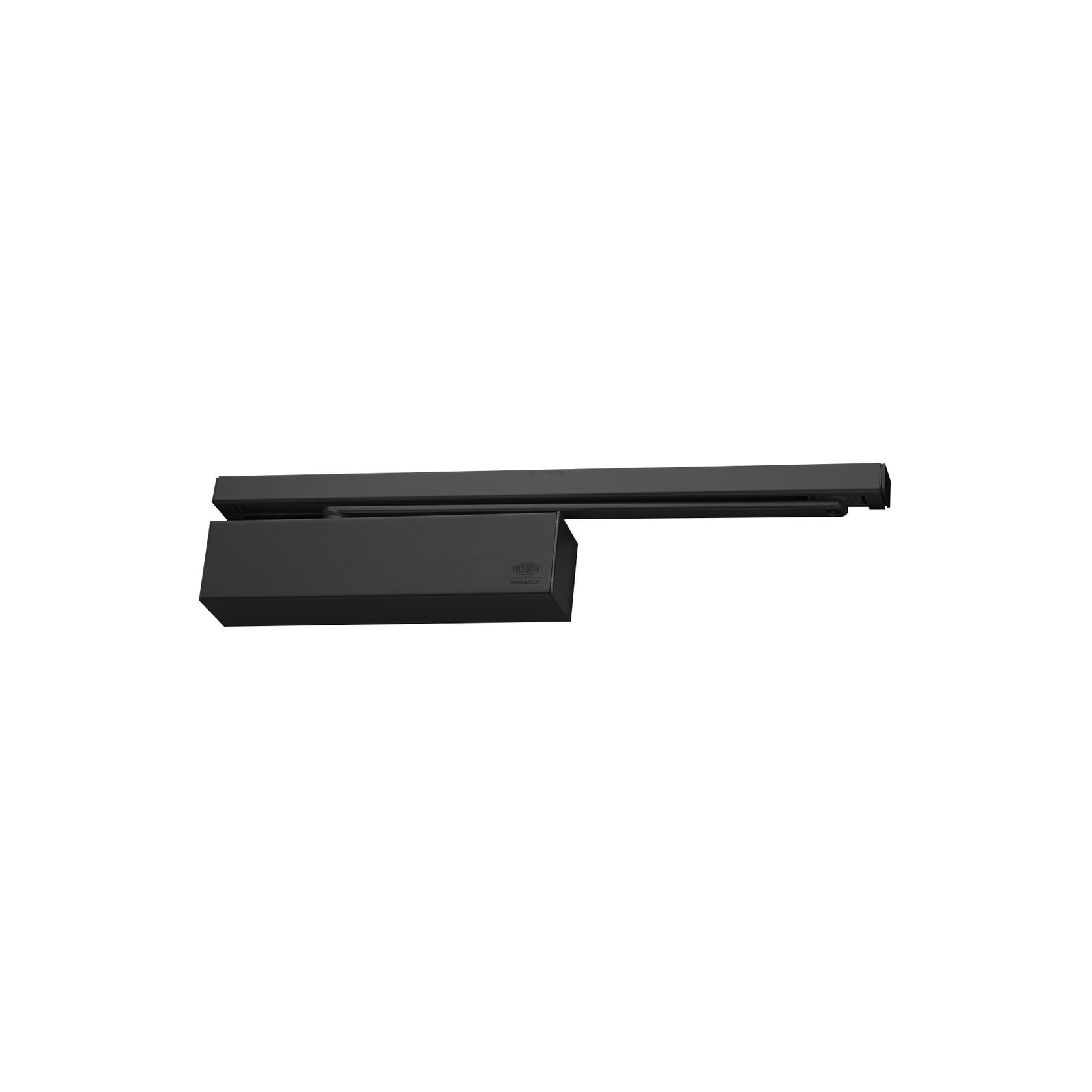

Lockwood Cam Action Door Closer
2616DABLK
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Features:
- Premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door loser and continues to decrease through the opening arc
- Aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door
- Light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height
Product Details
- Product
- Lockwood EN1-6 Cam Action Door Closer Black 2616DABLK
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Lockwood
- Brand
- Lockwood
- Country of origin
- Australia
- Type of use
- Commercial and Residential
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Tools required
- Assembly
- Minor assembly required
Product Variants
- Colours
- Hold Open
- Handing
- Back Check
Keeler Hardware is specified by
Ha ArchitectureArchitects
Ironbark ArchitectureArchitects
JOST ArchitectsArchitects
Dieppe DesignArchitects
Alexander &CO.Architects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
R ARCHITECTUREArchitects
Cadence & CoArchitects
Bones StudioArchitects
Invilla ArchitectureArchitects
TDDP ArchitectsArchitects
Habitat Studio ArchitectsArchitects
Hive ArchitectureArchitects
Bijl ArchitectureArchitects
Scale ArchitectureArchitects
J Mammone ArchitectureArchitects
David Baillie ArchitectArchitects
Ian Moore ArchitectsArchitects
New SpacesBuilders
Kate NixonInterior Designers
APC BuildBuilders
Matic by DesignInterior Designers
Dasch AssociatesInterior Designers
Ilm InteriorsJoiners
X + OInterior Designers
Brianda ProjectsBuilders
Susie Miles DesignInterior Designers
IverManufacturers and Suppliers
STUDIO GAXAInterior Designers
Rise Architectural BuildersBuilders
ASSA ABLOY Door Locks & Security SolutionsManufacturers and Suppliers
TrueBuild HomesDesign & Build
Schemes & SpacesInterior Designers
Jumble & StackInterior Designers
CastellaManufacturers and Suppliers
Lockwood Cam Action Door Closer2616DABLK Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Features:
- Premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door loser and continues to decrease through the opening arc
- Aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door
- Light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height
- Specs
Specifications:
- Power: EN adjustable 1 to 6
- Back Check: Adjustable
- Hold Open: Adjustable. Hold-open can be set at any angle up to 120 degree of opening
- Handing: Non-handed, Suitable for left or right hand doors
- Cover: Formed metal cover
- Materials: Cast aluminium body manufactured from high-performance silicon alloy
- Mechanism: CAM action
- Mounting: Pull side, push side and over-door mounting
- Valves: Two pressure relief valves are a standard feature to protect against abuse
- Delayed Action: Adjustable
- Closing Speed: Adjustable
- Latching Speed: Adjustable
- Finish: Black
- Scope of use
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
- Compliance
Standards and Compliance:
- Fire Rated: Has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.
- Note: Hold open option is not approved on any fire door.
- Disabled Access Australian Standard (AS1428.1) Design for access and mobility.
- Performance
Our belief that we manufacture the finest premium products available in today’s market place is backed by the Lockwood 25 Year Mechanical Warranty, ensuring that Lockwood continues to keep Australians safe by delivering security and peace of mind.
