Dorma RTS85T EN3 Transom Closer NonHold Open Combi Pack
Wetherill Park, Australia
- 993.0K profile views
- 51 saves
Dorma Transom Door Closer EN3 Non Hold Open Body Only
RTS85
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
Features:
- Ideal for shopfitting
- Suitable for both single and double action doors
- With valve adjustable closing speed and closing action, and mechanical controlled backcheck
Dorma 8550 Transom Closer Pivot Timber
65310300
Features:
- The Dorma RTS85 floor pivot suits side-load installation
- Used on timber doors, floor portion is fitted directly to the floor
Dorma Transom Closer Arm w/ Bracket
85210005
Features:
- A standard side load top le allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
Product Details
- Product
- Dorma RTS85T EN3 Transom Closer NonHold Open Combi Pack
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
- Brand
- Dormakaba
- Country of origin
- Australia
- Type of use
- Commercial
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Minor installation required
- Assembly
- Minor assembly required
Keeler Hardware is specified by
Bones StudioArchitects
Scale ArchitectureArchitects
JOST ArchitectsArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
R ARCHITECTUREArchitects
Bryant Alsop ArchitectsArchitects
Ha ArchitectureArchitects
Ironbark ArchitectureArchitects
Dieppe DesignArchitects
Ian Moore ArchitectsArchitects
De Moyer ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Cadence & CoArchitects
Invilla ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
J Mammone ArchitectureArchitects
TDDP ArchitectsArchitects
David Baillie ArchitectArchitects
Rise Architectural BuildersBuilders
X + OInterior Designers
Ilm InteriorsJoiners
New SpacesBuilders
Brianda ProjectsBuilders
Dasch AssociatesInterior Designers
Kate NixonInterior Designers
TrueBuild HomesDesign & Build
STUDIO GAXAInterior Designers
IverManufacturers and Suppliers
CastellaManufacturers and Suppliers
APC BuildBuilders
Jumble & StackInterior Designers
Schemes & SpacesInterior Designers
ASSA ABLOY Door Locks & Security SolutionsManufacturers and Suppliers
Susie Miles DesignInterior Designers
Matic by DesignInterior Designers
Dorma Transom Door Closer EN3 Non Hold Open Body OnlyRTS85 Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
Features:
- Ideal for shopfitting
- Suitable for both single and double action doors
- With valve adjustable closing speed and closing action, and mechanical controlled backcheck
Dorma 8550 Transom Closer Pivot Timber
65310300
Features:
- The Dorma RTS85 floor pivot suits side-load installation
- Used on timber doors, floor portion is fitted directly to the floor
Dorma Transom Closer Arm w/ Bracket
85210005
Features:
- A standard side load top le allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.

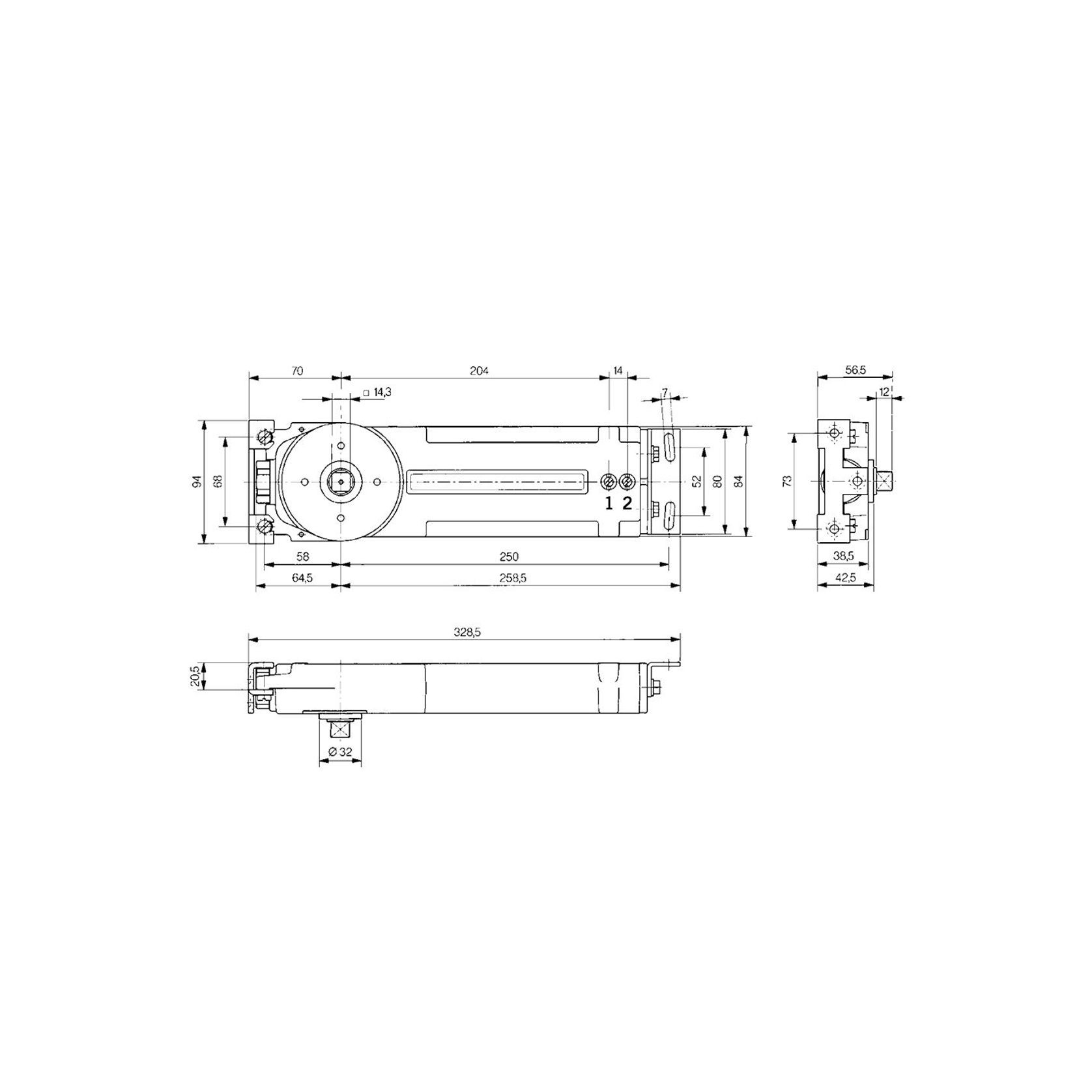

- Specs
Dorma Transom Door Closer EN3 Non Hold Open Body Only
RTS85Specifications:
- Length: 323mm
- Width: 90mm
- Height: 38mm
- Weight: 4.7kg
- Max. Opening Angle: 130 degrees
- Door Width: 950mm
- Leaf Weight: 110kg
Dorma RTS85W Transom Coverplate Satin Stainless Steel
10000051ASpecifications:
- Satin Stainless Steel Cover plate
- Suits Dorma TS85 transom closers
- To suit steel and wooden door frames
Dorma 8550 Transom Closer Pivot Timber
65310300Specifications:
- Suits Bottom Rails with Channel Depth: 18-20mm
- Height: 27mm
- Scope of use
Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

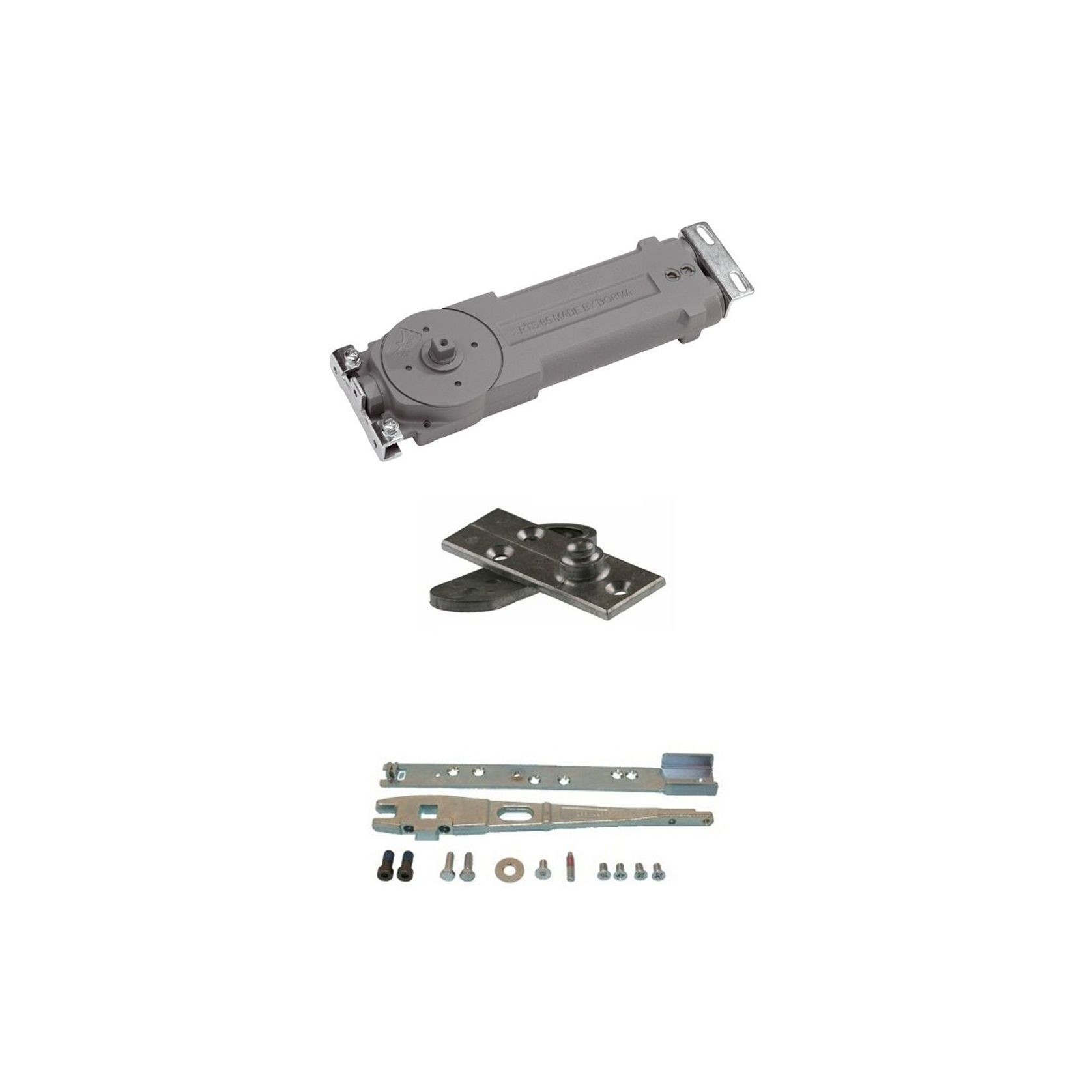

- What's in the box
Includes:
- 1 x Dorma RTS85W Transom Coverplate Satin Stainless Steel (10000051A)
- 1 x Dorma Transom Door Closer Body RTS 85 EN3 (85311101)
- 1 x Dorma Transom Closer Arm w/ Bracket (85210005)
- 1 x Dorma 8550 Transom Closer Pivot Timber (65310300)
