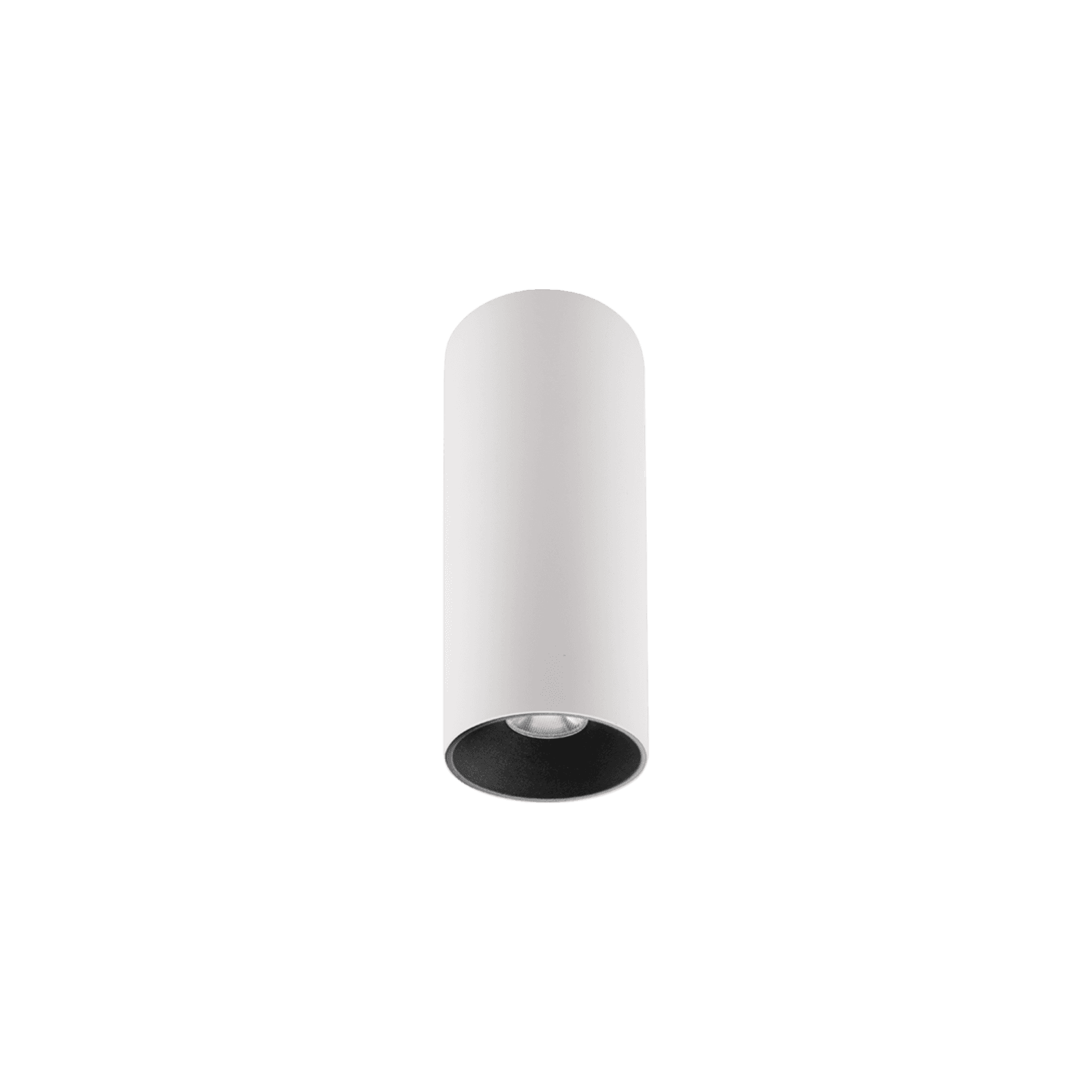

Meko-SM80
23W Fixed Surface / Suspended Mounted Downlight
Surface mounted LED architectural luminaire providing optimised and efficient performance. Features a deep-set light source, symmetrical distribution and IP44 rating. A small, discrete and minimal fitting that’s big on performance, it comes surface mounted as standard with an optional wire or rod suspension to suit a range of applications. Features a die-cast aluminium baffle with an aluminium outer body.
Available in a standard matt white or black body with a white, black or gold finished baffle. Custom colours are also available on request. Integrating CREE COB LED technology, a non-dimmbale driver as standard with optional DALI-2 or BLE (Bluetooth) dimming, the Meko series comes with a 5 year warranty.
- CategoryDownlights
- RangeDownlights
- Warranty5 years
Technical Specifications
Wattage: 23W (System 25W)
Luminous Flux: 2228-2616 Lm
Luminaire Efficacy: 90.26 Lm/W
CCT:
- 3000K
- 4000K
CRI: >90
Beam:
- 15°
- 25°
- 40°
Colour Deviation: 3-SDCM
UGR: <19
Size: Ø80mm x Height 230mm
Dimming:
- Non-dimmable
- DALI-2
- BLE (basicDIM Wireless / Casambi)
Longevity: >50,000Hrs L80 B10
Finish Options:
- White
- Black
- Custom
Baffle Colour:
- White
- Black
- Gold
Warranty: 5 Years
Accessories / Options:
- Wire Suspension Kit
Part No: SUSKIT-3M-SIL
Colour: Silver
Length: 3m Adjustable - Wire Suspension Kit
Part No: SUSKIT-3M-BLK
Colour: Black
Length: 3m Adjustable - Rod Suspension Kit
Part No: ROD-SUS-KIT-1M-WHT
Colour: White
Length: 1m Adjustable - Rod Suspension Kit
Part No: ROD-SUS-KIT-1M-BLK
Colour: Black
Length: 1m Adjustable
