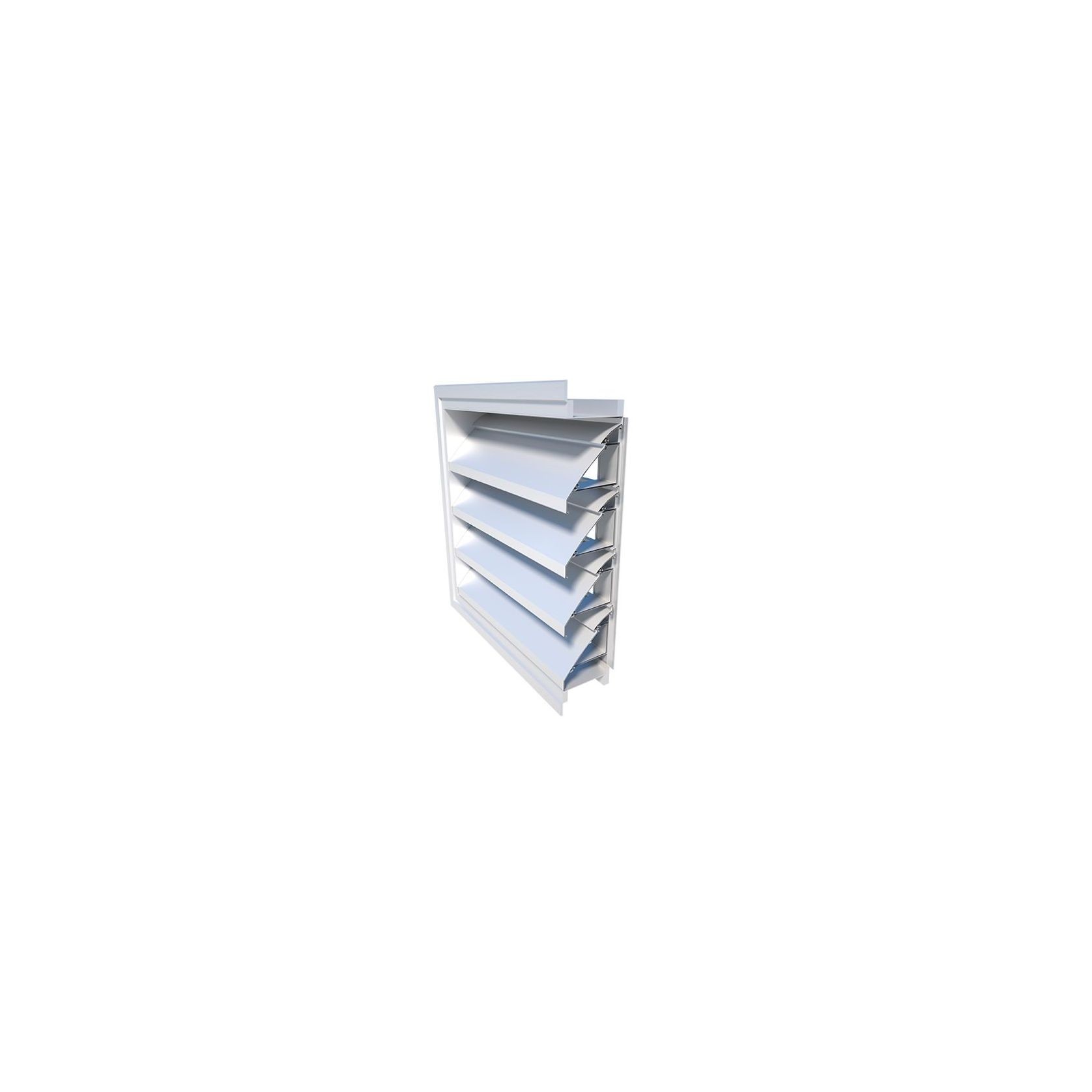

OHL-KD100 100mm Knockdown Weather Louver

Auckland

432.1K profile views
27 saves

The Holyoake OHL-KD (Knock Down) is an attractive high-performance louver featuring on-site assembly at the point of installation. The system is ideally suited for larger louvers and difficult on-site installation. The on-site assembly system of the OHL-KD eliminates expensive transport and lifting machinery that would otherwise be involved with a pre-assembled louver installation. The flangeless framing system enables the OHL-KD to be installed in metal clad buildings with ease. The louver penetration surround should be formed and flashed by the cladding contractor before the OHL-KD louver system is assembled in situ. Similarly, the framing system is ideal for masonry and other wall systems. Based on proven Holyoake louver technology the louver blade features two water stops on its front face. The blades overlap one another blocking line of sight through the louver and minimising water carryover. The system may be assembled as a continuous louver showing no visible vertical mullion support bars.

ventilation ventilation supply ventilation components ventilation systems ventilation exhaust

Product Details

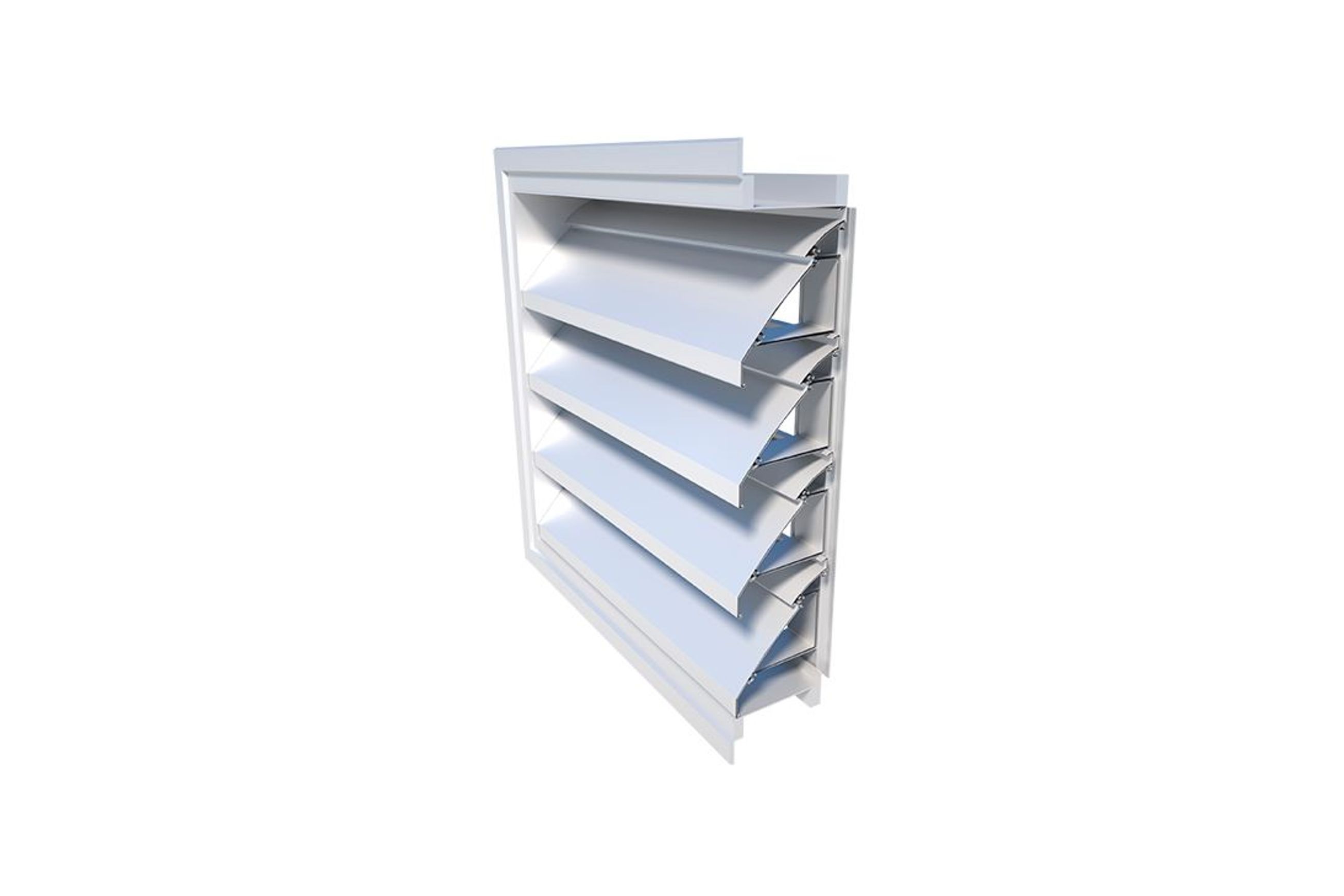

Product: OHL-KD100 100mm Knockdown Weather Louver
Category: Ventilation Components
Sold by: Holyoake Air Management Solutions
Range: Architectural Louvres
Brand: Price Holyoake
Warranty: 5 years

Holyoake Air Management Solutions is specified by

OHL-KD100 100mm Knockdown Weather Louver

The system is ideally suited for larger louvers and difficult on-site installation. The on-site assembly system of the OHL-KD eliminates expensive transport and lifting machinery that would otherwise be involved with a pre-assembled louver installation. The flangeless framing system enables the OHL-KD to be installed in metal clad buildings with ease. The louver penetration surround should be formed and flashed by the cladding contractor before the OHL-KD louver system is assembled in situ. Similarly, the framing system is ideal for masonry and other wall systems. Based on proven Holyoake louver technology the louver blade features two water stops on its front face. The blades overlap one another blocking line of sight through the louver and minimising water carryover. The system may be assembled as a continuous louver showing no visible vertical mullion support bars.

The Holyoake OHL-KD (Knock Down) is an attractive high-performance louver featuring on-site assembly at the point of installation.

Specs: The Louvre Assembly System shall be Holyoake OHL-KD 105mm dual weather stop louvre. The Louvre System shall be constructed of 6063T5 Extruded Aluminium mechanically locked together to form a solid resilient structure suitable for site installation. The System shall capable of continuous assembly with no visible vertical mullion supports. The OHL-KD Louvre assembly system shall be fitted with Bird Wire screen. Louvre systems shall be finished in natural anodised or powdercoat and fitted with accessories and dampers where indicated as manufactured by Holyoake. Bird wire or insect screens are optional.
Features: Attractive curved blade profile.

Obstructed line of sight.

Dual weather stop blade.

Available in a knock down kit for assembly on site.
Scope of use: For louvers to large to be moved around or transported to site and require to be made in pieces and assembled on site.
