HB1020 Rectangle Frameless Extraction Grill
Victoria
- 674.9K profile views
- 58 saves
HB1020/250 Frameless Rectangular Grill vents for flush mounting to ceiling plaster board (10mm or 13mm), where venting is required.
With a plaque size of 460 x 120 the HB1020 grill is designed to fit small or odd-shaped spaces in bathrooms and laundries. The HB1020 is designed for flush mounting to ceiling plaster board (10mm or 13mm). The framework is square stopped into the ceiling/wall and central plaque fixings are not seen.
Once the unit is plastered in place the flexible duct is pulled down through the hidden frame and attached to the spigot at the back of the central plaque. The white powder coated surface of the plaque is level with the ceiling and can be lightly sanded and repainted to match the ceiling colour if required.
Product Details
- Product
- HB1020 Rectangle Frameless Extraction Grill
- Category
- Ventilation Grills
- Sold by
- Halliday + Baillie
- Range
- Ventilation Grills
- Designer
- Halliday + Baillie
- Brand
- Halliday + Baillie
- Country of origin
- New Zealand
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation required
- Assembly
- Professional assembly required
Product specified by
HB1020/250 Frameless Rectangular Grill vents for flush mounting to ceiling plaster board (10mm or 13mm), where venting is required.
With a plaque size of 460 x 120 the HB1020 grill is designed to fit small or odd-shaped spaces in bathrooms and laundries. The HB1020 is designed for flush mounting to ceiling plaster board (10mm or 13mm). The framework is square stopped into the ceiling/wall and central plaque fixings are not seen.
Once the unit is plastered in place the flexible duct is pulled down through the hidden frame and attached to the spigot at the back of the central plaque. The white powder coated surface of the plaque is level with the ceiling and can be lightly sanded and repainted to match the ceiling colour if required.
- Features
- Frameless design for a clean, flush ceiling finish
- Paintable face panel to match surrounding ceiling surfaces
- Compatible with 10 mm and 13 mm plasterboard ceilings
- Connects to standard 150 mm ducting
- Suitable for use with most mechanical extract fan systems
- Low-profile rectangular opening for discreet air extraction
- Durable powder-coated construction with black internal housing
- Simple installation and easy access for maintenance
- Frameless design for a clean, flush ceiling finish
- Scope of use
The HB1020 is a frameless, flush-mounted ceiling grill designed for discreet extract ventilation in bathrooms, laundries, WCs, and other small service spaces. It is suitable for residential and commercial interiors where a minimal, integrated ceiling detail is preferred.
The unit installs into 10 mm or 13 mm plasterboard ceilings, accepts 150 mm ducting, and is used in conjunction with a separate extract fan (not included). The paintable face panel allows the grill to blend seamlessly with surrounding ceiling finishes.
- Specs / Details

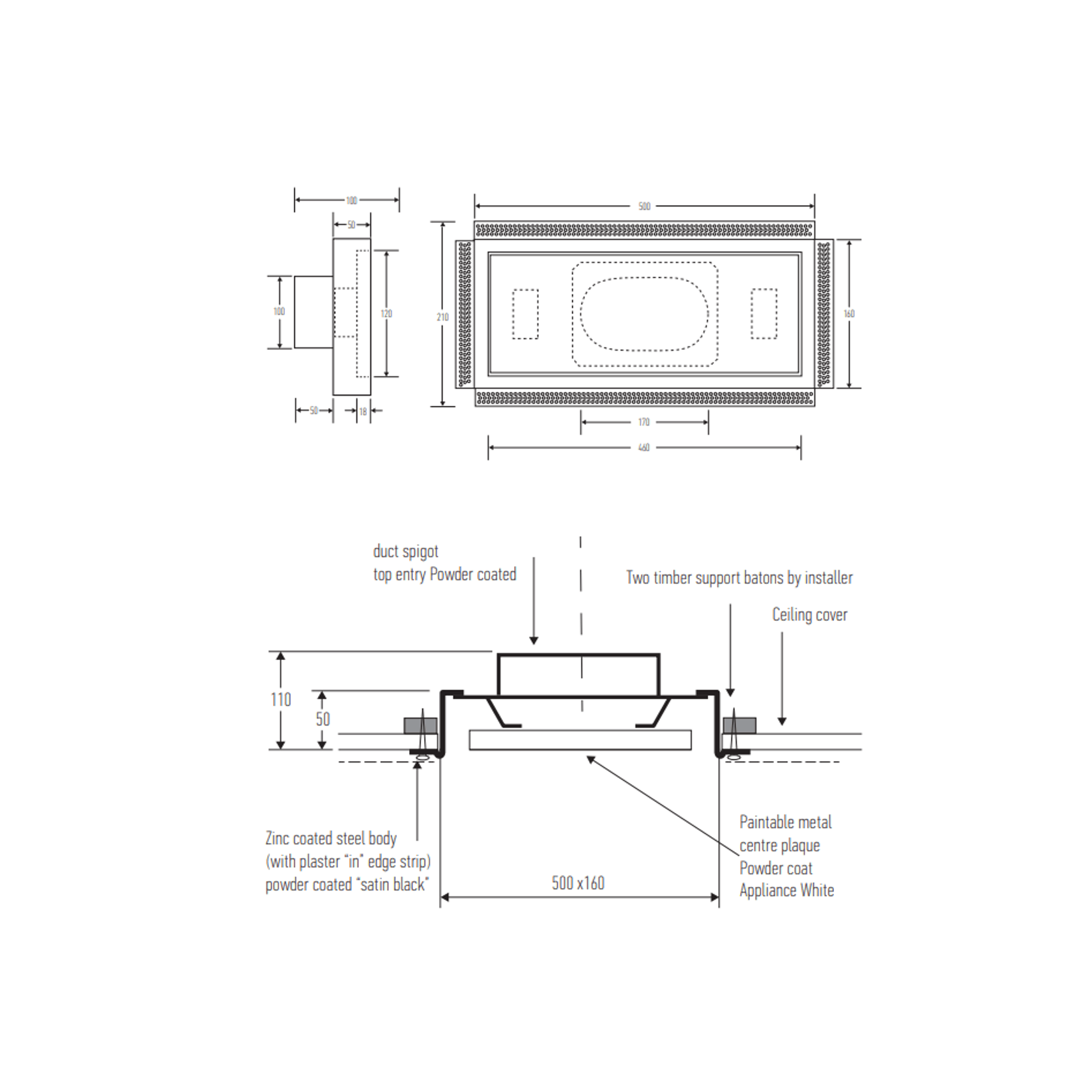

Visible “plaque” size (centre panel): 460 mm × 120 mm
Overall size (outside trim): 500 mm × 160 mm
Standard top exit spigot : 150mm Powder coated steel body and plaque.
Body colour : satin black powder coat
Plaque colour : appliance white powder coat
