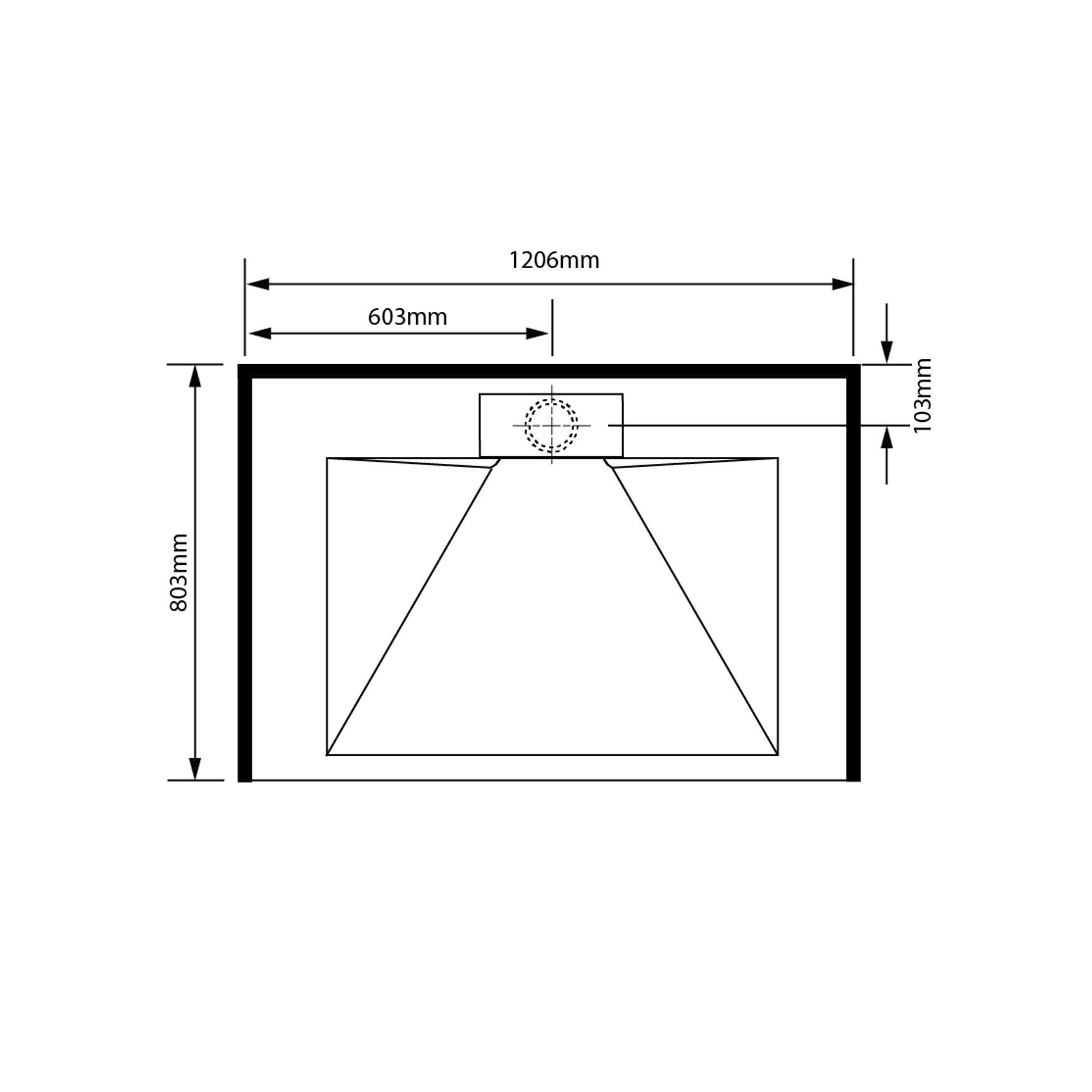

Pinnacle Alcove Tray 800x1200x800

800x1200x800 Alcove trays are the ultimate space saver, providing ample width, but limiting your showering area projection into the rest of the bathroom.

SEAMLESS DESIGN

Symphony Pinnacle trays feature a hidden waste design. An easy clean waste is hidden under a cover lid. Water exits the tray via a waste “slot” and when cleaning is required, the lid easily lifts up revealing the waste and the removable waste bucket.

WATERTIGHT STRENGTH

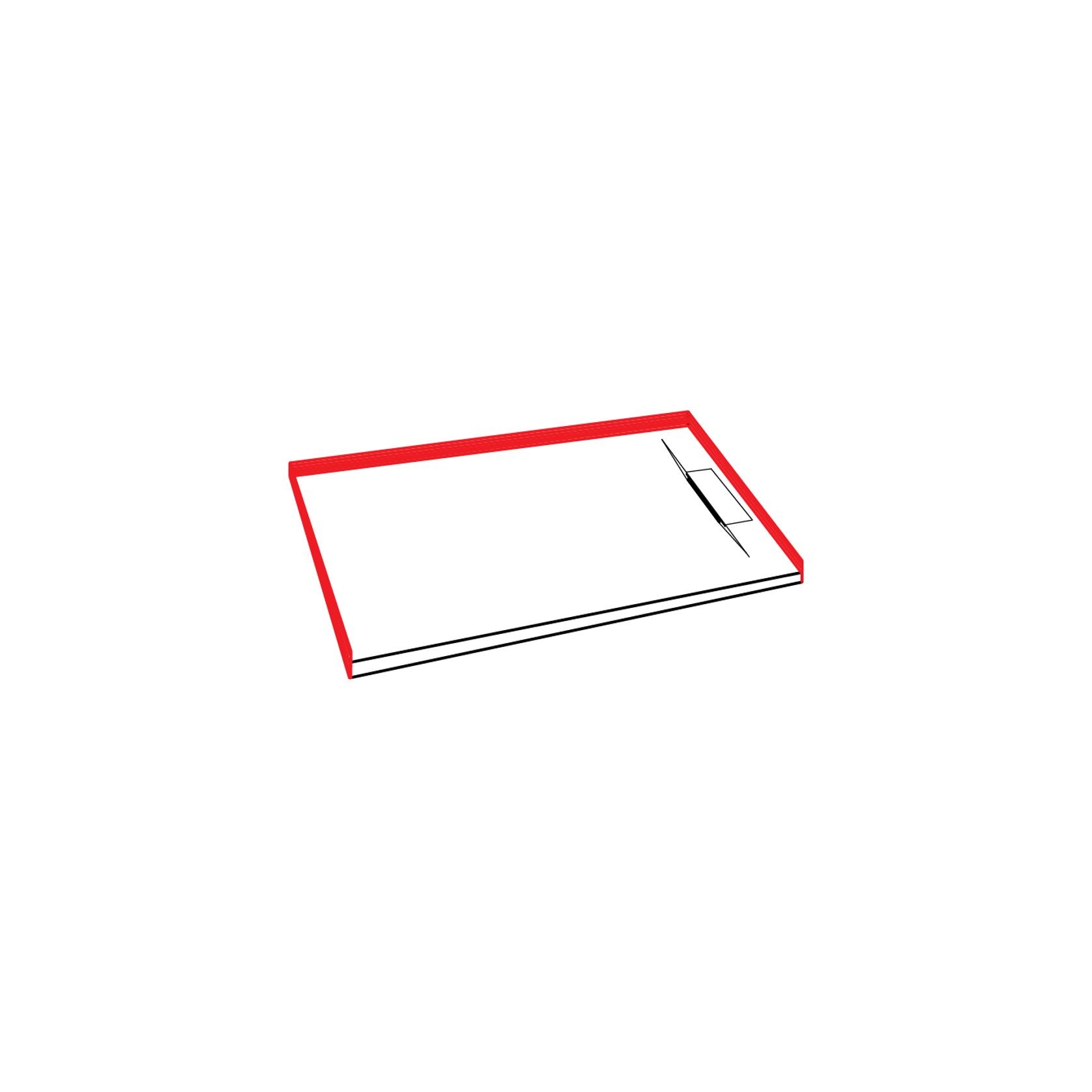

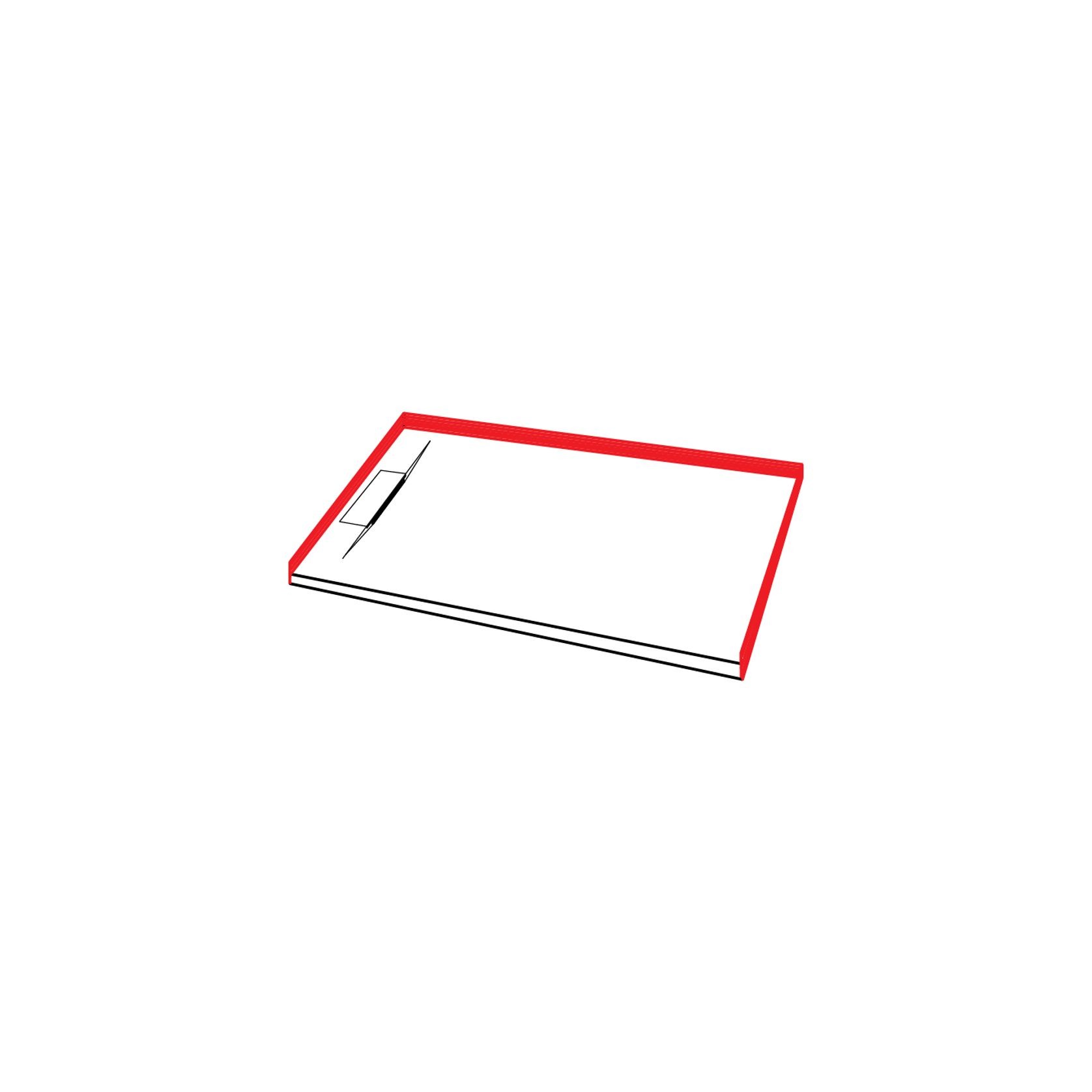

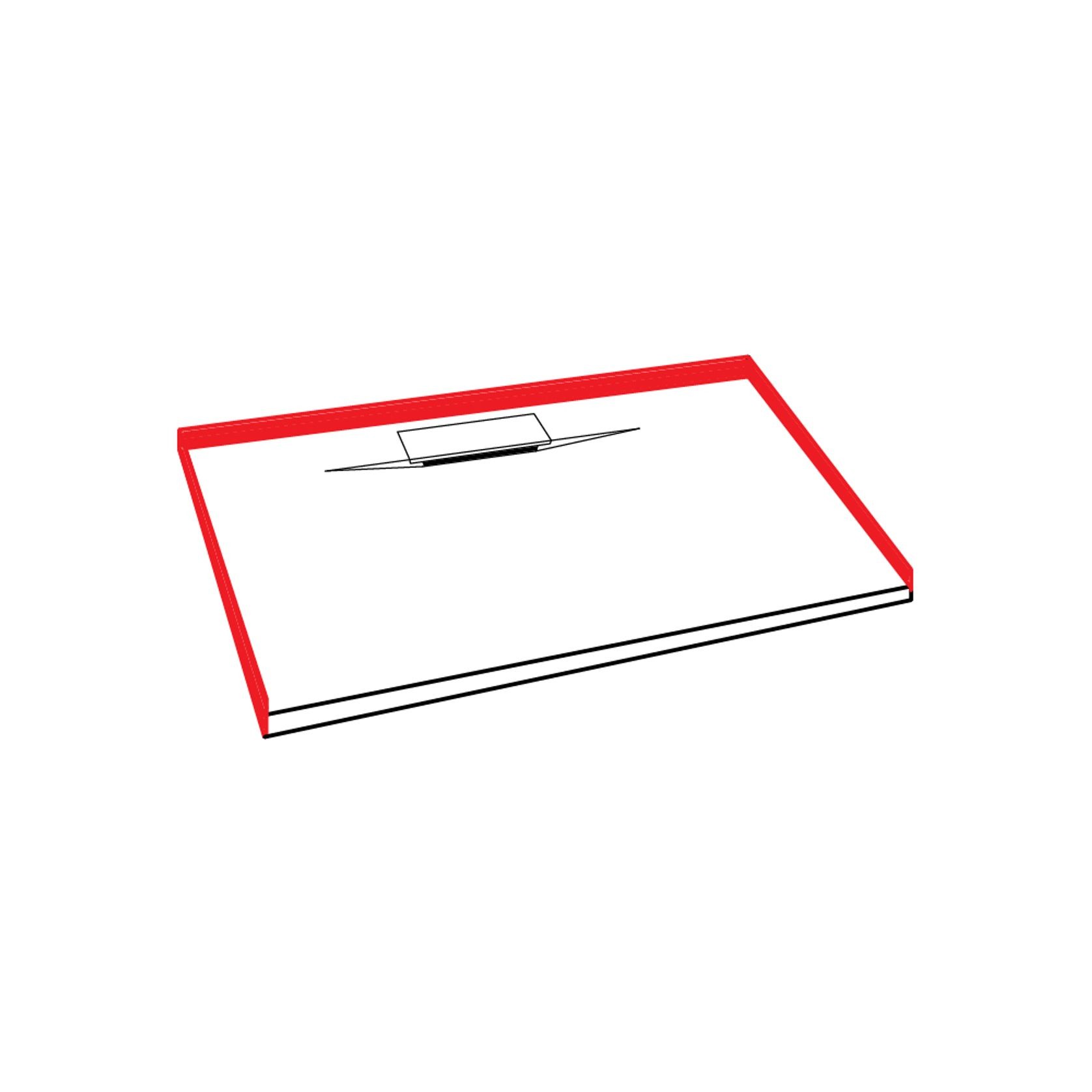

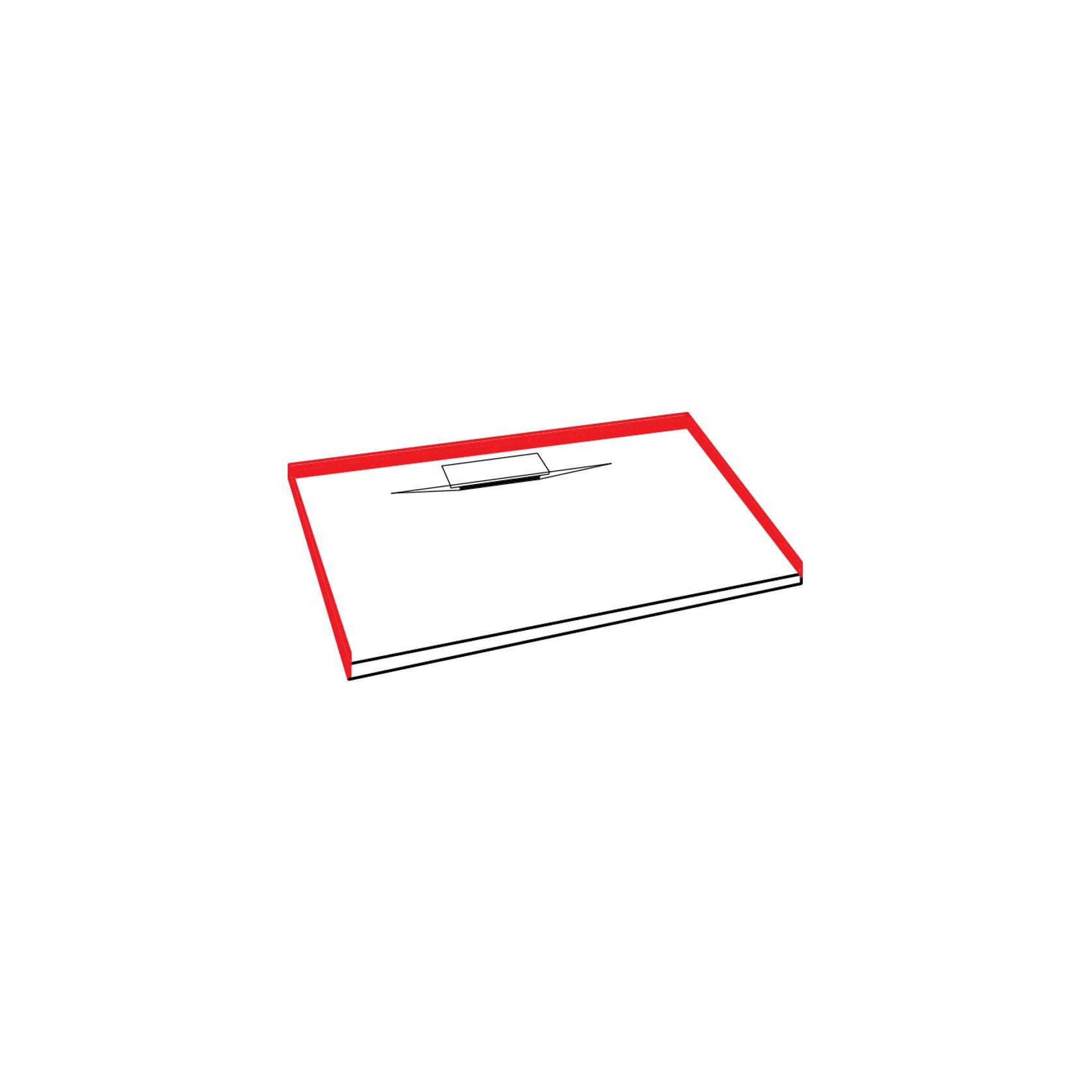

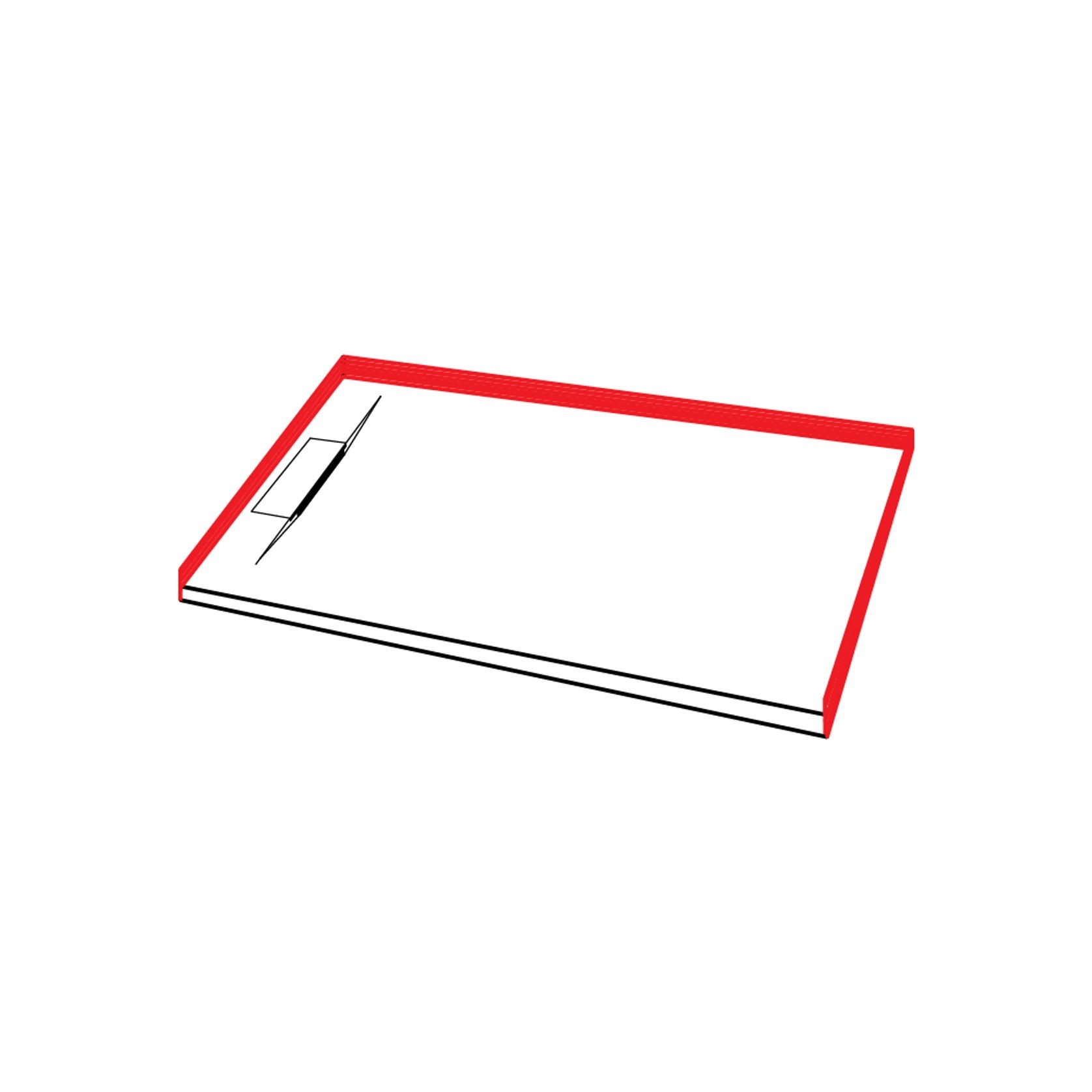

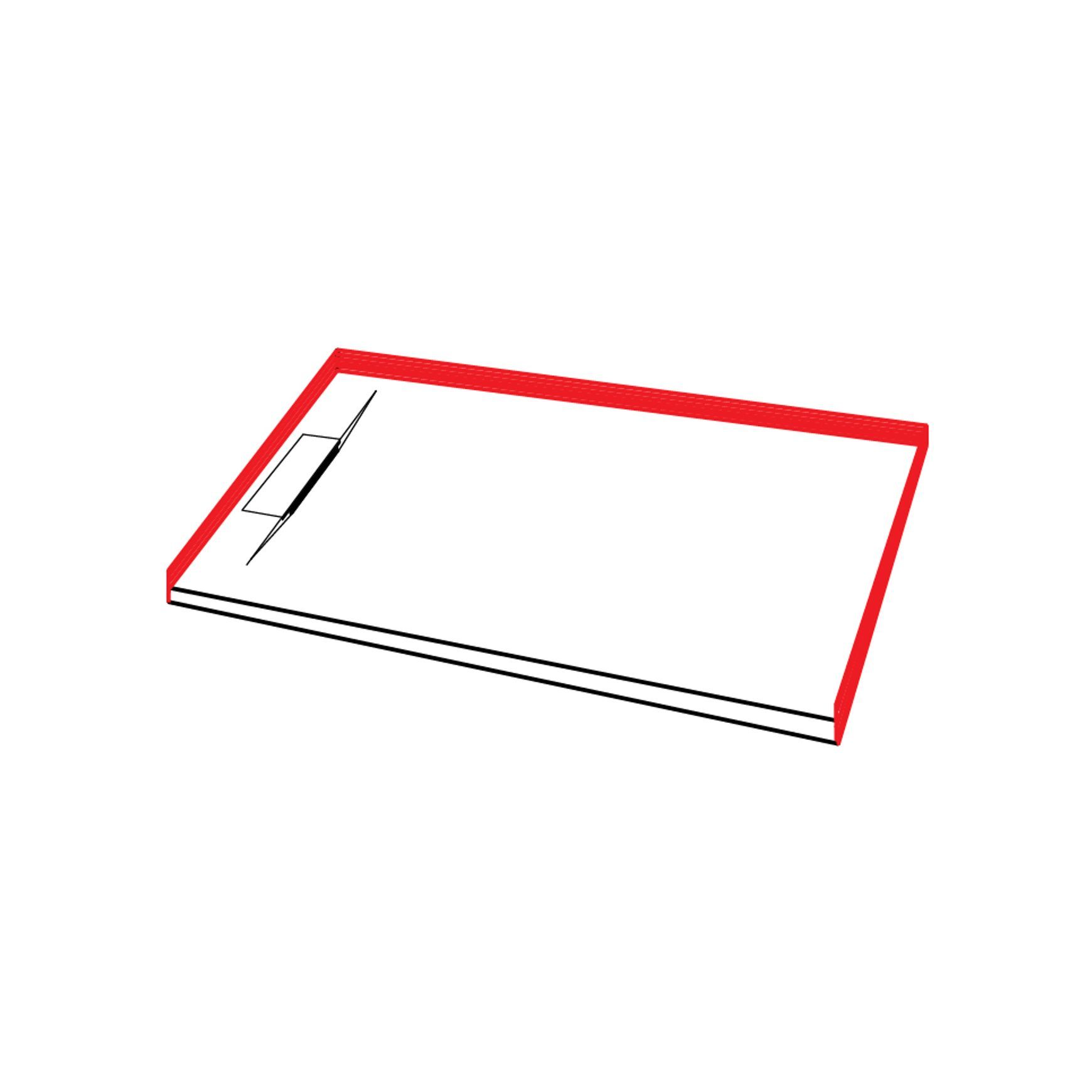

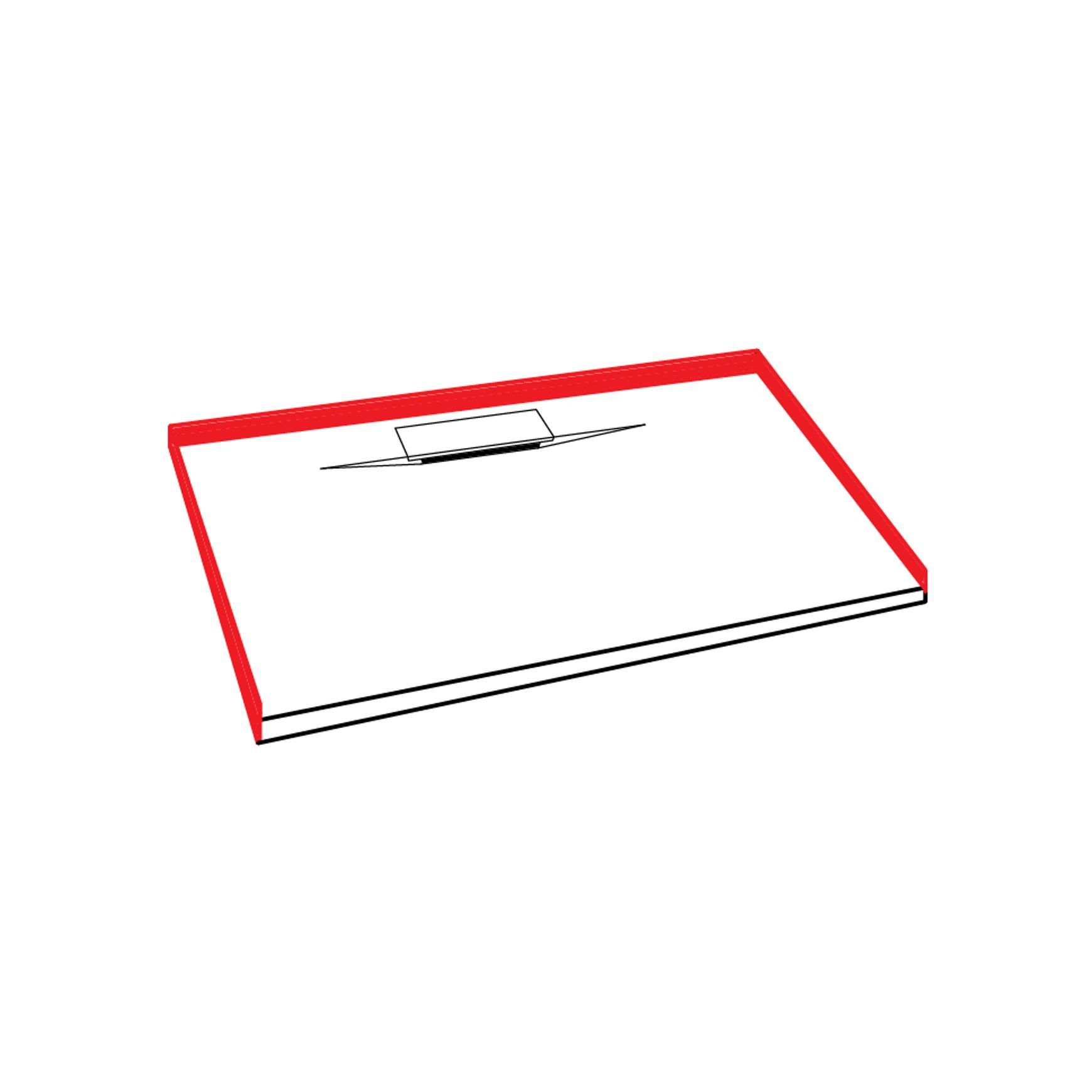

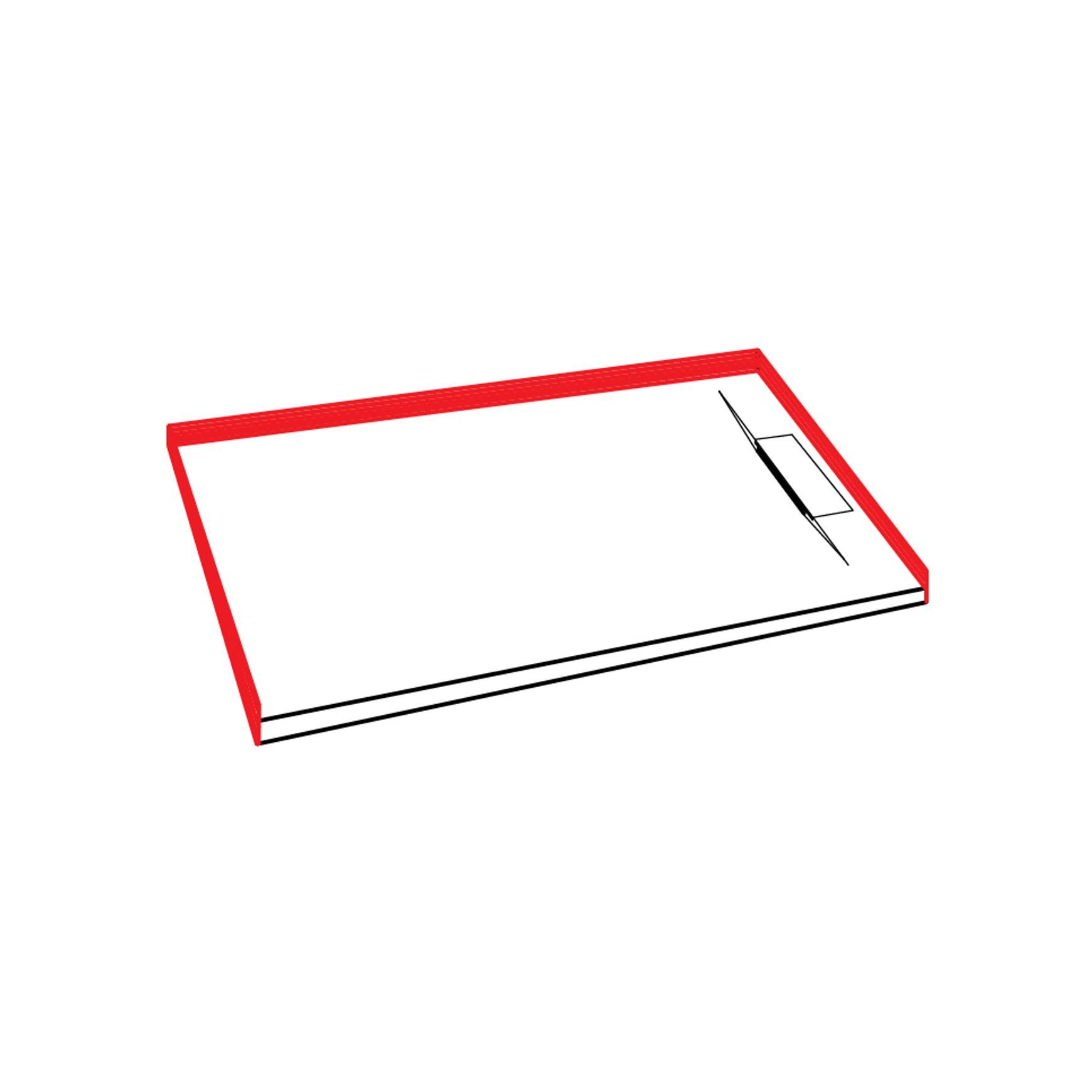

Watertightness is just as important as strength. That’s why Pinnacle trays feature factory-fitted 30mm high Aluminium Upstands which feature horizontal ribs to aid sealant or waterproofing material retention.

LOW PROFILE

Pinnacle trays have an ultra low height profile of 26mm. This could easily be lowered with flooring installation up to the side of the tray. Pinnacle trays can also be recessed into the floor if required.

DURABLE AND SAFE

SMC is a composite material made from resin, fillers and glass fibre. The material is poured into precision alloy moulds at over 150°C and compressed, leaving a precise, solid form which will not distort, discolour, or break down after years of use.

The surface is finished to mimic natural slate, which also provides a non-slip finish for added safety.

Details
  • Category
    Shower Trays & Drains
  • Range
    Pinnacle
  • Brand
    Symphony Showers
  • Warranty
    10 years
Features

Limited projection into bathroom

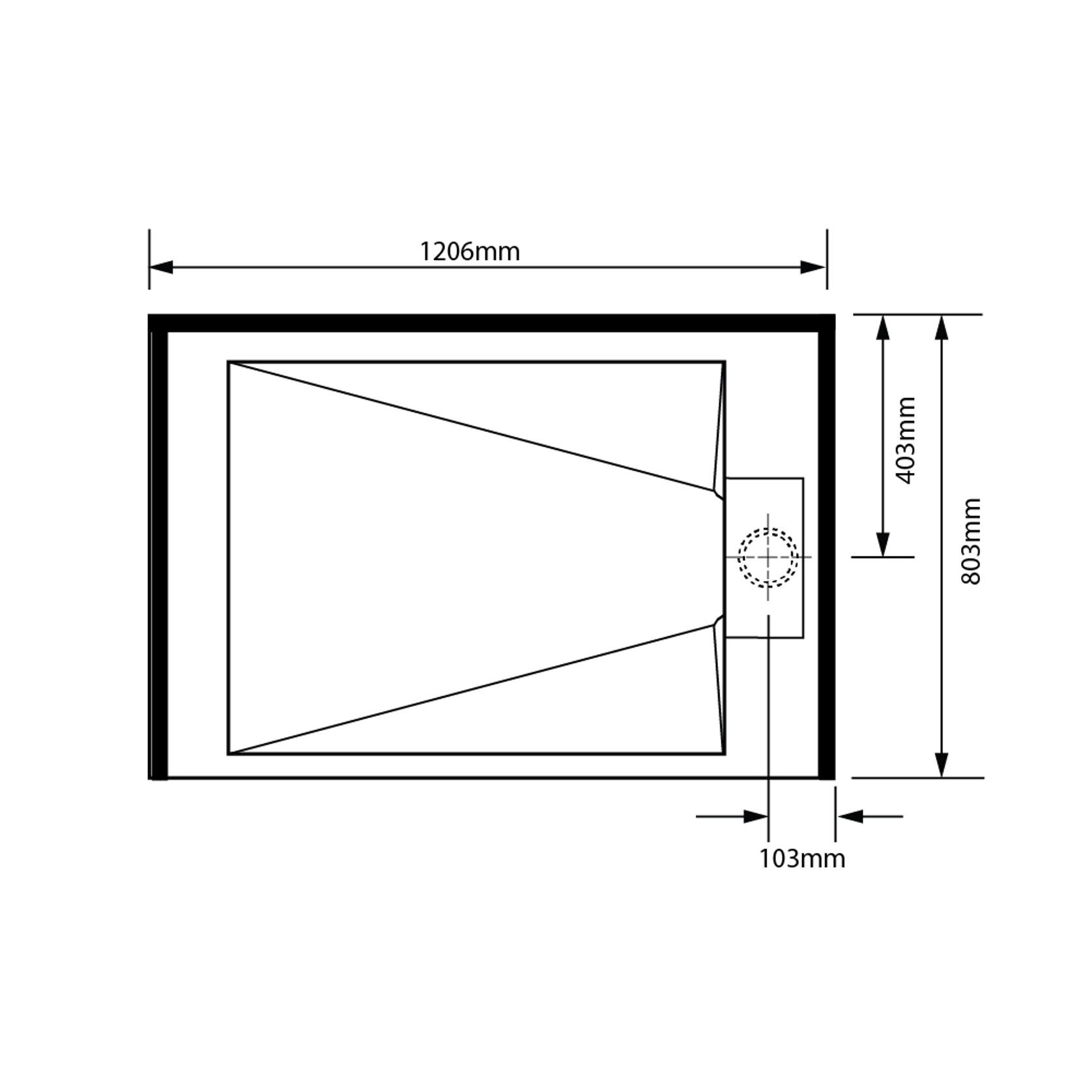

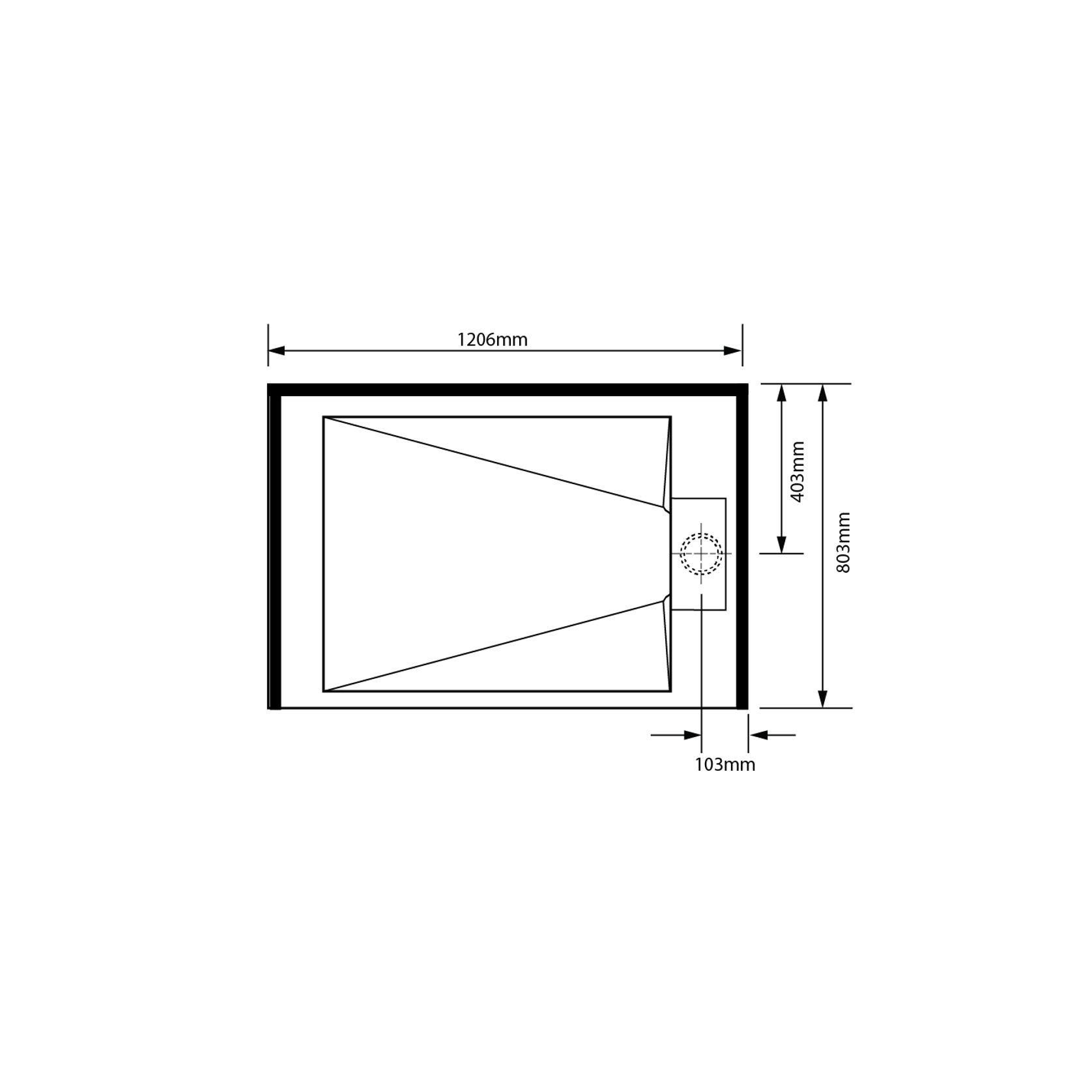

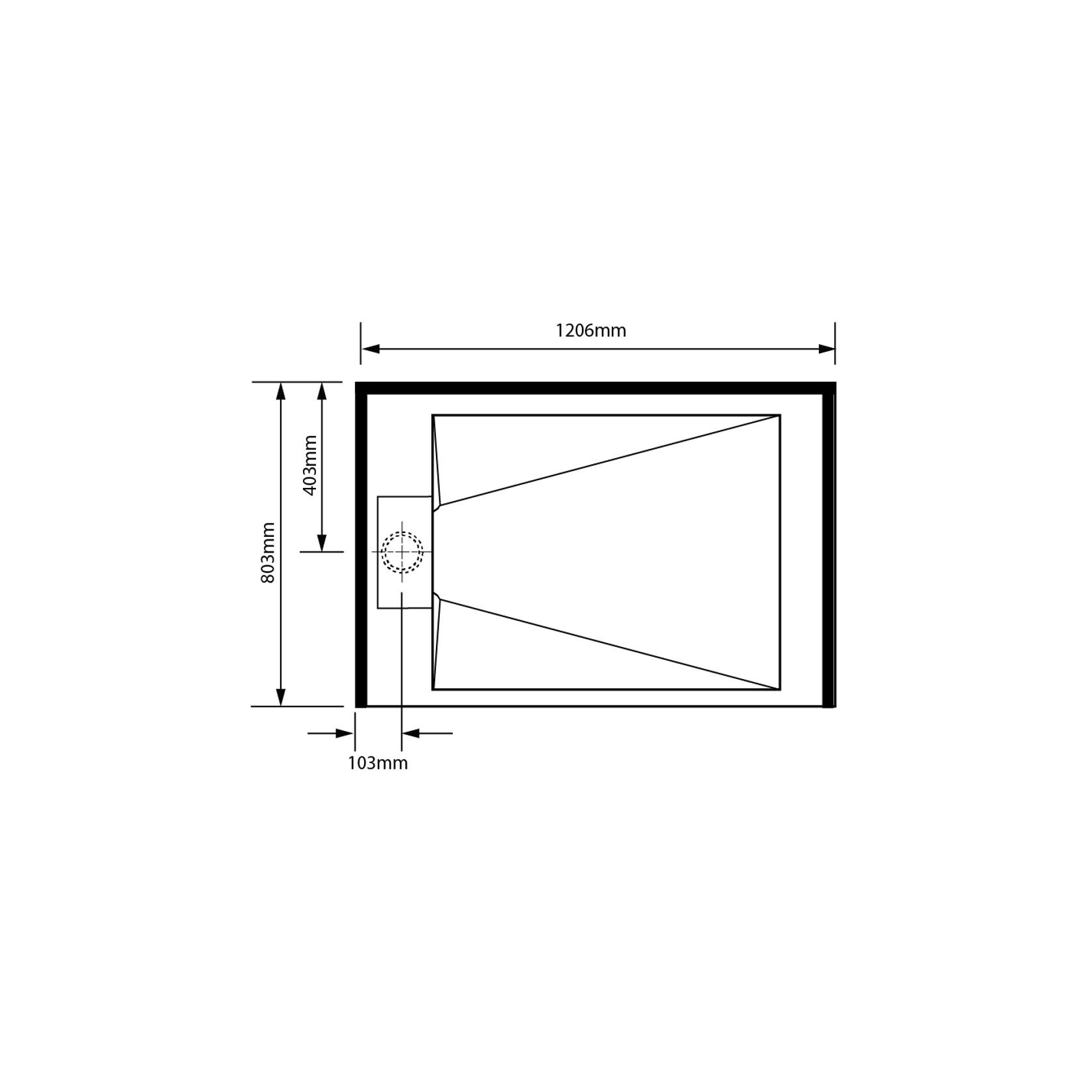

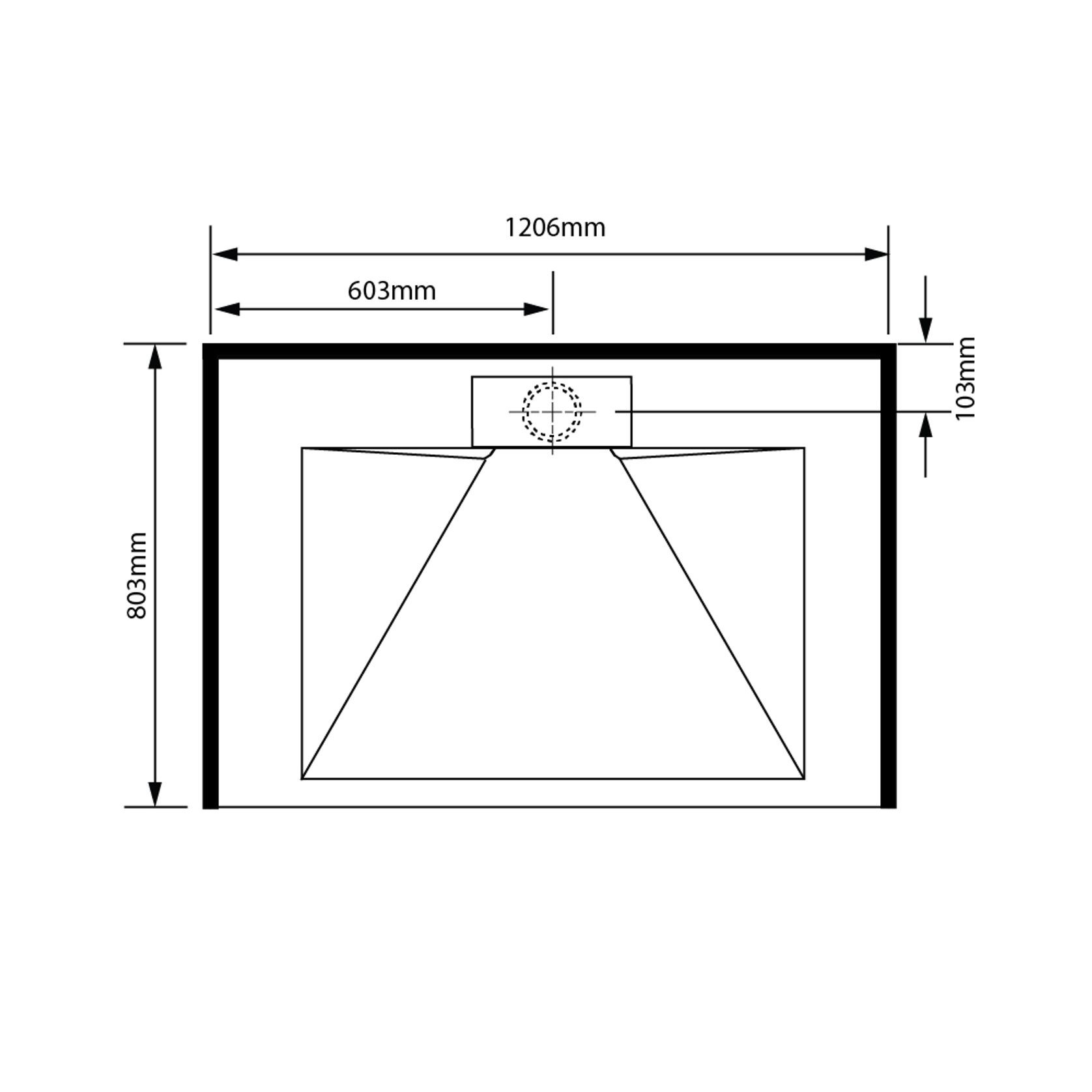

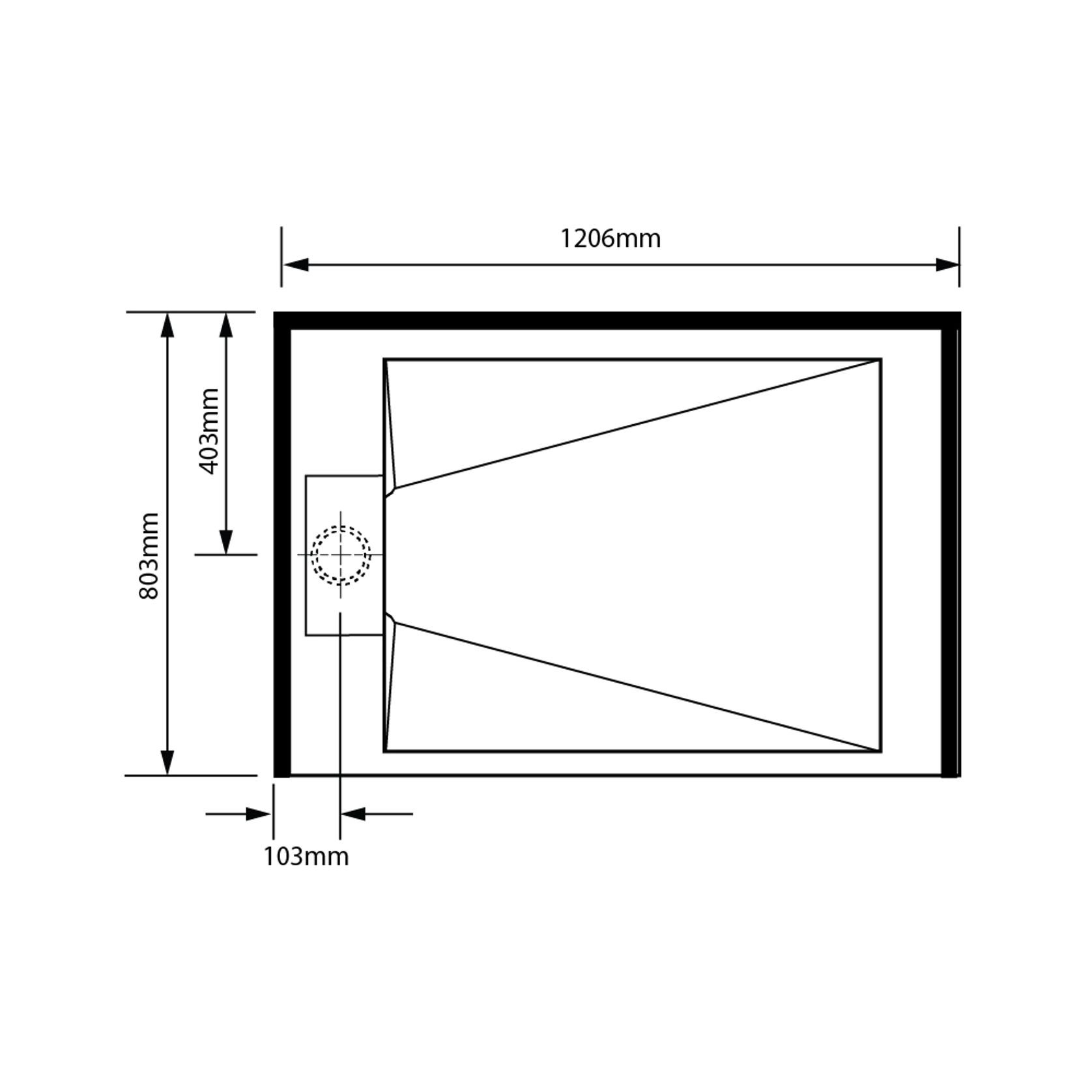

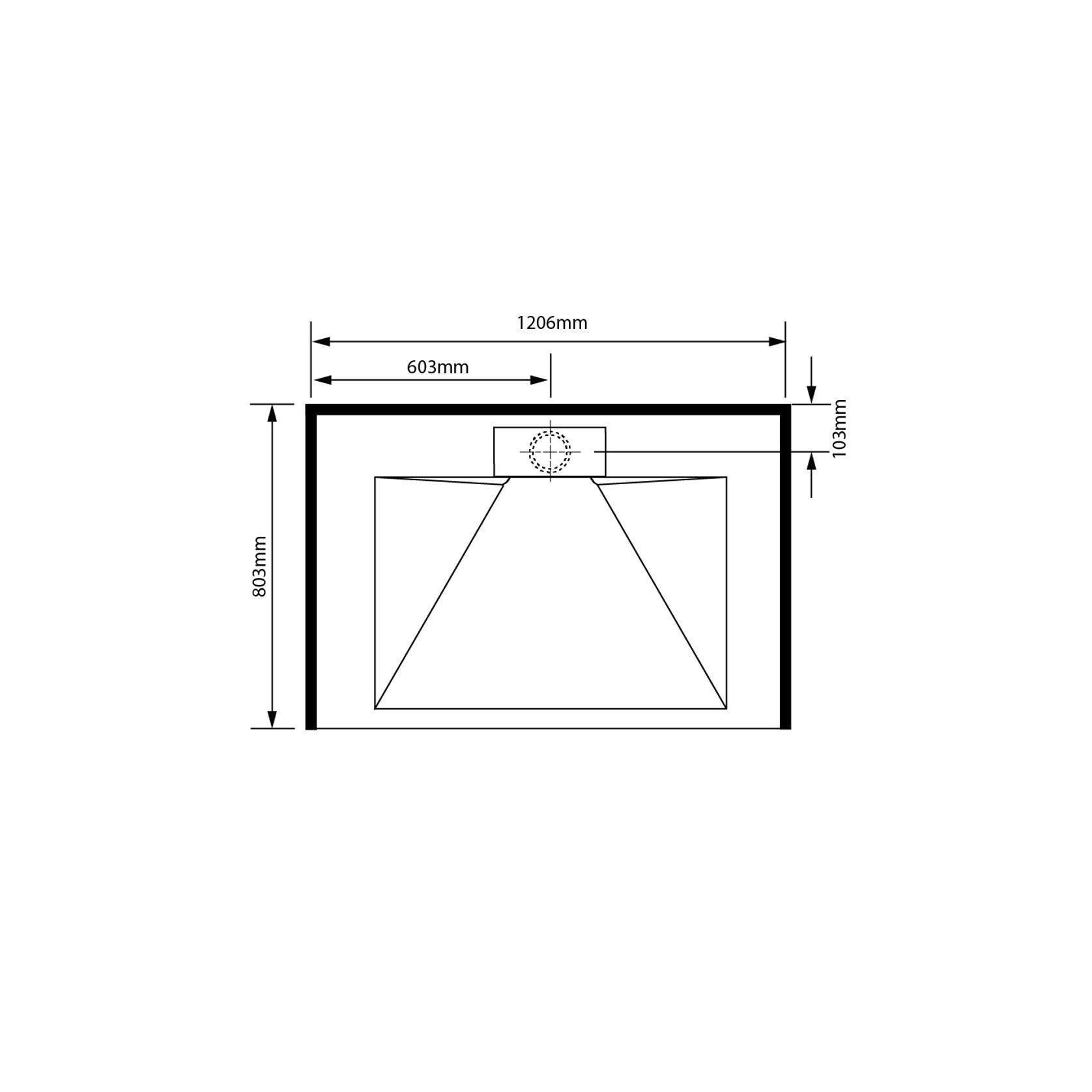

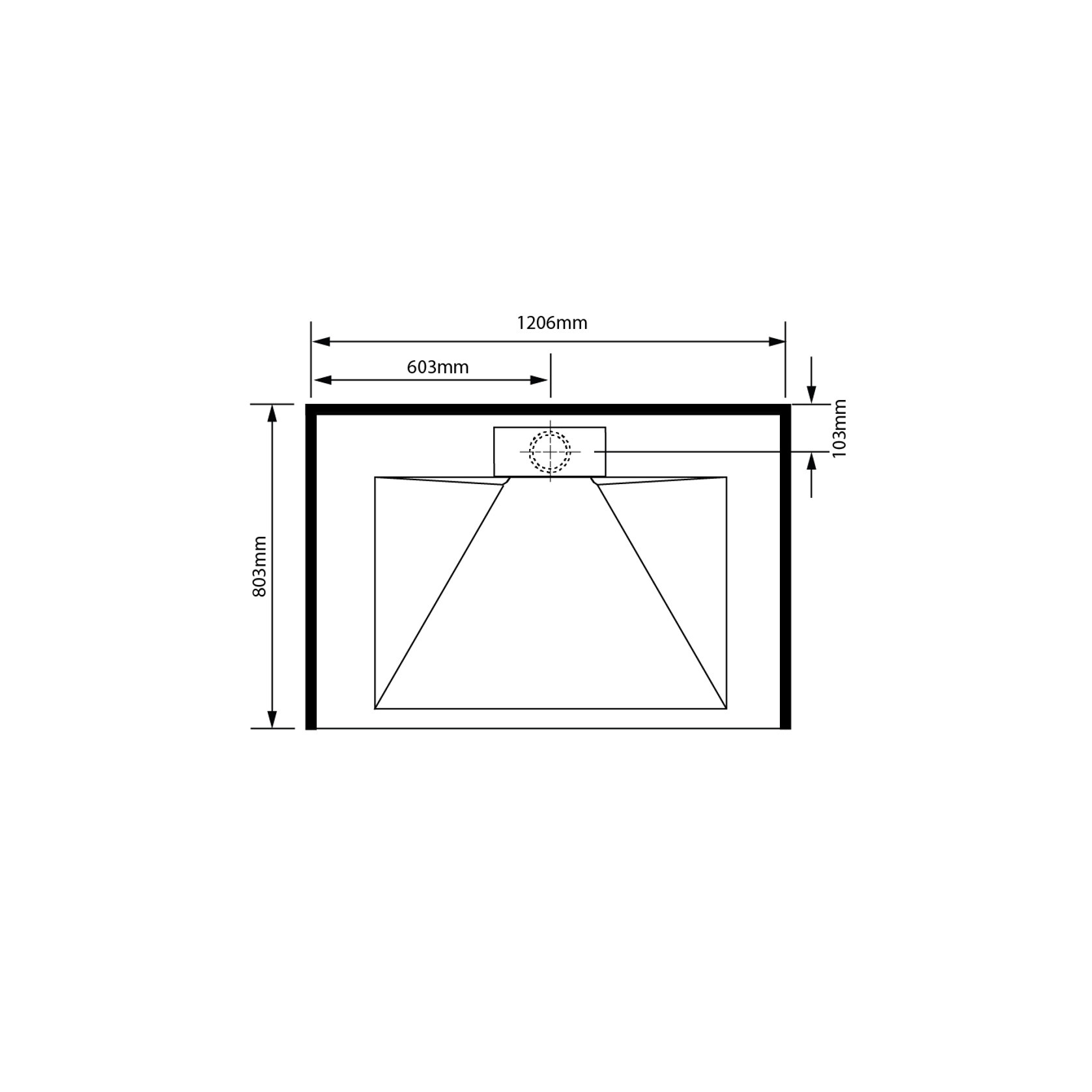

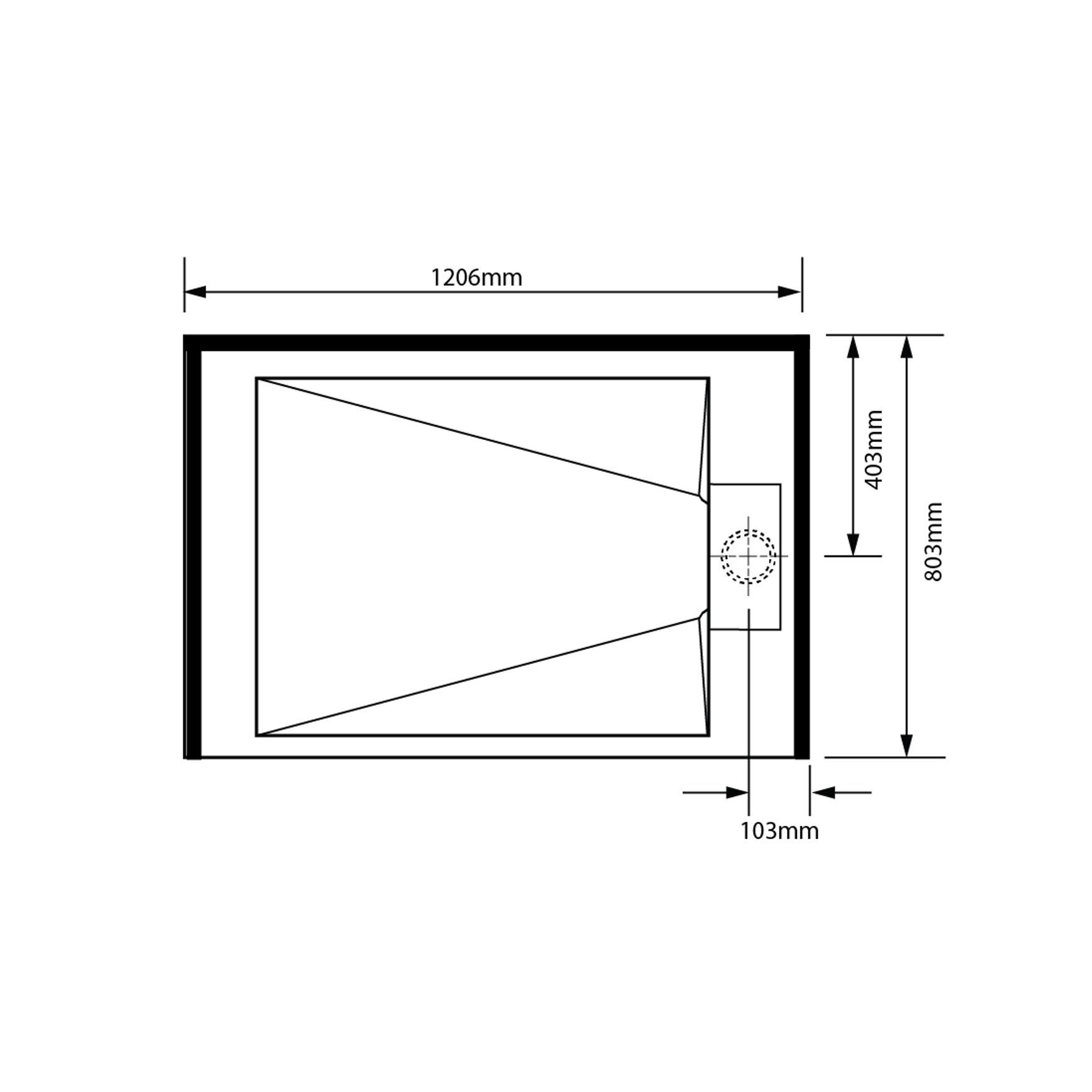

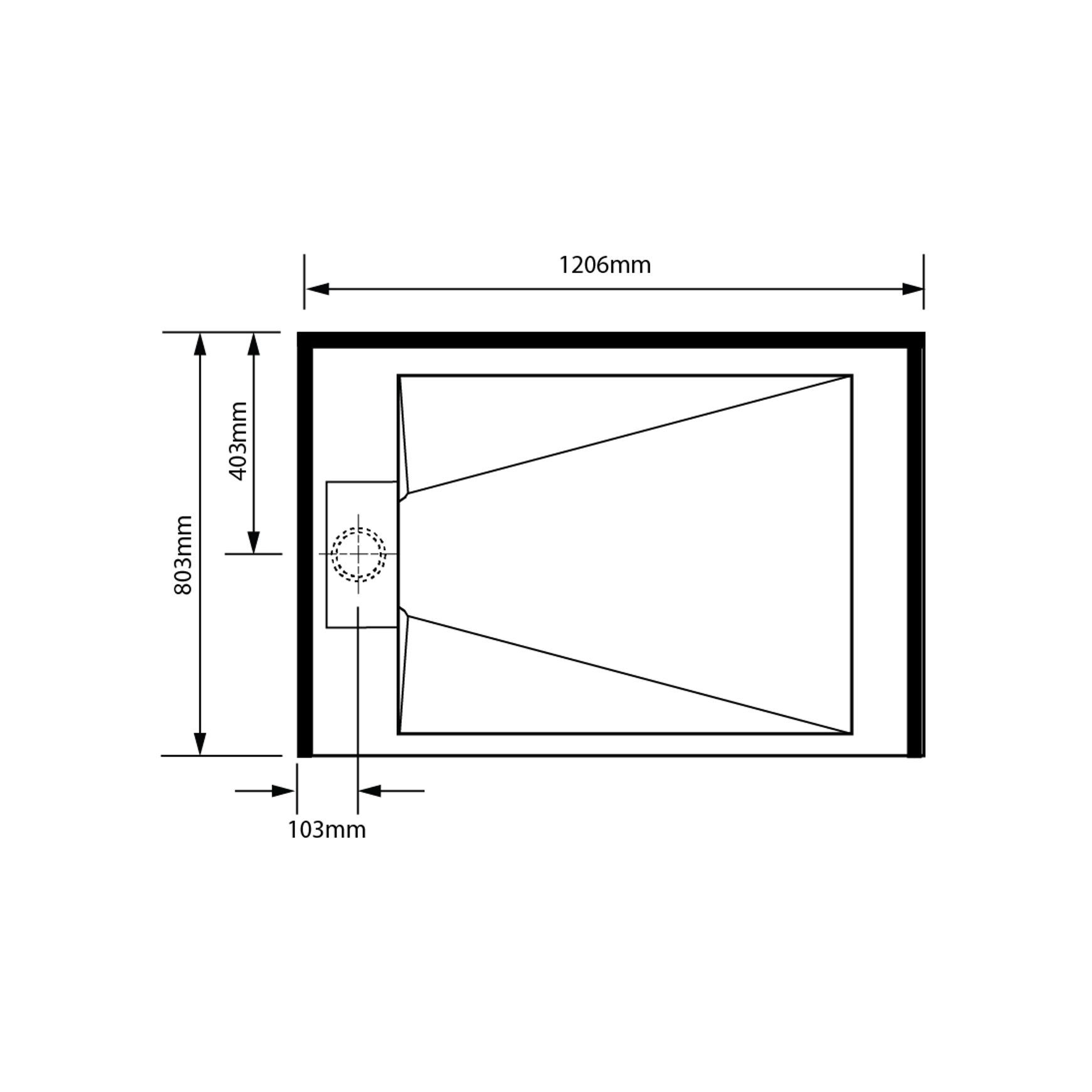

  • 3 waste outlet options
  • Ultra low 26mm profile
  • Suitable for pivot and sliding doors
  • Perfect replacement for a 3-sided Shower Enclosure
Tray Upstands

The tray upstands are factory fitted in New Zealand using quality Sika product so please allow a minimum of 15 working days for manufacture (plus 5 to 10 working days for delivery).

SKU: PT8X12X8RCWBL
