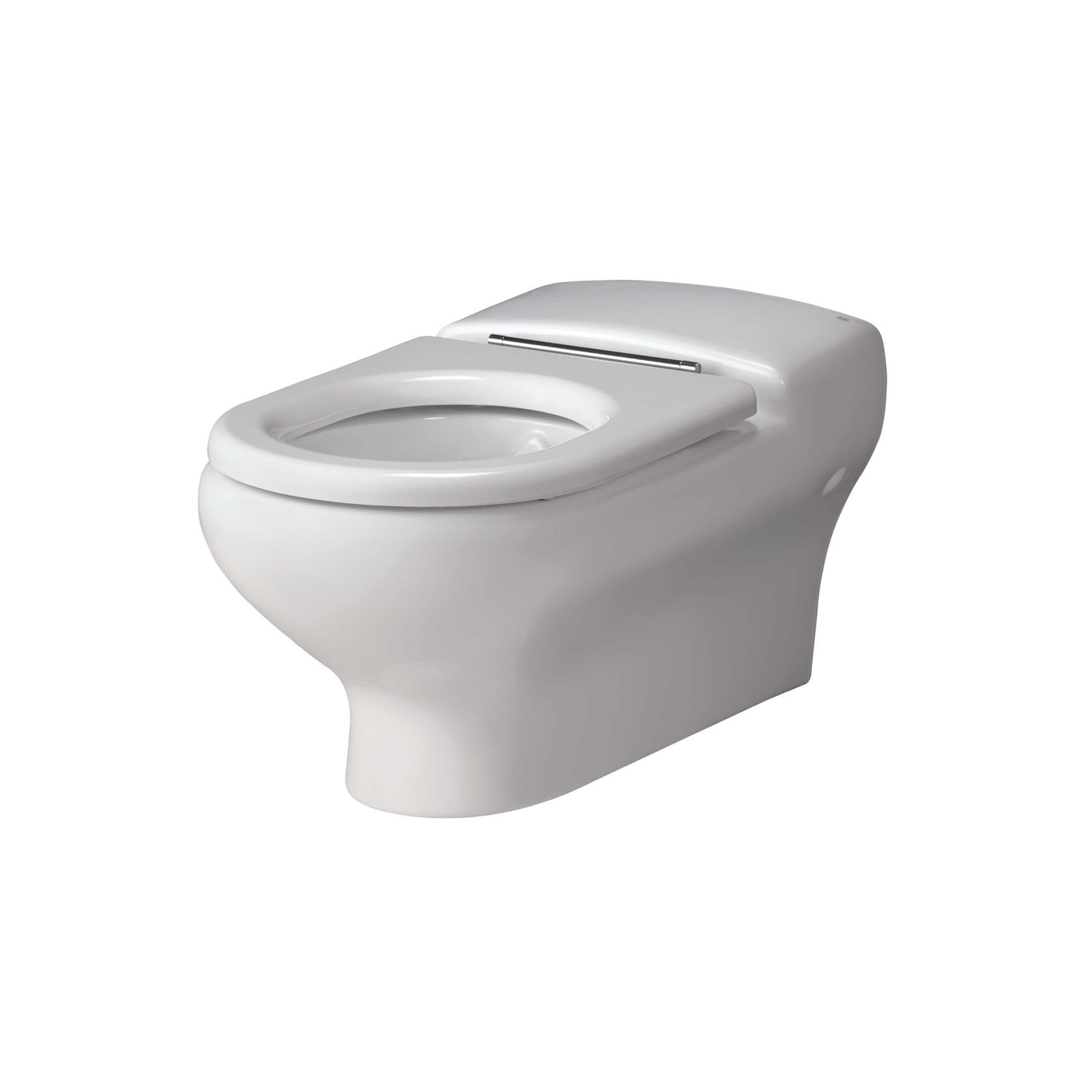

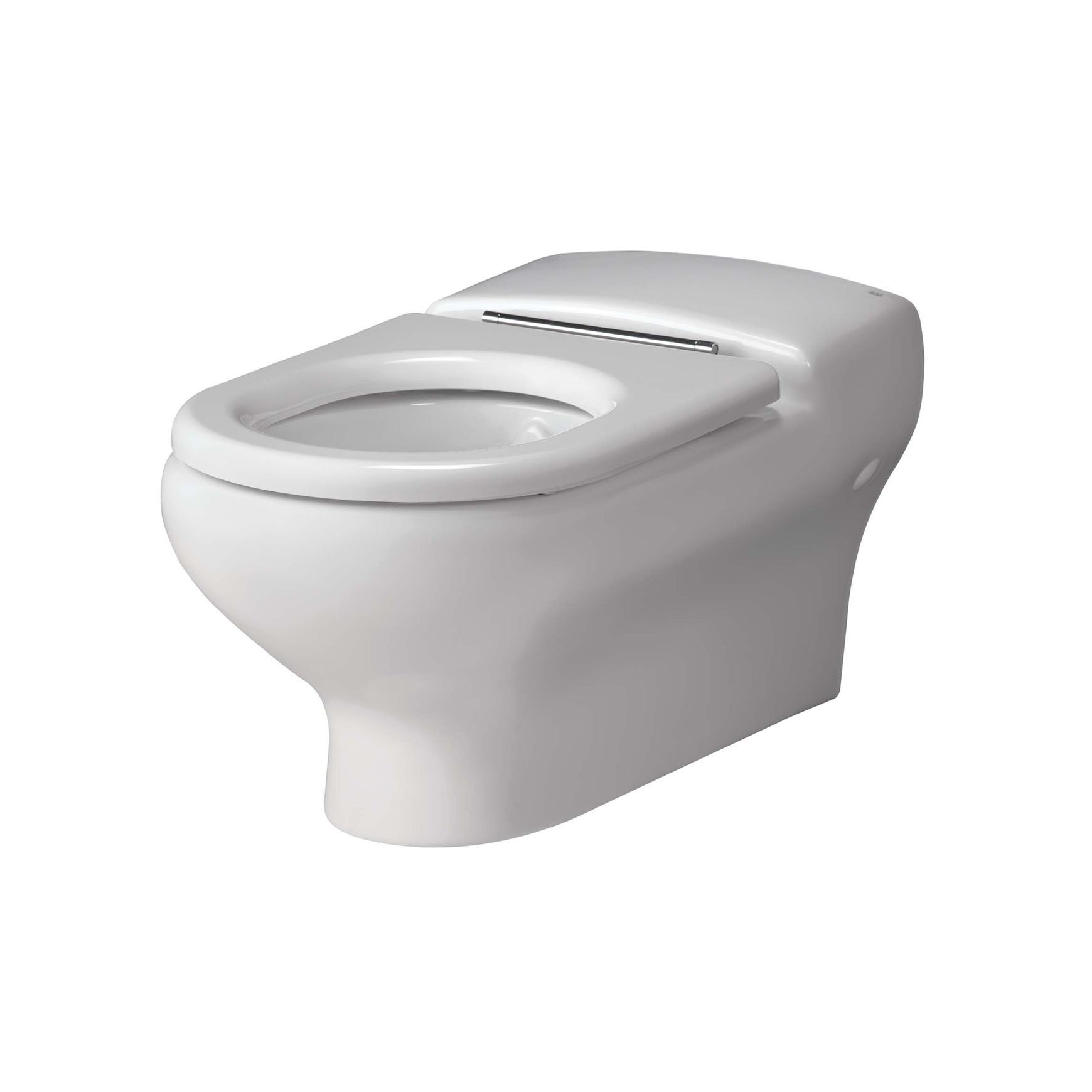

RAK Compact Accessible Wall Hung Toilet Pan

Apart from its broad dimensions, Compact accessible toilets come with Rimless technology which delivers the ultimate in hygienic bathrooms. Rimless technology ensures water is fully projected around the front of the toilet pan giving a completely clean flush. Rimless flushing makes it easier to clean and reduces bacteria and dirt by more than 90%.

Compact accessible is available in wall faced toilet suite, wall faced toilet pan or wall hung toilet pan (as shown) format.

Note: There is 10mm difference in height between the RA-CO1344 and RA-CO1345. The inwall support bracket should be adjusted to ensure the WC height meets the appropriate Standard.

Colour: Alpine white only.
Trap type: P-trap outlet connection.
Inlet: Ø55mm inlet connection.
Fixing: GL08K fixing kit. (Fixed to wall using RAK inwall bracket model RA-WHB-ACC when using Zurn flush valve or Wisa inwall frame when using Wisa inwall cistern, order separately).
Seat: Compact urea soft-close toilet seat & lid, also available with toilet seat without lid.

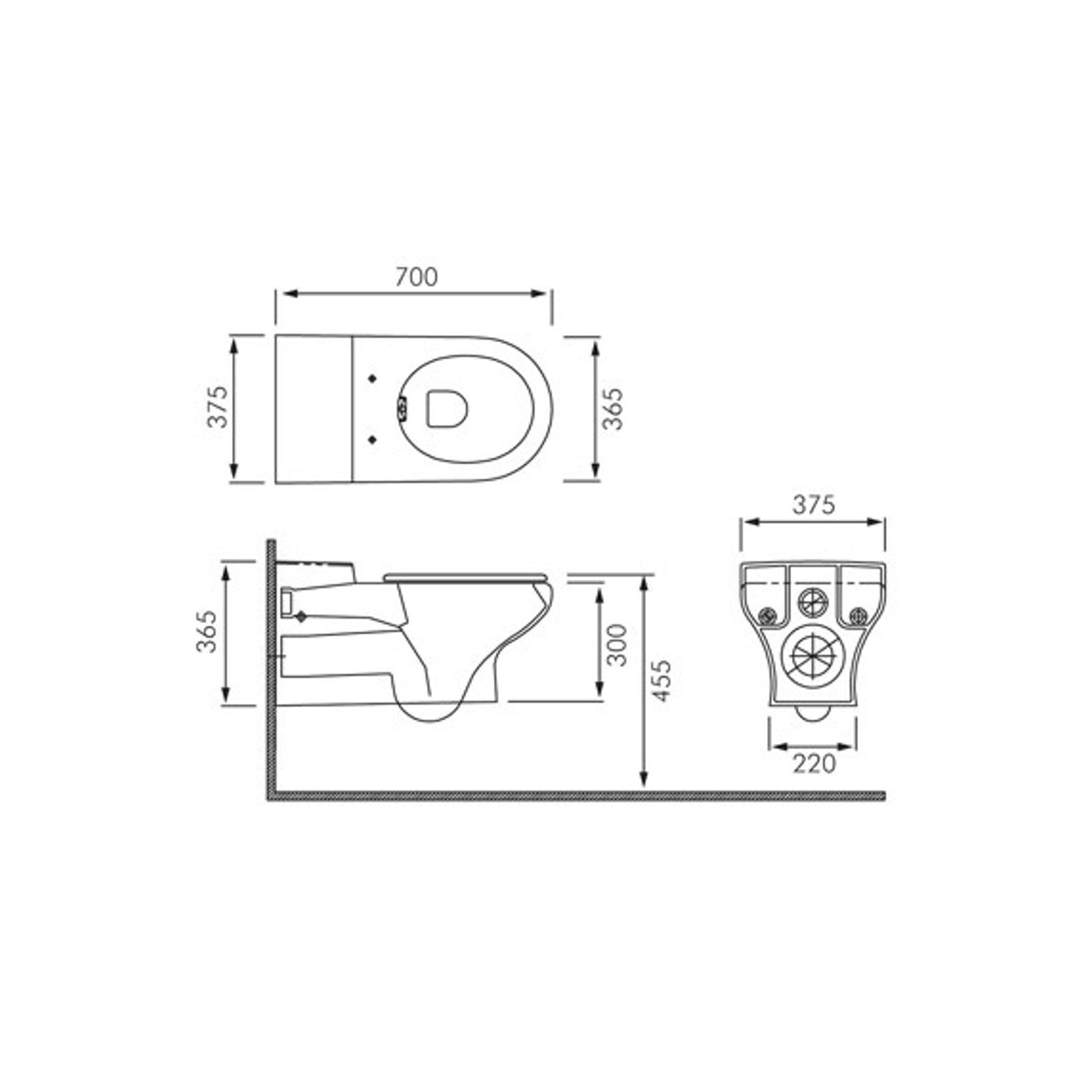

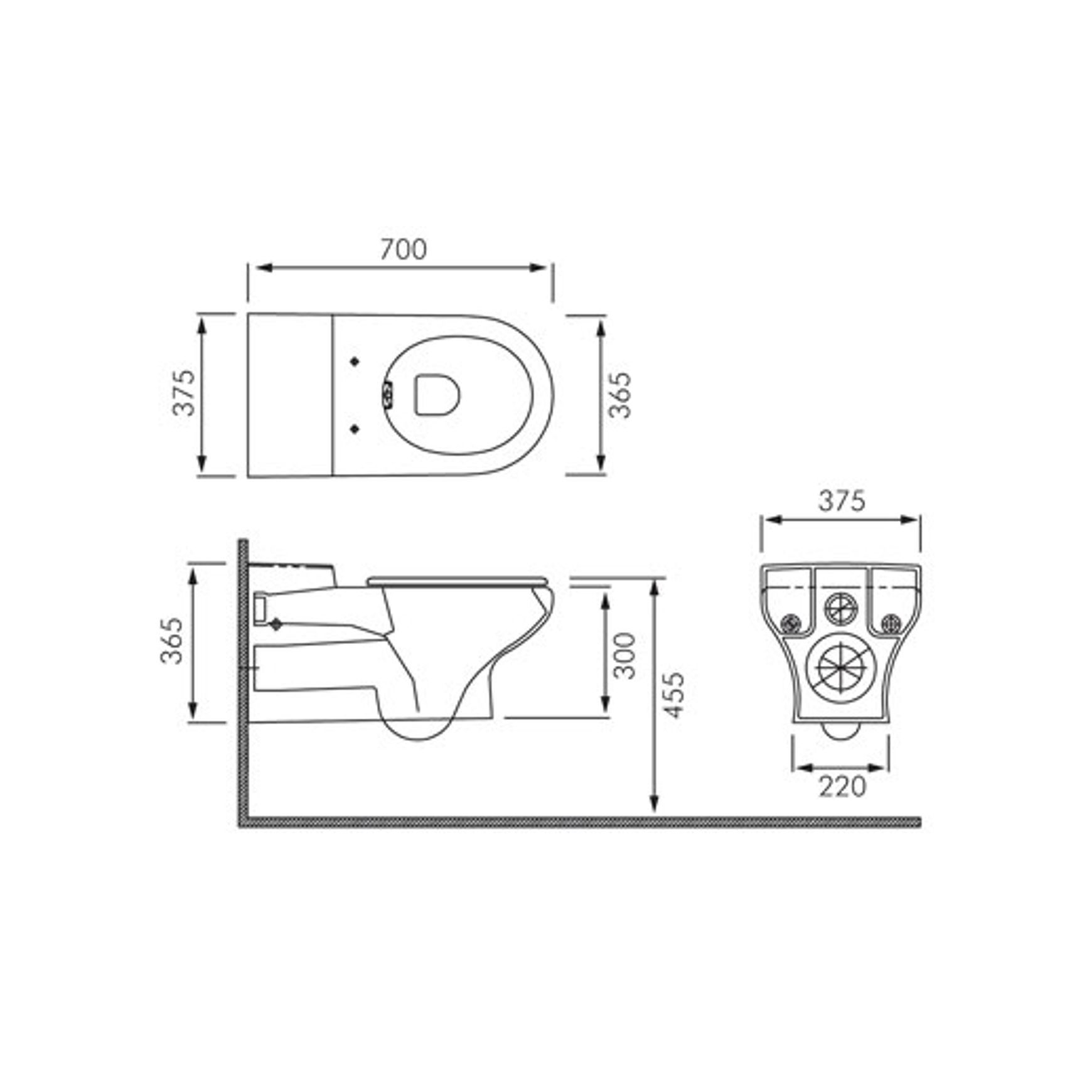

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.
Flushing: Refer separate literature for our Zurn flushing valves and Wisa inwall cisterns.

The Compact accessible toilet range has been created to provide comfortable convenience to people with additional needs.

RA-CO1344 - RAK Compact accessible wall hung toilet pan P-trap complete with soft-close toilet seat & lid
RA-CO1345 - RAK Compact accessible wall hung toilet pan P-trap complete with care toilet seat (no lid)
RA-WHB-UNI - RAK inwall bracket to suit accessible wall hung toilet pan

OPTIONAL EXTRA:
For a back rest offering extra comfort, refer Delabie DE510629 in separate literature
