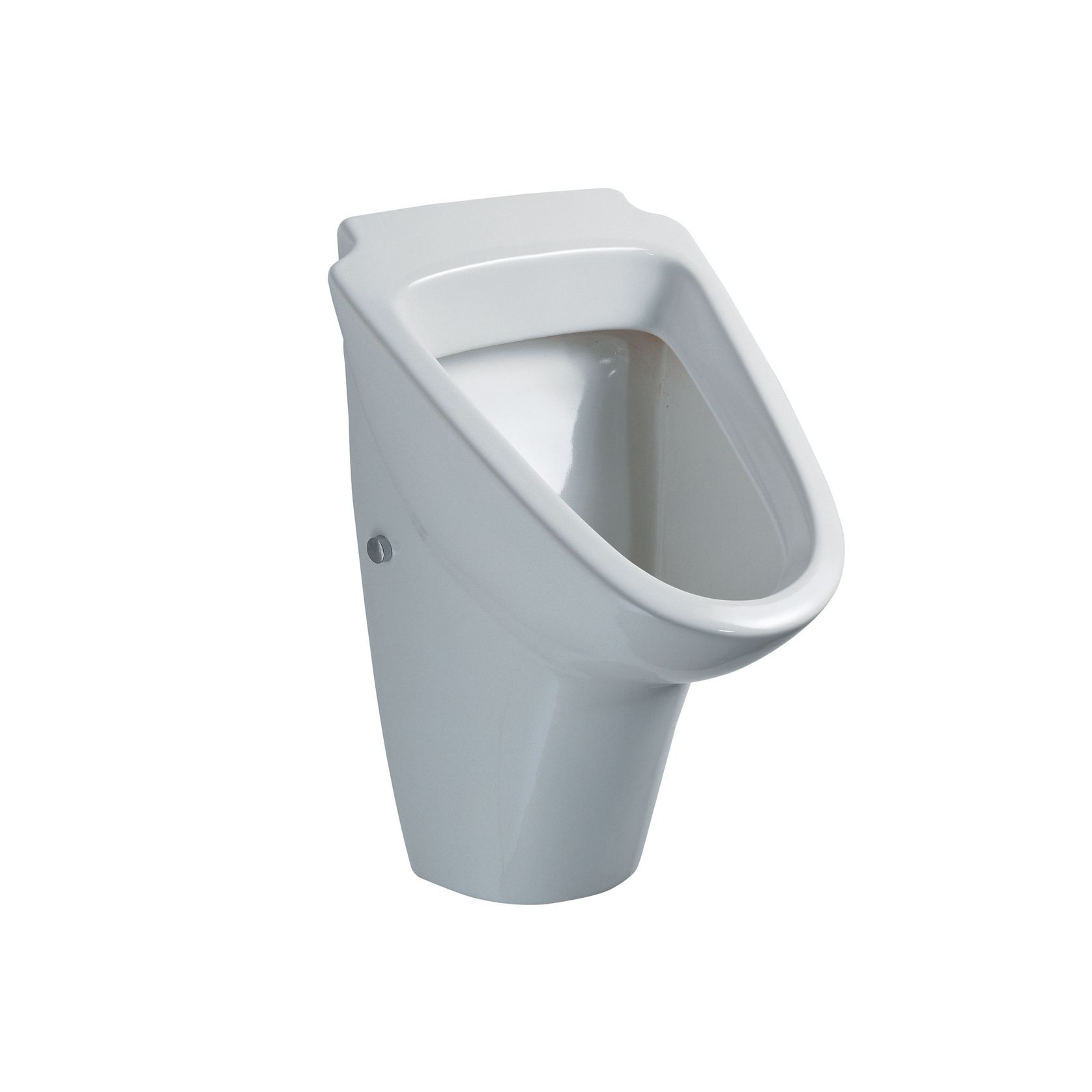

The Phoenix wall hung urinal is a timeless design that will suit all bathrooms. The Phoenix is available with both rear inlet & top inlet water connections, and has a concealed waste trap.
Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.
Product Details
- Product
- RAK Phoenix Wall Hung Urinal
- Category
- Commercial Toilets and Urinals
- Sold by
- MacDonald Industries
- Range
- Phoenix
- Brand
- RAK Ceramics
- Country of origin
- United Arab Emirates
- Type of use
- Commercial and Residential
- Installation
- Professional installation recommended
- Warranty
- 1 year
MacDonald Industries is specified by
McCoy Wixon ArchitectsArchitects
GHD DesignArchitects
Mason & Wales ArchitectsArchitects
Moller ArchitectsArchitects
Architects44Architects
Stevens Lawson ArchitectsArchitects
Williams Architects LtdArchitects
Eliška Lewis ArchitectsArchitects
PAUA Architects LtdArchitects
Jigsaw ArchitectsArchitects
7D Architecture LtdArchitects
Studio Pacific ArchitectureArchitects
Architect PeopleArchitects
Fat Parrot ArchitectureArchitects
Stephenson&TurnerArchitects
TEAM Architects AucklandArchitects
HB ArchitectureArchitects
Ignite ArchitectsArchitects
Arthouse ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
DCA Architects of TransformationArchitects
Wilson & Hill ArchitectsArchitects
Gel ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
Totem StudioArchitects
MAKE ArchitectsArchitects
Plumbing and Heating Centre Ltd NZ
Peter Diver Plumbing & DrainagePlumbers & Gas Fitters
Heron PlumbingDrainage Specialists
AmbitecManufacturers and Suppliers
August Millard LimitedBuilding Surveyors
Arcline ArchitectureArchitectural Designers
Peter Dunbar Architectural DesignerArchitectural Designers
Bishop ArchitectureArchitectural Designers
RCPProject Managers
HawkinsConstruction
Tile SpaceManufacturers and Suppliers
Hanlon & Partners LtdEngineers
Henwood ConstructionConstruction
AquaPro PlumbingPlumbers & Gas Fitters
Nixon HomesBuilders
PG Plumbing + GasfittingPlumbers & Gas Fitters
Foley GroupInterior Designers
The Phoenix wall hung urinal is a timeless design that will suit all bathrooms.
The Phoenix is available with both rear inlet & top inlet water connections, and has a concealed waste trap.
Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.
- Specs
Colour: White only.
Inlet connection: ½" BSP inlet connector included with RA-PH3200. RA-PH3100 requires flush valve connection pipe to be supplied with valve set. Refer Installation instructions for details.
Waste outlet: Waste trap included. Plumber to install Ø50 waste (socket end to urinal) pipe in wall.
Water pressure range: 100-500kPa.
Fixings: FS37UK fixing kit included.

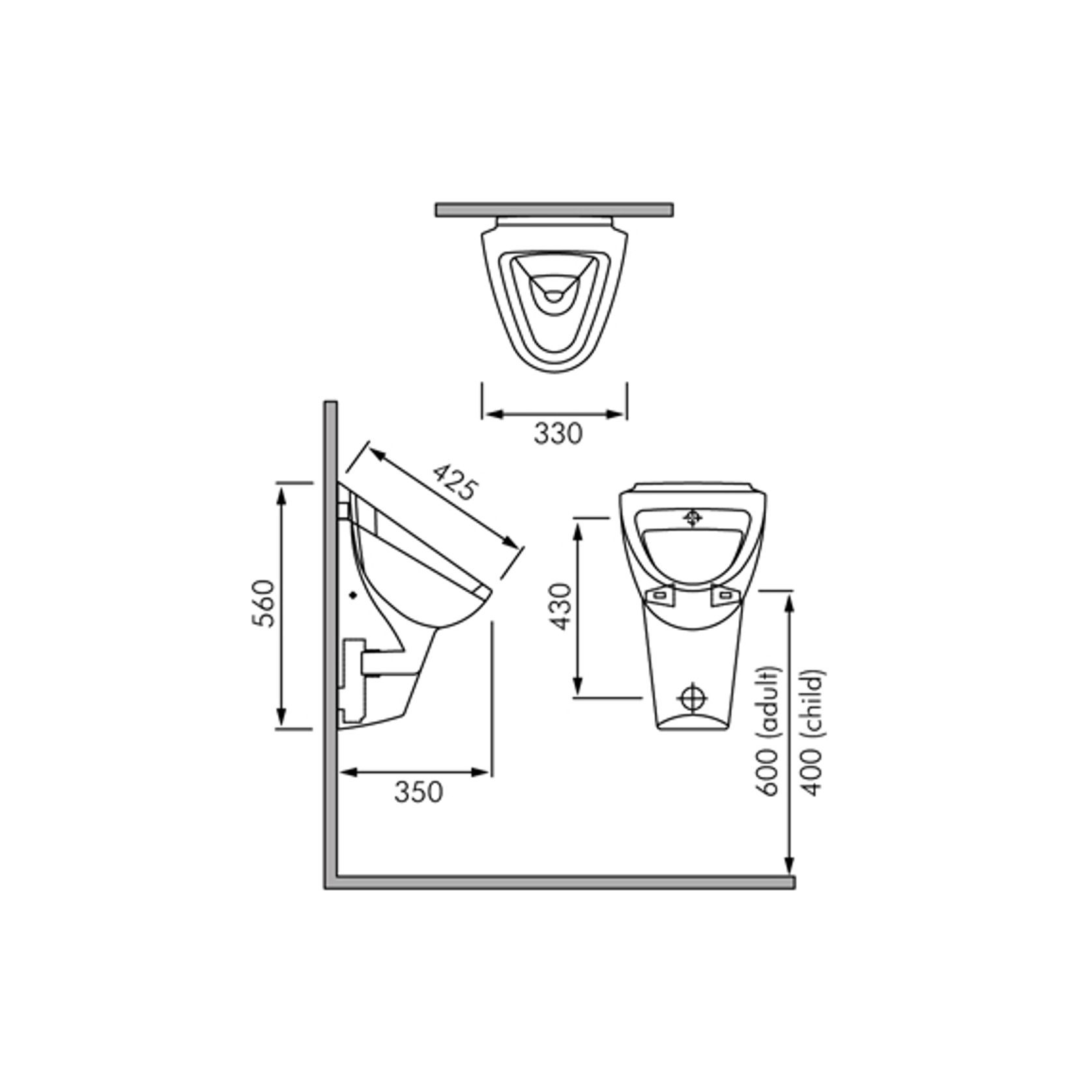

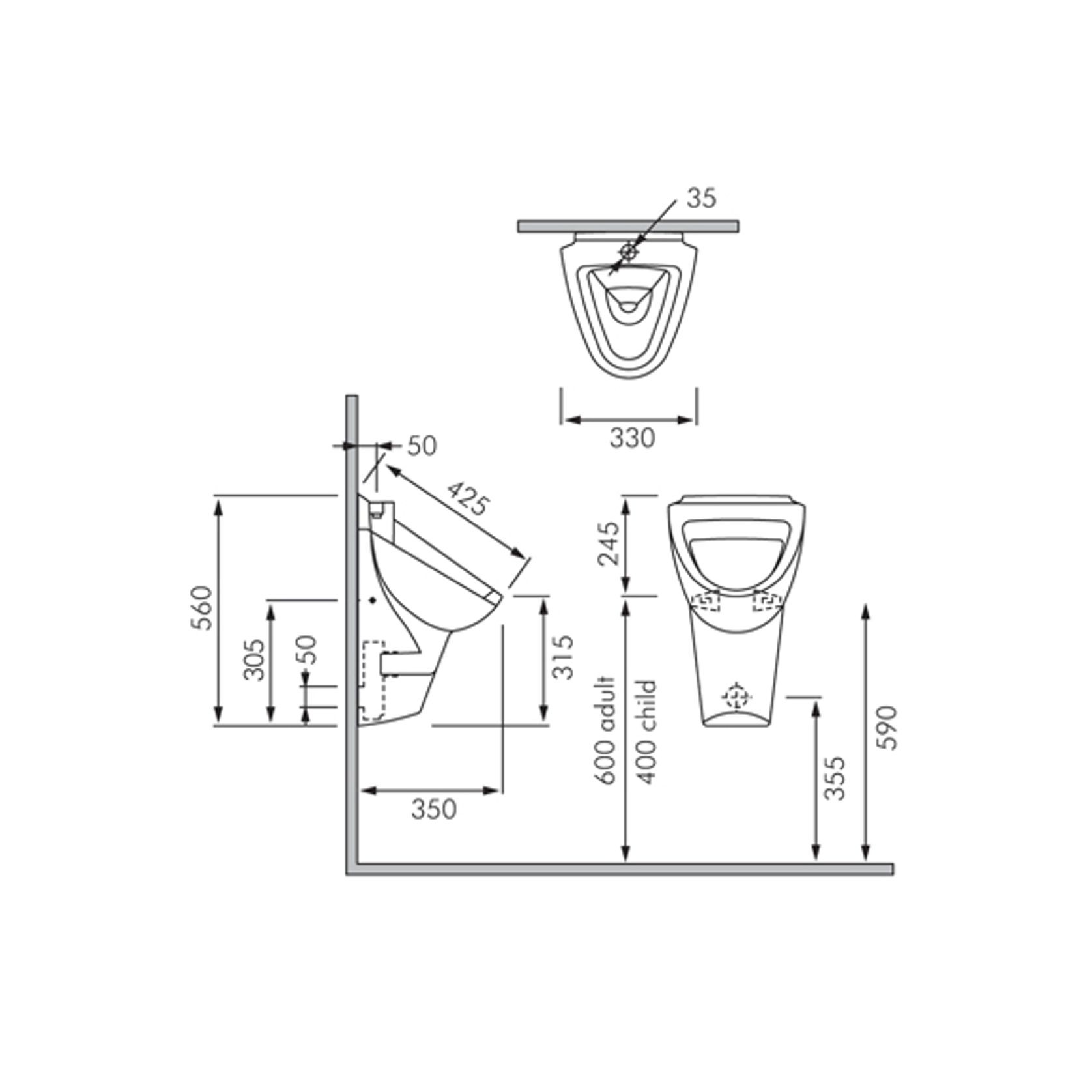

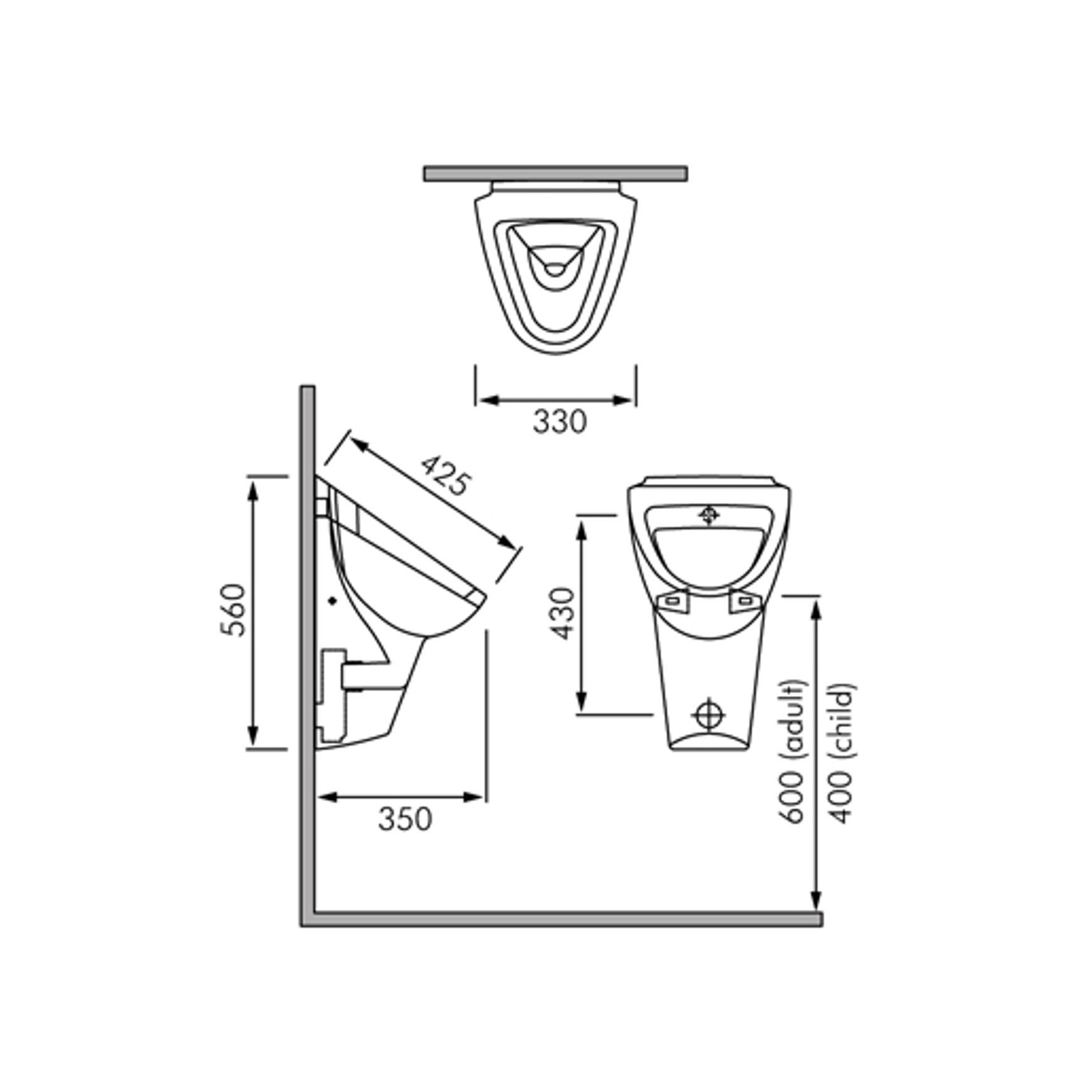

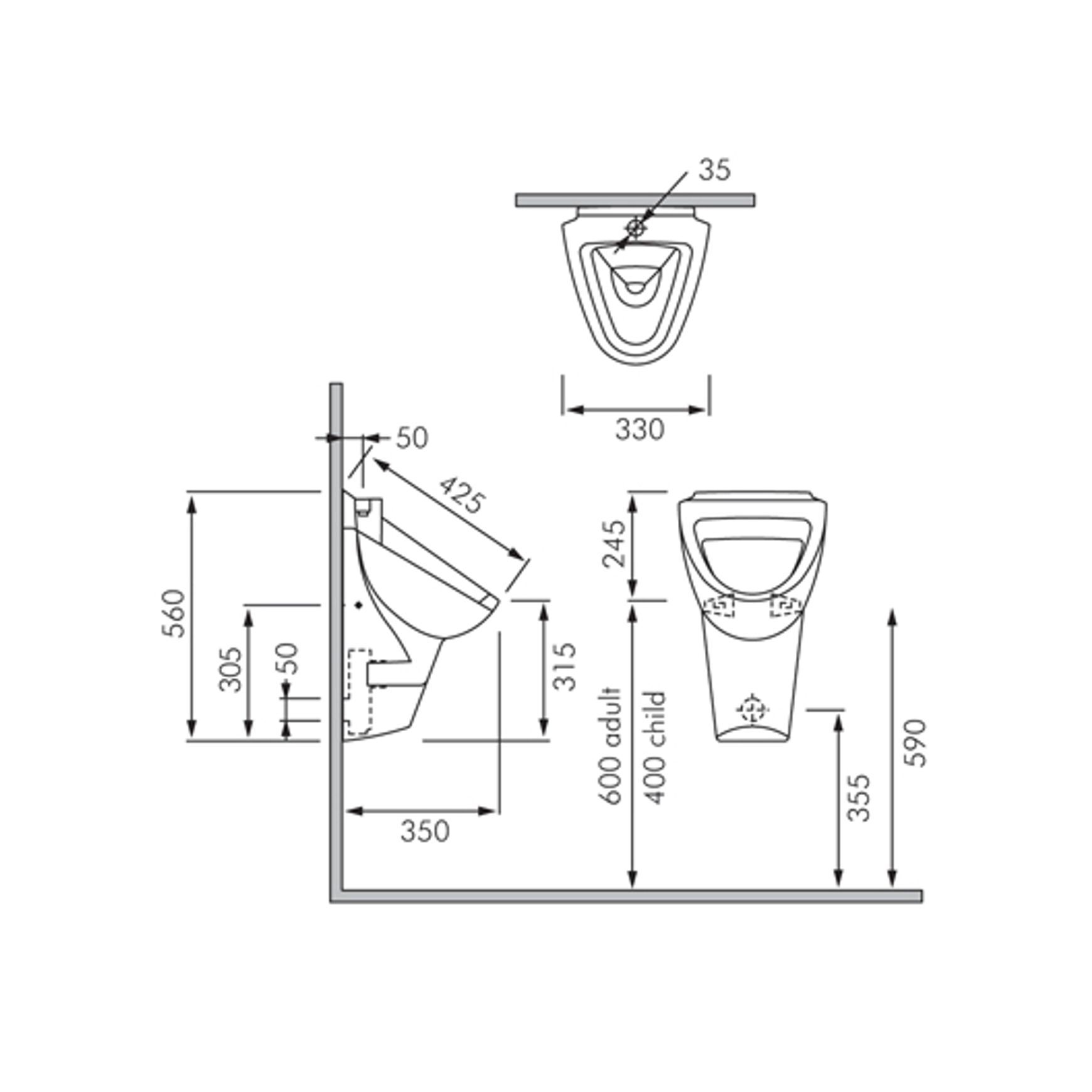

Dimensions: All dimensions in mm. tolerance ±5% for below 200mm and ±3% above 200mm.
Flushing: Refer separate literature for our RAK electronic flush valves , Delabie flush valves and Zurn flush valves.- Models Available
RA-PH3100 - RAK Phoenix top inlet urinal complete with fixing kit.
RA-PH3200 - RAK Phoenix rear inlet urinal complete with fixing kit.
