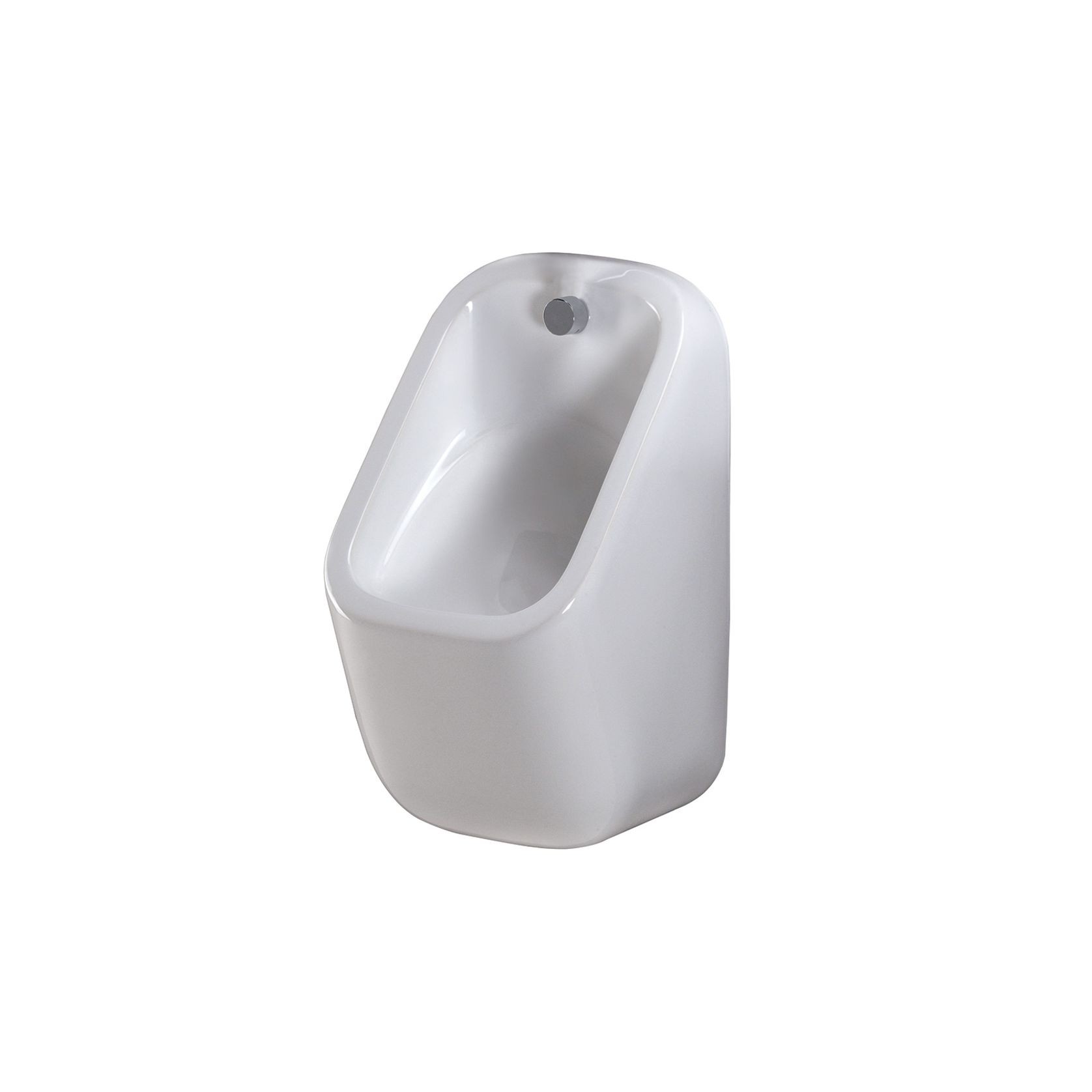

RAK Series Wall Hung Urinal
The Series urinal is a modern twist on the commercial bathroom. With stunning good looks and market leading build quality it’s the perfect choice to bring your bathroom up to date. The Series urinal has a back inlet water connection, and a concealed waste trap.
- CategoryCommercial Toilets and Urinals, Urinals
- RangeSeries
- BrandRAK Ceramics
- Warranty1 year
- Country of originUnited Arab Emirates
- Type of useCommercial
- InstallationProfessional installation recommended
Colour: White only.
Inlet connection: ½" BSP inlet connection included using flexible tubing provided. ½" wing back in wall and connection to flushing valve by others.
Waste outlet: Supplied with 40mm bottle trap. Requires 50mm PVC socket outlet in wall in position shown on installation instructions provided.
Flush Valve: By others, suitable pressure range 100-500kPa. Valve must have ability to regulate flow rate, refer to Delabie range
Fixings: OC36-TBKT wall fixing kit included.

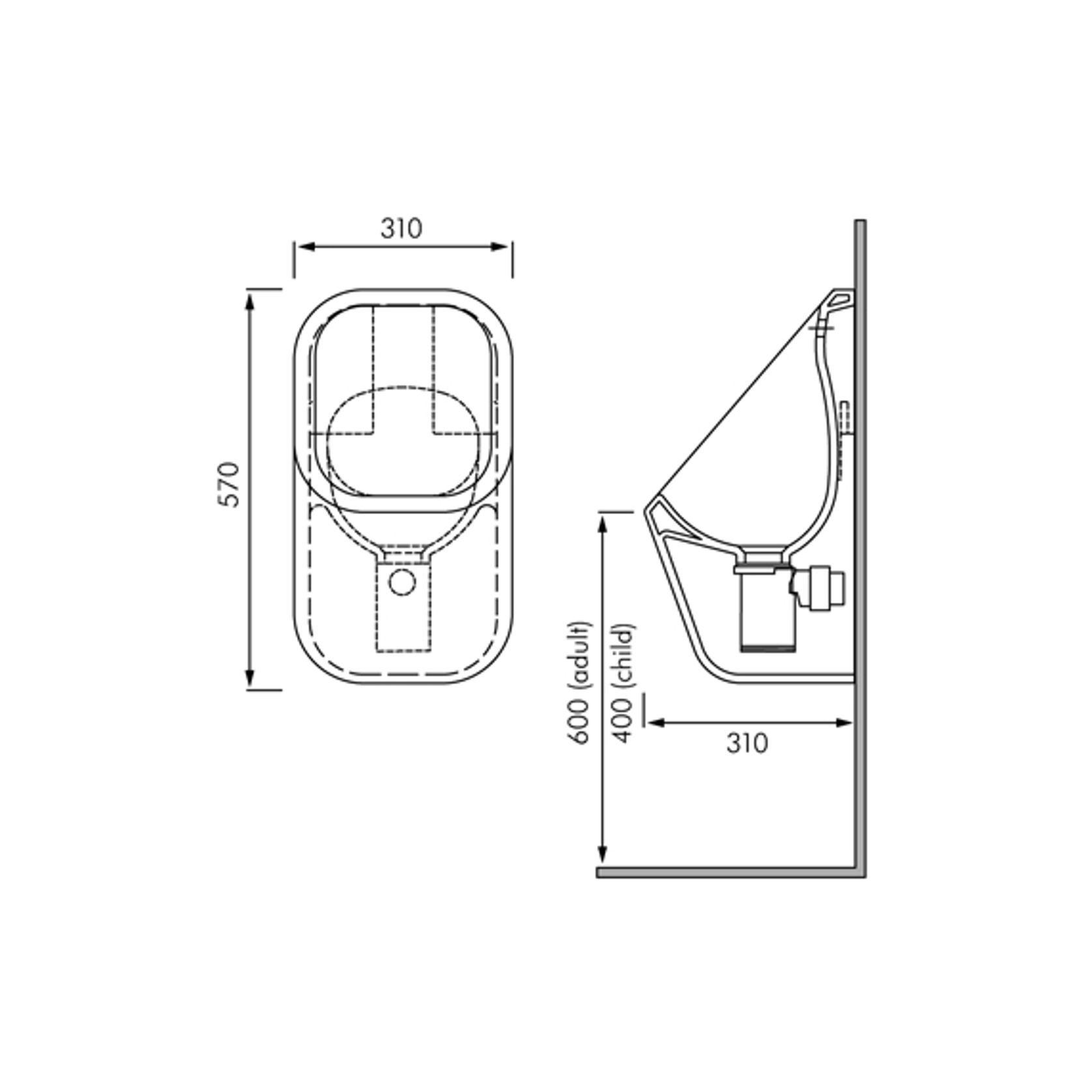

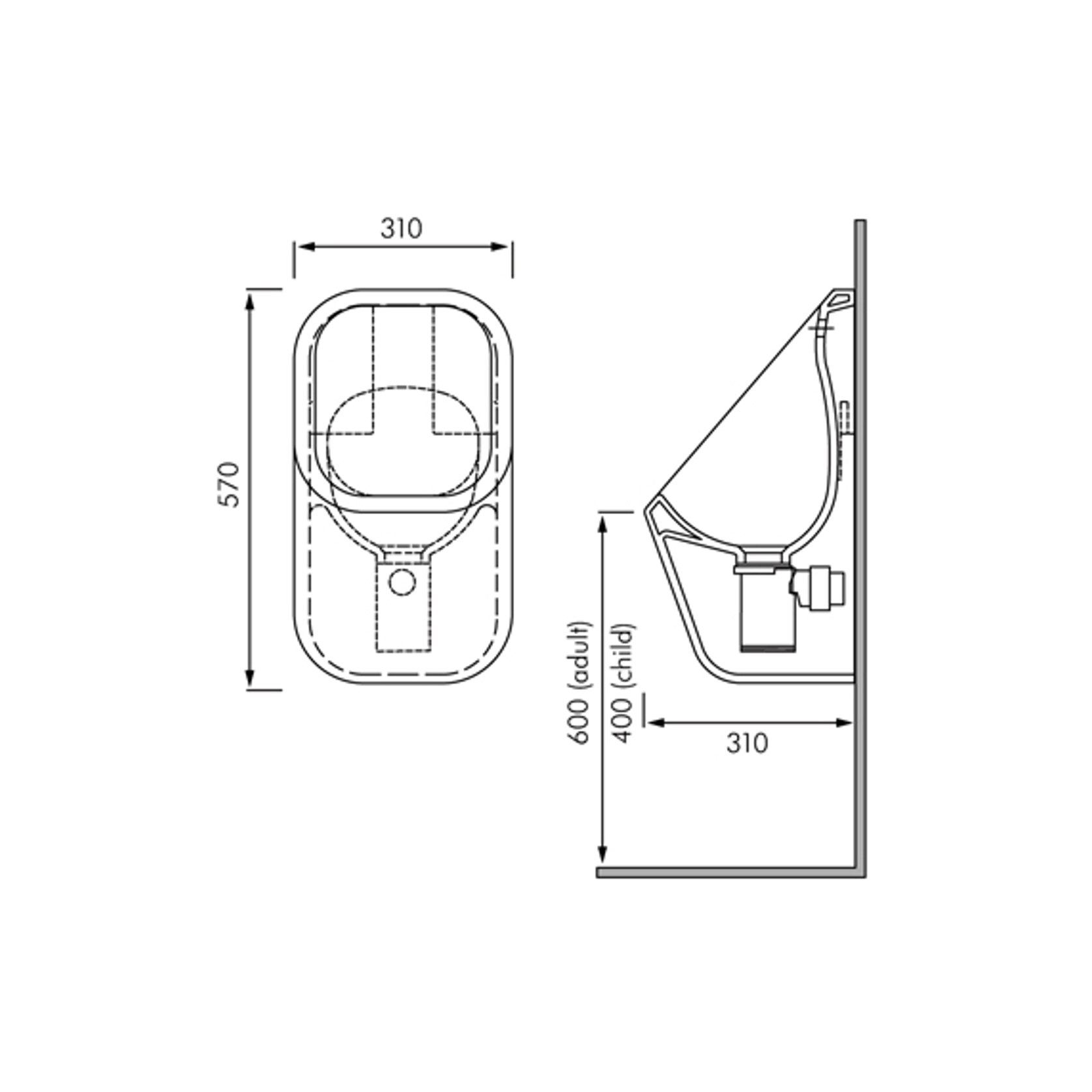

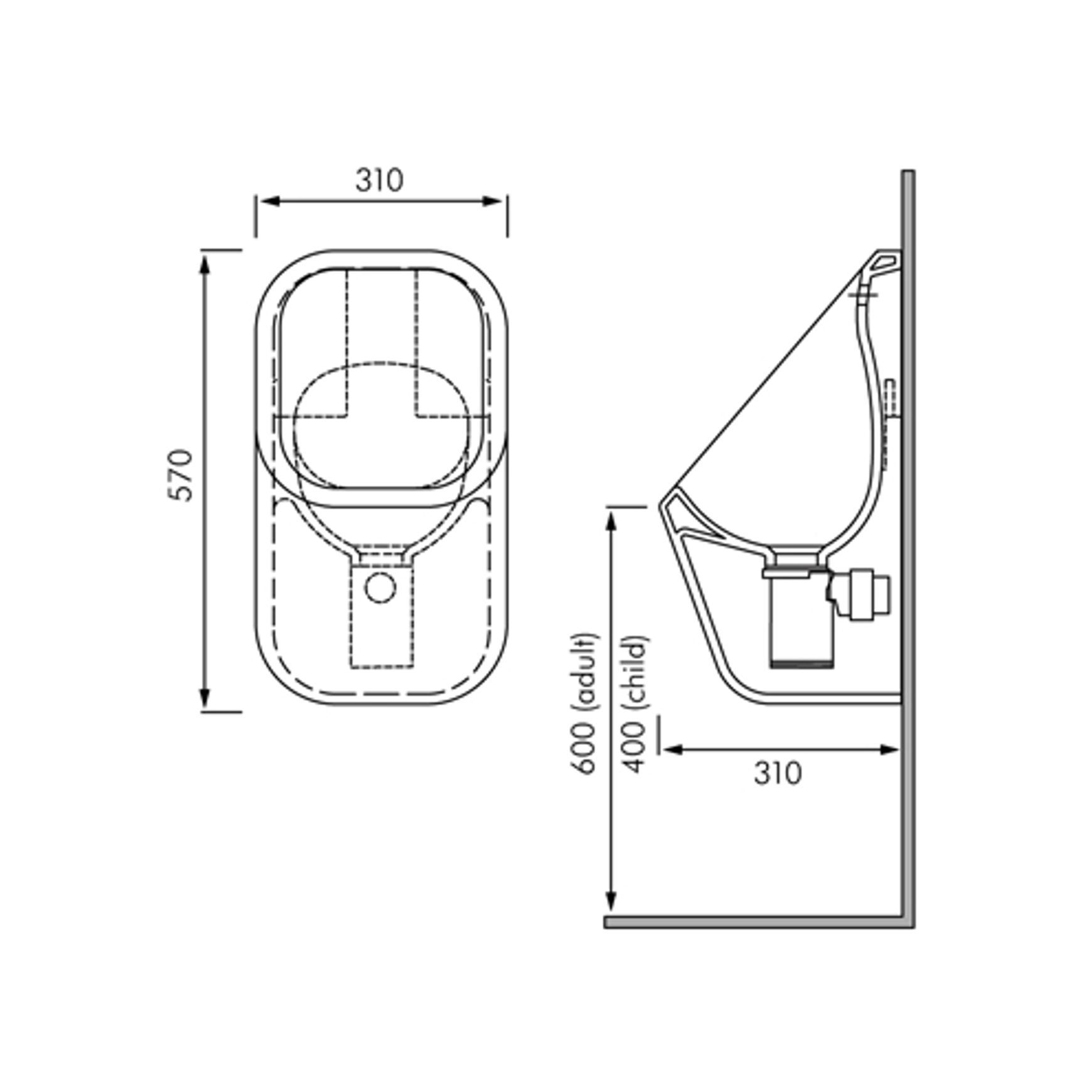

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.
Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.
RA-SE3100 - RAK Series urinal complete with fixing kit.
