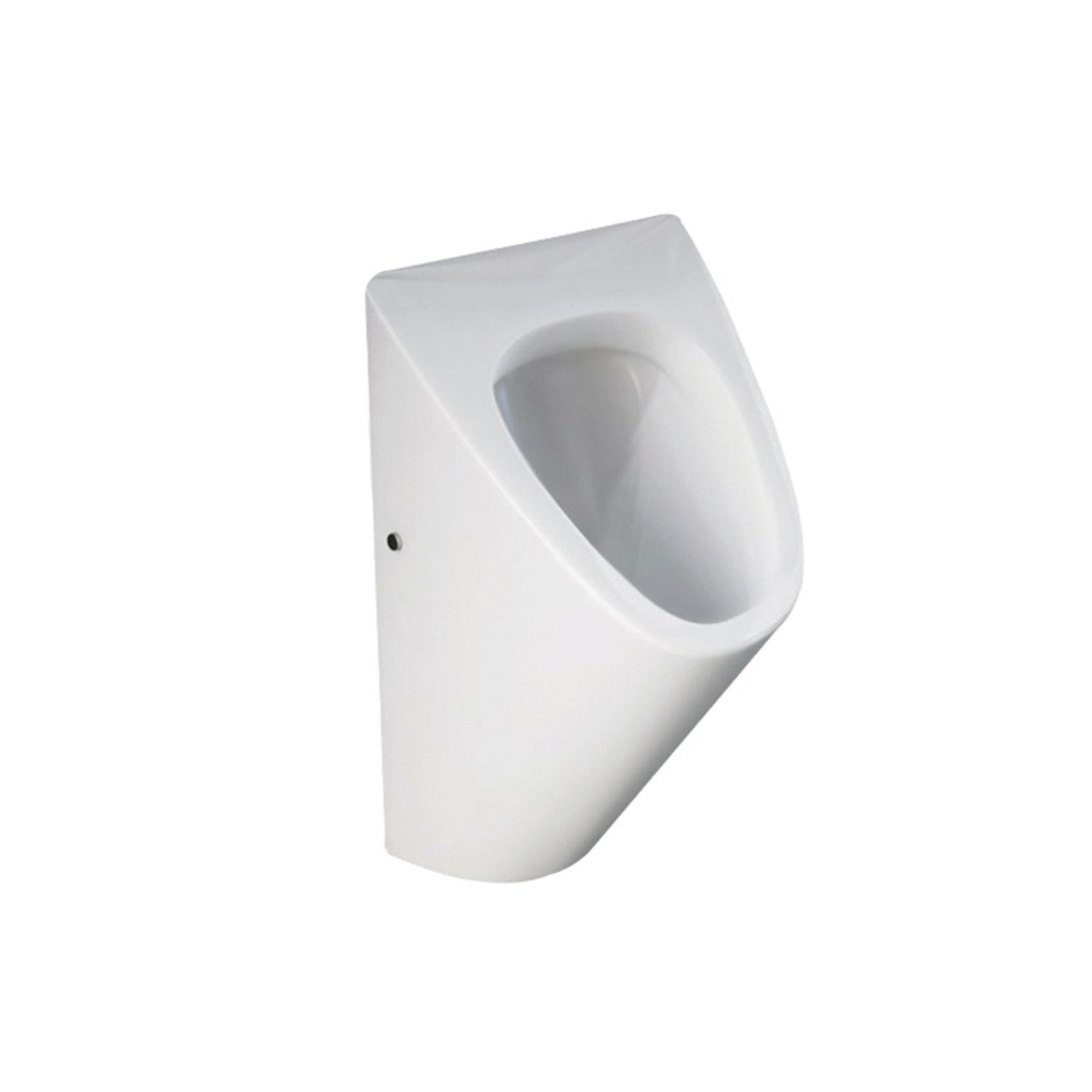

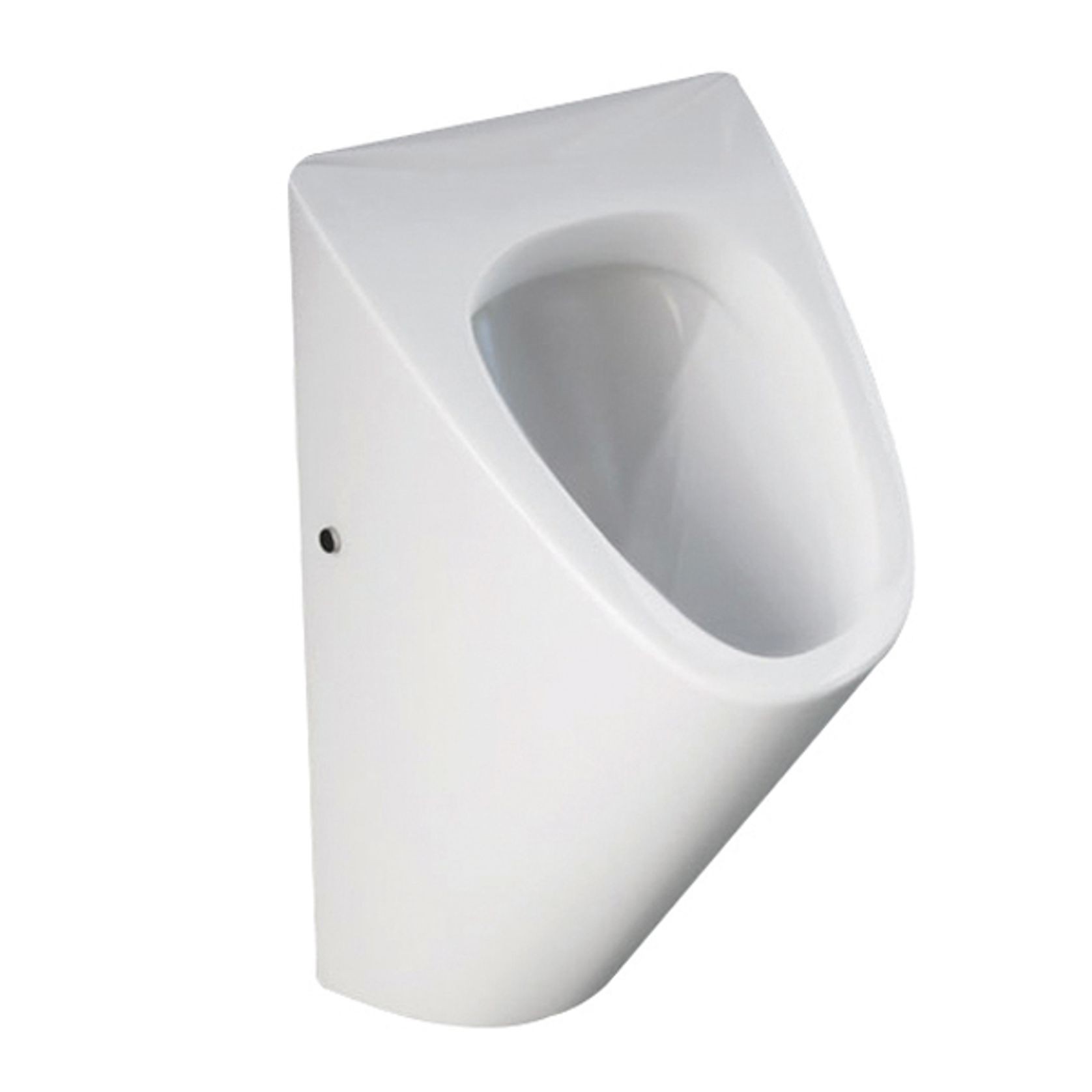

RAK Venice Wall Hung Urinal

The Venice urinal has unique and exotic design characteristics. The overall appearance and broad dimensions make Venice a luxury, bold statement.

Details
  • Category
    Urinals
  • Brand
    RAK
General
  • Type of use
    Commercial and Residential
Specifications

The Venice urinal has a rear inlet and has a rear outlet for concealed trap.

Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.

Colour: Alpine white only.
Inlet connection: ½" BSP inlet connection included.
Waste outlet: Waste trap included. Plumber to install Ø50 waste (socket end to urinal) pipe in wall.
Water pressure range: 100-500kPa.
Fixings: FS37UK wall fixing kit included.

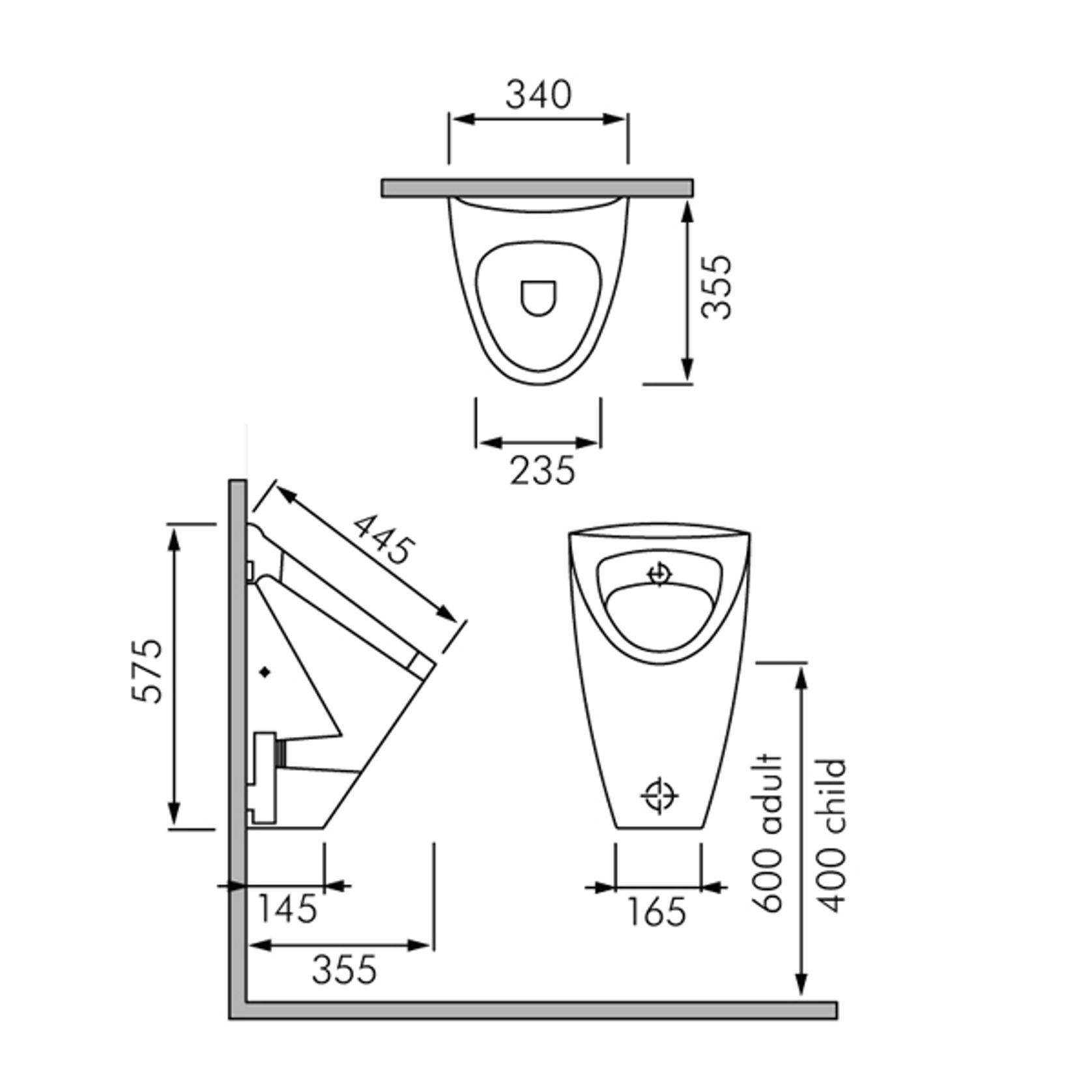

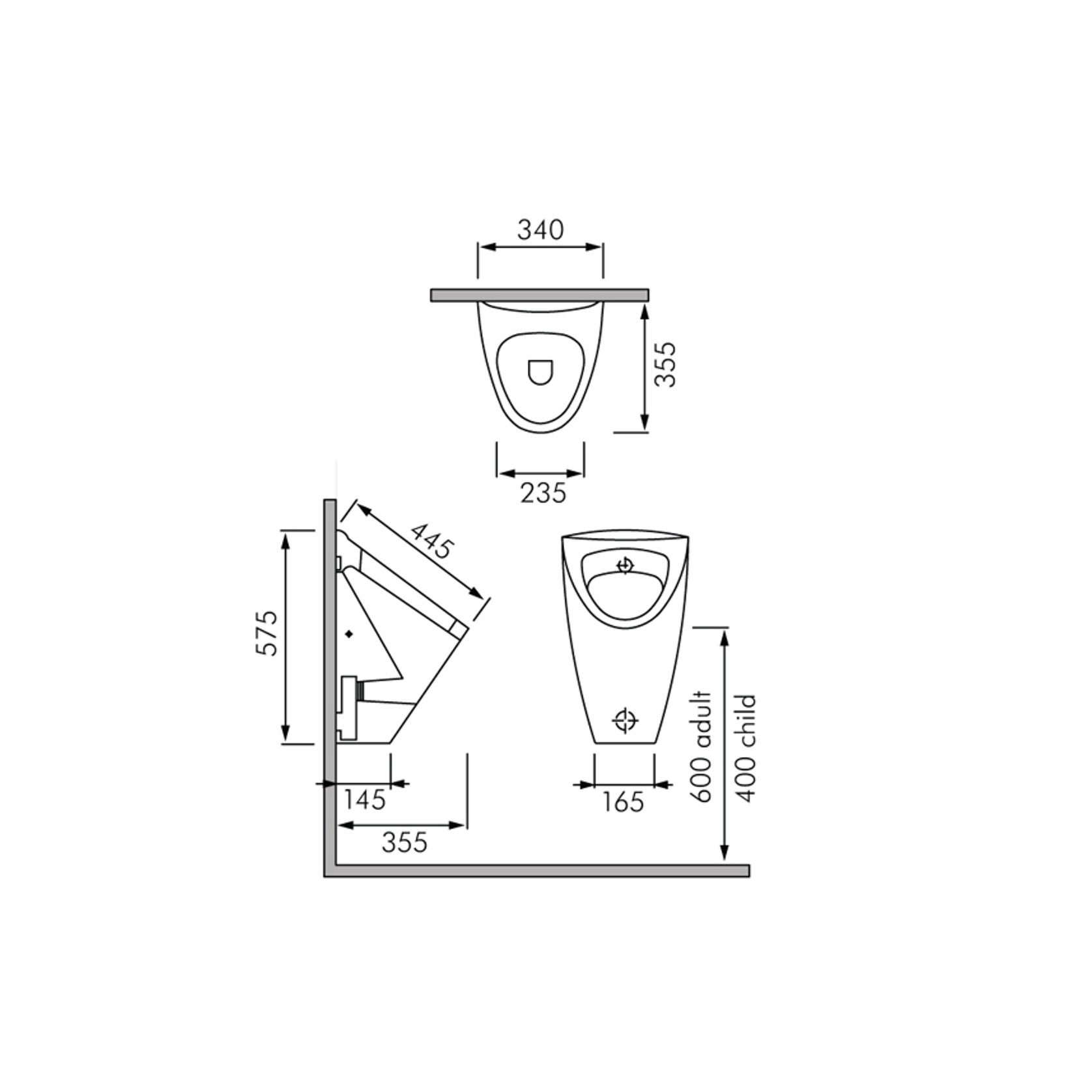

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.

Refer to separate literature on Delabie and RAK recess mounted flushing systems.
