Royde and Tucker Pivot Set Stainless Steel H131451
Stainless Steel
Stainless Steel

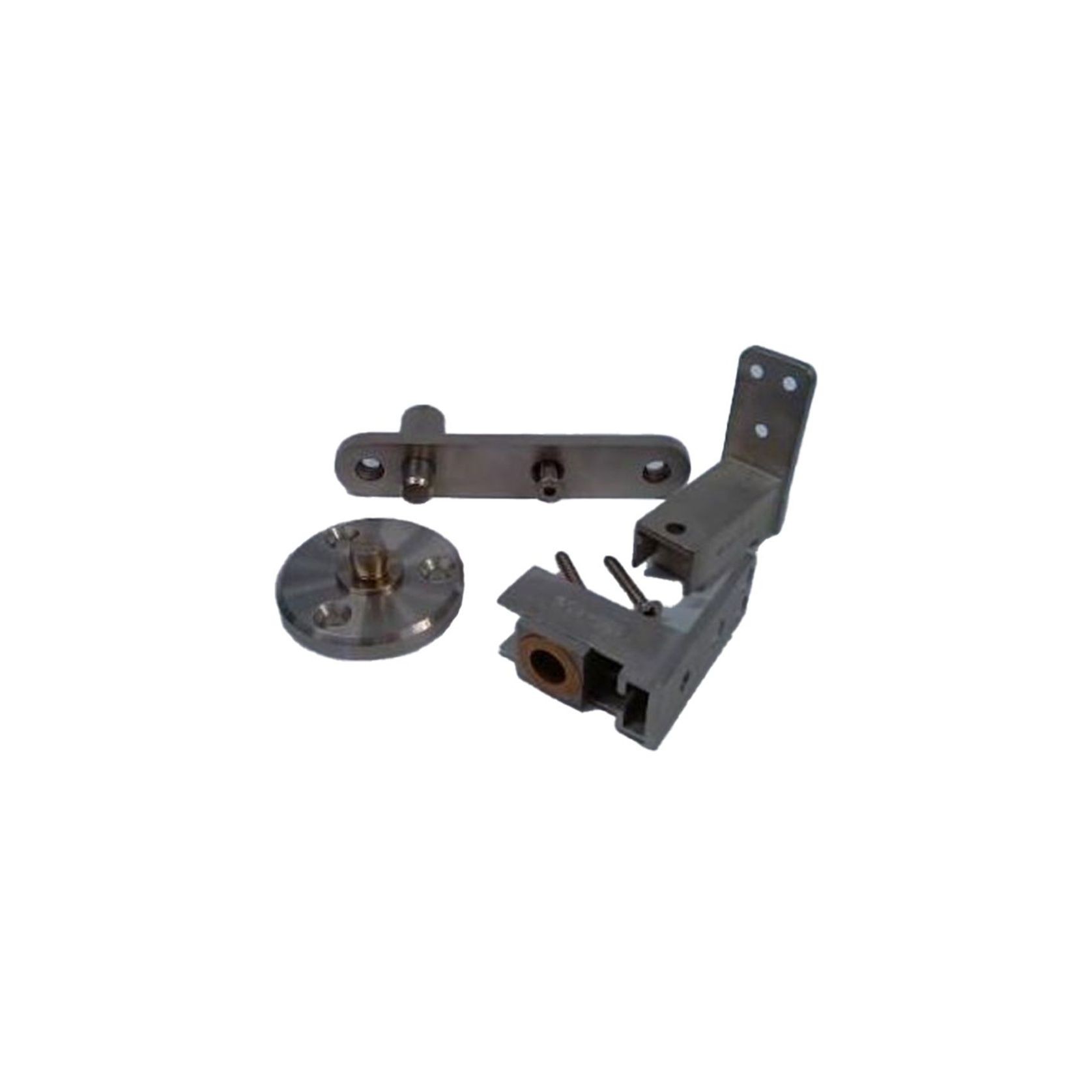

Royde & Tucker h131-451 Pivot Set Stainless Steel
- Grade 304 stainless steel
- Maintenance free, guaranteed for 25 years
- Allows the door to swing in either direction
- Inclusive of adjustable top and bottom brackets (+/-5.5mm)
- For 44mm thick doors an R9 radius is required on the pivot edge
- For 54mm thick doors an R15 radius is required on the pivot edge
- Bottom bracket is floor mounted
- Medium duty for internal doors weighing up to 120kg and up to 1100mm wide
- Top and bottom door plates have HI-LOAD maintenance free oil impregnated bronze
bearings
Details
- CategoryPivots
- RangeRoyde & Tucker
- BrandRoyde & Tucker
General
- Country of originAustralia
- Type of useCommercial and Residential
- Package typeSpecial packaging required
- Care and cleaningSelf-cleaning product
- InstallationMinor installation required
- AssemblyNo assembly required
Specifications
- Material: Grade 304 stainless steel
- Door Thickness: 44mm or 54mm
Scope of use
Pivot Set suitable for countless types of placements for both interior, and exterior situations. From grand entrances to bathroom doors, pivoting walls, double doors, cupboard doors, even windows.
What's in the box
- Door bottom pivot
- Top centre
- Door brackets
- Screws
More from
Keeler Hardware
FritsJurgens System M+ Concealed Top Pivot
By Keeler Hardware
Bellevue FritsJurgens System M+ Concealed Pivot
By Keeler Hardware

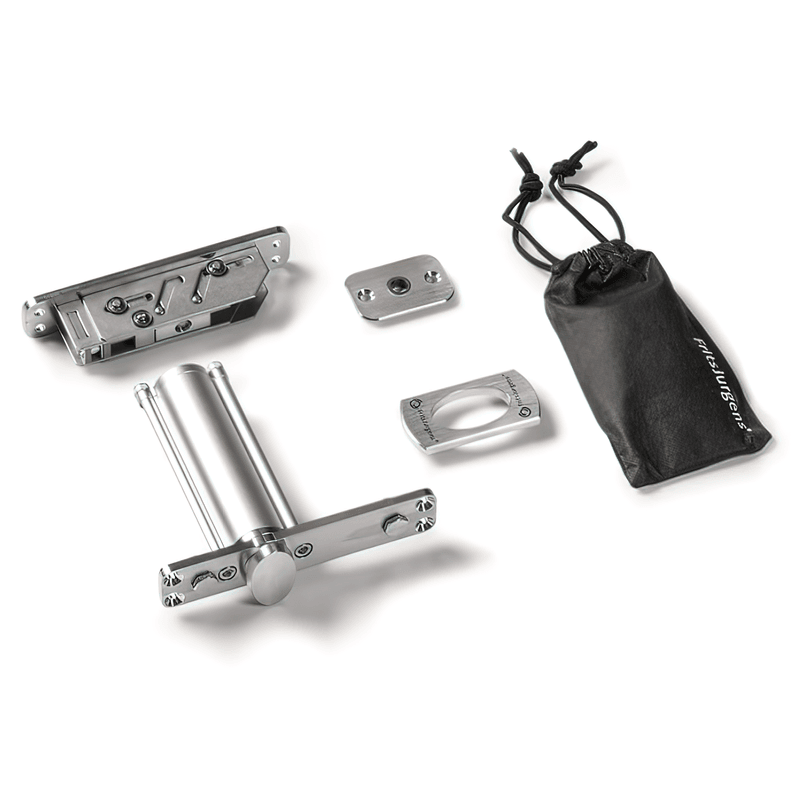

FritsJurgens System 3 Fully Sprung Concealed Pivot
