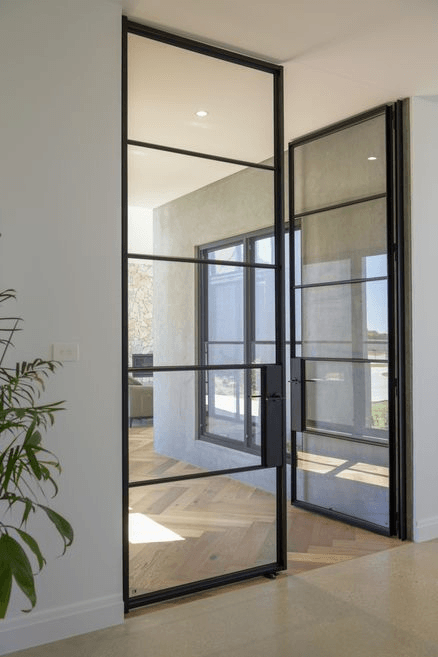

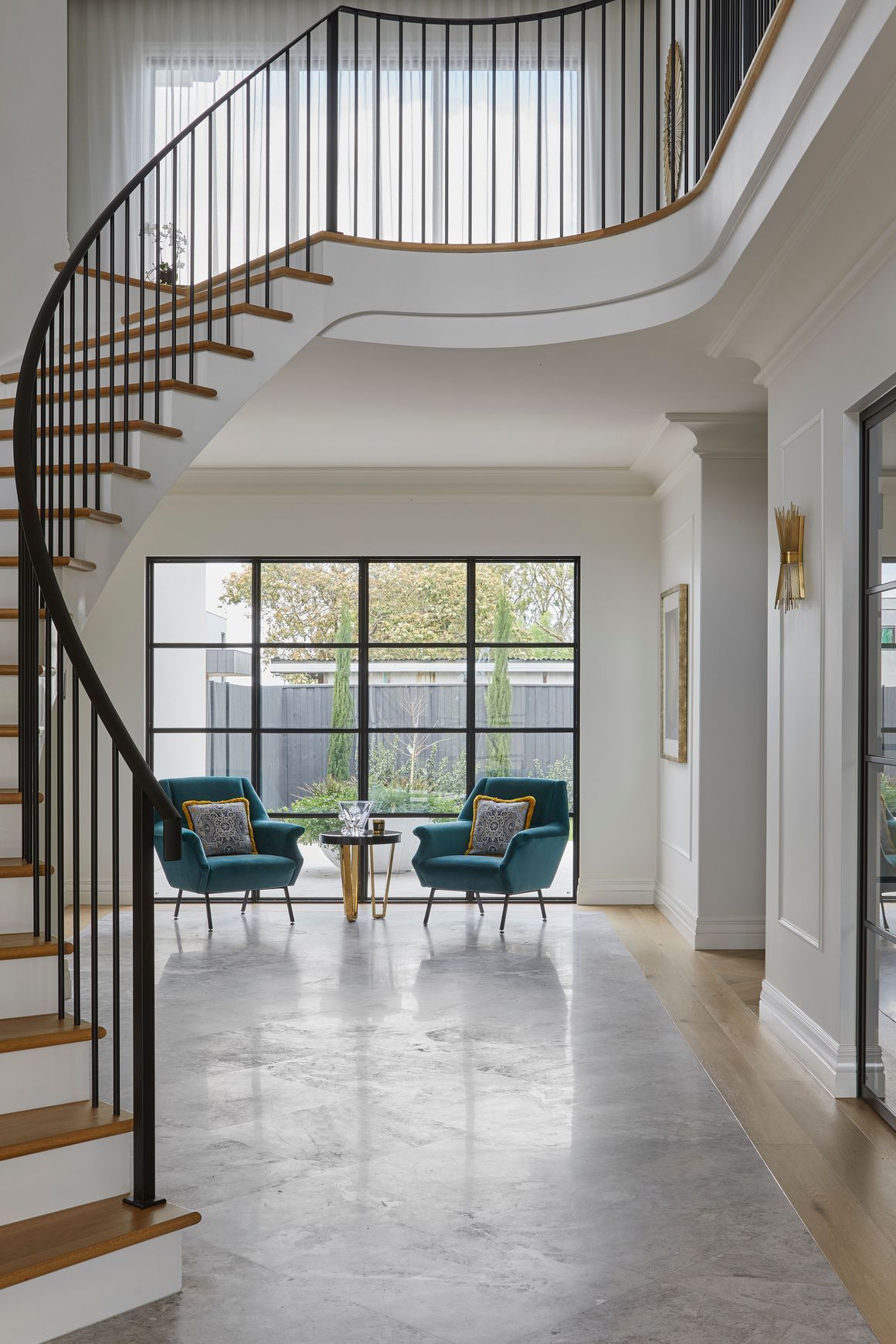

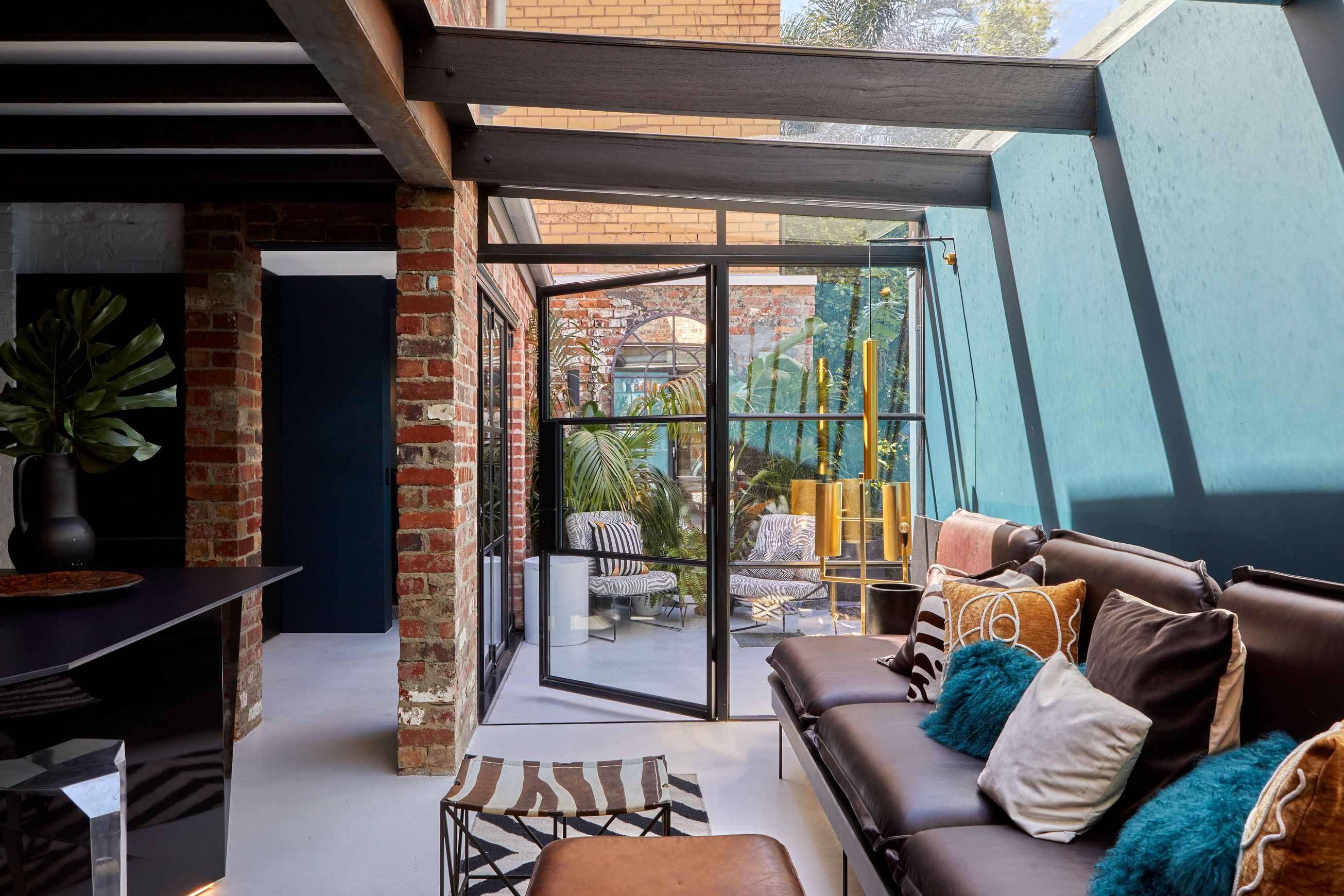

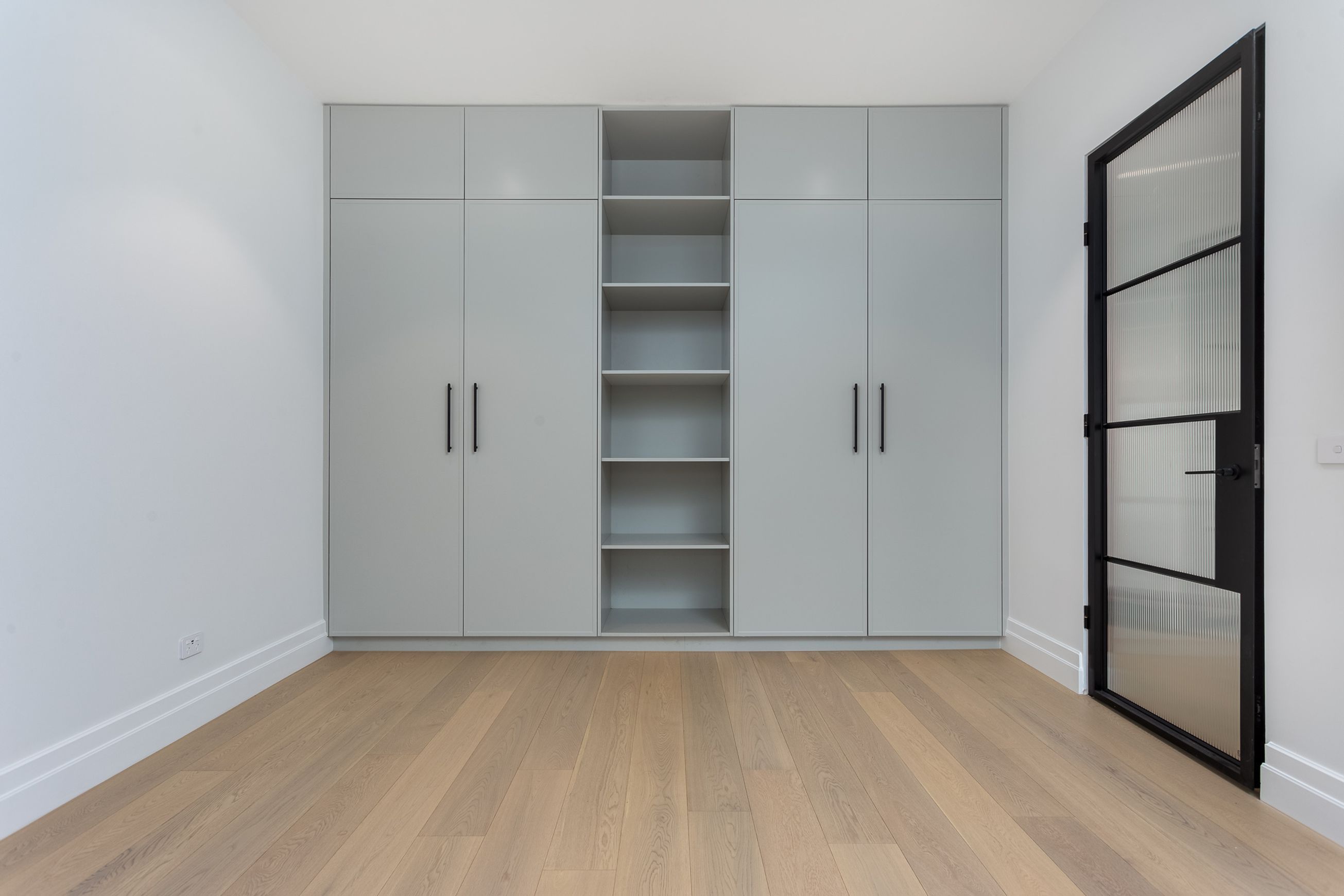

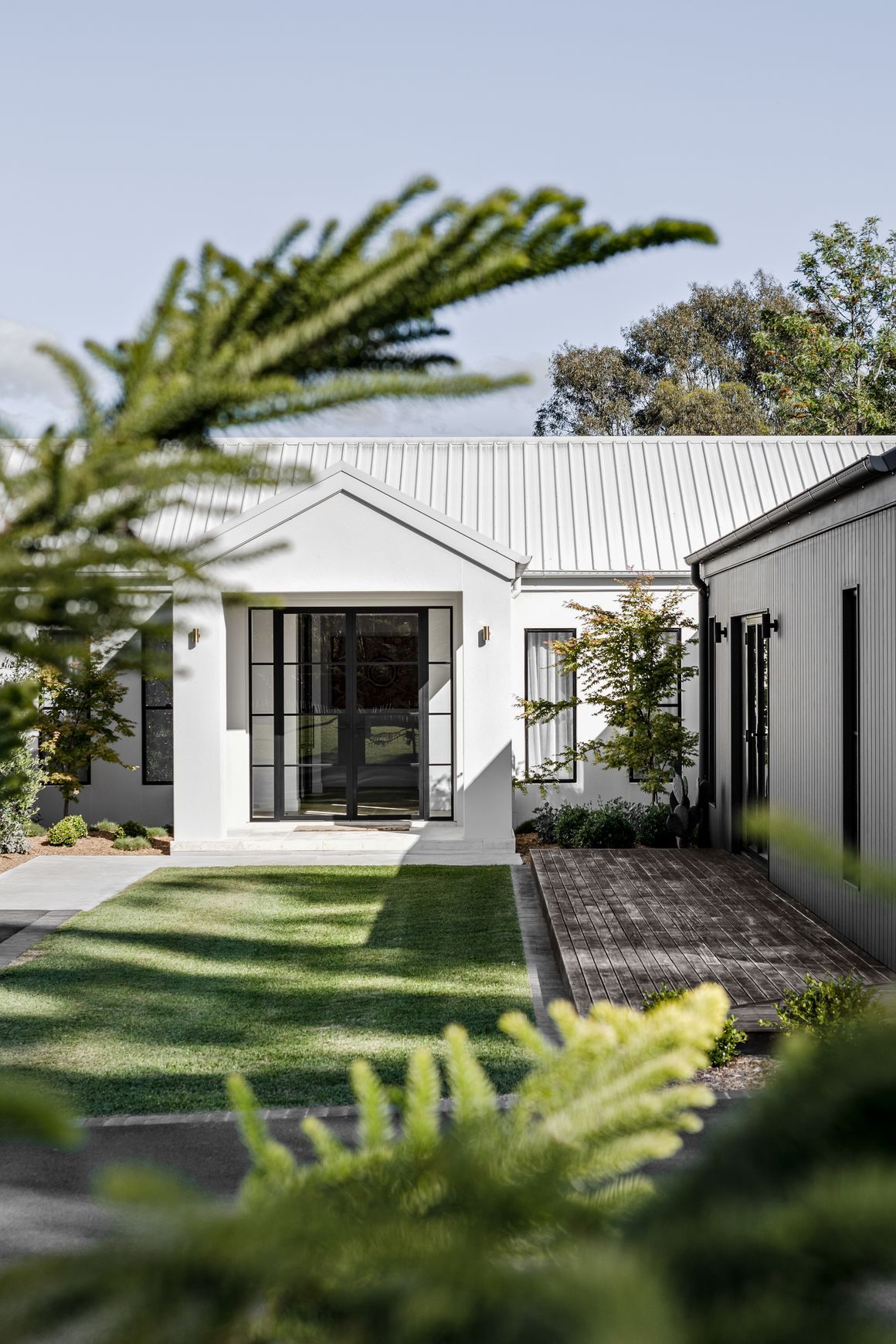

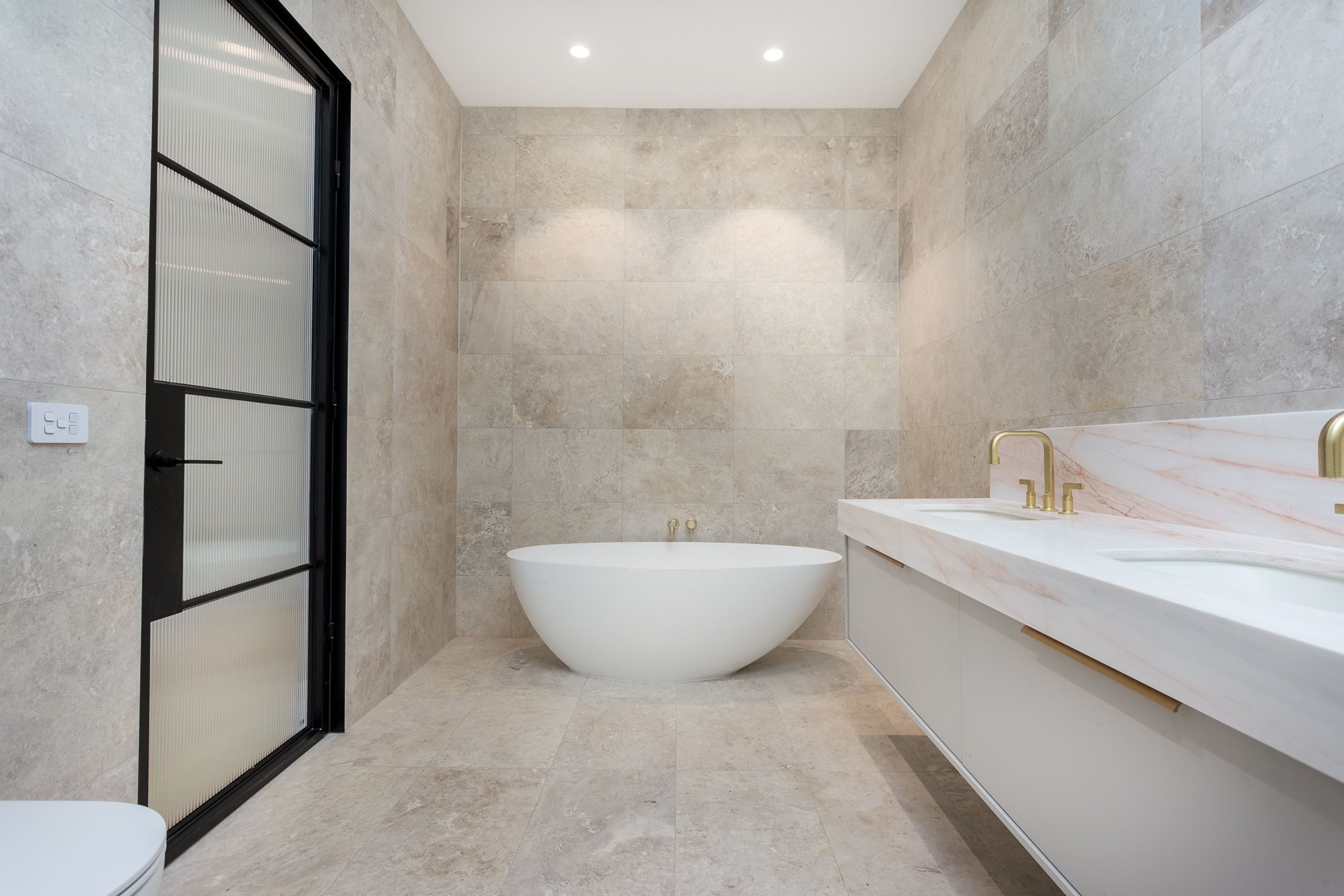

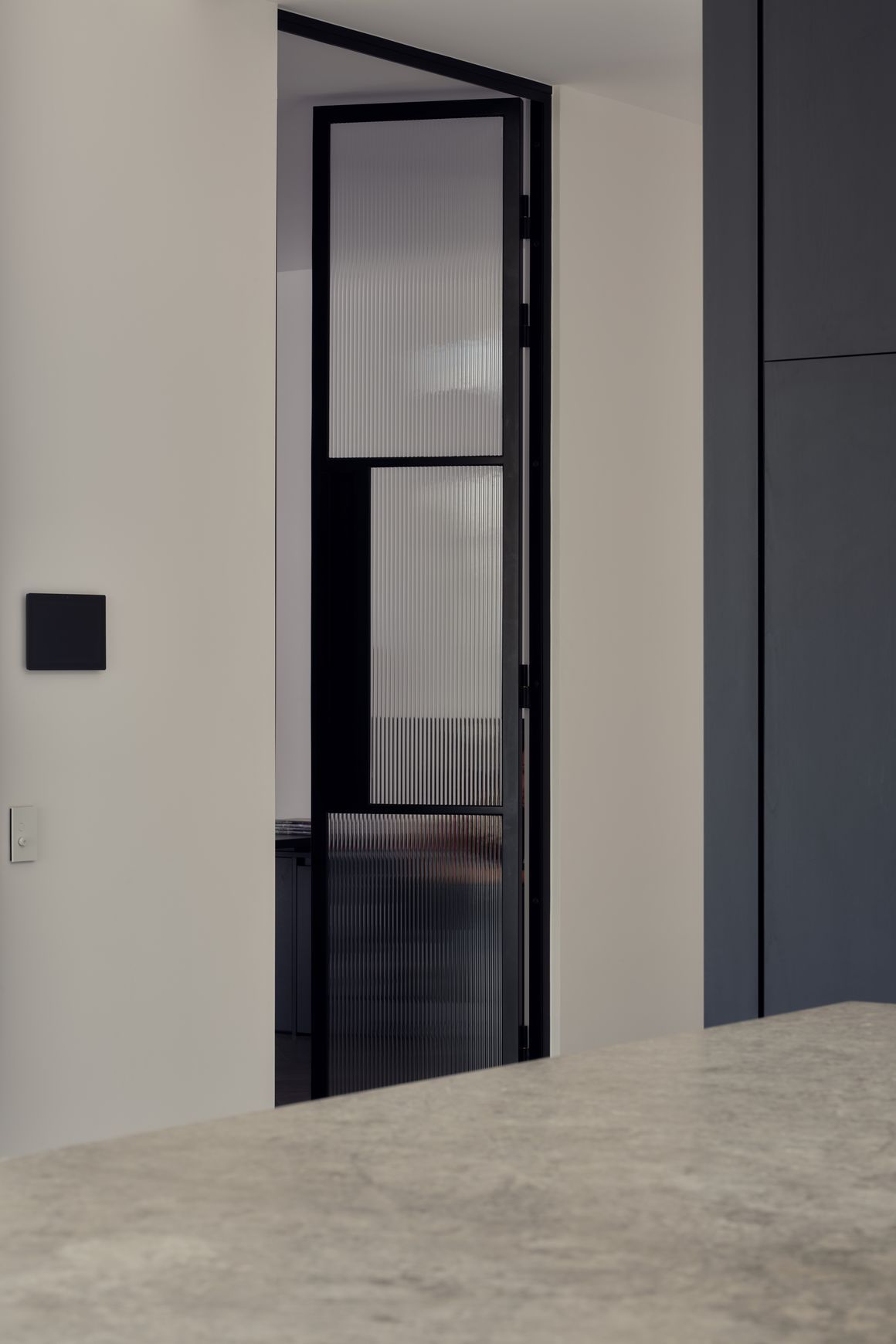

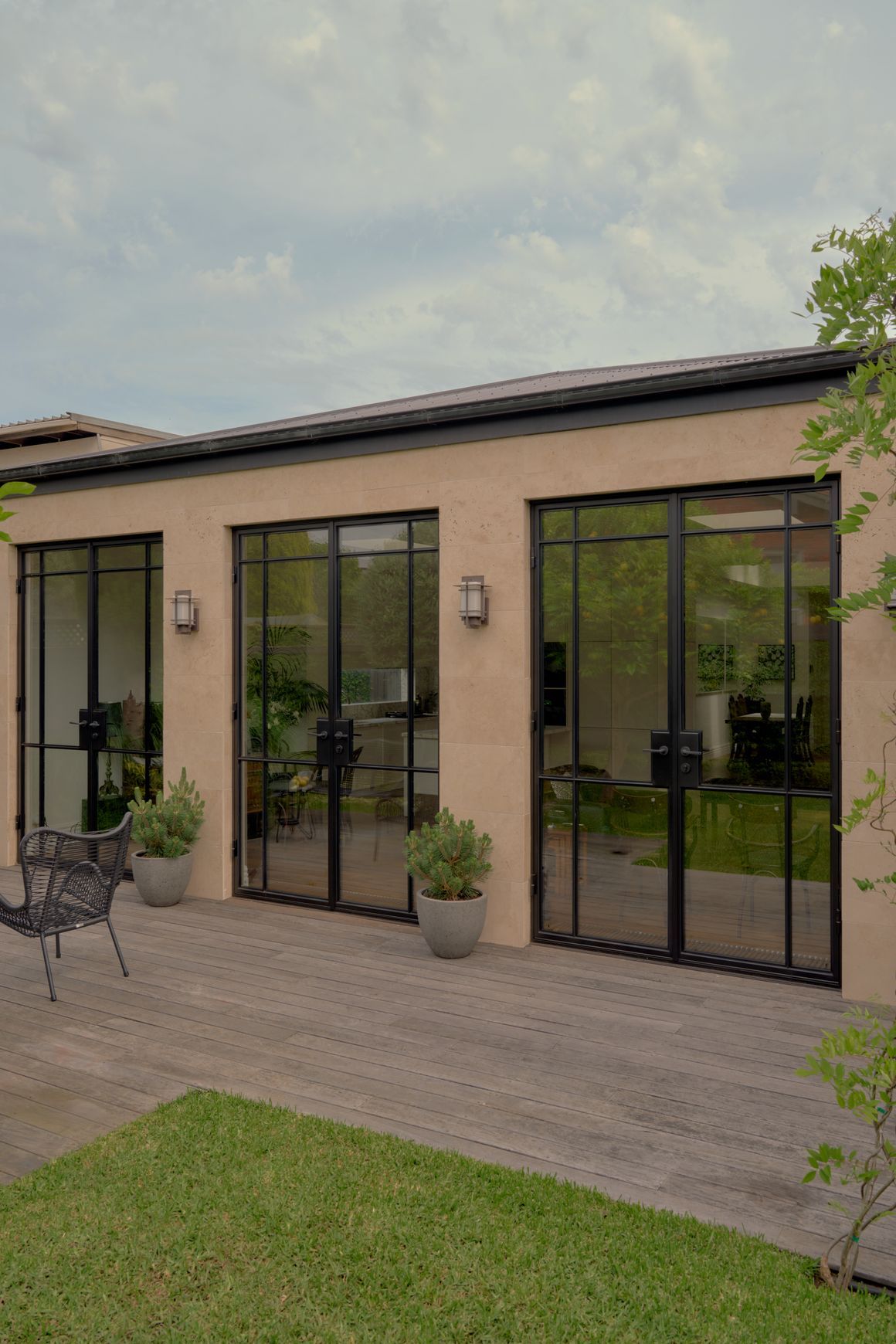

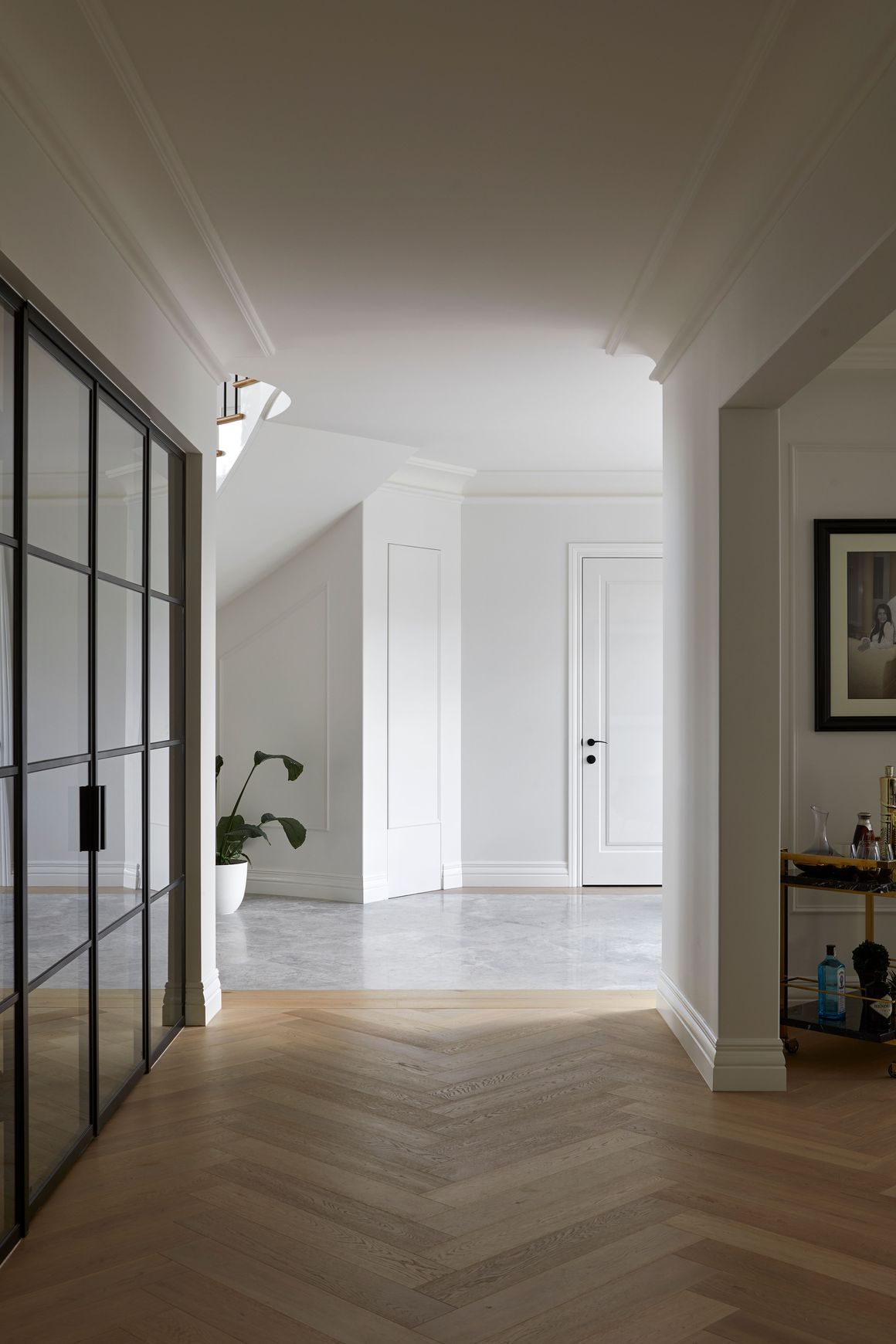

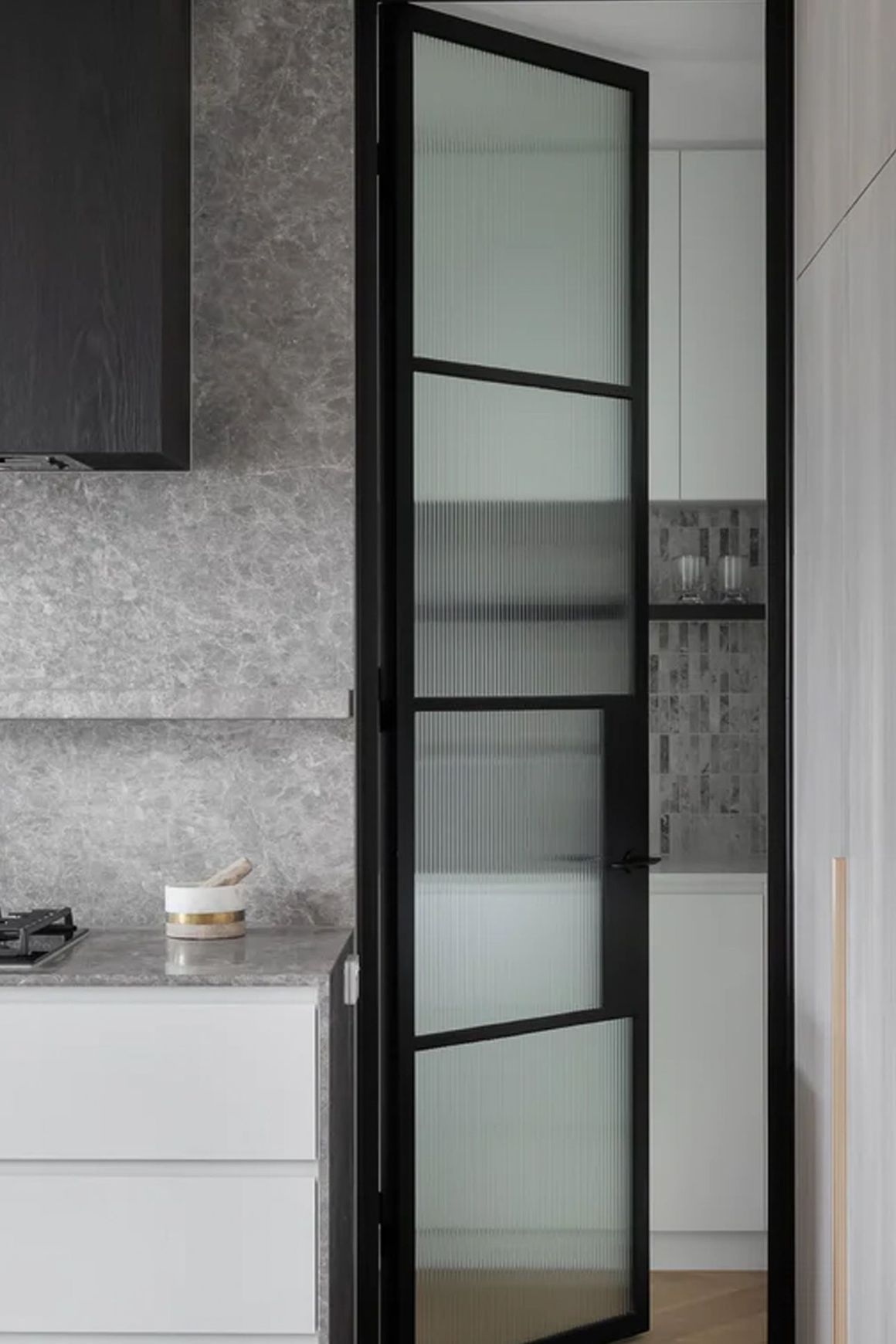

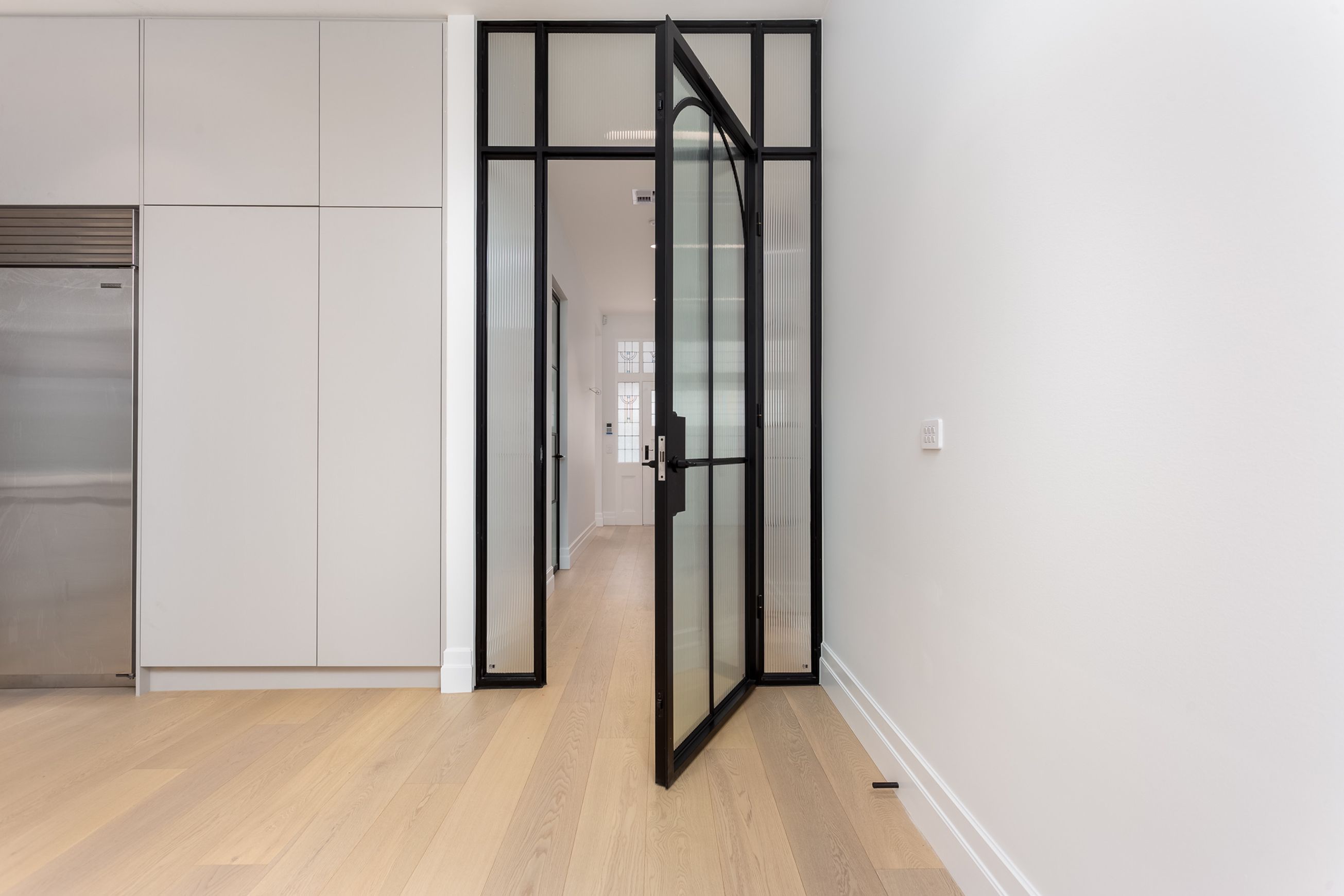

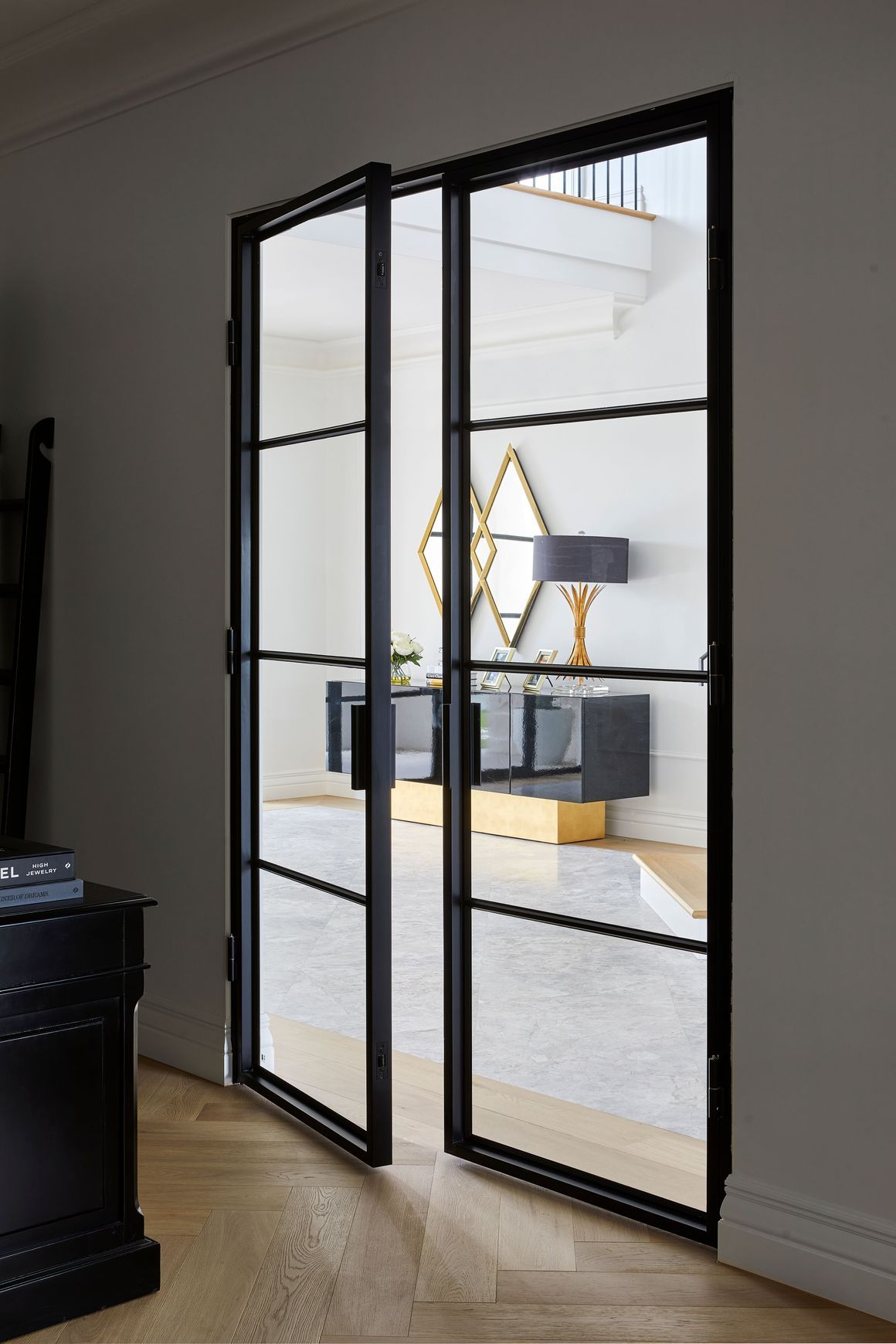

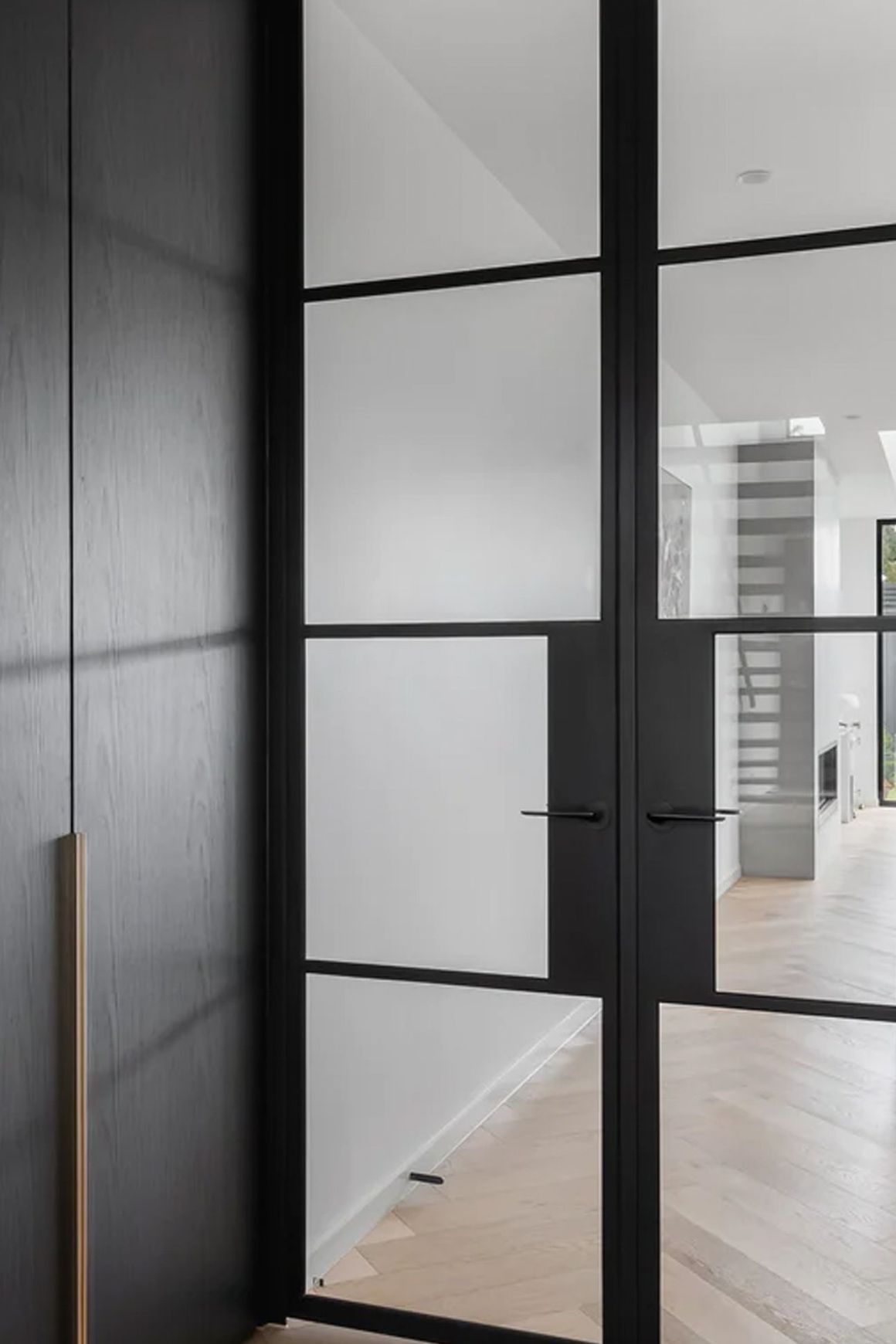

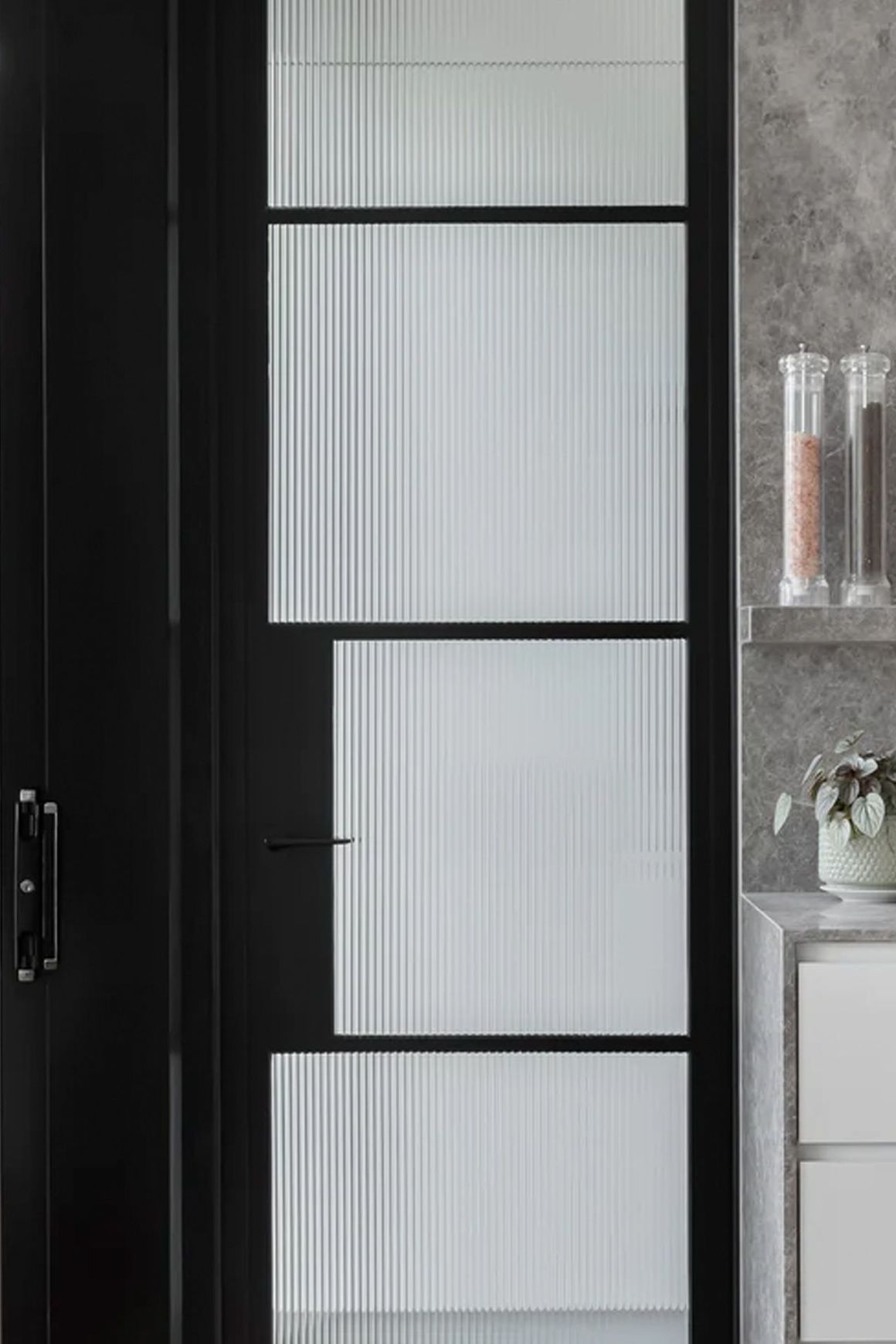

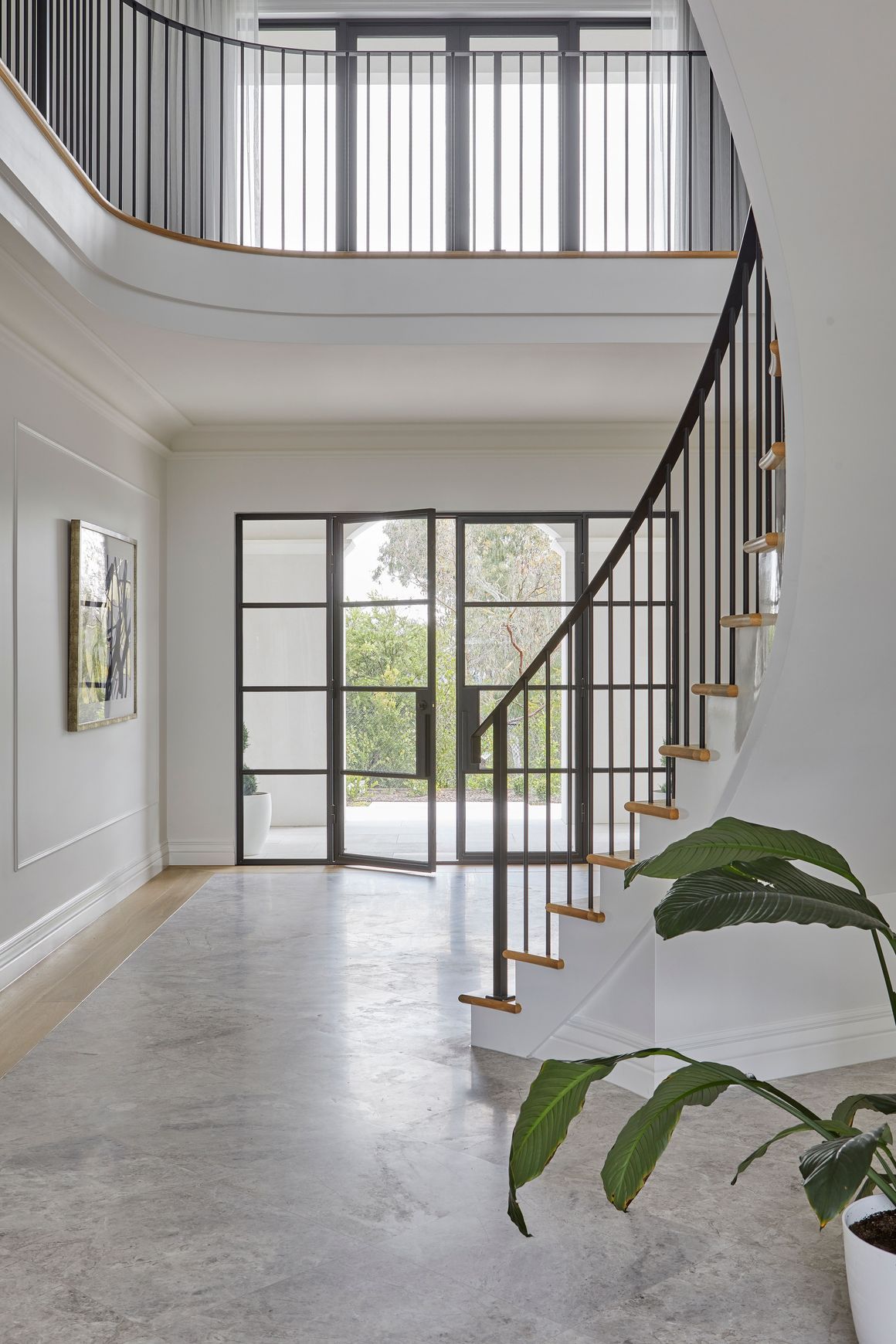

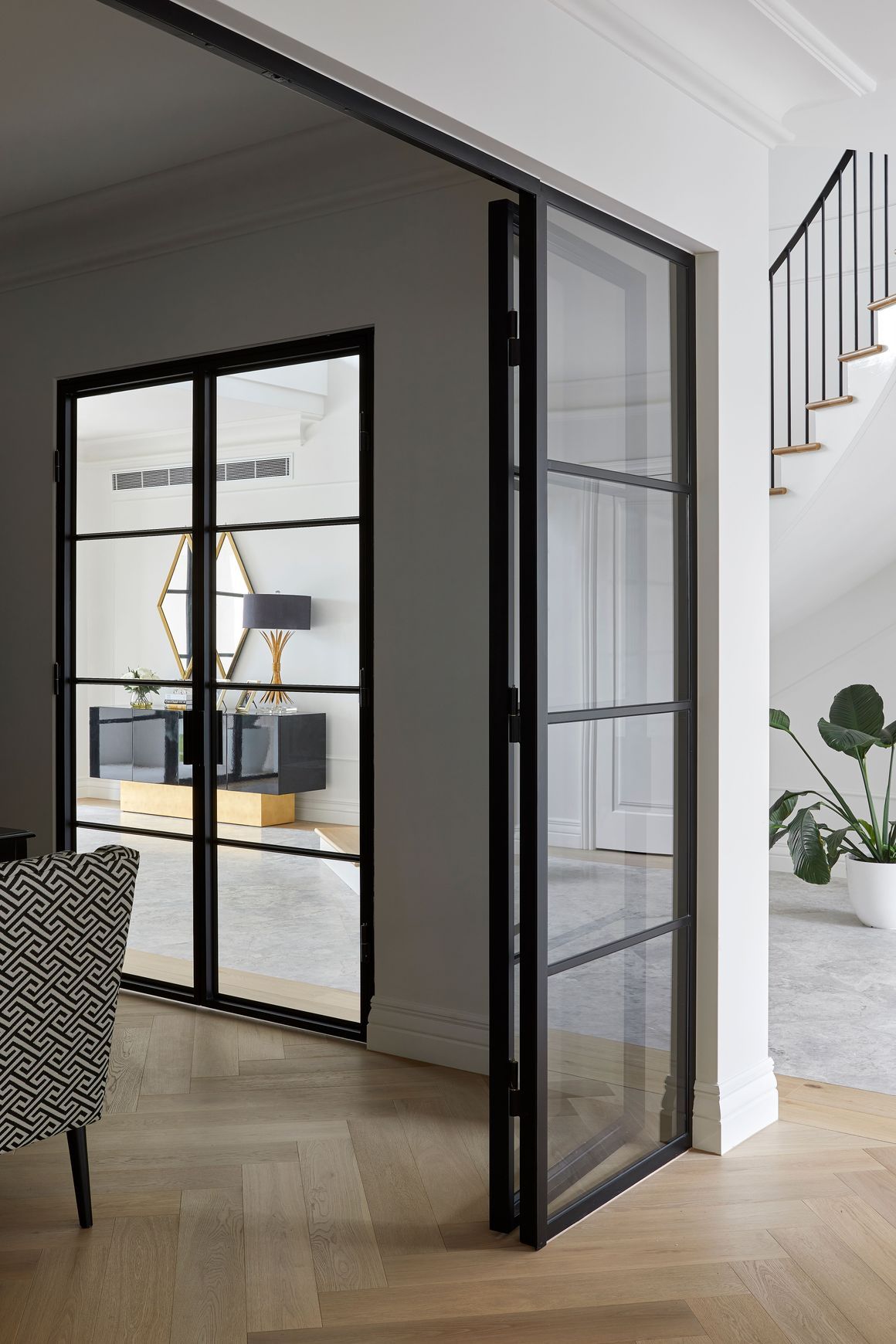

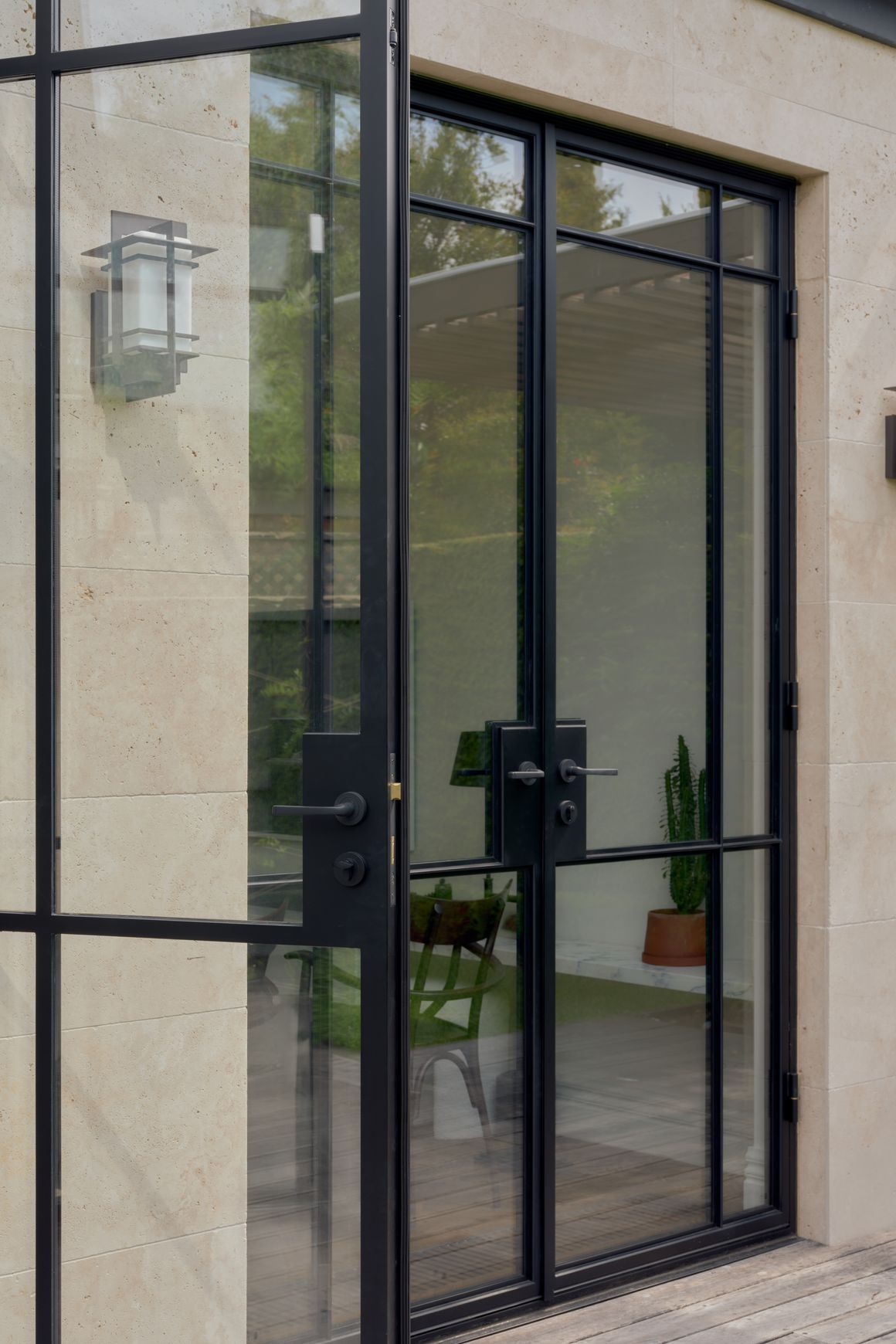

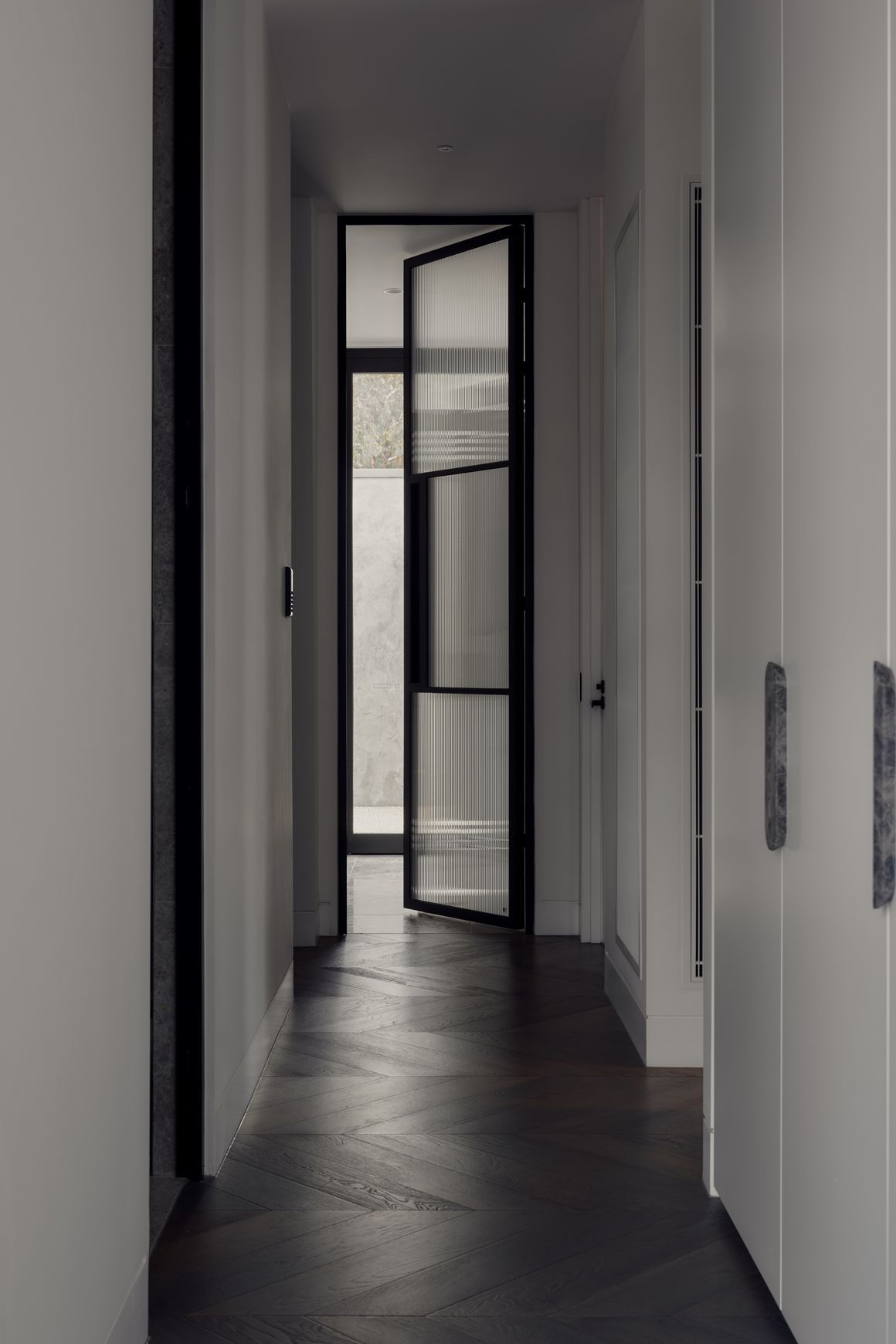

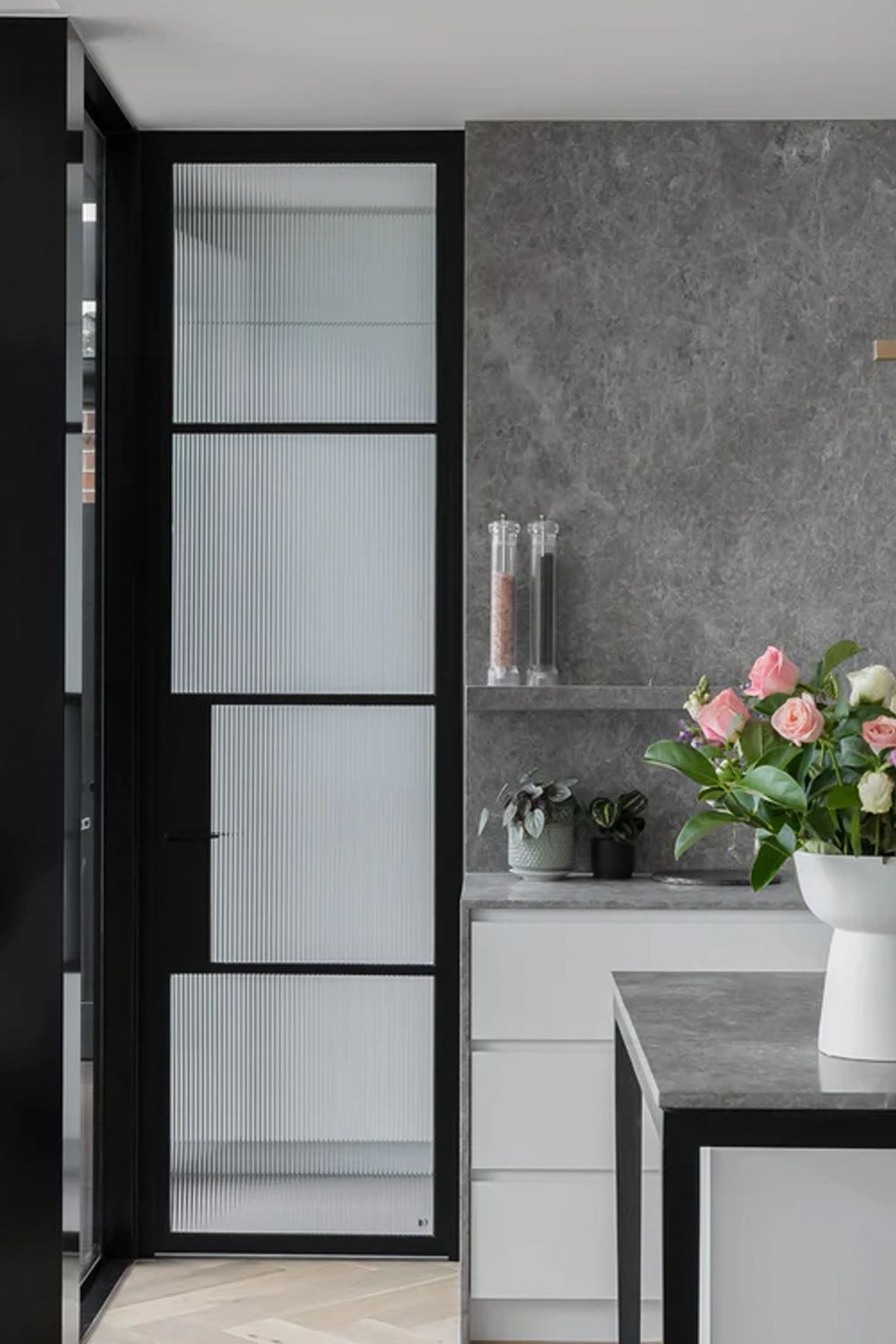

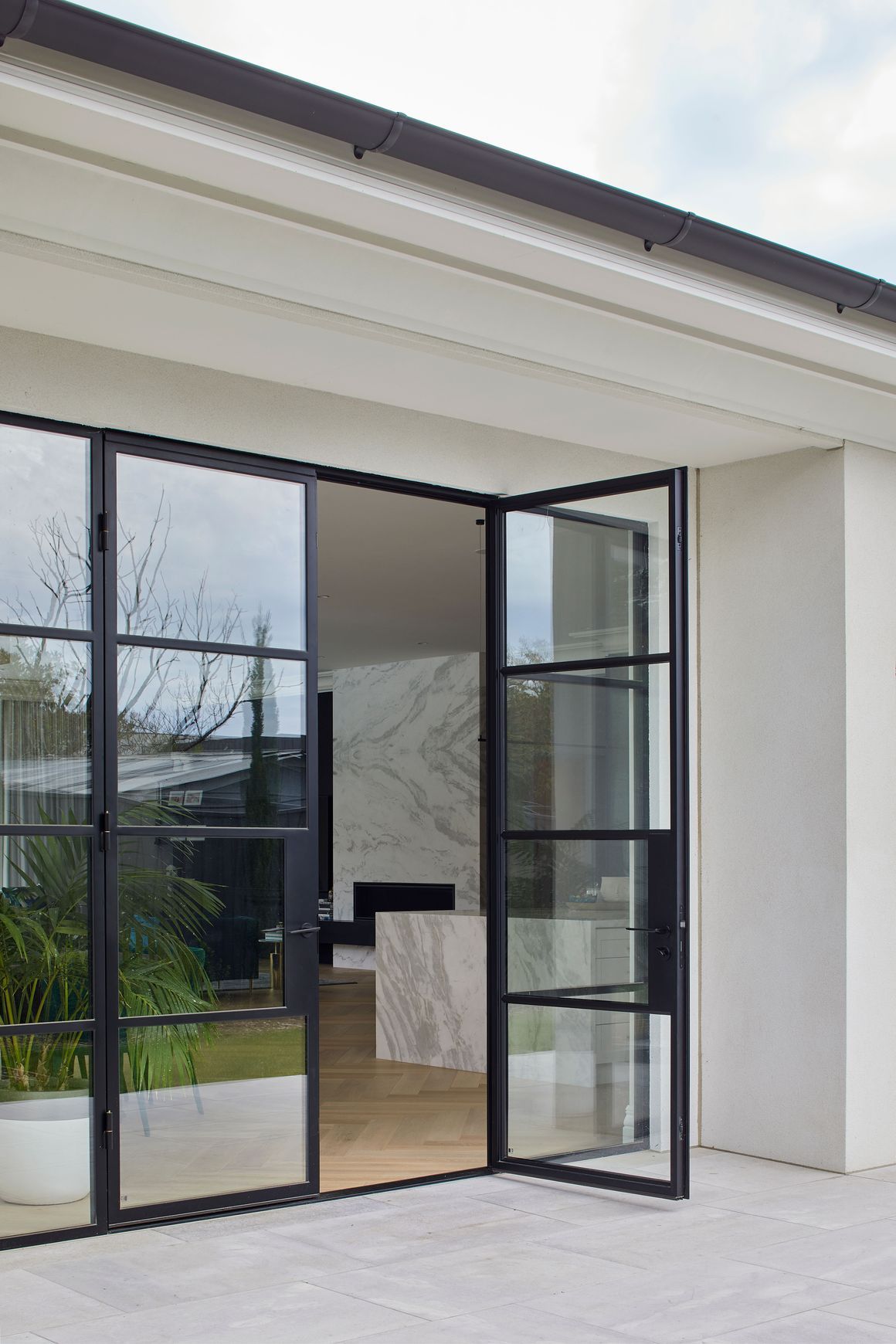

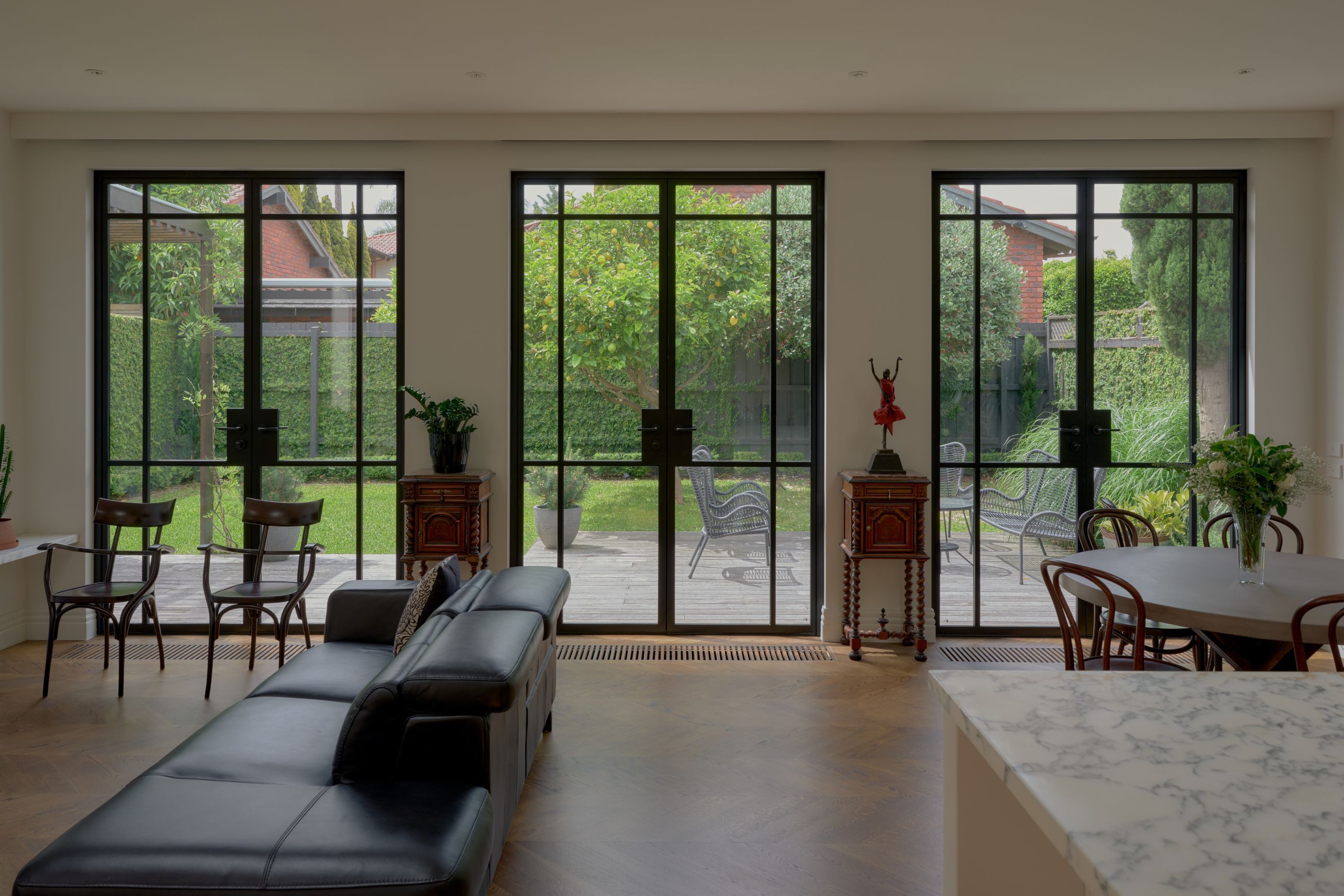

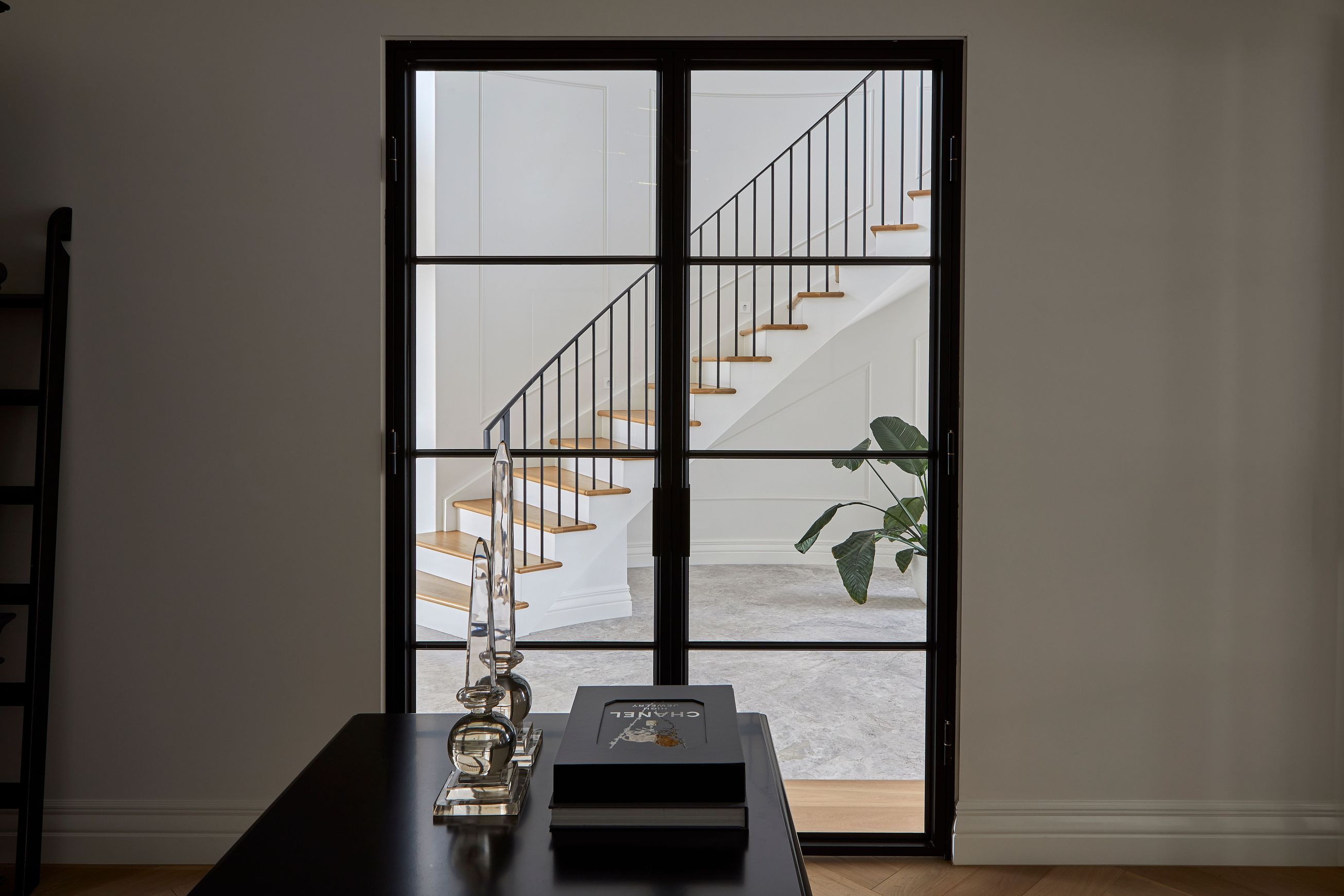

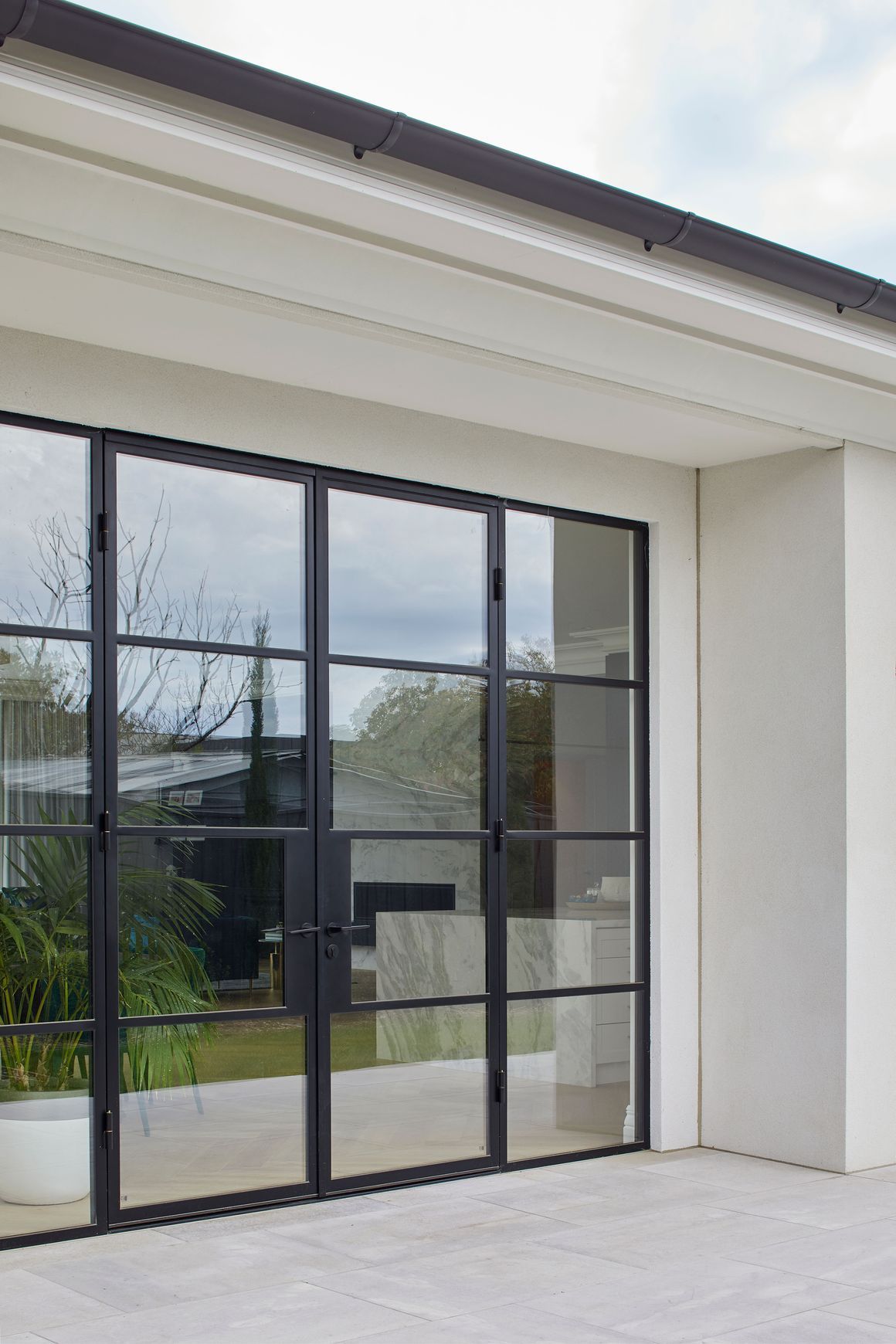

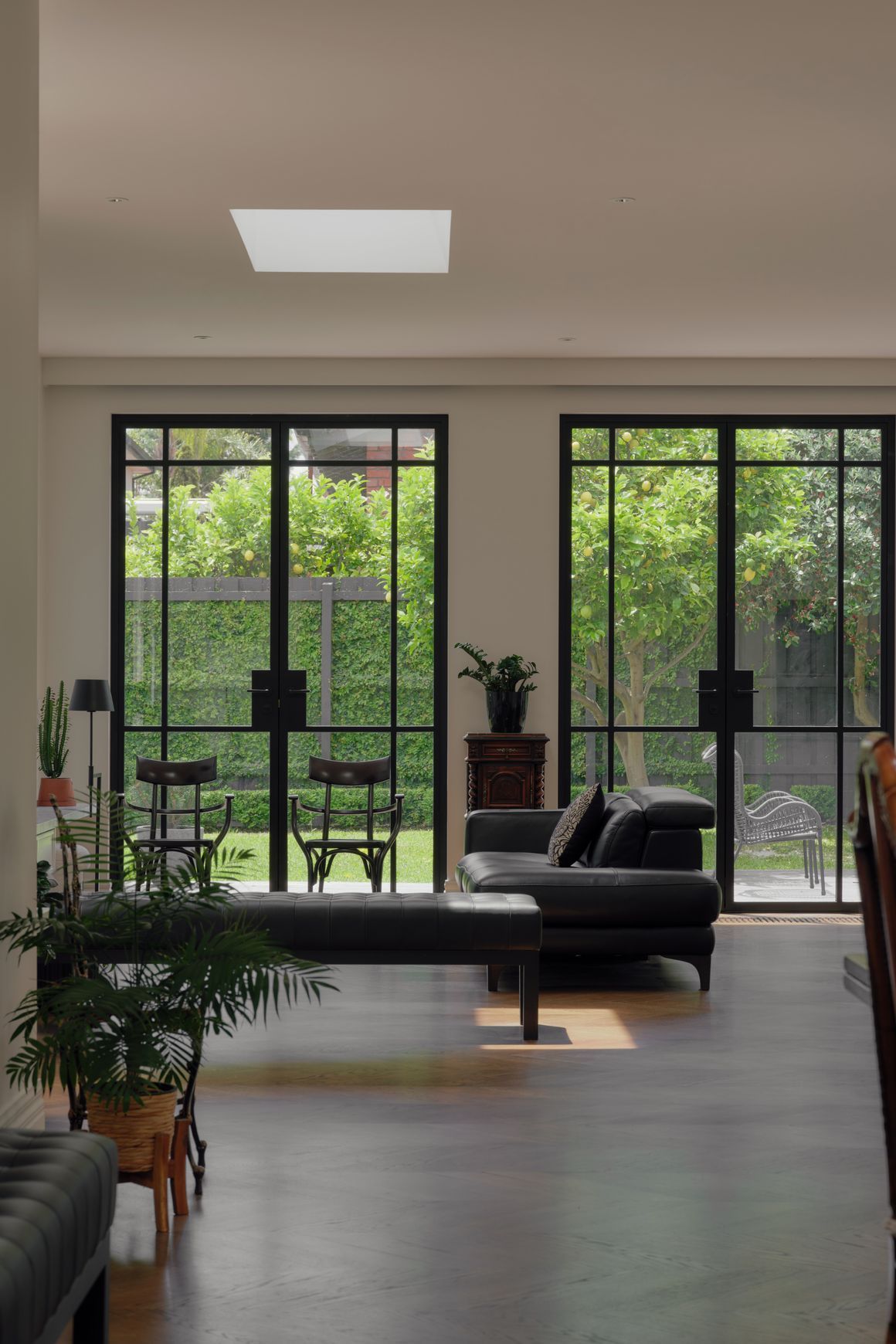

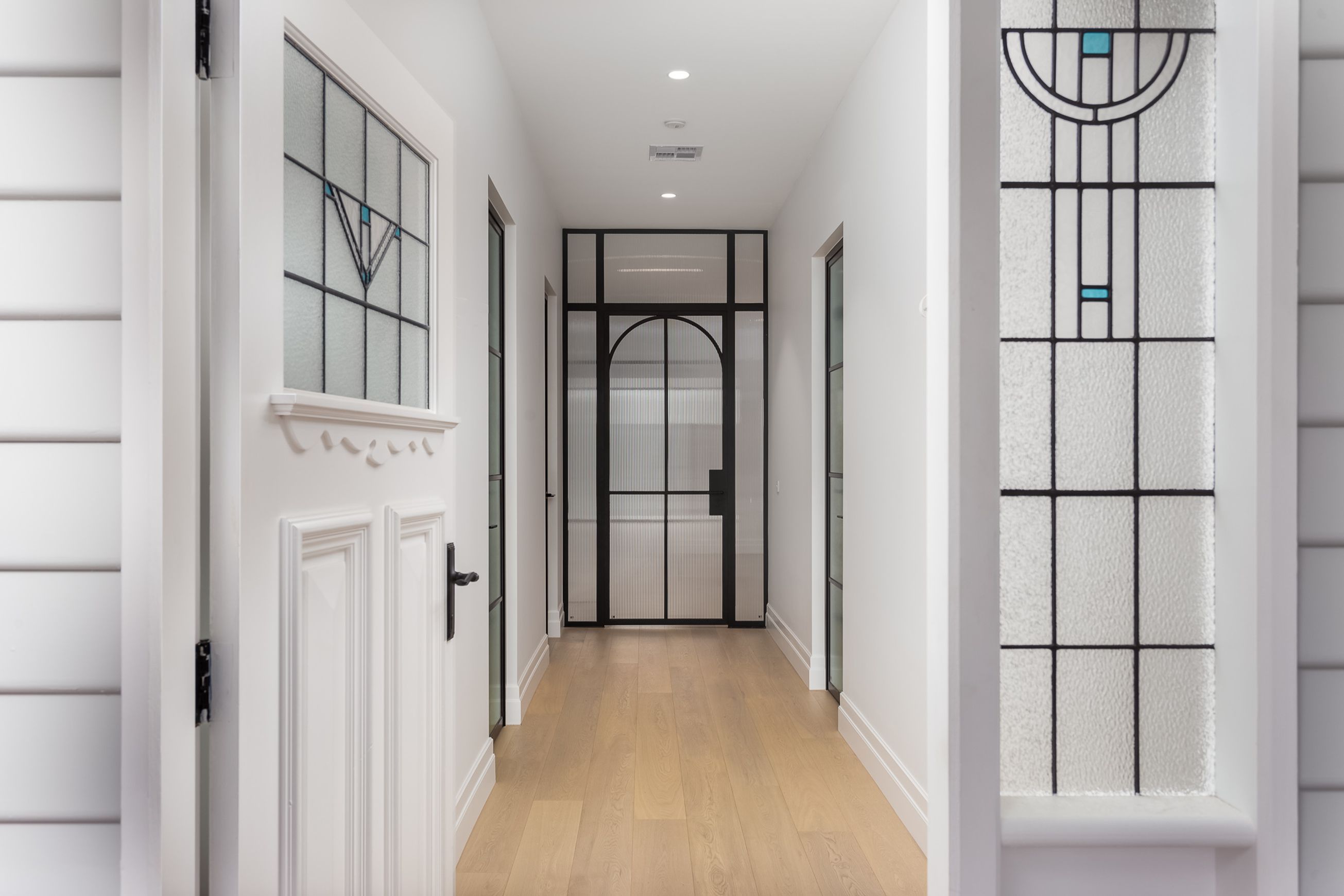

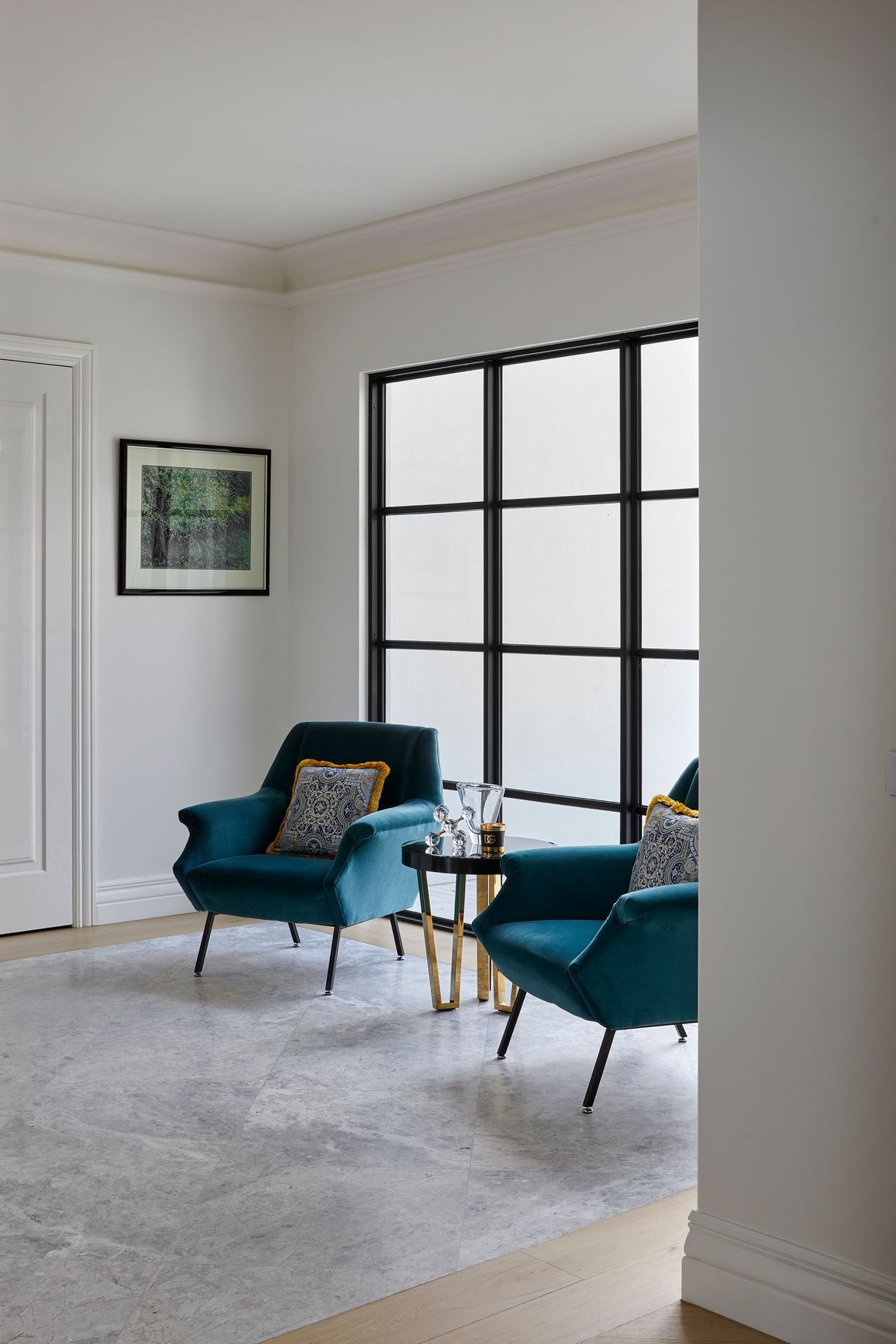

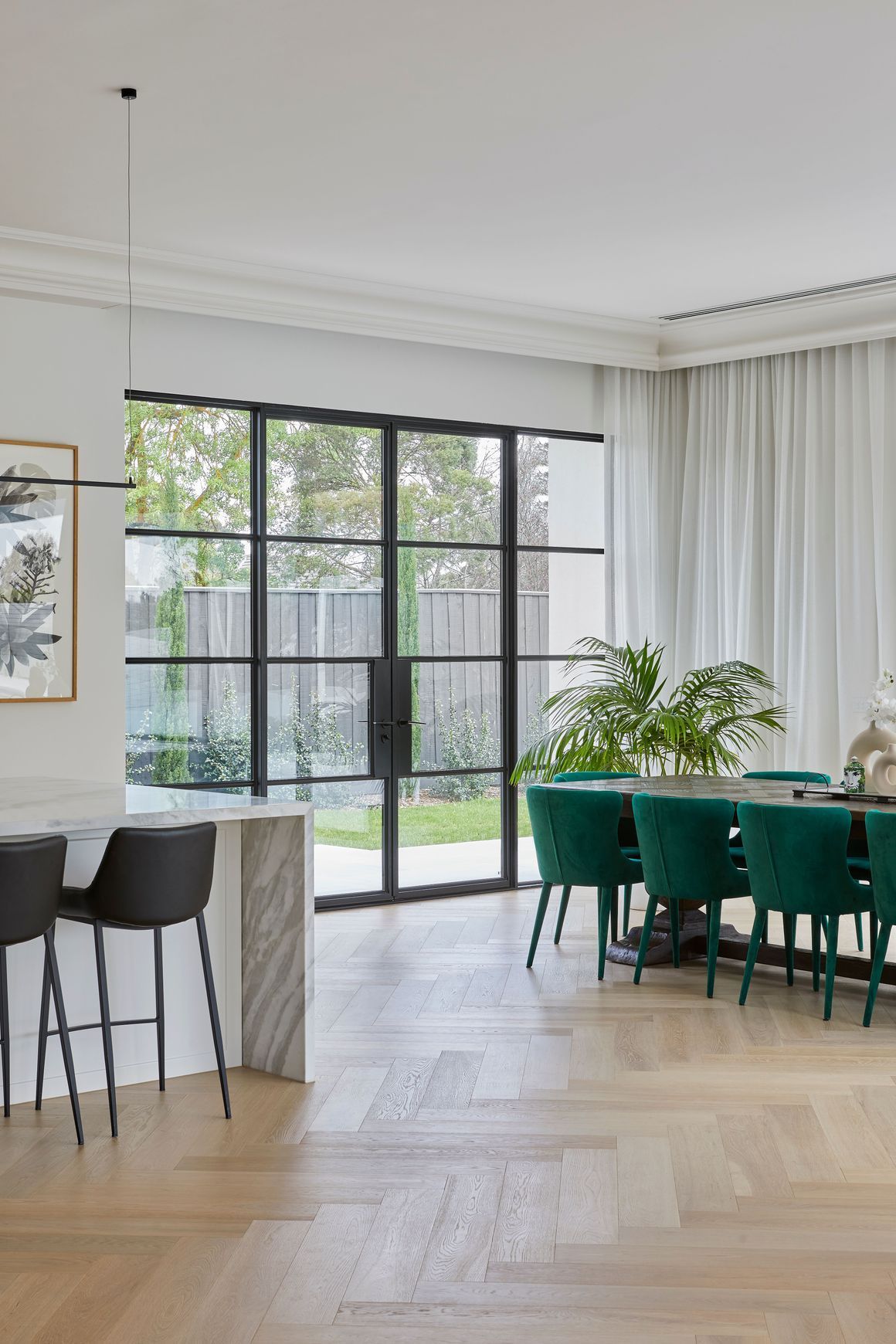

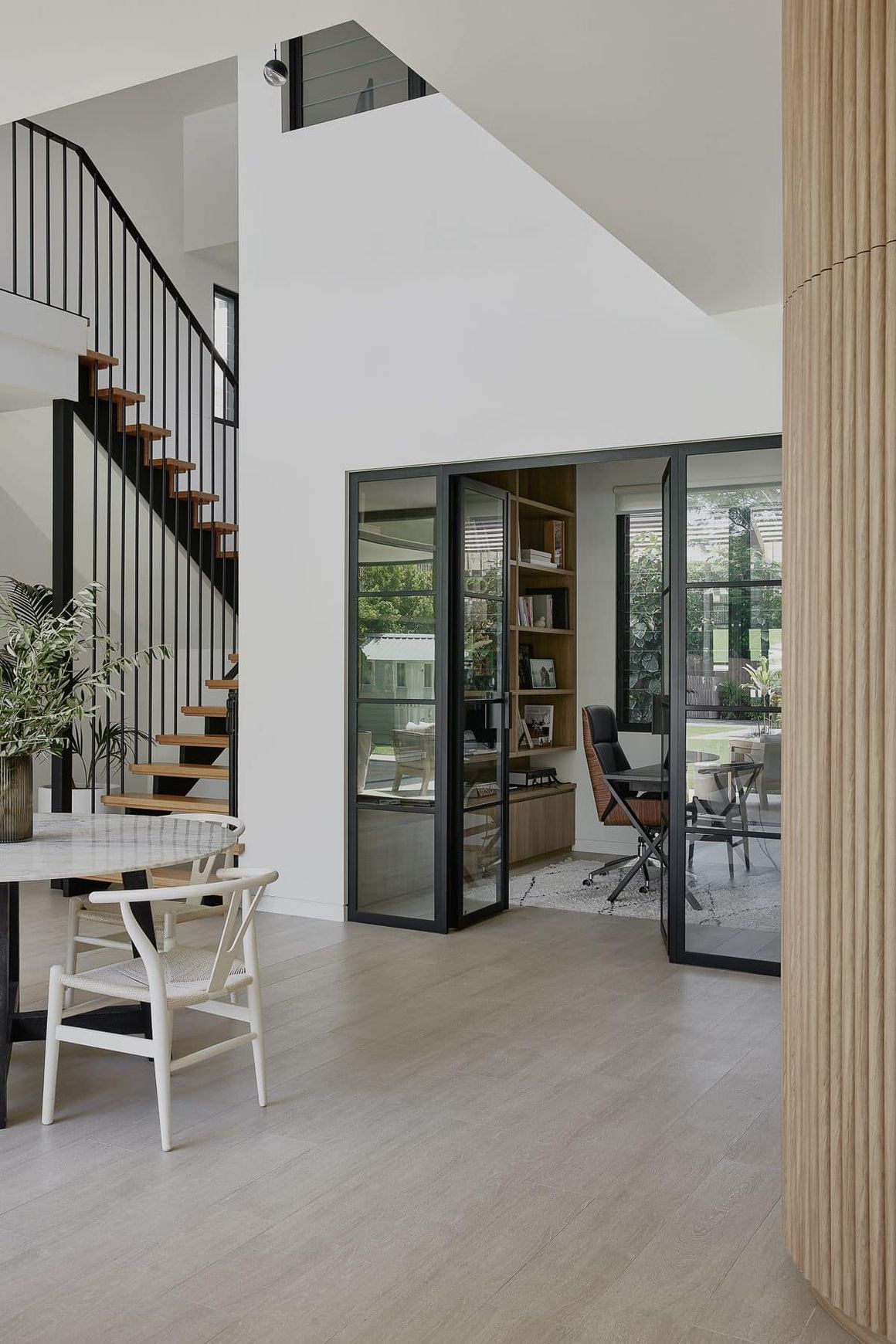

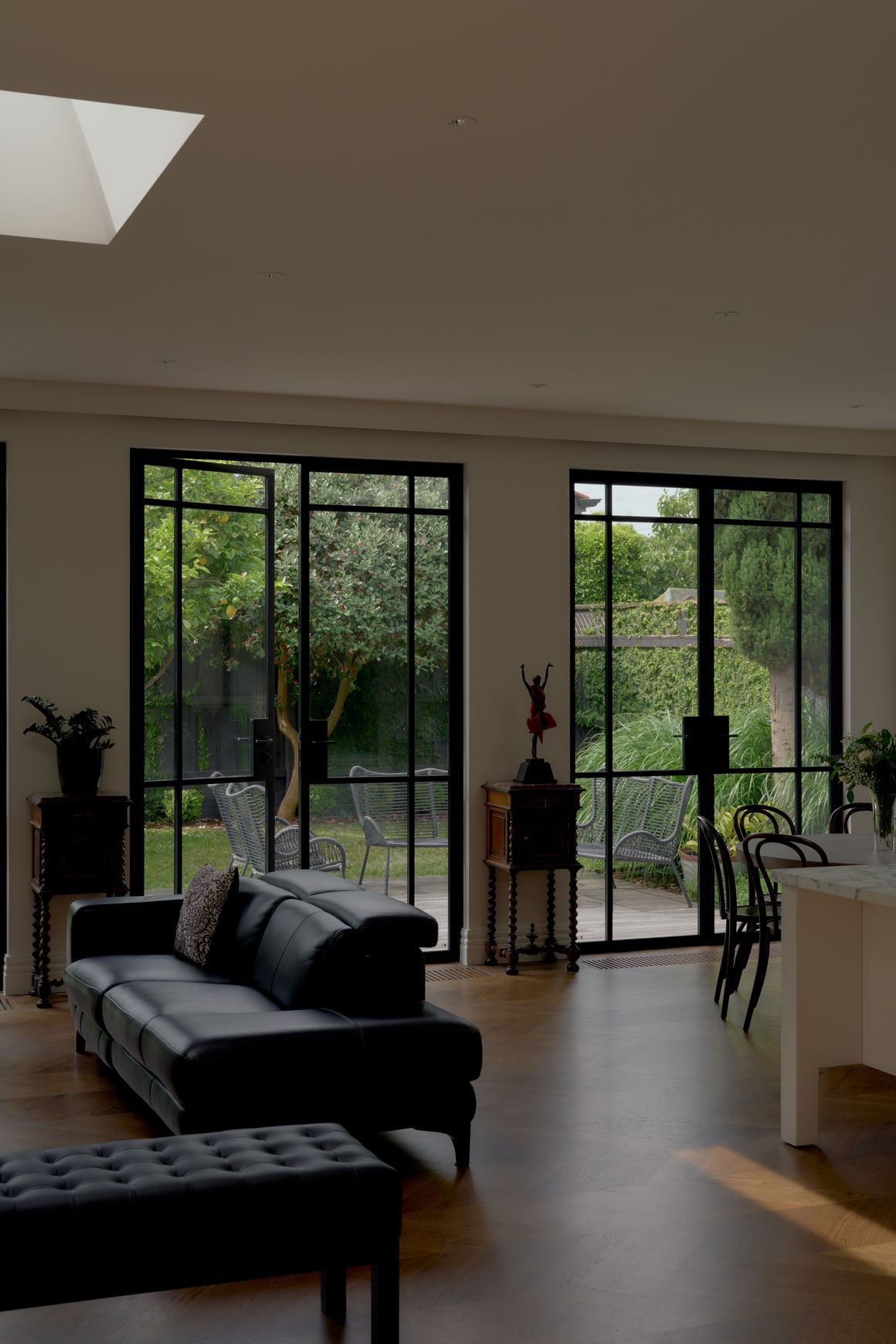

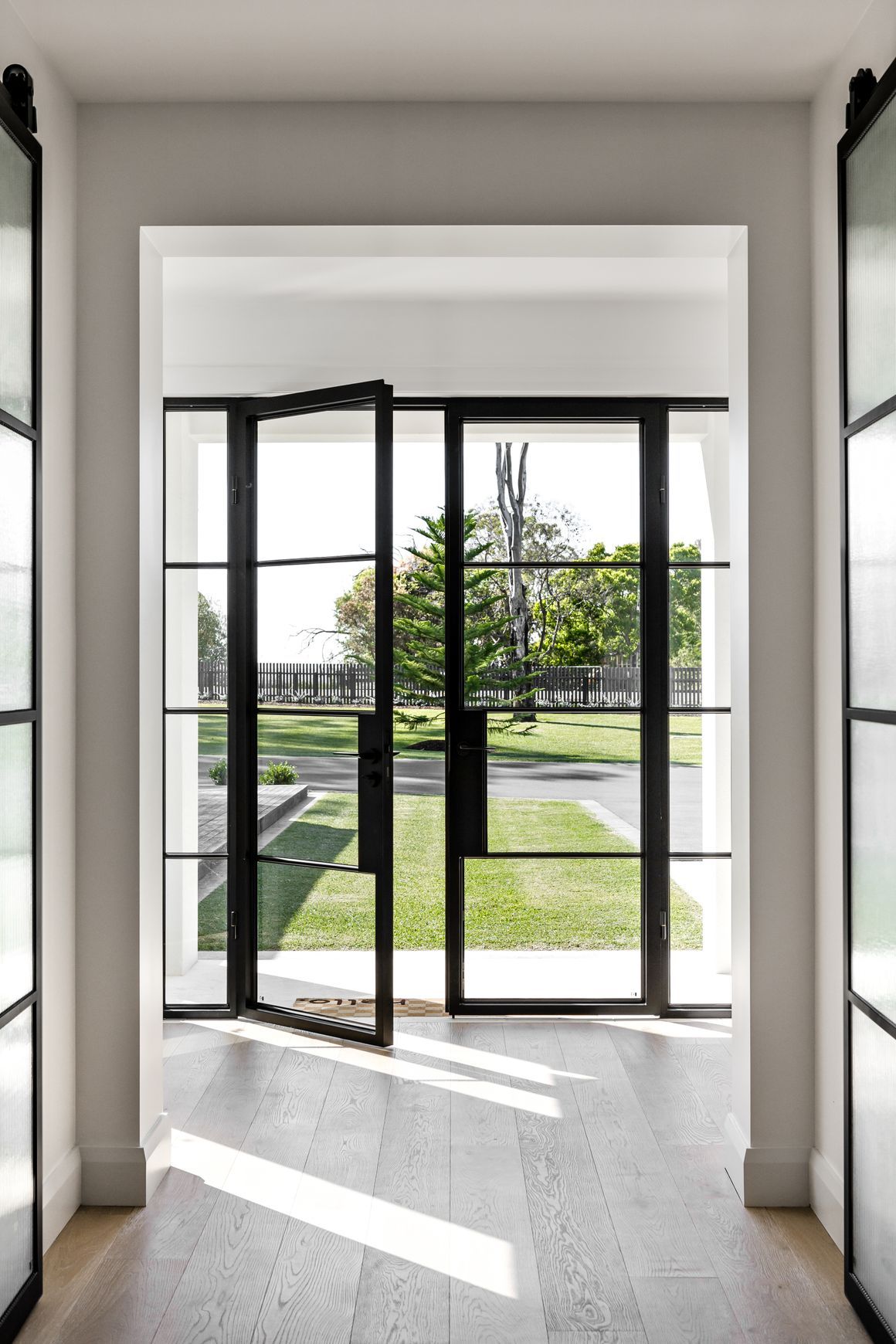

Steel Frame Glass Hinge Doors - Galvanised FPS50

Not Applicable

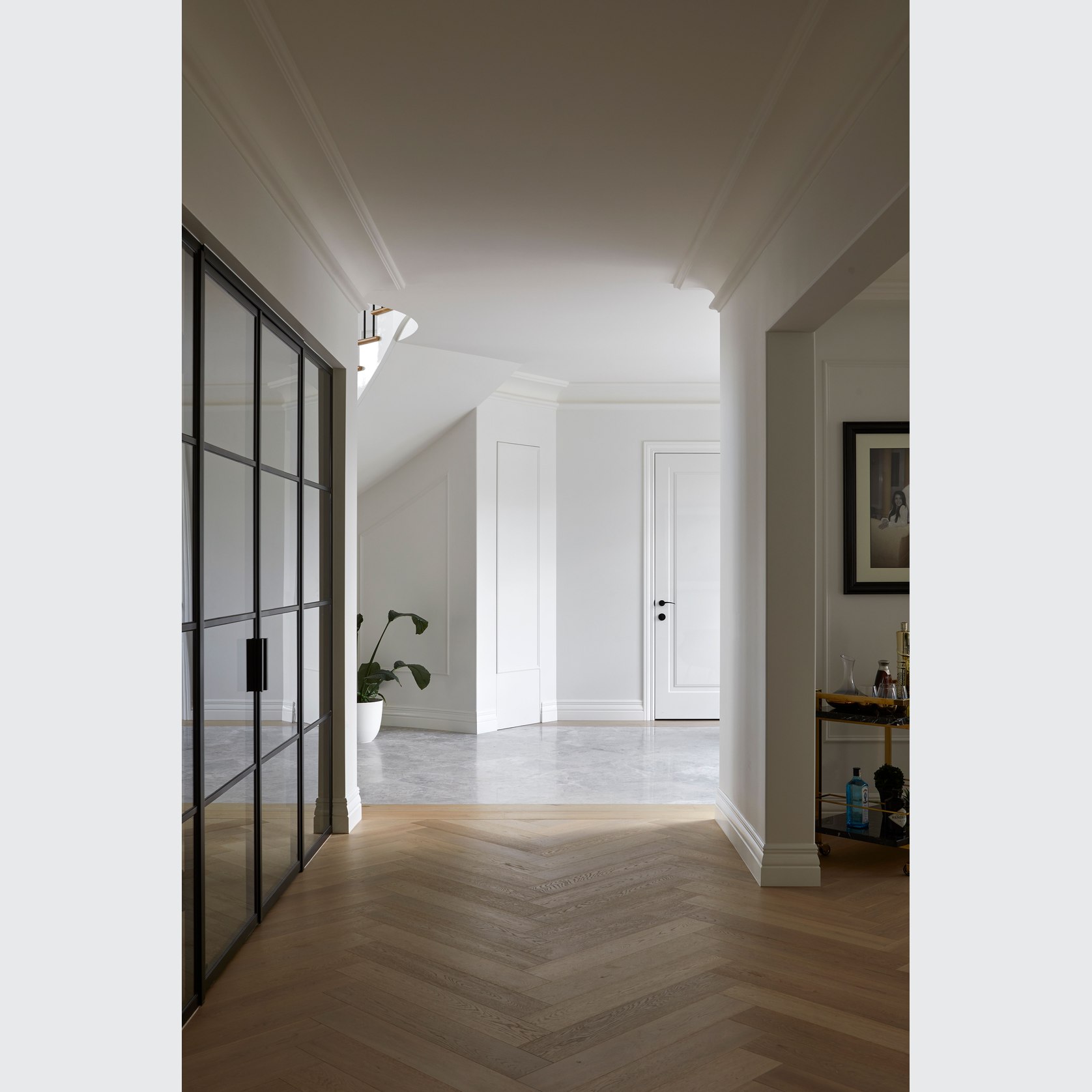

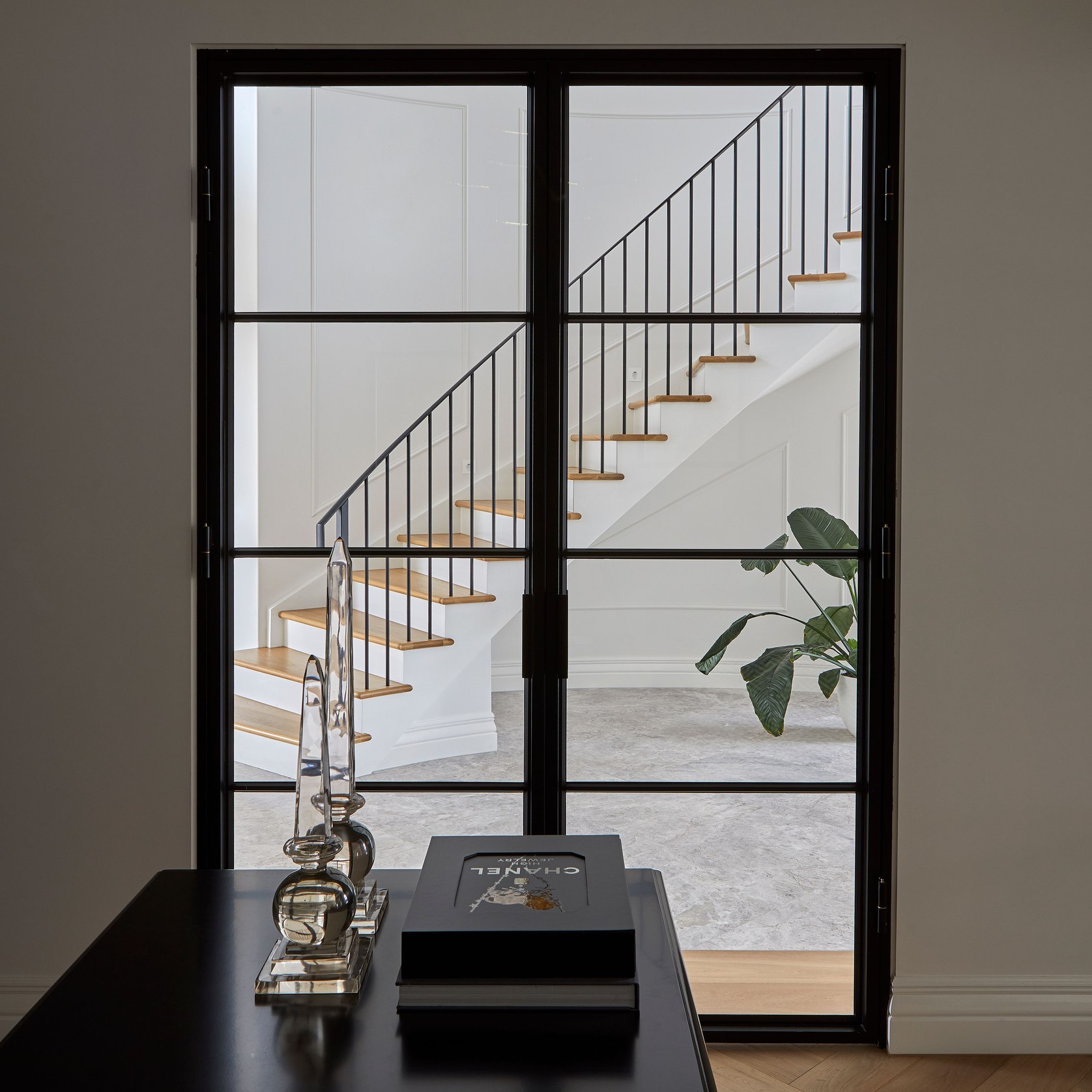

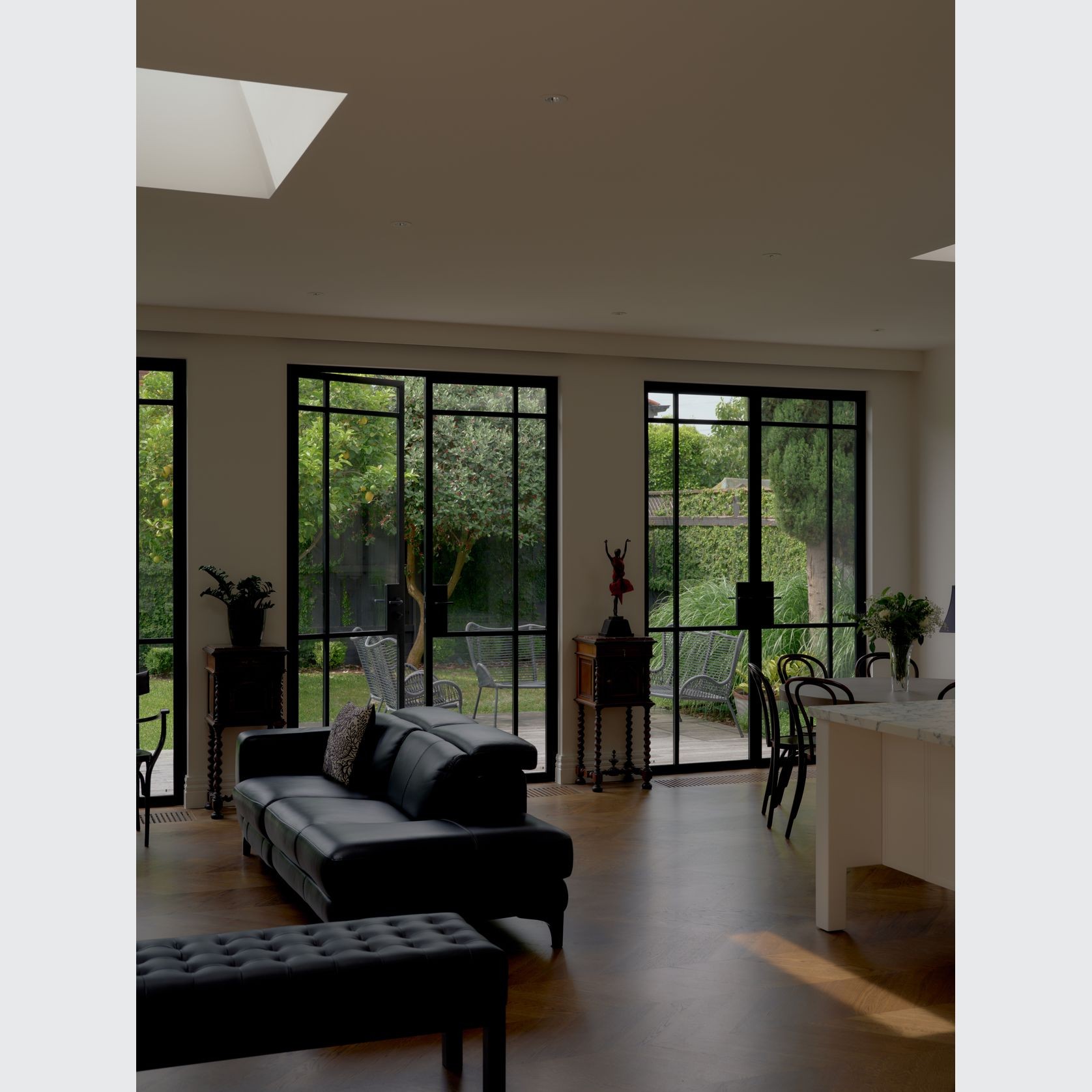

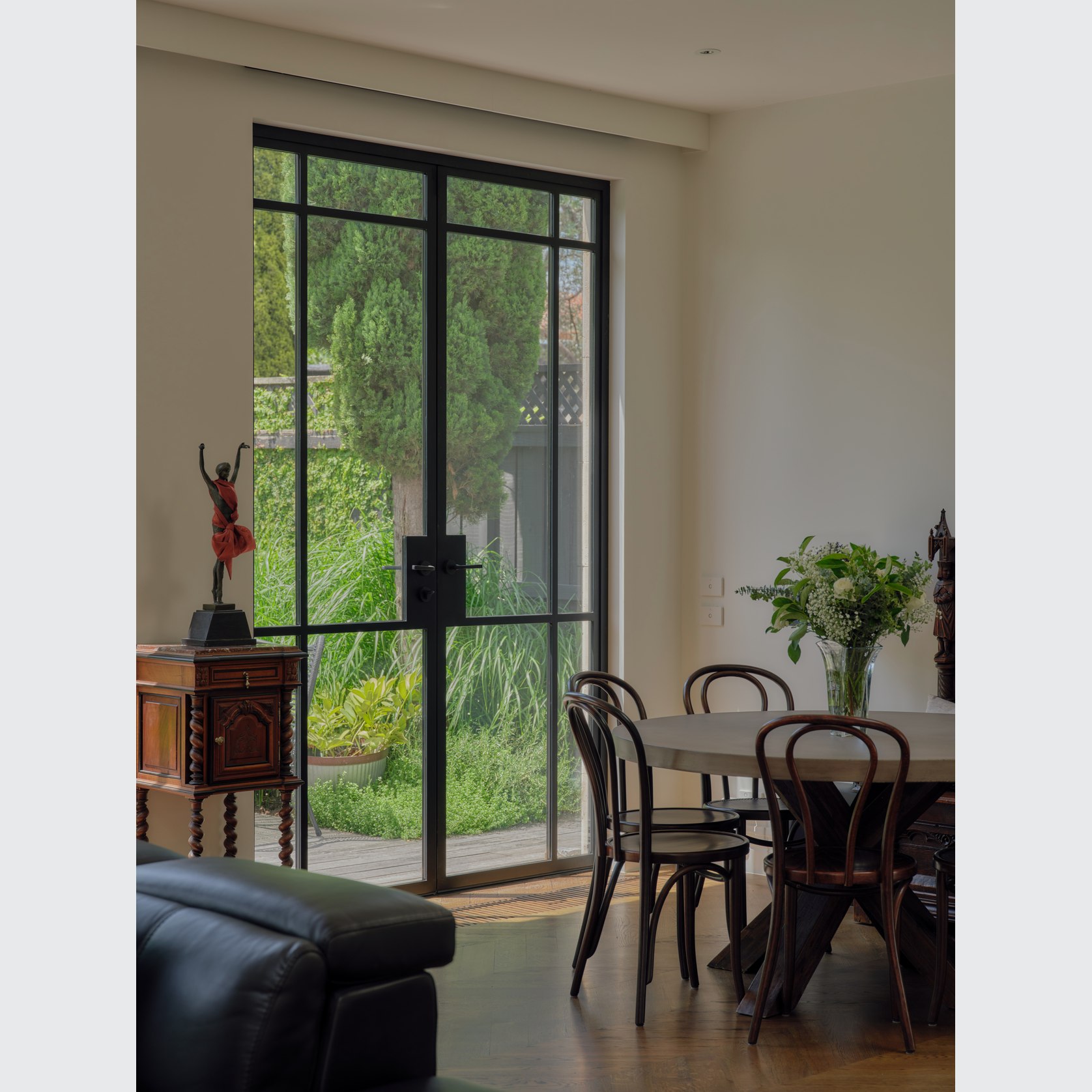

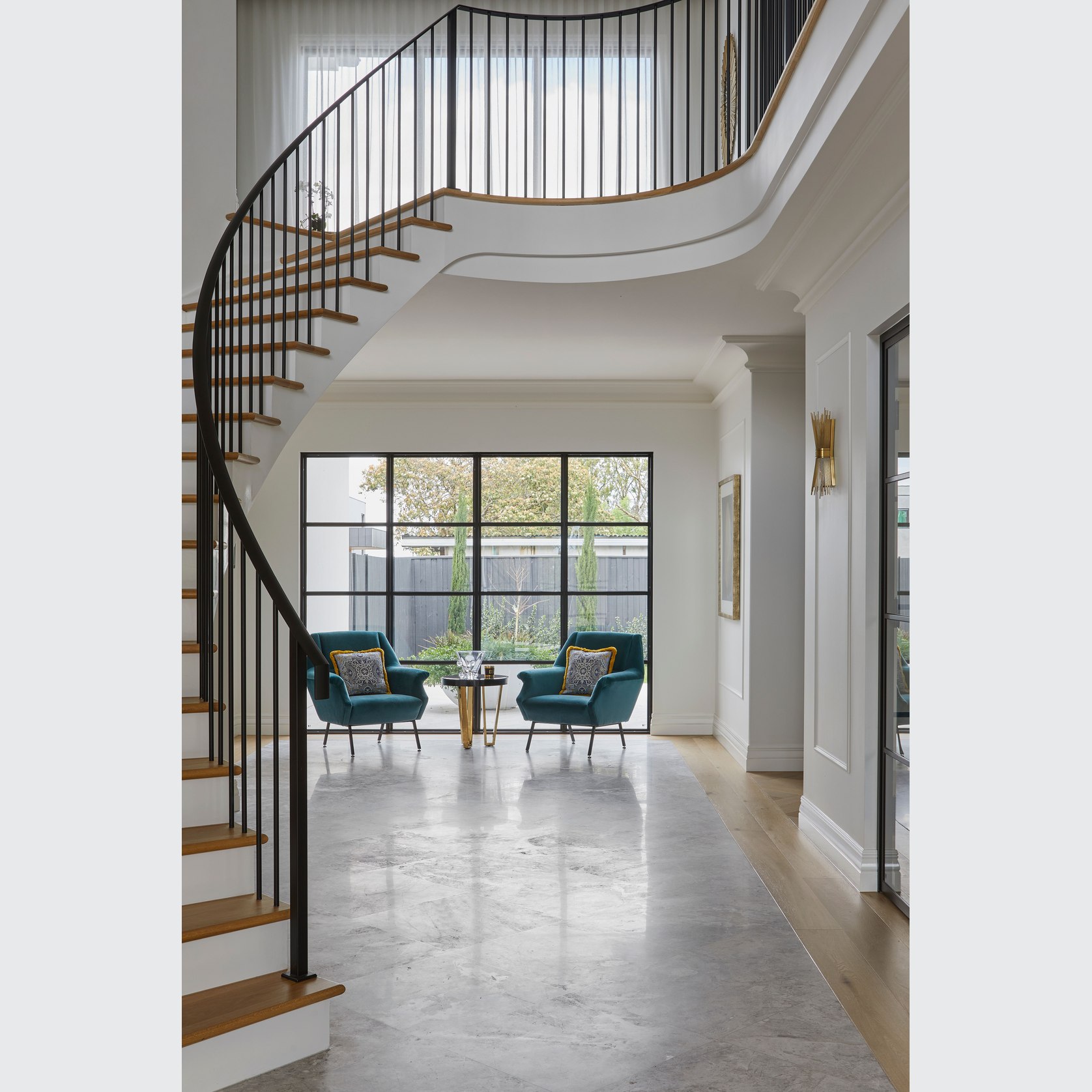

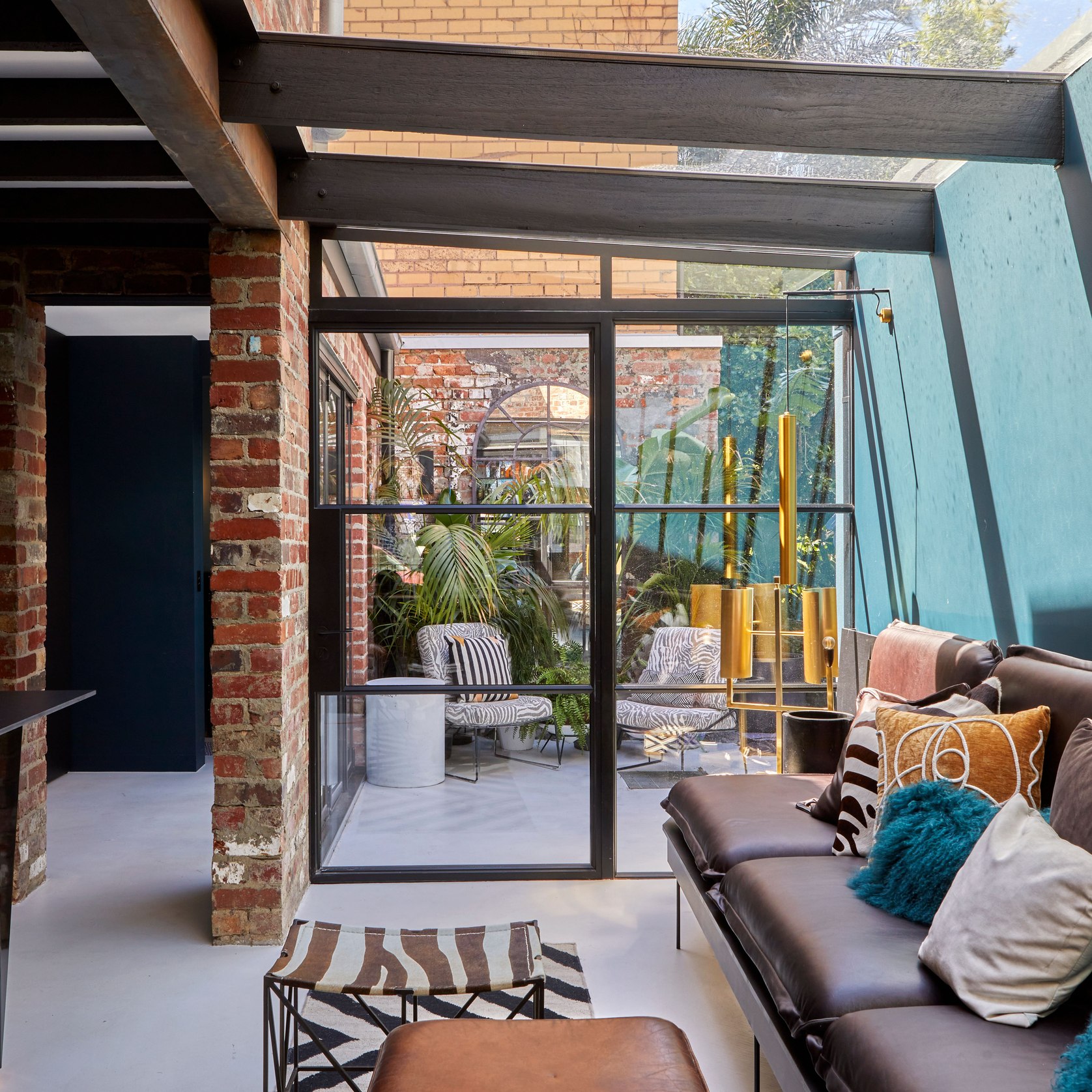

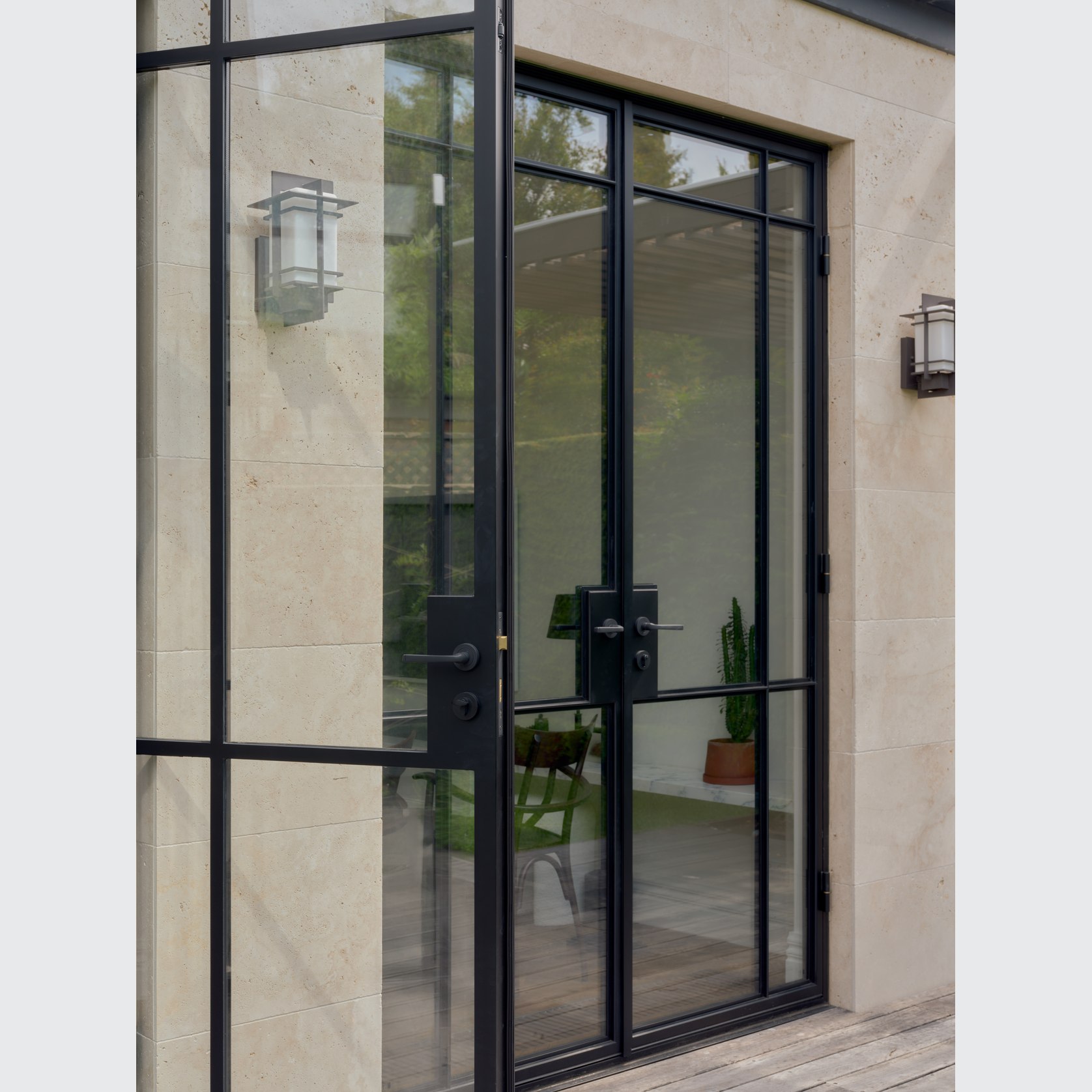

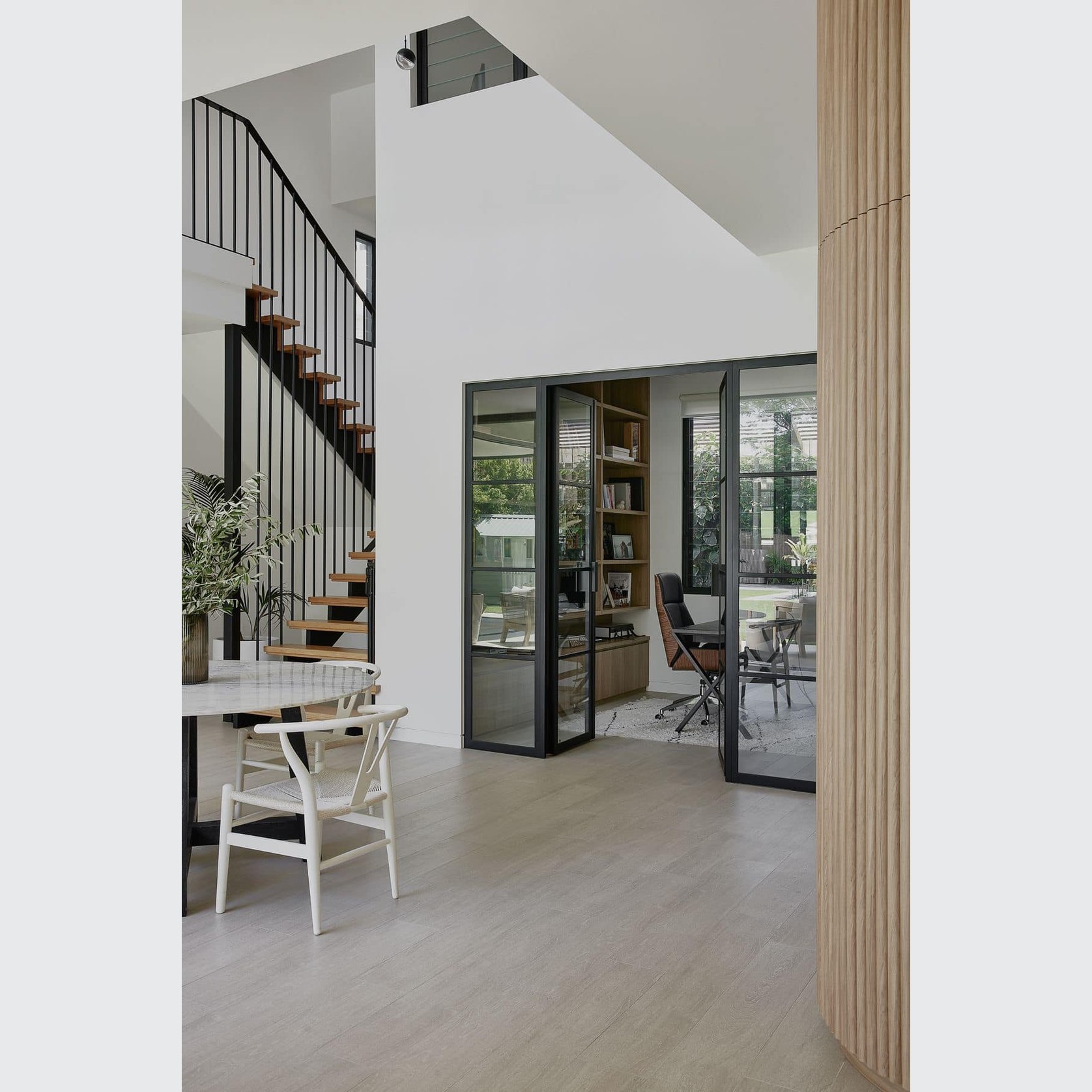

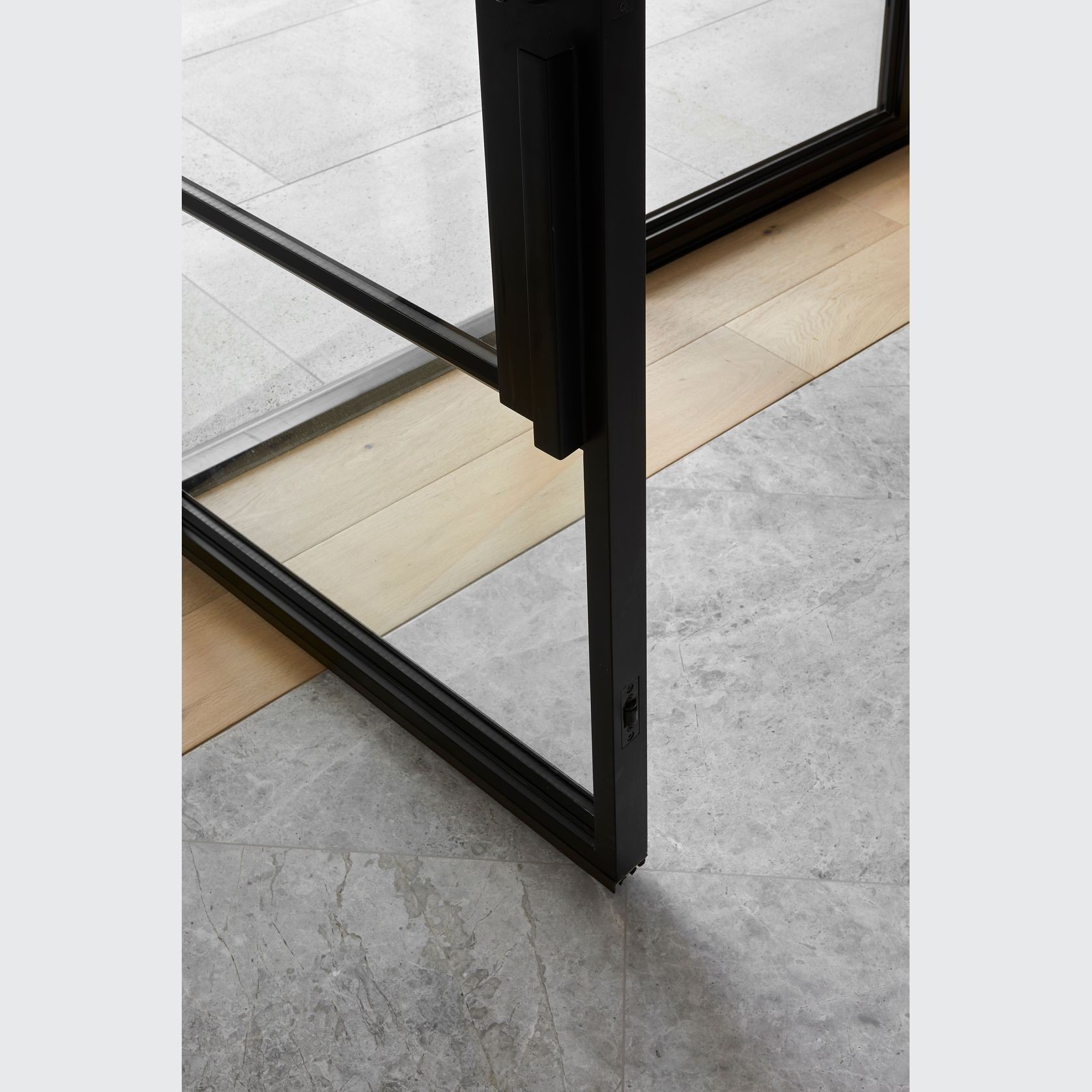

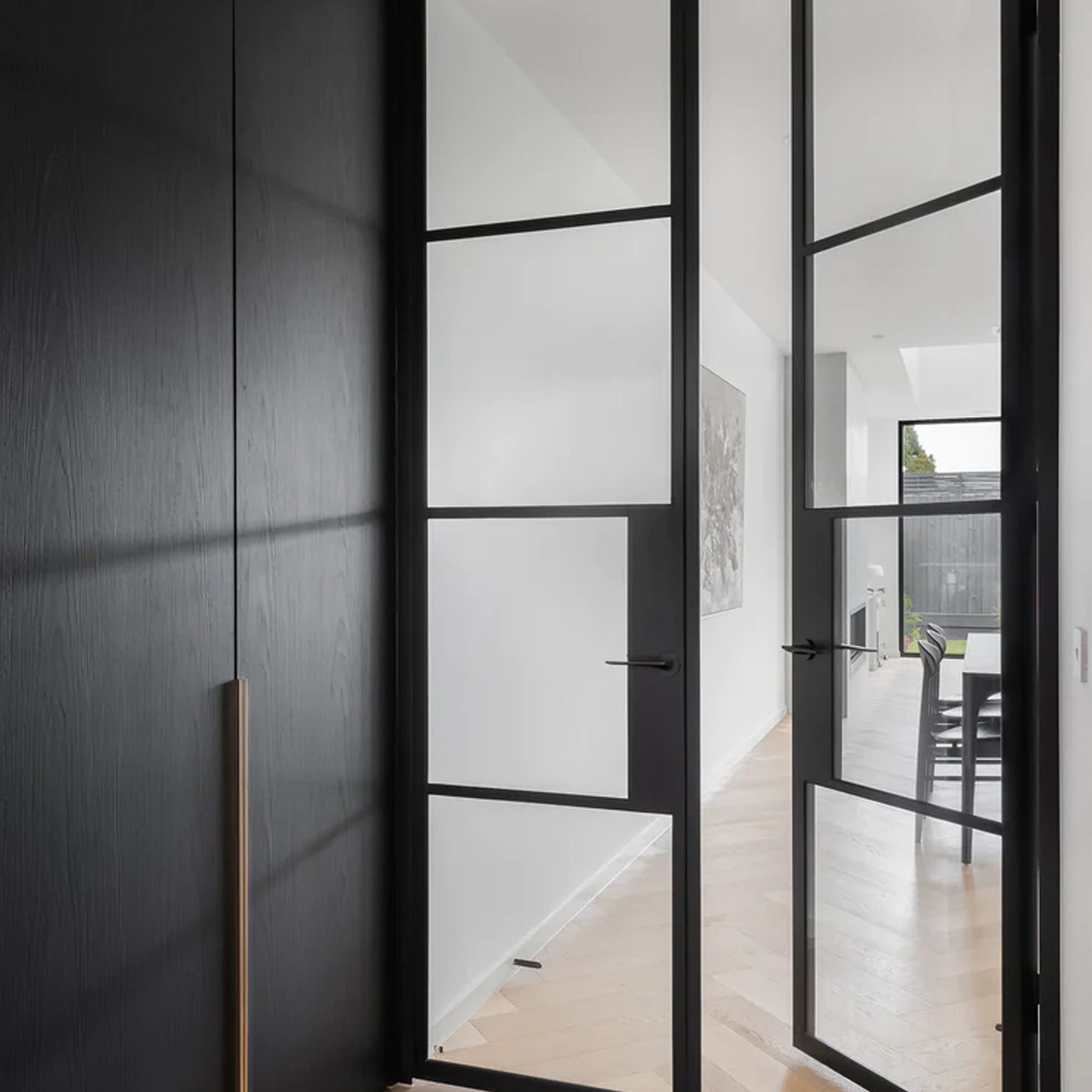

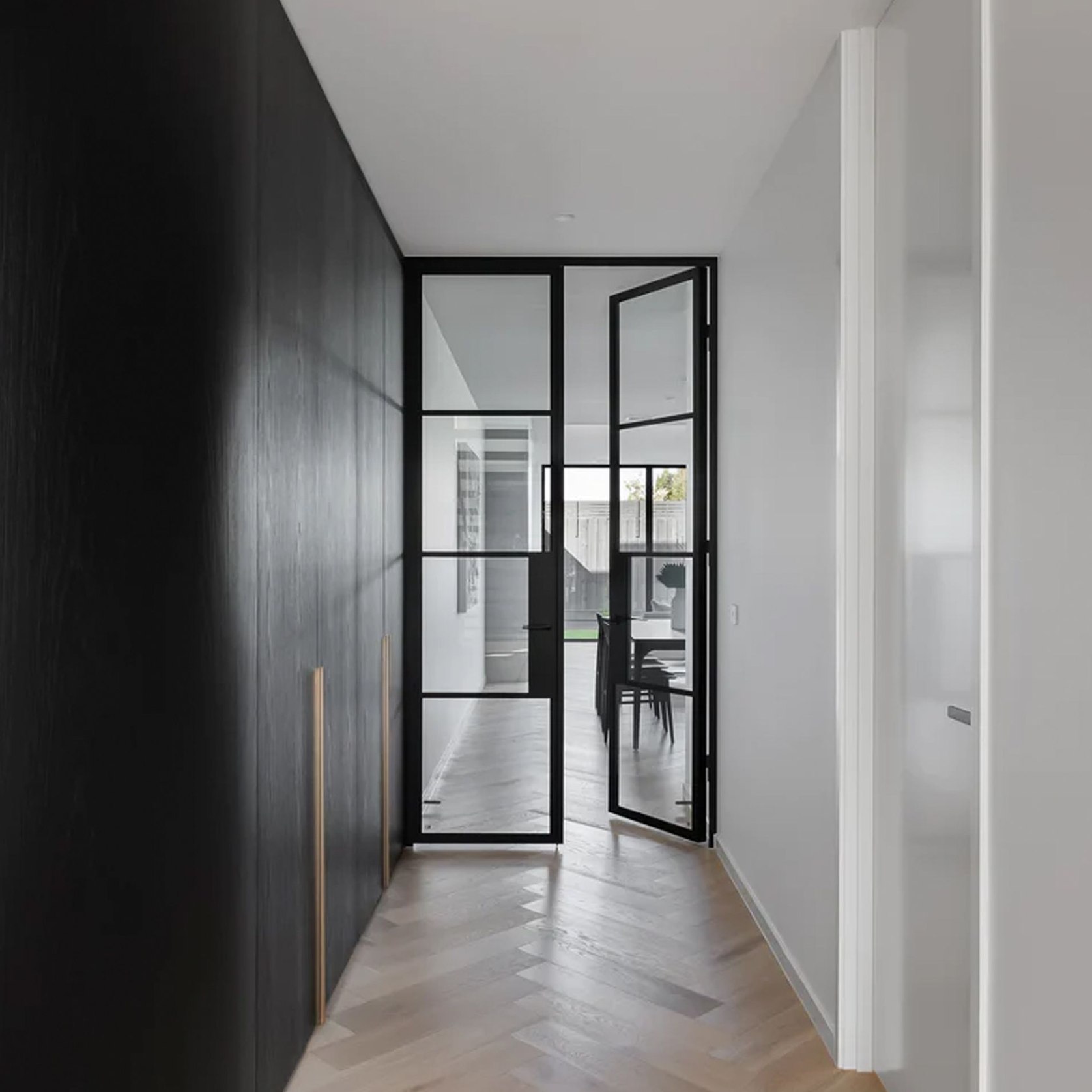

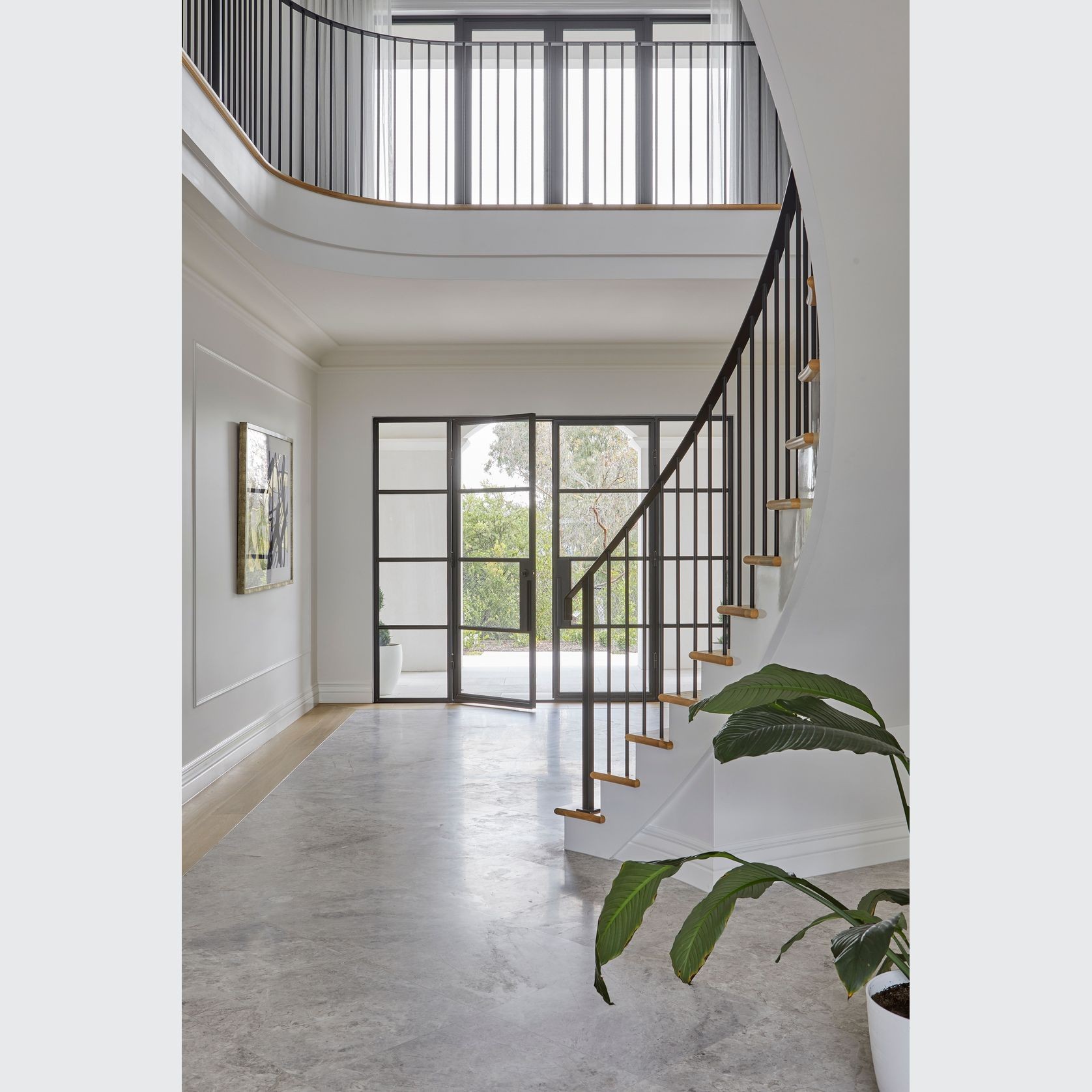

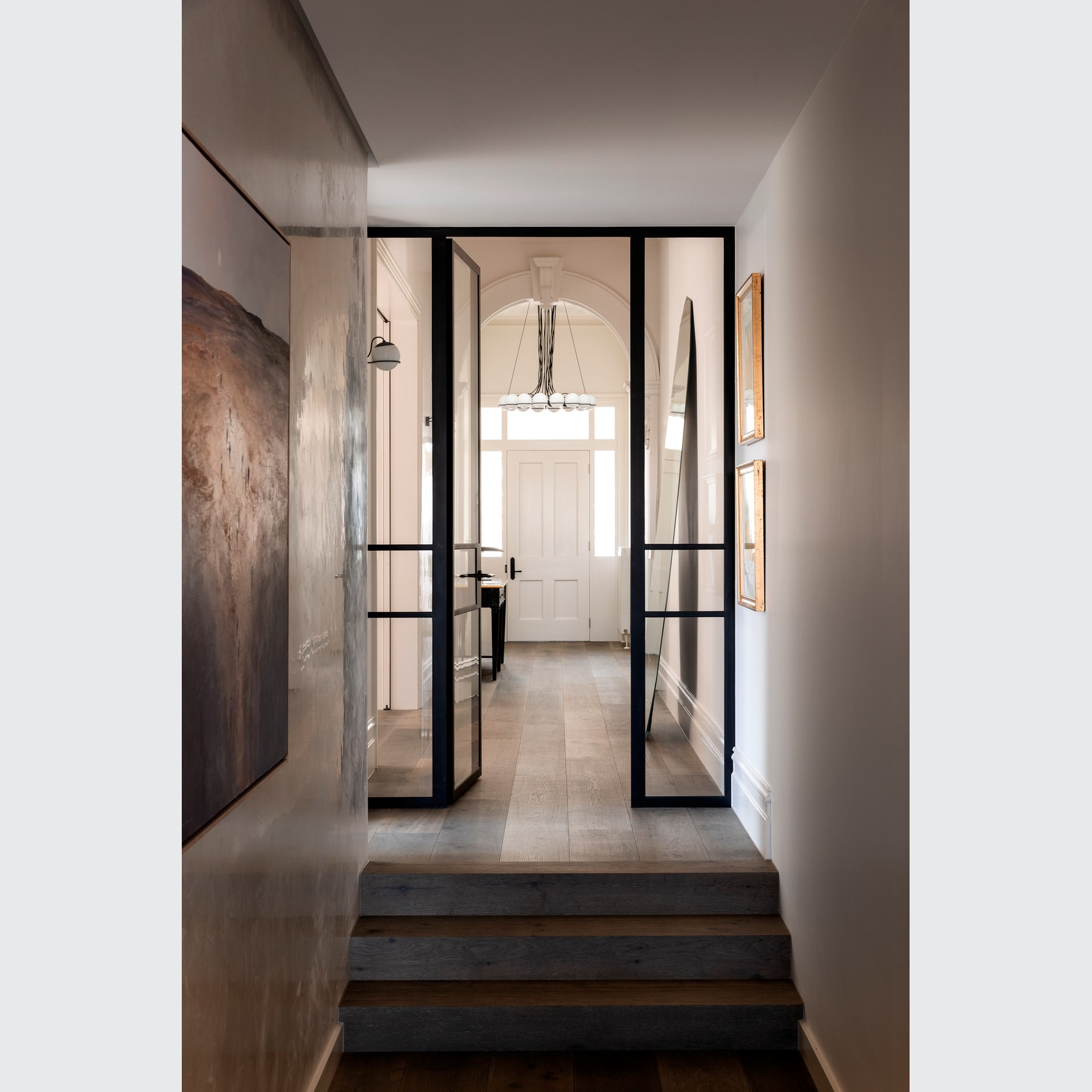

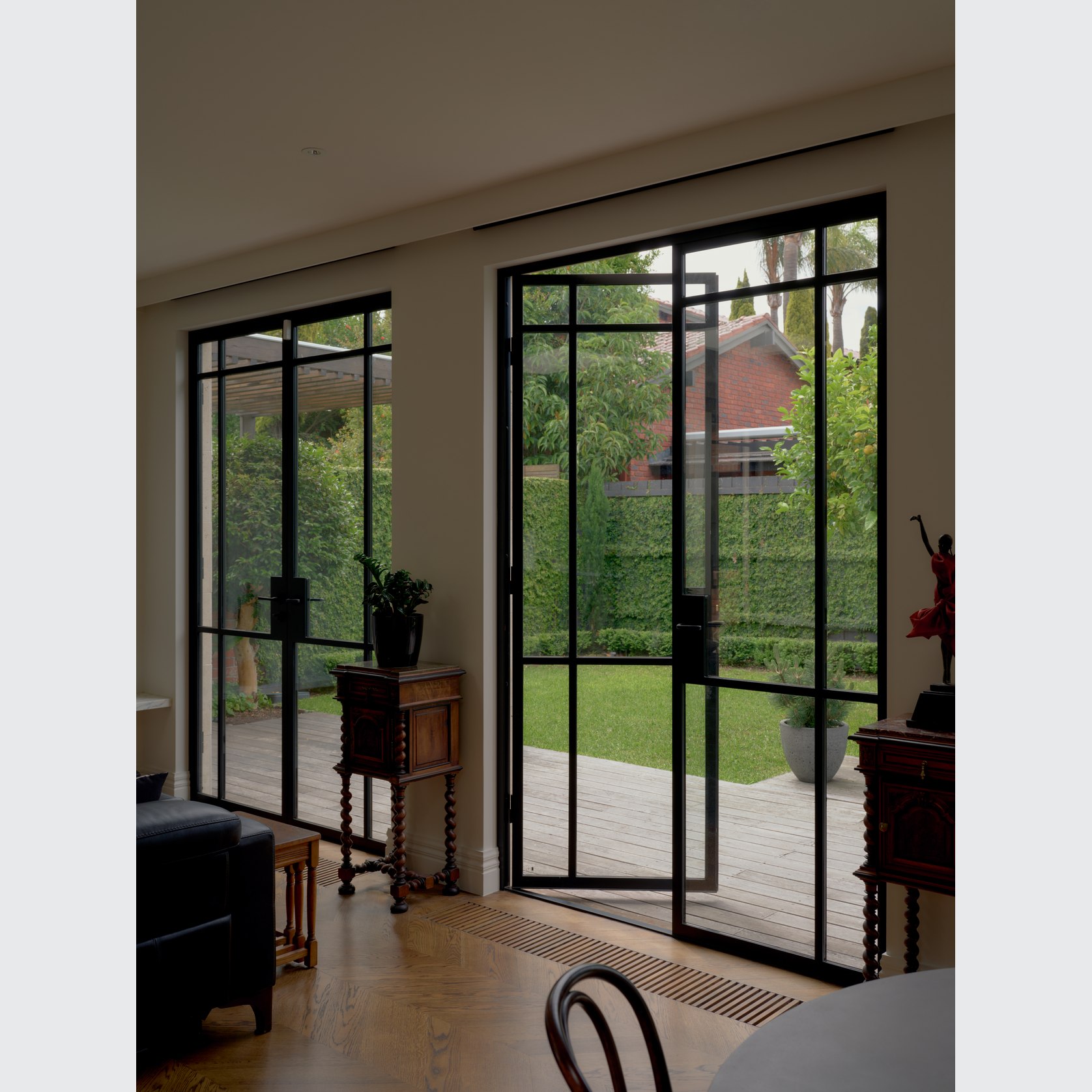

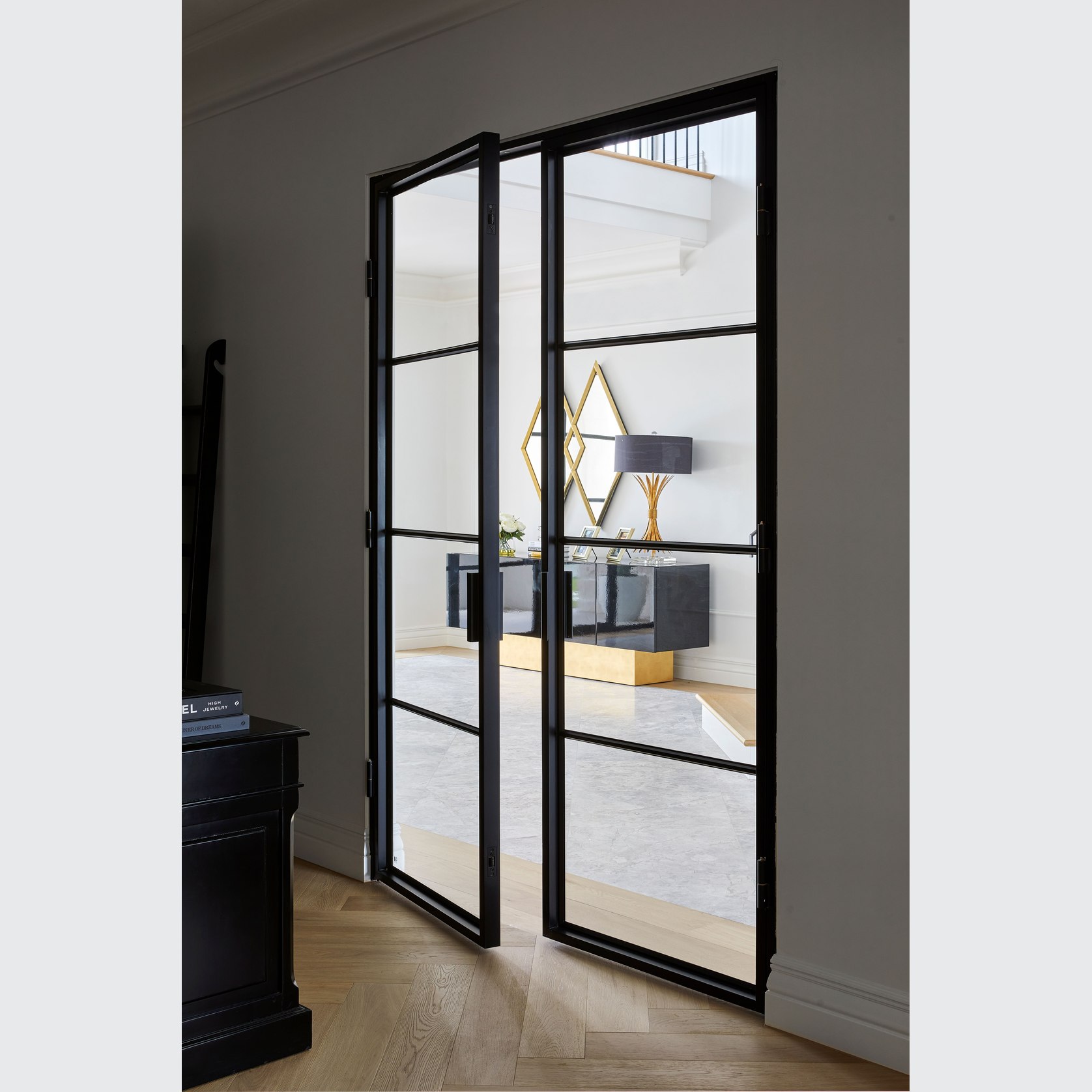

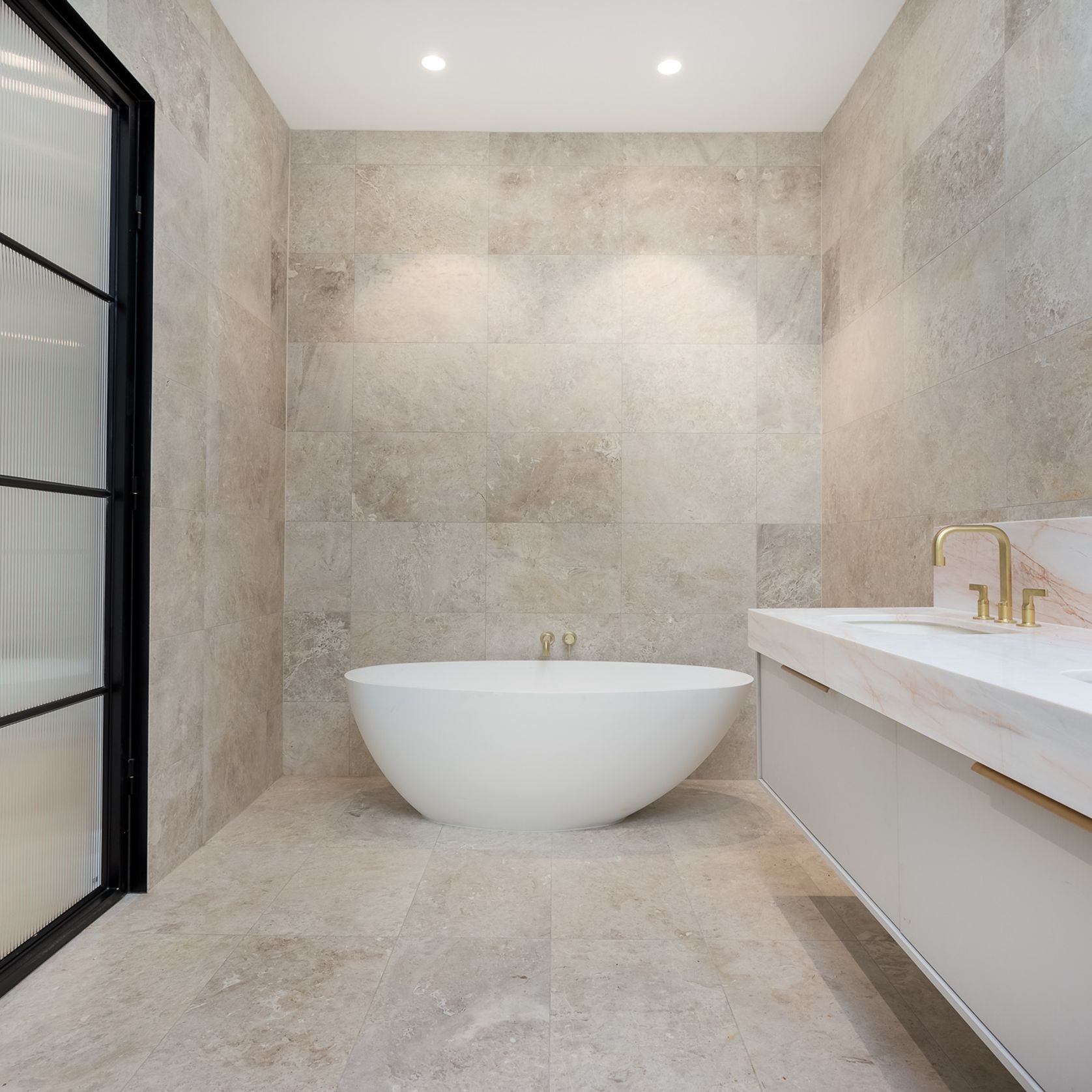

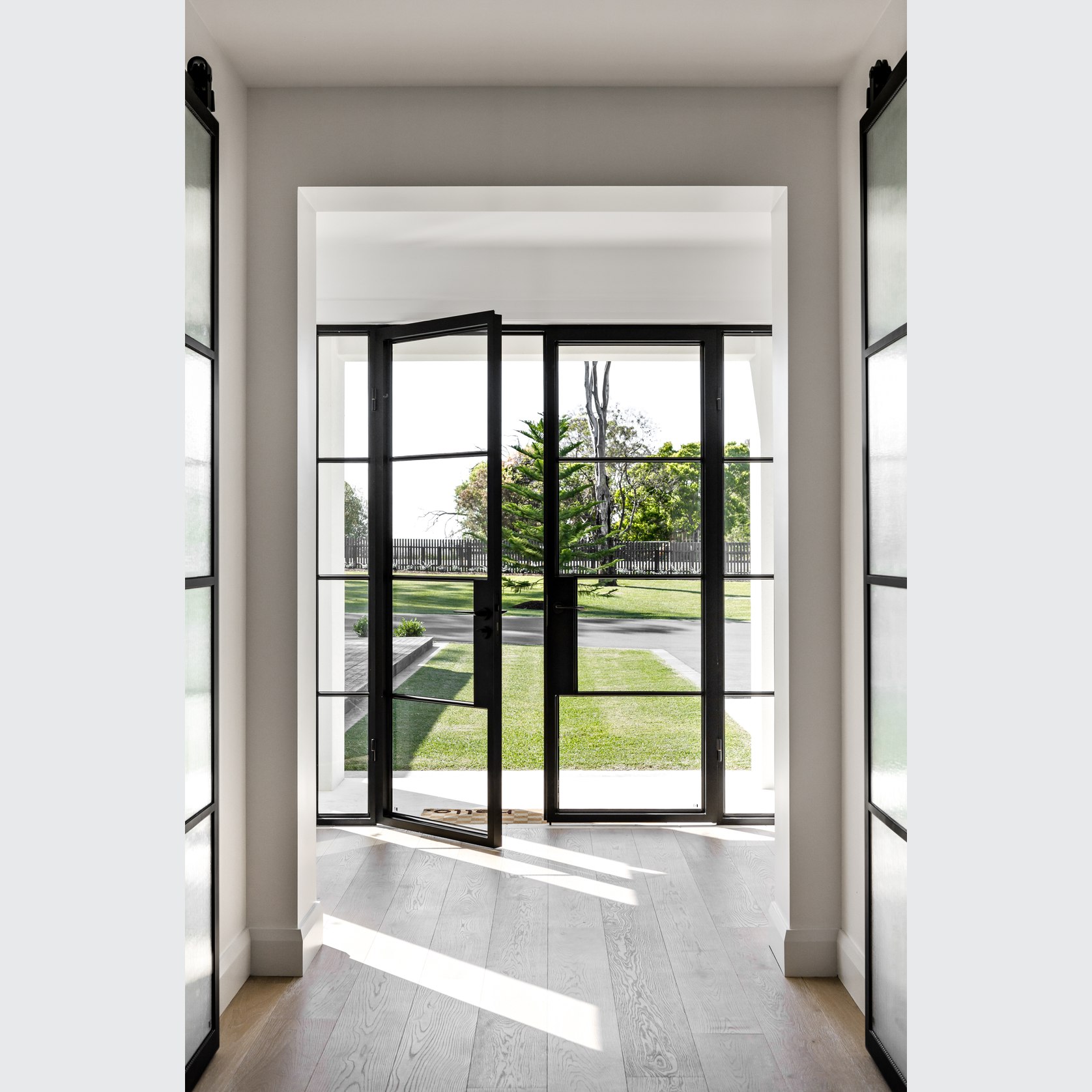

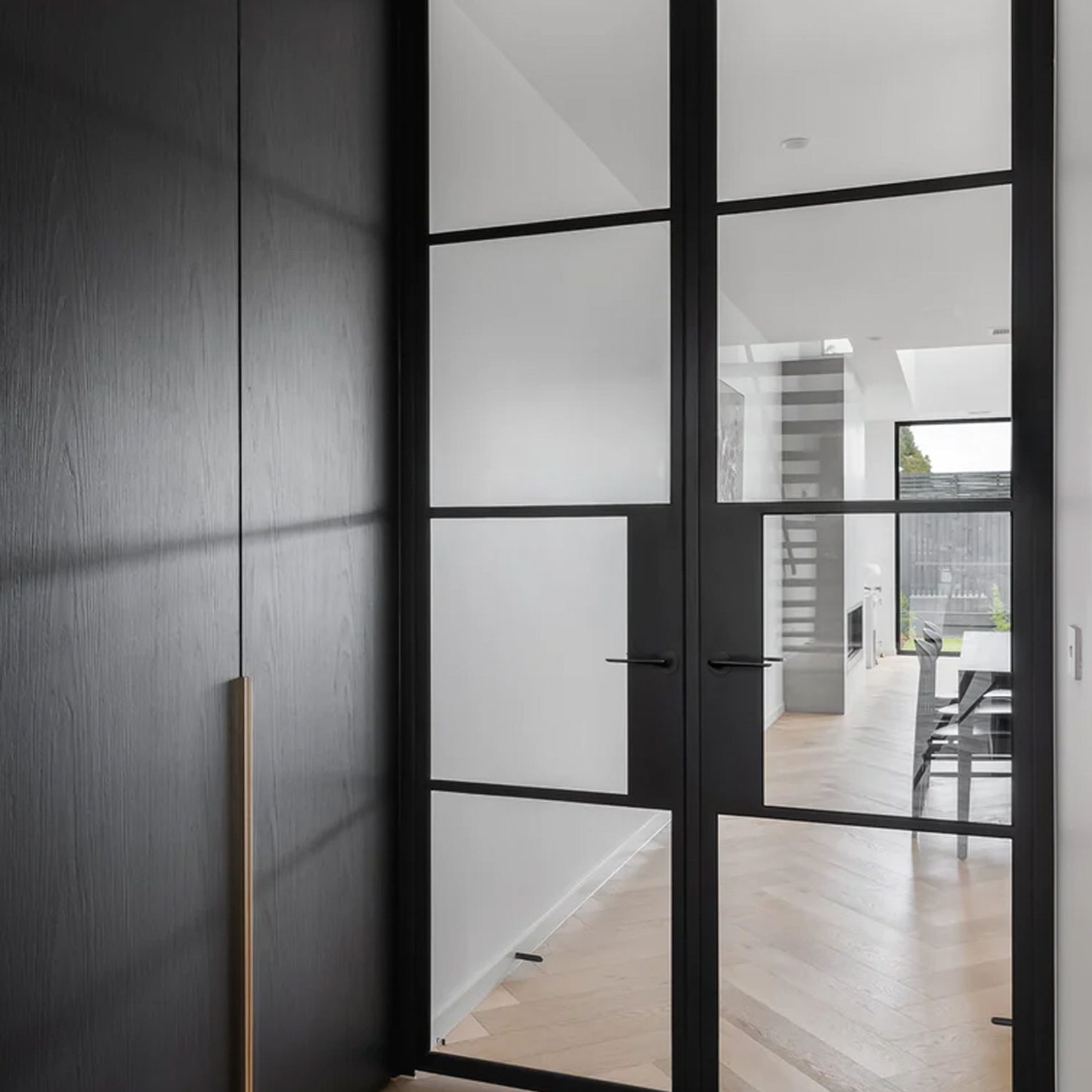

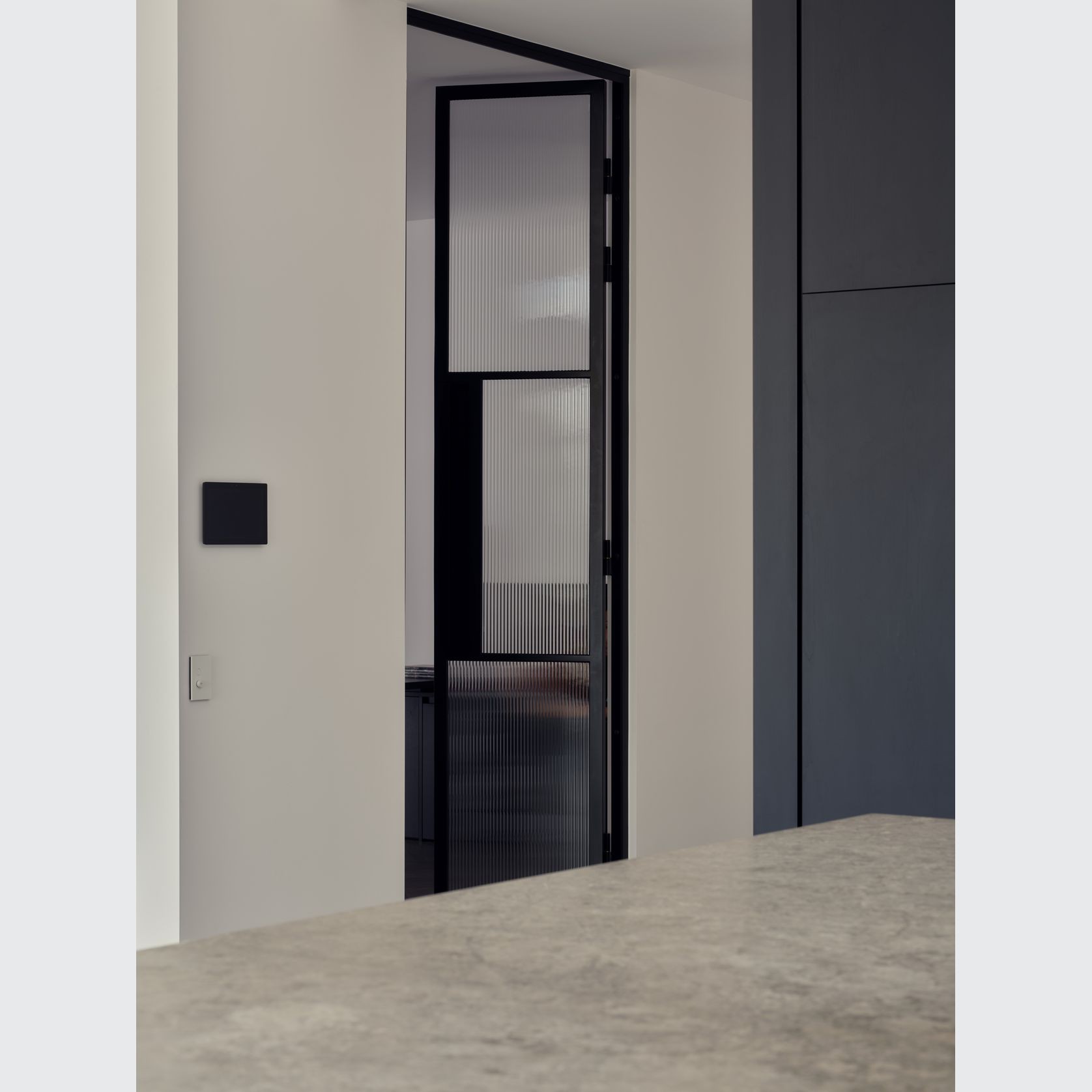

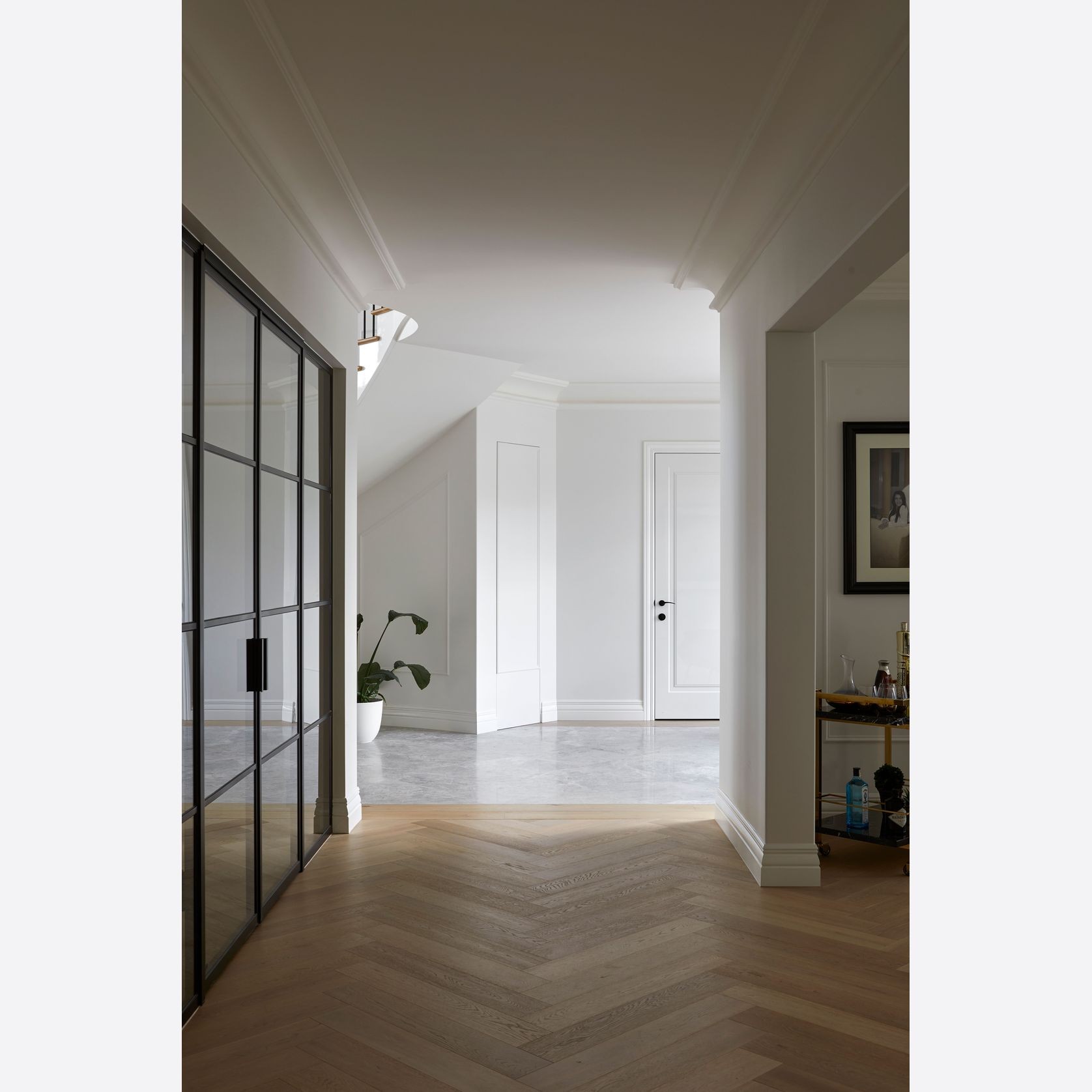

Steel Frame Glass Hinge Doors - Galvanised FPS50 Profile

Design and glass options are completely flexible, if you have seen something you like please send it to us and we can price it.

  • Category
    Hinged Doors
  • Range
    Zen Doors
  • Brand
    Zen Doors
  • Warranty
    5 years
  • Zen Steel Hinge Doors & Windows
  • Use: Internal or External
  • Door Design: Custom

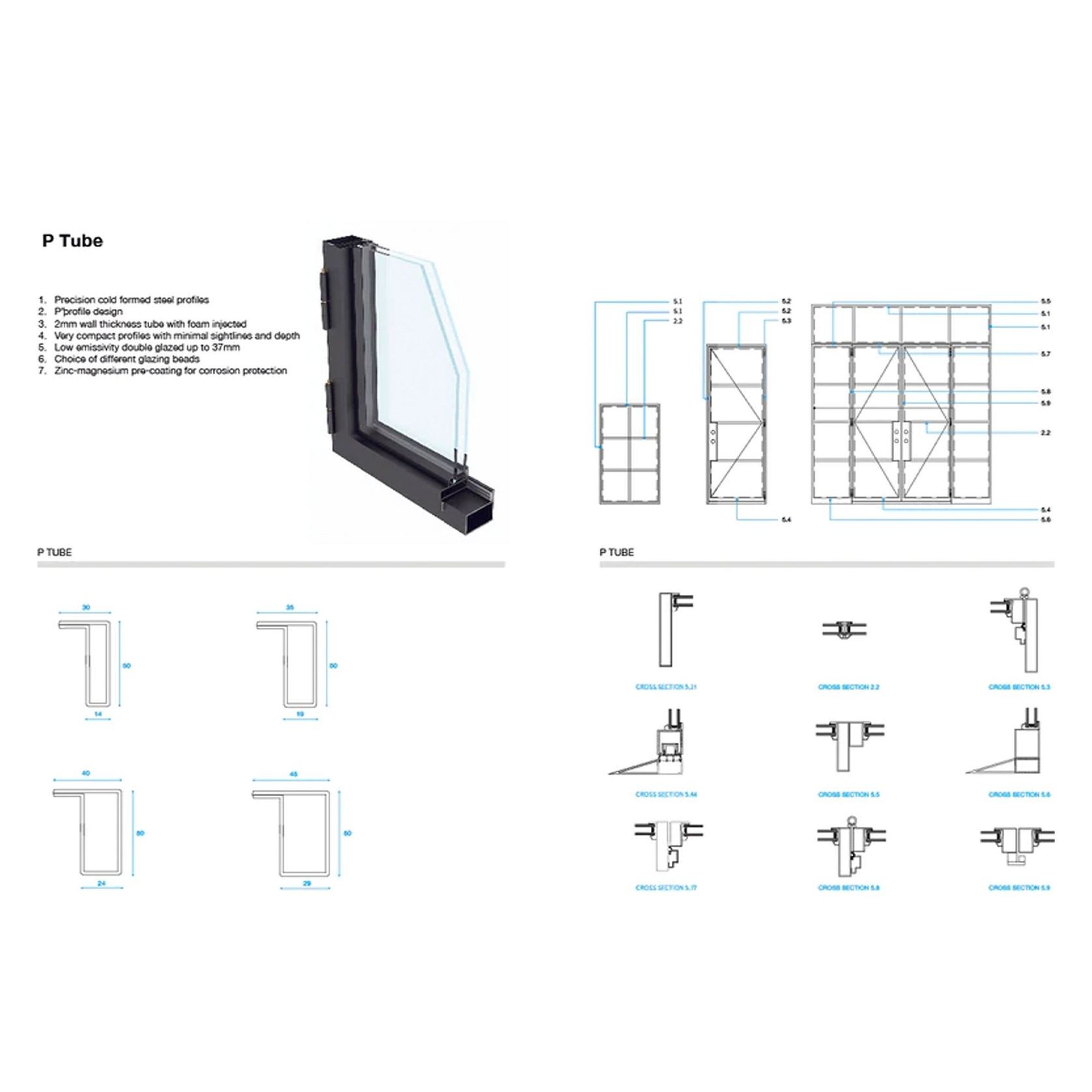

  • Material: Precision cold formed galvanised steel profiles - ”P” profile design
  • 3.2mm wall thickness tube with foam injected - Very compact profiles with minimal depth and sight-lines
  • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
  • Gritblasting SA 2.5;
  • The 1st layer is a sealing primer
  • The 2nd layer is a high-durable top coating;
  • Total thickness is at least 150-180 microns according to VMRG quality requirements.
  • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Colour: Standard Finishes or Large Range of RAL Powder Coat colours at extra cost,
  • Door Jamb: 25/30/40/50mm x 50/75/100mm+
  • Door Frame: 30mm x 50mm

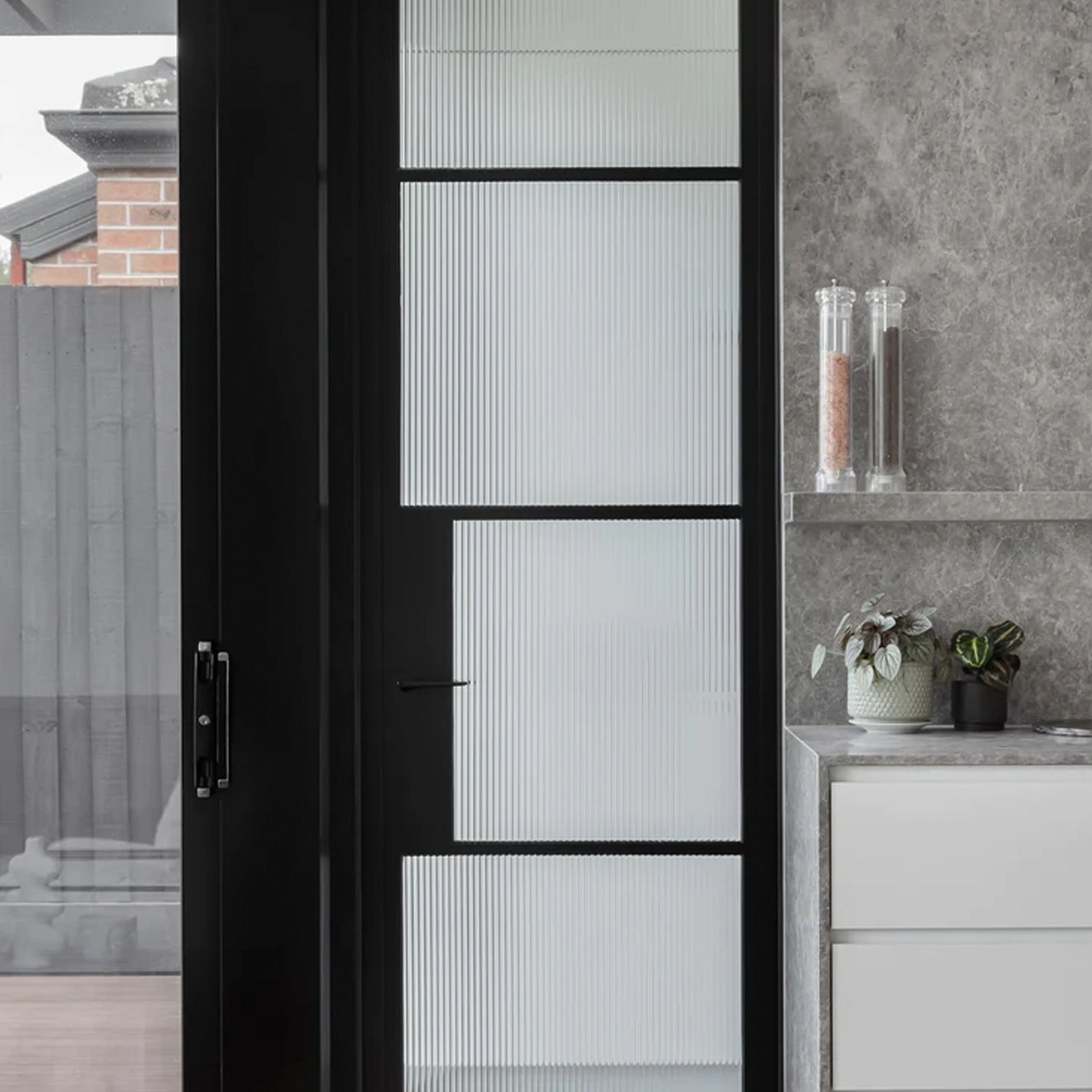

  • Glass Type: Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E
  • Glass Thickness: 5/8/10mm single glazed toughened safety glass
  • TDL: 20T
  • Beads: CTM20
  • Door Type: Hinge

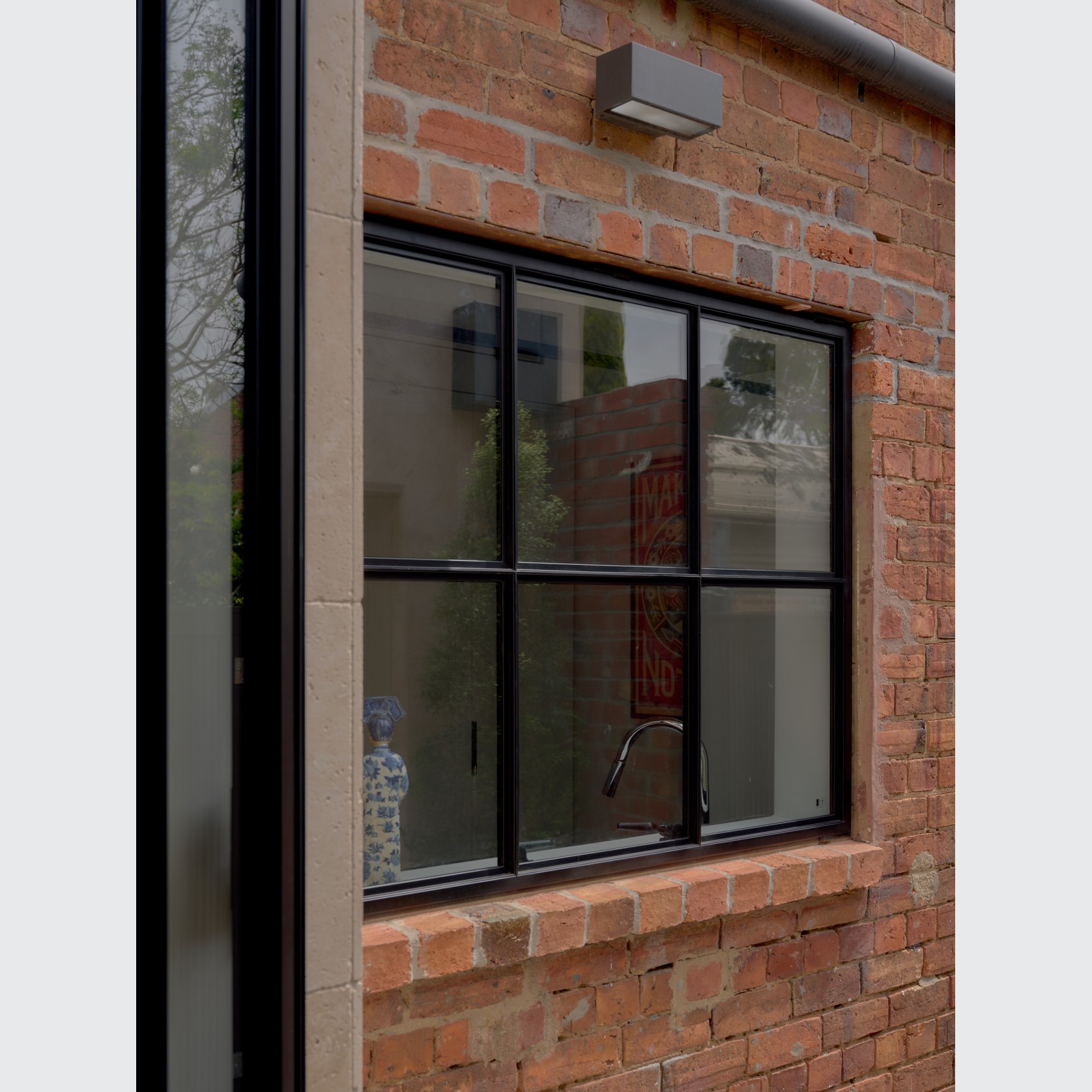

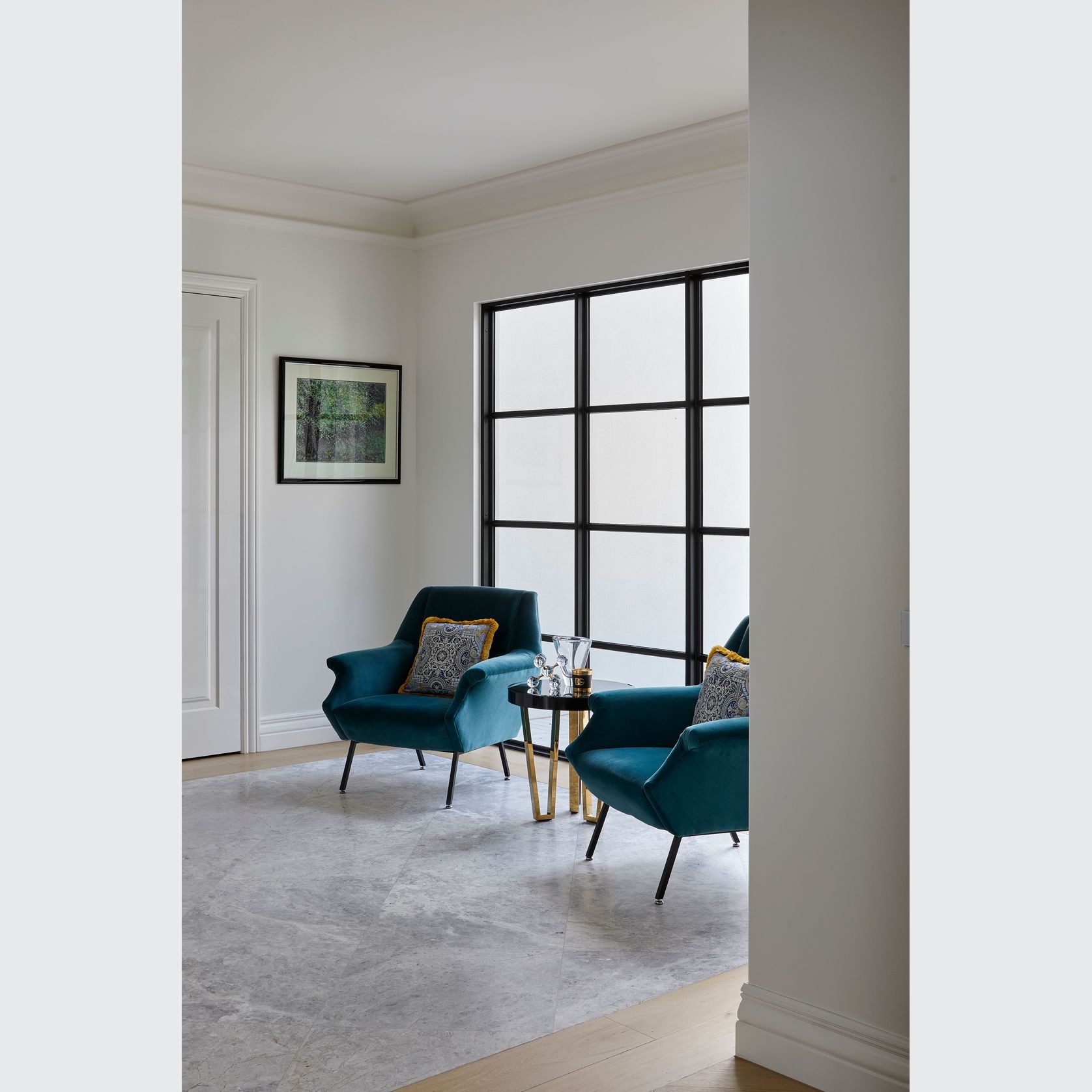

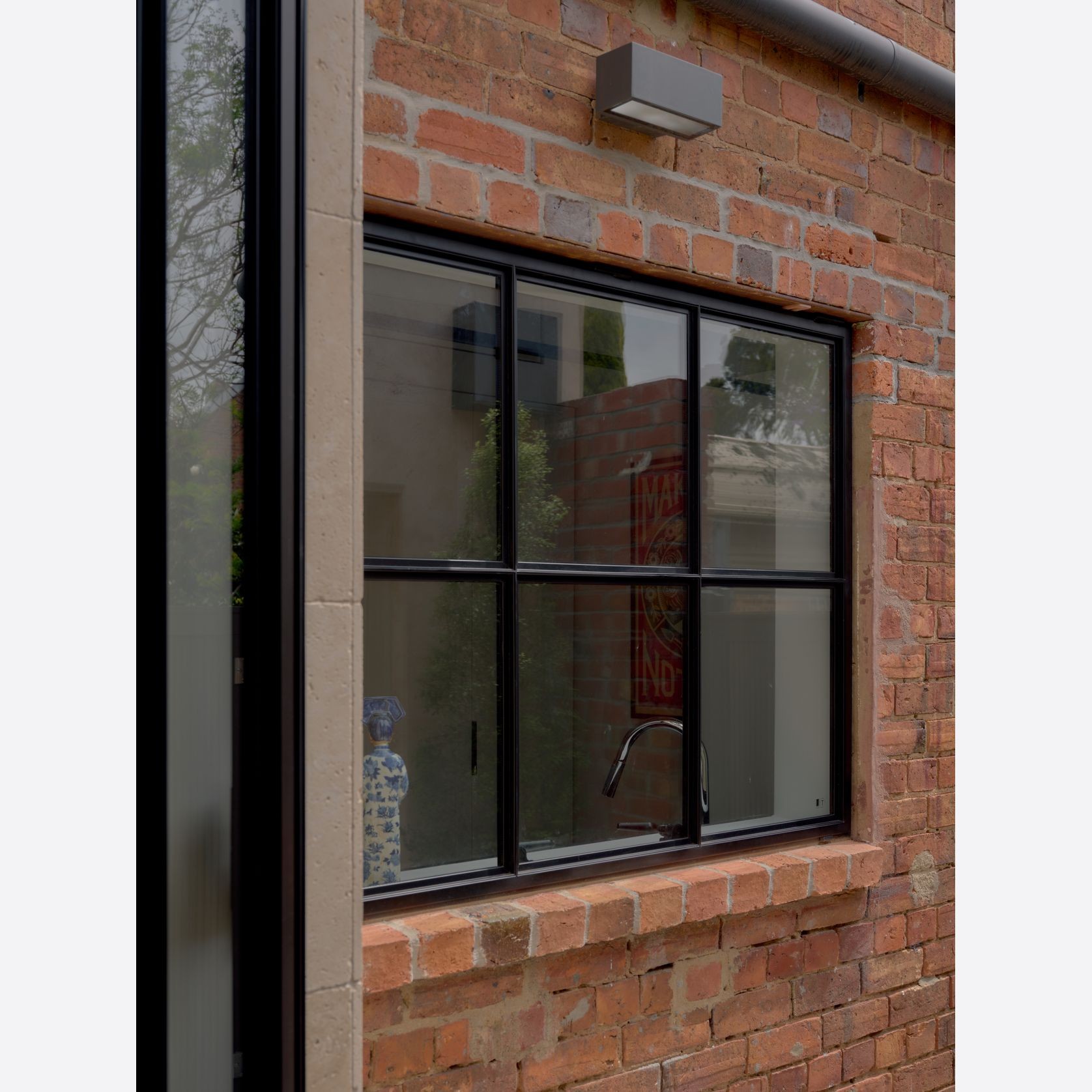

  • Window Type: Fixed, Awning, Casement
  • Hinges: Heavy Duty Welded, 180 degree
  • Mounting Type: Holes Inside of Jamb or Mounting Tabs Outside of Jamb
  • Open way (entering): In-swing or Out-swing left/right

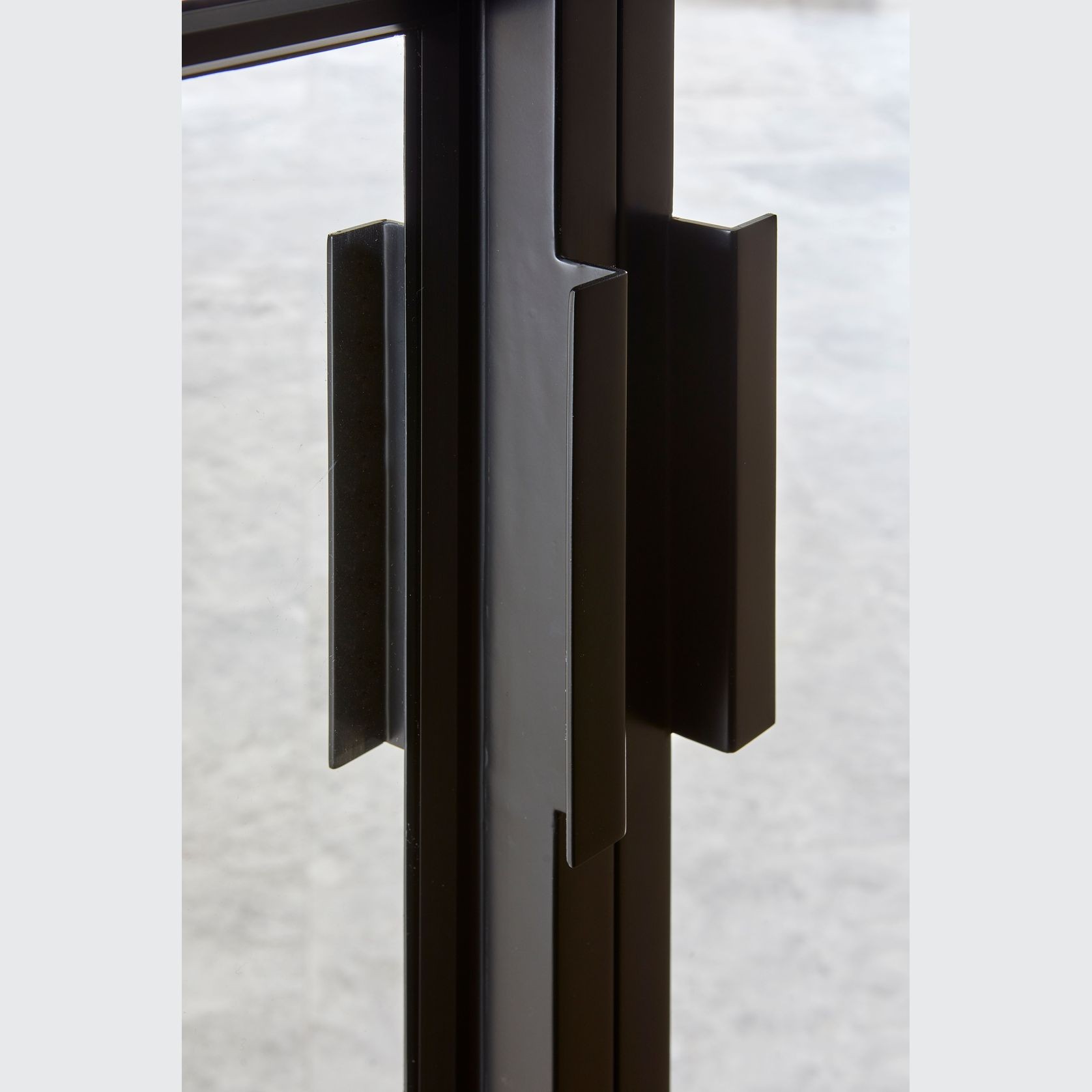

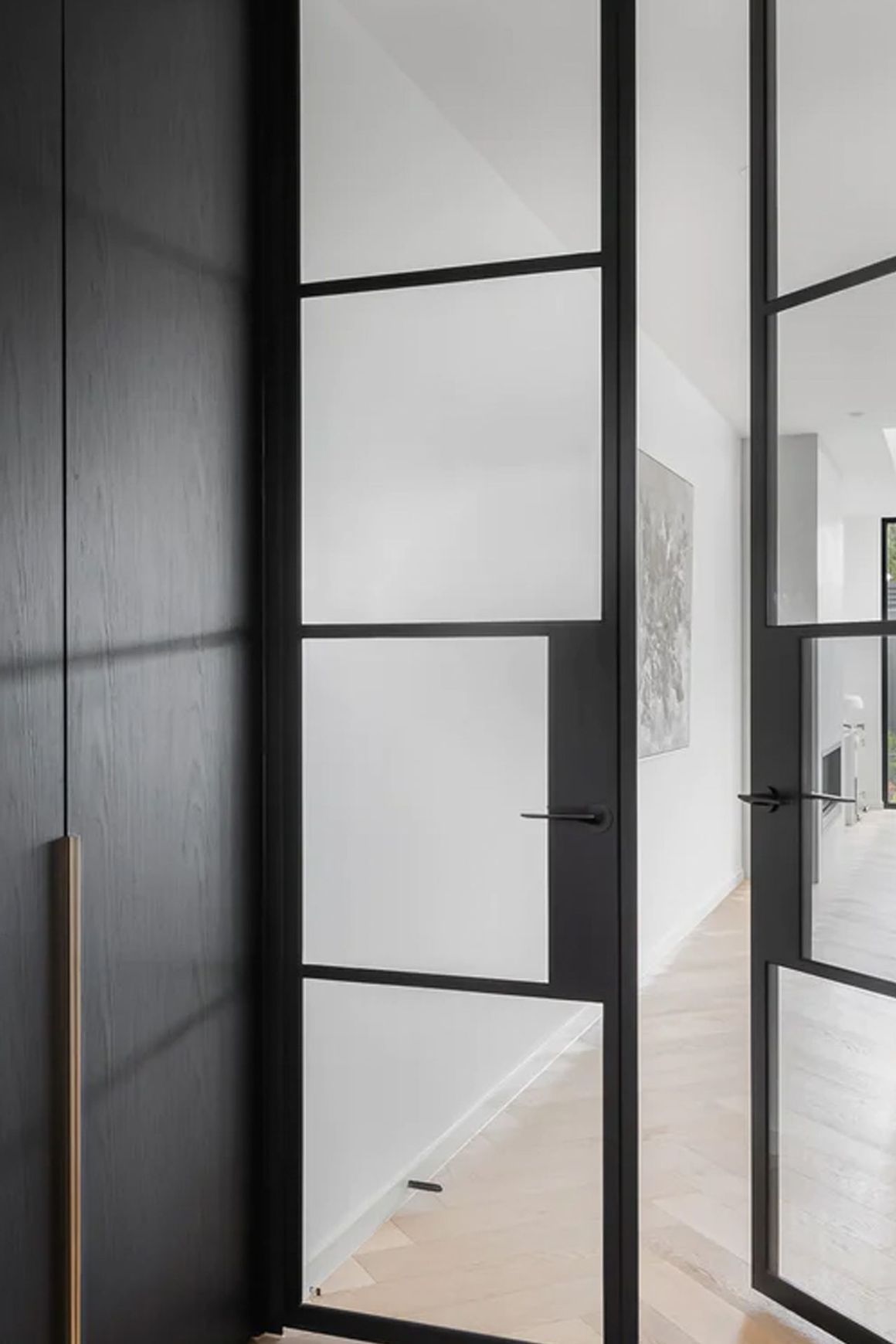

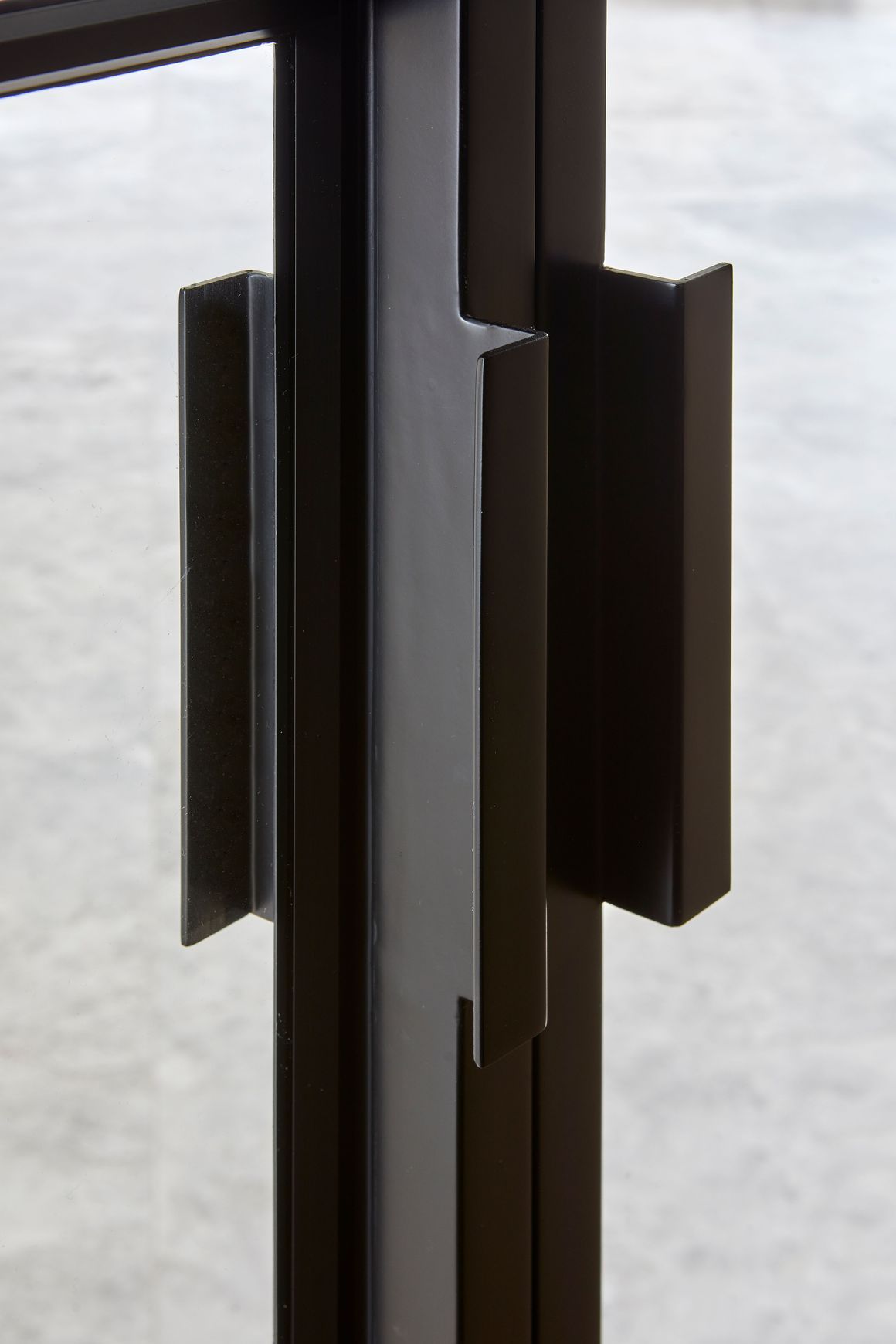

  • Handles: SEMAR matt black lever with spring latch or Custom Pull with Roller Catch
  • Lock: Yes/No (Standard deadbolt or Mortice Lock extra cost)

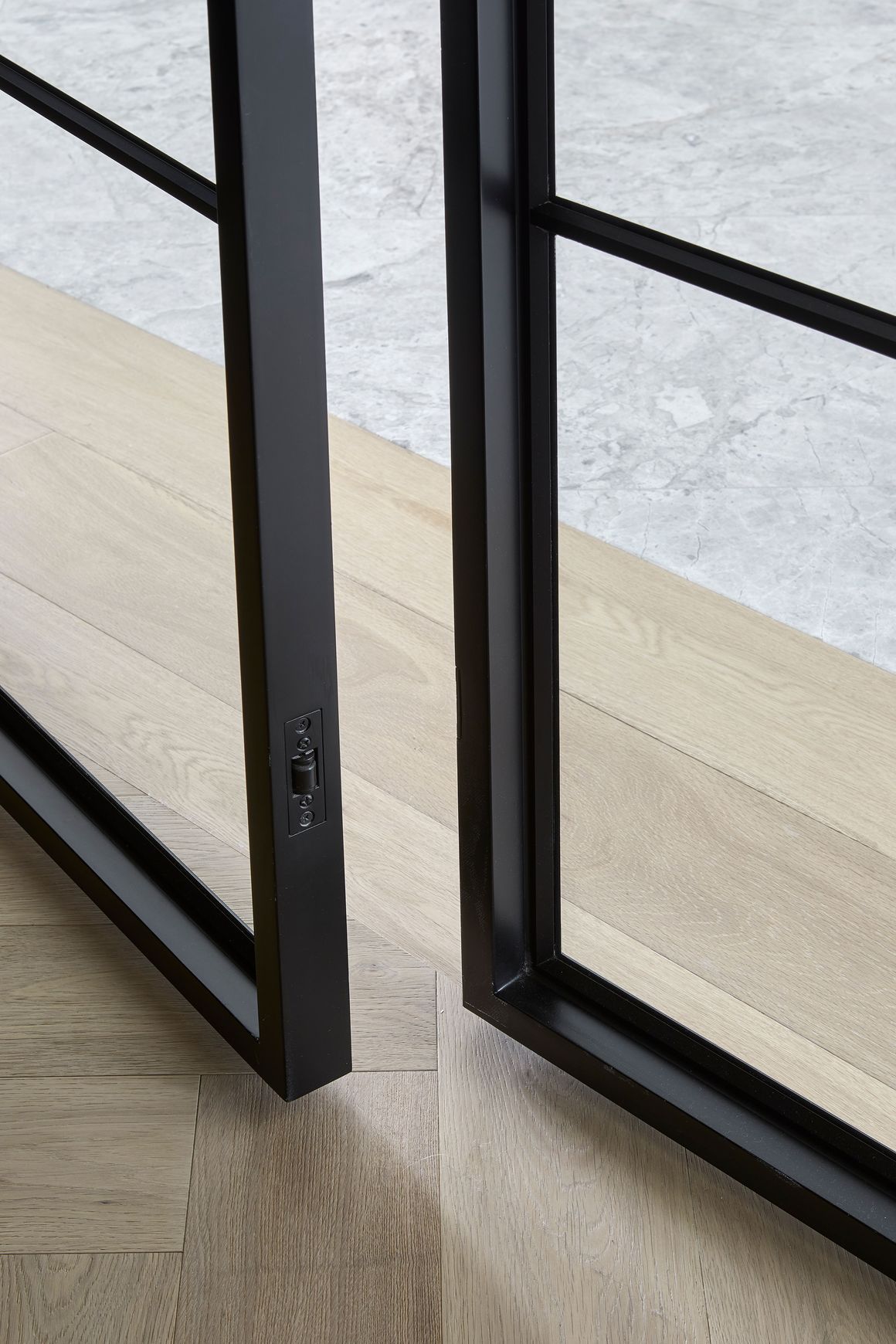

  • Roller Catch: Yes

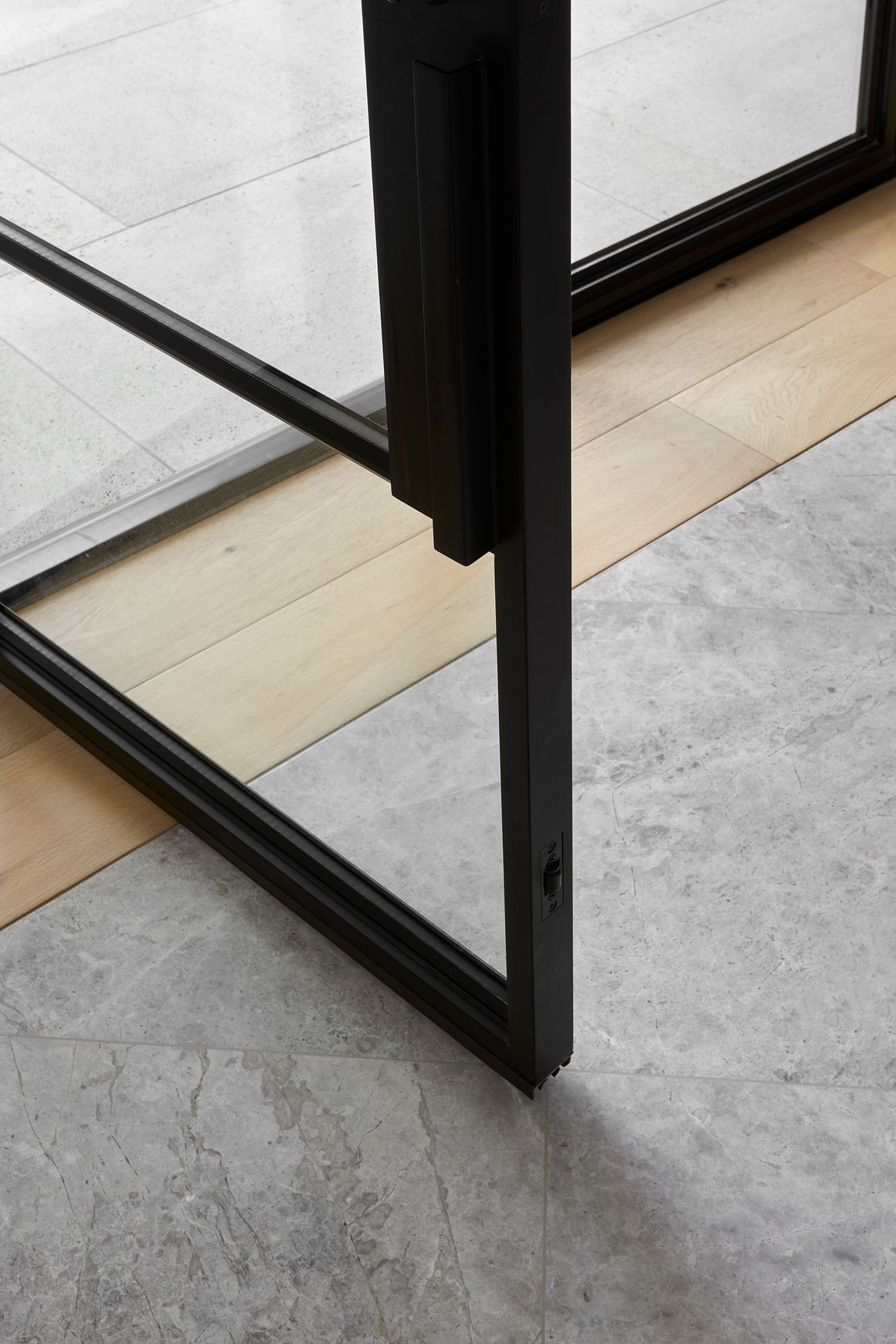

  • Flushbolt: Yes
  • Door Sill: Yes/No
  • Rubber Drop Seal: Yes/No
  • Package: 5 Layers of packing, plastic film, soft foam sheet, corrugated paper board, bubble wrap and Wooded Sealed Box
  • CAD Design Drawing: Yes

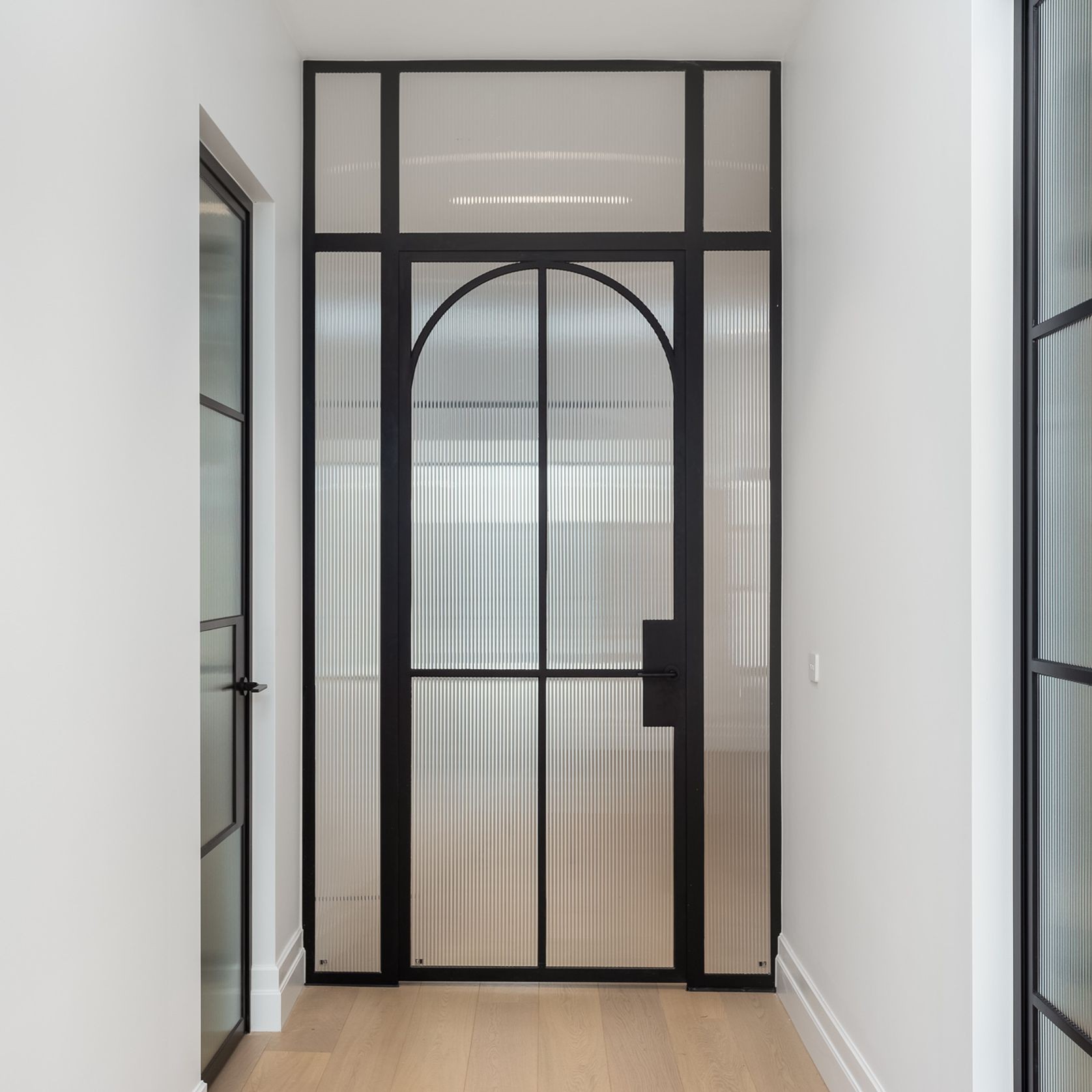

NOTE: Total Door Frame and Sidelight Windows can be custom made to any size you need, please contact us if you require highlight/sidelight windows and need a more customised estimate.

NOTE: External Doors and Windows can be supplied glazed or un-glazed.

Scope of use

Zen Doors Steel Frame Hinge Doors are Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings. This makes them suitable for installation in both internal and external residential and commercial applications.

  • Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings
  • Modern Architectural Design
  • Custom Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Steel Tube Profile
  • Fluorocarbon Coating better than Powdercoating
  • Steel Door Jamb Included for Extra Strength and Longevity
  • Single Glazed Toughened Safety Glass included in price ( Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E)
  • High Quality Lever Handles with Spring Latch or Custom Steel Pull Handles with Roller Catches Included in price
  • Flush bolts for double doors included
  • Weather seals included
  • Designed to Impress and Built to Last
  • Orders Made from June 2023 - *5 Year Warranty - Must comply with our installation requirements.
