Steel Frame Glass Hinge Door Internal - Galvanised W40

Zen Doors & Windows
Visit Website

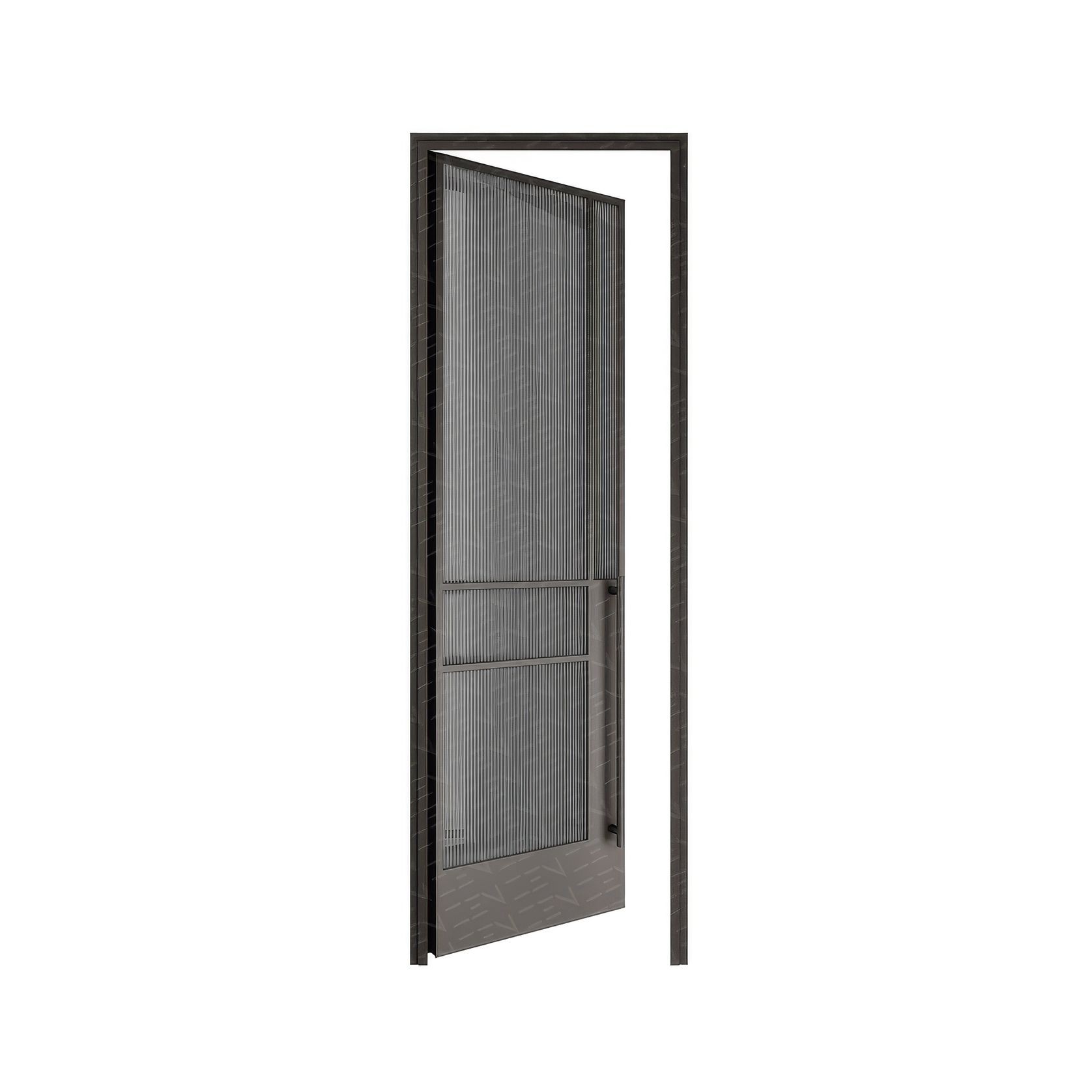

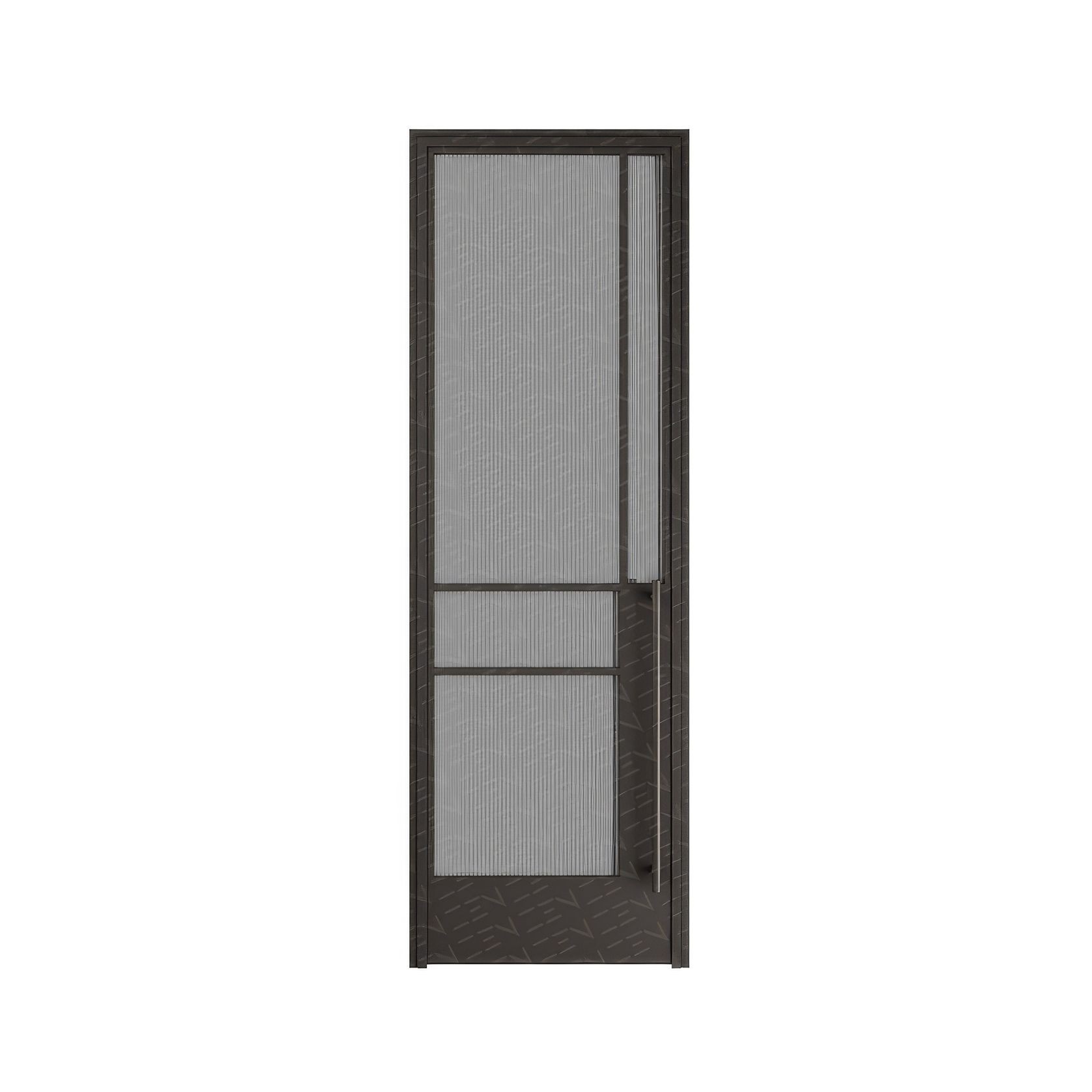

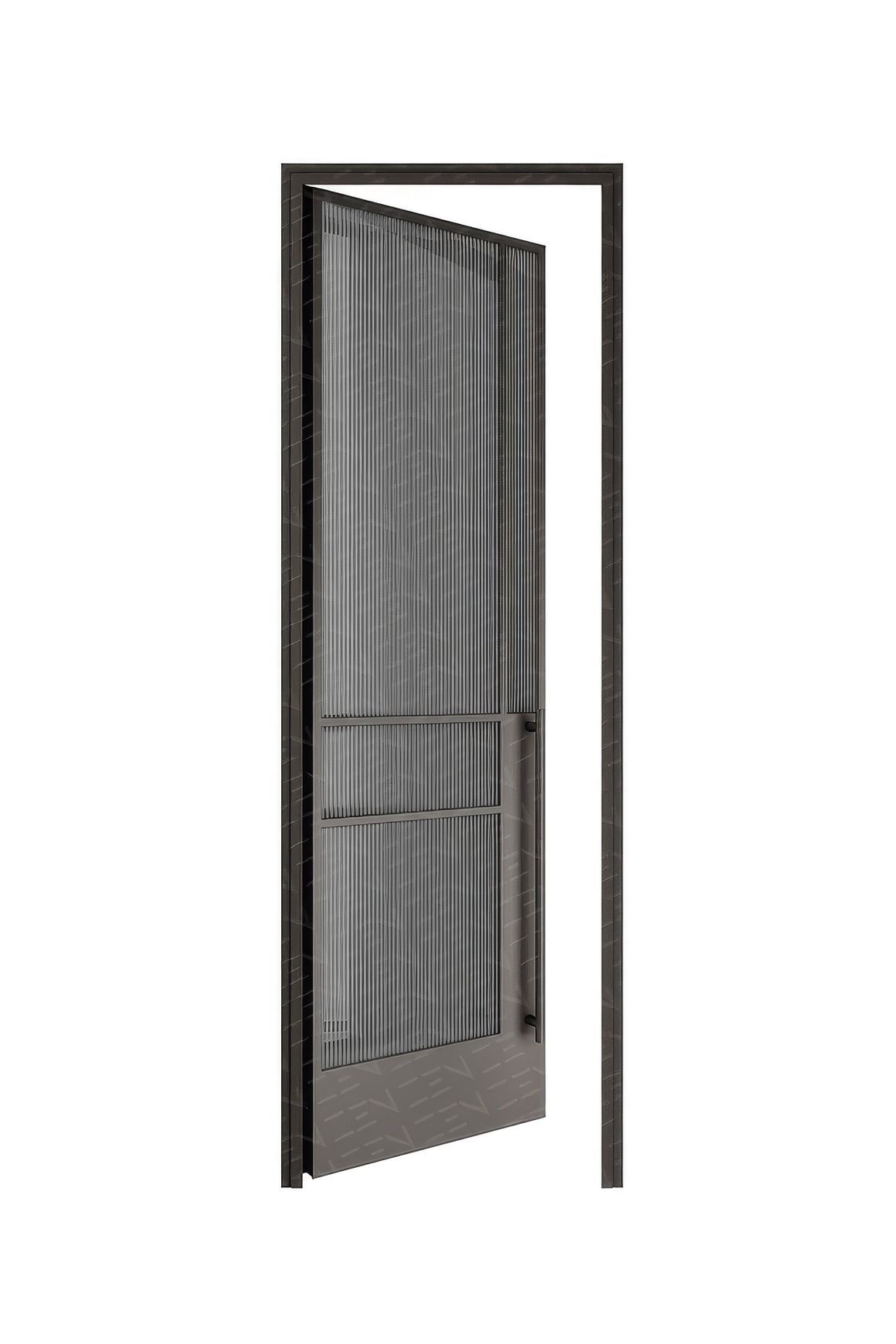

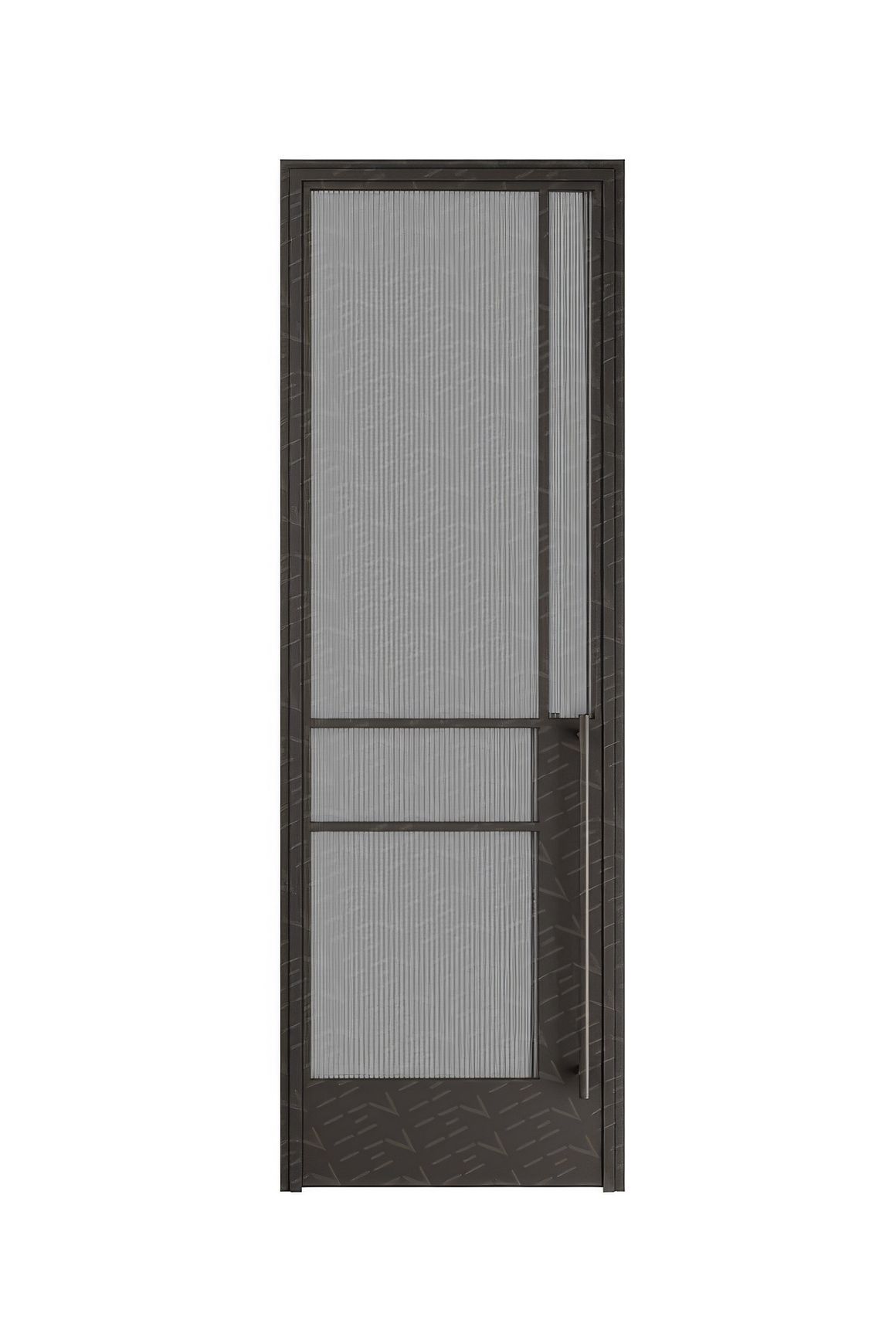

A 4Lite internal steel frame glass hinge door crafted from solid hot rolled Ottostumm W40 Swiss steel. Featuring slim architectural sightlines, low iron reeded toughened safety glass and a left-hand in-swing configuration, it is finished in a custom Pittella Bronze fluorocarbon coating with Zen straight welded pull handles. Designed to combine refined detailing, durability and timeless architectural style.

Details
Specifications
  • Door Design: 4Lite
  • Door Size: H2398mm x W798mm
  • Door Type: Hinged Doors
  • Location: Internal
  • Hinges: 3 Heavy Duty Welded, Lift-off, 180-degree hinges with brass washers
  • Mounting Type: Pre-Drilled Mounting Holes Inside of Jamb
  • Door Jamb & Sash: 55mm x 67mm (Overall)
  • Open way (entering): In-Swing Left
  • Sill/Threshold: No
  • Door Bottom Rubber Seal: No
  • Magnetic Catches: Precision Magnetic Catches
  • Glass Type: Low Iron Reeded
  • Glass Thickness: 5mm single glazed toughened safety glass
  • TDL: 20T
  • Beads: CTL10
  • Colour Finish: Custom Match – Pittella Bronze
  • Pull Handles: Zen H24 Straight Welded Pull Handles
  • Locks: No
  • Material: Solid Hot Rolled Swiss Ottostumm W40 Steel Profile
    Stepped leg design, material thickness up to 5mm – Very compact profiles with minimal depth and sight-lines
    Appropriate for heavy-duty corrosion protection
  • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
    Gritblasting SA 2.5; The 1st layer is a sealing primer; The 2nd layer is a high-durability top coating; Total thickness is at least 150-180 microns according to VMRG quality requirements.
  • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Package: No Crate or Packaging
  • CAD Design Drawing: Yes
Features
  • Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia-wide.
  • Modern Architectural Design
  • Custom Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Solid Hot Rolled W40 Profile
  • Fluorocarbon Coating, a superior finish to Powder coating
  • High Quality Door Hardware
  • Designed to Impress and Built to Last
  • 5 Year Warranty
Visit Website

About the
Seller

Zen Doors & Windows design and manufacture bespoke architectural steel door and window systems for residential and commercial projects where cohesion, performance, and design integrity matter.

Our range spans iron entry doors, steel-framed glass doors, and steel windows, all custom-designed and handcrafted from precision-engineered steel profiles. Select Zen designs are also available in curated standard sizes, offering shorter lead times while maintaining the same material quality and detailing.

We don’t produce off-the-shelf solutions. We collaborate with homeowners, architects, interior designers, builders, and developers to deliver fully integrated steel systems that define spaces, enhance proportions, and elevate the entire project.

Whether it’s a single statement entry or a home or commercial development wrapped in steel, Zen creates continuity, character, and a point of difference that carries through every elevation and interior space.

Because true luxury isn’t one feature — it’s consistency, intent, and execution.
