Steel Frame Glass Hinge Door External - Galvanised W40

Zen Doors & Windows
Visit Website

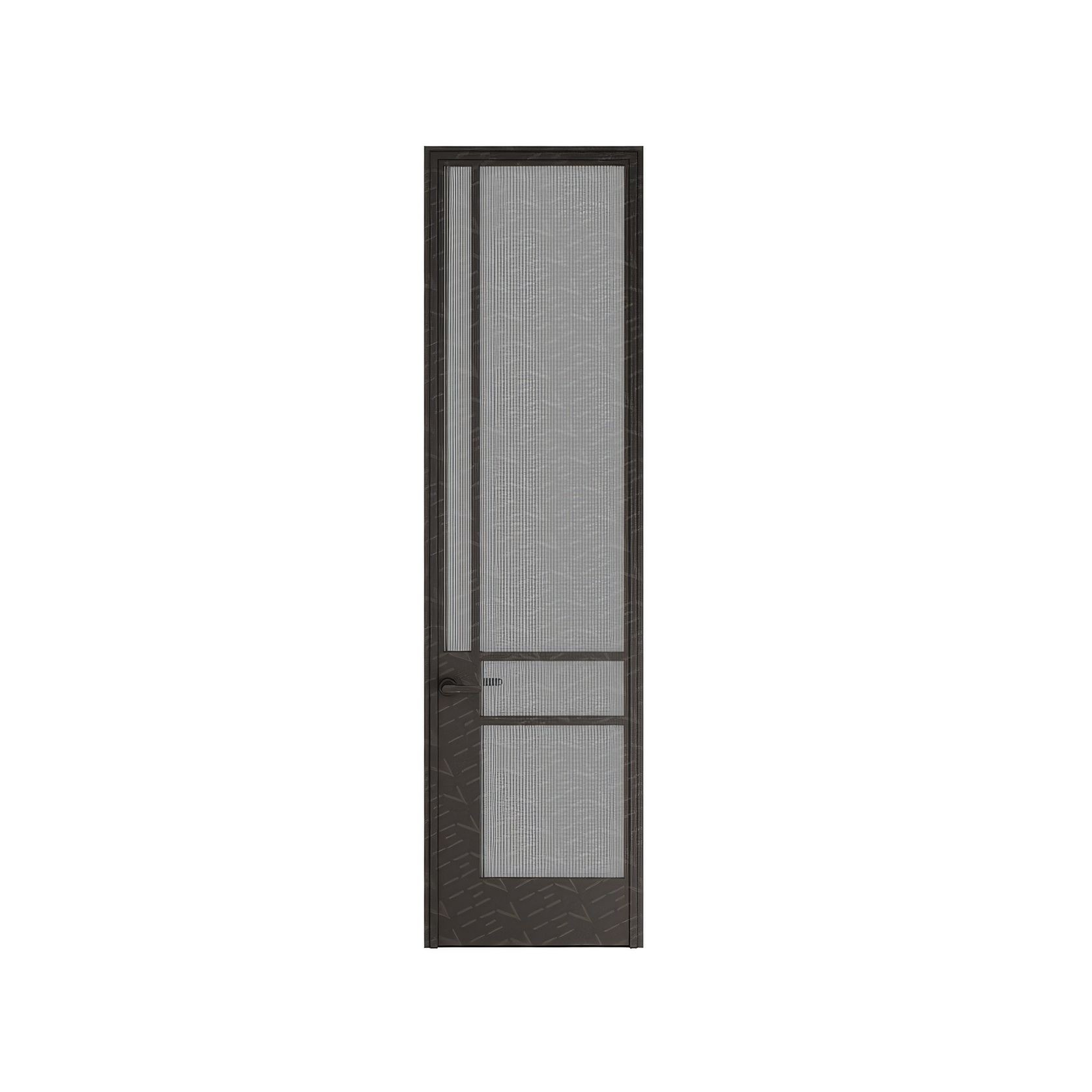

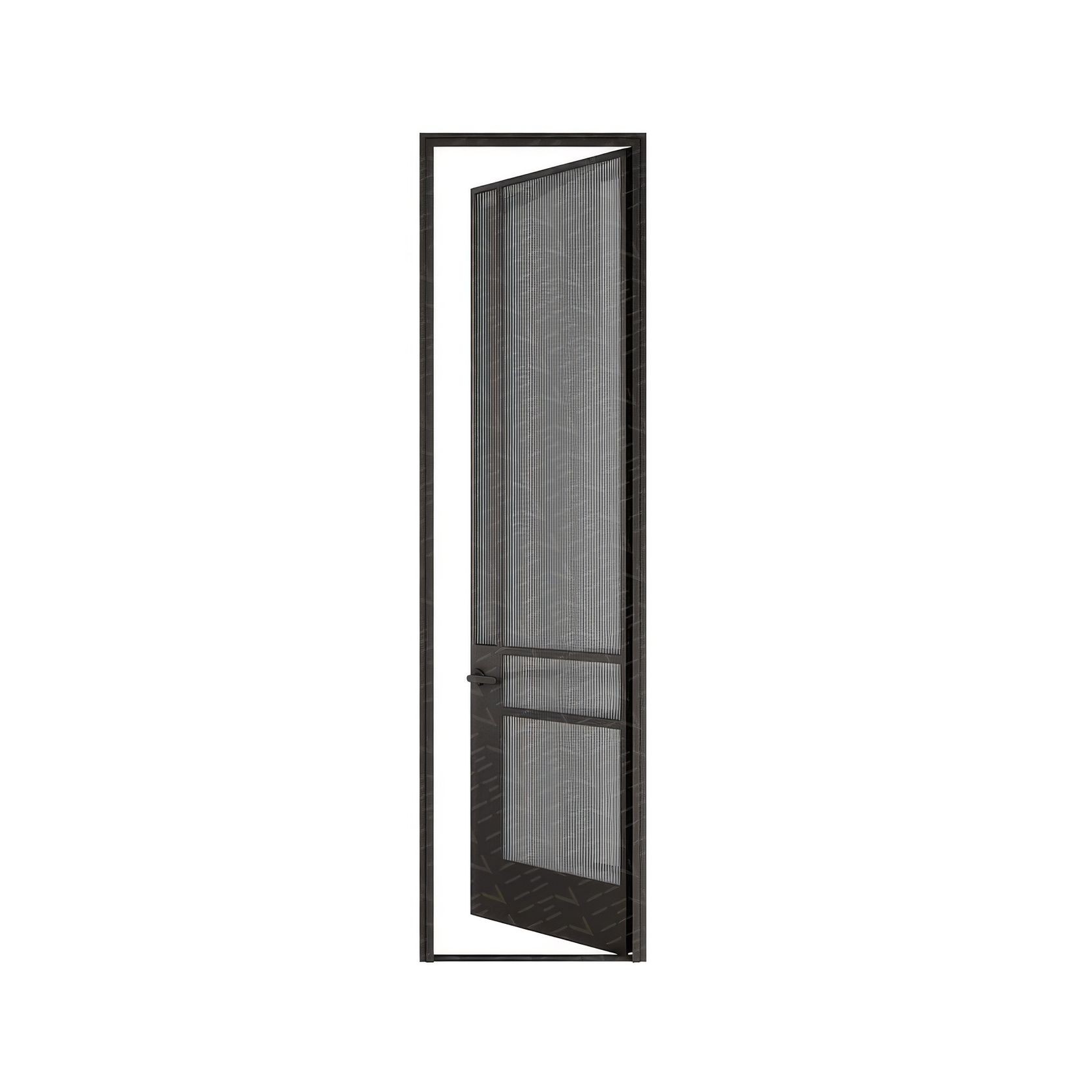

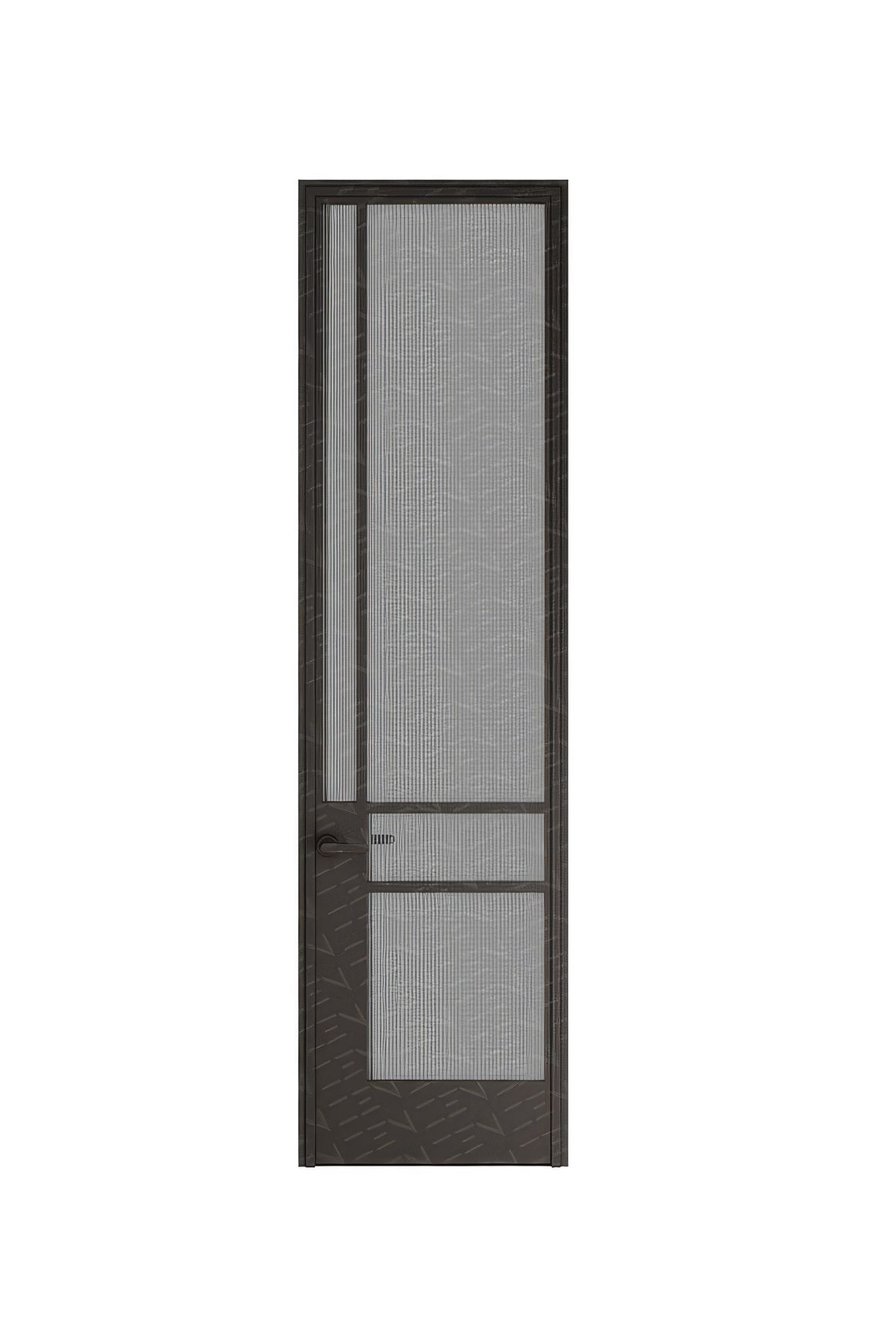

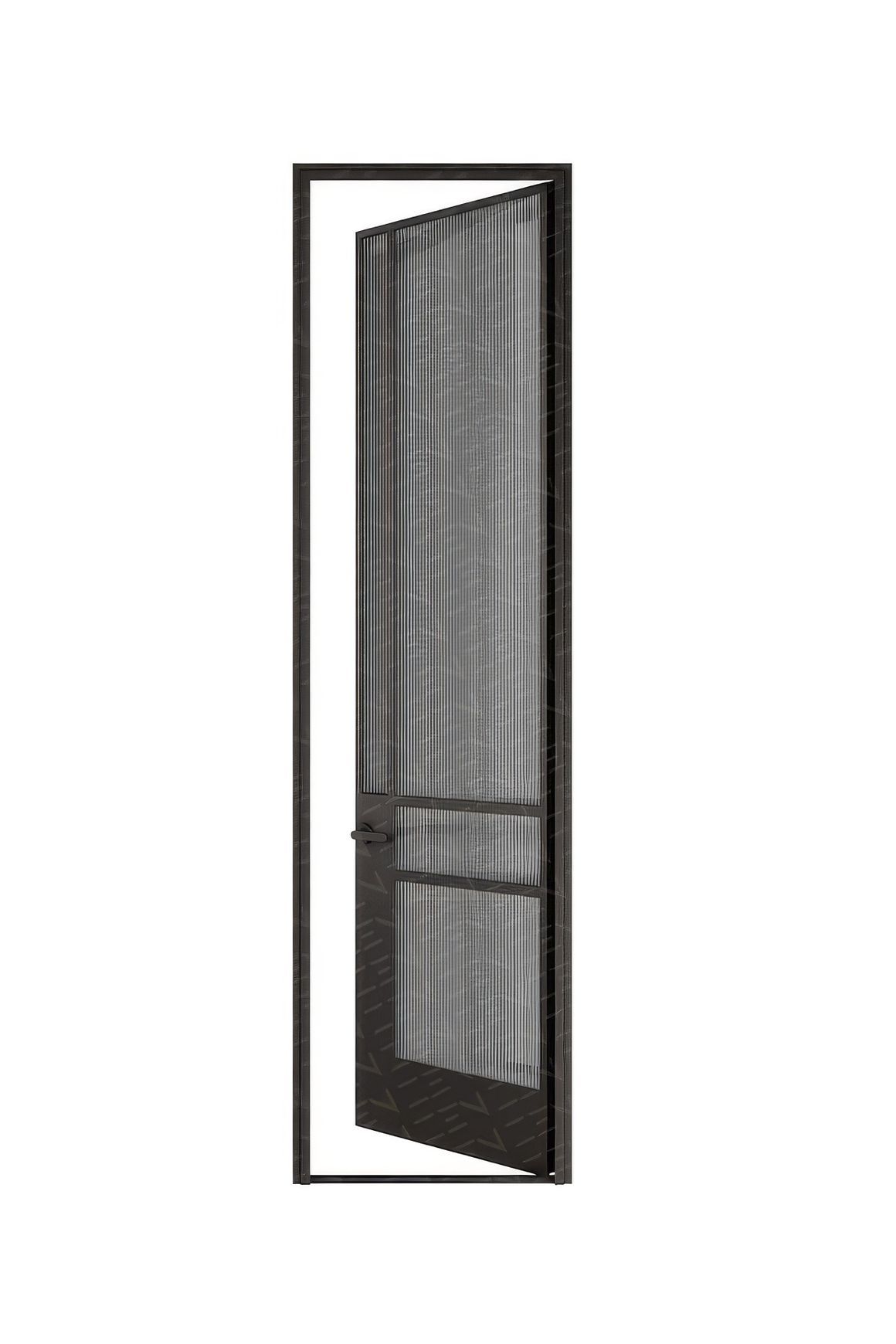

A 4Lite external steel frame glass hinge door crafted from solid hot rolled Swiss Ottostumm W40 steel. Featuring a right-hand in-swing configuration, slim architectural sightlines and double-glazed low iron reeded toughened safety glass, it is designed for lasting durability and refined performance. Finished in a custom Pittella Bronze fluorocarbon coating with premium hardware and a multipoint locking system.

Details
Specifications
  • Door Design: 4Lite
  • Door Size: H3000mm x W820mm
  • Door Type: Hinged Doors
  • Location: External
  • Hinges: 3 Heavy Duty Welded, Lift-Off, 180-Degree Hinges with Brass Washers
  • Mounting Type: Pre-Drilled Mounting Holes Inside of Jamb
  • Door Jamb & Sash: 55mm x 67mm Overall
  • Open Way (Entering): In-Swing Right
  • Sill/Threshold: Flat
  • Door Bottom Rubber Seal: No
  • Magnetic Catches: Precision Magnetic Catches
  • Glass Type: Low Iron Reeded
  • Glass Thickness: 5mm + 9A Argon + 5mm Double-Glazed Toughened Safety Glass
  • TDL: 30T
  • Beads: CTL15
  • Colour Finish: Custom Match – Pittella Bronze
  • Lever Handles: Pittella Bronze Lever
  • Locks: SWF Multipoint Lock
  • Material: Solid Hot Rolled Swiss Ottostumm W40 Steel Profile with a Stepped Leg Design. Material Thickness up to 5mm, with Compact Profiles, Minimal Depth and Sightlines, and Suitable for Heavy-Duty Corrosion Protection.
  • Surface Treatment: Zinc-Magnesium Pre-Coating for Corrosion Protection; Gritblasting SA 2.5; Sealing Primer First Layer; High-Durability Top Coating Second Layer; Total Thickness of at Least 150–180 Microns According to VMRG Quality Requirements.
  • Paint: 4FC (Fluorocarbon) – DAIKIN of Japan
  • Package: No Crate or Packaging
  • CAD Design Drawing: Yes
Features
  • Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia wide.
  • Modern Architectural Design
  • Custom Hand Made Construction for Durable Functionality
  • Built from High Quality Galvanised Solid Hot Rolled W40 Profile
  • Fluorocarbon Coating, a superior finish to Powder coating
  • High Quality Door Hardware
  • Designed to Impress and Built to Last
  • 5 Year Warranty
Visit Website

About the
Seller

Zen Doors & Windows design and manufacture bespoke architectural steel door and window systems for residential and commercial projects where cohesion, performance, and design integrity matter.

Our range spans iron entry doors, steel-framed glass doors, and steel windows, all custom-designed and handcrafted from precision-engineered steel profiles. Select Zen designs are also available in curated standard sizes, offering shorter lead times while maintaining the same material quality and detailing.

We don’t produce off-the-shelf solutions. We collaborate with homeowners, architects, interior designers, builders, and developers to deliver fully integrated steel systems that define spaces, enhance proportions, and elevate the entire project.

Whether it’s a single statement entry or a home or commercial development wrapped in steel, Zen creates continuity, character, and a point of difference that carries through every elevation and interior space.

Because true luxury isn’t one feature — it’s consistency, intent, and execution.
