Twist-S

By Colab Lighting
Website

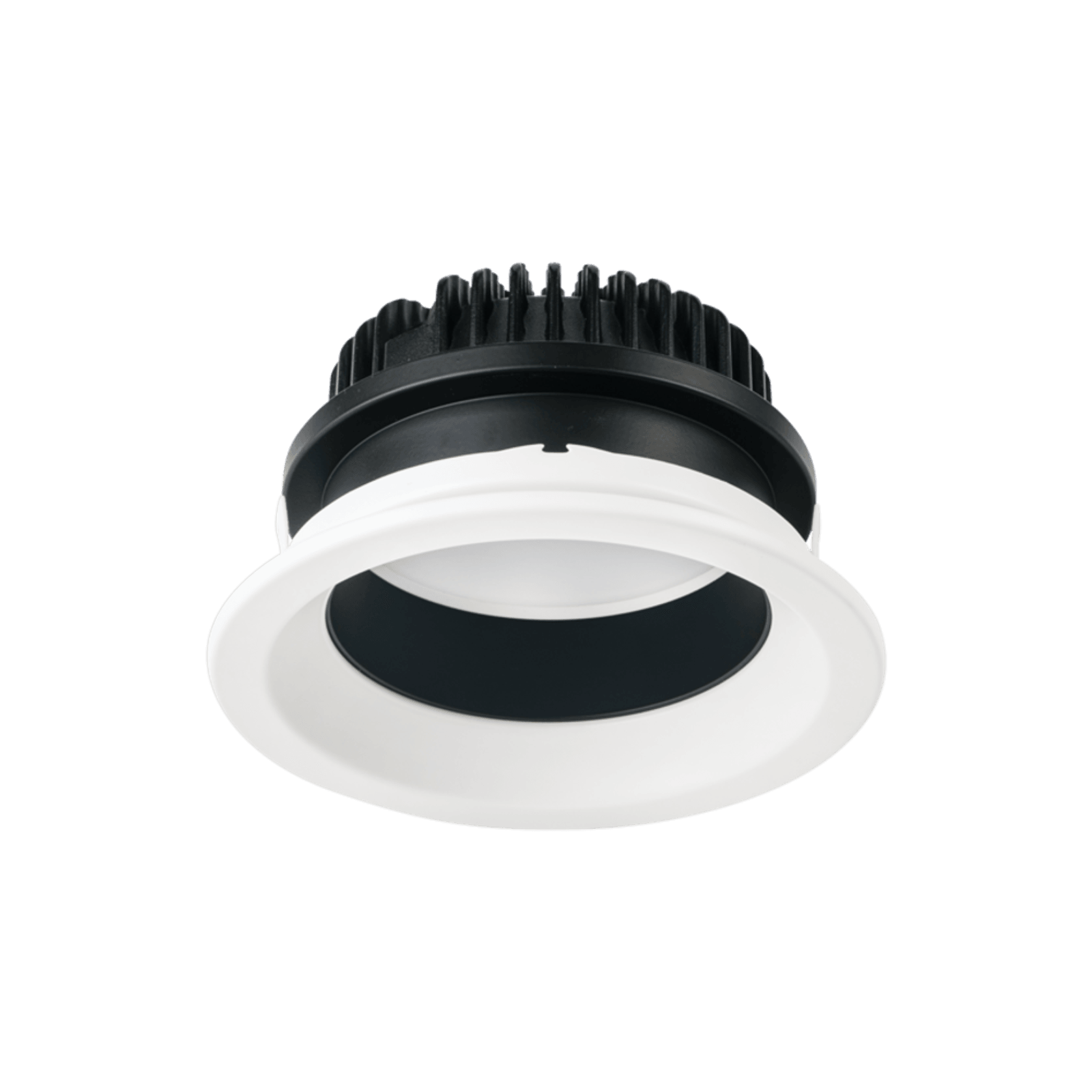

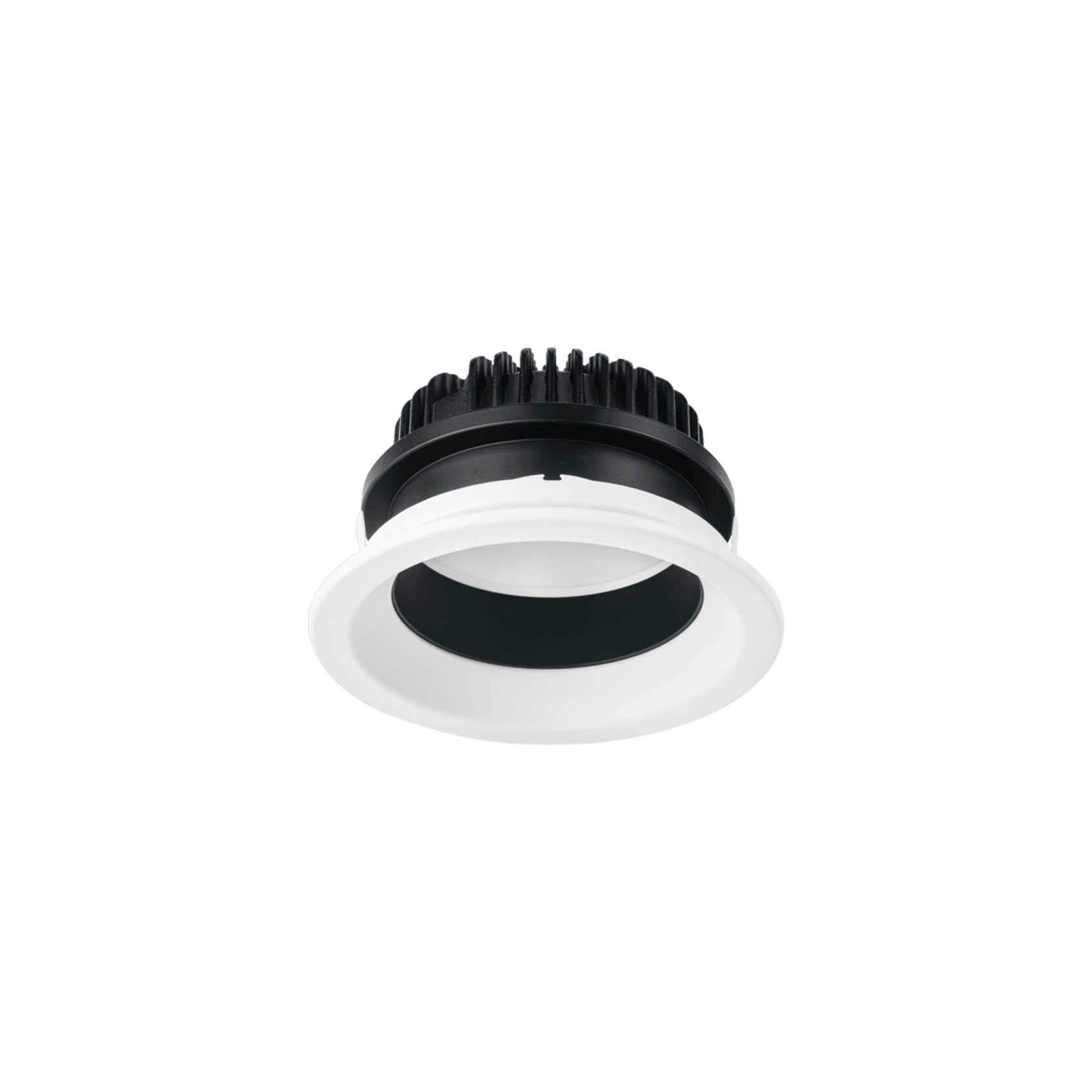

5W / 9W Fixed LED Recessed Downlight

Twist is a modular fixed downlight series with an extensive range of cut-out sizes and wattages and a unique trim twist-lock design that enables versatility and functionality across a range of applications.

Suitable for new builds and ideal as a complete retro-fit downlight solution the Twist LED modules comes in 3 core sizes (small, medium and large) covering a wattage range of up to 40 Watts across the series. Each module has an IP44 rating as standard (IP54 module optional) and comprises interchangeable twist lock trims that adapt to a vast array of pre-existing ceiling cut outs.

The Twist, with its functional twist lock design is constructed of die-cast aluminium, a polycarbonate lens and integrates Osram CCT adjustable LED technology. The Twist luminaire series offers a 5 year warranty.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage:

  • 5W (System)
  • 9W (System)

Luminous Flux:

  • 356-389 Lm
  • 698-785 Lm

Luminaire Efficacy:

  • 75.83 Lm/W
  • 82.42 Lm/W

CCT:

  • CCT Adjustable
  • 3000K
  • 4000K
  • 5000K

CRI: >85

Beam: 100°

Colour Deviation: 3-SDCM

Size:

  • Ø95mm x Height 57mm
  • Ø110mm x Height 57mm

Cut out size:

  • Ø75-85mm
  • Ø80-100mm

Dimming:

  • Mains-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000 Hrs L80 B10

Finish Options:

  • White
  • Black

Warranty: 5 Years

Accessories / Options

Accessories / Options:

  • TWIST-SA
    (Frame size: Ø95mm, Frame Cut-out: Ø75-85mm, Finish: Satin White)
  • TWIST-SB
    (Frame size: Ø110mm, Frame Cut-out: Ø80-100mm, Finish: Satin White)
  • TWIST-S-RING
    Deep-Set ring
