TOPP ACK4 Chain Actuator 230V
by EllisCo
Christchurch, New Zealand
- 152.4K profile views
- 33 saves
TOPP ACK4 Chain actuator 230V DC
- Chain actuator
- Thrust force 300 N
- Adjustable stroke max.400 mm
- 230V DC

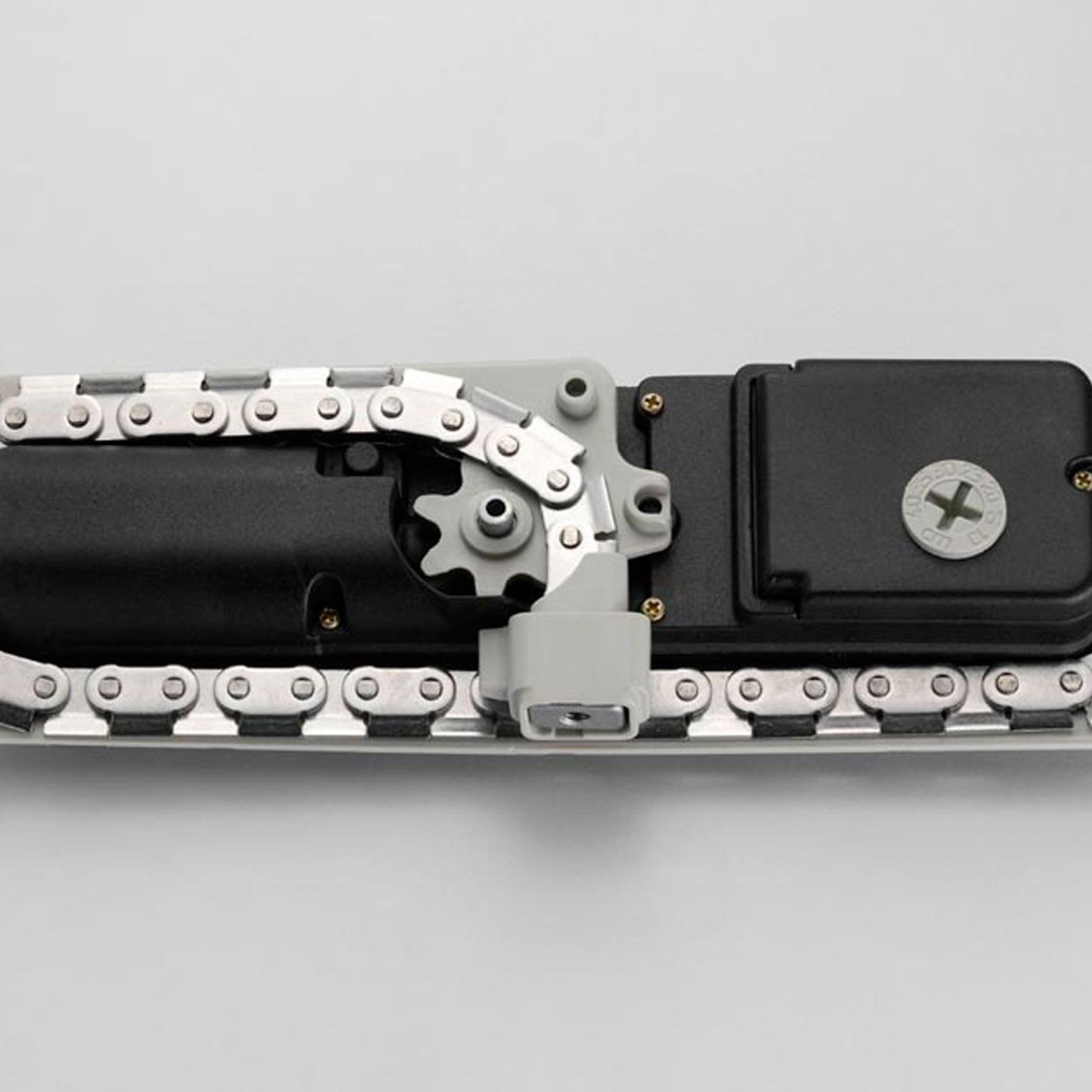

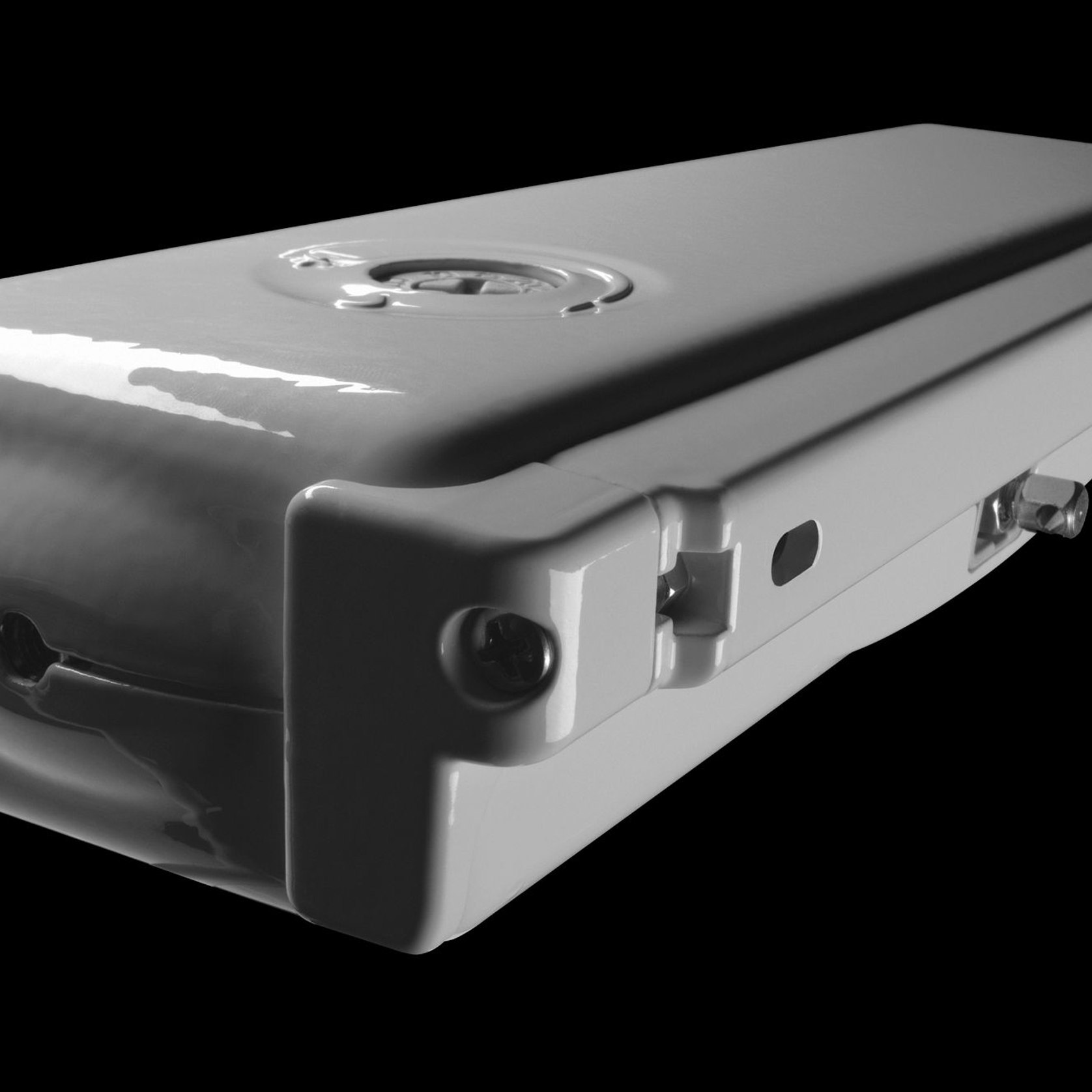

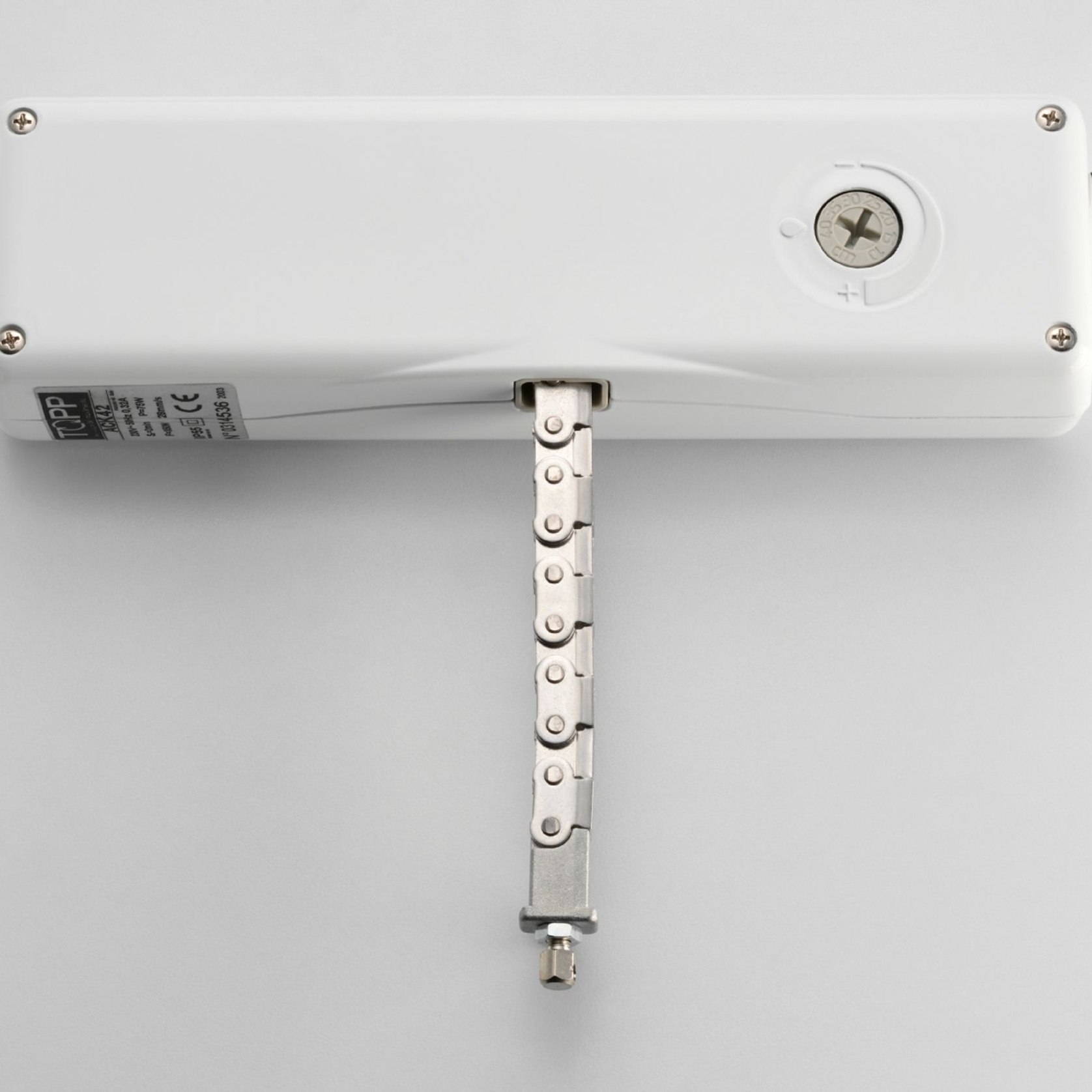

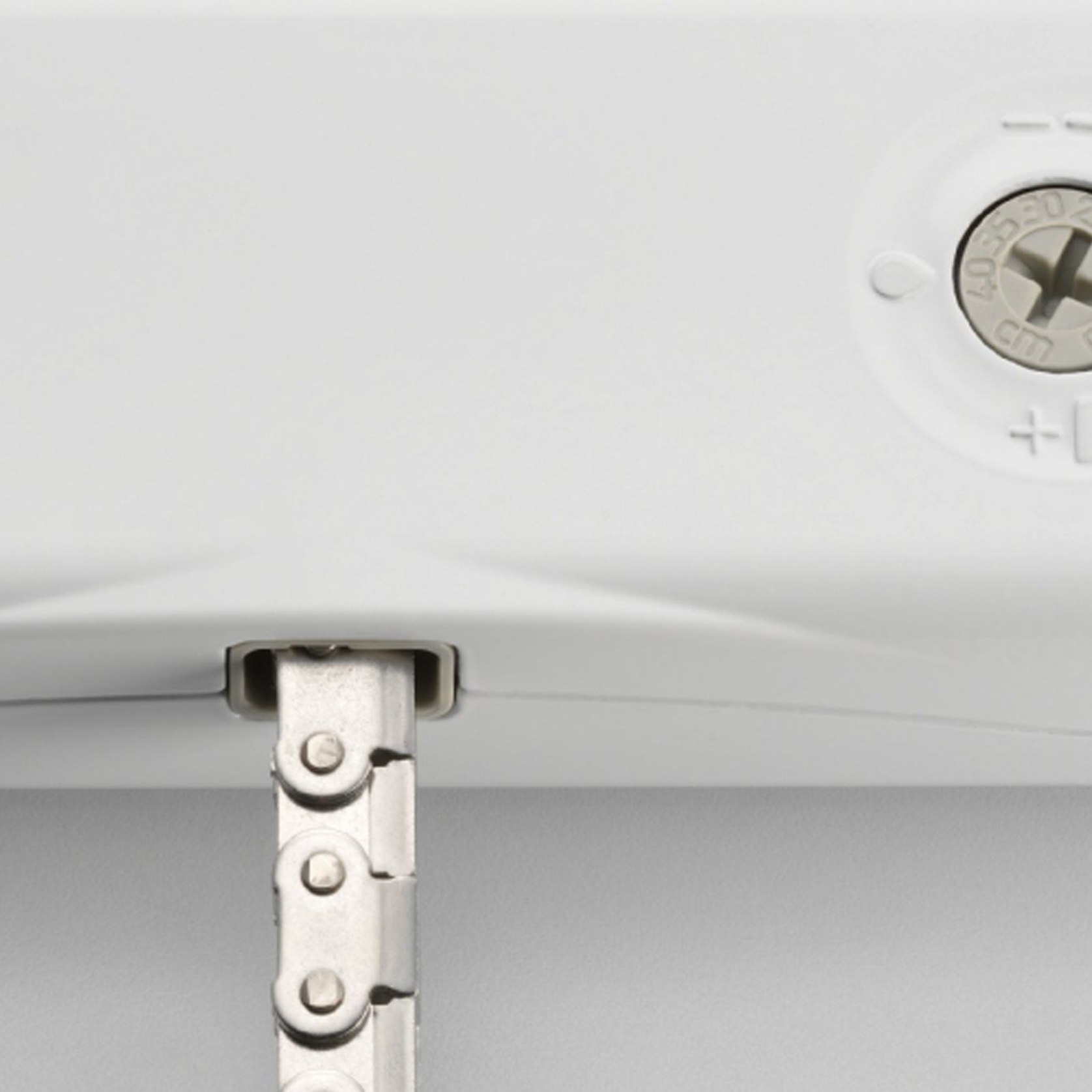

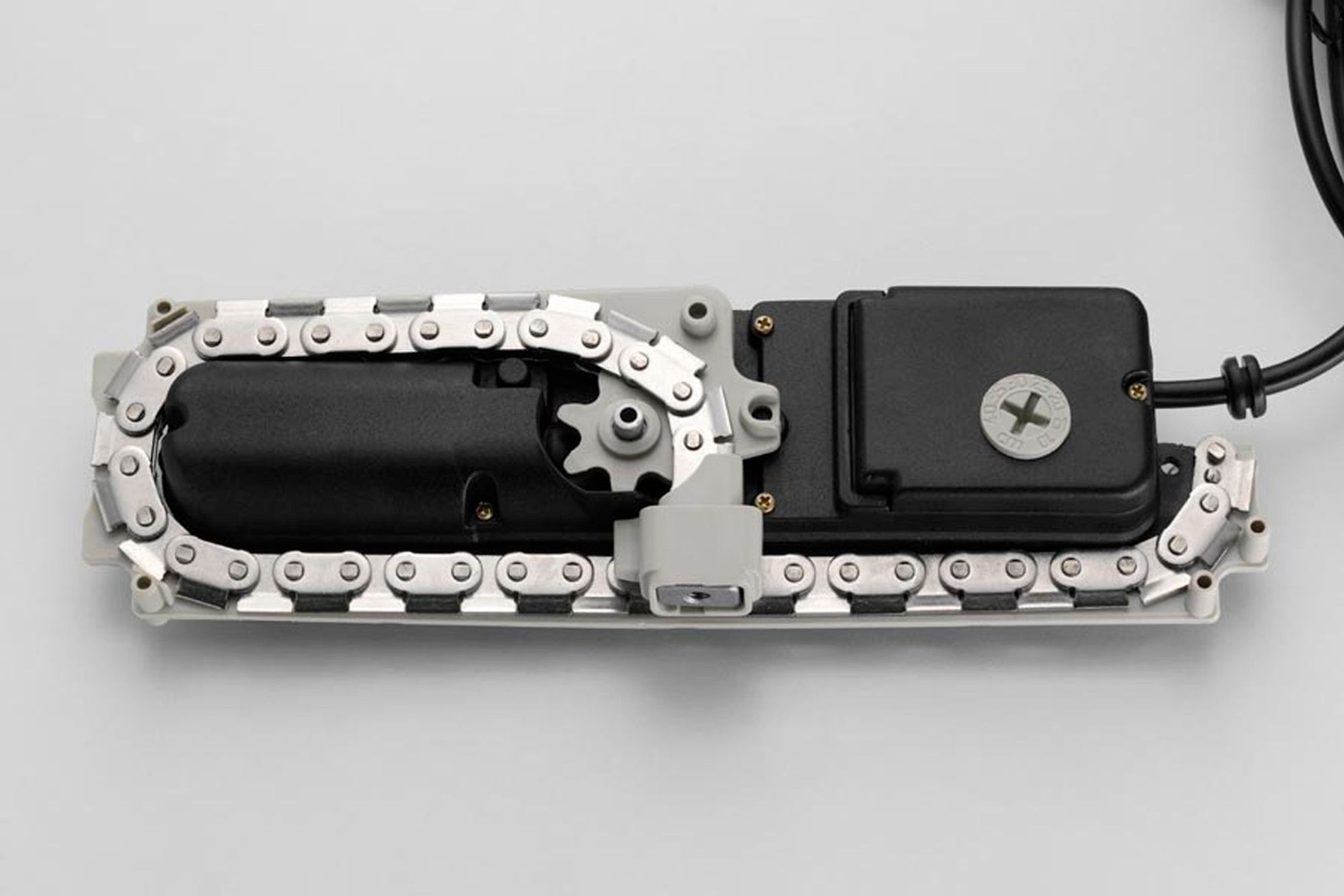

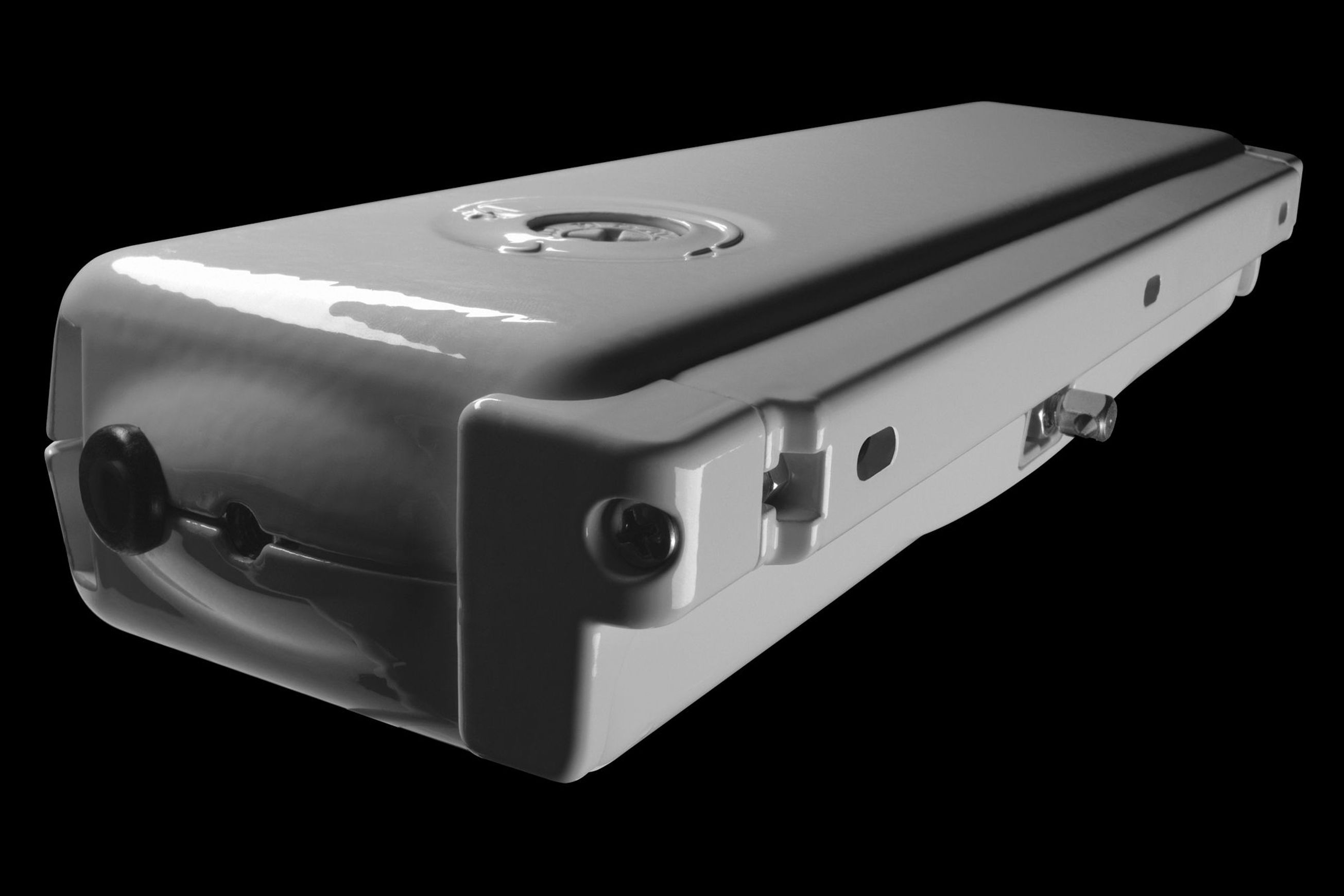

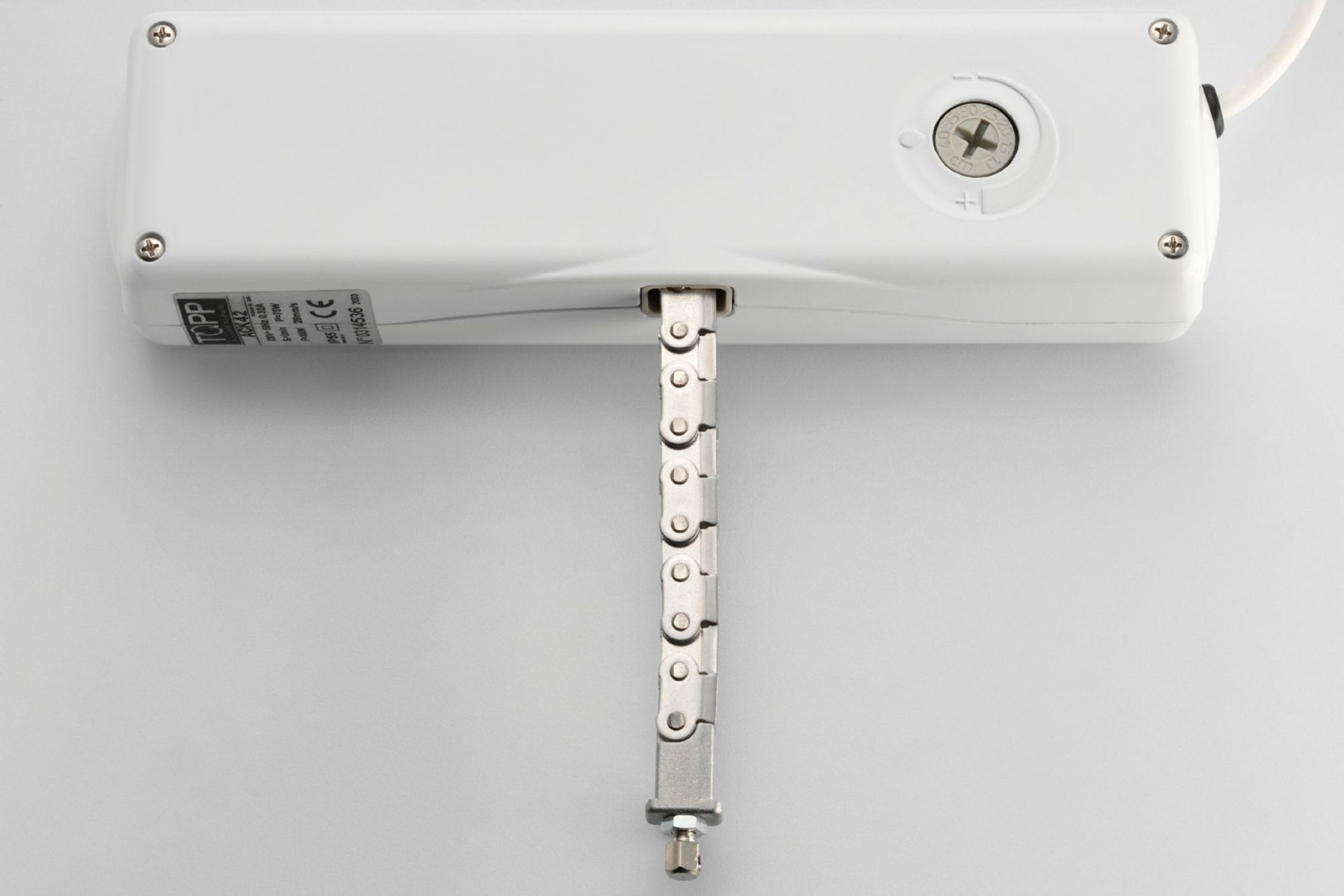

Electric actuator model ACK4 with a double link articulated stainless steel chain, enclosed in a special diecast aluminum casing, painted with epoxy powders, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz. or, as an alternative, at 24V DC. Max. traction and thrust force 300N. End of stroke adjustable at 100, 150, 200, 250, 300, 350, 400 mm by an external knob located on both sides of the actuator. Electronic device with acoustic warning to signal erroneous installation (buzzer). Upon request, a preset “S” version for the synchronous operation of two actuators on the same window is available.
High protection IP 55 rated. Available IP66 version (fixed stroke). CE marked device.
Tags
Product Details
- Product
- TOPP ACK4 Chain Actuator 230V
- Category
- Electronics & Automation
- Sold by
- EllisCo
- Range
- Natural Ventilation
- Brand
- TOPP
- Warranty
- Lifetime
Product Variants
- Colours
- Material
- Size
Product specified by
TOPP ACK4 Chain actuator 230V DC
- Chain actuator
- Thrust force 300 N
- Adjustable stroke max.400 mm
- 230V DC
Electric actuator model ACK4 with a double link articulated stainless steel chain, enclosed in a special diecast aluminum casing, painted with epoxy powders, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz. or, as an alternative, at 24V DC. Max. traction and thrust force 300N. End of stroke adjustable at 100, 150, 200, 250, 300, 350, 400 mm by an external knob located on both sides of the actuator. Electronic device with acoustic warning to signal erroneous installation (buzzer). Upon request, a preset “S” version for the synchronous operation of two actuators on the same window is available.
High protection IP 55 rated. Available IP66 version (fixed stroke). CE marked device.
- Specs / Details
Available in:
SKU: 3A1#000004310 - Black
SKU: 3A1#000004311 - White
SKU: 3A1#000004170 - Grey
- Force 300N.
- Double link stainless steel chain.
- Stroke selectable 100 - 400mm.
- IP55 Rated.
- Diecast aluminium casing.
- Frontal brackets for mounting to transom.
Downloads
Downloads (4)4 Direct downloads • 9 Available on request
Frequently asked questions about
TOPP ACK4 Chain Actuator 230V
The TOPP ACK4 Chain Actuator 230V is supplied by EllisCo. It is also on their website, and you can browse every product EllisCo lists on ArchiPro.
EllisCo does not publish a price for the TOPP ACK4 Chain Actuator 230V on ArchiPro. for pricing, or visit their website.

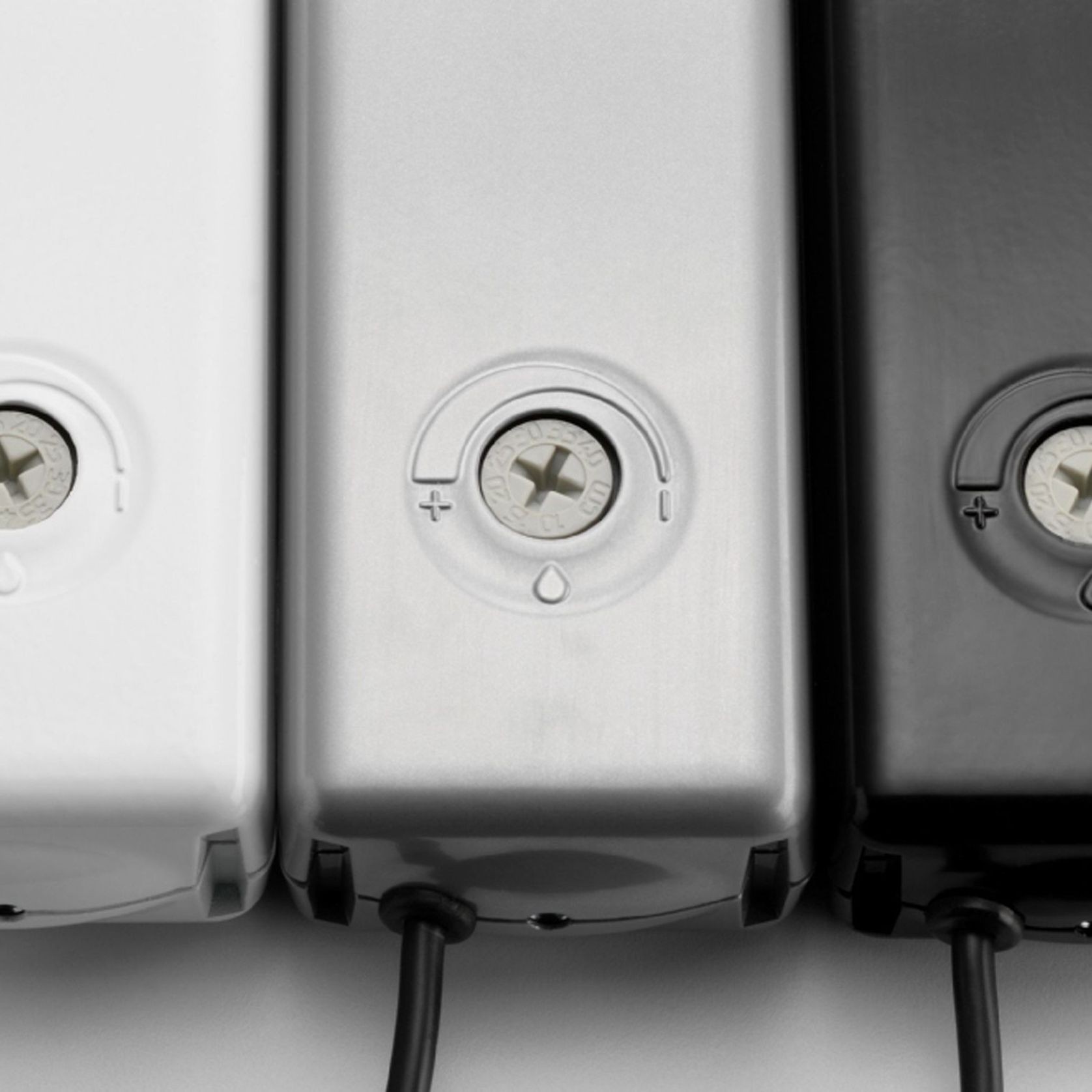

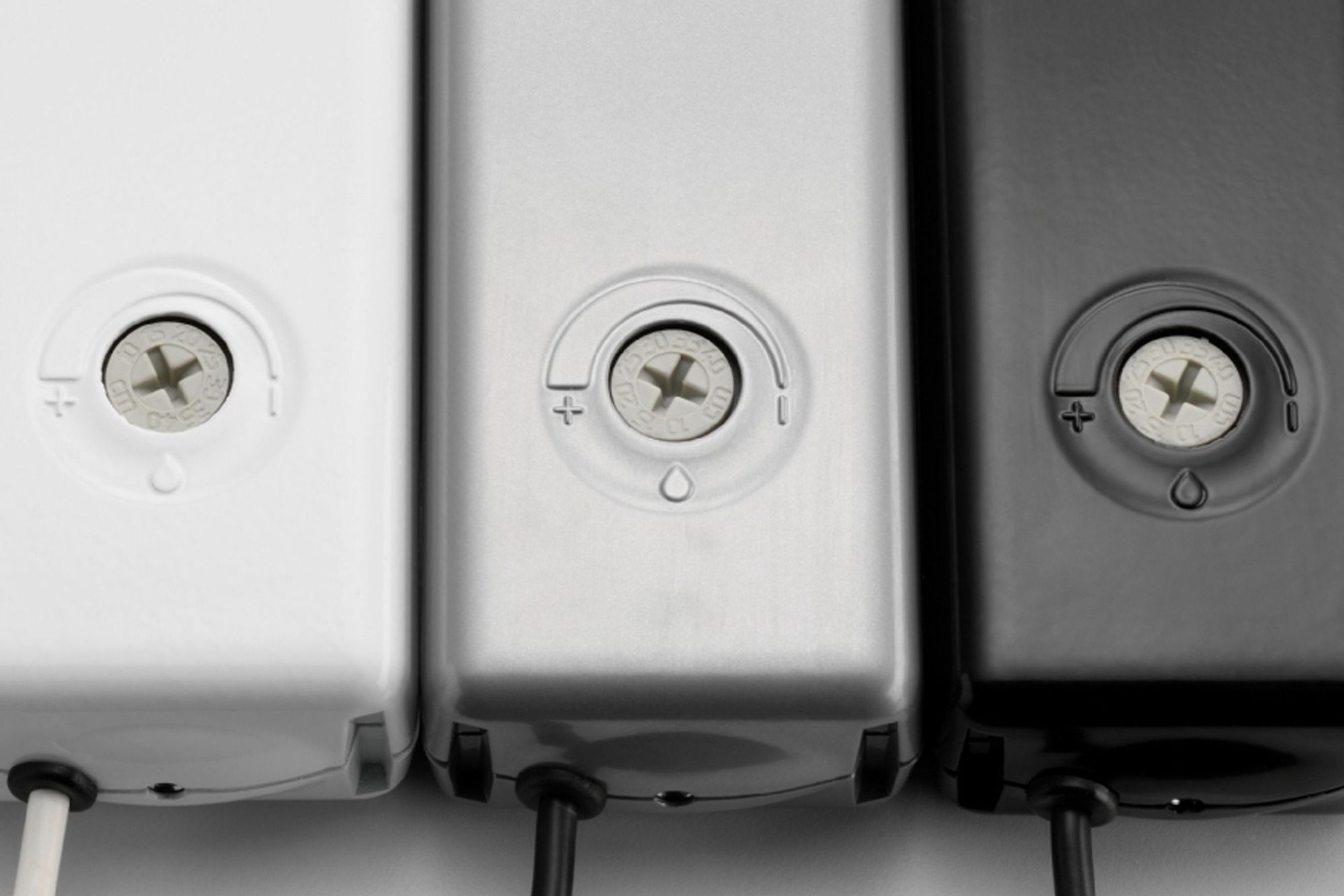

It comes in 3 colour options (Grey, White, Black). Pick one in the row under the description to see it.
