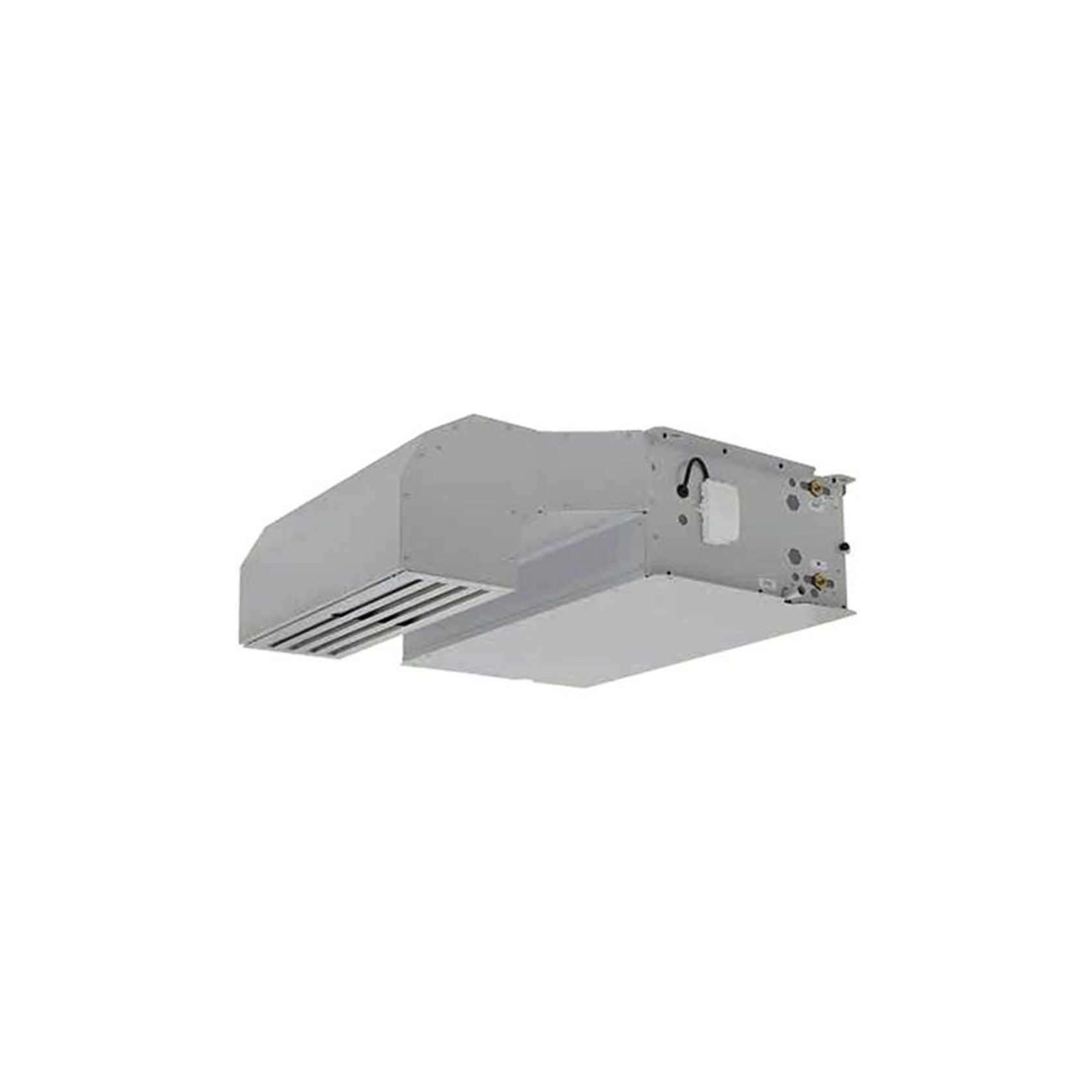

Dropdown ceiling fan coil unit with Coanda air distribution effect.

The Evolution Of The FCU
Fcu Coanda Booster fully complies with the Indoor Air Quality requirements (noise parameters, speed and air turbulence) of modern plants.

FCB is a compact unit easy to install that combines the efficiency and flexibility of the classic fan coil with the comfort benefits of an induction air diffuser. The unit is standard with EC motor and the special plenum with inlet air diffuser with adjustable flaps; FCB works at low temperatures, heat or refresh and manages the humidity in the rooms.

Fcu Coanda Booster is ideal for buildings such as offices, medical facilities and meeting rooms available in three different sizes (600-1200-1800 mm); the airflow is in accordance with Eurovent rules (first class).

Details
  • Category
    Ducted Heat Pump Systems, Split System Heat Pumps
  • Range
    Fan Coil Units
  • Brand
    Aertesi - Italy
Specifications

FCB: comfort, energy saving and efficient use of space.

  • Casing: the panels are manufactured by 1,00 mm galvanized steel. The robust structure avoids vibrations and includes fixing brackets for under-ceiling installation.
  • Access: is provided through a single removable panel, from the bottom side. This panel covers the coil the condensate tray and the fan deck.
  • Filter: it is G1 (EN779), easily removable from the bottom side for cleaning and replacement.
  • Fans: EC brushless motor, with thermic protection. Fans are direct drive, forward curved, double inlet centrifugal type. Impeller housing is manufactured by galvanized steel, impeller is manufactured from aluminum. Motor and impeller are balanced. Motor assembled on rubber antivibrations, motor protection IP20.
  • Coil: is manufactured from 3/8” copper tubes, mechanically expanded in aluminum fins. Equipped with vent and drain valve. Standard handing is right on request left handing. Nominal pressure PN10.
  • Condensate tray: is made by galvanized steel, painted for rust protection. Discharge pipe and all the corners are brazed, to avoid leakage also after a long time. The pan is externally insulated with thermic foam.
  • Insulation: the thermal and acoustic insulation provided is class “1”. In the fan coil body is chemically cross-linked PE, closed-cell, for fire protection; in the plenum supply it is of open cell polyurethane foam resin based on polyester type self-extinguish UL 94 AUHF1 with indented profiling.
  • Supply grille: supply grille is manufactured by aluminum, with four rows of blades adjustable in three positions: left, right and vertical flow.

Fan Coil Booster

  • Centrifugal Fan: Cooling efficiency with water temperature as chilled beam (15/18° C).
  • Environmental Conditions: FCB works with a chilled water systema, and grants high power cooling/heating.
  • EC Brushless Motor: EC Brushless Motor allows accurate and precise regulation of the fan limiting the power of the effective workload, without any useless waste.
  • Easy Drain: Equipped with condensate drain pan.
  • Coanda Effect: Diffusers with Coanda effect.
  • Silent: Noiseless unit with adjustable air diffuser.
  • 100% Of Performance: High energy efficiency and low power consumption of the plants.
  • For False-Ceiling: False ceiling installation.
  • 2/4 Pipes System: Internal exchanger 2 or 4 pipe.
