Solutionair Ventus 150 – Horizontal Ventilation Unit

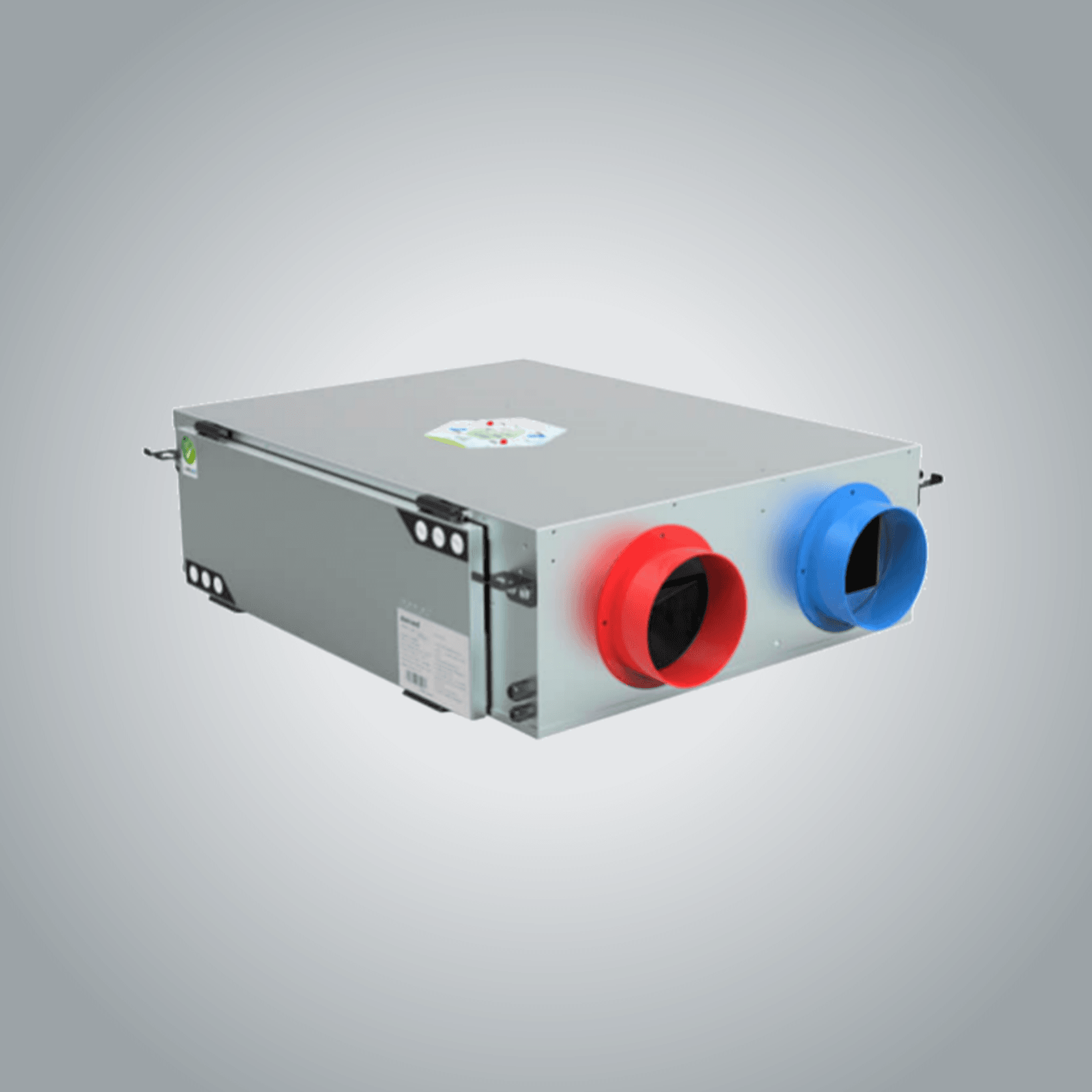

Ventus 150 is a MVHR unit, designed by Solutionair for the New Zealand market which incorporates advanced technologies like crossflow heat-exchanger and EC fans. Its compact horizontal design makes the unit ideal for small roof cavities.

Highlights

  • Compact design
  • Horizontal mounted, side connection
  • Fresh Air for up to 4 rooms
  • Dedicated Bathroom and Kitchen Extraction
  • Summer-Bypass (Free Cooling Mode)
  • 3-step Fan Motors from ebm-papst
  • 2-year warranty
Details
Scope of use

Typical Application

  • Apartments, Tiny Houses, Cabins
  • Auxiliary ventilation unit
  • When only restricted space for unit is available

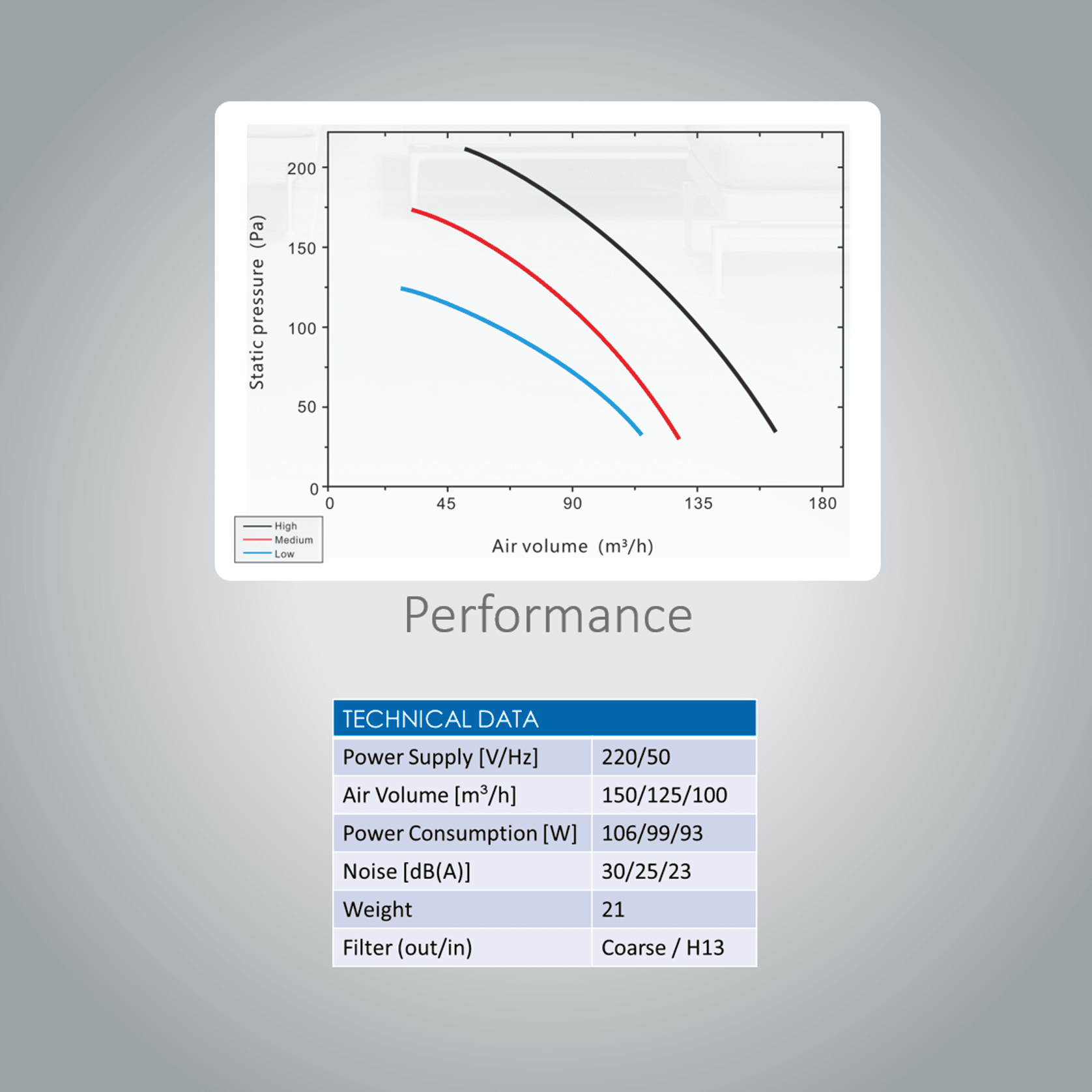

Performance
  • Airflow:​​160 m³/h (max.)
  • Pressure:​​200 Pa (max.)
  • Example: ​Duty point: 120m³/h @ 125Pa / House: 70m² with 2.6m ceiling
    ⇨ approx. 0.66 air changes per hour
Versions
  • Solutionair Ventus 150
In The Box
  • Fan unit

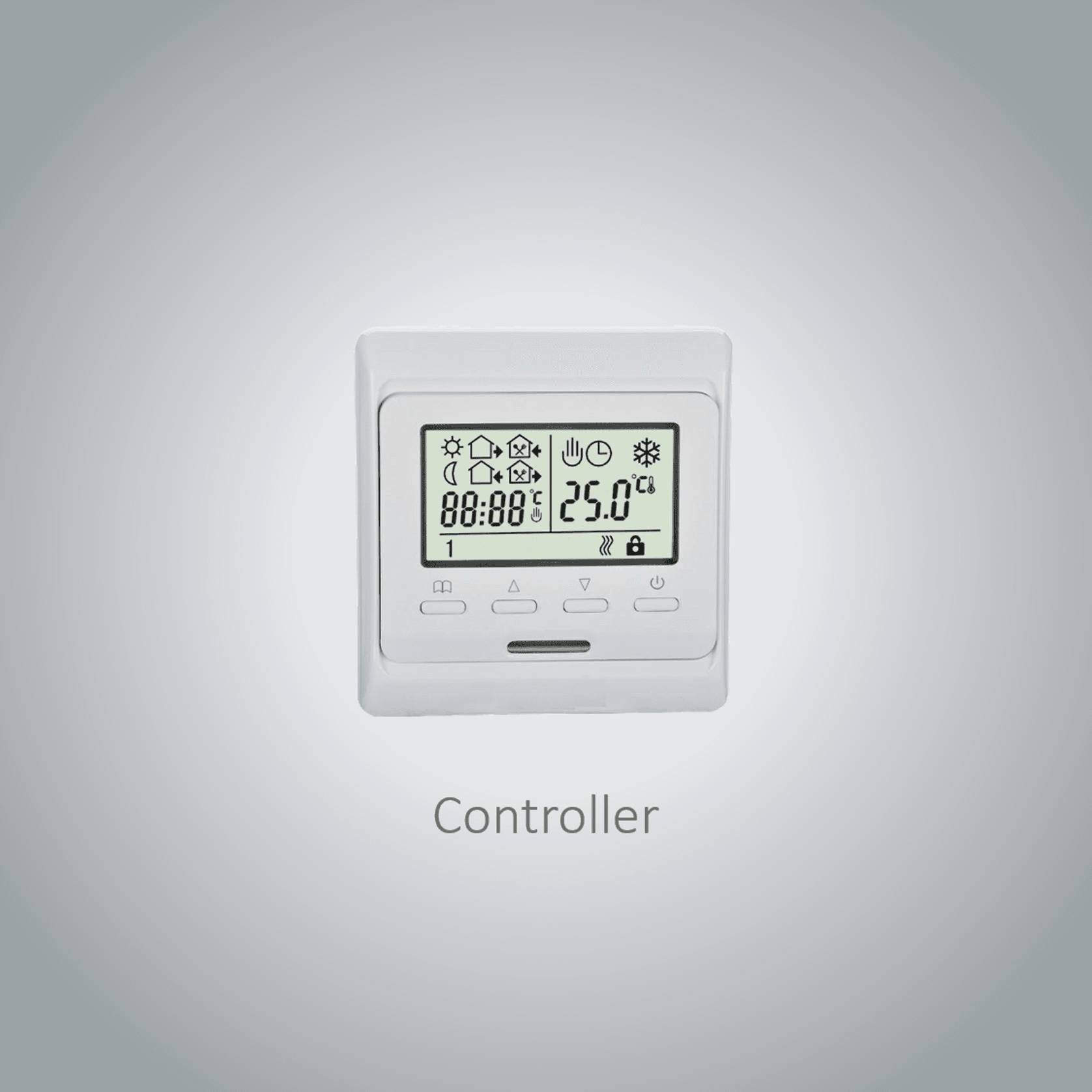

  • Controller
  • User manual

Typically required for installation

  • Tools and consumables (e.g. duct tape and screws)
  • Mounting to hang unit earthquake safe (e.g. steel rods)*
  • Indoor Duct System (insulated Flexduct, 100mm ID)
  • Ducting to outside (insulated Flexduct, 100mm ID)
  • Outdoor grill/ Trade seal*
  • *Check with local council for acceptability
