AMF Thermatex Star Ceiling Tile
by CSR Potter Interior Systems
Auckland
- 404.0K profile views
- 52 saves

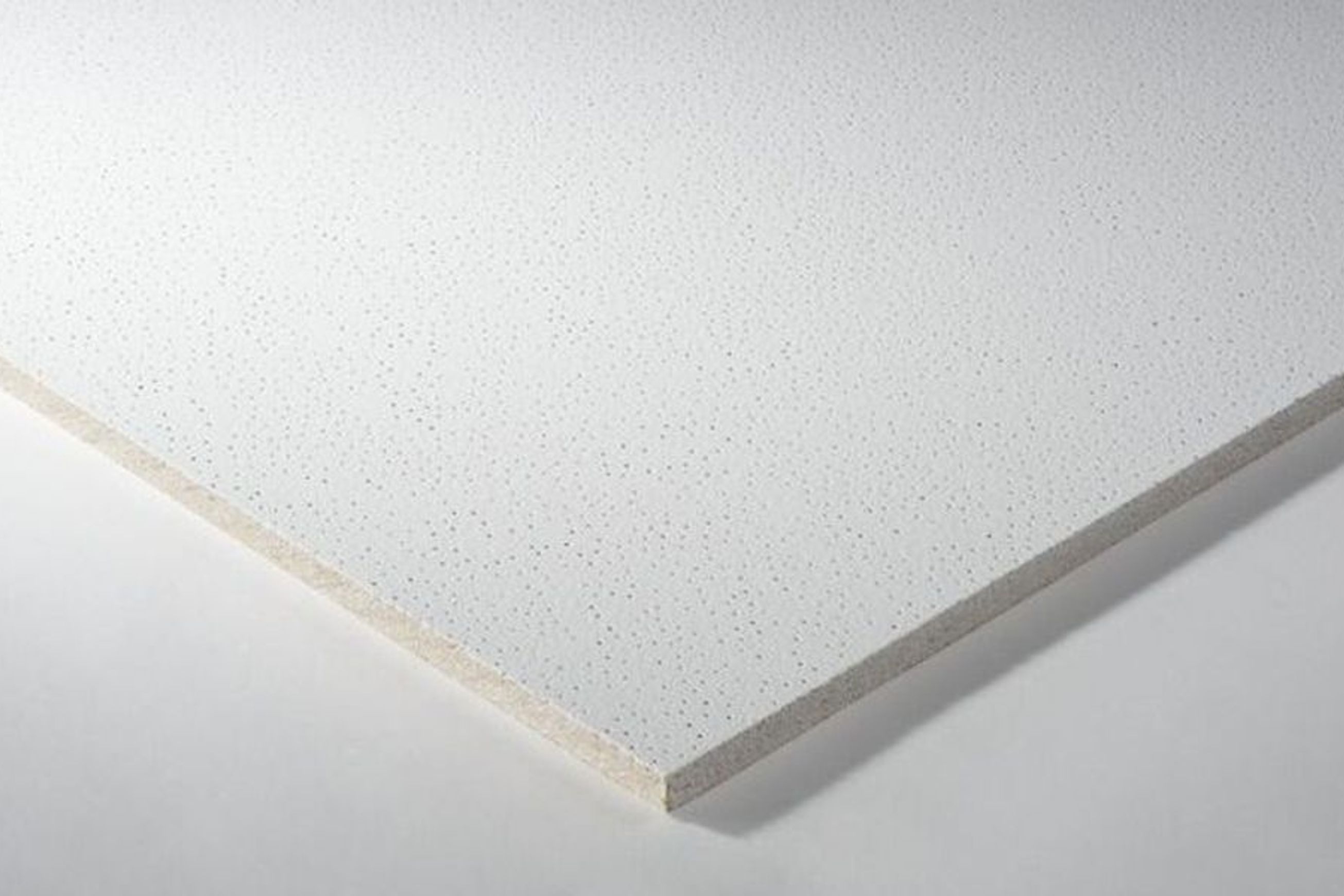

The fine perforation of AMF Thermatex Star Ceiling Tile produces a remarkable acoustic performance and fulfills all fire protection requirements. The very fine, irregular hole structure, on the otherwise smooth surface, forms a striking and elegant ceiling design and fits perfectly into modern, design concepts. Our AMF Acoustic Range carries the Declare label.
Product Details
- Product
- AMF Thermatex Star Ceiling Tile
- Category
- Suspended Ceiling
- Sold by
- CSR Potter Interior Systems
Product Variants
- Colours
- Material
- Size
CSR Potter Interior Systems is specified by
ArchiProArchitects
DLA ArchitectsArchitects
architecture+Architects
Matt Brew ArchitectArchitects
YokeArchitects
Chow:Hill ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Fat Parrot ArchitectureArchitects
T Plus ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
RTA StudioArchitects
Origin HeritageArchitects
SA Plumbing SupplyManufacturers and Suppliers
Premium Golf SimulatorsManufacturers and Suppliers
AD ArchitectureArchitectural Designers
VidaSpace®Manufacturers and Suppliers
Mark Scowen PhotographyPhotographers
Bates SurfacesManufacturers and Suppliers
GS Cayless ConstructionBuilders
Lightforge PhotographyPhotographers
AllegionManufacturers and Suppliers
Prestige Garage DoorsManufacturers and Suppliers
CTRL SpaceInterior Designers
Metro Commercial InteriorsConstruction
New Zealand Green Building CouncilAssociations
Fisher® Windows and DoorsManufacturers and Suppliers
Elevate Architectural TransportablesBuilders
QuantumManufacturers and Suppliers
Bob Burnett ArchitectureArchitectural Designers
Autex AcousticsManufacturers and Suppliers
MnM DesignArchitectural Designers
FortéManufacturers and Suppliers
Resene Construction SystemsManufacturers and Suppliers
VADAInterior Designers
Creative ArchArchitectural Designers
FocusplanInterior Designers
Arc AtelierArchitectural Designers

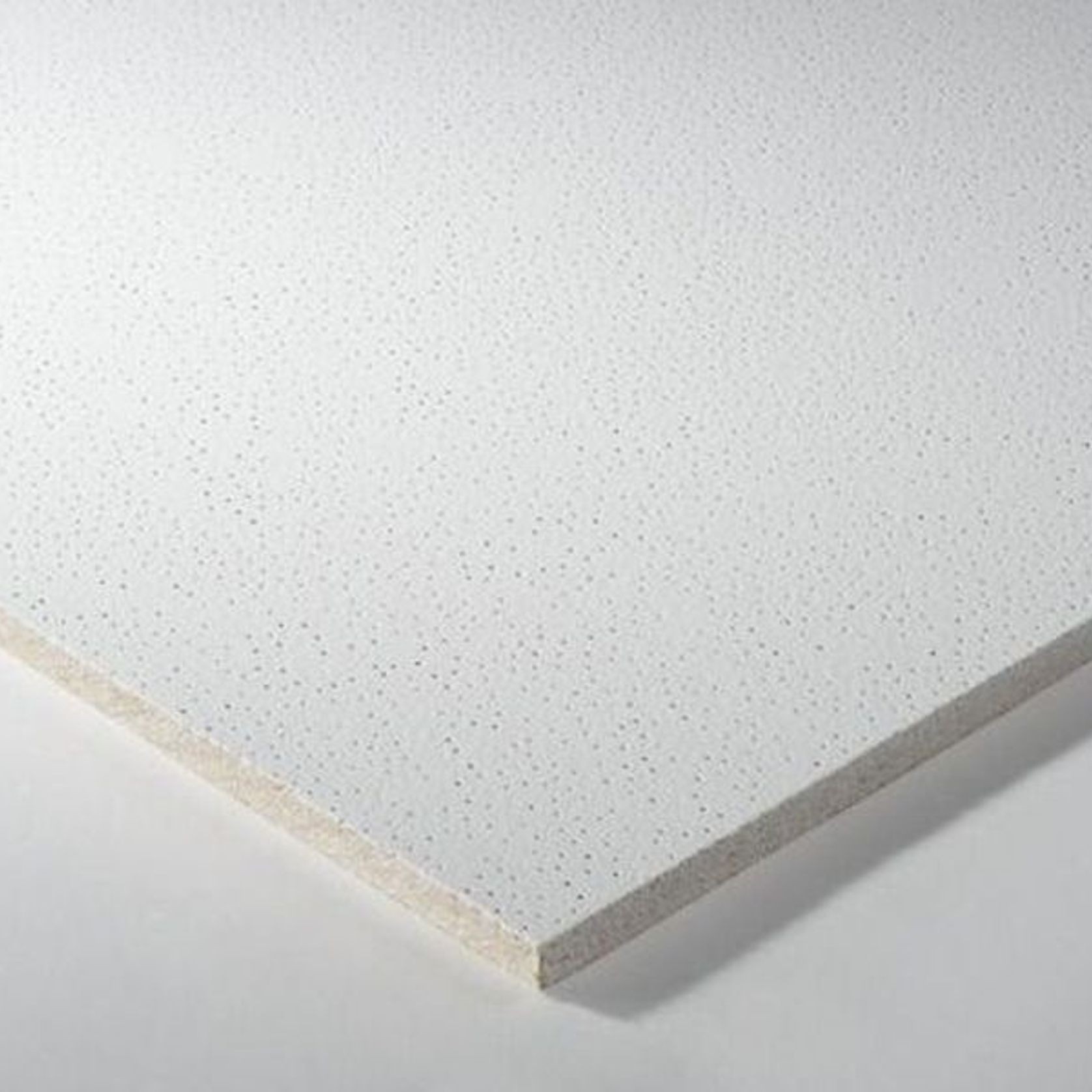

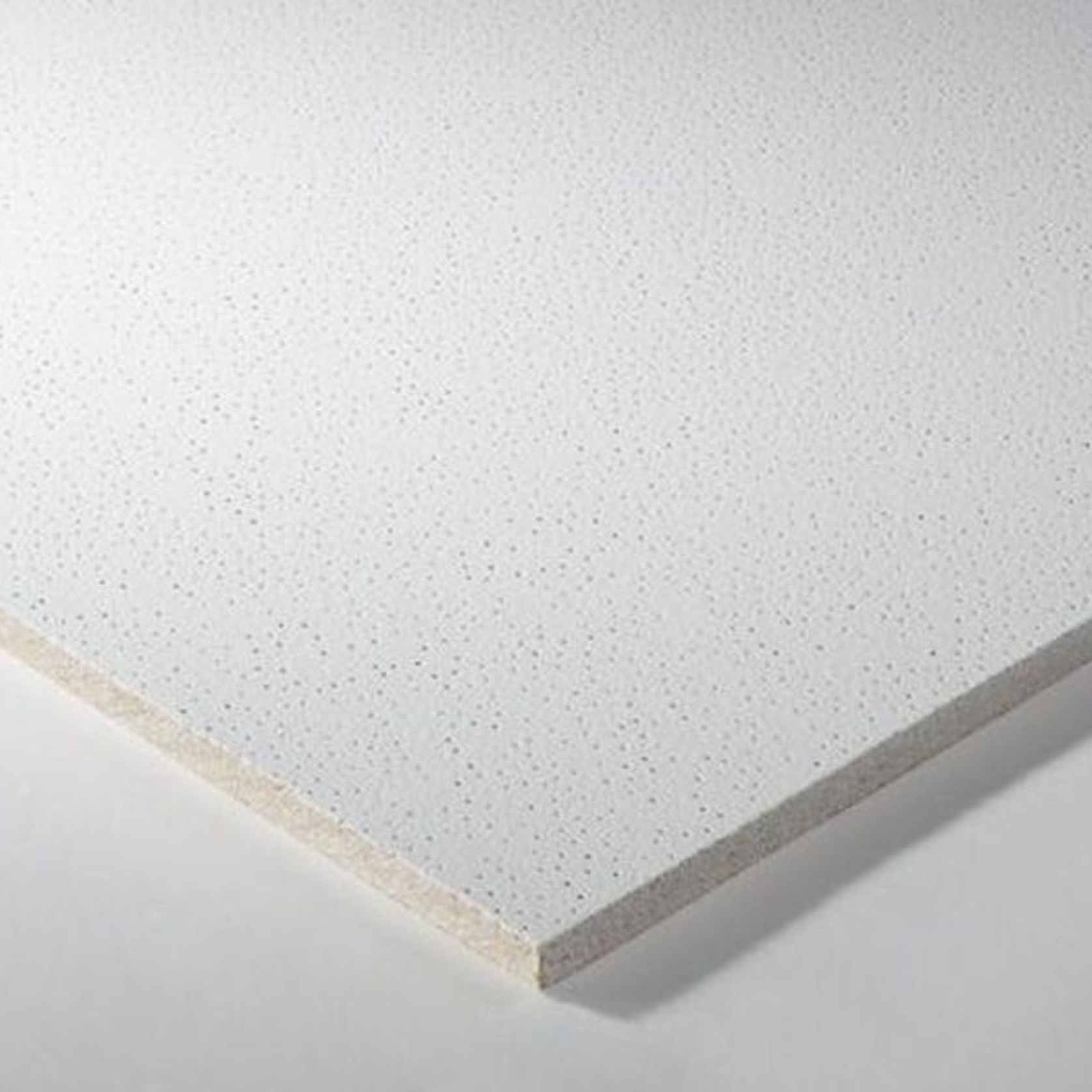

The fine perforation of AMF Thermatex Star Ceiling Tile produces a remarkable acoustic performance and fulfills all fire protection requirements.
The very fine, irregular hole structure, on the otherwise smooth surface, forms a striking and elegant ceiling design and fits perfectly into modern, design concepts. Our AMF Acoustic Range carries the Declare label.
- Specs
- System - Exposed Grid System, demountable ceiling
- Dimensions - 600 x 600 mm, 1200 x 600 mm
- Thickness / Weight - 15mm (c. 3.6-3.8 kg/m²)
- Colour - White similar to RAL 9010
- Edge details - SK, VT 15/24 (*on request)
- Fire Resistance class - F30 - F120 according to DIN 4102 part 2 (according to test certificate)REI30 - REI120 according to EN 13501 part 2 (according to test certificate)
- Building material class - A2-s1, d0 according to DIN EN 13501-01
- Sound absorption - DIN EN ISO 354αw = 0,60 according to DIN EN ISO 11654NRC=0,60 according to ASTM C 423
- NRC - 0.60 as per ASTM C 423
- Sound attenuation - Dn,c,w = 34 dB as per EN 20140-9 (15 mm thickness)
- Light reflectance - For white similar to RAL 9010 glare-free approx. 90%
- Thermal conductivity λ - 0.052 – 0.057 W/mK as per DIN 52612
- Humidity - Up to 95 % RH
