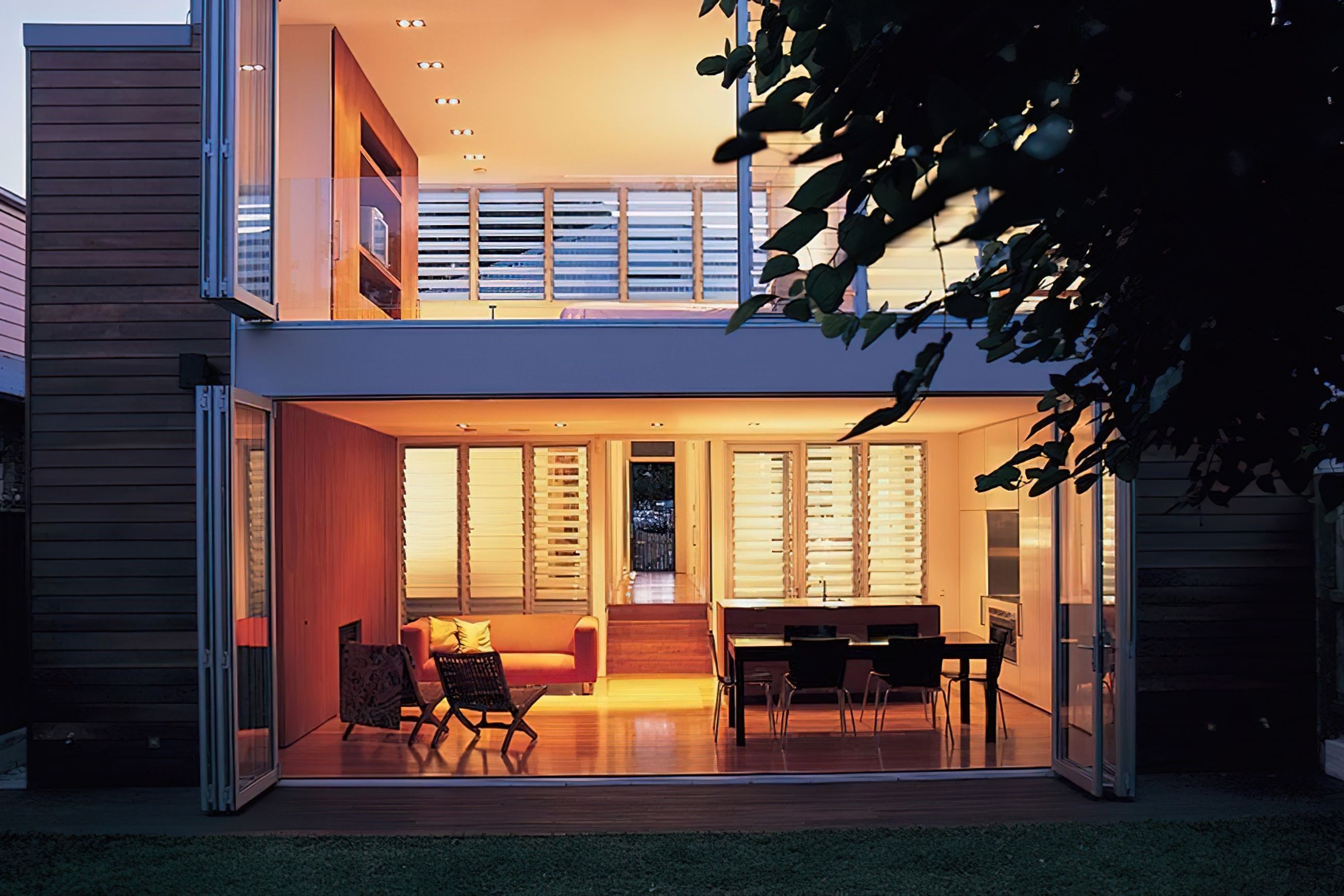

Centor E2 Folding Door System Hardware

Stainless steel

• Max panel weight: 60kg
• Max panel width: 1100mm
• Max panel height: 3000mm
• Min panel thickness: 35mm
• Max number panels: 8 left + 8 right

Aluminium

• Max. panel weight: 40kg
• Max. panel height: 3000mm
• Max. panel width: 1000mm
• Min. panel thickness: 35mm
• Max. number panels: 8 left + 8 right

• Top-hung bifold system.
• Inward or outward opening panels.
• Use with timber or aluminium doors.
• Exterior or interior use.
• Cycle tested to the equivalent of opening and closing panels every day for 40 years.
• Secure E2-based doors with Centor Dropbolts or Centor Twinpoint locks.
• Backed by a 10-year warranty.

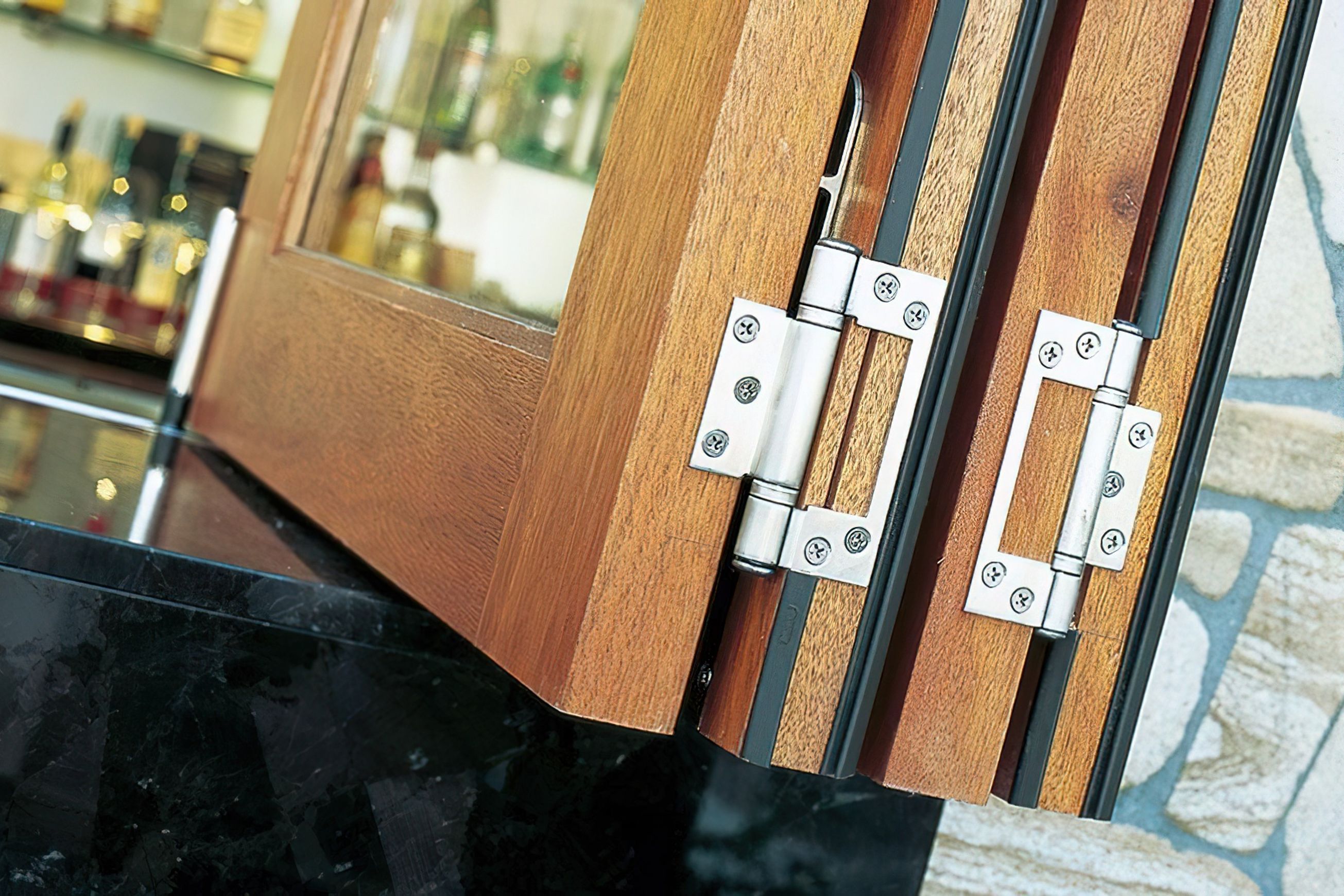

Centor E2 hardware is available with straight or offset hinges. The offset hinge system allows for equal-sized panels regardless of the configuration, ensuring manufacturing is simple. Quick-fix surface-mounted fittings allow for easy assembly.

Offset floor guides and floor pivots allow the guide channel to be concealed beneath closed doors, offering a neat appearance and preventing debris build-up in the channel.

The new Surelock 5 (patent-pending) allows for self-locking vertical adjustment with an 8mm Allen key. To raise or lower the panels, simply insert the Allen key into the end of the carrier to depress the pin and wind up or down. Once adjusted, the new setting is locked into place as the Allen key is removed.

Independent top and bottom lateral adjustment of +/-5mm is possible using a Phillips screwdriver.

Centor E2 hardware is manufactured in architectural-grade stainless steel or aluminium. Carriers, guides, pivots and hinges are available in stainless steel and PVD brass finishes.

Bearings are custom-machined while wheels are individually precision-ground to ensure silky smooth operation.
