The generously proportioned Centor E4 hardware takes bifold innovation into grand-scale commercial and residential applications. Panels of previously unimaginable size up to 4000mm high, framed with the sturdiest materials, move effortlessly aside with ultimate fingertip ease.
Centor E4 hardware can handle the toughest locations imaginable, with bifold doors utilising E4 certified to the most rigorous testing regime in the world – Miami-Dade County hurricane standards.
Product Details
- Product
- Centor E4 Folding Door System Hardware
- Category
- Bifold Doors
- Sold by
- Centor®
- Brand
- Centor
- Warranty
- 10 years
The generously proportioned Centor E4 hardware takes bifold innovation into grand-scale commercial and residential applications.
Panels of previously unimaginable size up to 4000mm high, framed with the sturdiest materials, move effortlessly aside with ultimate fingertip ease.
Centor E4 hardware can handle the toughest locations imaginable, with bifold doors utilising E4 certified to the most rigorous testing regime in the world – Miami-Dade County hurricane standards.
- Specs
- Max panel weight: 160kg
- Max panel width: 1300mm
- Max panel height: 4000mm
- Min panel thickness: 45mm
- Max number panels: 8 left + 8 right
- Features

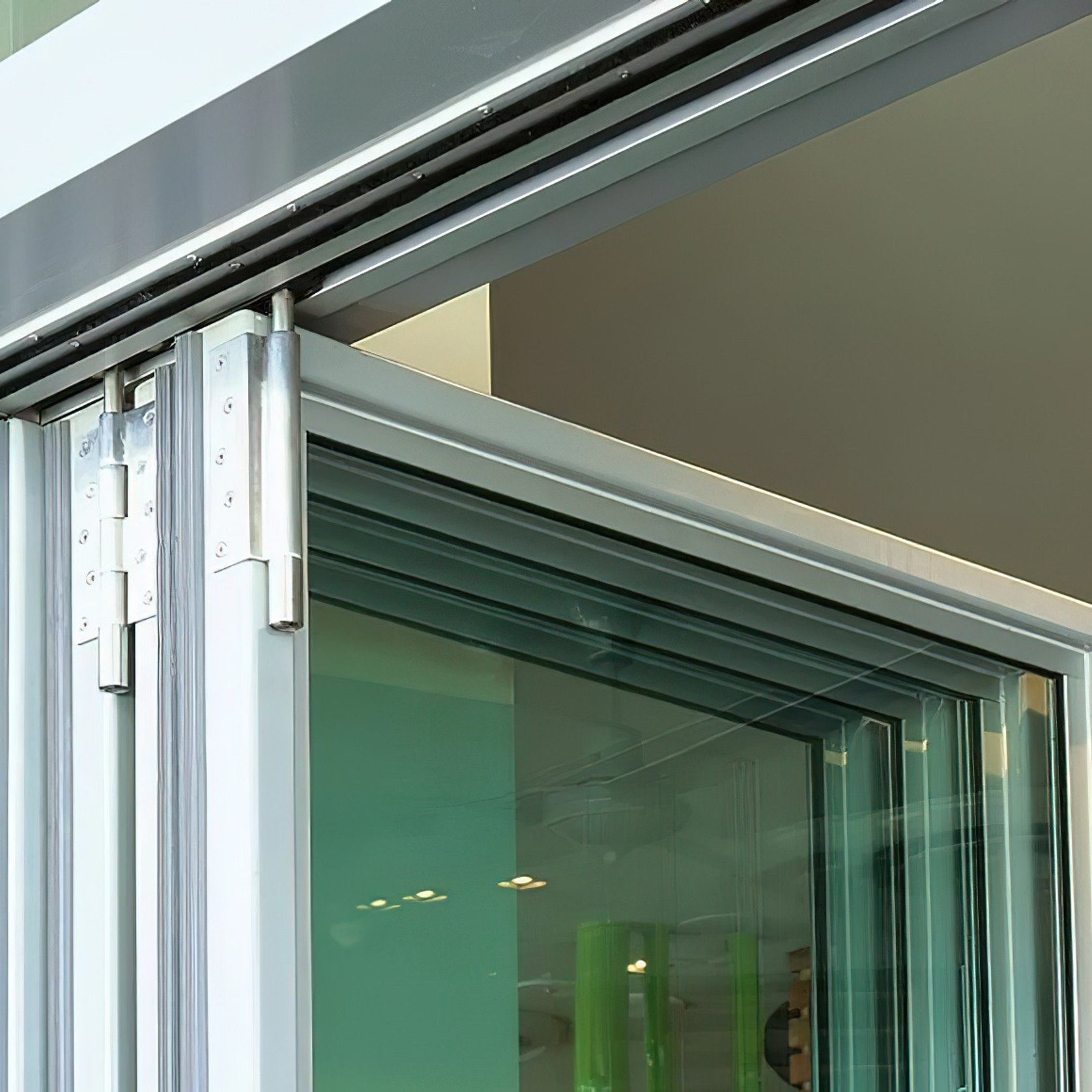

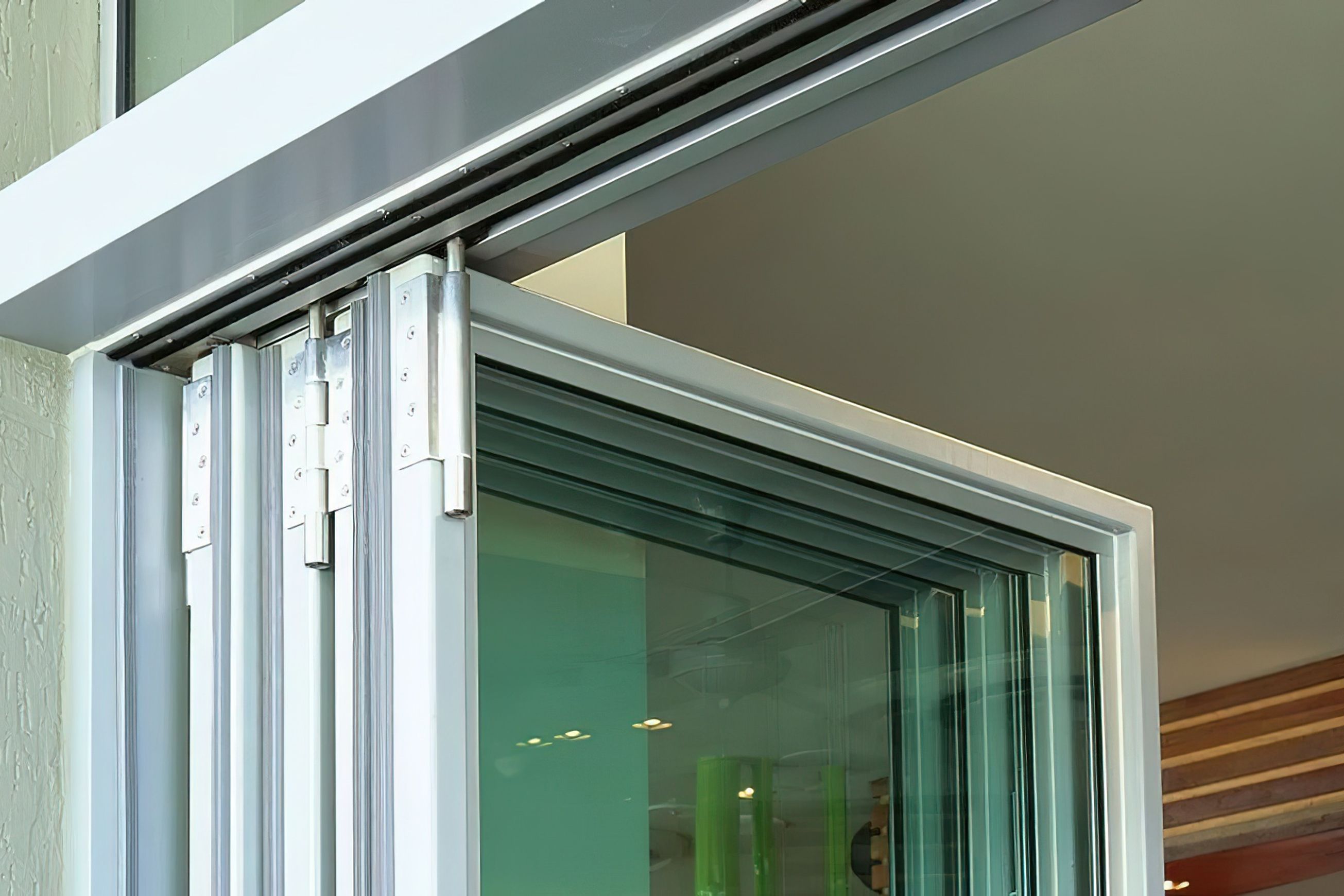

- Top-hung bifold system.
- Designed for extra-large doors in double or triple glazing.
- Inward or outward opening panels.
- Use with timber or aluminium doors.
- Exterior or interior use.
- Extensively tested, including finite element analysis, cycle testing, corrosion testing and weather testing.
- Secure E4-based doors with Centor Dropbolts or Centor Twinpoint locks.
- Backed by a 10-year warranty.
- Simple Assembly
Centor E4 hardware is available with straight or offset hinges. The offset hinge system allows for equal-sized panels regardless of the configuration, ensuring manufacturing is simple.
- Fully Adjustable
Centor E4 hardware features the Surelock 2™ carrier pin locking system – adjust height with a 9.5mm Allen key supplied with all E4 pivot sets. Insertion of the Allen key disengages the self-locking spring latch. Once adjusted, the new setting is locked into place simply by allowing the latch to fall back into the locating slot as the key is removed.
Independent top and bottom lateral adjustment is possible using a Phillips screwdriver.
- Quality Materials

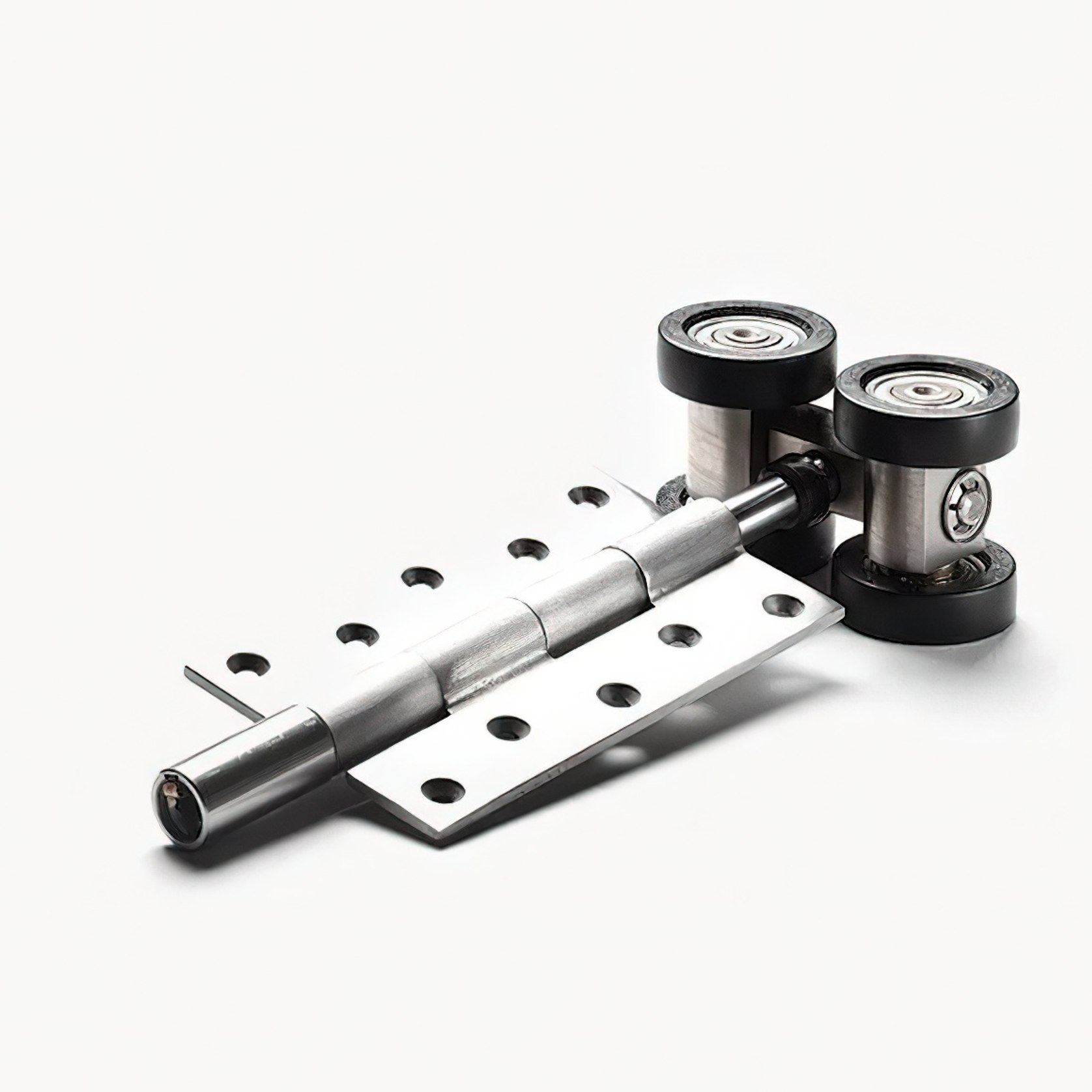

Centor E4 hardware is manufactured in architectural-grade stainless steel. Carriers, guides, pivots and hinges are available in stainless steel and PVD bronze finishes.
Bearings are custom-machined while wheels are individually precision-ground to ensure silky smooth operation.
