Centor ES2 Framing System
by Centor®
Brisbane, Australia
- 35.6K profile views
- 3 saves

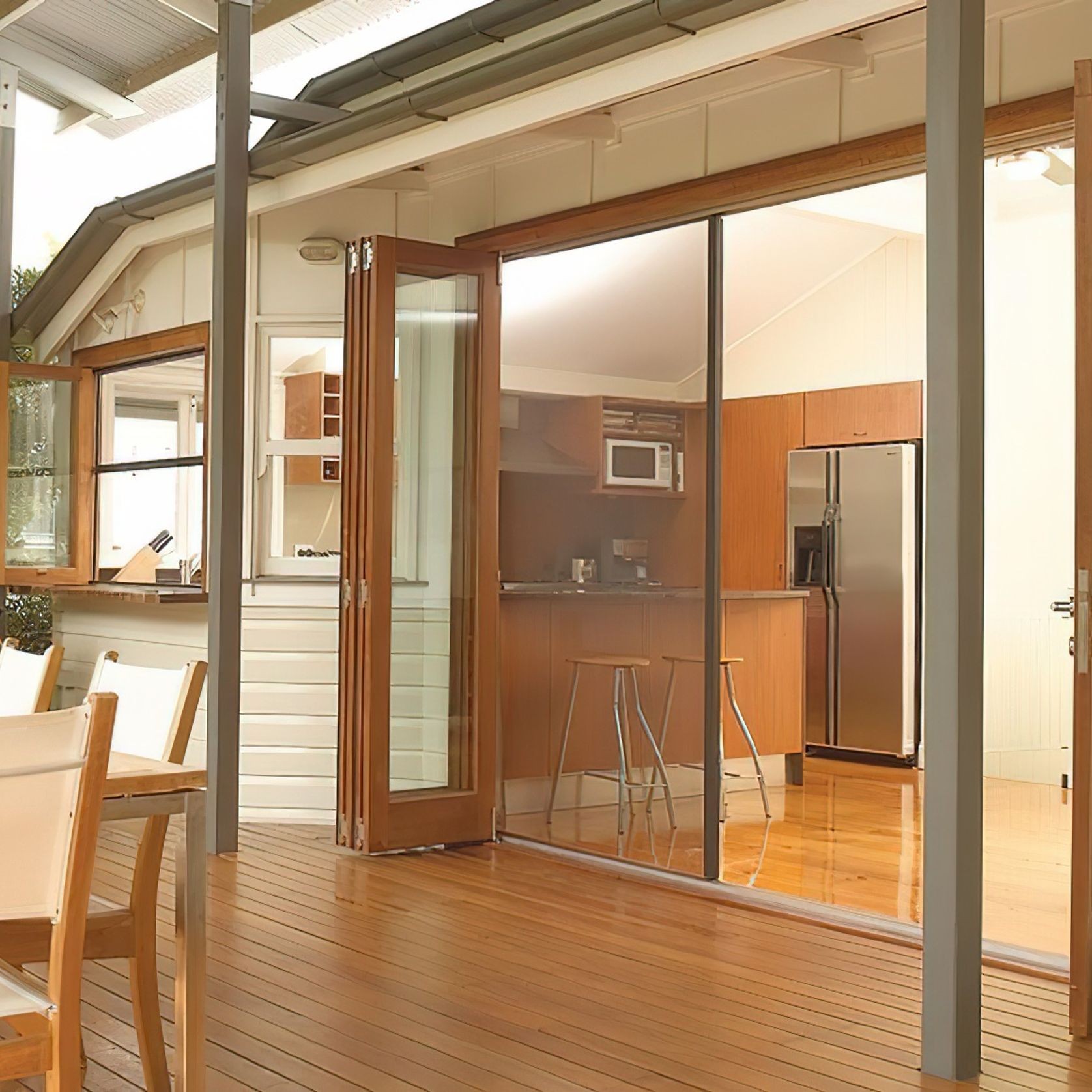

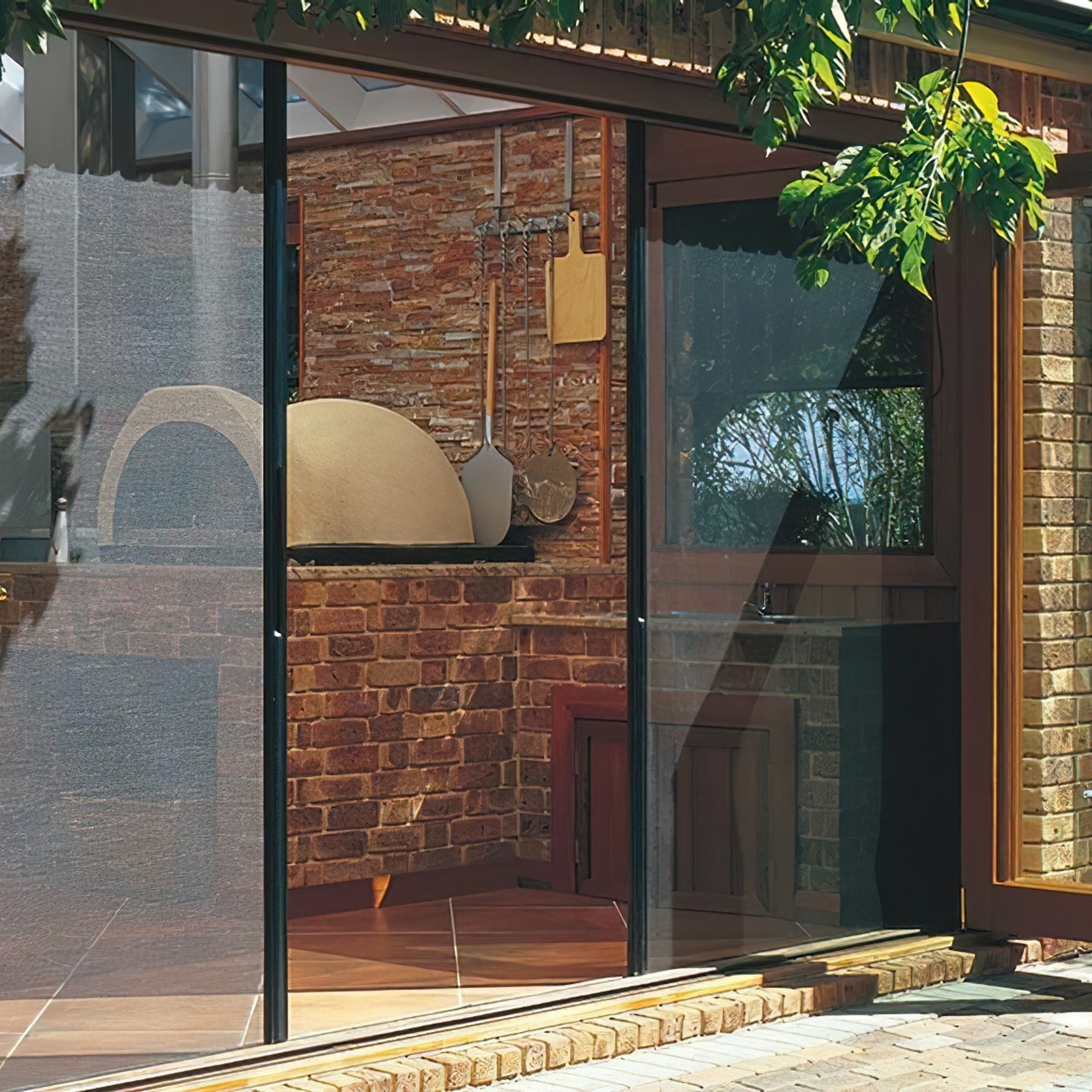

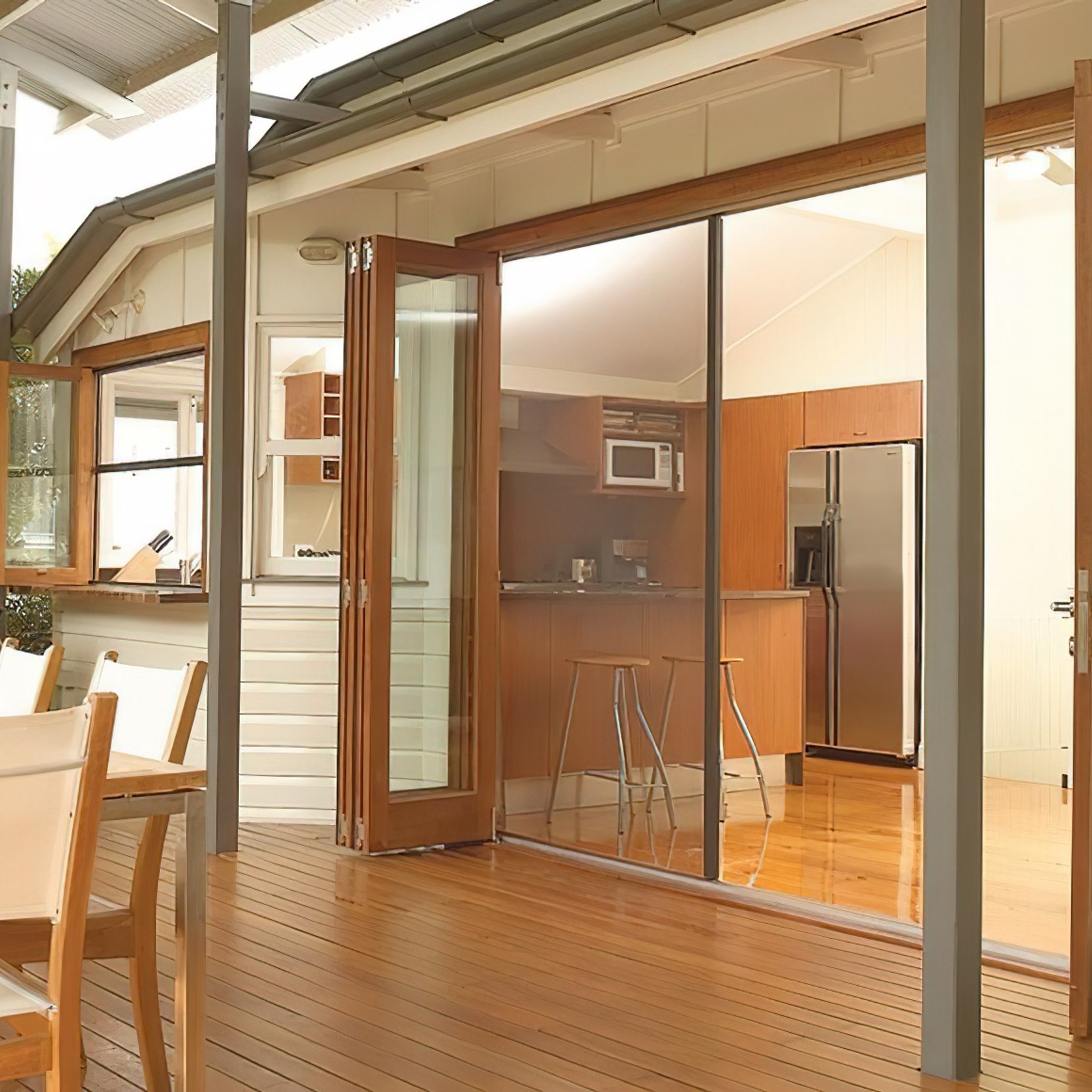

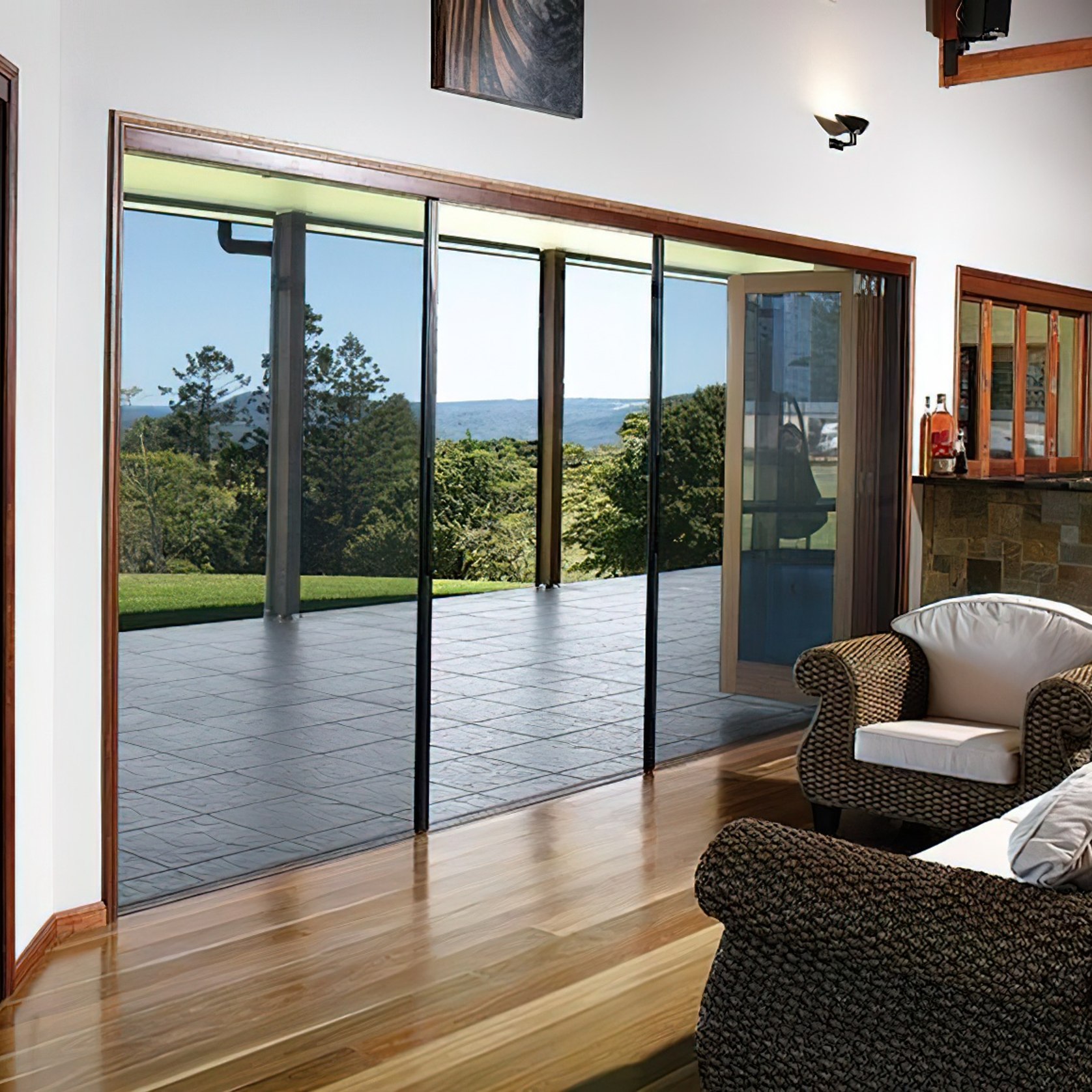

Centor ES2 offers joiners a complete framing system, incorporating award-winning hardware and built-in fly screens. Suitable for openings up to 3000mm high and 5800mm wide, all that is needed to complete the system are quality timber door panels.
Product Details
- Product
- Centor ES2 Framing System
- Category
- Insect and Fly Screens
- Sold by
- Centor®
- Range
- Framing Systems
- Brand
- Centor
- Warranty
- 10 years
Centor ES2 offers joiners a complete framing system, incorporating award-winning hardware and built-in fly screens.
Suitable for openings up to 3000mm high and 5800mm wide, all that is needed to complete the system are quality timber door panels.
- Specs
Stainless steel
- Max. panel weight: 60kg
- Max. panel height: 3000mm
- Max. panel width: 1100mm
- Panel thickness: 38 - 40mm
- Max. frame size – single screen: 2400 (H) x 3000mm (W), 3000 (H) x 2400mm (W)
- Max. frame size – double screen: 2400 (H) x 5800mm (W), 3000 (H) x 4800mm (W)
Aluminium
- Max. panel weight: 40kg
- Max. panel height: 3000mm
- Max. panel width: 1000mm
- Panel thickness: 38 - 40mm
- Max. frame size – single screen: 2400 (H) x 3000mm (W), 3000 (H) x 2400mm (W)
- Max. frame size – double screen: 2400 (H) x 5800mm (W), 3000 (H) x 4800mm (W)
- Features
- Top-hung bifold system
- Outward opening panels
- Screen configurations:Single: a screen extending from one side of the frame across the entire opening up to 3000mm
Double: two screens meeting in the middle of the opening up to 5800mm wide - Load-balancing technology ensures the screen remains in any chosen position until moved aside
- Self-feeding mechanism will feed the mesh onto the roll as the screen is retracted if it blows out of the top or bottom track
- Hardwearing Polyester/PVC mesh can be replaced if required
- Built-in screens are cycle tested to 50,000 operations with exposure to contaminants such as dirt, sand and plaster
- Collision tested with a 17kg punching bag!
- ES2 has been tested to comply with AS 2047-1999 in a NATA certified facility (Test no. AZT0100)
- 10-year limited warranty on the hardware
- 5-year limited warranty on the screen
